Grizzly G0757Z Milling Machine 9" x 39" 3 HP Variable-Speed Horizontal Vertical Mill with DRO New
Product Overview

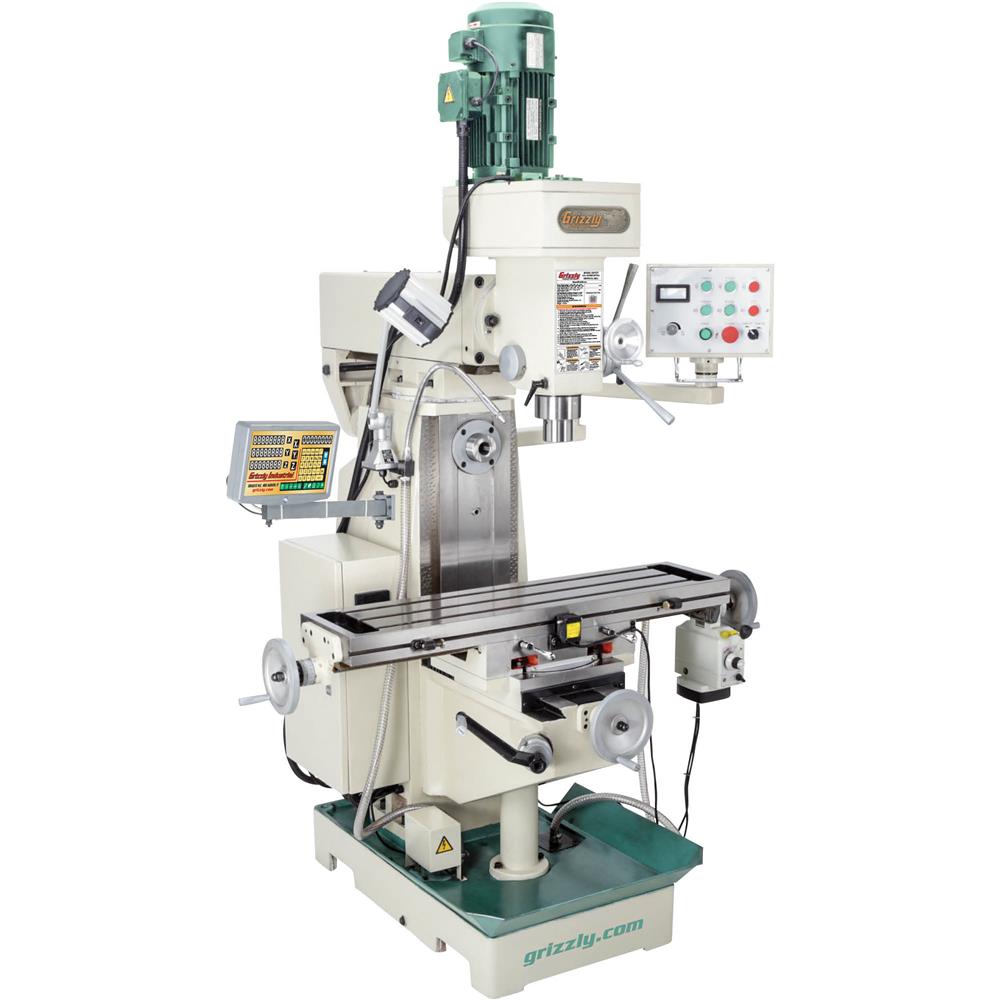

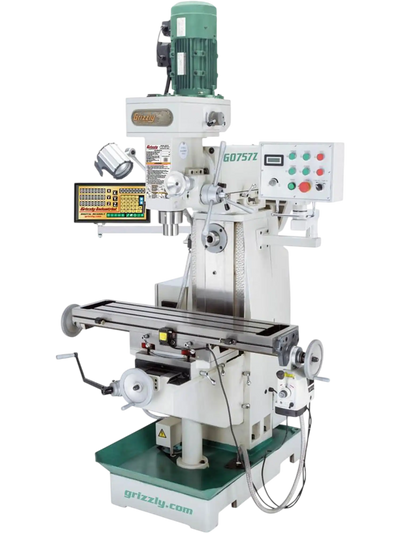

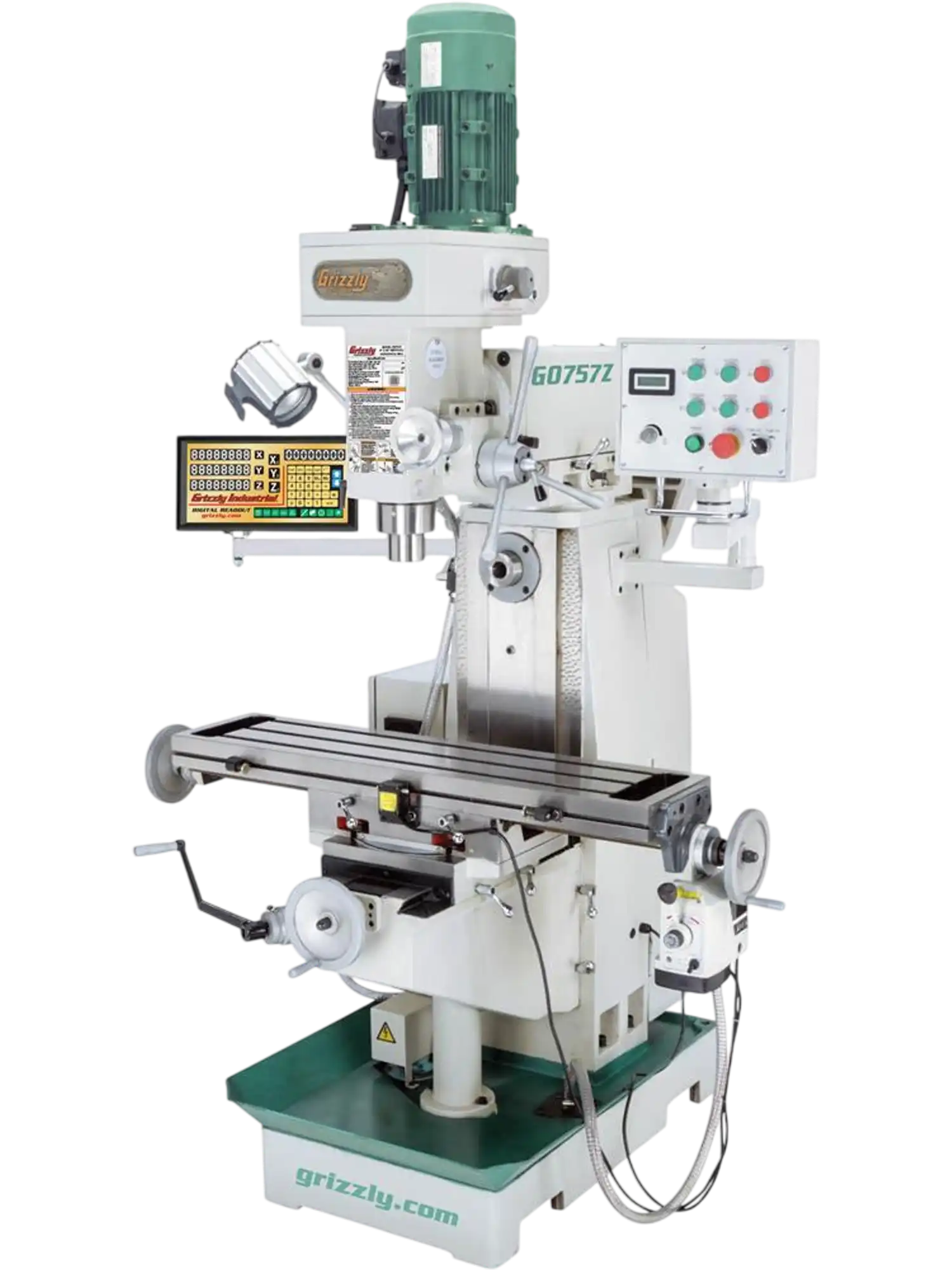

The Grizzly G0757Z is a 9" x 39" horizontal/vertical milling machine built for demanding metalworking in fabrication shops, maintenance departments, and serious machine environments. With dedicated motors for both the vertical and horizontal spindles, it gives users the flexibility to handle a wide range of milling operations on one machine.
Electronic variable-speed control with a digital RPM readout helps deliver smooth, high-torque performance, while the 3-axis DRO supports accurate positioning and repeatable results. The machine also includes a longitudinal power feed, built-in coolant system, LED work light, and wide spindle speed ranges to support everything from slower heavy cuts to faster finishing work.

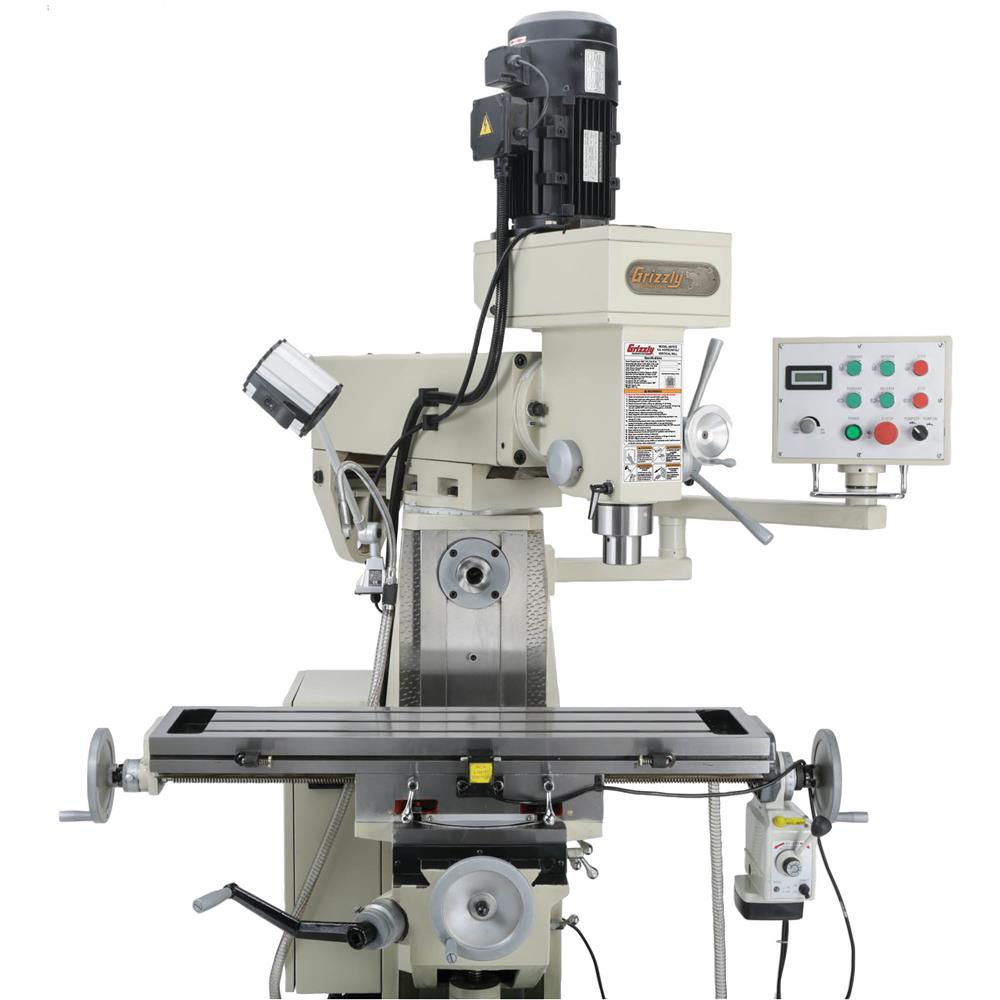

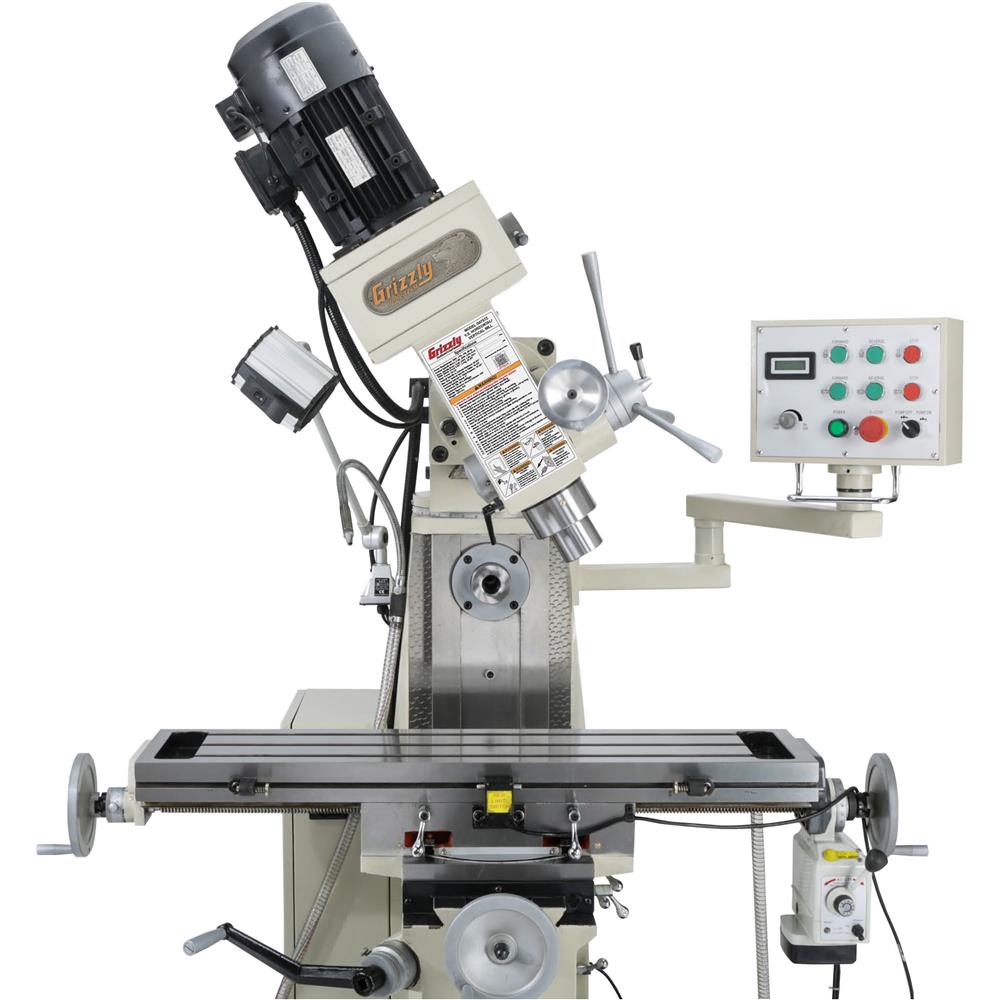

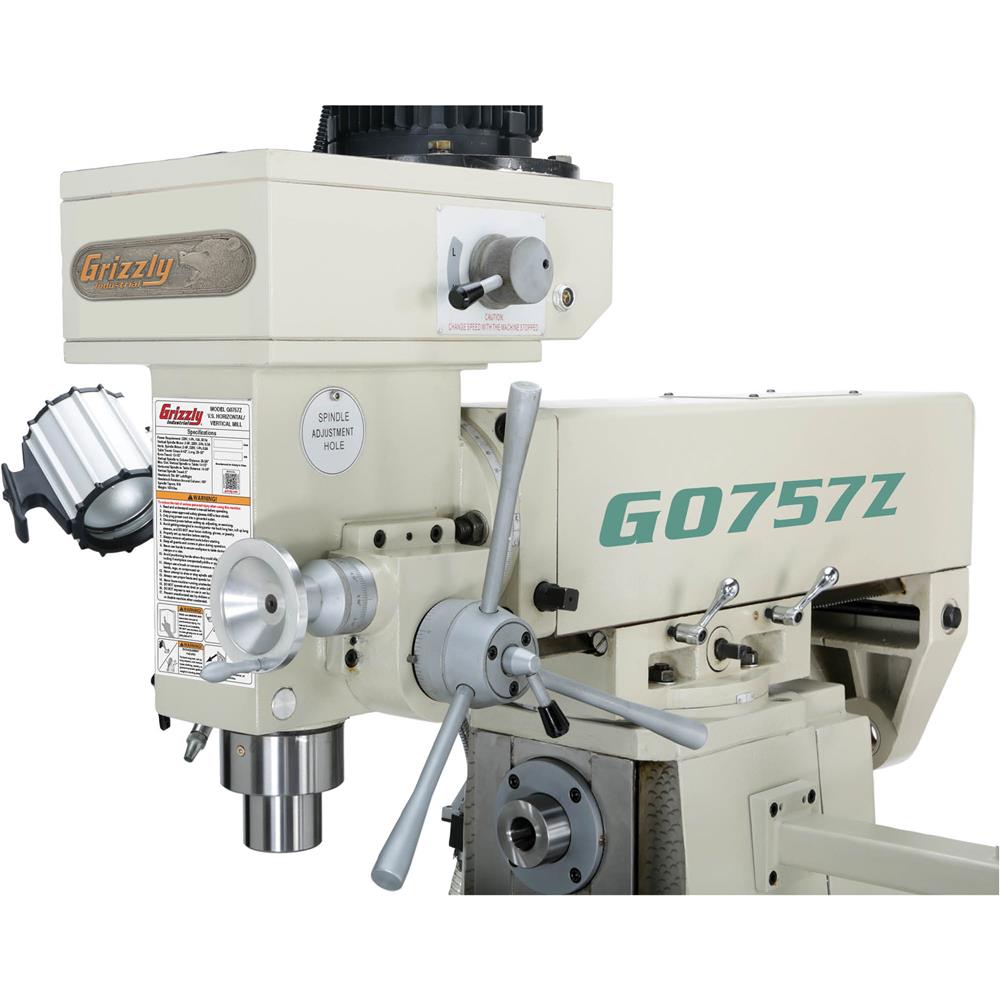

A swiveling and tilting head, rotating table, and horizontal setup capability make this mill a strong choice for machinists who need versatility without stepping up to multiple dedicated machines. It is well suited for users who want substantial capacity, precision-focused features, and the convenience of both horizontal and vertical milling in one footprint.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

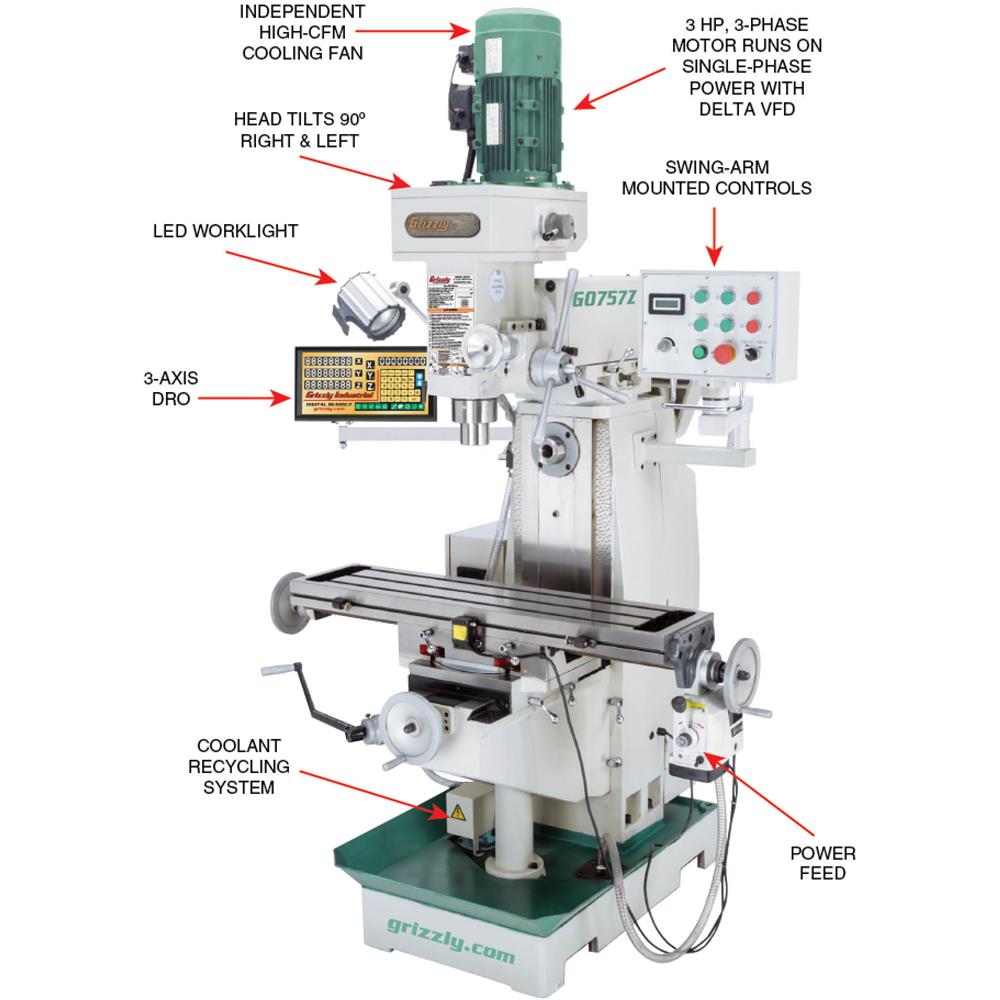

Features
- Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
- Variable-speed spindle control with digital readout for spindle RPM
- 3-Axis DRO

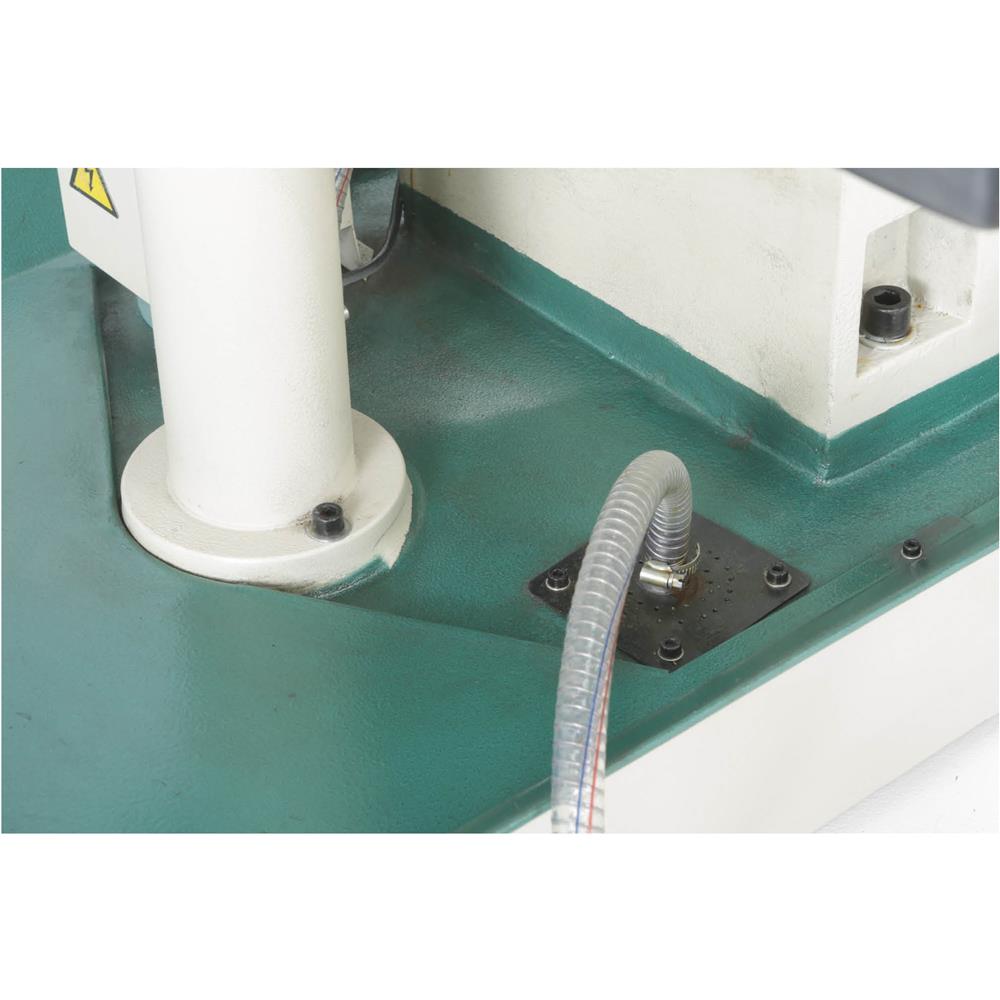

- Recycling coolant system

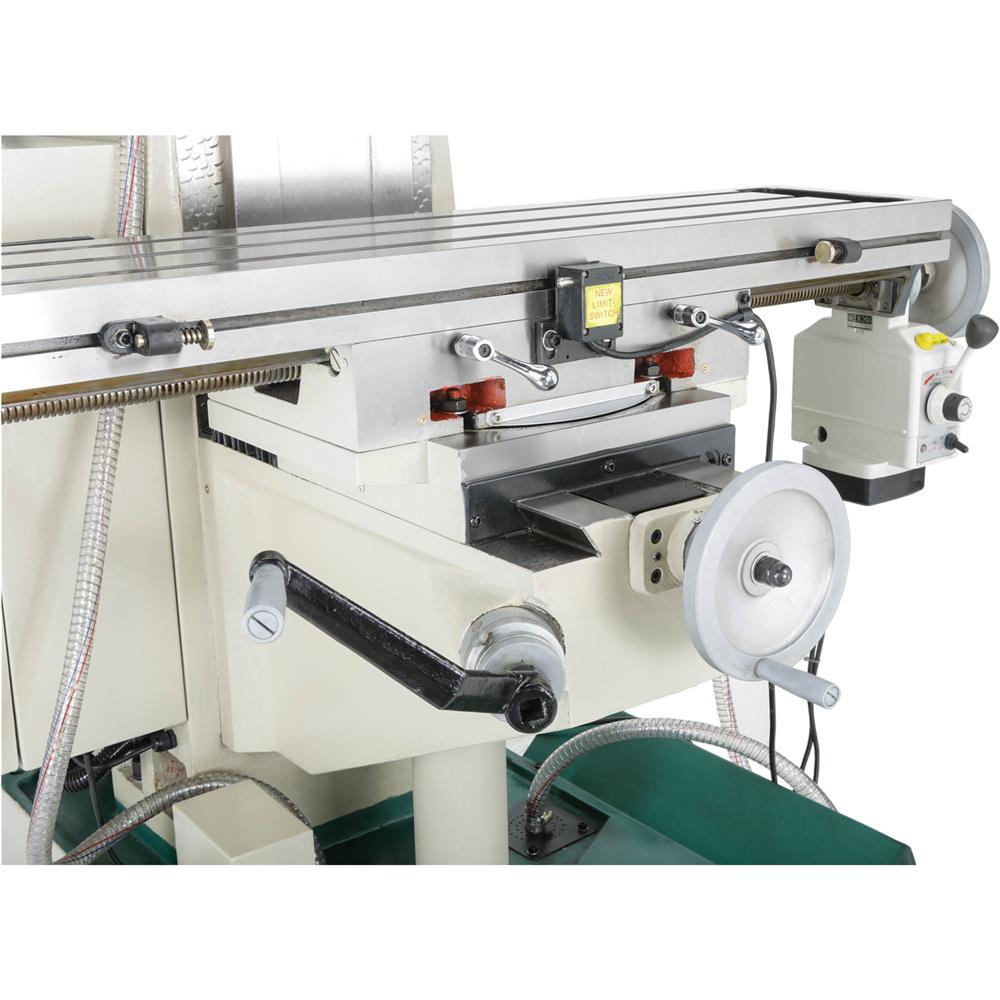

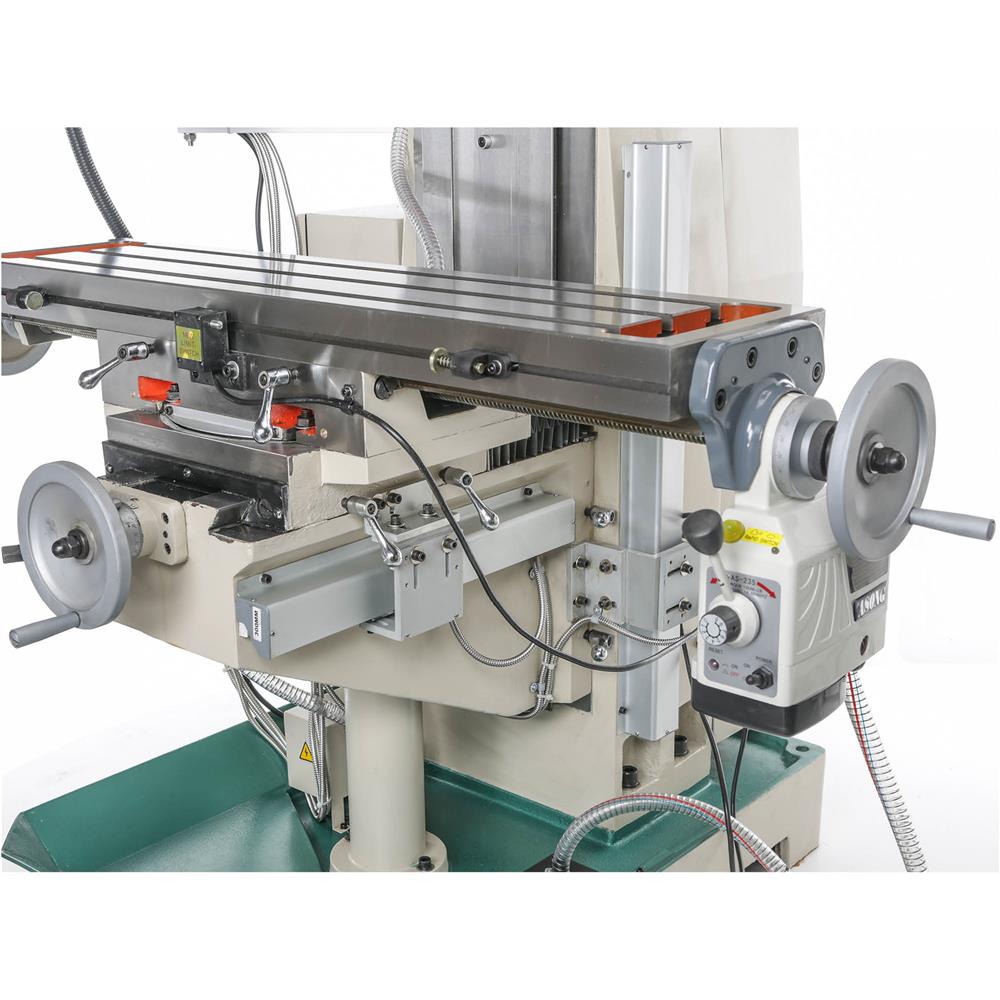

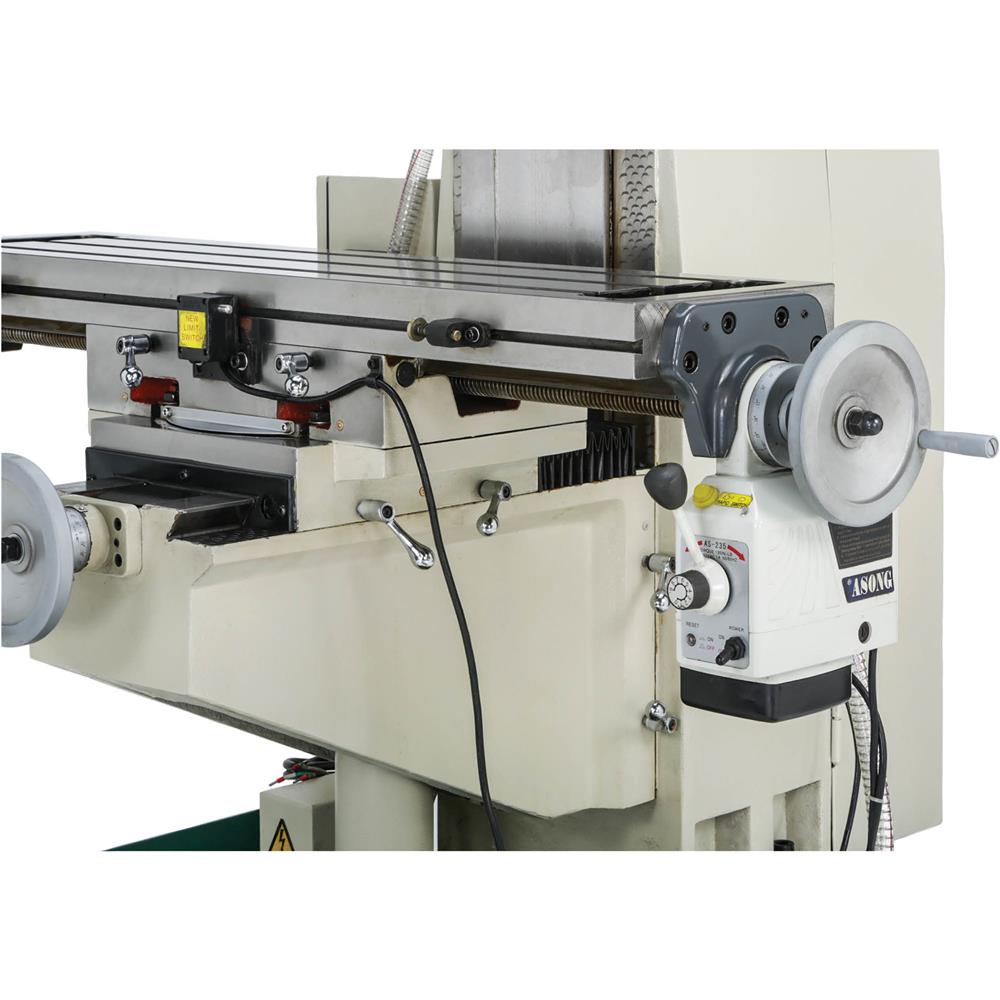

- Longitudinal power feed
- High-precision P5 spindle bearings
- LED work light
- 1-year limited warranty
Specifications
| Required power source | 220V, single-phase, min. 15A circuit |
| Vertical spindle motor | 3 HP, 220V |
| Horizontal spindle motor | 2 HP, 220V |
| Vertical spindle speeds | Variable, 100–2000 RPM |
| Horizontal spindle speeds | 8, 72–1300 RPM |
| Spindle taper | R-8 |
| Spindle travel | 5" |
| Table size | 9-1/2" x 39-3/8" |
| Table travel (longitudinal) | 23-1/2" |
| Table travel (cross) | 8-1/2" |
| Knee travel (vertical) | 12-1/2" |
| Table rotation | 45° L/R |
| Head turret/column swivel | 180° |
| Head tilt | 90° L/R |
| T-slots | Three 5/8" slots, 3" on center |
| Overall dimensions | 53-1/2" W x 55" D x 82" H |
| Approximate shipping weight | 2050 lbs. |
Warranty
This item comes with a 1 year factory warranty.
