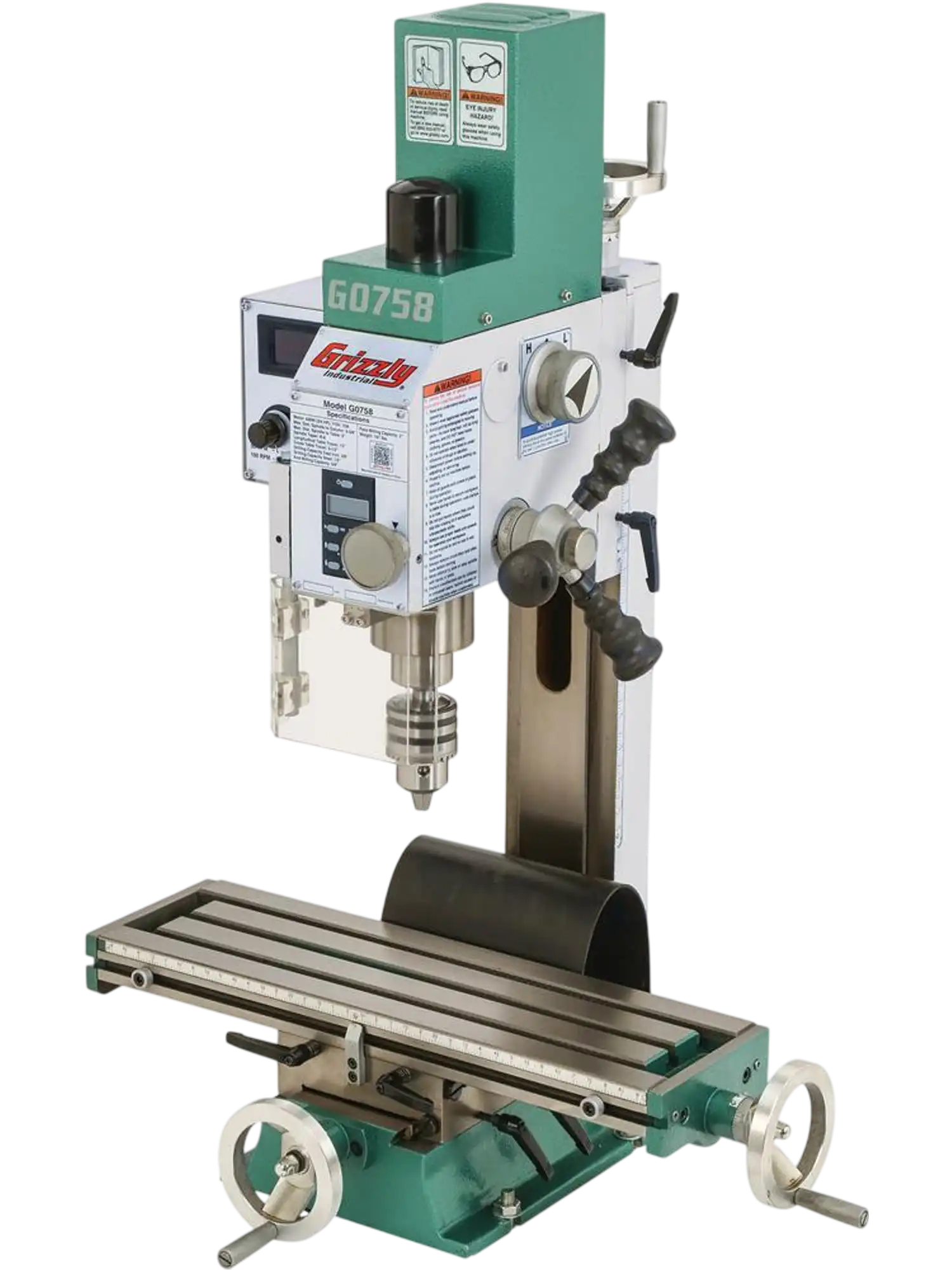

Grizzly G0758 Mill Drill 6" x 20" 3/4 HP New
Product Overview
The Grizzly G0758 is a compact 6" x 20" mill drill built for drilling, milling, and light machining in home shops, maintenance departments, and small fabrication spaces. Its 3/4 HP motor delivers quiet, high-torque performance, while the variable-speed spindle and 2-speed gearbox give you a broad 50 to 2000 RPM operating range for different materials and tooling.
This machine features a rigid dovetail column and precision-ground table ways for controlled, accurate movement. Digital readouts for spindle speed and spindle depth make adjustments easier, and the coarse and fine downfeed controls, along with precision handwheels on the X, Y, and Z axes, help users handle detailed work with confidence.
With its large table size for its class, useful table travel, and R-8 spindle taper, it is well suited for machinists who want flexibility in a space-saving footprint. It is a strong choice for hobbyists, prototype work, repair tasks, and small-part machining where precision and versatility matter.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Dovetail head column and table ways
- High-torque, low-noise DC motor

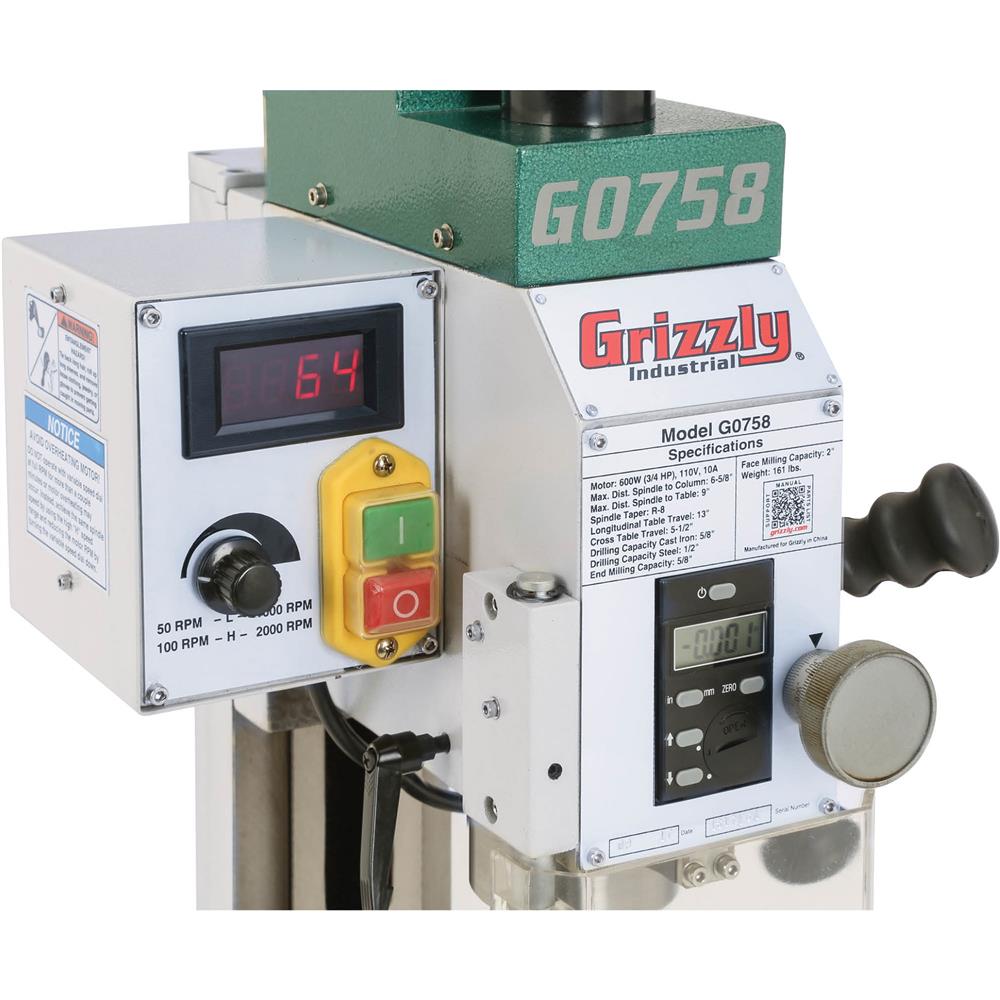

- Variable-speed spindle with DRO
- Spindle elevation DRO
- 3-Axis precision handwheel control
- Coarse and fine spindle downfeed
- 2-Speed gearbox
- Zero-setting dials on handwheels
Specifications
| Motor | 3/4 HP, 110V, single-phase, 10A |
| Spindle taper | R-8 |
| Spindle speeds | Variable, 50–1000 RPM low, 100–2000 RPM high |
| Max distance spindle-to-column | 6-5/8" |
| Max distance spindle-to-table | 8-3/4" |
| Spindle travel | 2" |
| Drilling capacity | 1/2" mild steel |
| Head travel | 8-1/4" |
| Column tilt | 45° left/right |
| Table size | 5-3/4" x 19-3/4" |
| T-slots | 3 @ 1-1/2" centers, 3/8" wide |
| Longitudinal travel | 13-1/8" |
| Cross travel | 5-1/2" |
| Footprint | 11" x 9" |
| Overall dimensions | 19-3/4" W x 21" D x 30-1/4" H |
| Approximate shipping weight | 204 lbs. |
Warranty
This item comes with a 1 year factory warranty.
