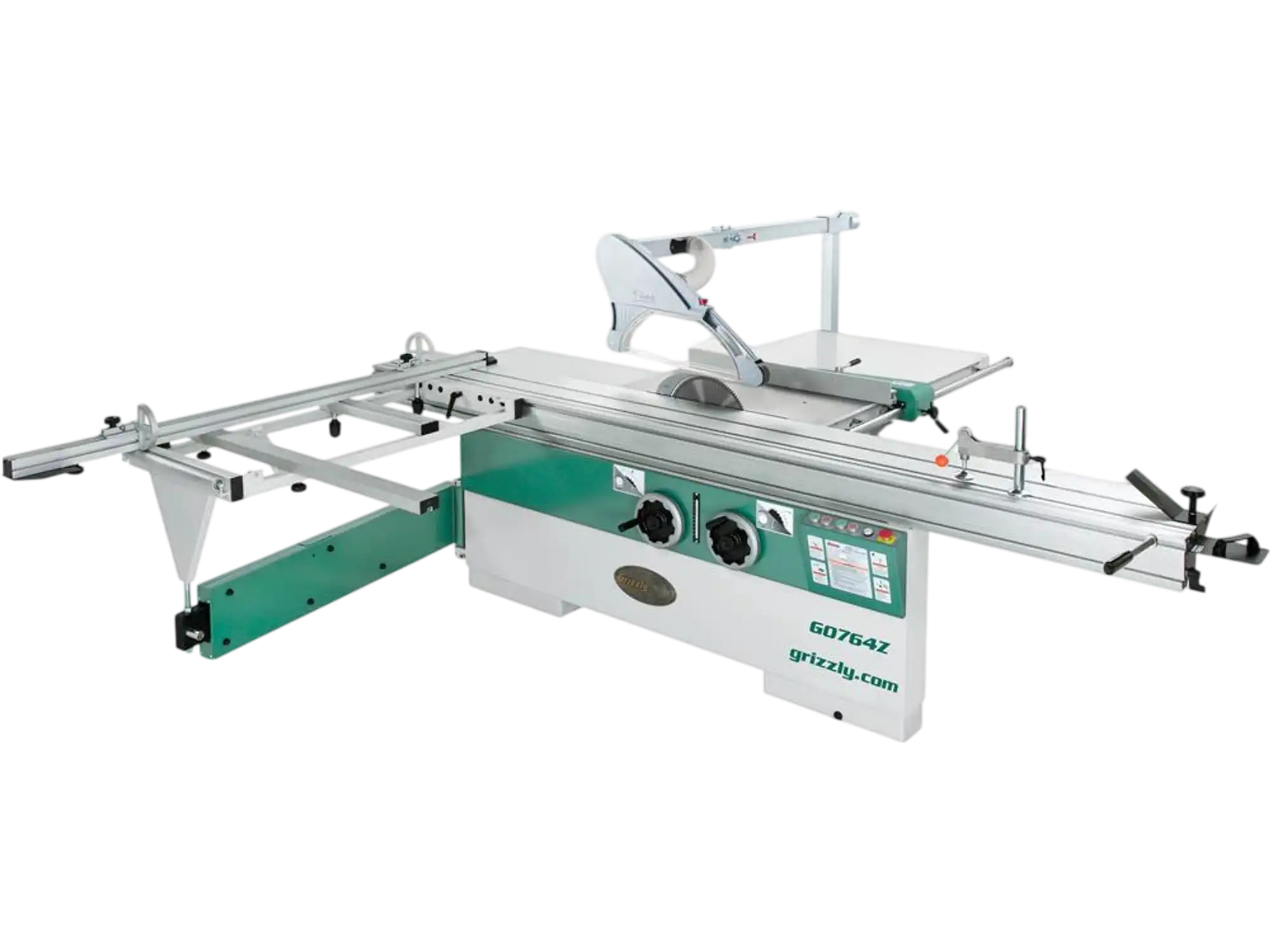

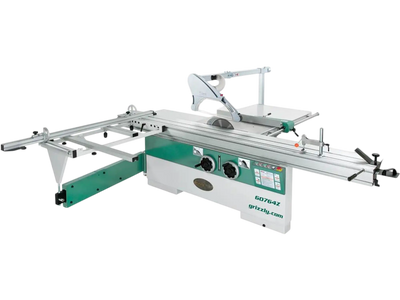

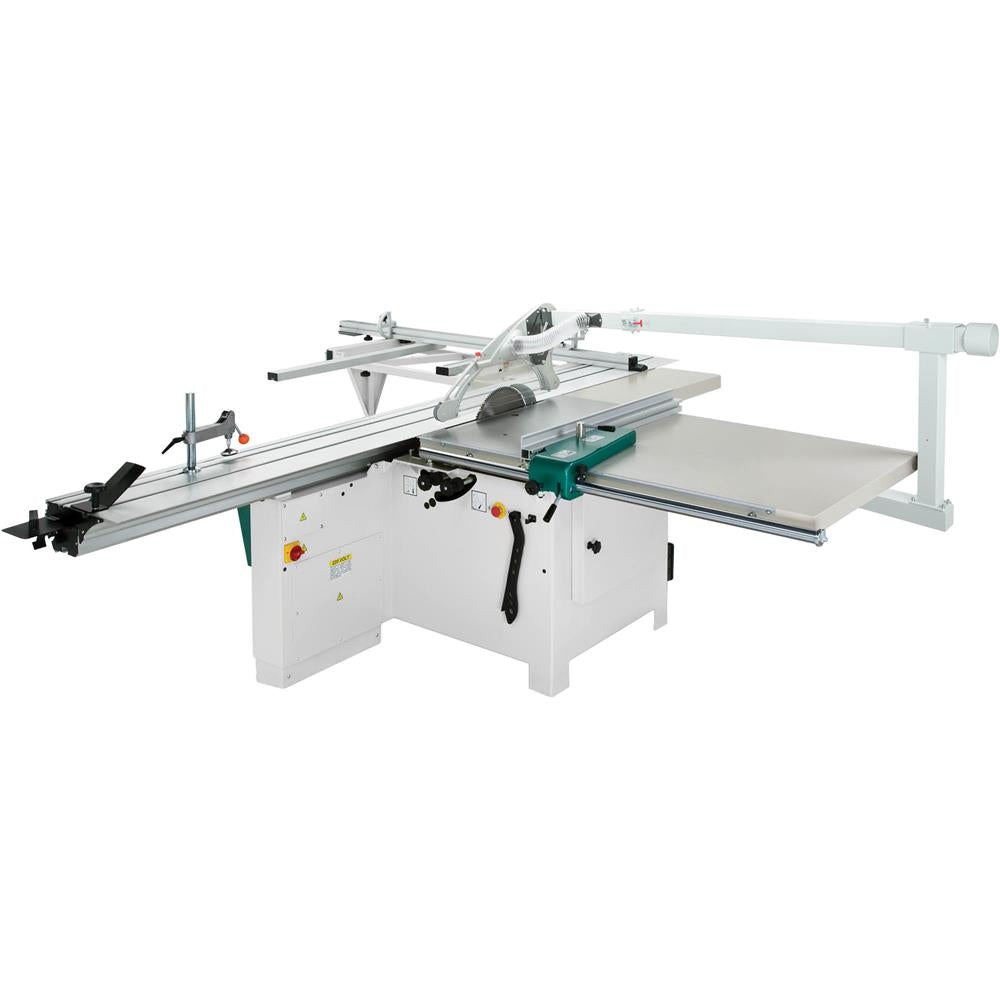

Grizzly G0764Z Sliding Table Saw 14" 10 HP 3-Phase with 124" Cutting Capacity New
Product Overview
The Grizzly G0764Z is a heavy-duty 14-inch sliding table saw built for industrial woodworking and high-volume panel processing. With a 10 HP 3-phase main motor, a 124-inch crosscut capacity, and rip capacity over 51 inches, it is designed to handle large sheet goods and thick stock with speed and precision.
A separate scoring blade helps reduce tear-out before the main blade cuts, making it well suited for cabinet work, panel sizing, and finish-sensitive materials. The sliding table rides on a steel ball guide system for smooth movement, while the micro-adjustable rip fence, tilting blade, and dual flip stops support accurate repeat cuts and angled work.
This machine is ideal for professional shops, production environments, and commercial users who need a large-format saw for demanding daily use. Its substantial cutting capacity, powerful performance, and precision-focused design make it a strong choice for serious woodworkers working with oversized panels and hardwoods.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Micro-adjustable rip fence
- Independently-powered scoring blade ensures tear-out free cutting
- Sliding table on steel ball guide system with heat-treated steel ways
- Alloy crosscut fence for miter cutting 45° right and left
- Miter fence has two flip stops for repetitive cutting
- Safety limit switch for blade cover
- Adjustable riving knife
- 1-year limited warranty
Specifications

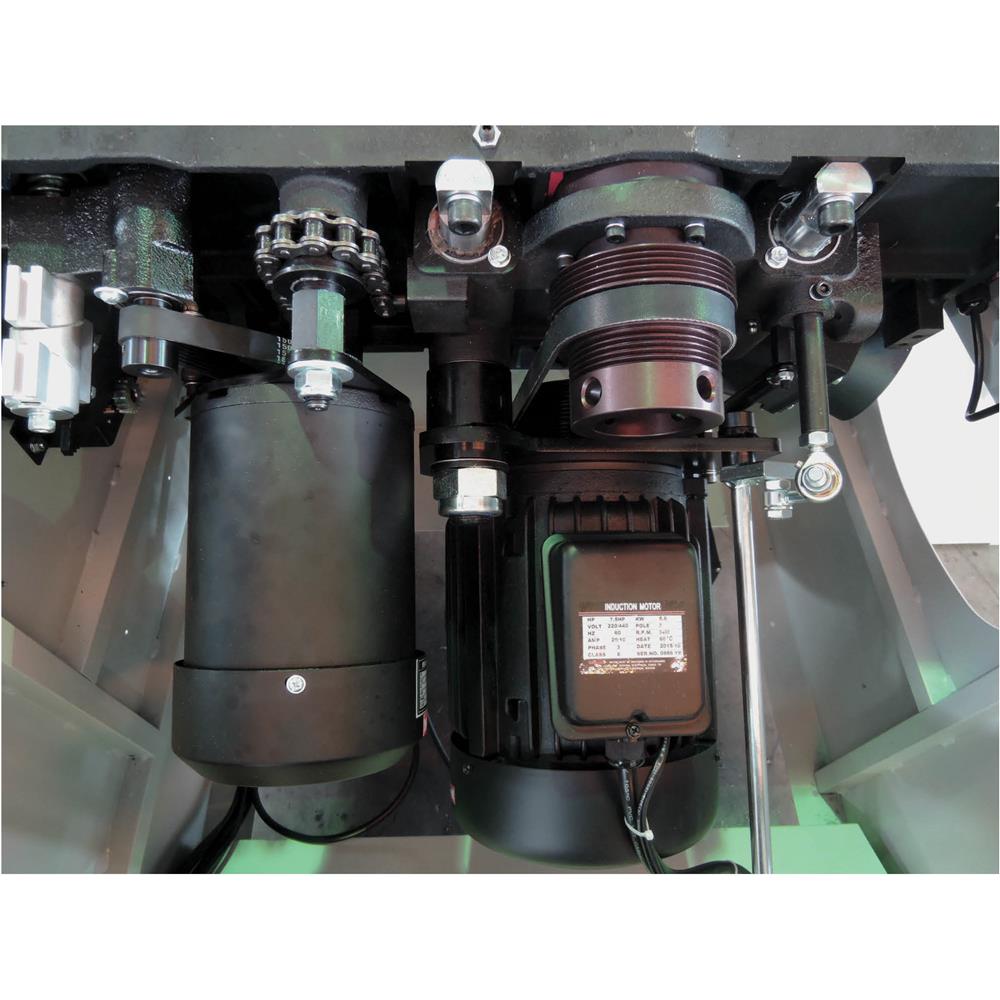

| Main motor | 10 HP, 220V/440V* (prewired for 220V), 3-phase, 26A/13A |
| Scoring motor | 1 HP |
| Minimum circuit size | 40A @ 220V, 20A @ 440V |
| Rip capacity | 51-1/4" |
| Crosscut capacity | 124" |
| Blade tilt | 0–45° |
| Max. depth of cut @ 90° | 4-1/8" |
| Max. depth of cut @ 45° | 2-7/8" |
| Main table size | 35-1/4" x 59-1/8" |
| Sliding table size | 14" x 126" |
| Floor-to-table height | 34-1/2" |
| Main blade size | 14" |
| Main blade arbor | 1" |
| Main blade speed | 3000, 4000, 5000 RPM |
| Scoring blade size | 4-3/4" |
| Scoring blade speed | 8000 RPM |
| Number of dust ports | 2 |
| Dust port sizes | 4", 5" |
| Footprint | 74-1/2" x 35-1/2" |
| Overall size | 133" W x 202" D x 65" H |
| Approximate shipping weight | 1643 lbs. |
Warranty
This item comes with a 1 year factory warranty.
