Grizzly G0765 Metal Lathe 7" x 14" Variable-Speed Benchtop New
Product Overview

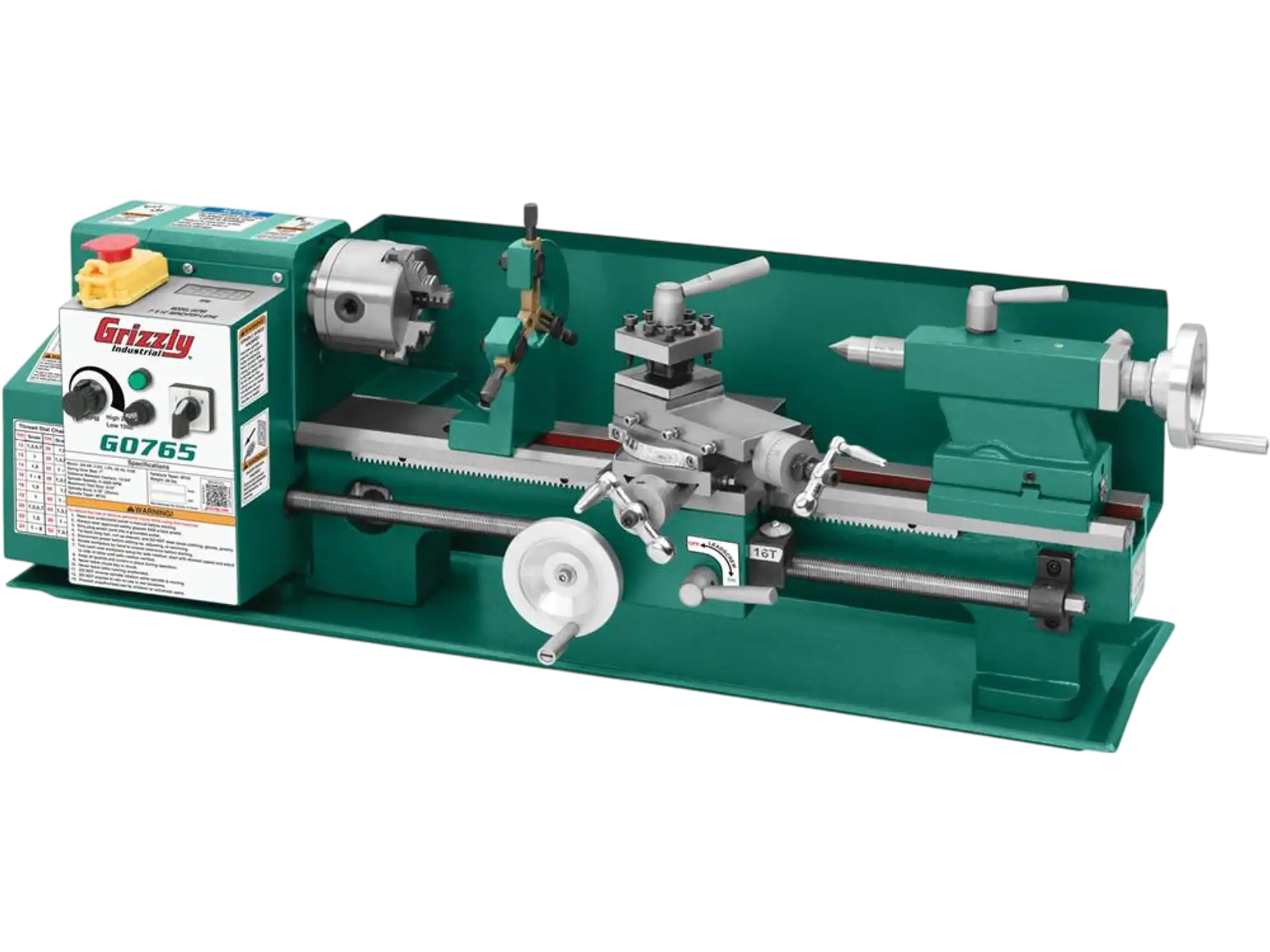

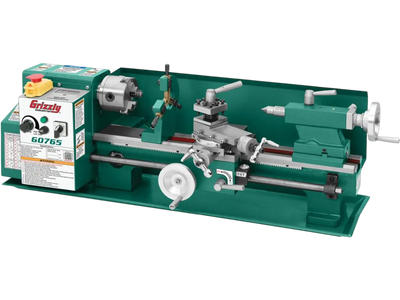

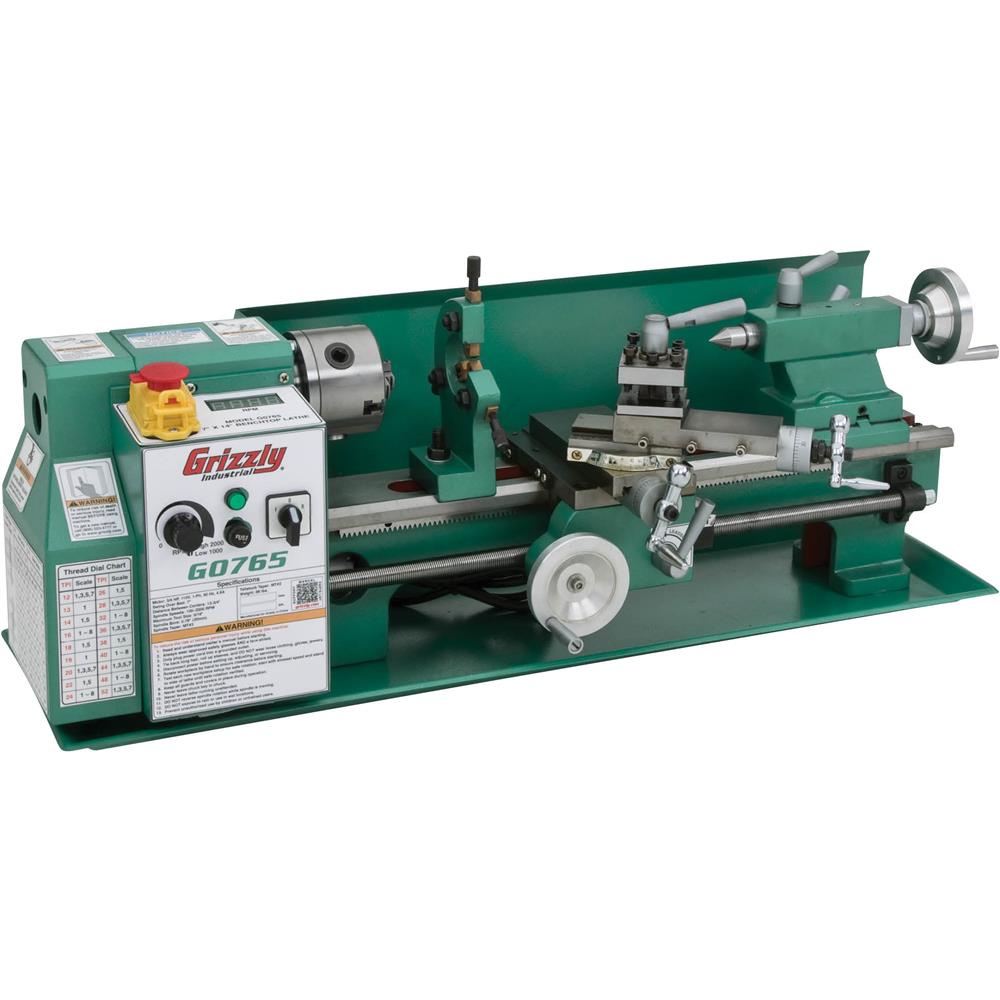

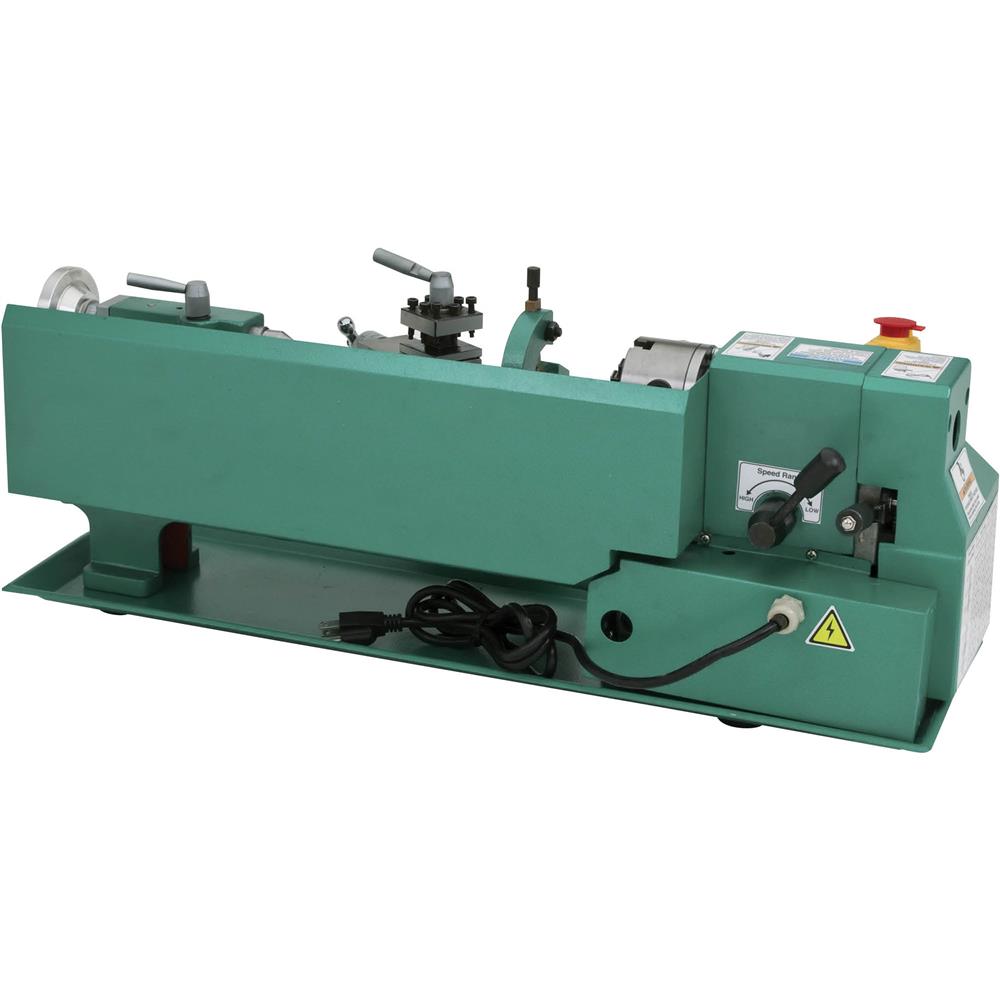

The Grizzly G0765 is a 7" x 14" variable-speed benchtop metal lathe built for shaping, turning, and threading small metal parts. Its compact size fits well in home shops, maintenance areas, and light production workspaces where space is limited but dependable cutting performance is still important.

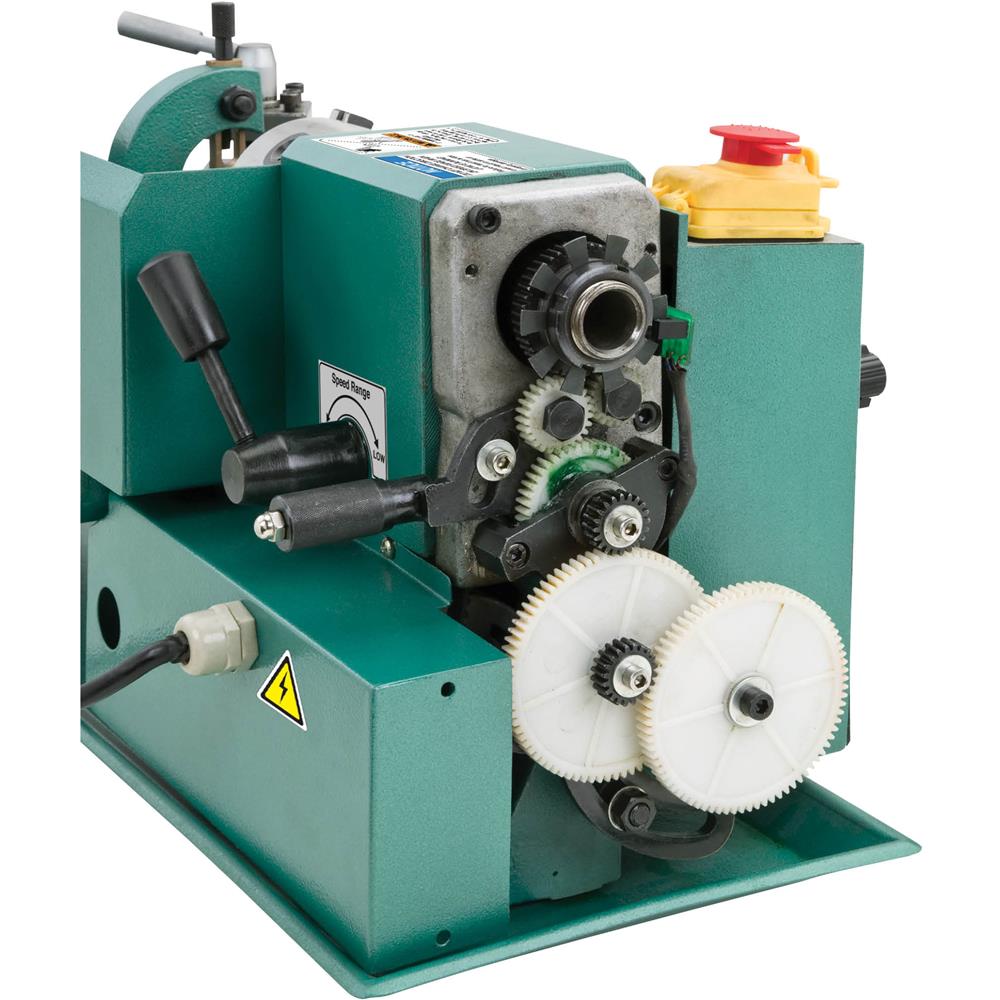

Variable spindle speed with a digital RPM display makes it easy to dial in the right cutting speed, while the two-speed drive helps deliver extra torque at lower RPMs. It can cut both inch and metric threads, including left-hand and right-hand threads, giving users flexibility for a wide range of machining tasks.

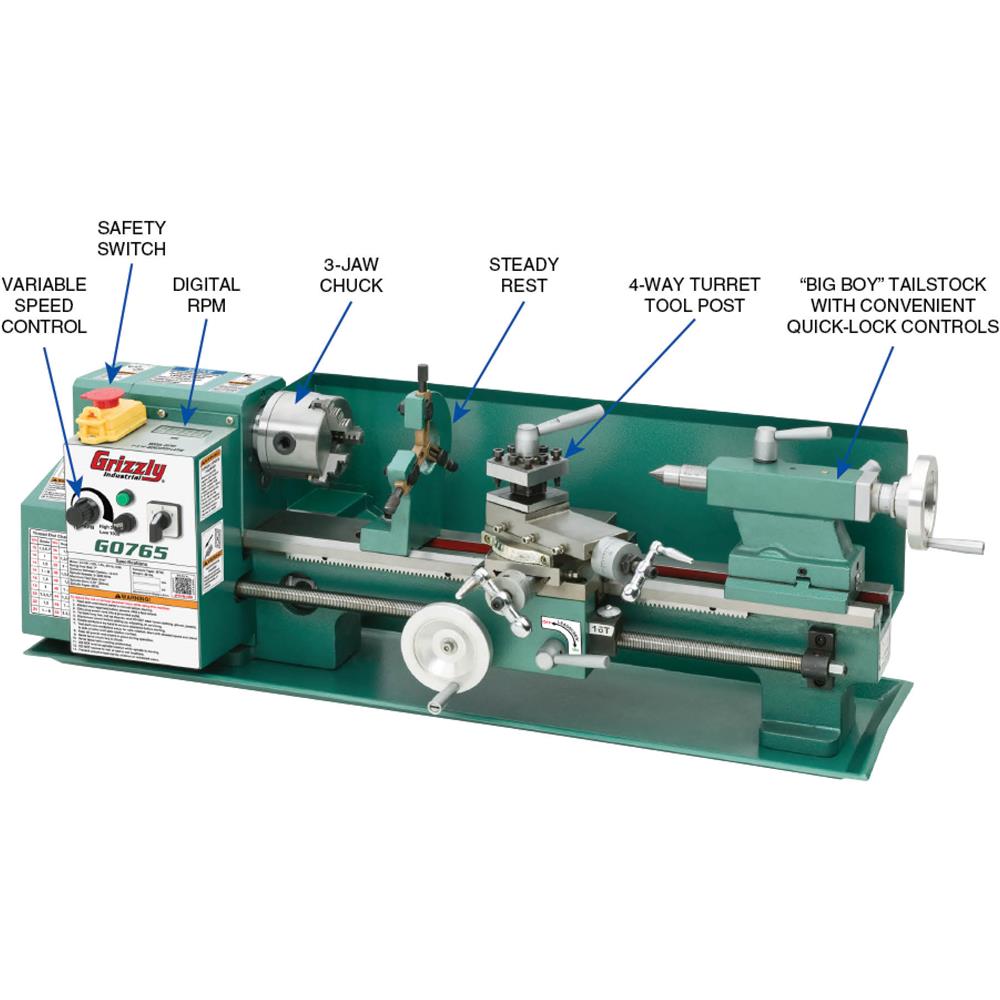

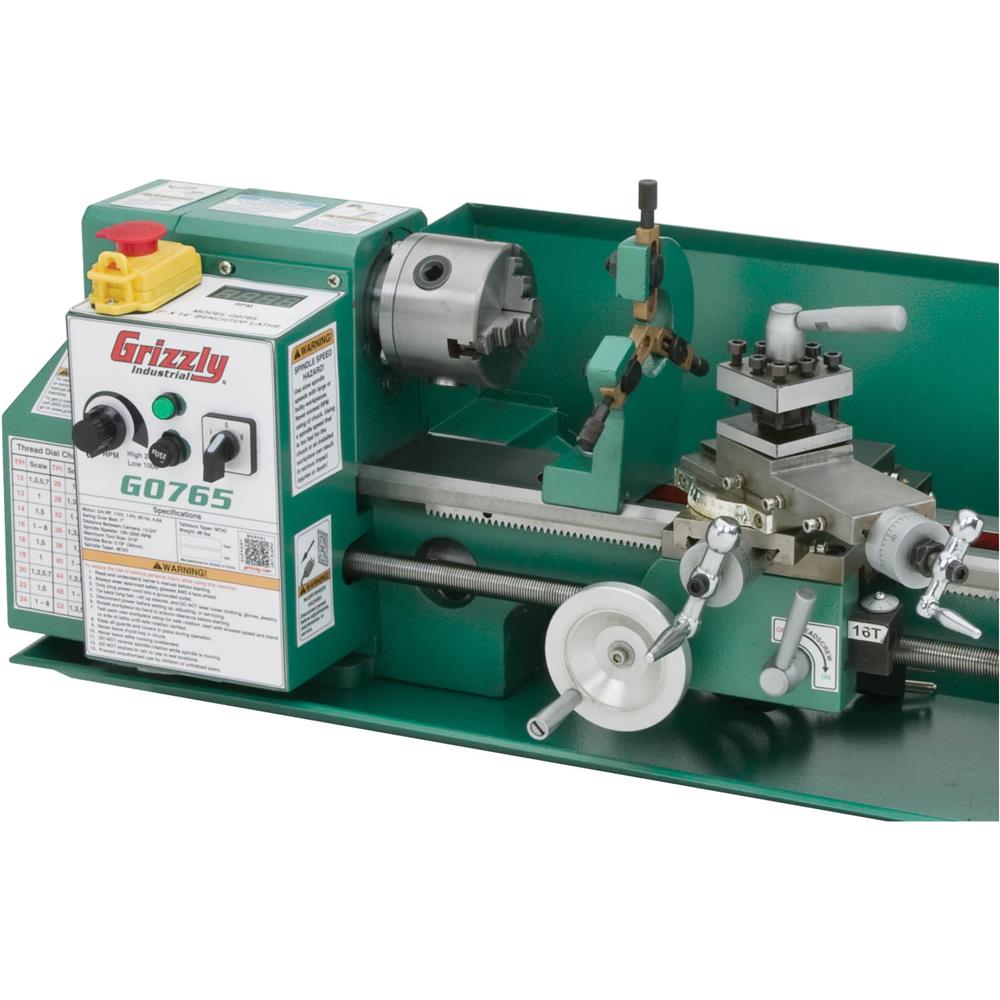

This model is a strong choice for hobby machinists, gunsmiths, model makers, and small-parts fabricators who want more capability than a basic mini lathe. It also comes equipped with practical essentials such as a 3-jaw chuck, faceplate, steady rest, 4-way turret tool post, and change gears to help get started with everyday turning operations.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Variable low and high spindle speeds
- Spindle speed RPM display
- Cuts LH and RH threads
- 16-TPI reversible leadscrew
- Chip tray and backsplash guard
- Emergency stop
- Forward and reverse in all speeds
- Inch/metric dials
- Threading dial indicator
- Quick-locking tailstock
Specifications
| Motor | 3/4 HP, 110V, single-phase, 10A |
| Swing over bed | 7" |
| Swing over cross slide | 2-1/8" |
| Distance between centers | 13-3/4" |
| Spindle bore | 0.78" (20mm) |
| Chuck bore | 0.645" |
| Spindle nose taper | MT#3 |
| Number of speeds | Variable |
| Range of low speeds | 100–1000 RPM |
| Range of high speeds | 100–2000 RPM |
| Leadscrew | 5/8"–16 TPI |
| Compound rest travel | 2-3/4" |
| Cross slide travel | 2-3/4" |
| Carriage travel | 12-1/2" |
| Maximum tool size | 5/16" |
| Tailstock quill travel | 2" |
| Tailstock barrel taper | MT#2 |
| Longitudinal feed speed | 0.04 IPR |
| Number of inch threads | 18 |
| Range of inch threads | 12–52 TPI |
| Number of metric threads | 10 |
| Range of metric threads | 0.4–2mm |
| Footprint | 29-3/4" x 8-1/2" |
| Overall dimensions | 30" W x 9" D x 10" H |
| Approximate shipping weight | 110 lbs. |
Warranty
This item comes with a 1 year factory warranty.
