Grizzly G0766 Wood Lathe 22" x 42" Variable-Speed New
Product Overview

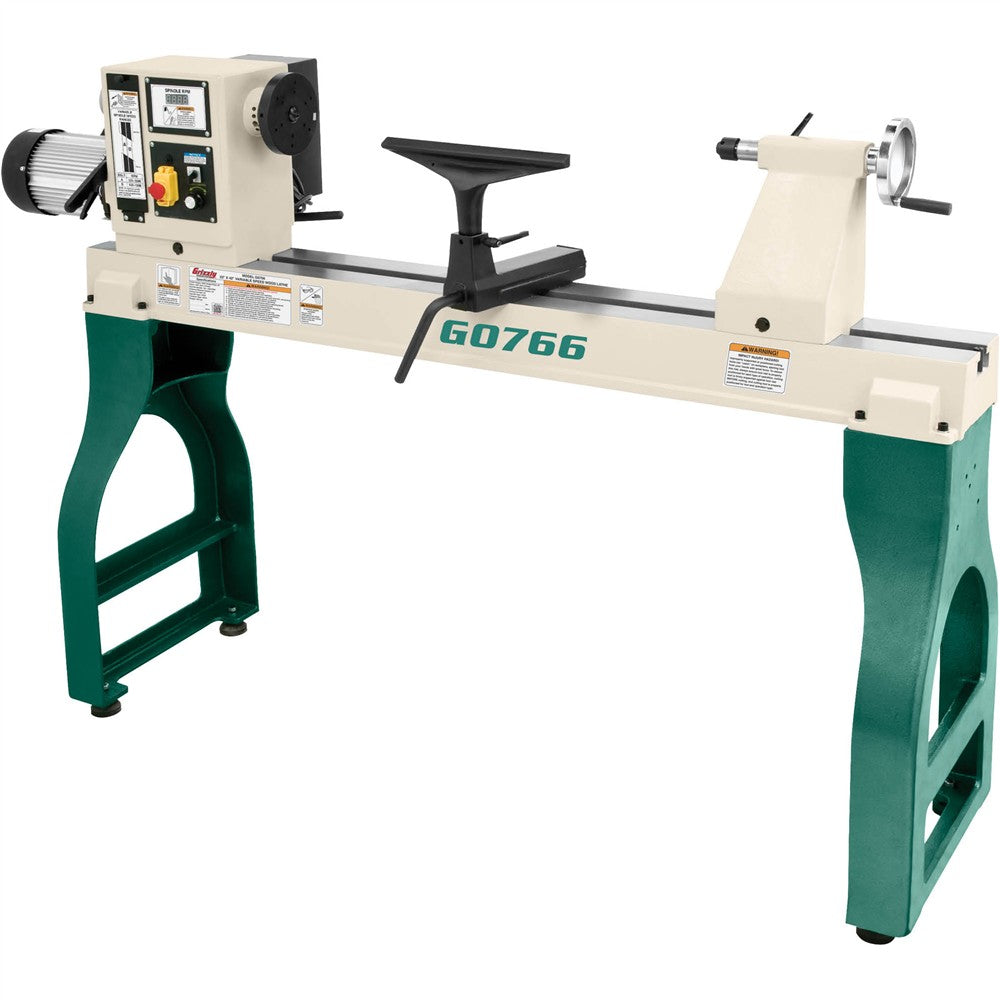

The Grizzly G0766 is a heavy-duty 22" x 42" variable-speed wood lathe built for serious woodturning and large-scale projects. With a 22" swing over the bed and 42" between centers, it is well suited for turning large bowls, furniture components, and other oversized workpieces.

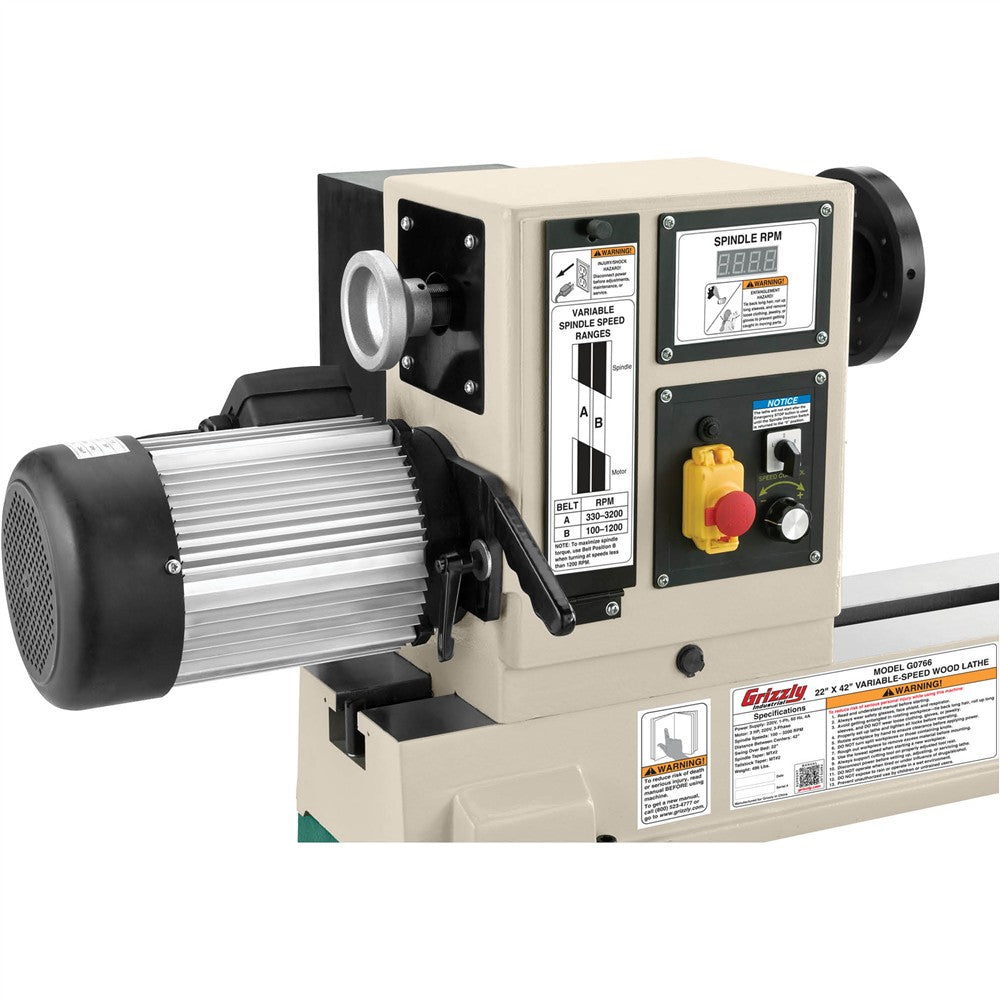

A powerful 3 HP motor paired with a variable-frequency drive delivers smooth, high-torque performance on single-phase 240V power, with variable speeds from 100 to 3200 RPM. The cast-iron bed and stand add stability, while the movable headstock, digital RPM readout, forward/reverse control, and quick-lock adjustments give turners precise control and flexibility.
This lathe is a strong choice for experienced hobbyists, dedicated woodworkers, and professional shops that need the capacity and control to handle demanding turning jobs.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
- 100-1200 RPM low-speed range
- 330-3200 RPM high-speed range
- Digital readout for spindle RPM
- Headstock positions anywhere along the bed
- 10° spindle indexing

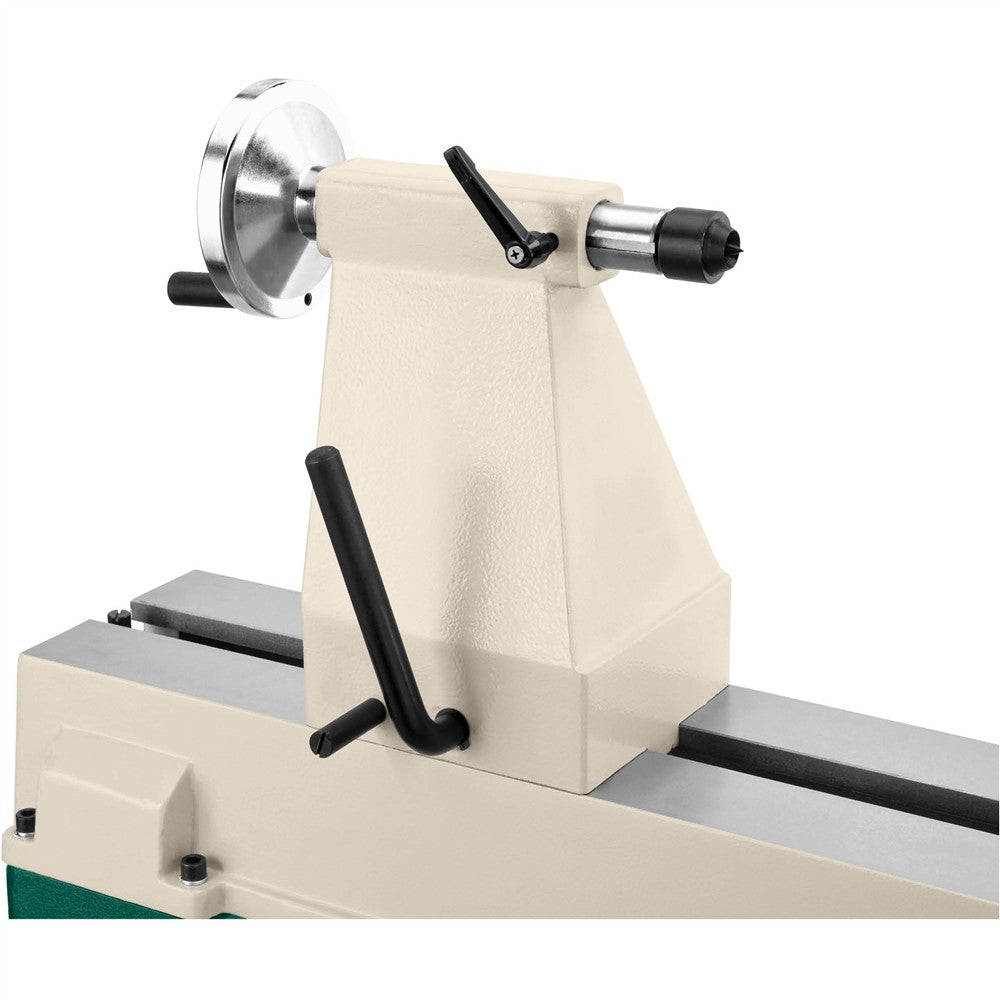

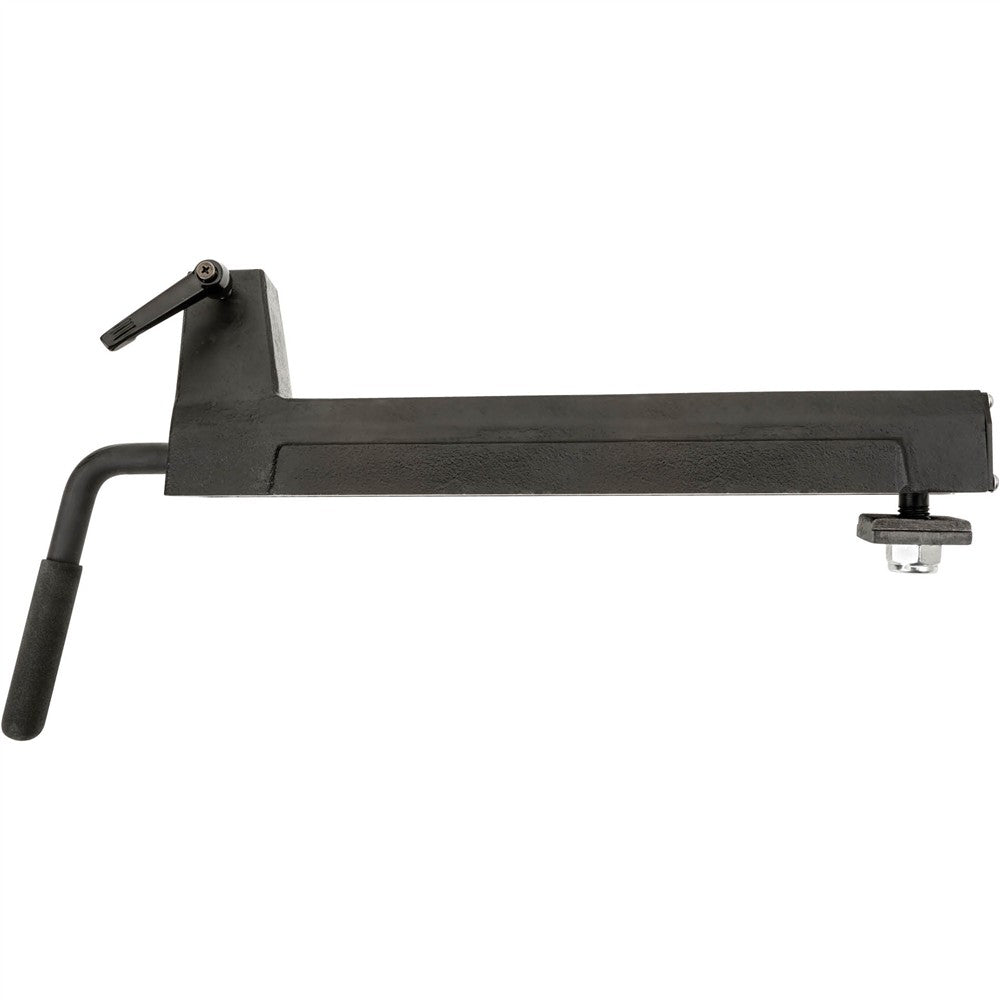

- Tailstock, headstock, and tool rest support have lever-action cam locks for quick positioning
- Forward/reverse spindle control
- 4-1/4" tailstock barrel travel

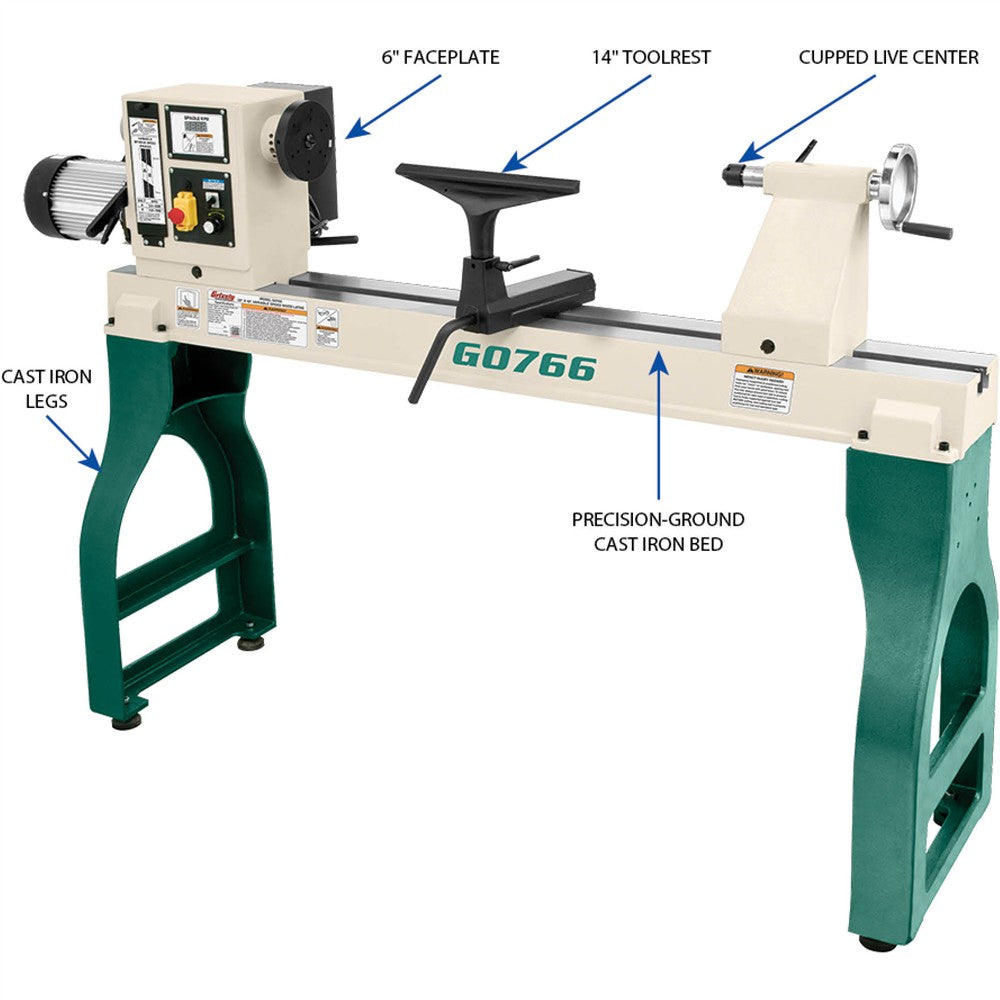

- Includes spur center, cupped live center, knock-out tool, tool rest, 6" faceplate and indexing pin
Specifications
| Required power source | 240V, single-phase, min. 20A circuit |
|---|---|
| Motor | 3 HP, 240V |
| Swing over bed | 22" |
| Swing over tool rest base | 18" |
| Distance between centers | 42" |
| Spindle speed | Variable, 100-3200 RPM |
| Spindle threads | 1-1/4" x 8 TPI RH |
| Spindle taper | MT#2 |
| Tailstock taper | MT#2 |
| Tool rest width | 14" |
|---|---|
| Tool rest post diameter | 1" |
| Footprint | 65-1/2" x 20" |
| Overall dimensions | 81" x W 23" D x 49-1/2" H |
| Approximate shipping weight | 524 lbs. |
Warranty
This item comes with a 1 year factory warranty.
