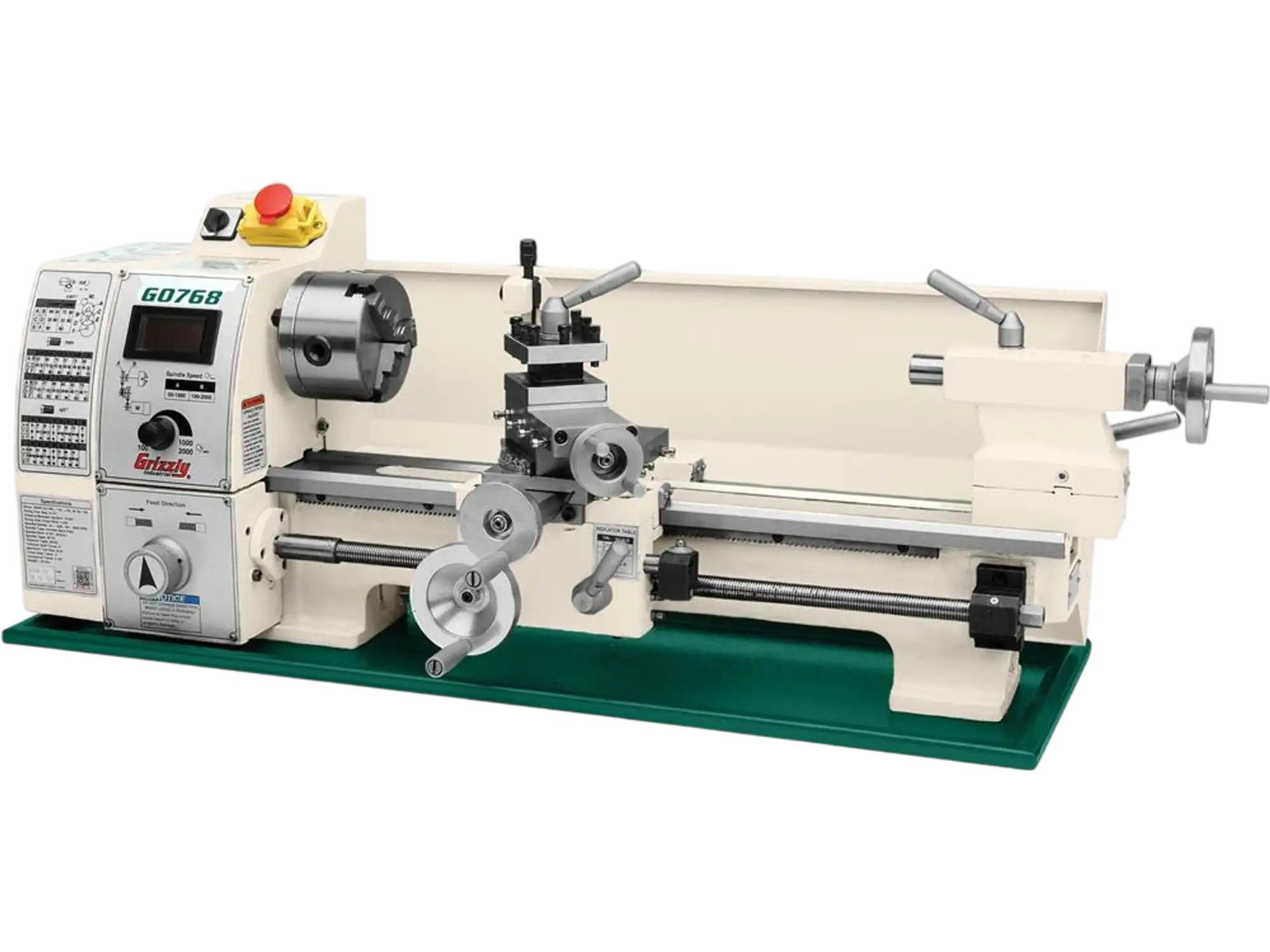

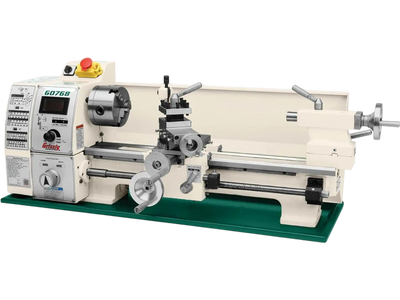

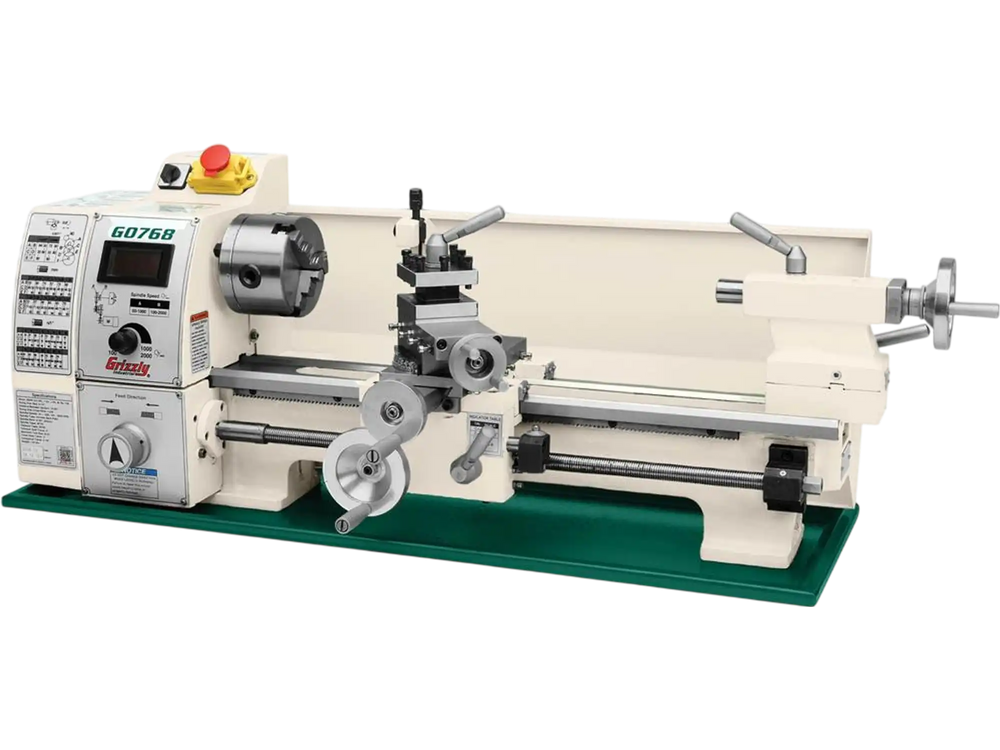

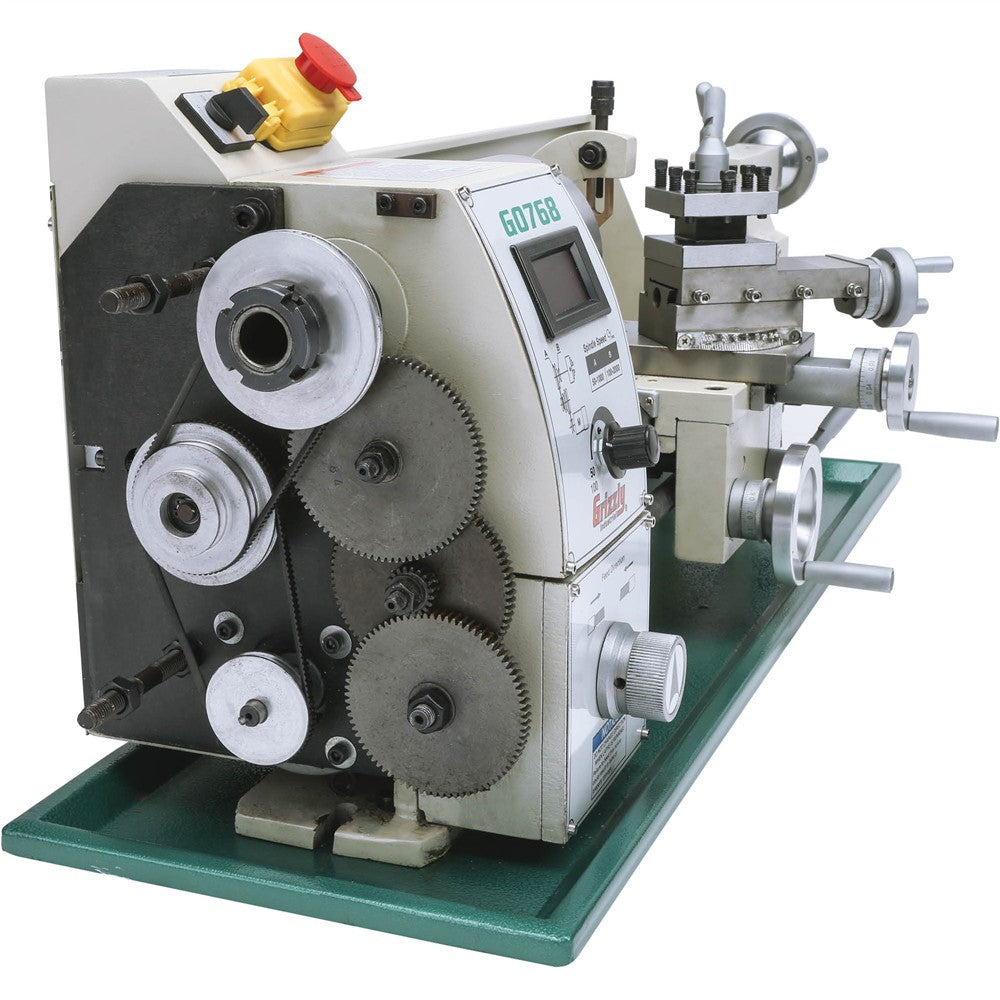

Grizzly G0768 Metal Lathe 8" x 16" Variable-Speed Benchtop New
Product Overview
The Grizzly G0768 is a compact 8" x 16" variable-speed benchtop metal lathe designed for precision turning, facing, threading, and small-part fabrication. Its 3/4 HP motor and electronic speed control provide a wide 50–2000 RPM range, making it well suited for detail work in home shops, maintenance spaces, and light-duty professional use.
This machine combines a space-saving footprint with practical capability, including high and low speed ranges, a digital speed readout, inch and metric dials, reverse feed for left-hand threading, and a quick-locking tailstock for faster adjustments. The 8-1/4" swing over bed and nearly 16" distance between centers give it the capacity to handle a broad range of smaller metalworking tasks.

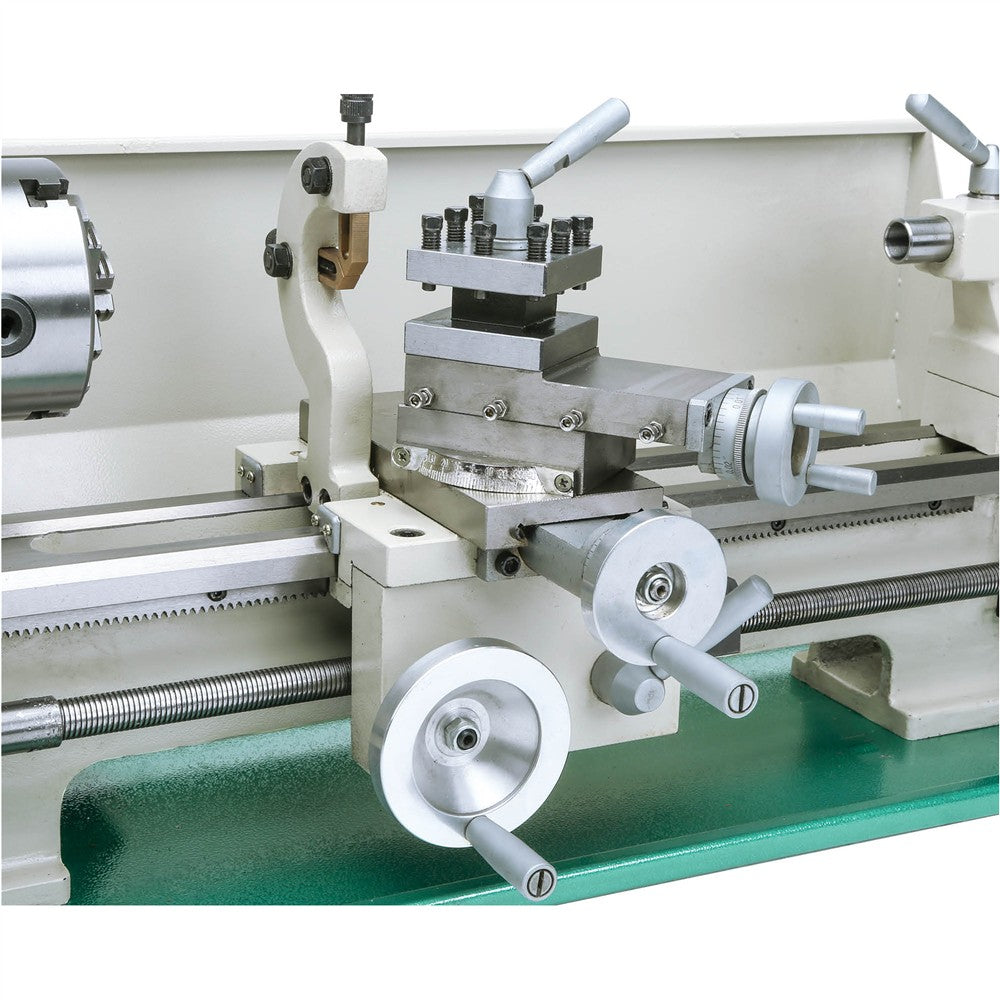

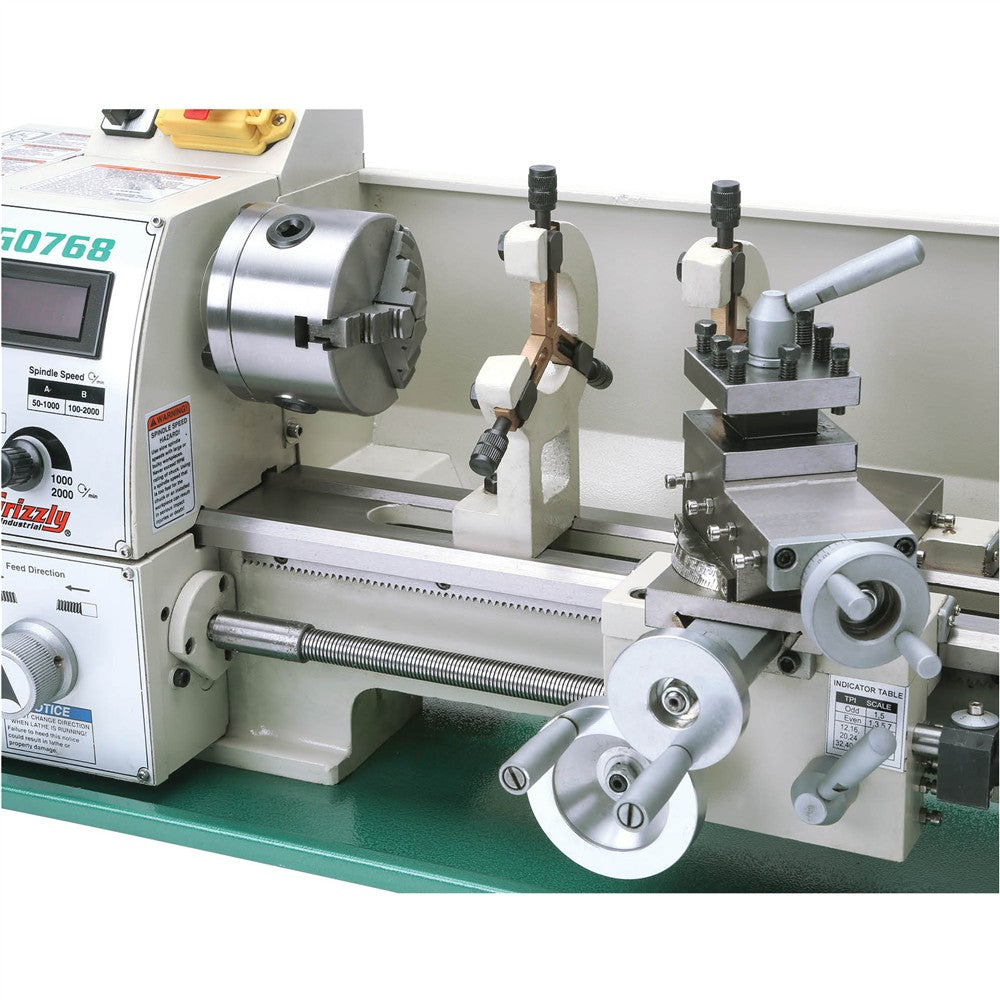

It also comes equipped with useful tooling and accessories such as 3-jaw and 4-jaw chucks, a faceplate, follow rest, steady rest, 4-way turret tool post, and service tools. This lathe is a strong choice for machinists, gunsmiths, model engineers, and serious hobbyists who want versatile threading and turning performance in a benchtop format.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

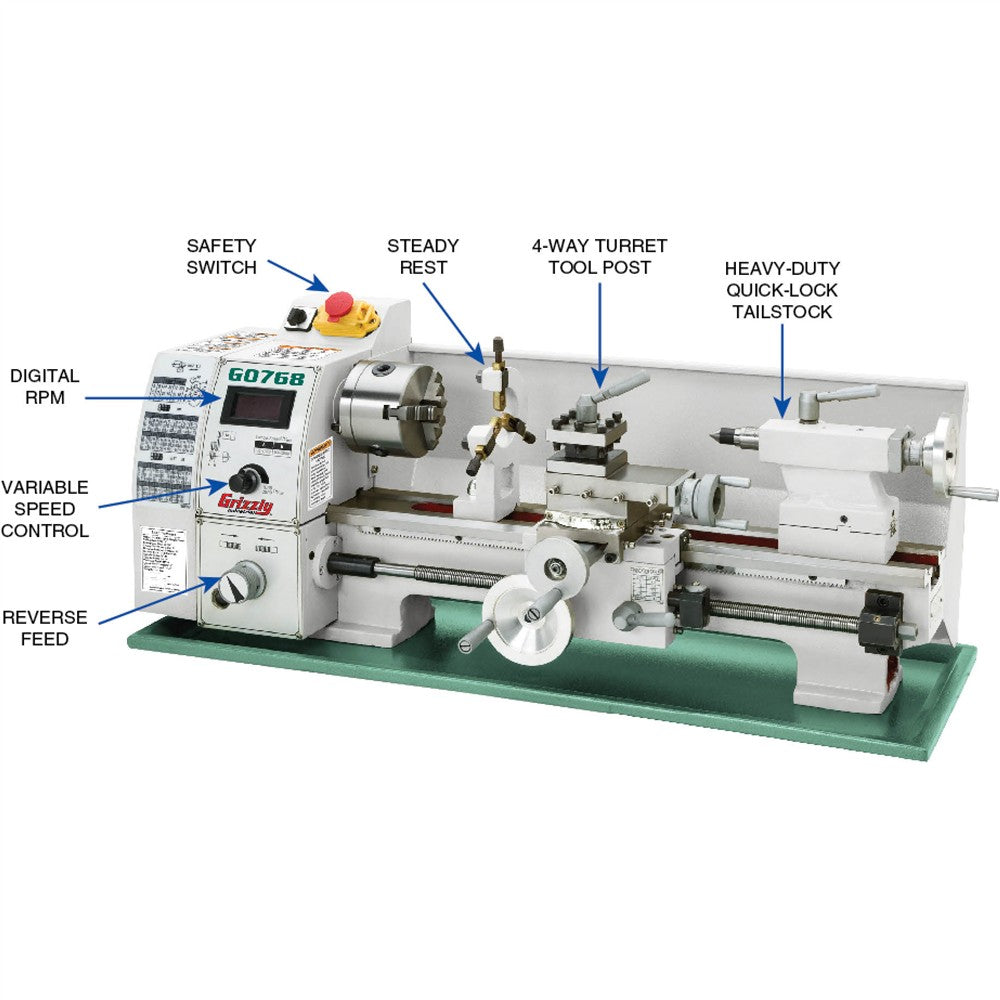

Features

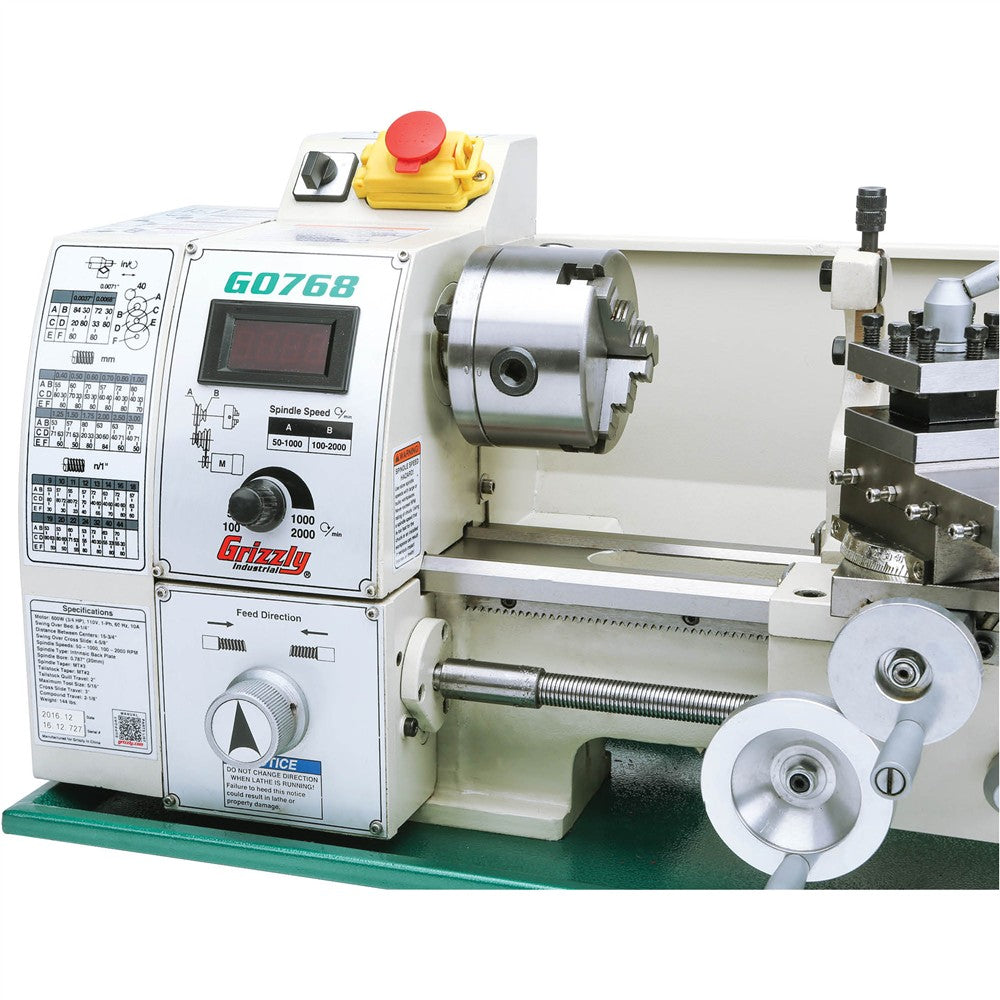

- Electronic variable-speed spindle control with digital readout
- High and low variable spindle speed ranges
- Chip tray and backsplash guard
- Thread dial indicator
- Inch/metric dials
- Emergency stop button

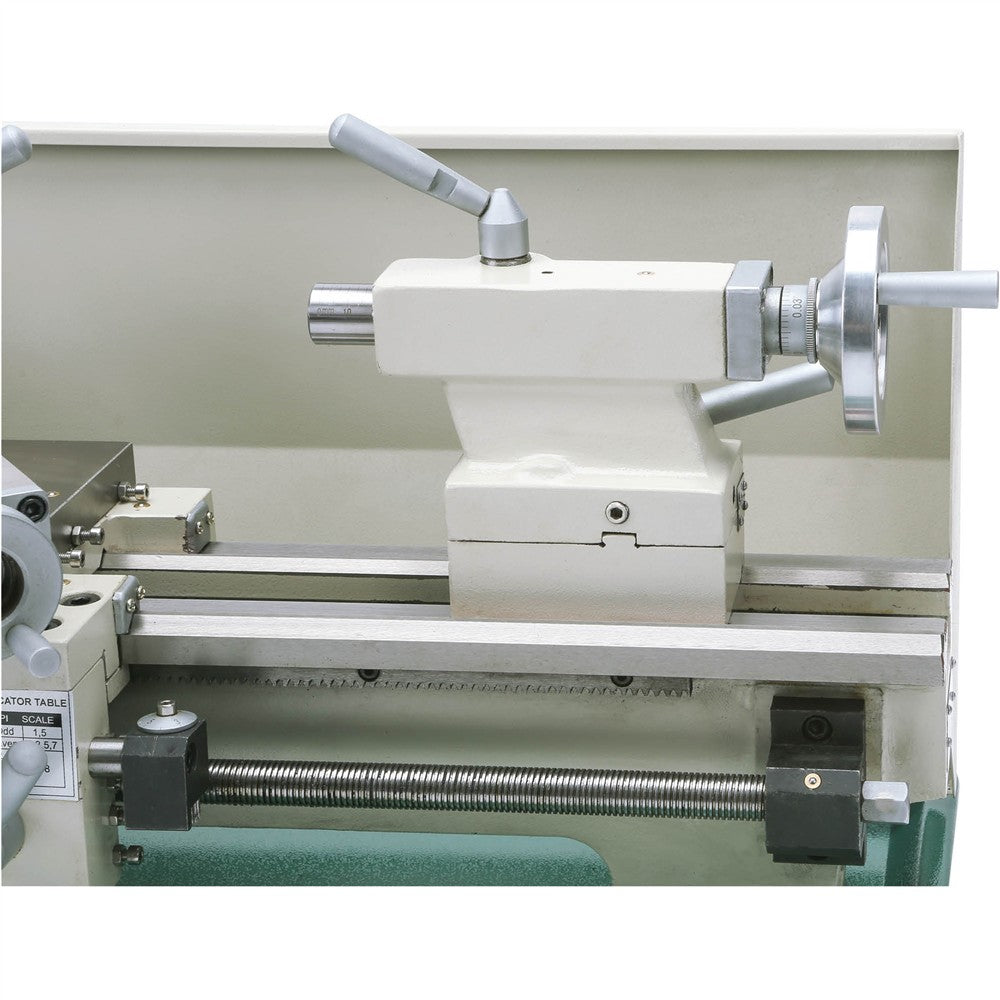

- Quick-locking tailstock
Specifications
| Motor | 3/4 HP, 110V, single-phase, 10A |
| Swing over bed | 8-1/4" |
| Swing over cross slide | 4-5/8" |
| Swing over saddle | 6-7/8" |
| Distance between centers | 15-3/4" |
| Bed width | 4" |
| Spindle bore | 0.787" (20mm) |
| Spindle type | Intrinsic back plate |
| Spindle taper | MT#3 |
| Tailstock taper | MT#2 |
| Tailstock quill travel | 2" |
| Cross slide travel | 3" |
| Compound travel | 2-1/8" |
| Spindle speeds | Variable, 50–2000 RPM |
| Longitudinal feeds | (2) 0.0037, 0.0068 in./rev. |
| Inch thread range | (15) 9–44 TPI |
| Metric thread range | (12) 0.4–3.0mm |
| Footprint | 10-1/2" x 31-1/2" |
| Overall dimensions | 36" W x 16" D x 14" H |
| Approximate shipping weight | 190 lbs. |
