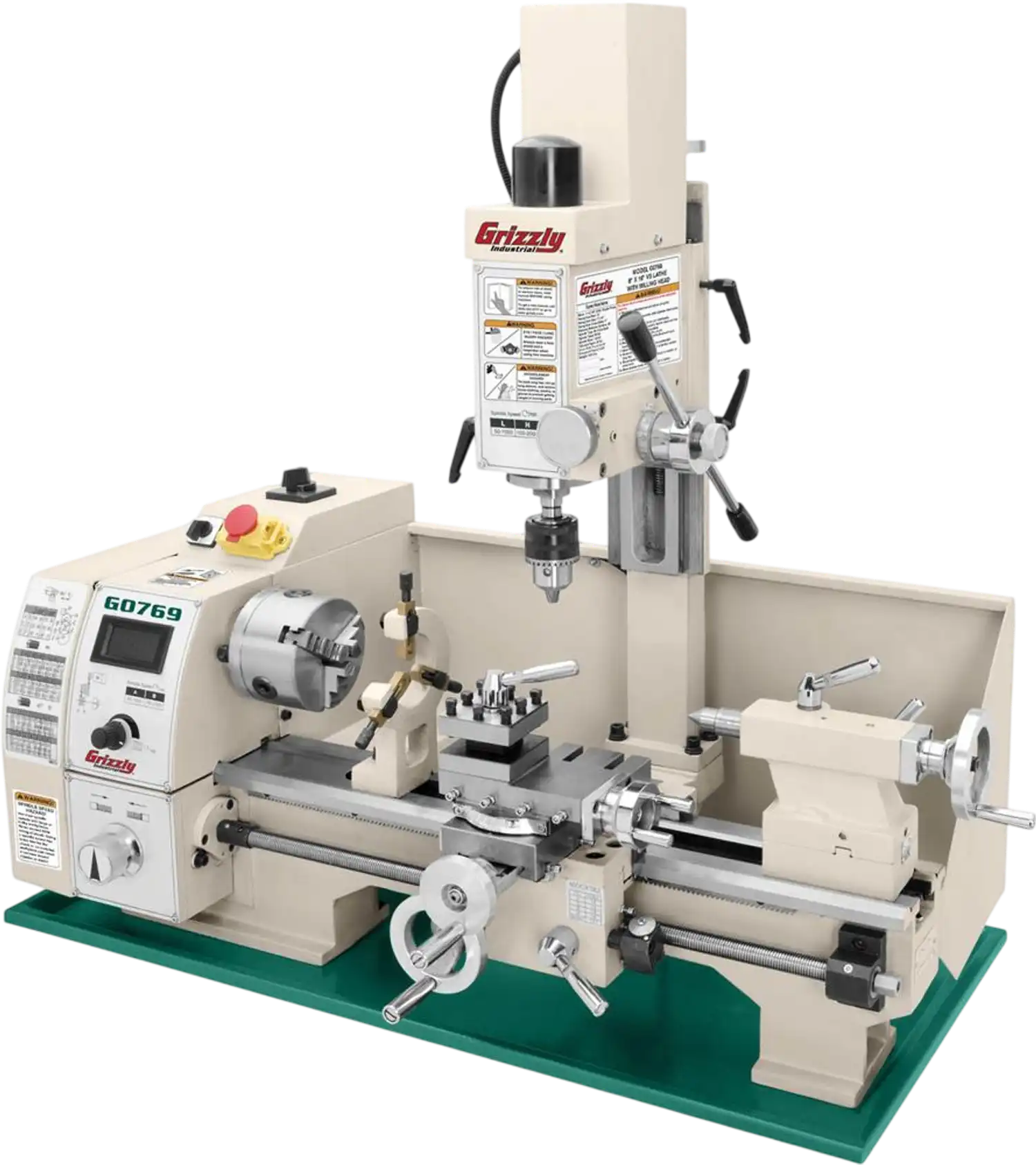

Grizzly G0769 Combination Lathe-Mill 8" x 16" Variable-Speed New
Manufacturer: Grizzly
SKU: G0769
QTY
or
(888) 999-1522
$ 2,995.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

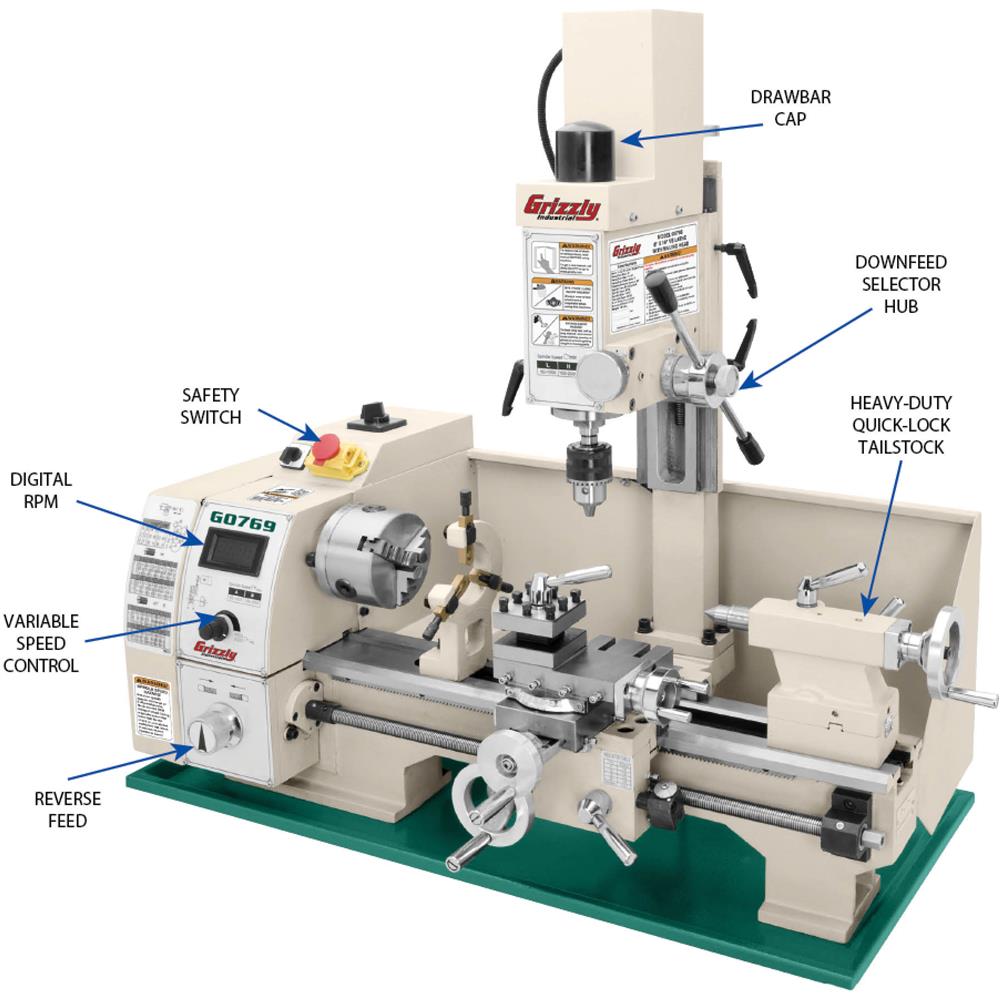

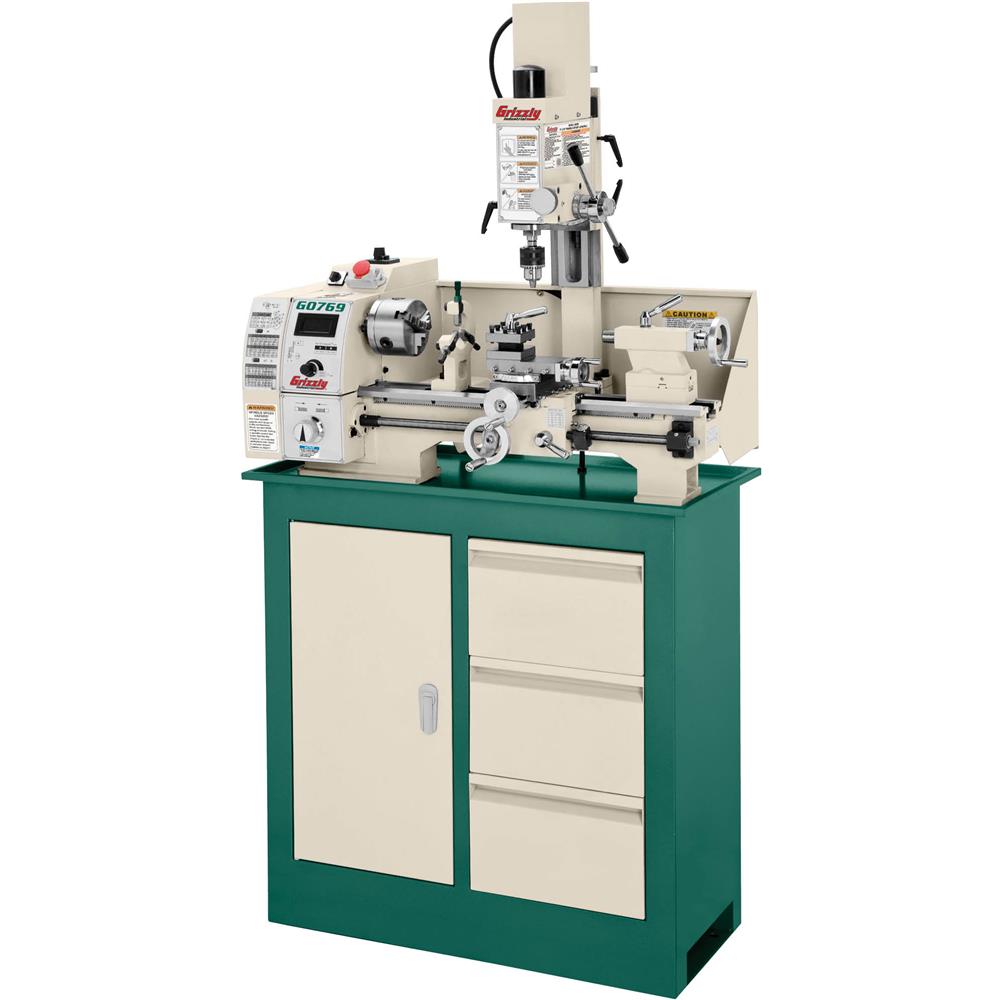

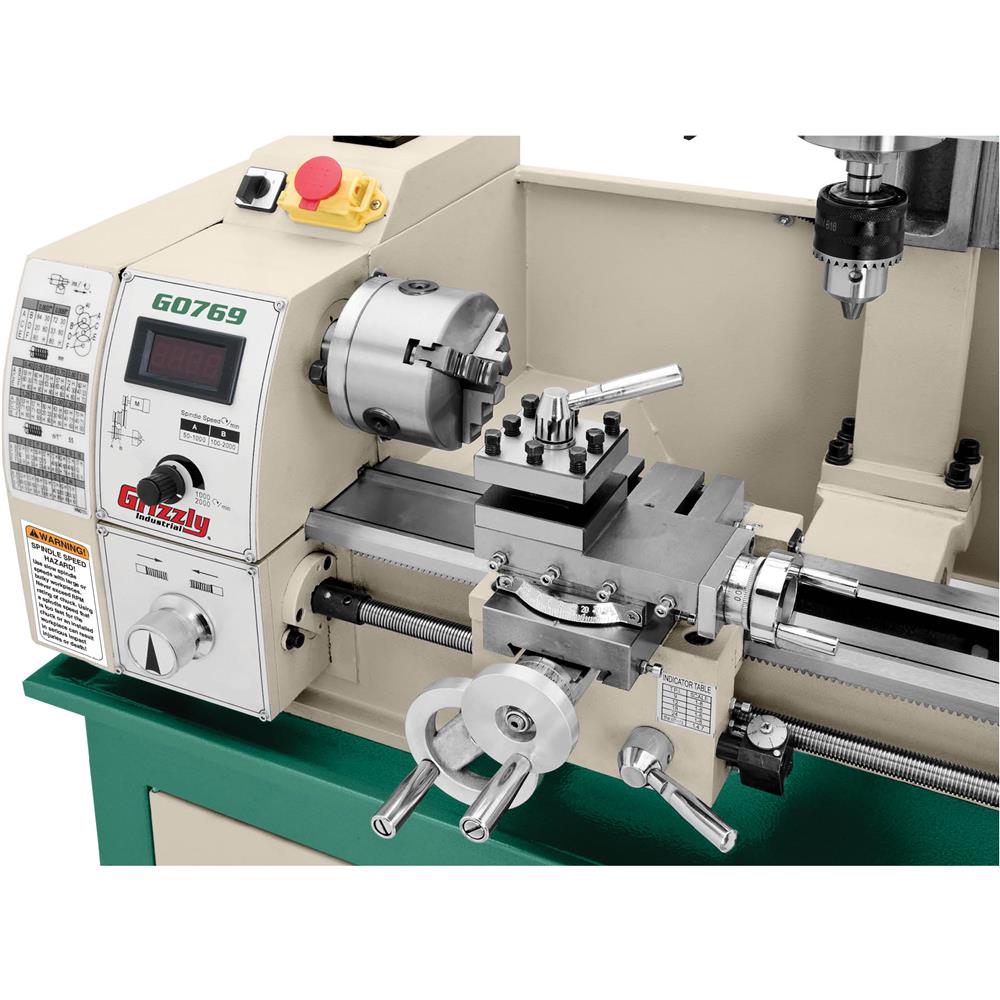

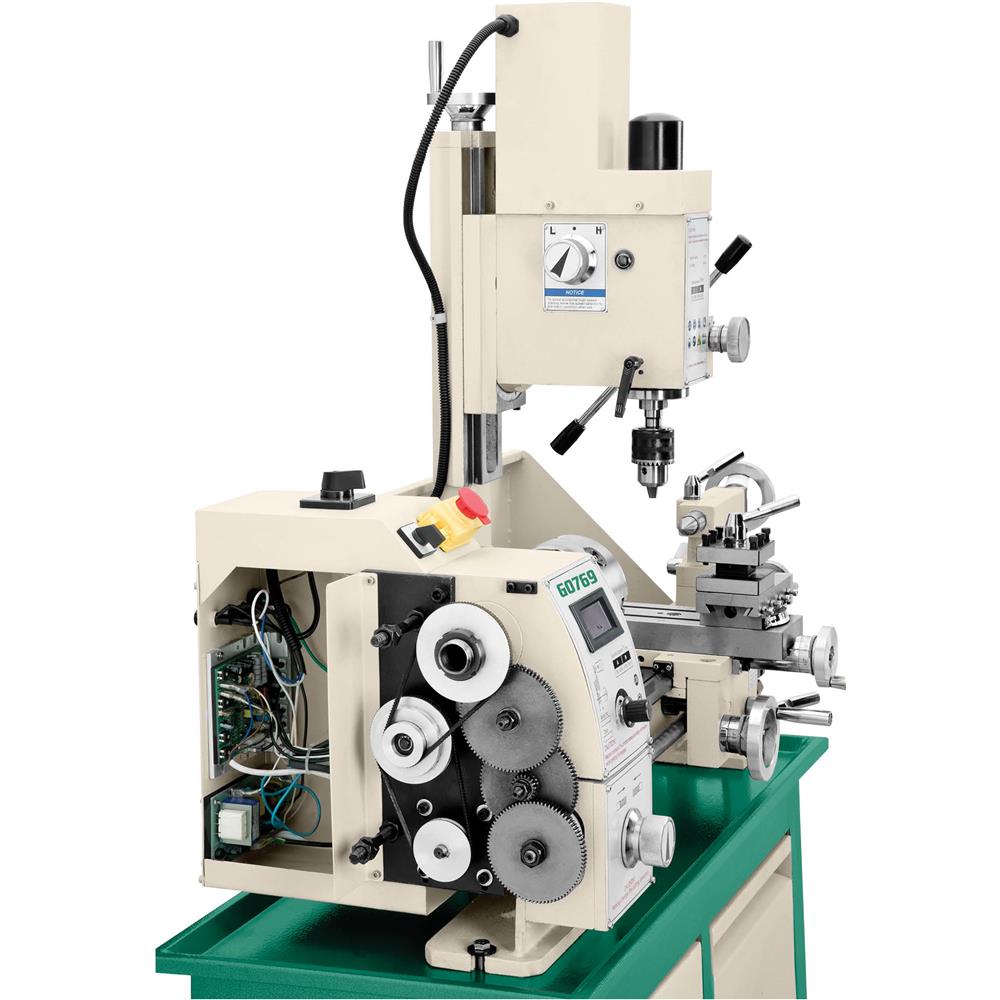

Grizzly G0769 Combination Lathe-Mill 8" x 16" Variable-Speed New
Product Overview
The Grizzly G0769 is a compact combination lathe-mill designed for machining small metal parts in limited shop space. By pairing an 8" x 16" class lathe with a variable-speed milling head, it gives users two core metalworking functions in one bench-mounted machine.
Its variable spindle speed range of 50 to 2000 RPM supports a wide variety of turning, facing, drilling, threading, and light milling tasks. With 15-3/4" between centers, an 8-1/4" swing over bed, and inch and metric threading capability, it is well suited for detailed fabrication, repair work, and prototype projects.
This machine is a practical choice for home shop machinists, hobbyists, and small workshop users who want versatility without dedicating floor space to separate machines. It also includes useful tooling to help users get started with everyday metalworking operations.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Specifications
| Swing over bed | 8-1/4" |
| Swing over cross slide | 4-5/8" |
| Swing over saddle | 6-7/8" |
| Distance between centers | 15-3/4" |
| Bed width | 4" |
| Spindle bore | 0.787" (20mm) |
| Spindle type | Intrinsic back plate |
| Spindle taper | MT#3 |
| Tailstock taper | MT#2 |
| Tailstock quill travel | 2" |
| Cross slide travel | 3" |
| Compound travel | 2-1/8" |
| Spindle speed | Variable, 50–2000 RPM |
| Longitudinal feeds | (2) 0.0037, 0.0068 in./rev. |
| Inch thread range | (15) 9–44 TPI |
| Metric thread range | (12) 0.4–3.0mm |
| Swing | 13" |
| Spindle taper | MT#2 |
| Spindle travel | 1-3/4" |
| Distance from spindle to table | 9-7/8" |
| Distance from spindle to bed | 11-1/2" |
| Head vertical travel | 6-5/16" |
| Head tilt | 45° left/right |
| Table dimensions | 3-1/8" W x 7-1/4" L x 1-1/8" T |
| T-slots | two at 1/4", 1-1/2" on center |
| Drawbar | 3/8-16 TPI, 8-1/2" L |
| Spindle speed | Variable, 50–2000 RPM |
| Max. tool bit size | 1/2" |
| Drilling capacity | 1/2" (steel) |
| Motor | 3/4 HP, 110V, single-phase 10A |
| Footprint | 10-1/2" x 31-1/2" |
| Overall dimensions | 36" W x 20" D x 34" H |
| Approx. shipping weight | 287 lbs. |
