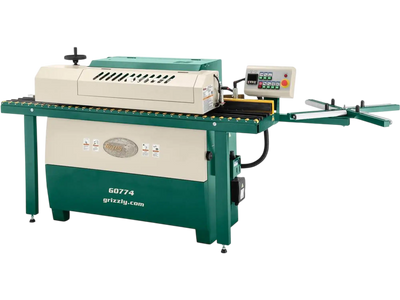

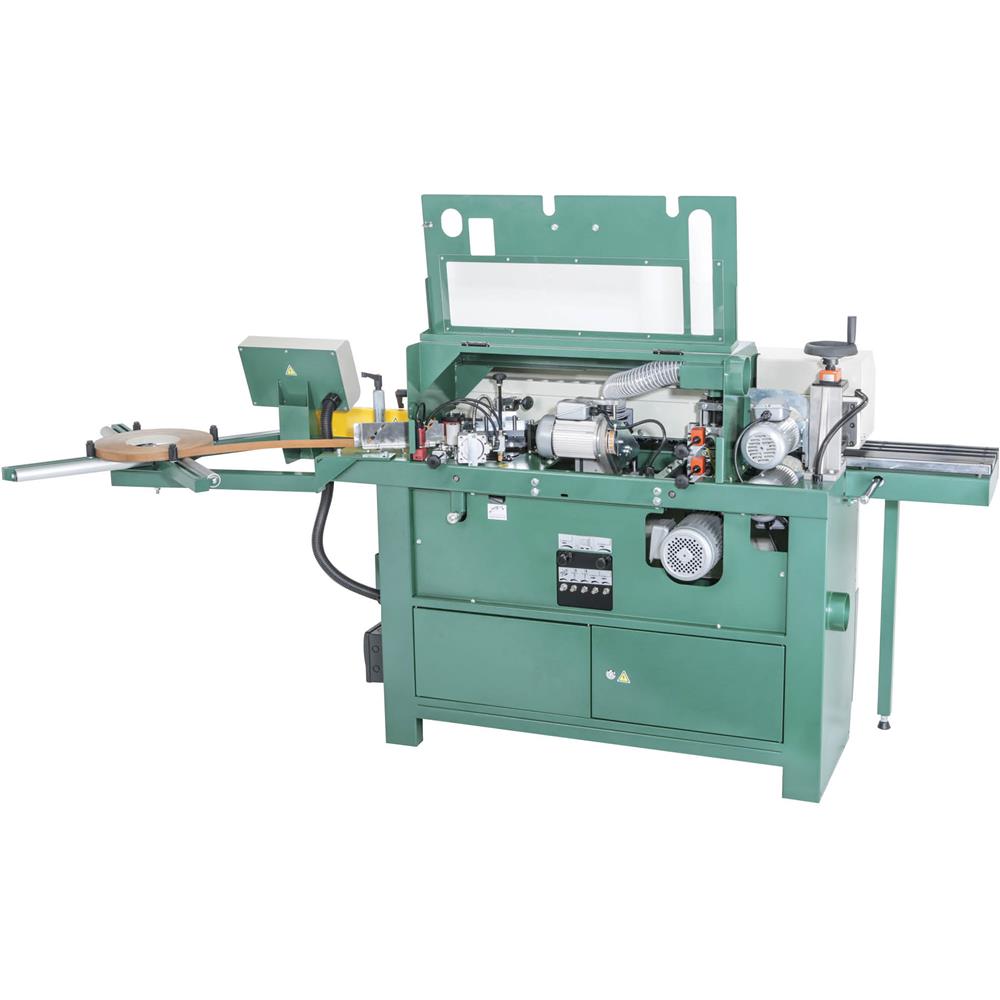

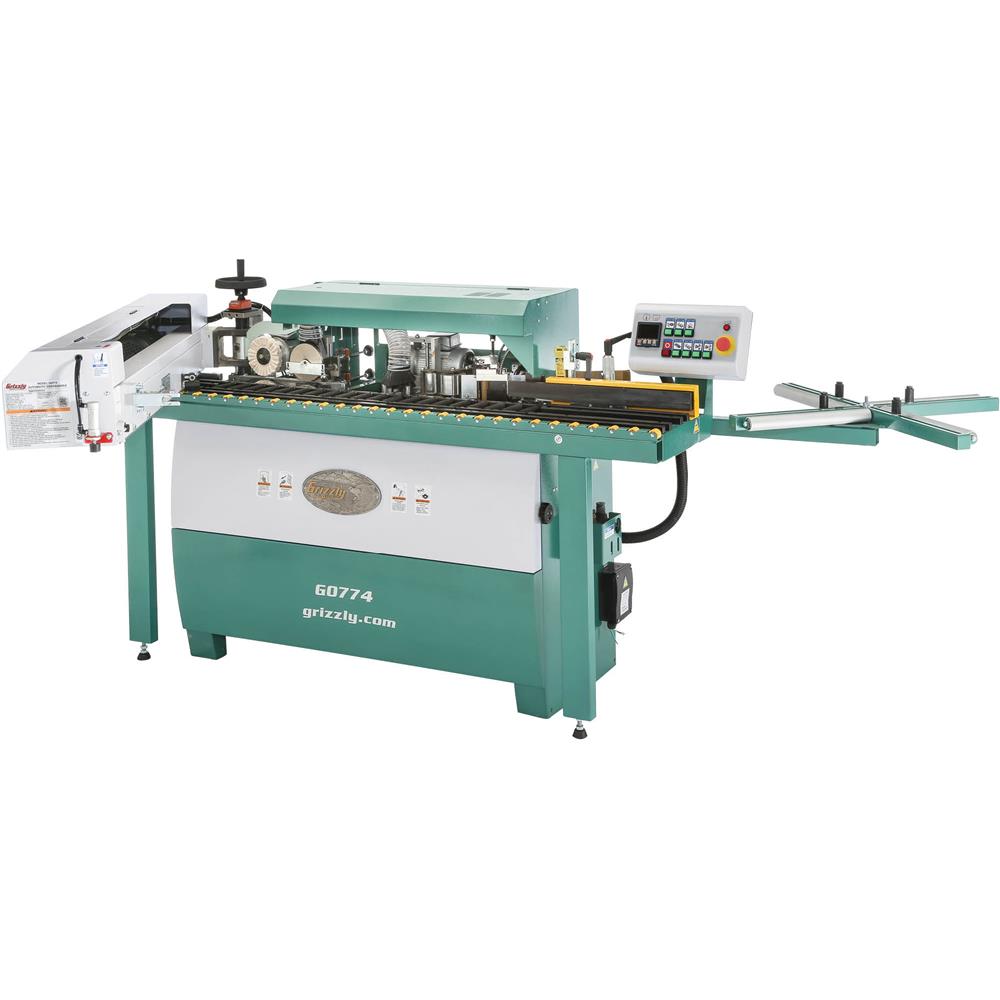

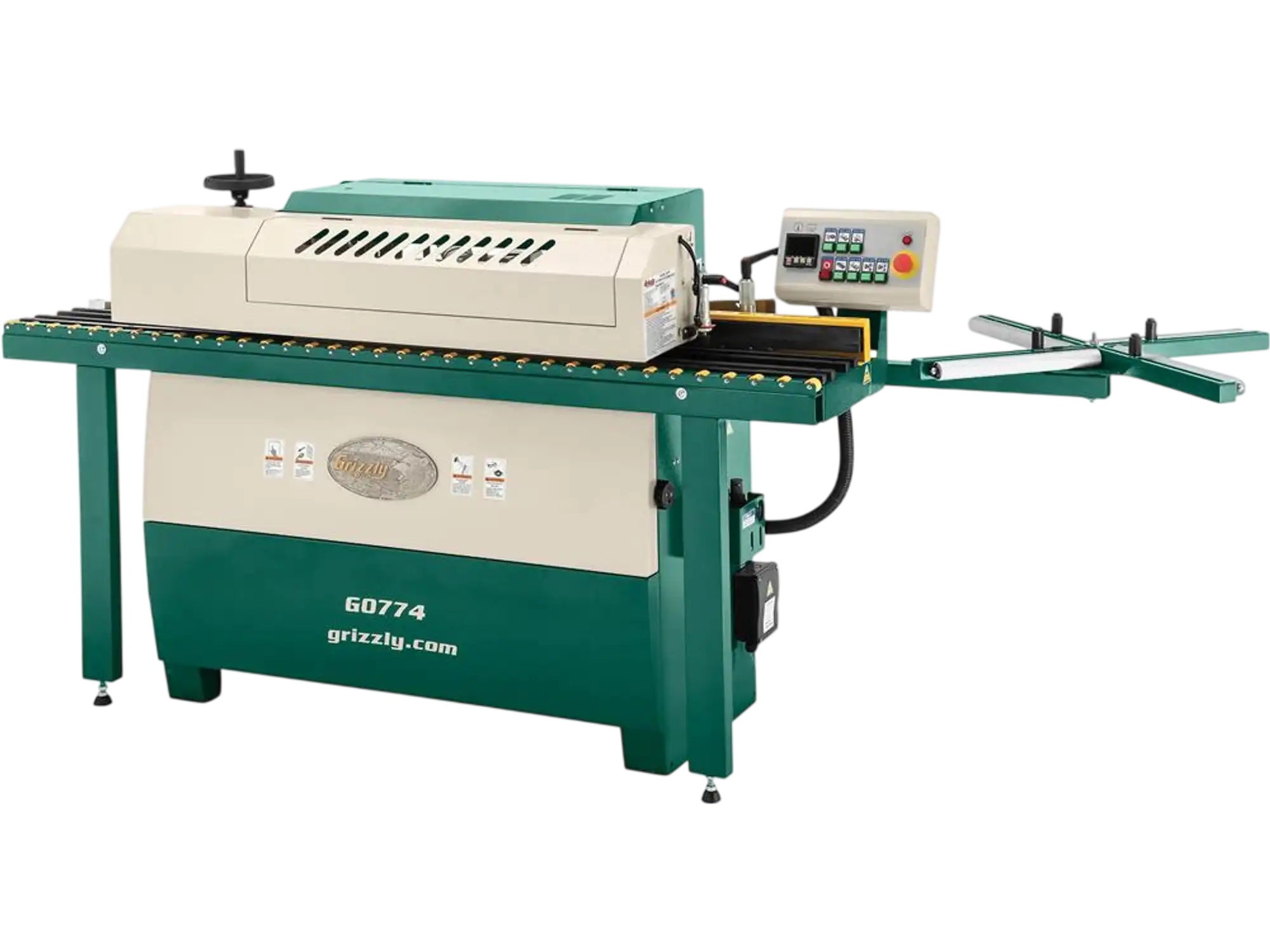

Grizzly G0774 Automatic Edgebander Industrial Edge Banding Machine New
Product Overview
The Grizzly G0774 Automatic Edgebander is an industrial edge banding machine built to apply and finish edging on cabinet parts, panels, and other production workpieces with speed and consistency. It gives operators individual control over key stages of the process, making it a strong fit for shops that want cleaner results and more efficient workflow.
Designed for growing cabinet and production shops, this machine handles a wide range of edging materials including ABS, PVC, laminates, wood tape, and wood strips from 0.5mm to 3.0mm thick. It works with panel thicknesses from 1/2 inch to 1-3/4 inch, offering the flexibility needed for varied commercial jobs.

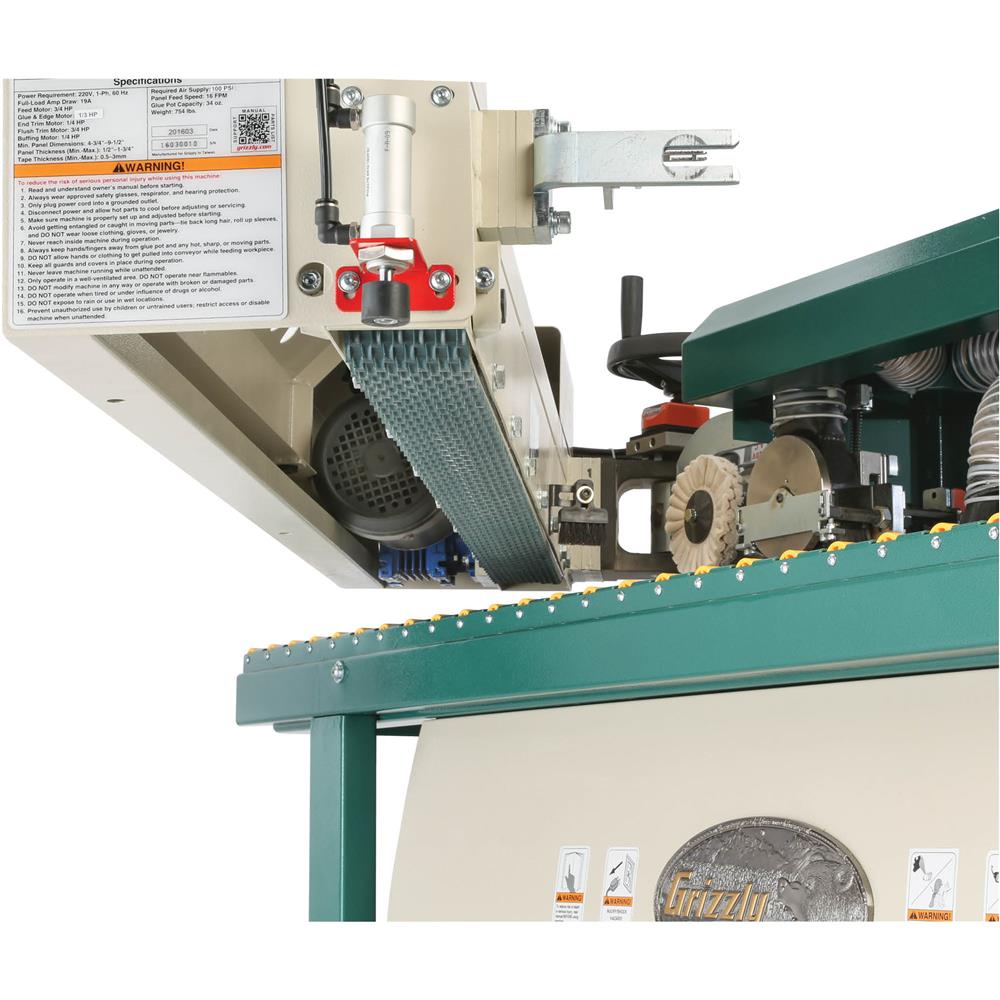

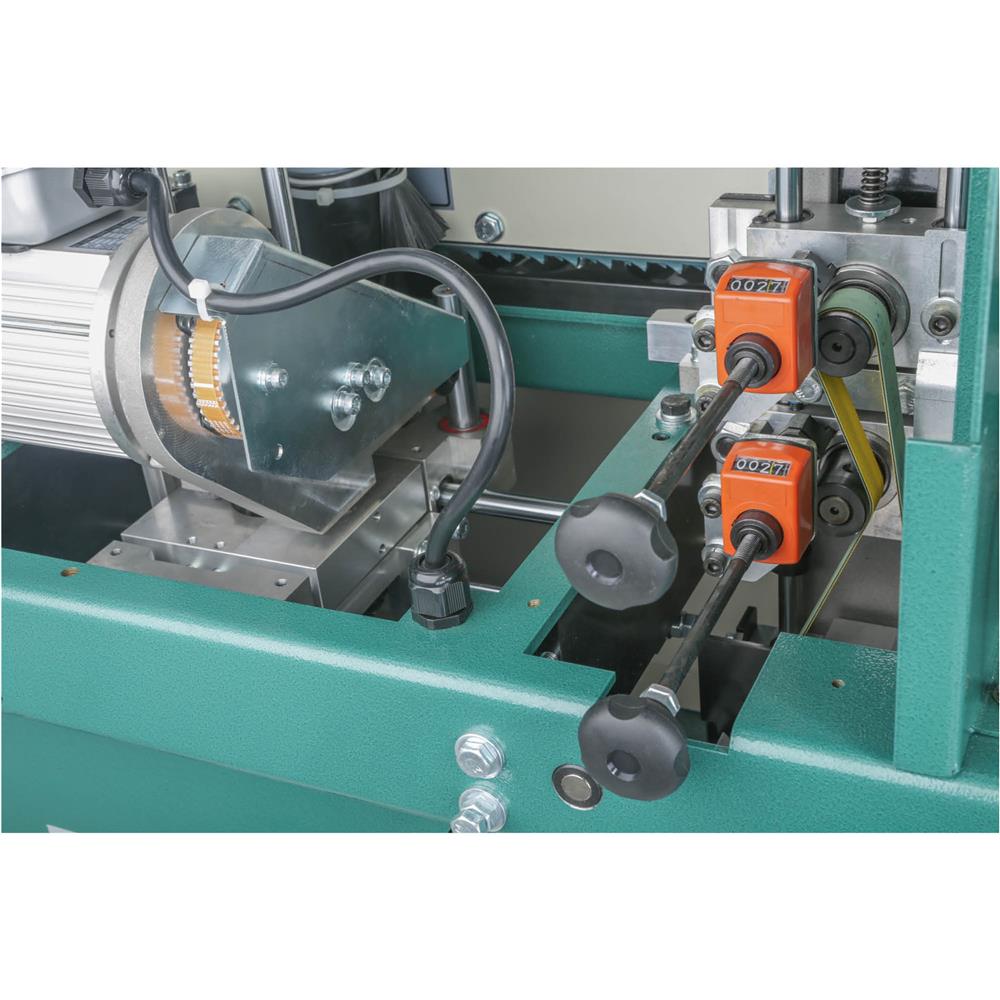

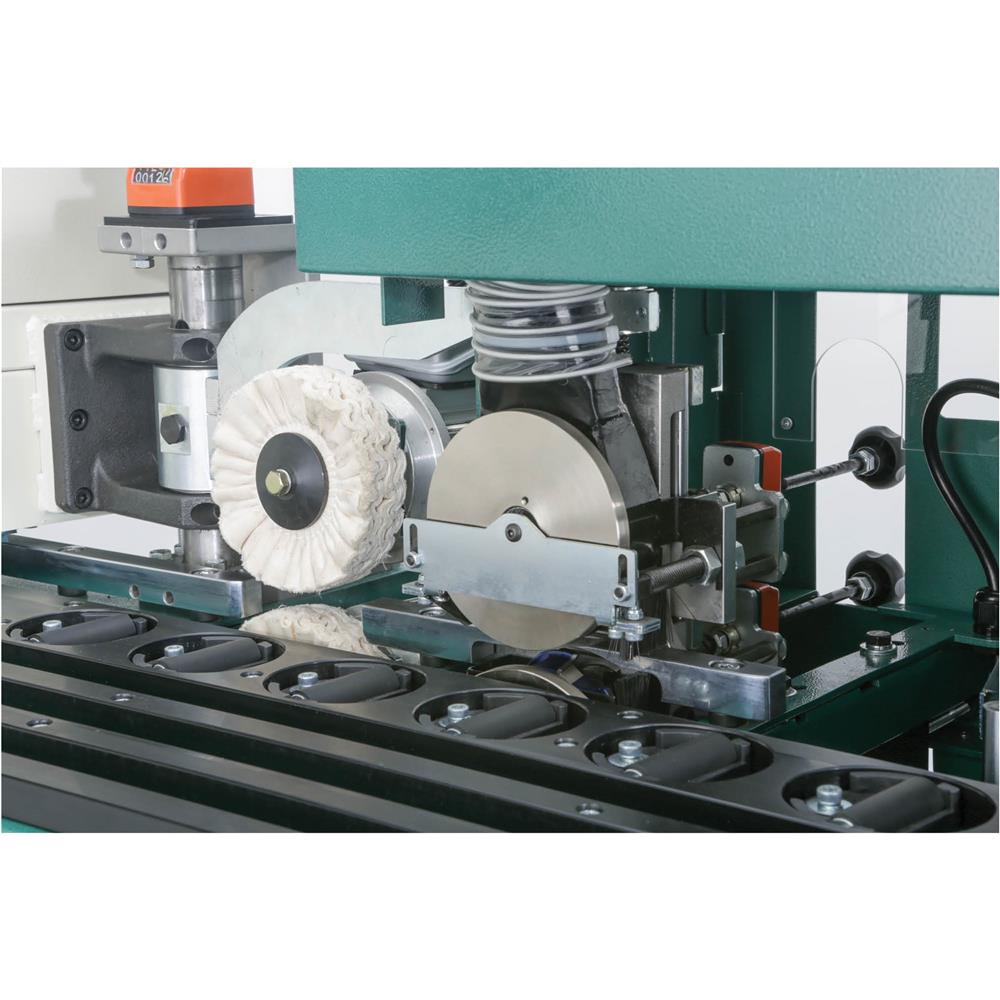

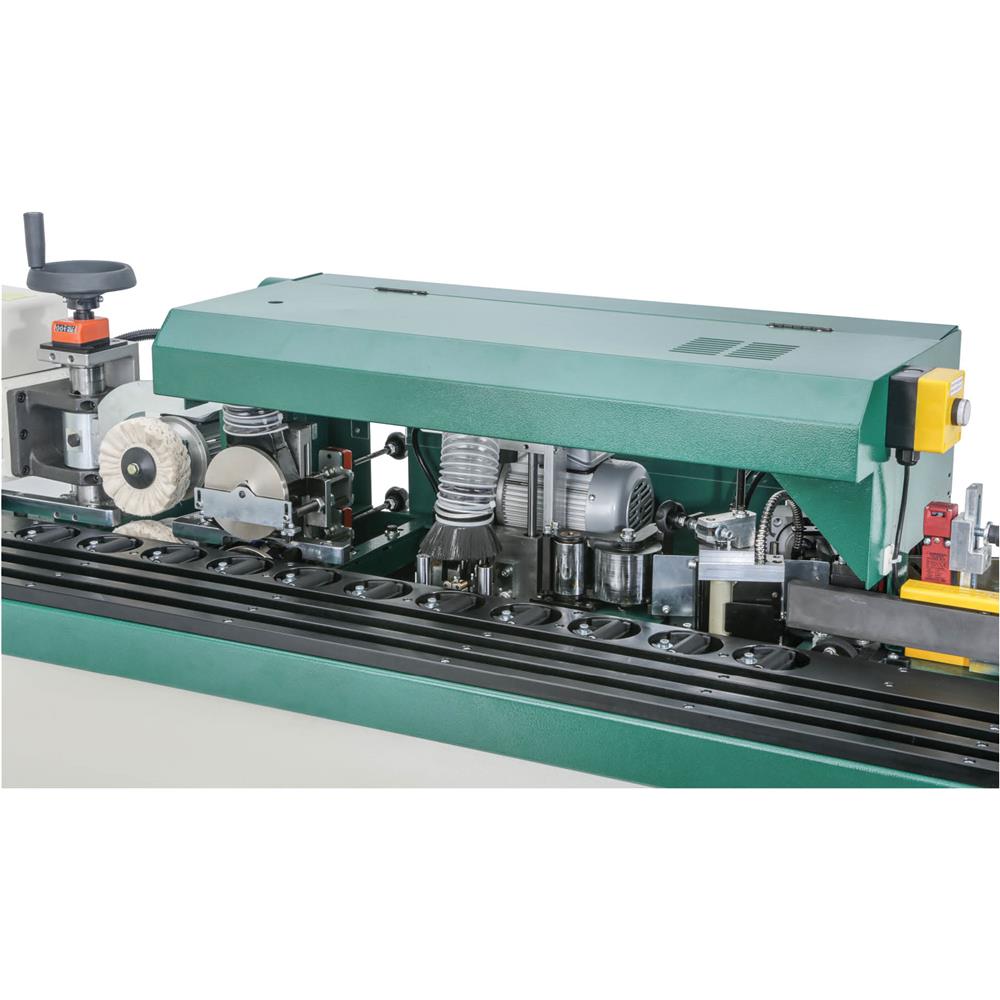

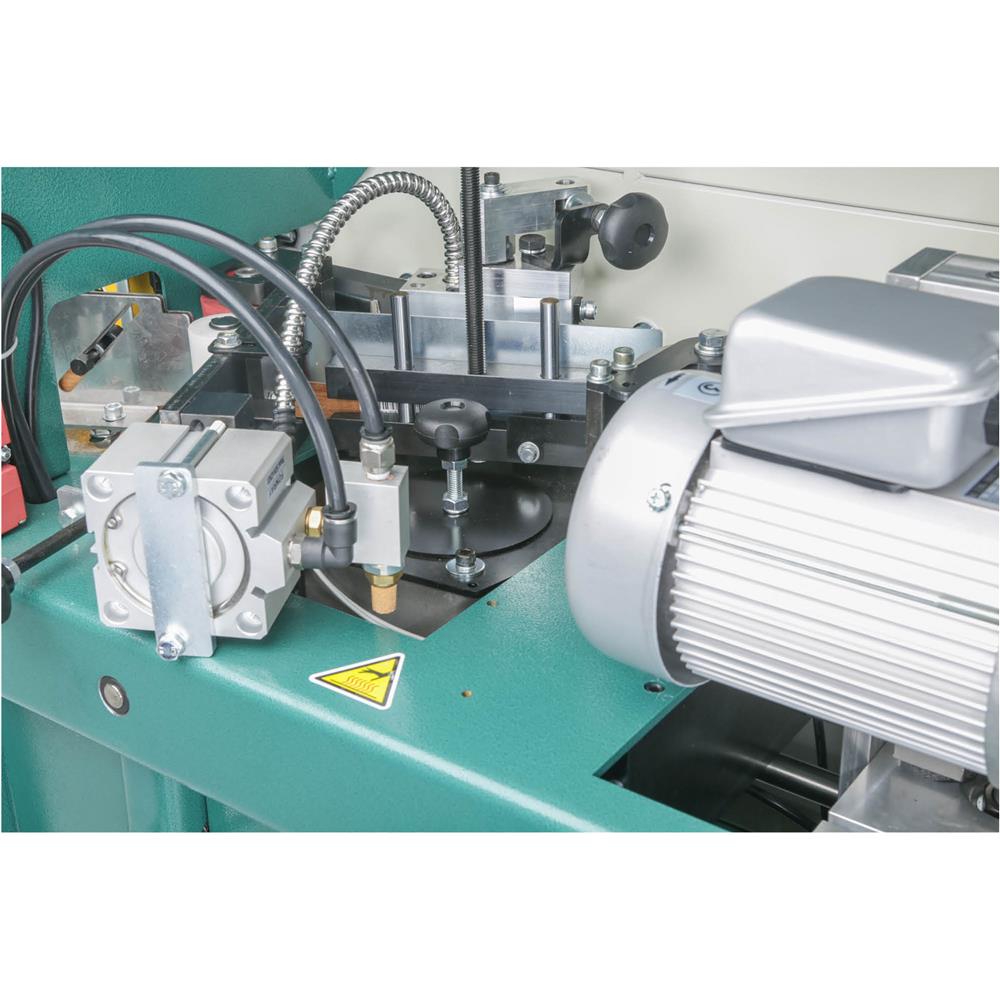

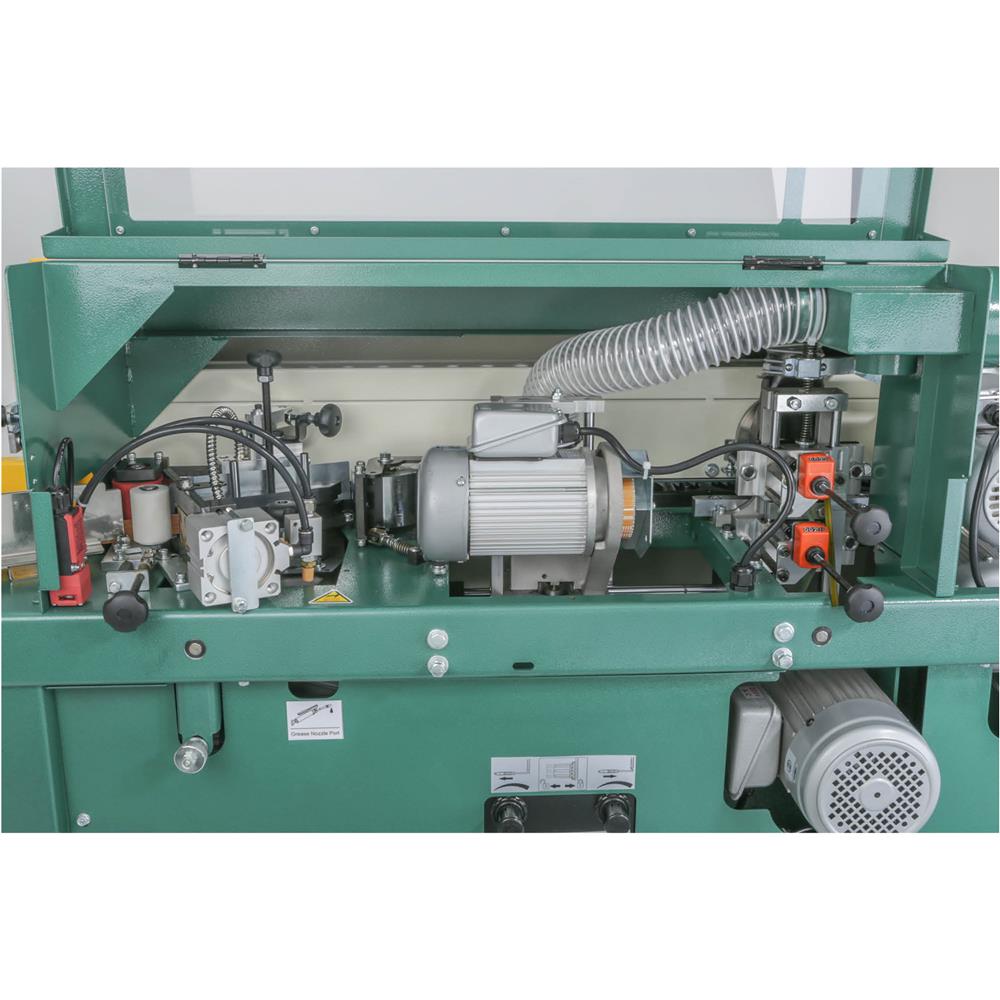

Automatic belt feed, industrial rollers, a heated infeed fence, and a Teflon-coated glue pot help support smooth material handling and glue application. Upper and lower trimming units with digital readout, a double-bladed end-trimming saw, buffing wheels, and a pneumatic banding guillotine complete the process for a more polished finished edge.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

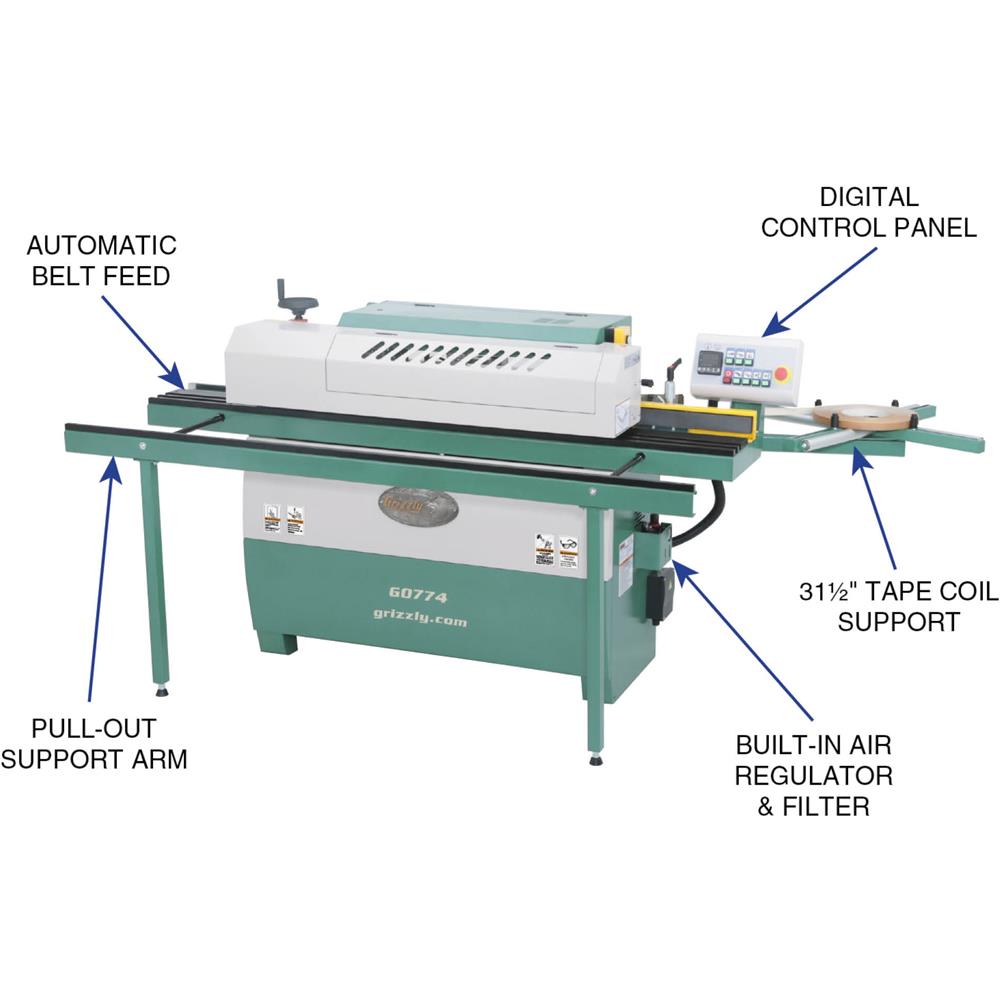

- Automated belt feed system
- Pull-out support arm to handle larger workpieces

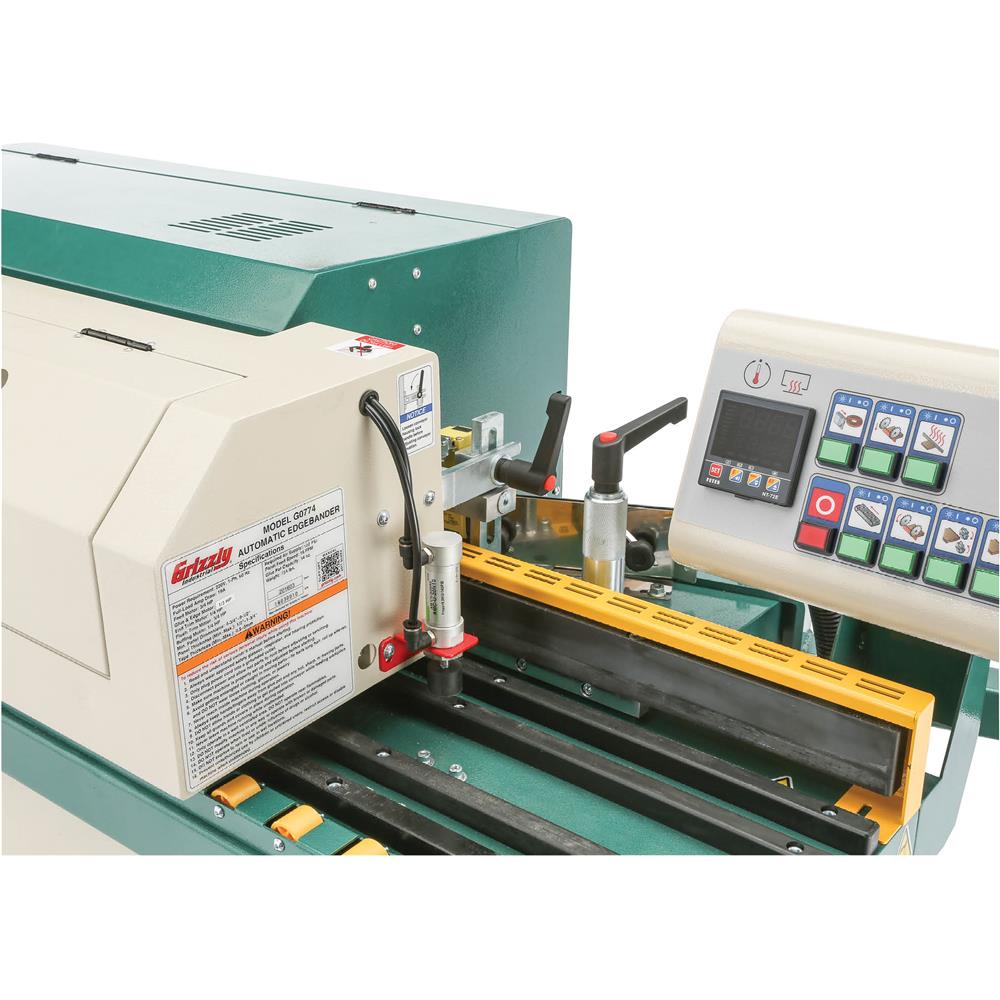

- Heated infeed fence for better glue distribution
- Teflon-coated glue pot for easy glue changes
- Five heating elements
- Adjustable infeed fence

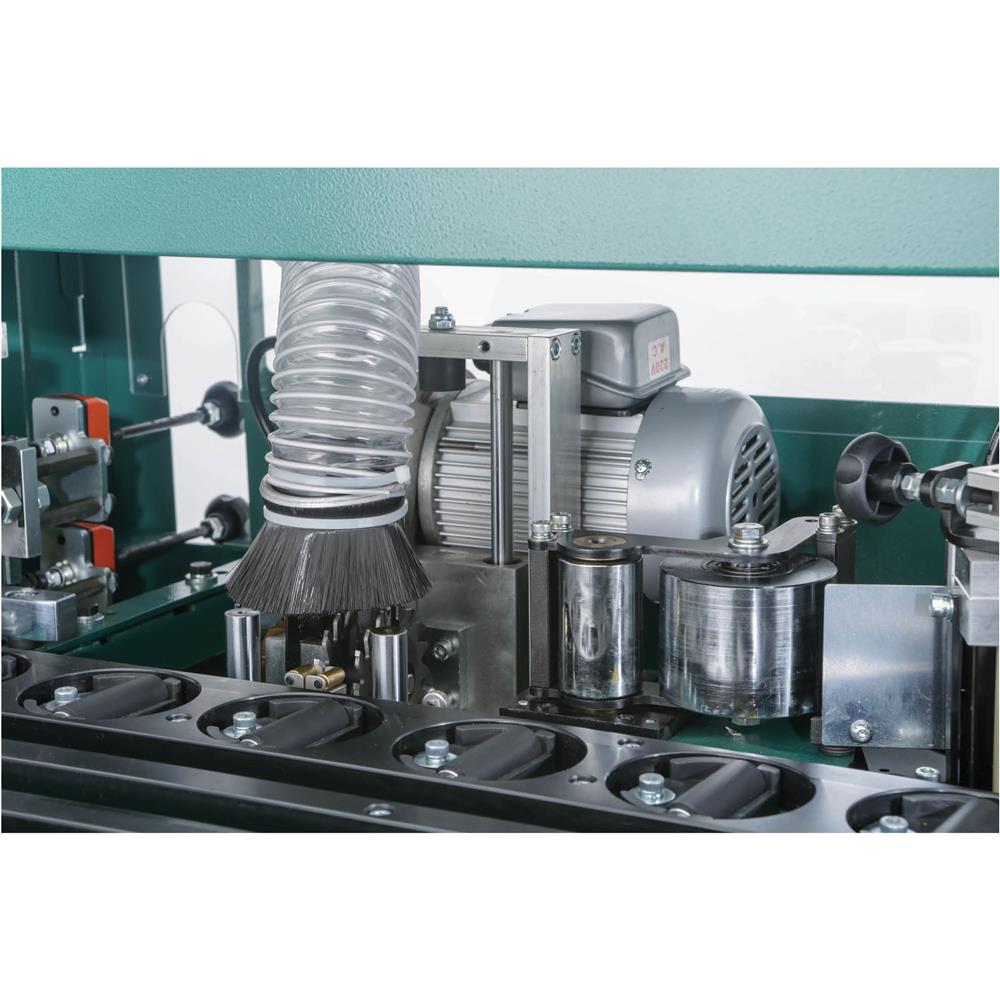

- Upper and lower buffing wheels
- Powder-coated finish

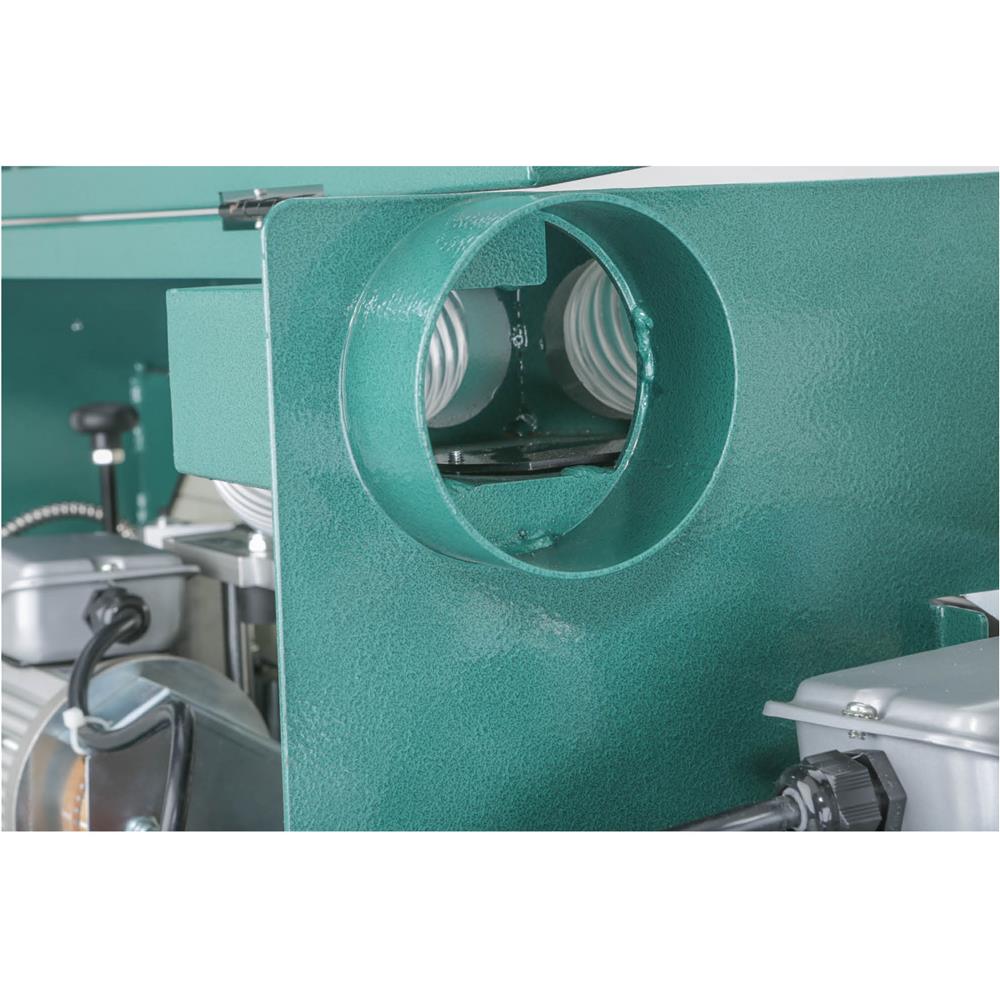

- Two 4-inch dust ports
Specifications
| Required power source | 220V, single-phase, min. 30A circuit |
| Feed motor | 3/4 HP |
| Glue spindle motor | 1/3 HP |
| End trim motor | 1/4 HP |
| Flush trim motor | 3/4 HP |
| Buffing motor | 1/4 HP |
| Heating element | 1535W (7A) |
| Table size | 10-1/2" W x 78-3/4" L |
| Minimum panel dimensions | 4-3/4" W x 9-1/2" L |
| Panel thickness | 1/2"–1-3/4" |
| Tape thickness | 0.5mm - 3.0mm |
| Air requirement | 6 SCFM @ 100 PSI |
| Glue pot capacity | 34 oz. |
| Edgebanding coil capacity | 31-1/2" |
| Dust collection requirement (at dust port) | 700 CFM |
| Footprint | 57-3/4" x 22-3/4" |
| Overall dimensions | 109-1/2" W x 60-1/2" D x 49-1/2" H |
| Approximate shipping weight | 970 lb. |
Warranty
This item comes with a 1 year factory warranty.
