Grizzly G0776 Metal Lathe 13" x 40" Gunsmithing w/ DRO New
Product Overview

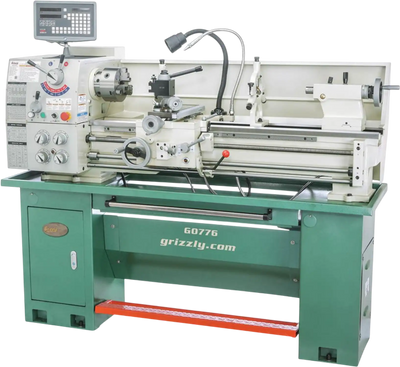

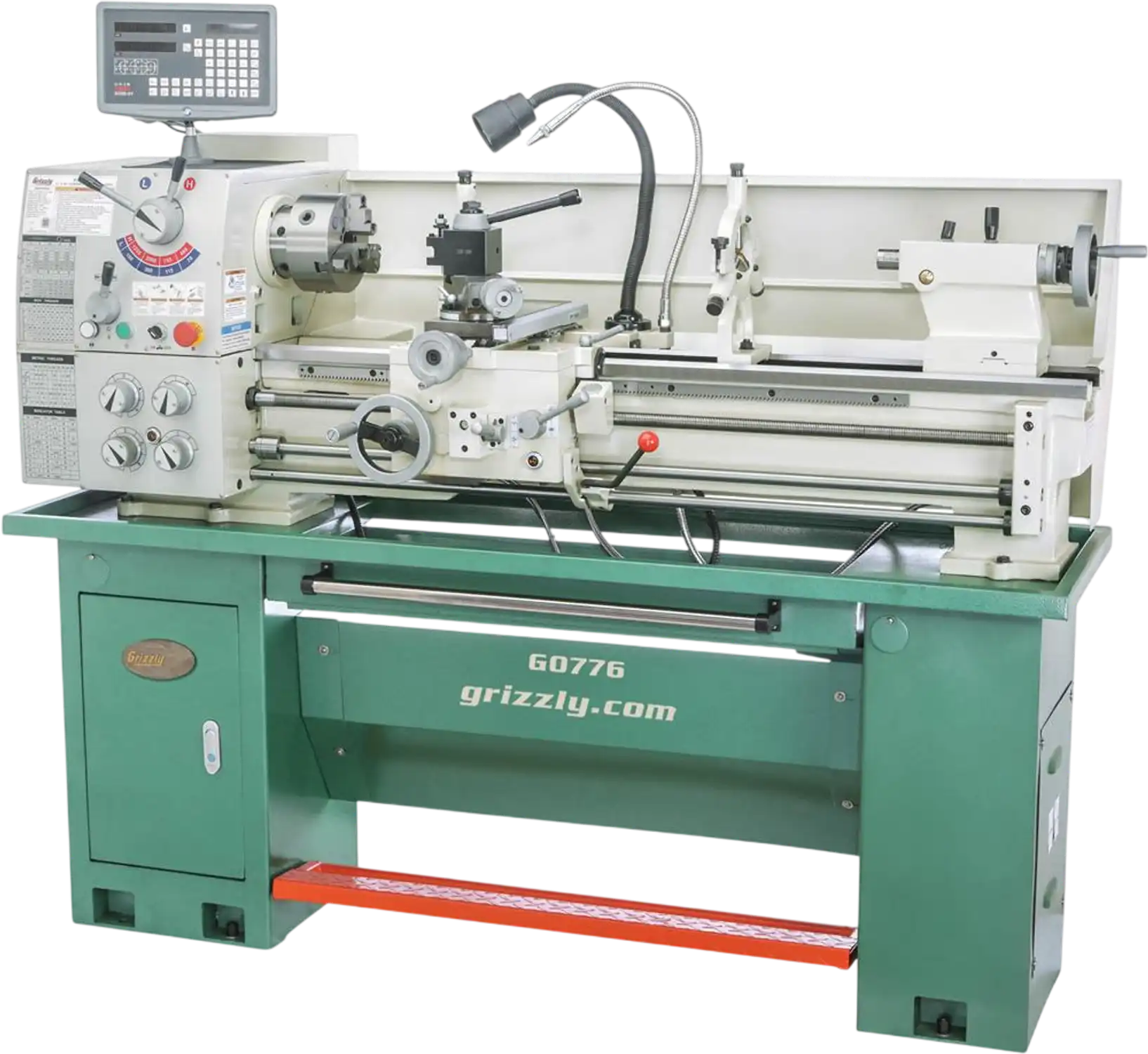

The Grizzly G0776 is a 13" x 40" metal lathe built for precision turning, threading, and chambering work. Designed with gunsmithing applications in mind, it features a spider mount system and a large 1.57" spindle bore to better support long workpieces such as barrels and shafts that extend through the spindle.
A 2 HP motor and 8-speed gearhead provide a spindle speed range of 70 to 2000 RPM, giving it the versatility for both slower heavy cuts and finer finishing work. The 2-axis digital readout helps improve accuracy, while the quick-change tool post and gearbox make setup changes faster and more efficient.
This machine is a strong fit for gunsmiths, machine shops, and serious metalworking users who need dependable capacity and added control for detailed work. Features like the foot brake, coolant system, work light, hardened cast-iron bed, and included chucks and rests make it well suited for demanding shop use.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer

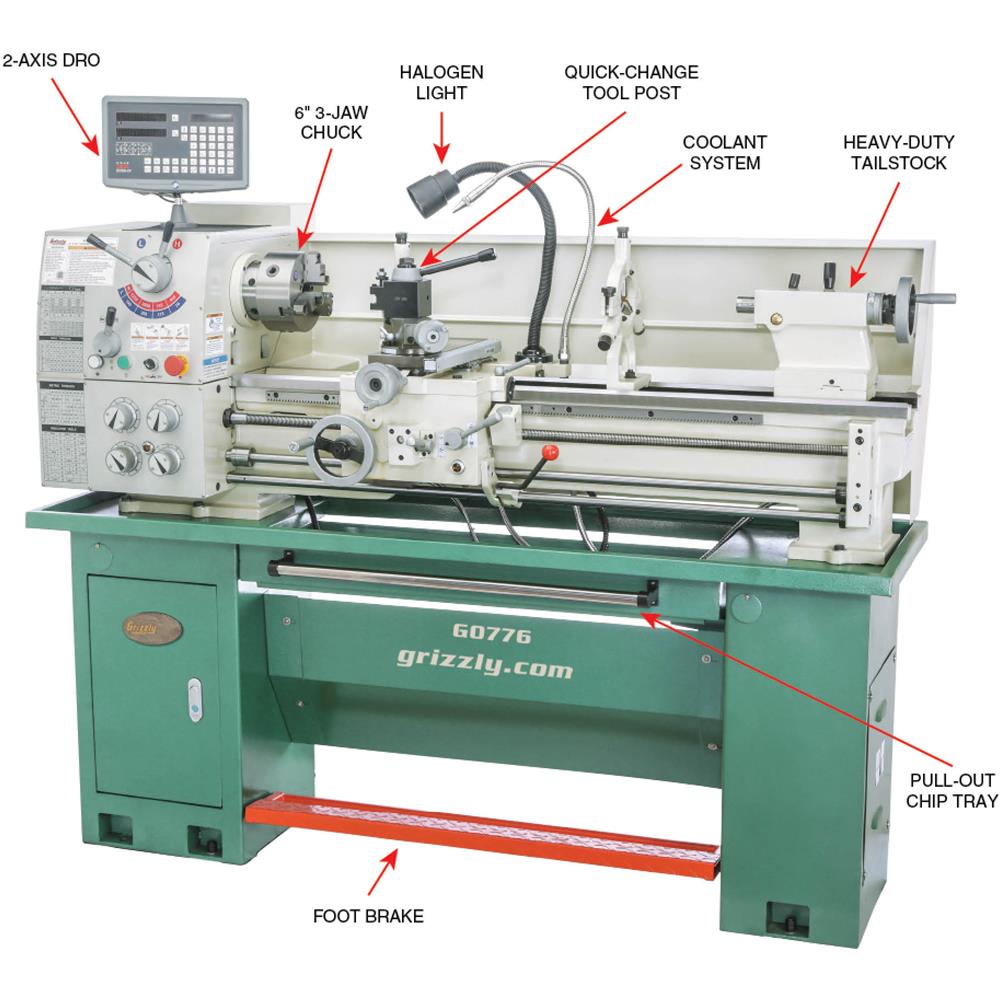

Features

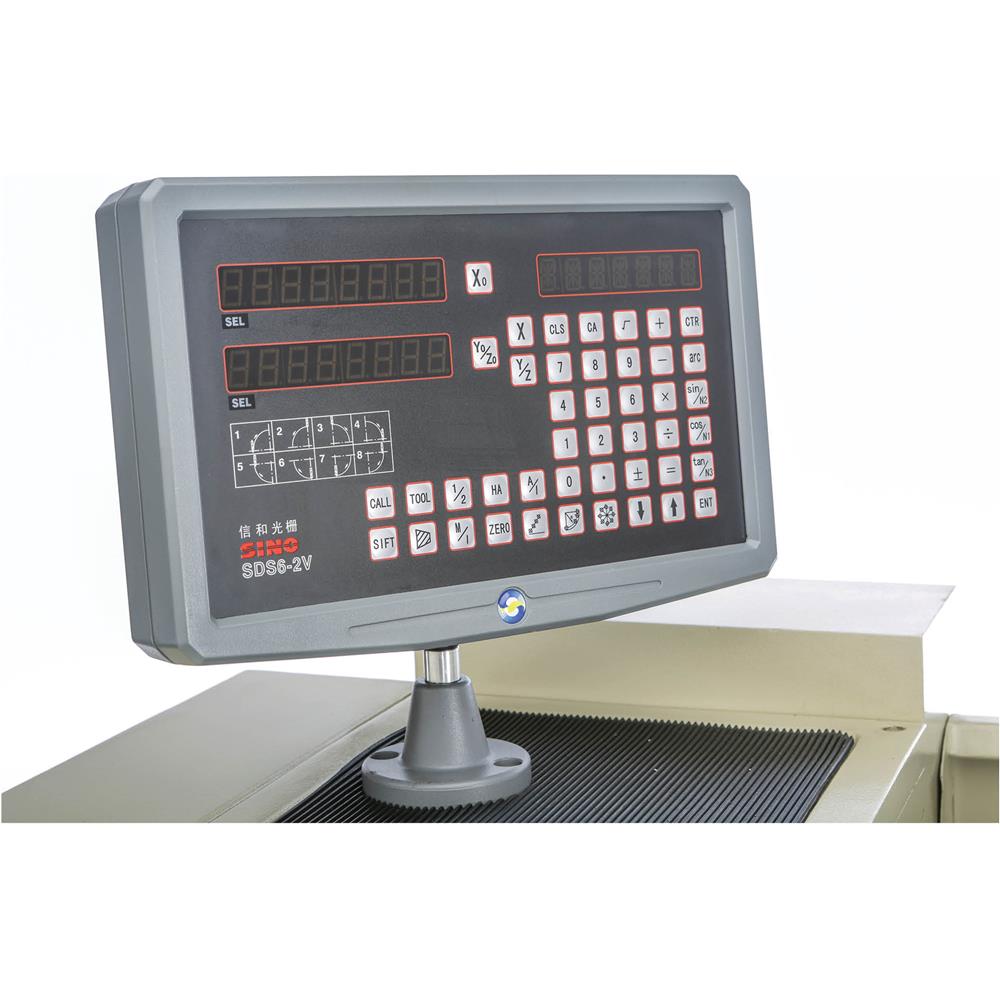

- 2-Axis digital readout
- Spider mount system for stability

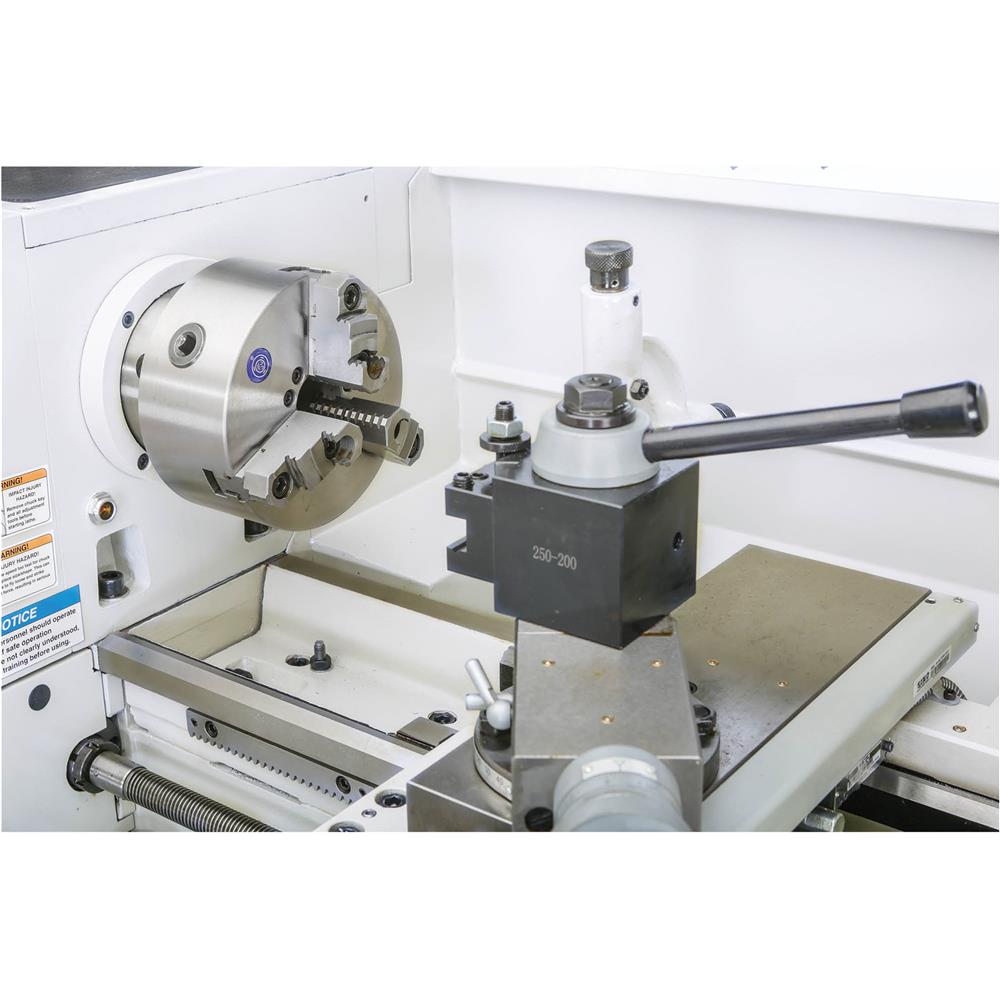

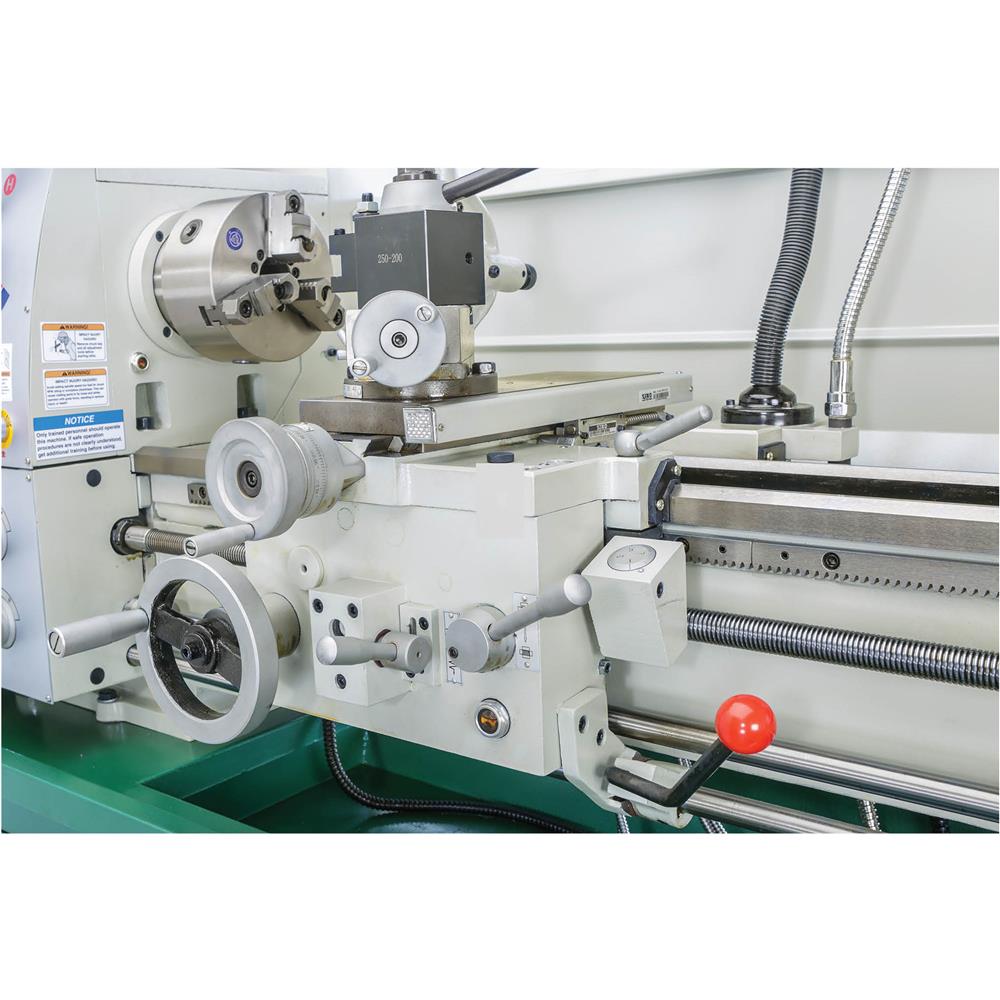

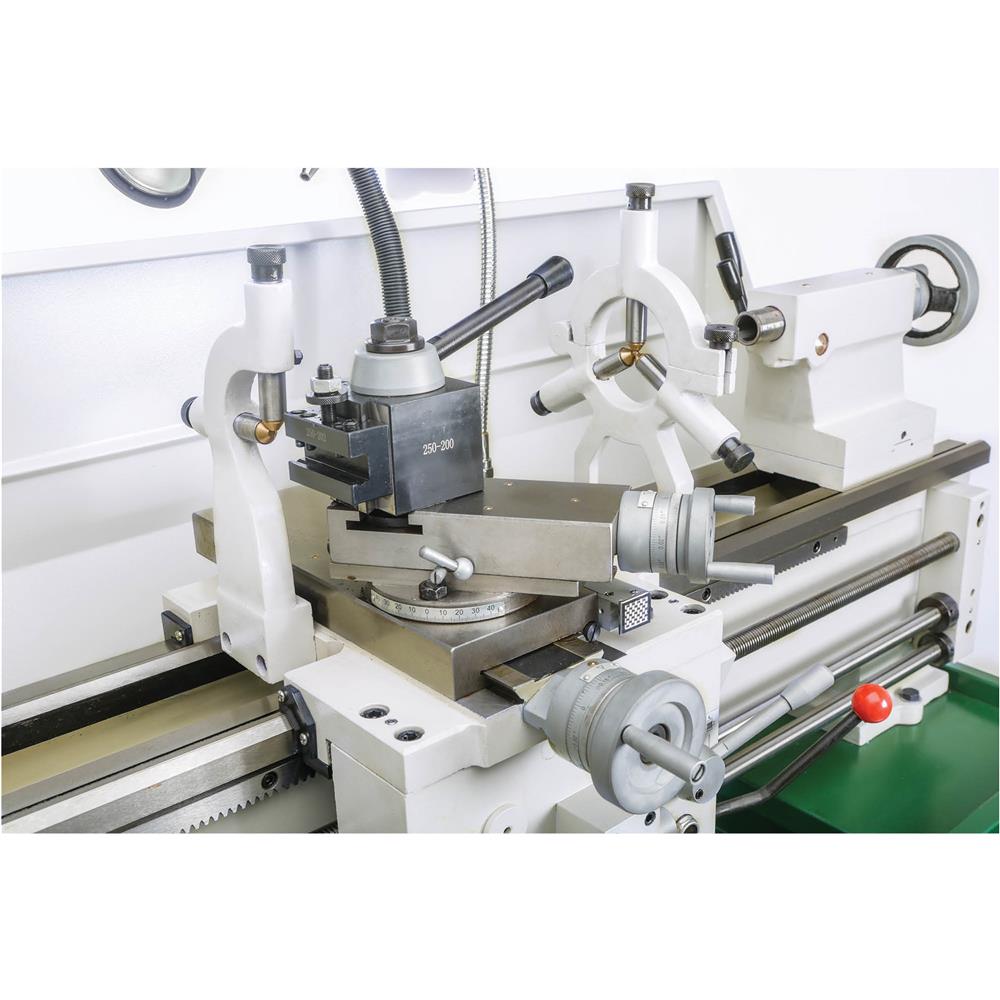

- 200-Series quick-change tool post

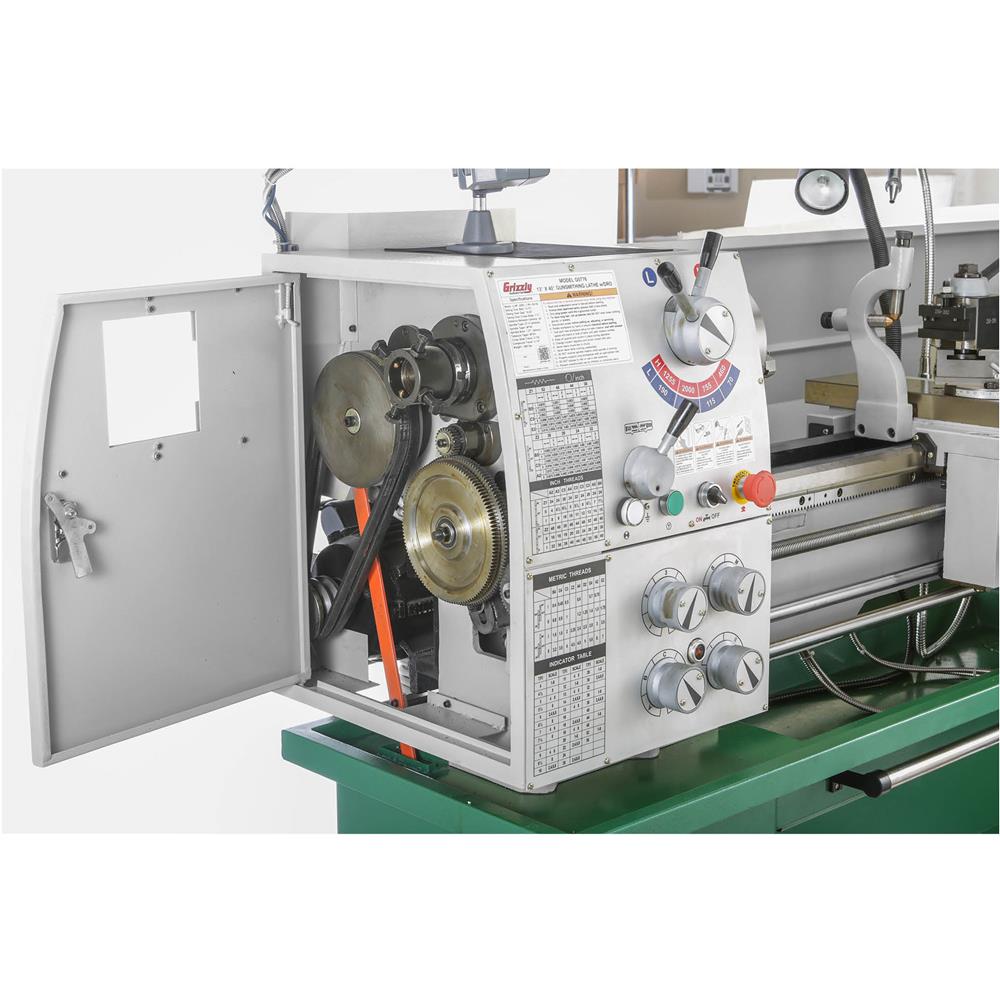

- Quick-change gearbox
- Convenient pull-out chip tray
- Foot brake with motor shut-off switch
- Flame-hardened headstock gears
- Cuts LH threads
- Built-in coolant system
- Full-length splash guard
- Hardened cast-iron bed

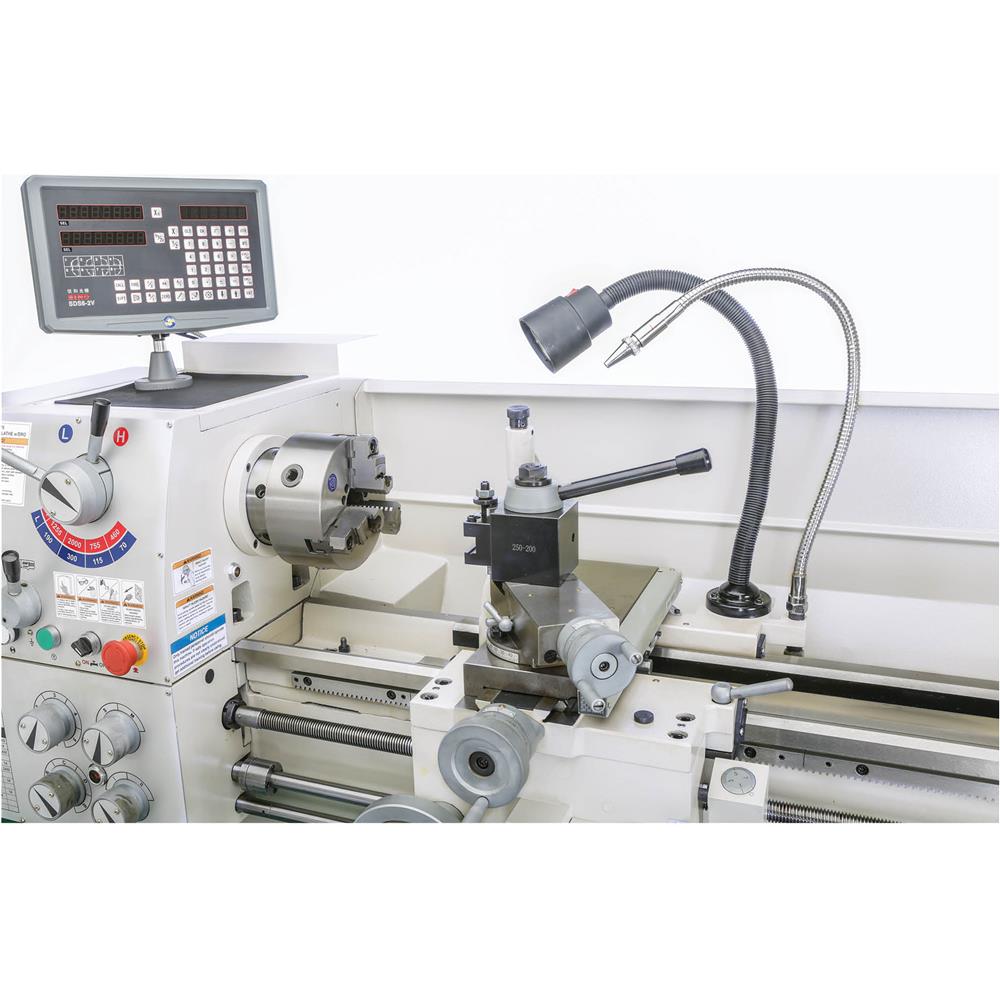

- Halogen work light
Specifications
| Motor | 2 HP, 220V, single-phase, 8.5A |
| Swing over bed | 13-11/16" |
| Swing over gap | 18-1/2" |
| Swing over cross slide | 7-11/16" |
| Distance between centers | 40" |
| Bed width | 7-1/16" |
| Spindle bore | 1.57" (40mm) |
| Spindle taper | MT#5 |
| Spindle speed | 8, 70–2000 RPM |
| Spindle nose | D1-4 |
| Spindle length | 16-5/16" |
| Spindle length with 4-jaw chuck | 20-1/2" |
| Cross slide travel | 5-7/8" |
| Compound travel | 3-1/4" |

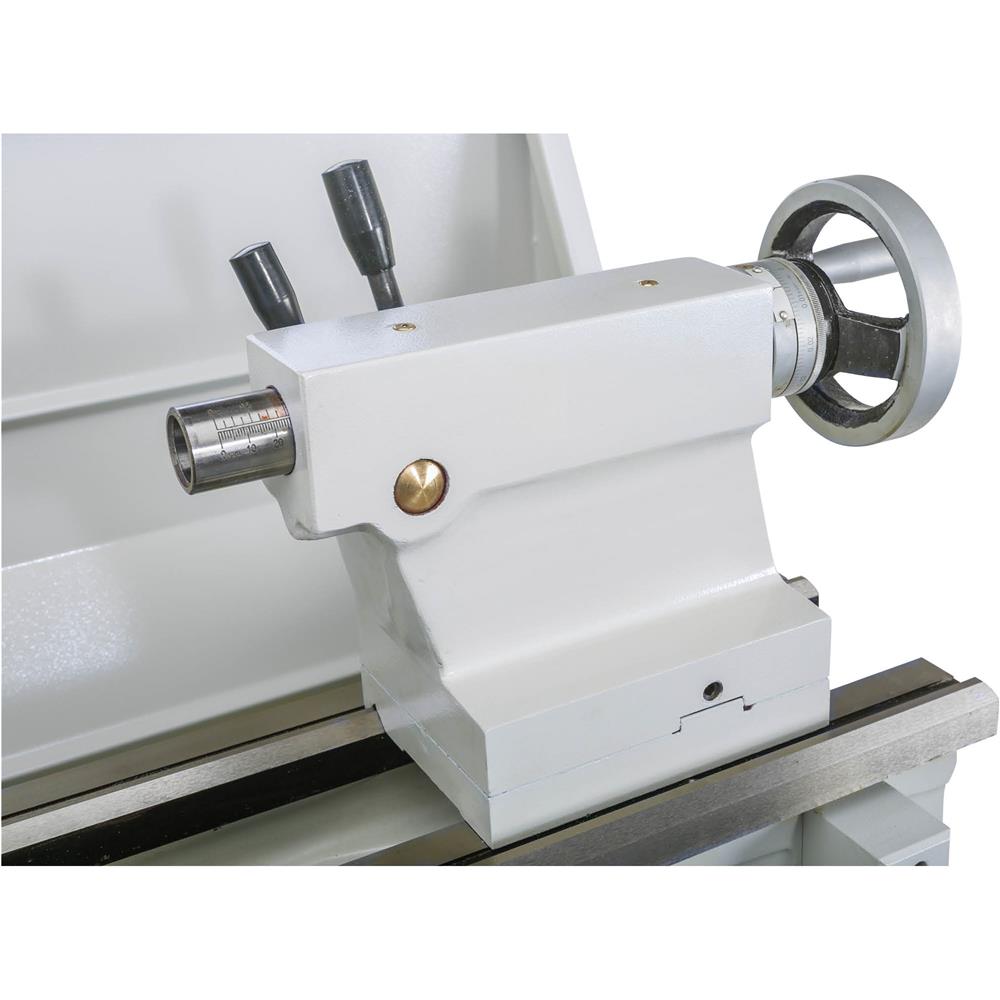

| Tailstock taper | MT#3 |
| Footprint | 70-1/2" x 19-3/4" |
| Overall dimensions | 74-1/2" W x 31" D x 58" H |
| Approximate shipping weight | 1370 lbs. |
Warranty
This item comes with a 1 year factory warranty.
