Grizzly G0791 Combination Lathe-Mill 12" x 36" Gunsmithing Lathe/Mill New
Product Overview

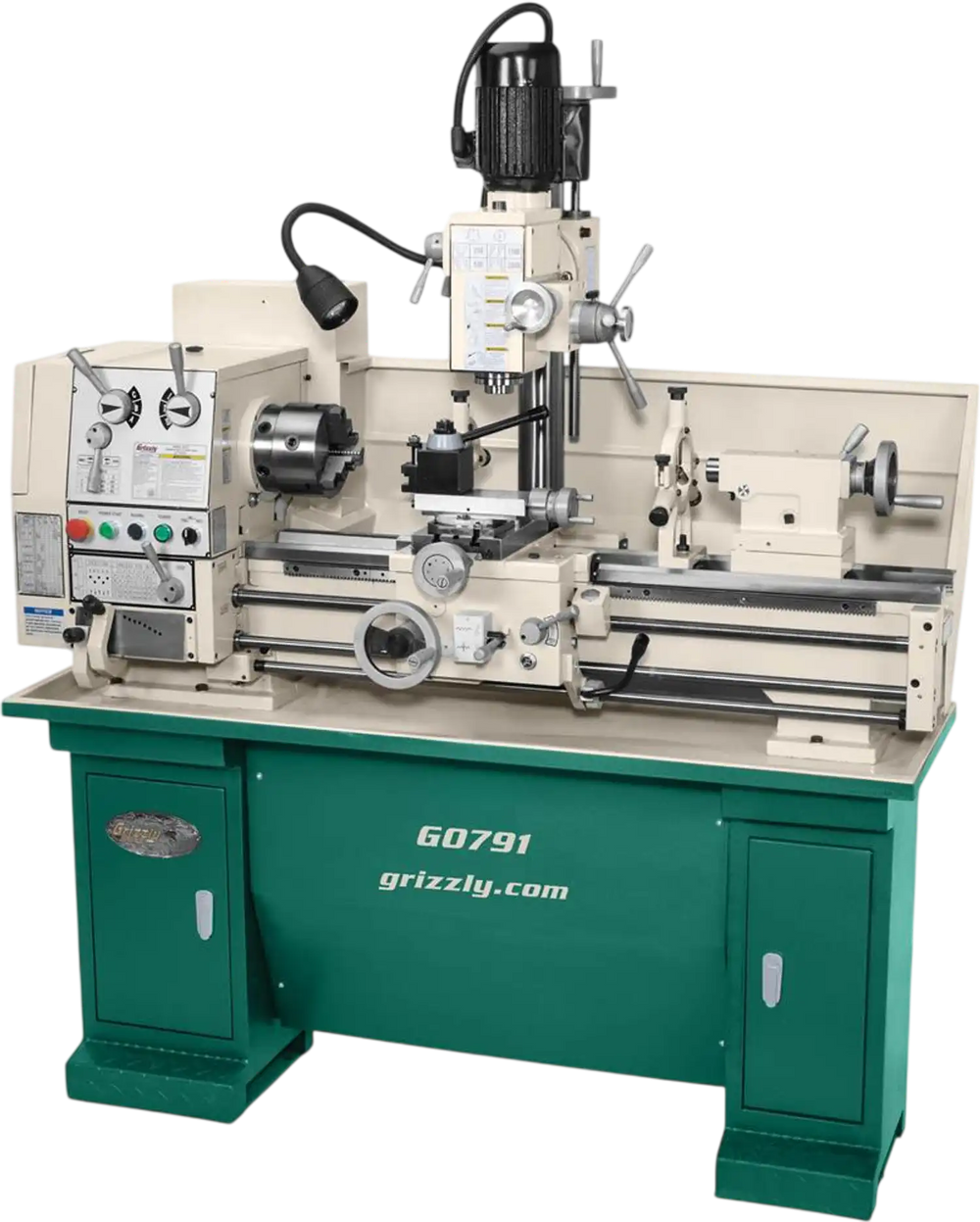

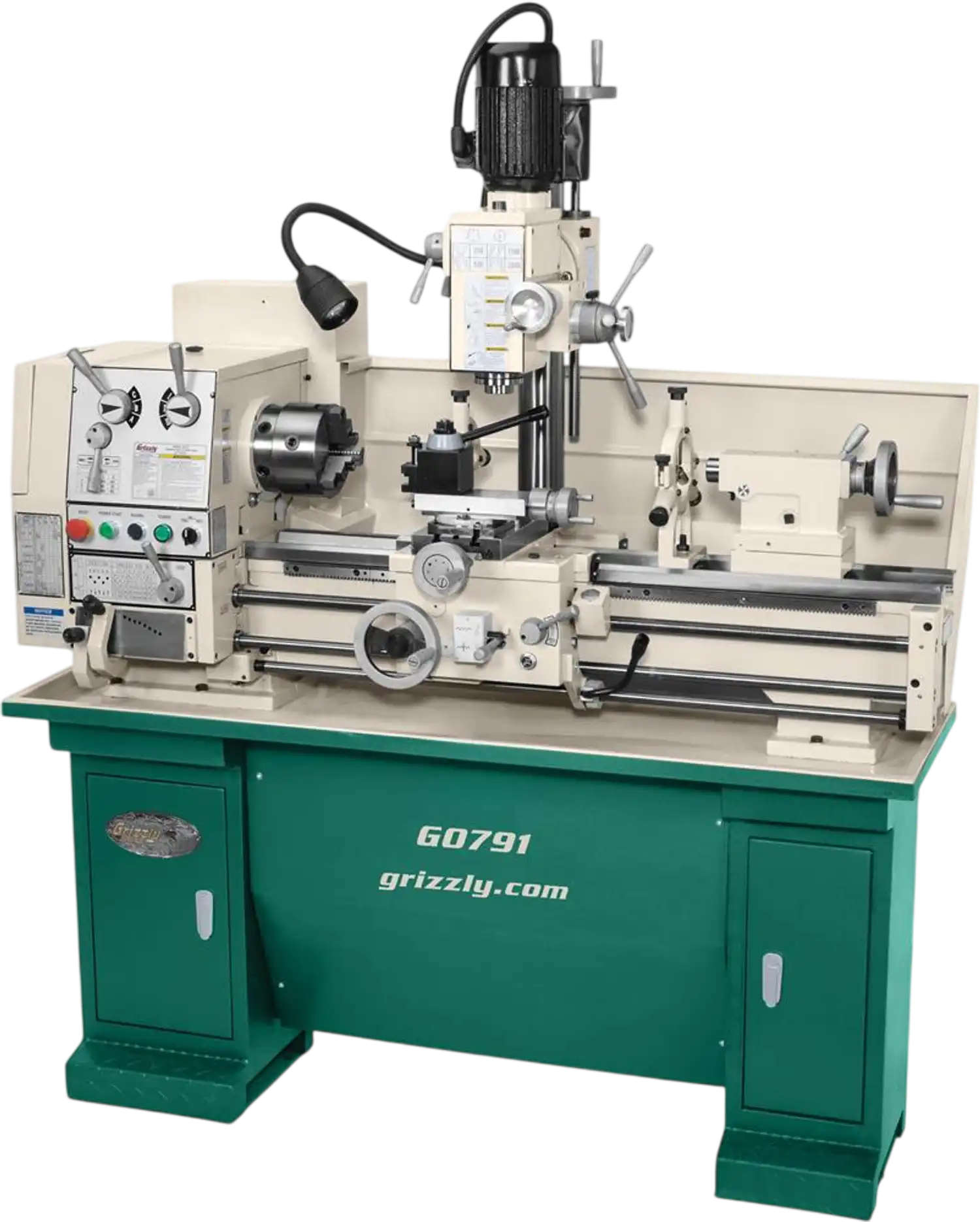

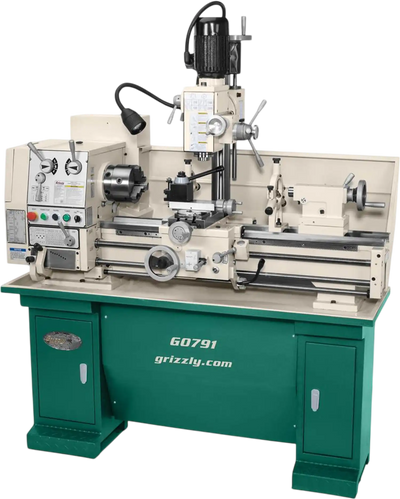

The Grizzly G0791 is a 12" x 36" combination lathe-mill built for shops that need turning and milling capability in one compact machine. Designed with gunsmiths and general machinists in mind, it handles tasks such as chambering, boring, facing, drilling, and light milling while saving valuable floor space.
This model pairs a 2 HP lathe with a 3/4 HP milling head, giving users a versatile setup for both precision work and everyday machining. Key capabilities include a 12" swing over bed, 36" between centers, a 1.57" spindle bore, nine lathe speeds from 70 to 1400 RPM, and four mill speeds from 250 to 2300 RPM through an R-8 spindle.

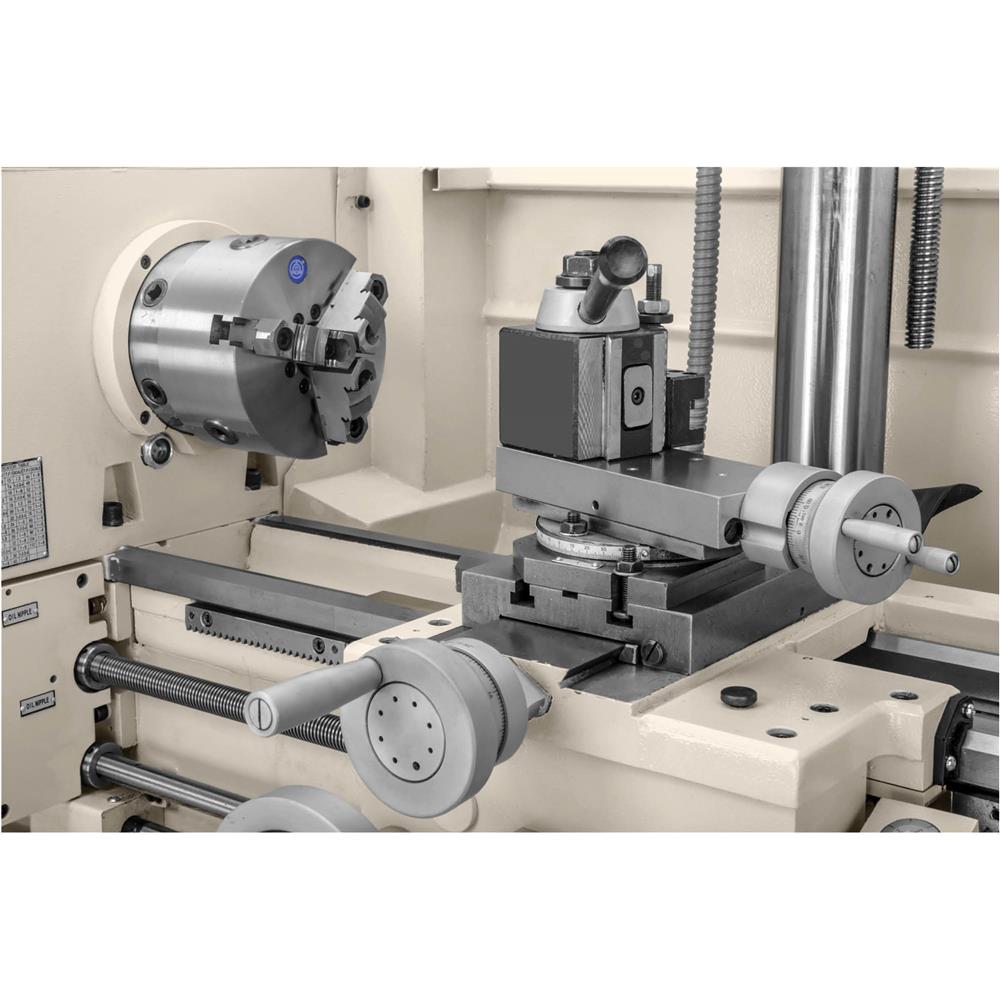

Specialized details make it especially appealing for barrel and long-workpiece jobs, including an outboard spindle spider with brass-tipped screws and steady/follow rests with roller tips. With easy lever controls, a cast-iron stand, quick-change tool post, and included chucks and tooling, this is a practical all-in-one machine for small professional shops, custom firearm work, and serious hobby machining.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

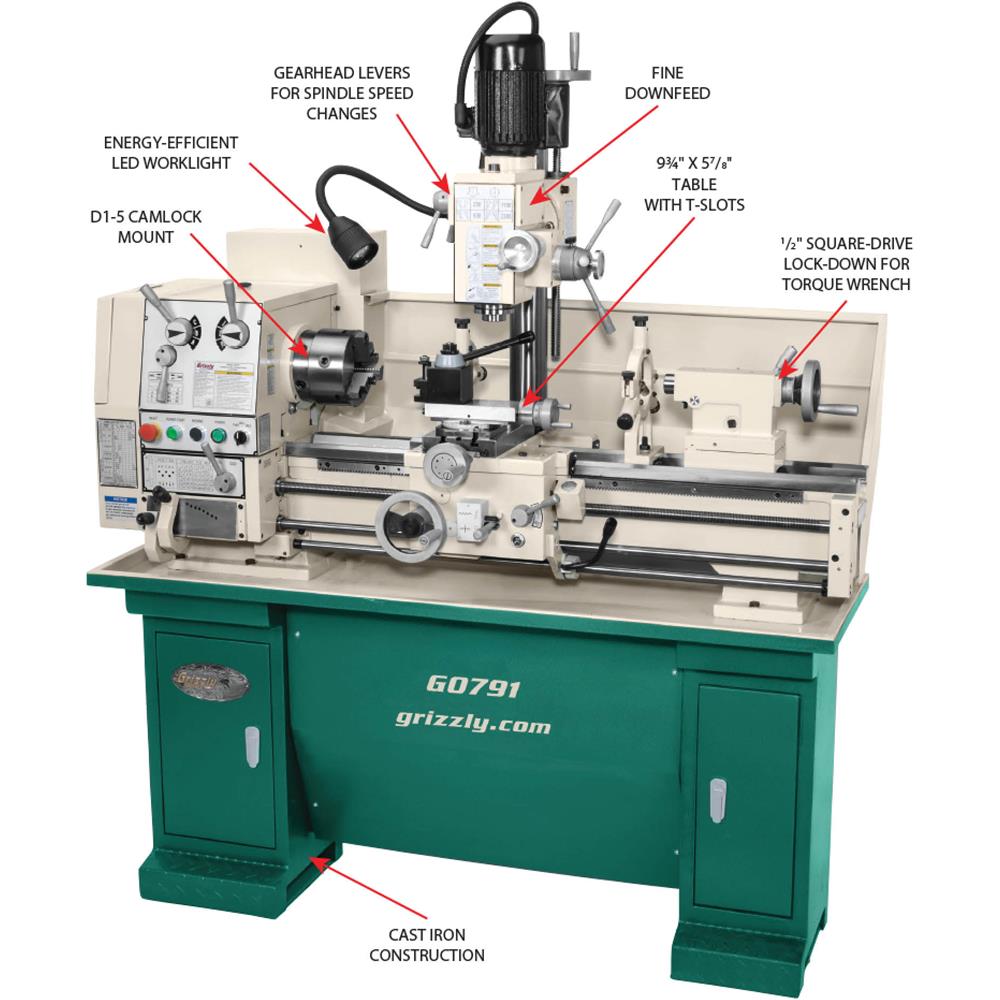

Features

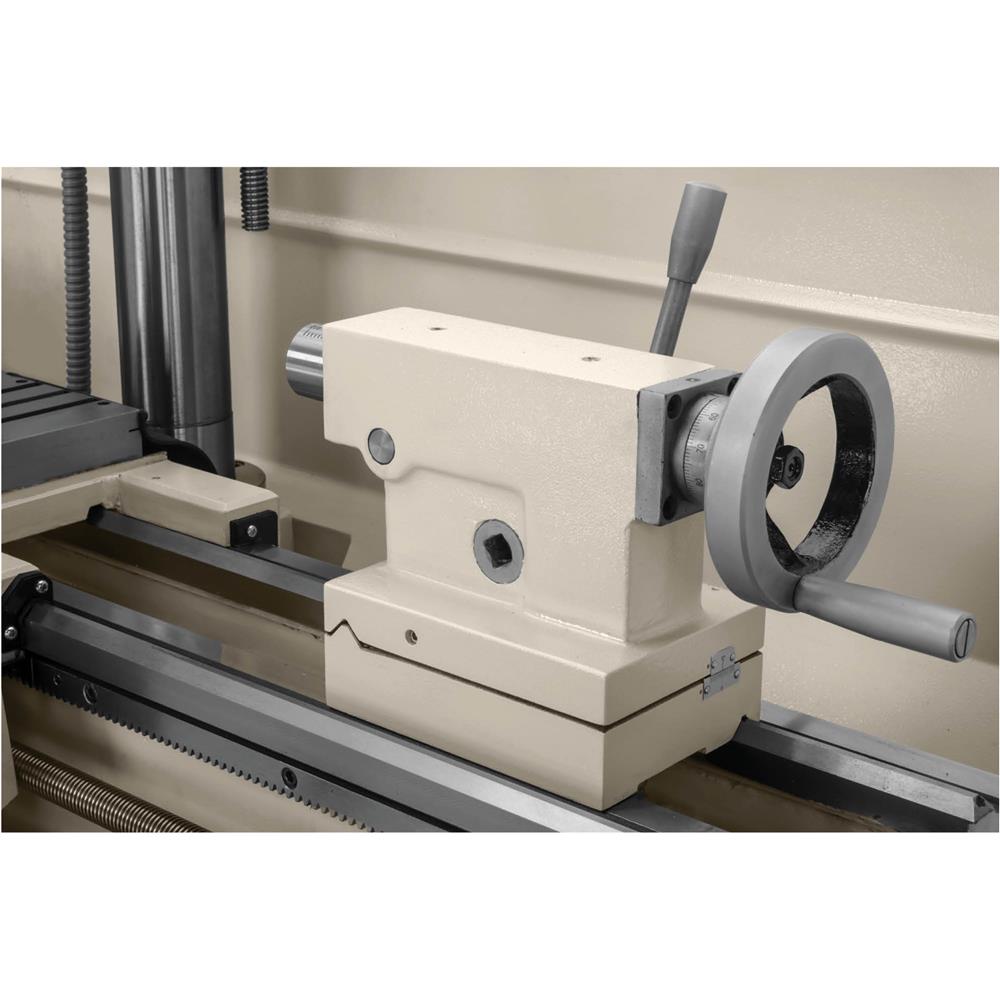

- 1/2" Square drive in tailstock
- Easy to use lever controls
- Ball bearing steady/follow rests

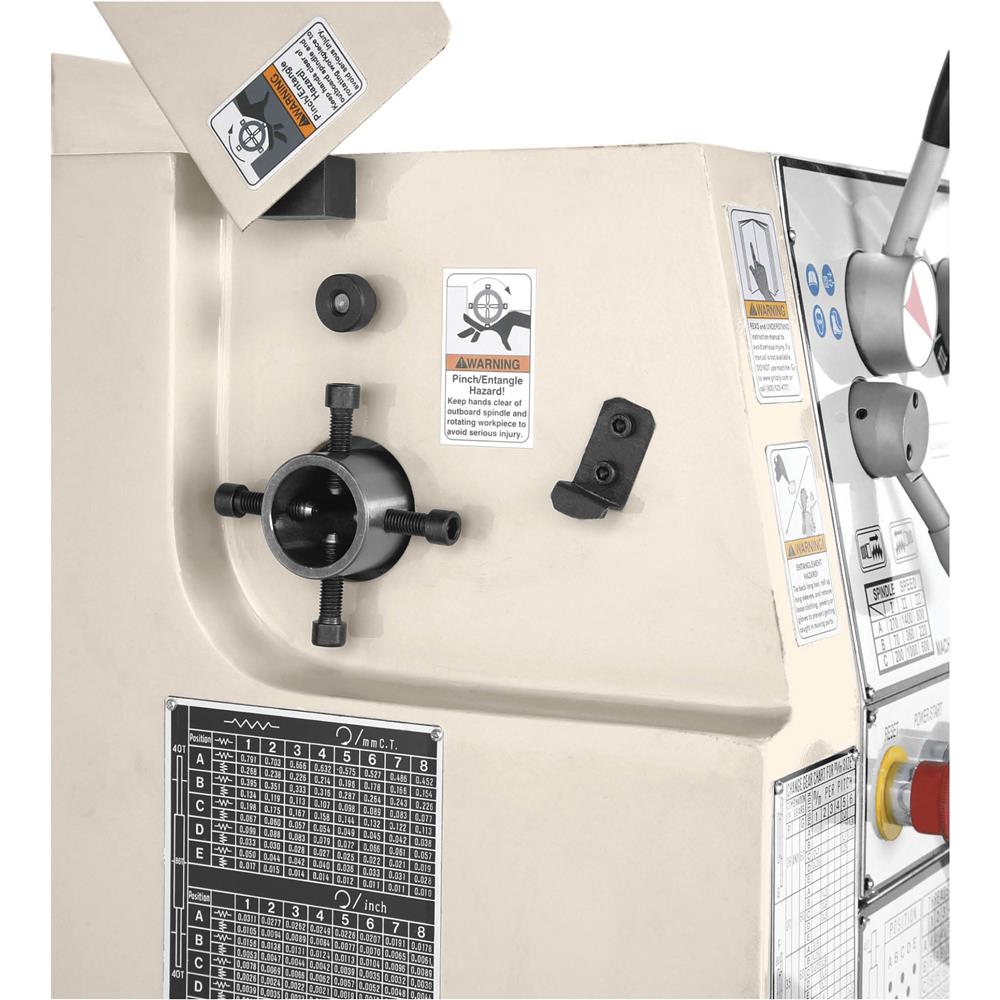

- Outboard spindle "spider" with 4 brass-tipped screws
- Cast-iron stand with extended base
- LED work light
- Cuts LH threads
Specifications
| Lathe motor | 2 HP, 220V, single-phase, 8.5A |
| Mill motor | 3/4 HP, 220V, single-phase, 4.5A |
| Swing over bed | 12" |
| Distance between centers | 36" |
| Swing over saddle | 11-5/16" |
| Bed width | 7-1/4" |
| Lathe spindle bore | 1.57" |
| Lathe spindle taper | MT#5 |
| Lathe spindle length | 17" |
| Lathe spindle length with 4-jaw chuck | 21-1/4" |
| Lathe speeds | 9, 70–1400 RPM |
| Tailstock taper | MT#3 |
| Tailstock barrel travel | 4" |
| Cross slide travel | 6-1/4" |
| Compound travel | 3-1/4" |
| Maximum lathe tool bit size | 5/8" |
| Mill spindle taper | R-8 |
| Mill spindle travel | 2-1/4" |

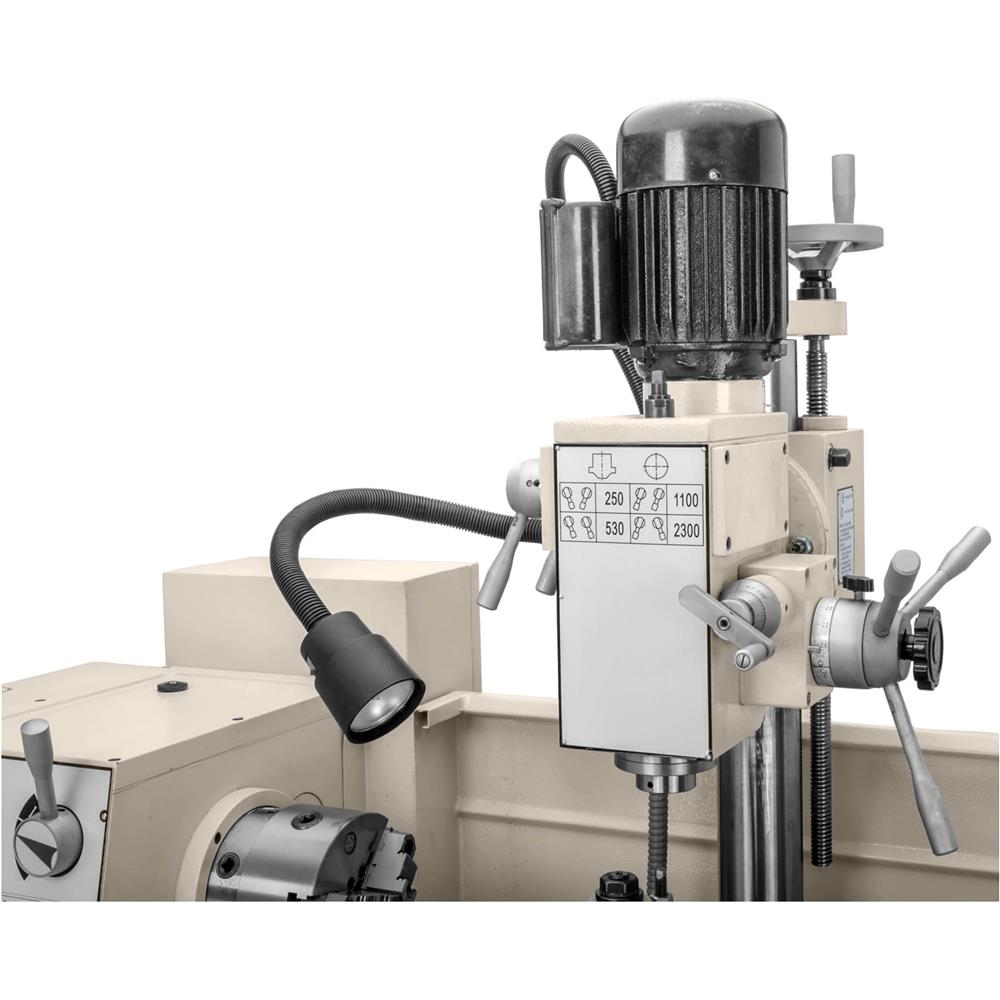

| Mill speeds | 4, 250–2300 RPM |
| Mill swing | 15" |
| Spindle to worktable | 12" |
| Mill table T-slots | 3/8", 2-7/16" OC |
| Range of threads (inches) | 40 @ 4–112 TPI |
| Range of threads (metric) | 29 @ 0.2–4.5mm |
| Footprint | 57-1/2" x 14-1/2" |
| Overall dimensions | 66" W x 27-1/2" D x 75" H |
| Approximate shipping weight | 1566 lb. |
