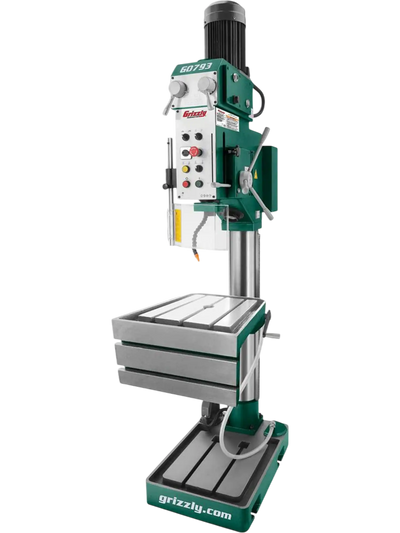

Grizzly G0793 Metal Drill Press 27-1/2" Heavy-Duty Gearhead Tapping L-Table New
Product Overview

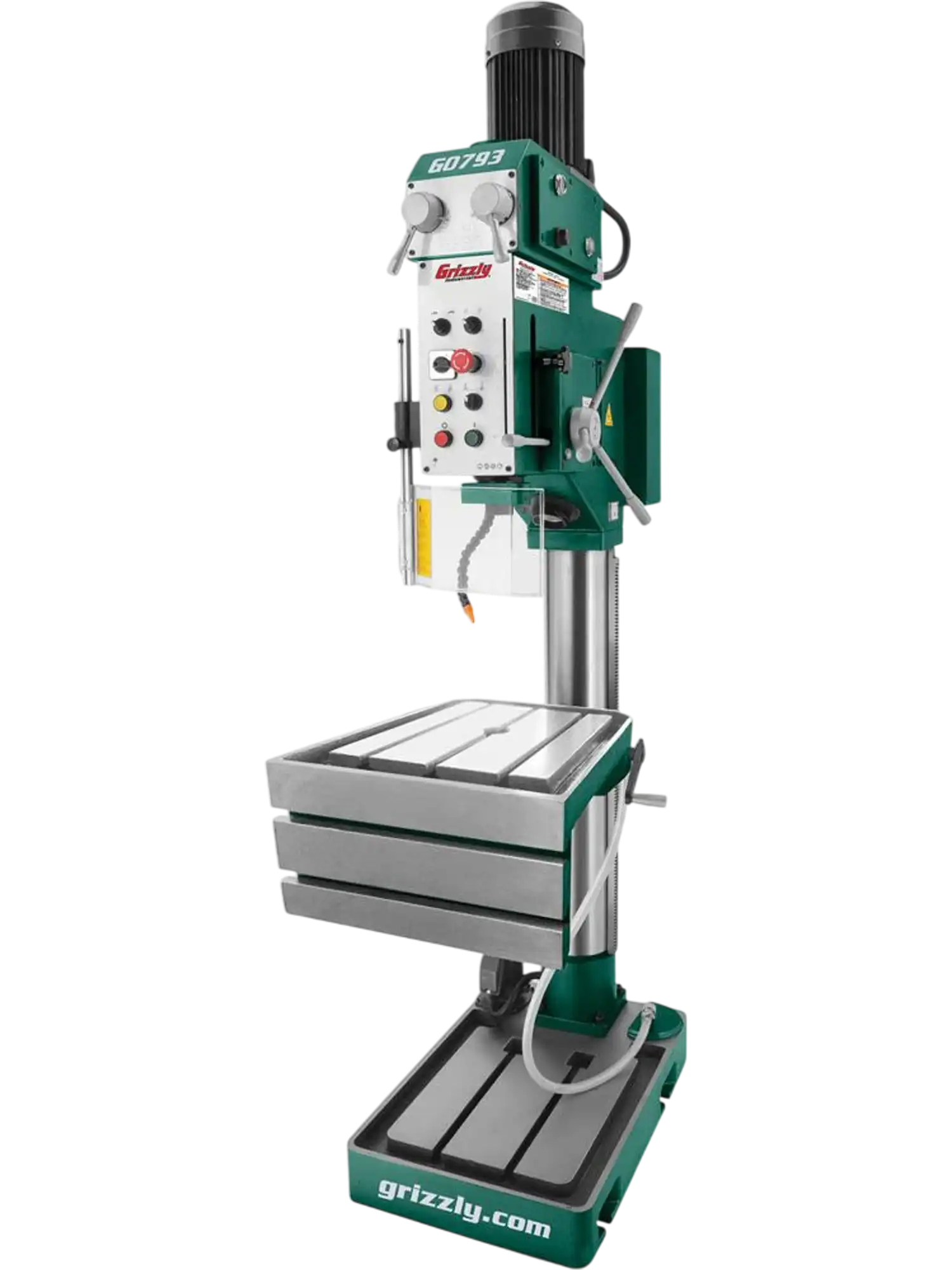

The Grizzly G0793 is a heavy-duty 27-1/2 inch gearhead metal drill press built for demanding drilling and tapping work. With 18 spindle speeds from 60 to 1740 RPM, a reversible motor, and power tapping capability, it is designed to handle larger holes and more challenging metalworking jobs with dependable control.
This machine features a 7 inch spindle travel, MT#4 spindle taper, and a two-speed power downfeed for consistent repeated drilling. Its massive 6 inch column, precision-ground base, and thick cast-iron L-shaped table provide the rigidity and workspace needed for accurate setups, while the table can swivel and rotate out of the way for larger workpieces.
A built-in coolant system helps keep cutting temperatures down for cleaner, more precise results. Ideal for fabrication shops, maintenance departments, and serious industrial users, this drill press is a strong choice for those who need high-capacity metal drilling and tapping performance.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

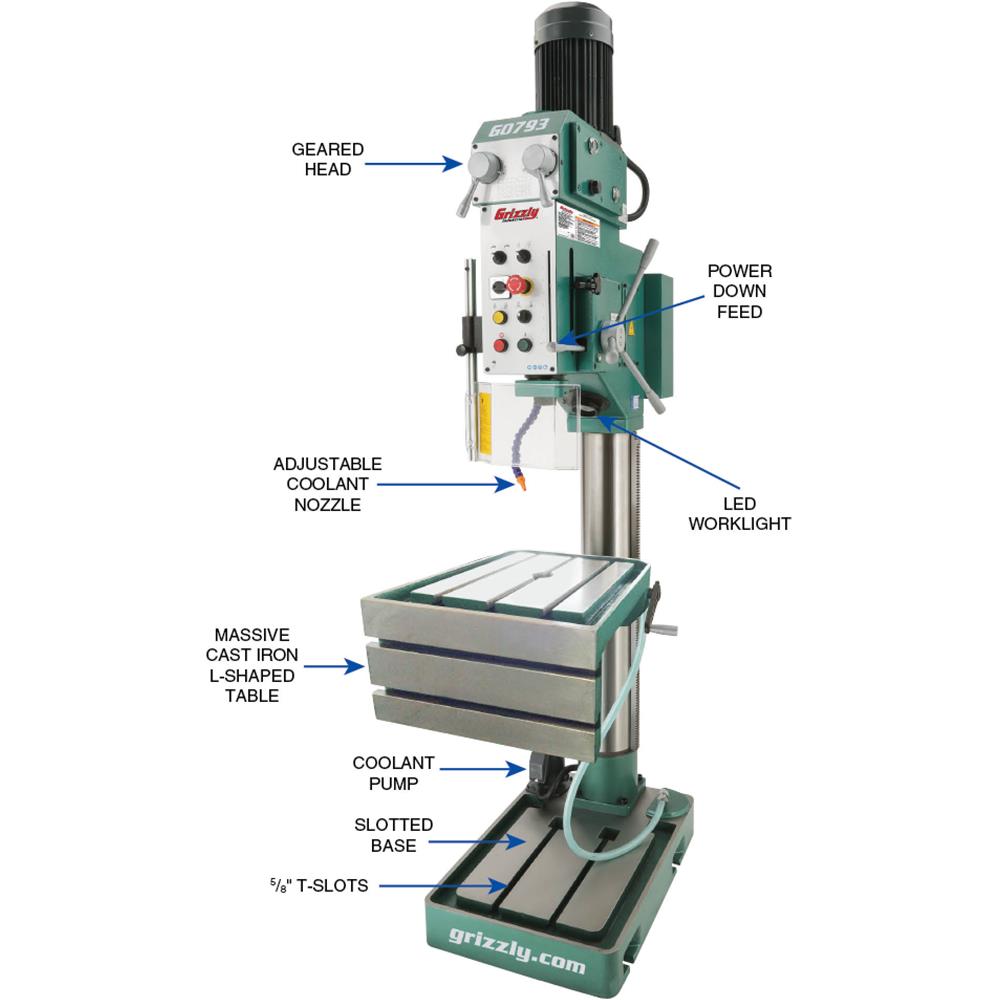

Features
- Two-speed power downfeed
- Power tapping capability
- L-shaped table for great versatility

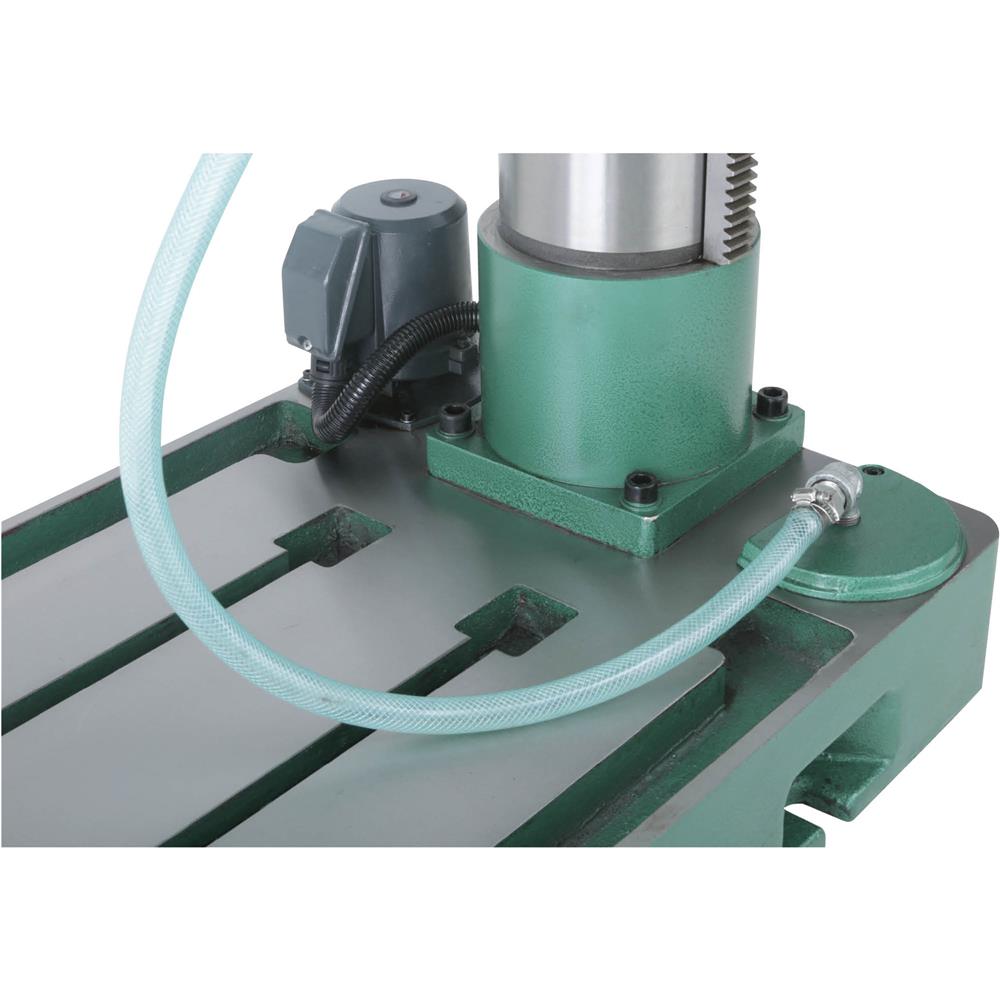

- Pump-driven recycling coolant system
- Quick-removing MT#4 spindle

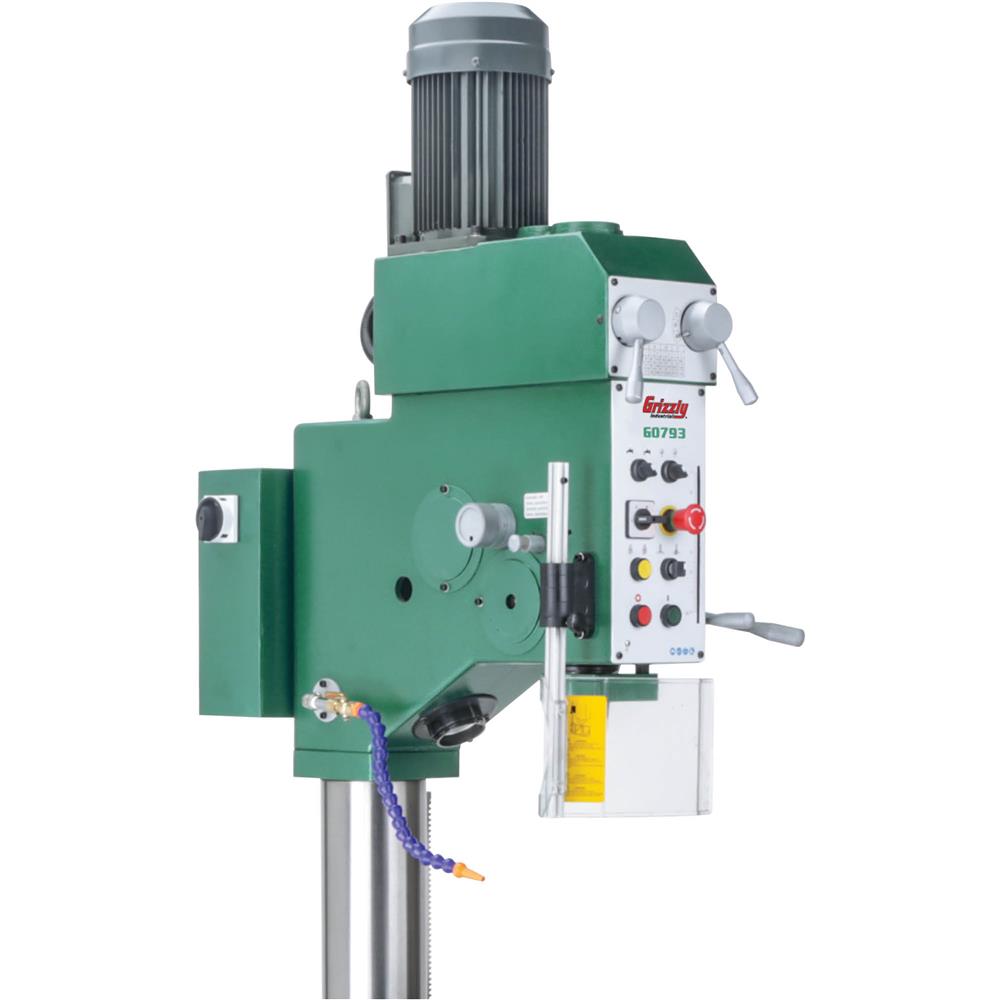

- Spindle speeds controlled by gearhead levers
- Standard and metric guide rulers

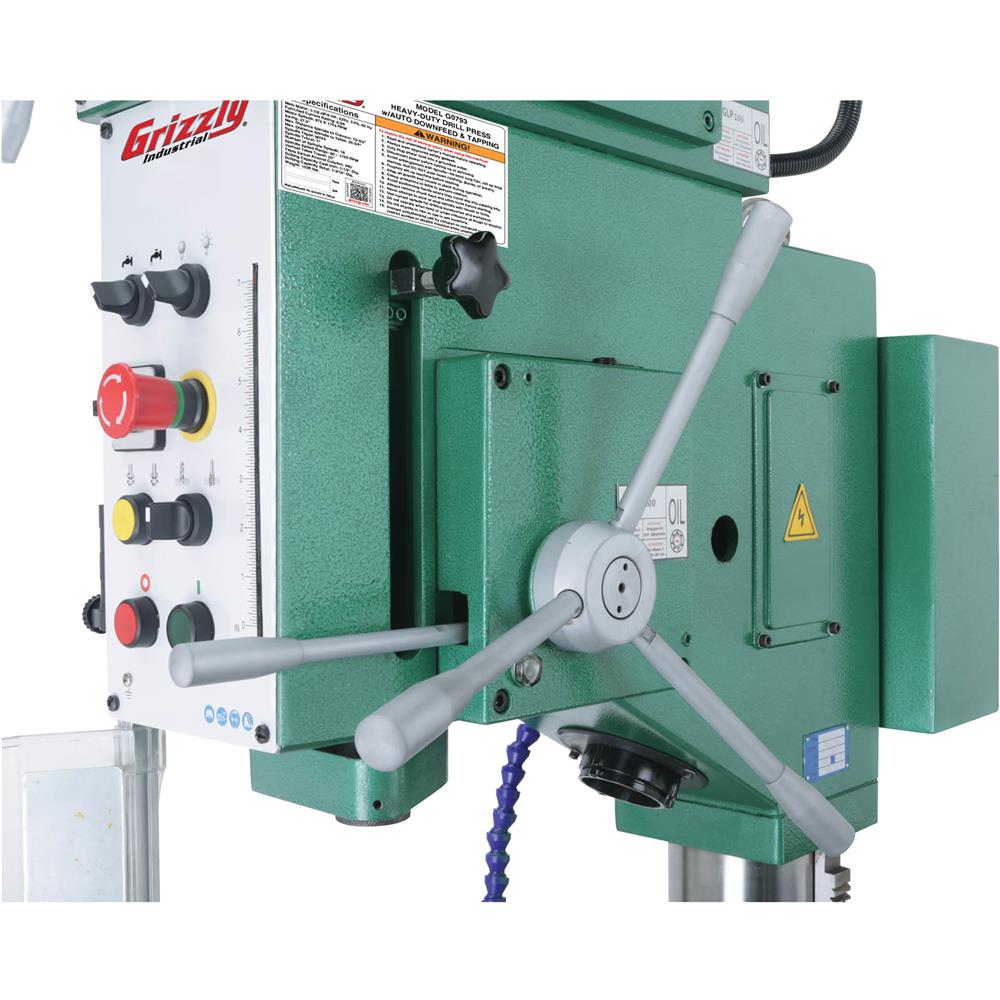

- Front-mounted emergency stop button
- Built-in halogen work light

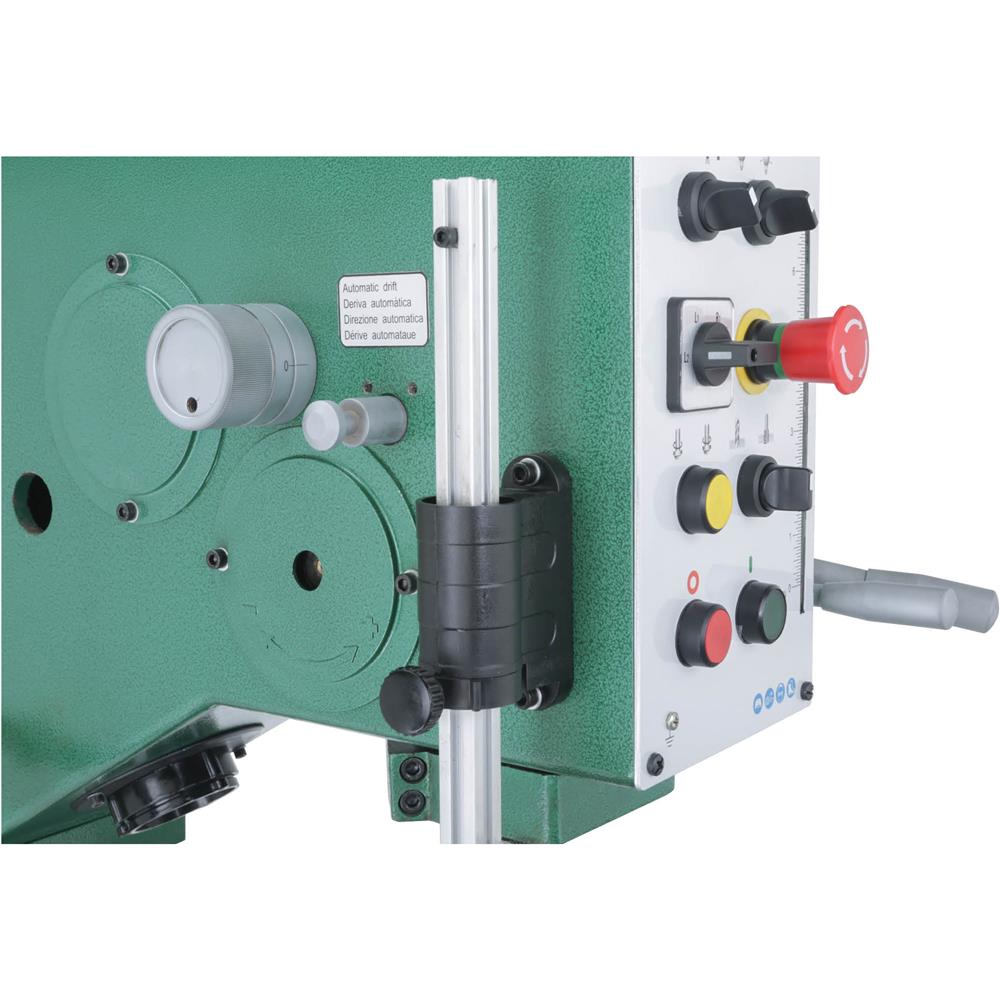

- Depth stop with auto shut-off switch
- Base has precision-ground work surface with two 5/8" T-slots
- 1-year limited warranty
Specifications
| Main motor | 1-1/8 / 2 HP, 220V, 3-phase, 6.4A |
| Coolant pump | 75W, 0.2A |
| Swing | 27-1/2" |
| Max spindle-to-column distance | 13-1/2" |
| Max spindle-to-table distance | 30-3/4" |
| Spindle travel | 7" |
| Spindle taper | MT#4 |
| Spindle speeds | 18 spindle speeds, ranging from 60–1740 RPM |
| Table size | 19-1/16" W x 22" L x 1-7/8" H |
| Table T-slot size | 5/8" |
| Vertical table travel | 20" |
| Table swivel | 360° |
| Downfeed speeds | 0.10mm/rev., 0.20mm/rev. |
| Quill diameter | 3" |
| Column diameter | 6" |
| Overall size | 22" W x 89-1/2" H x 37" D |
| Approximate shipping weight | 1202 lbs. |
Warranty
This item comes with a 1 year factory warranty.
