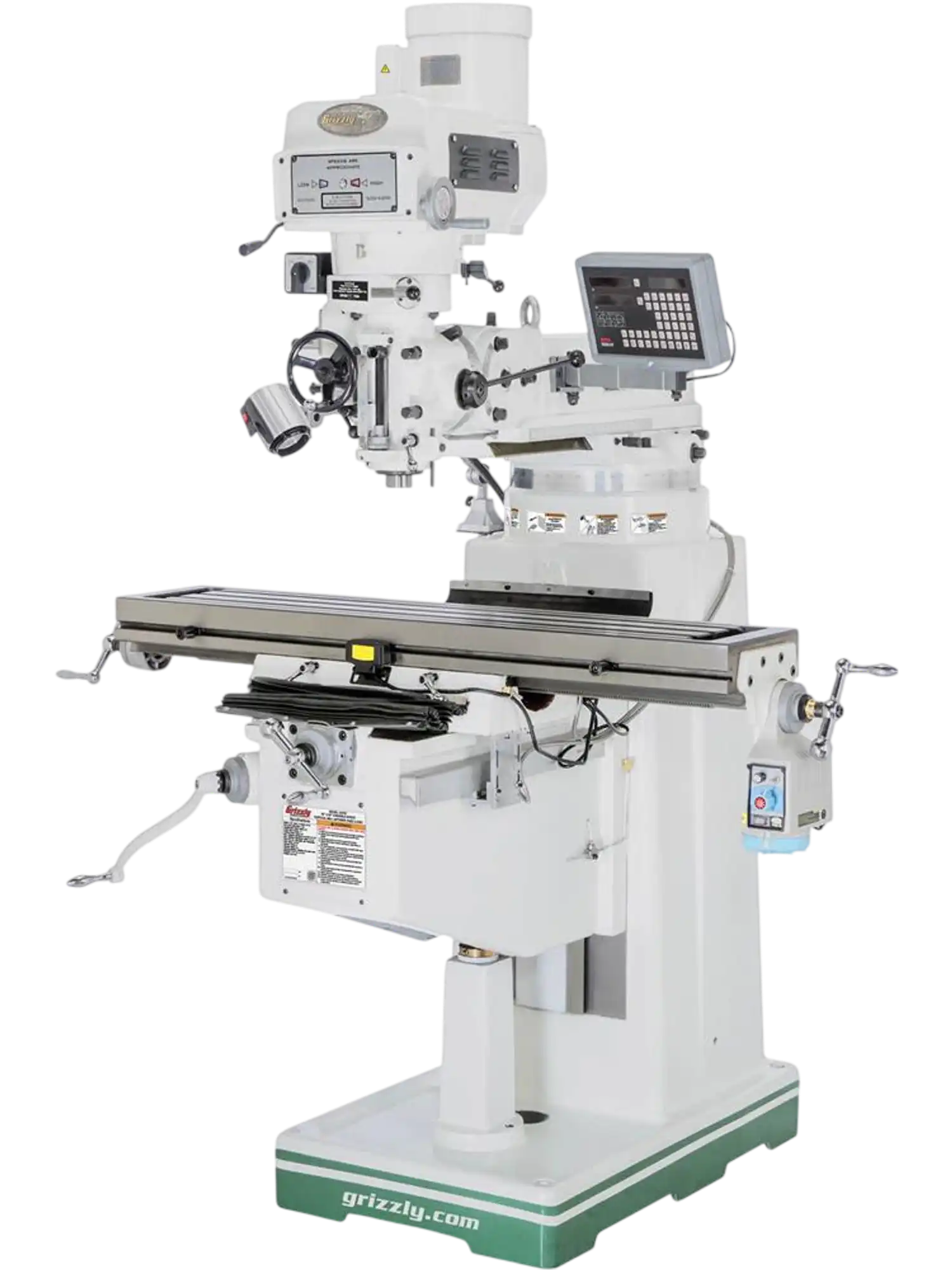

Grizzly G0797 Milling Machine 10" x 50" 3 HP Variable-Speed Vertical Mill with Power Feed and DRO New
Product Overview

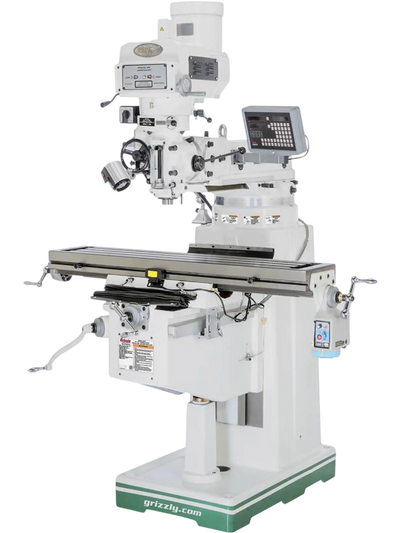

The Grizzly G0797 is a 10" x 50" vertical milling machine built for demanding metalworking in production shops, maintenance departments, and serious fabrication environments with three-phase power. Its 3 HP variable-speed spindle, R-8 taper, and large work table make it well suited for drilling, end milling, face milling, and precision setup work.

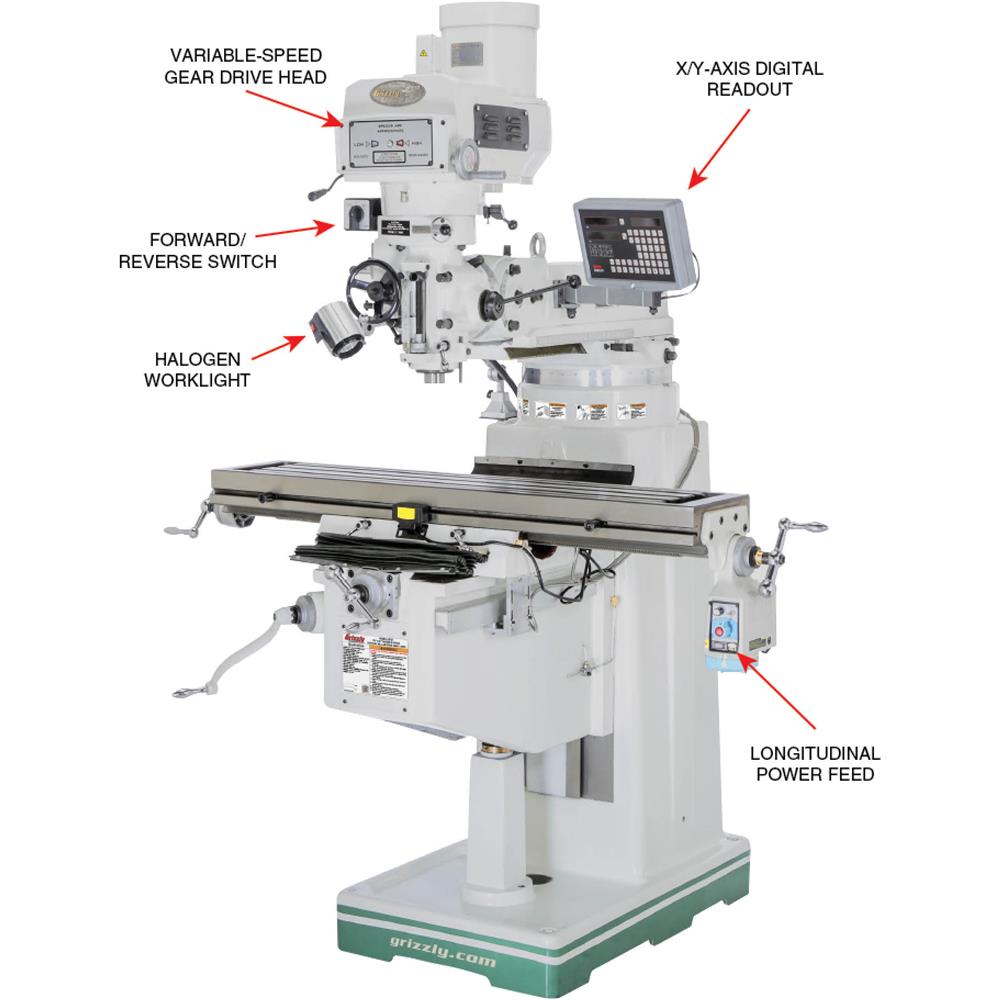

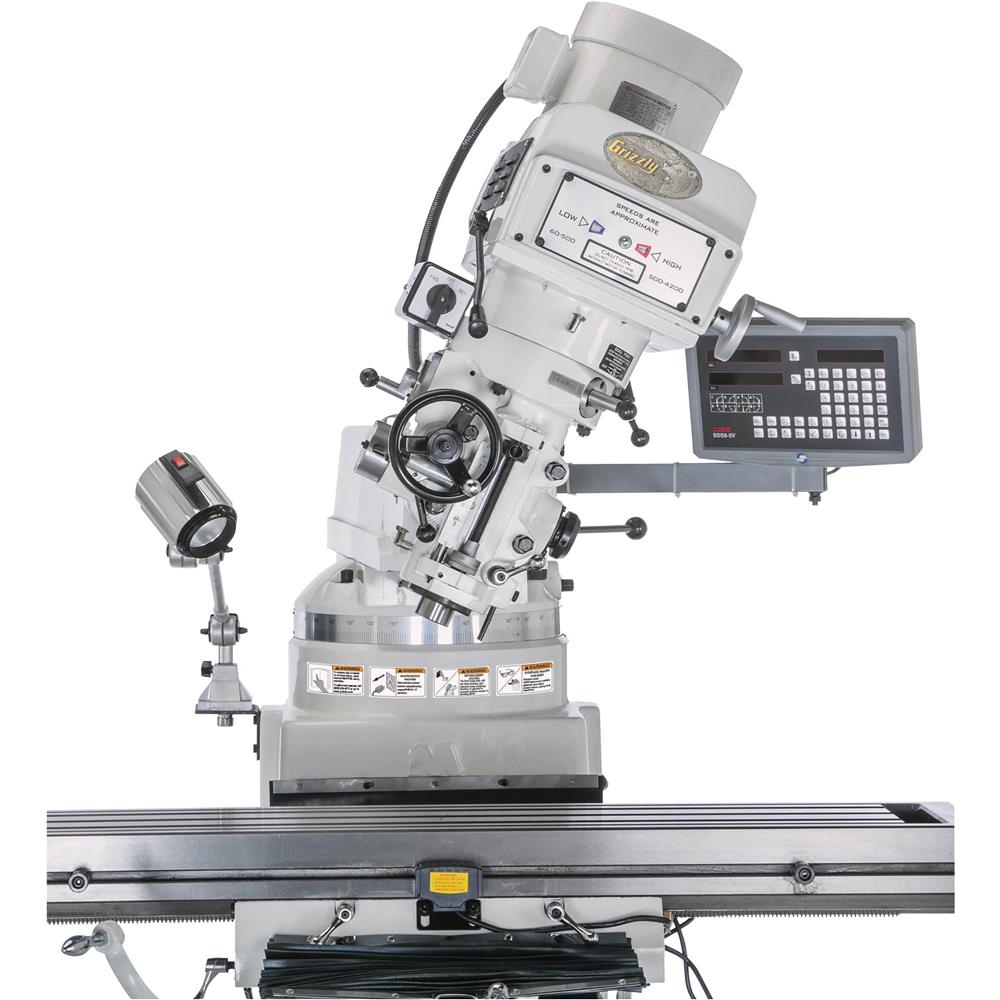

This mill combines a wide 60–4200 RPM speed range with a built-in longitudinal power feed and 2-axis DRO for efficient, accurate operation. The head tilts and rotates for flexible positioning, while the ram and turret provide added reach and setup versatility for a broad range of parts and fixtures.
Meehanite castings, one-shot lubrication, way covers, and a precision-ground quill support stable, repeatable performance in everyday use. With generous table travel and room for multiple setups, this machine is a strong choice for users who need capacity, adjustability, and accurate control in a full-size vertical mill.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

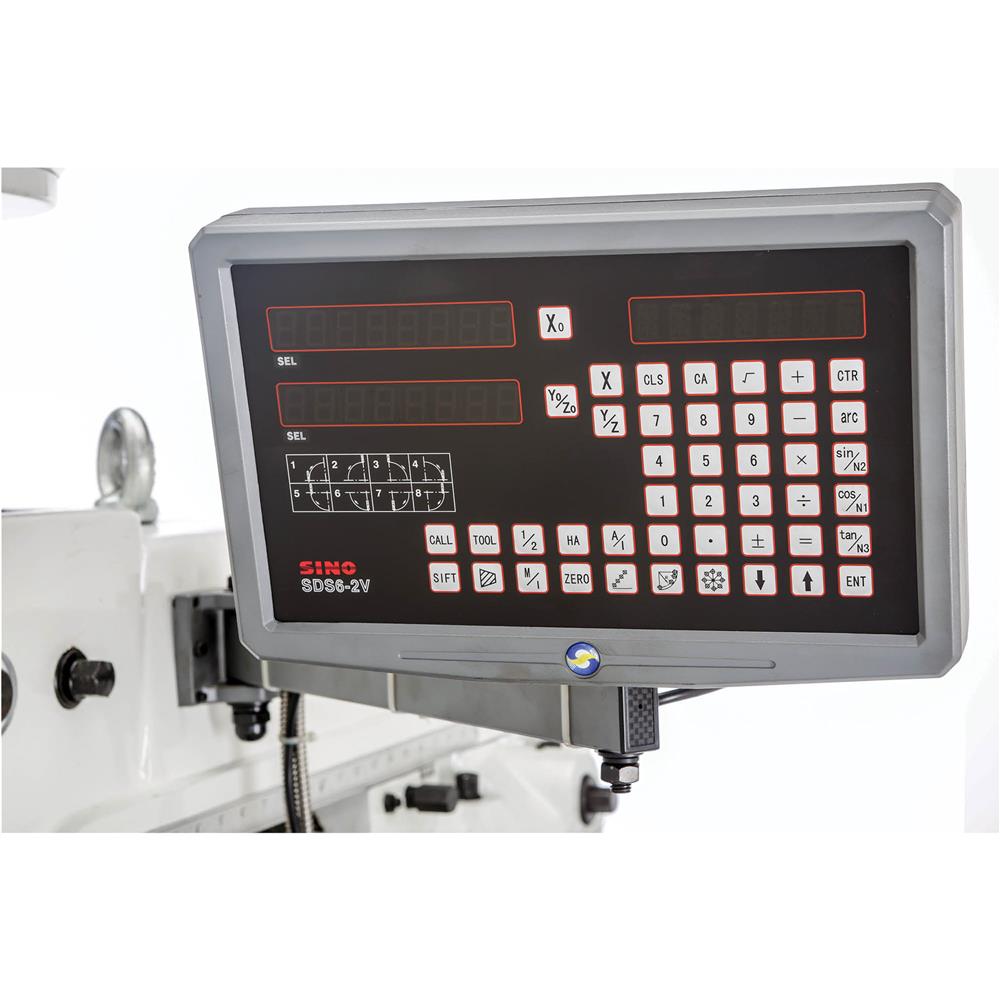

- 2-Axis DRO
- Meehanite® castings

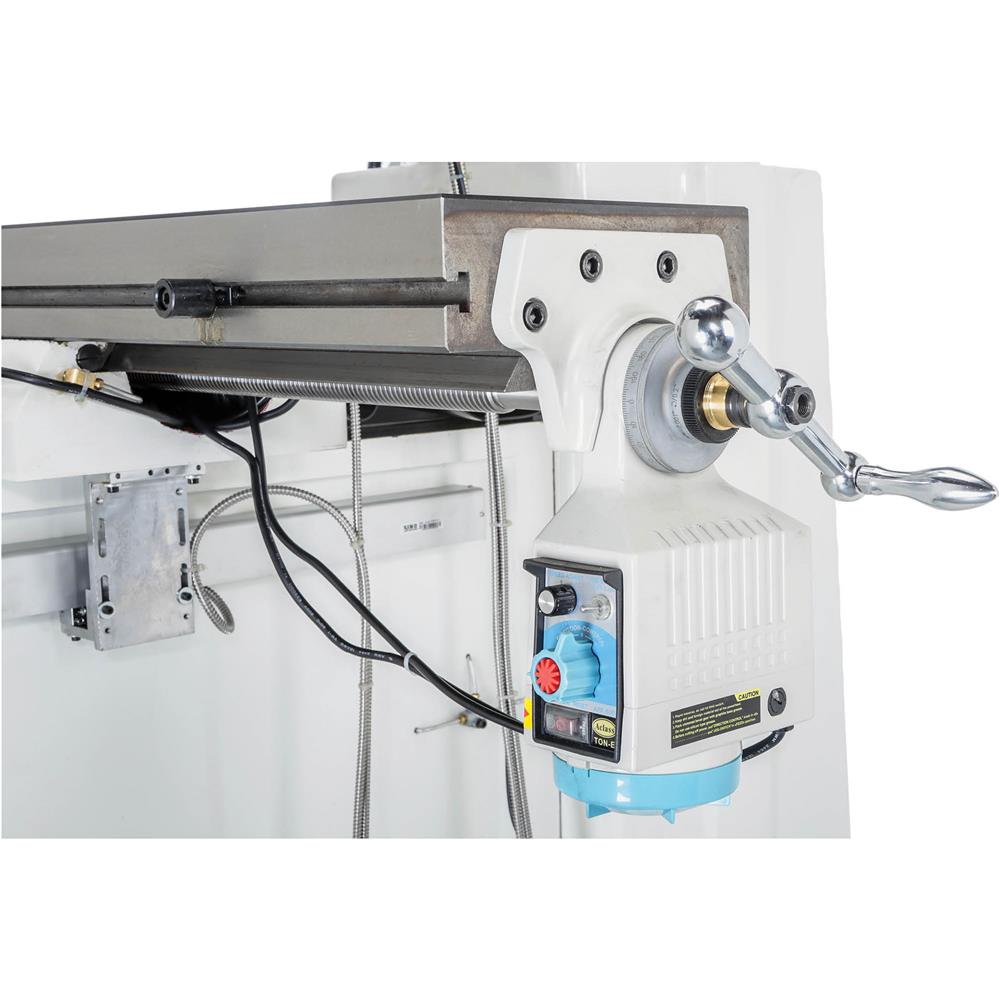

- Built-in longitudinal power feed

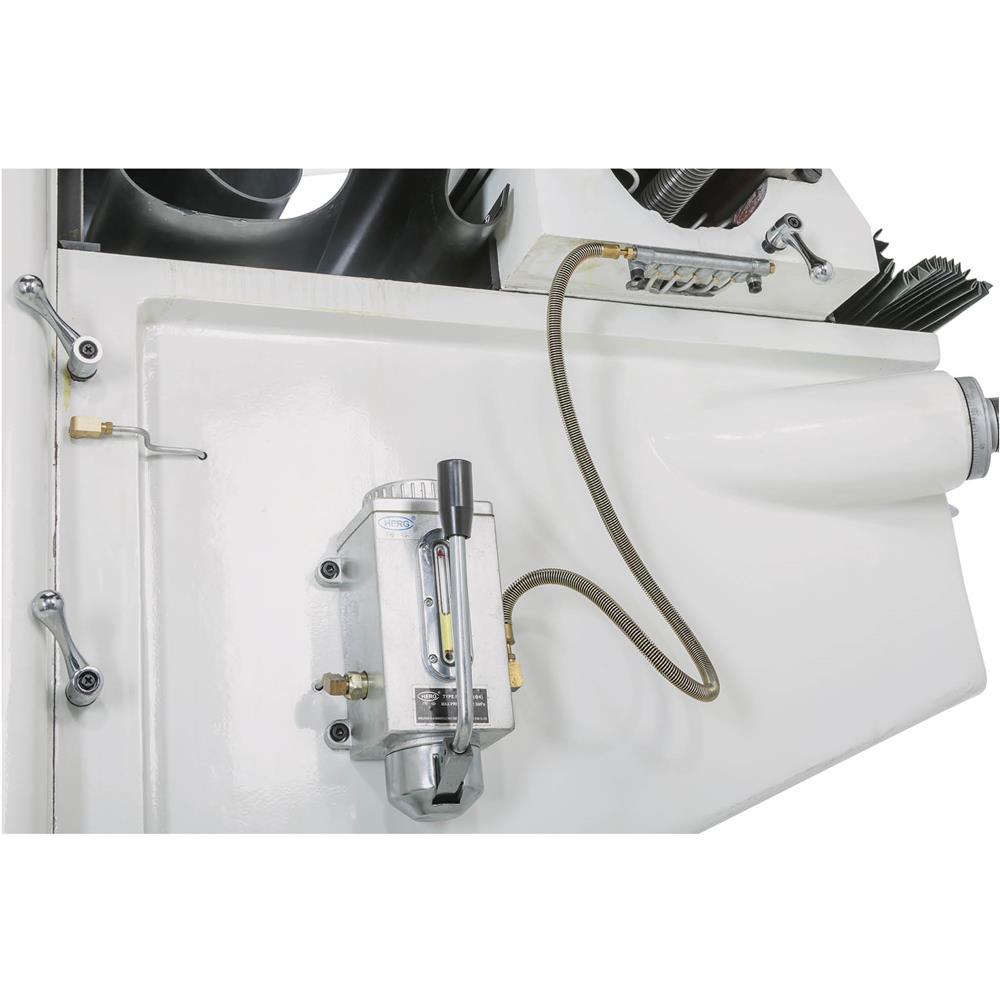

- One-shot pump lubrication for table ways
- Auto spindle stop with micro-adjustable stop

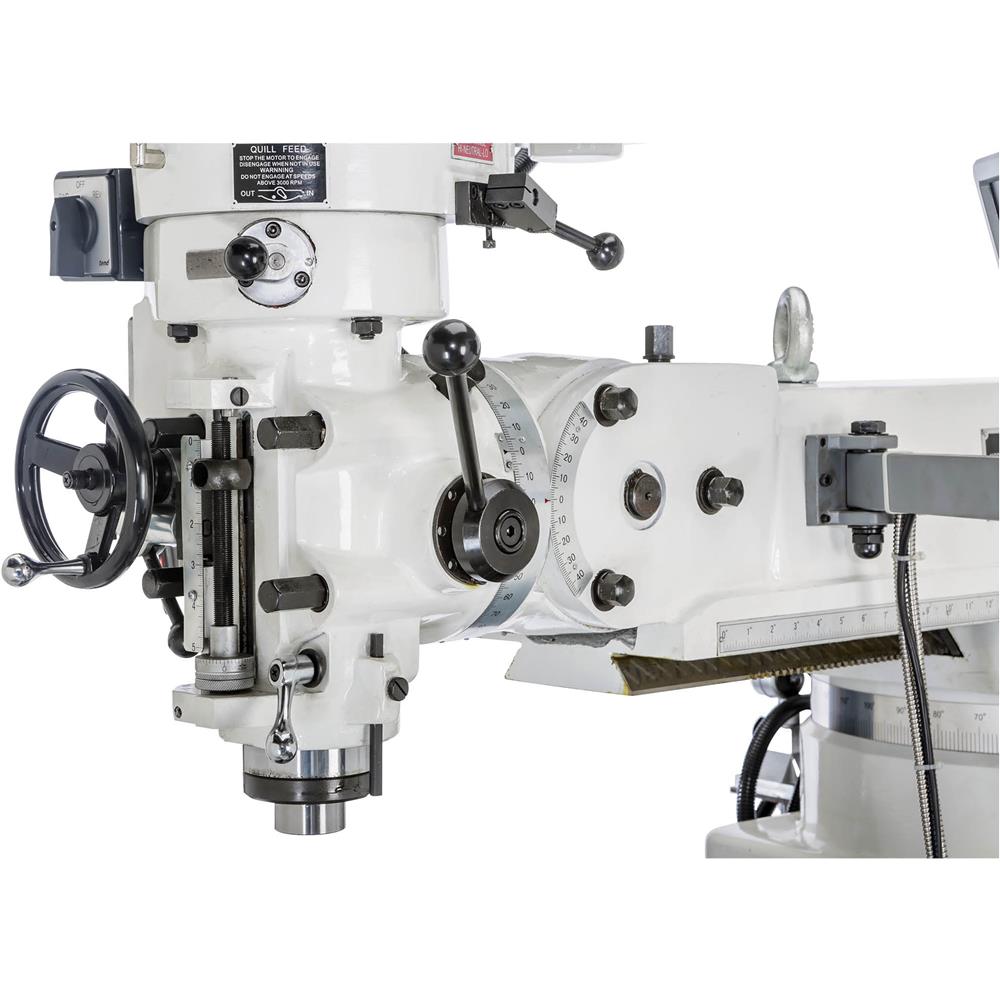

- Chrome-plated, precision-ground quill
- X- and Y-axis way covers
- Forward and reverse spindle rotation
- Includes service tools and toolbox
Specifications
| Required power source | 220V or 440V, 3-phase, min. 15A circuit |
| Motor | 3HP, 220V/440V* (prewired for 220V), three-phase, 6.4A/3.2A |
| Spindle taper | R-8 |

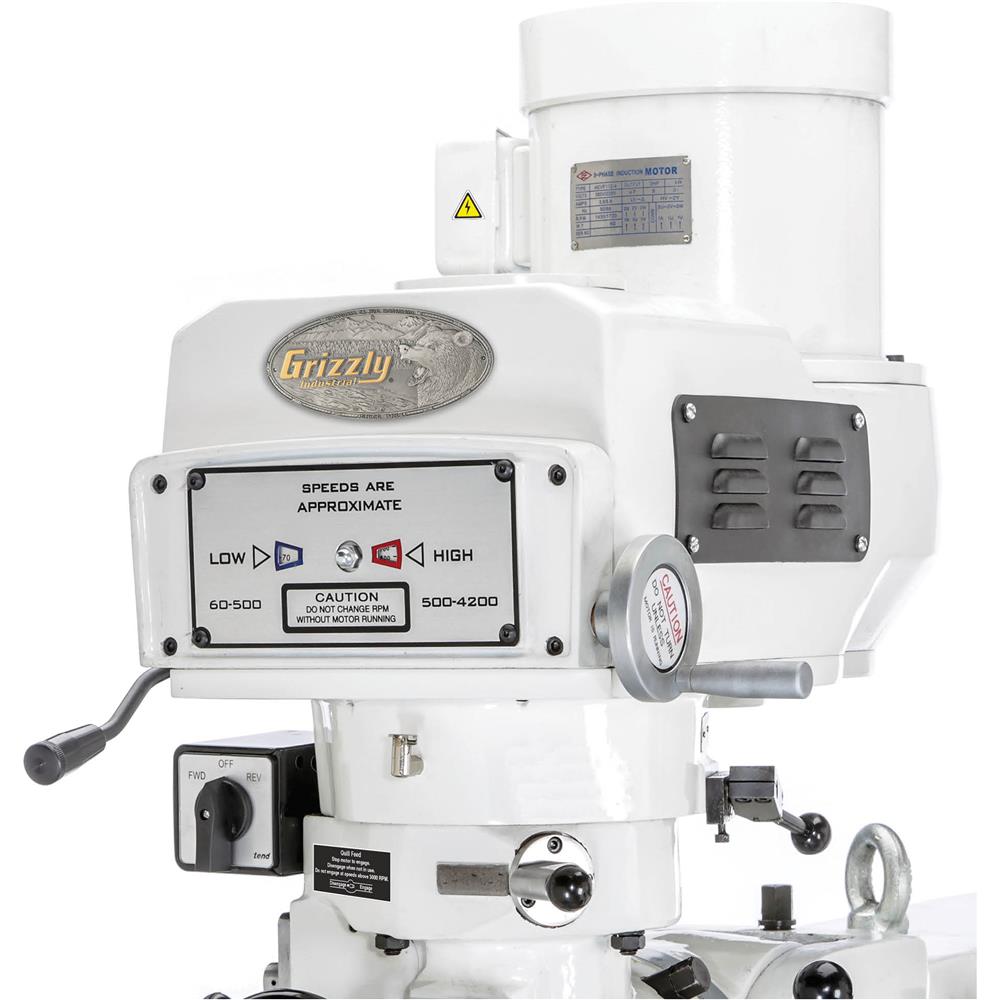

| Spindle speed | Variable, 60–4200 RPM |
| Spindle travel | 5" |
| Maximum distance spindle to table | 19-1/4" |
| Table travel (longitudinal) | 30" |
| Table travel (across) | 14" |
| Table travel (vertical) | 15" |

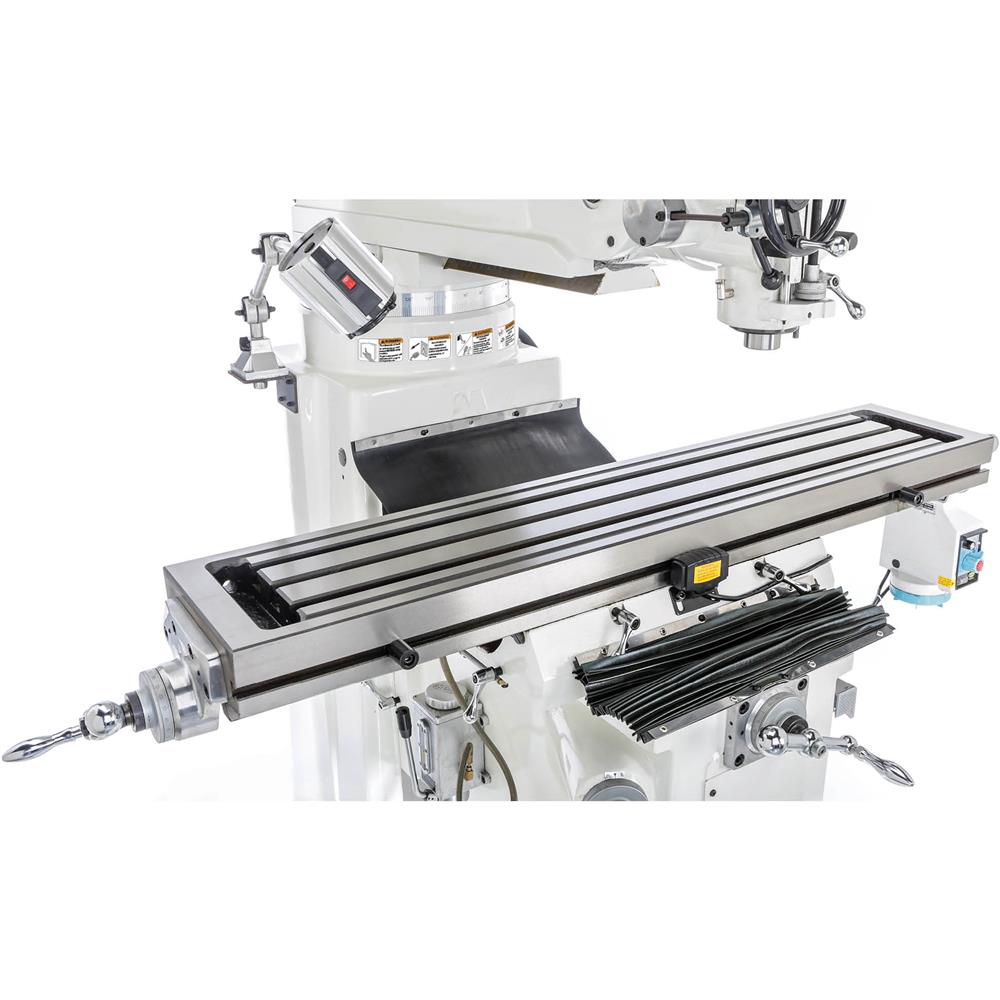

| Table size | 10" x 50" |
| T-slots | 3 @ 2-1/2" centers, 5/8" wide |
| Head ram travel | 18-1/2" F/B |

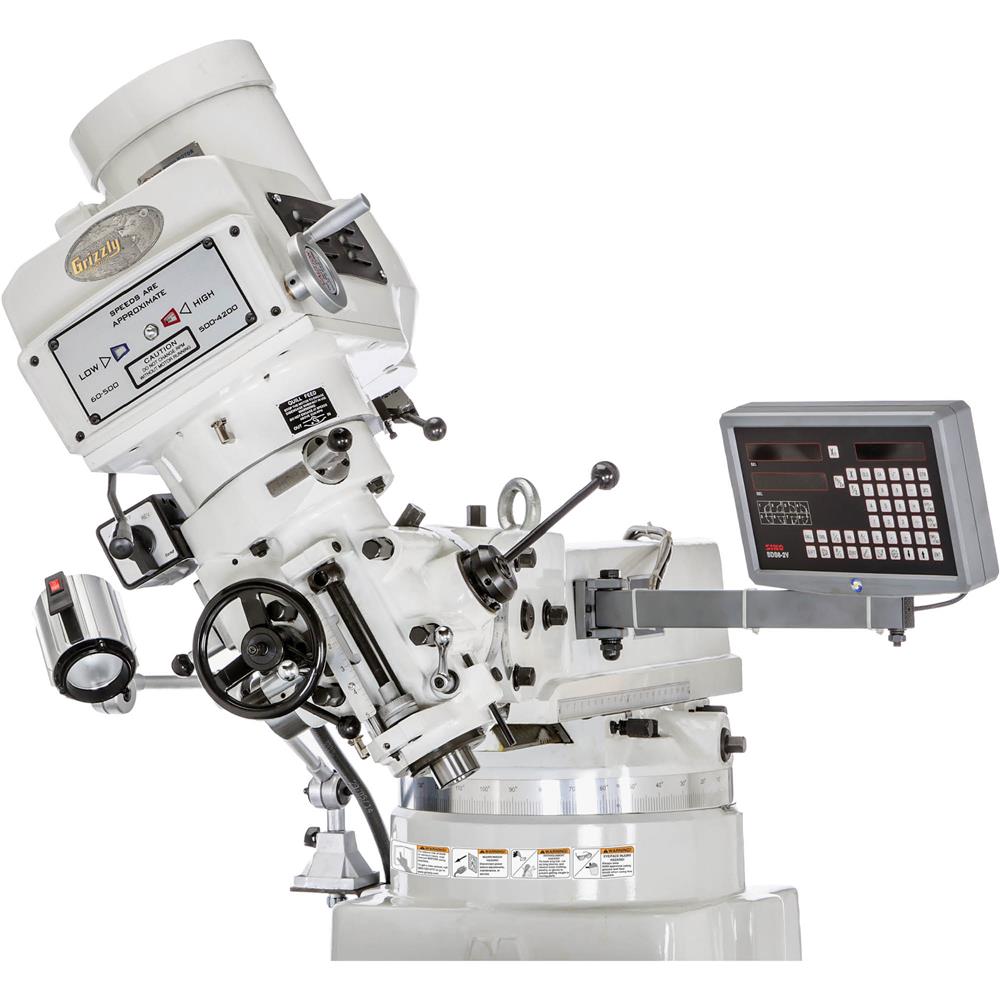

| Head tilt | 90° L/R, 45° F/B |

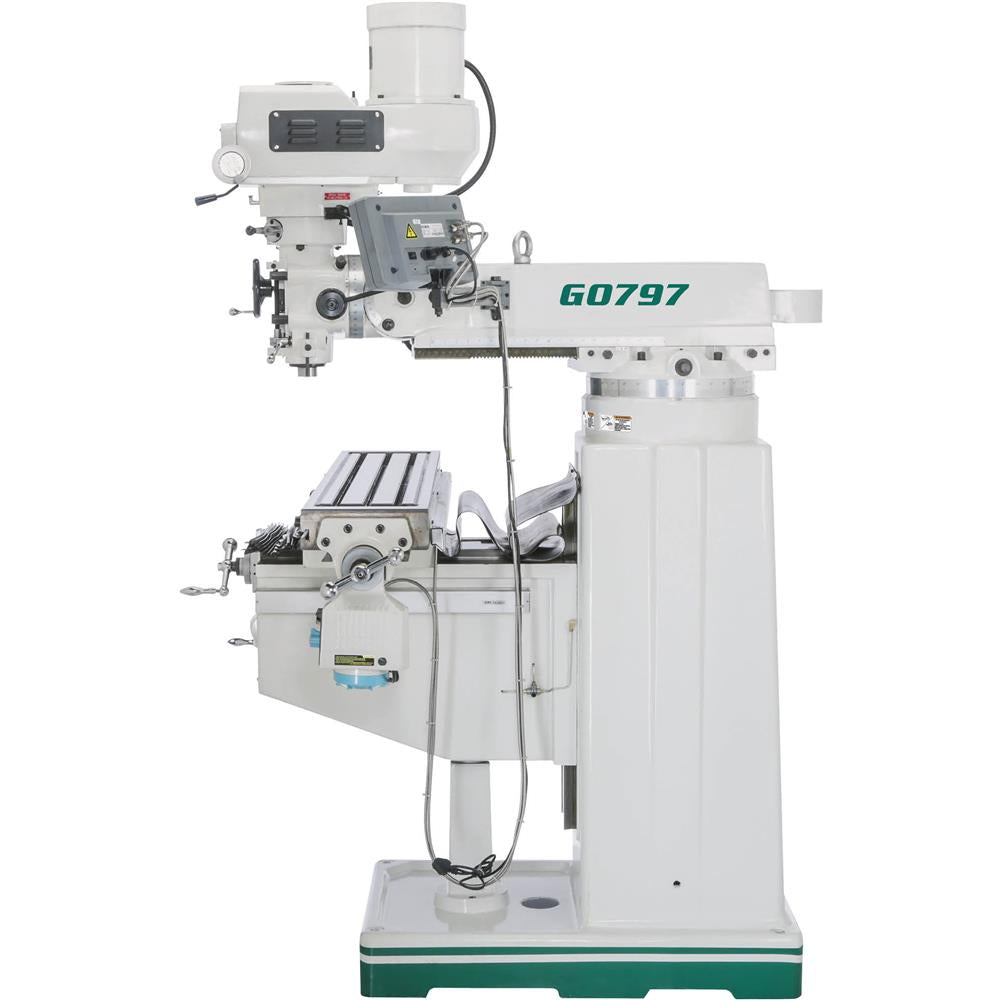

| Turret/column swivel | 360° |
| Drilling capacity for steel | 1-1/4" |
| End milling capacity | 1" |
| Face milling capacity | 3" |
| Footprint | 48" x 33" |
| Overall shipping dimensions | 100" W x 85" D x 88" H |
| Approximate shipping weight | 3021 lbs. |
Warranty
This item comes with a 1 year factory warranty.
