Grizzly G0810 Mill Drill 16" Drill Press w/ Cross-Slide Table & Power Feed New
Product Overview

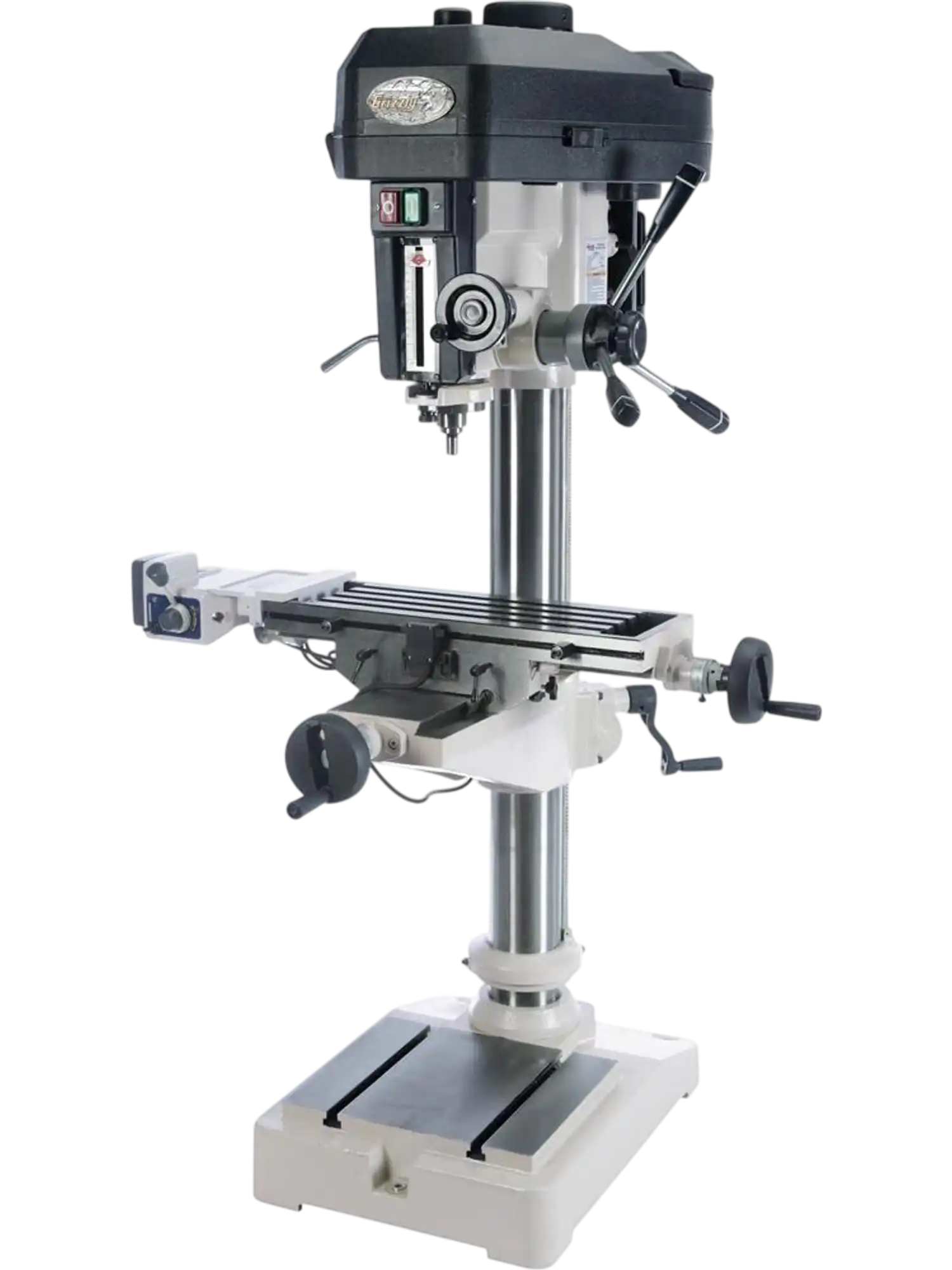

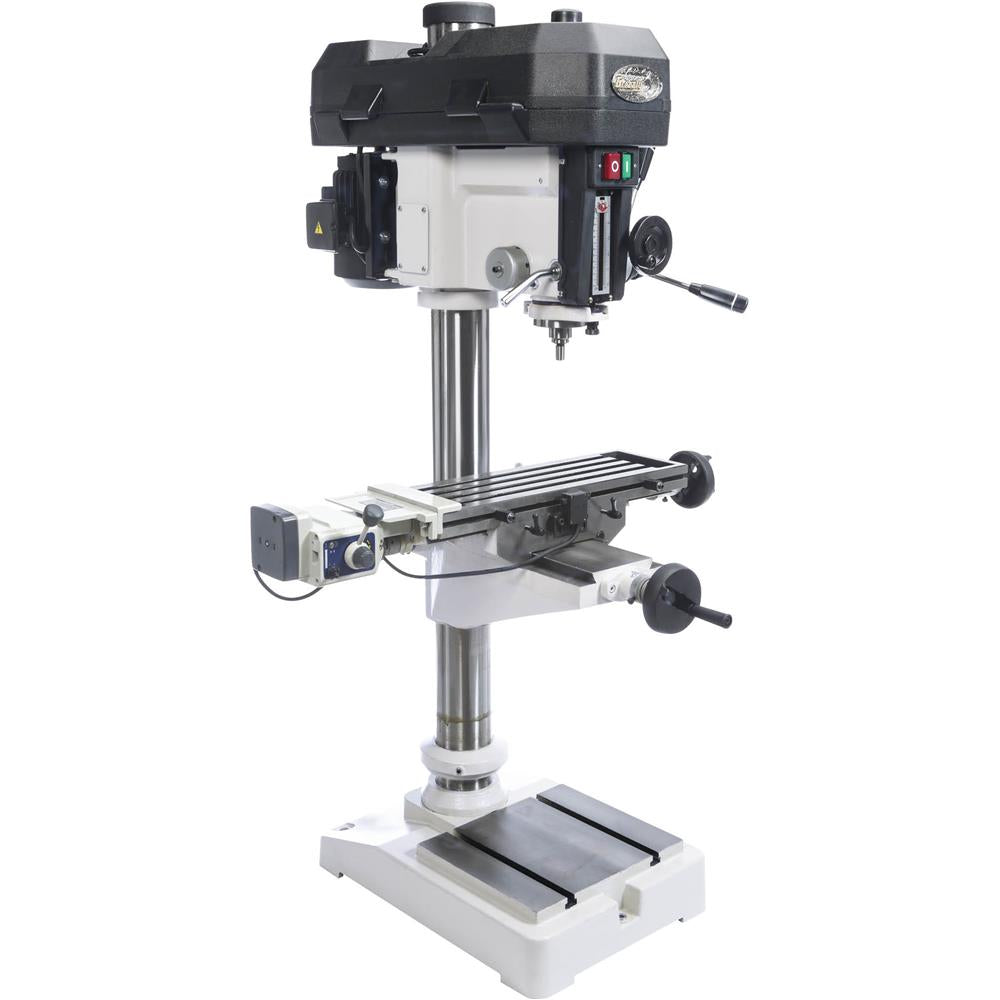

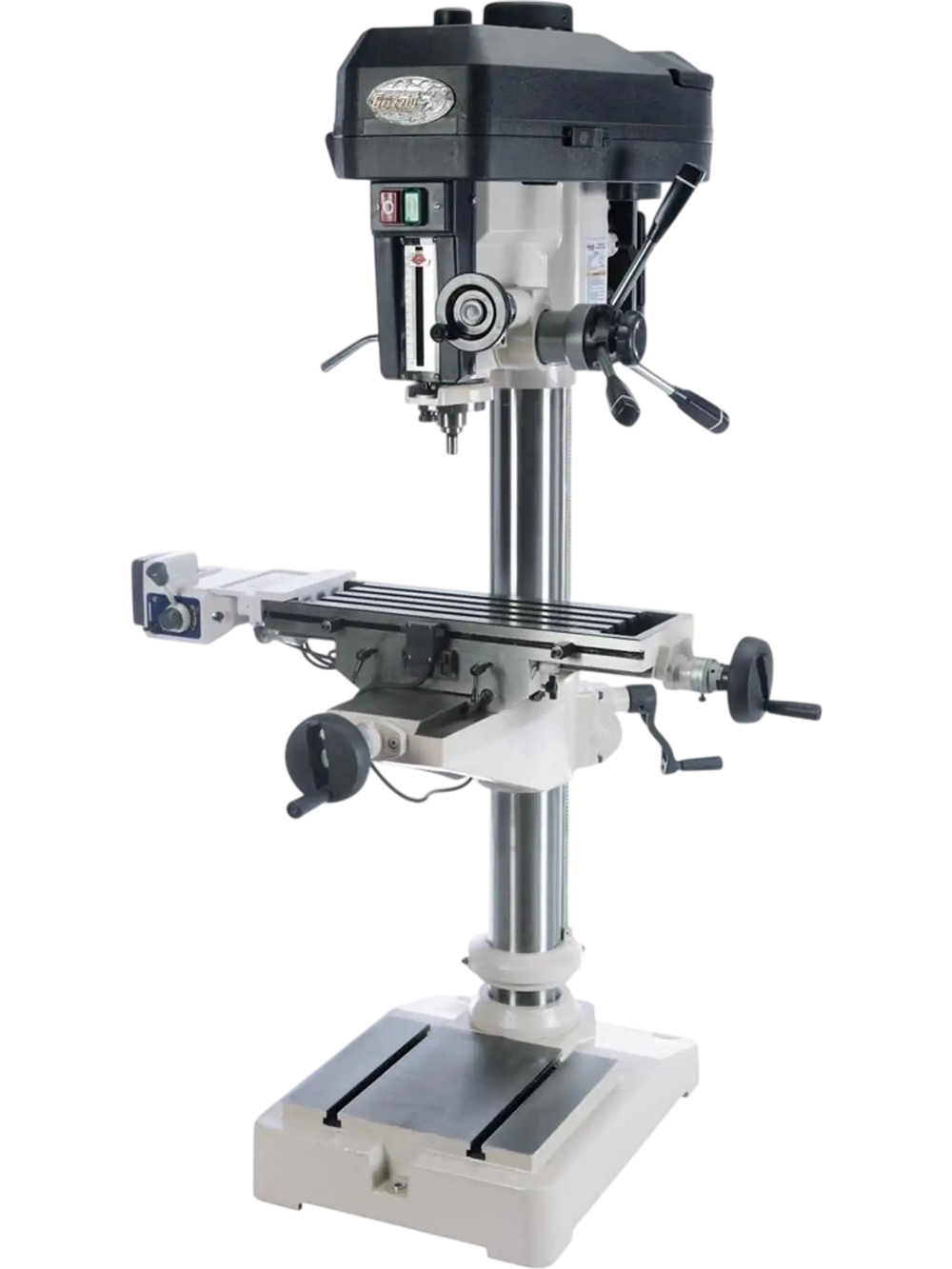

The Grizzly G0810 is a heavy-duty 16-inch mill drill and drill press built for precise drilling and light milling work in metal and other tough materials. It combines a rigid cast base and column with a cross-slide table and longitudinal power feed, giving you stable operation and accurate positioning for demanding shop tasks.

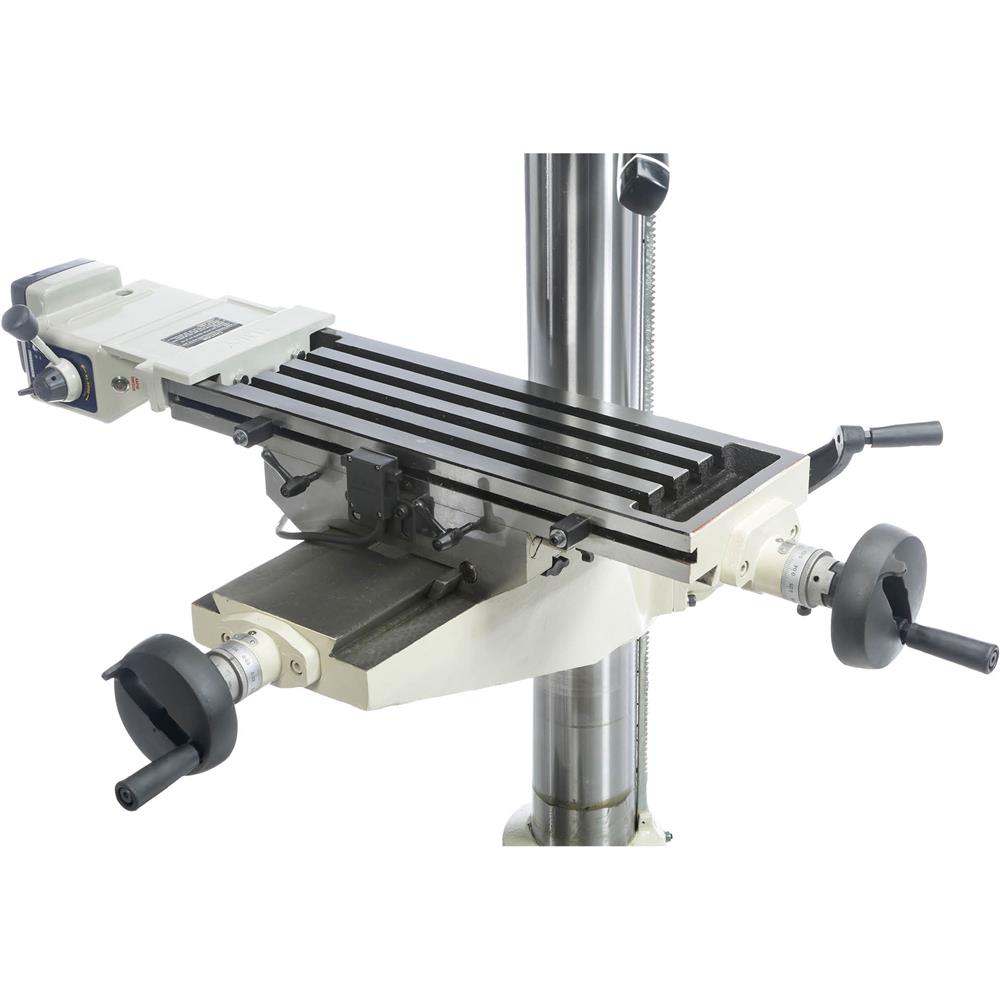

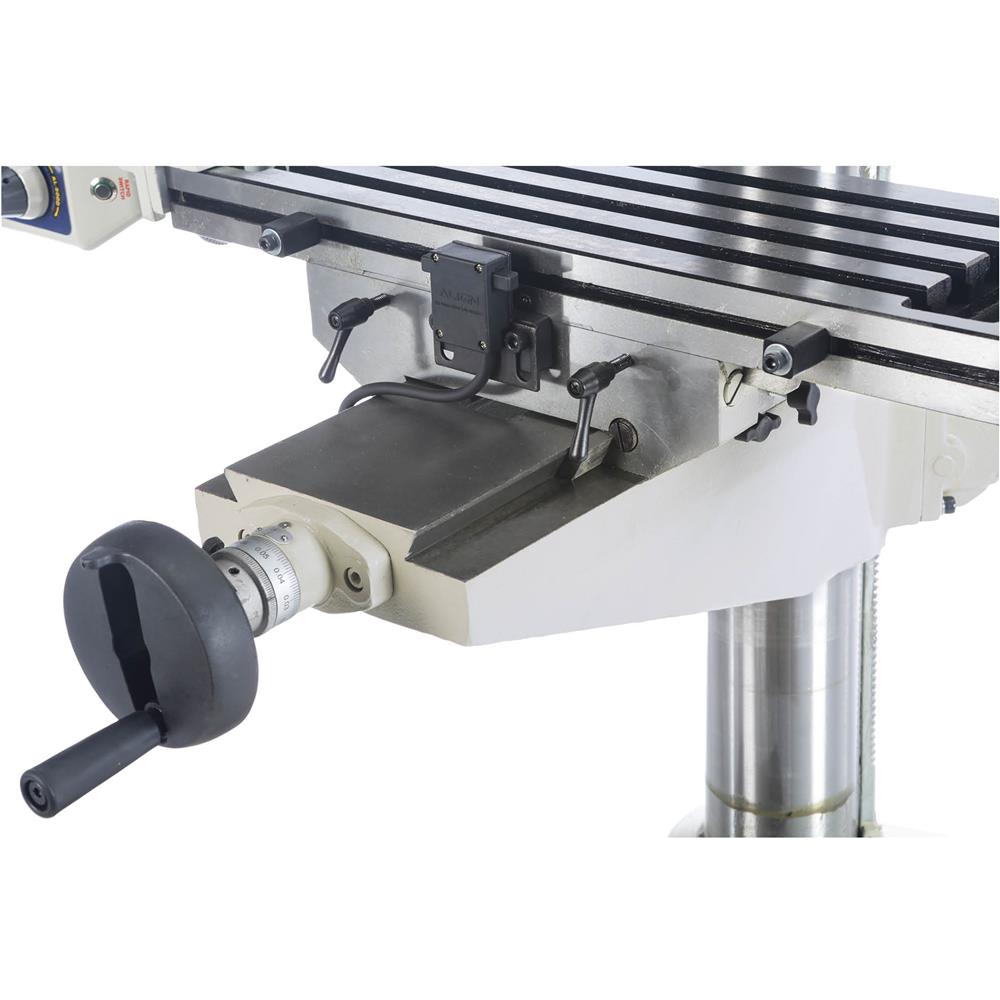

With 12 spindle speeds from 150 to 3000 RPM, 5-1/8 inches of spindle travel, and both coarse and fine downfeed control, it can handle fast production drilling as well as more detailed, controlled cuts. The cross-slide table offers generous X and Y travel, and the table also rotates 360 degrees for added flexibility when setting up parts.
This machine is ideal for machinists, fabrication shops, maintenance departments, and serious home workshops that need more precision and versatility than a standard drill press. It is also suited for users who want one machine for drilling, end milling, and face milling in a compact floor-standing format.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

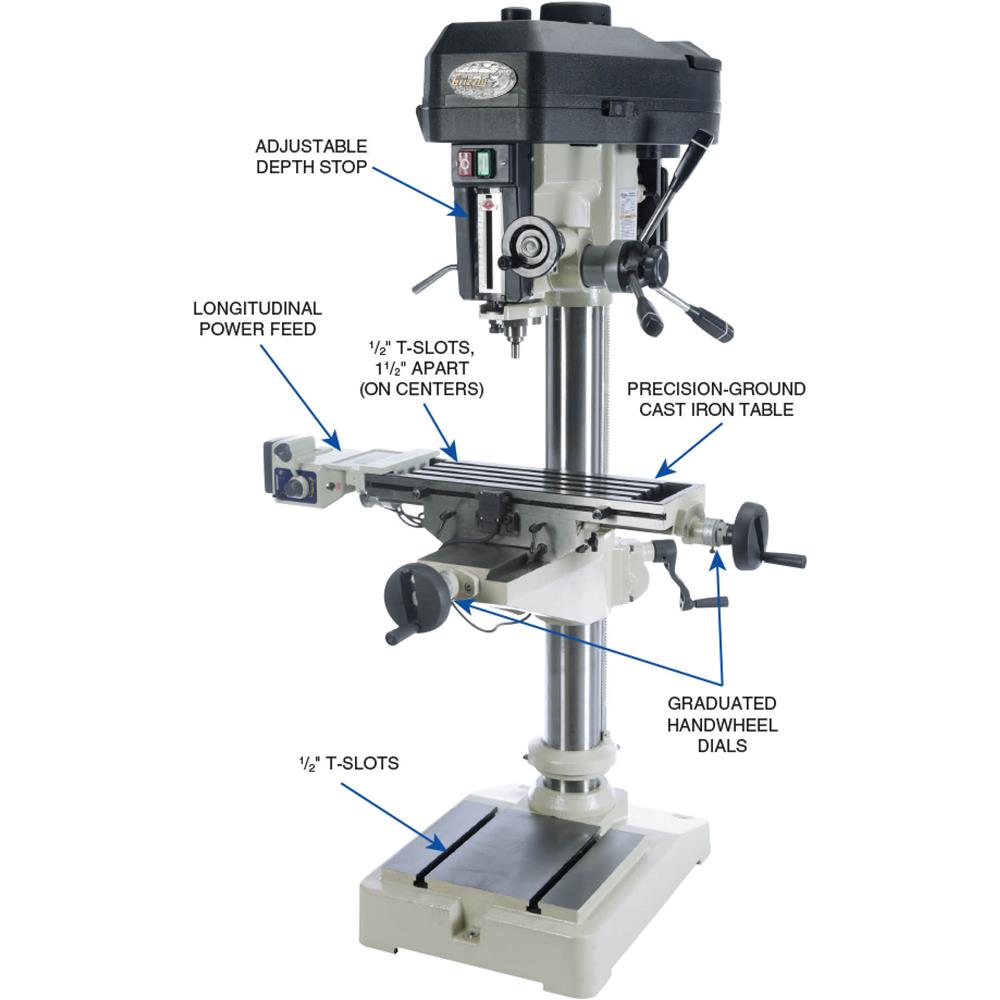

Features
- MT#3 spindle taper
- 5-1/8" of spindle travel

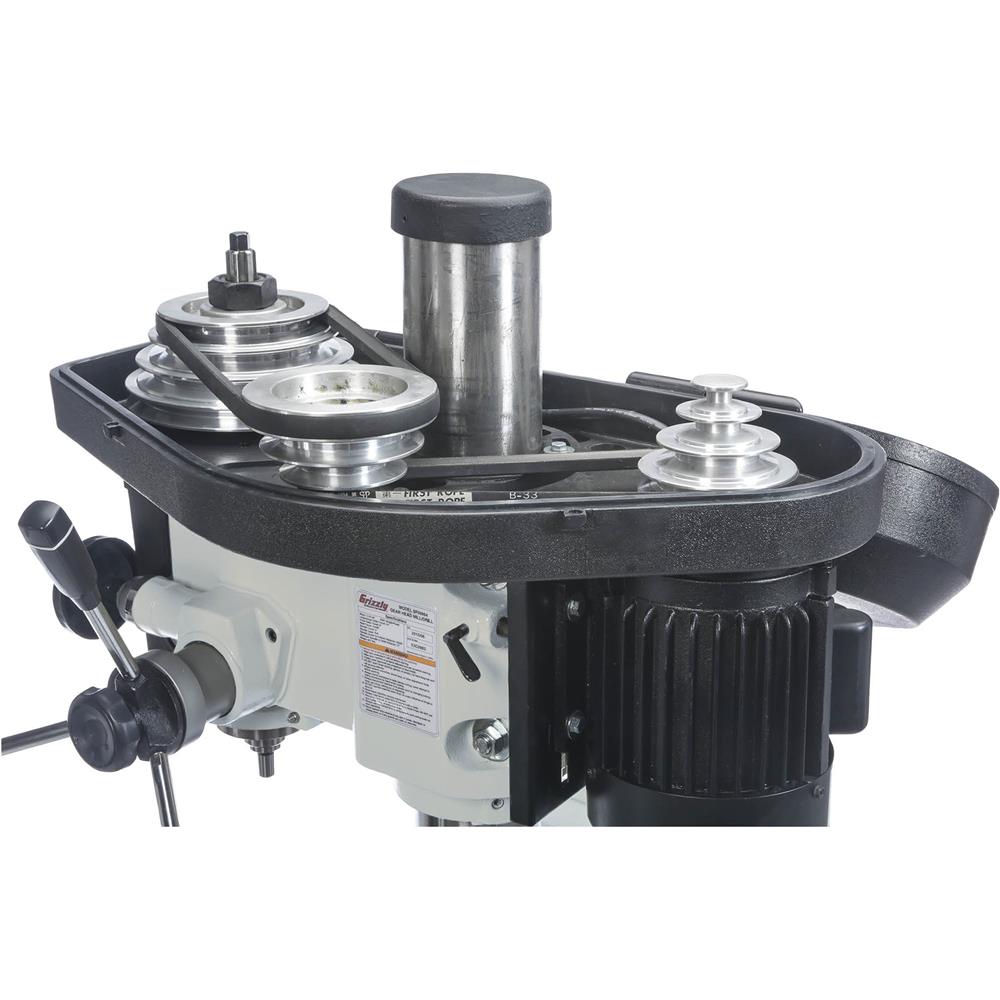

- 12 spindle speeds between 150–3000 RPM

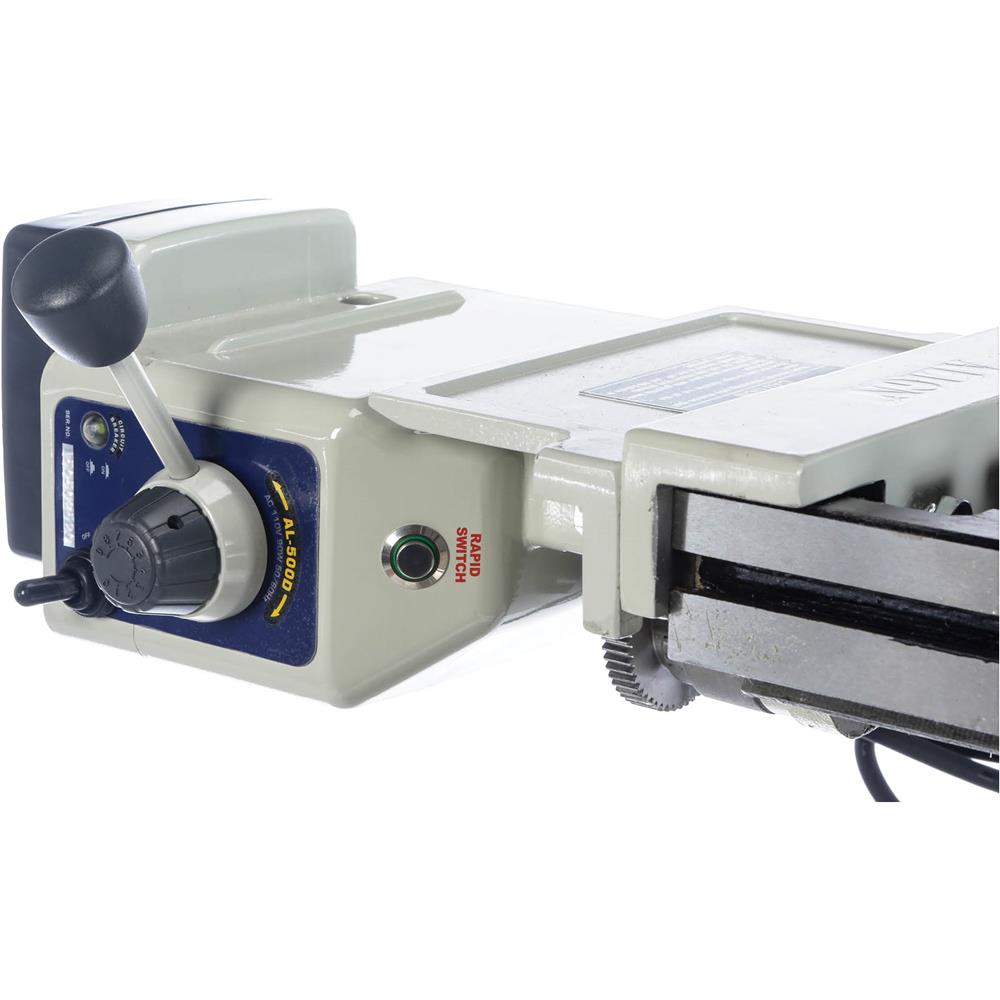

- Longitudinal power feed on X/Y-axis table with independent power supply

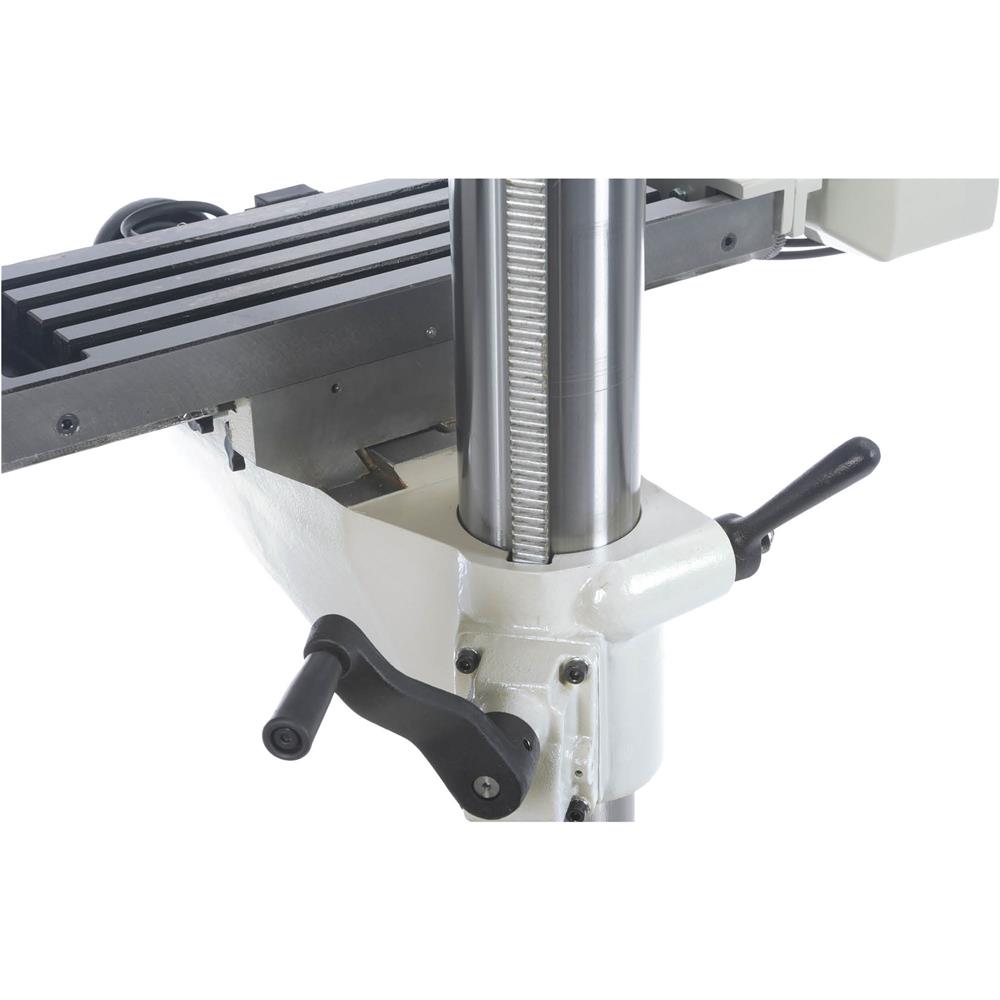

- 360° table rotation around column

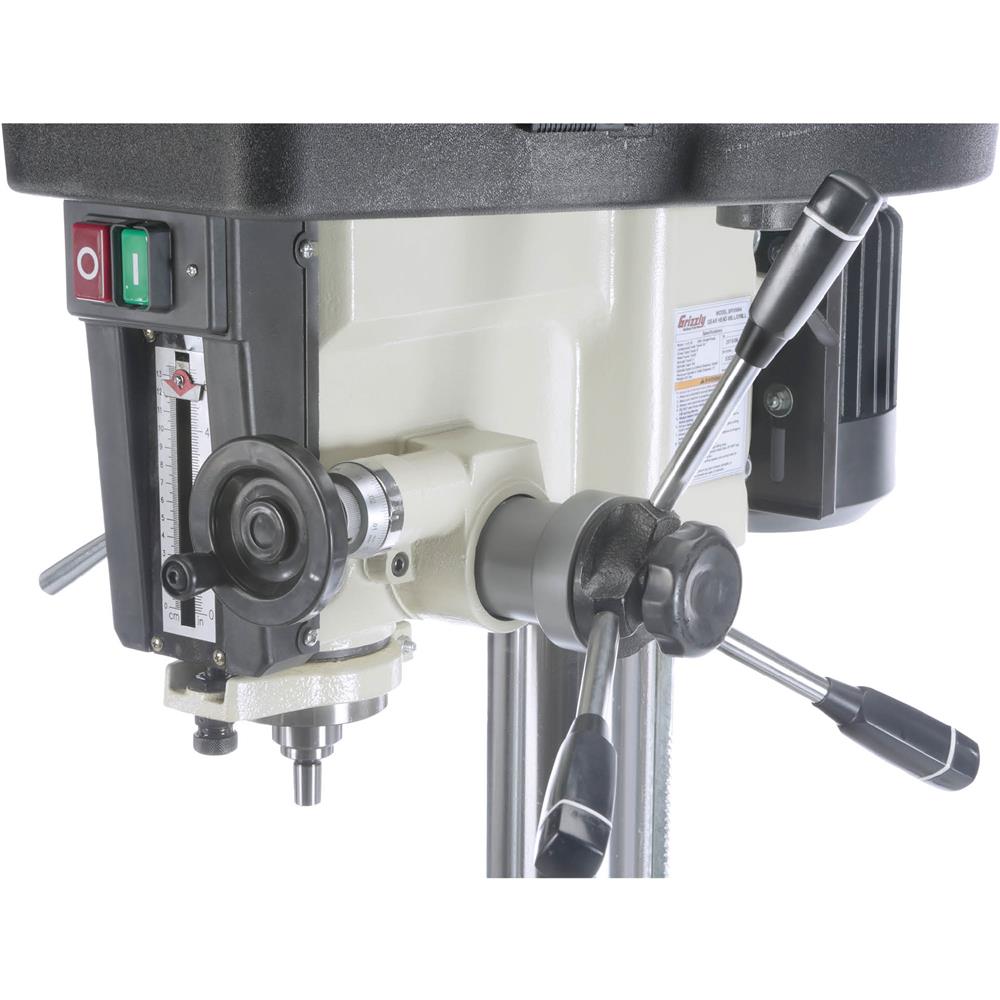

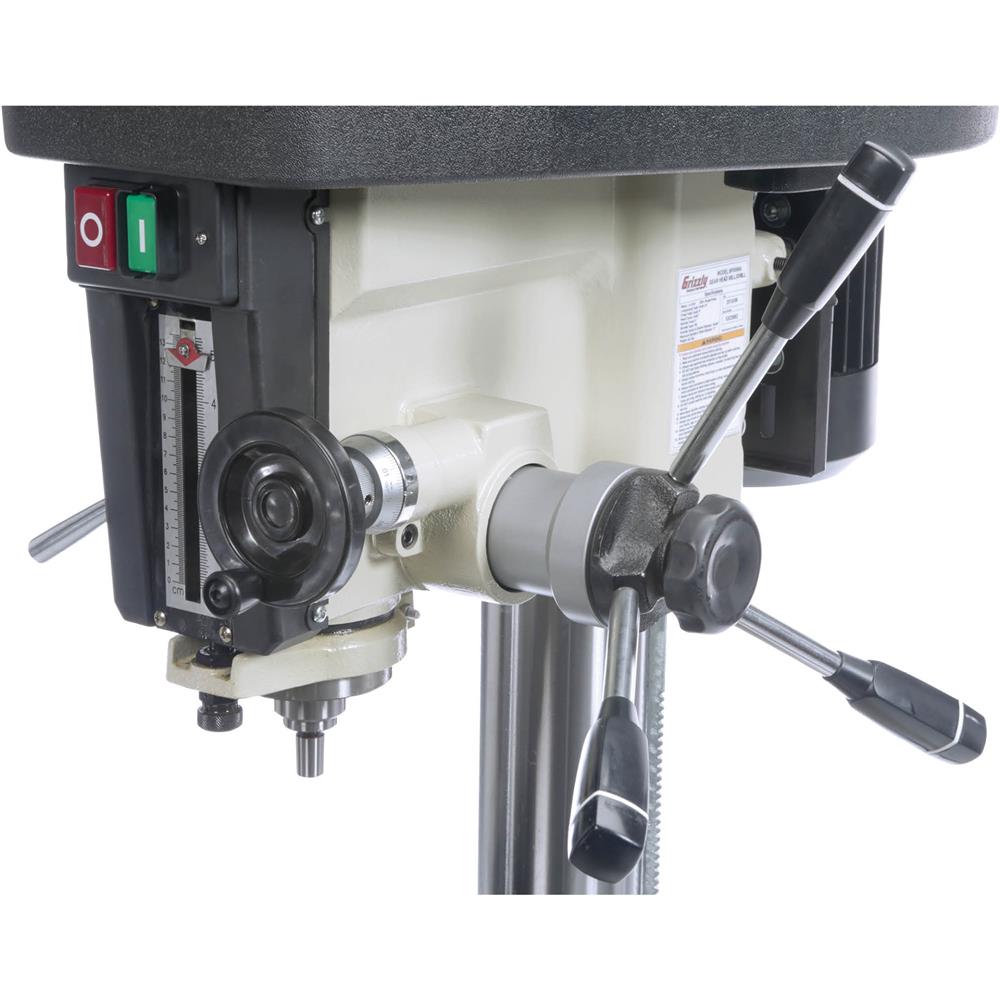

- Fine-downfeed handwheel adjustment
- Four 1/2" T-slots in the table, plus two more in the base
Specifications
| Motor | 1-1/2 HP, 220V, single-phase, 11.5A |
| Swing | 16" |
| Spindle taper | MT#3 |
| Spindle travel | 5-1/8" |
| Number of spindle speeds | 12 |
| Spindle speed range | 150–3000 RPM |
| Max distance spindle-to-table | 19-7/8" |
| Table size | 23-1/16" L x 7-1/2" W x 1-3/4" H |
| Vertical table travel | 20" |
| Table swivel (left/right) | 360° |
| Quill diameter | 2.95" |
| Drawbar thread size | M12"-1.75 |
| Drilling capacity mild steel | 1-1/4" |
| End milling capacity | 3/4" |
| Face milling capacity | 3" |
| T-slot width | 1/2" (4 on table, 2 on base) |
| Footprint | 26" L x 19" W |
| Overall dimensions | 42" W x 39-1/2"D x 65" H |
| Approximate shipping weight | 685 lb. |
Warranty
This item comes with a 1 year factory warranty.
