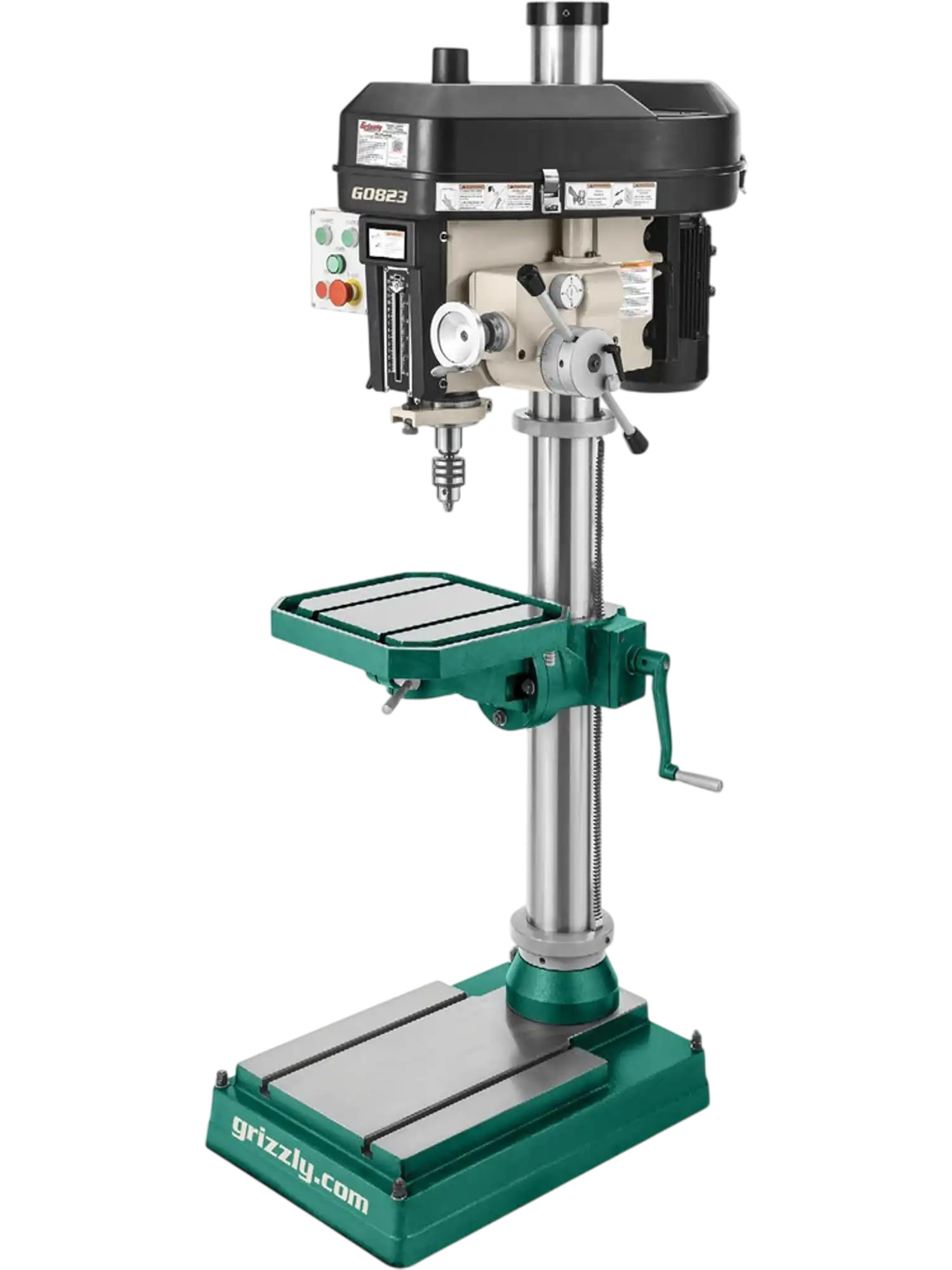

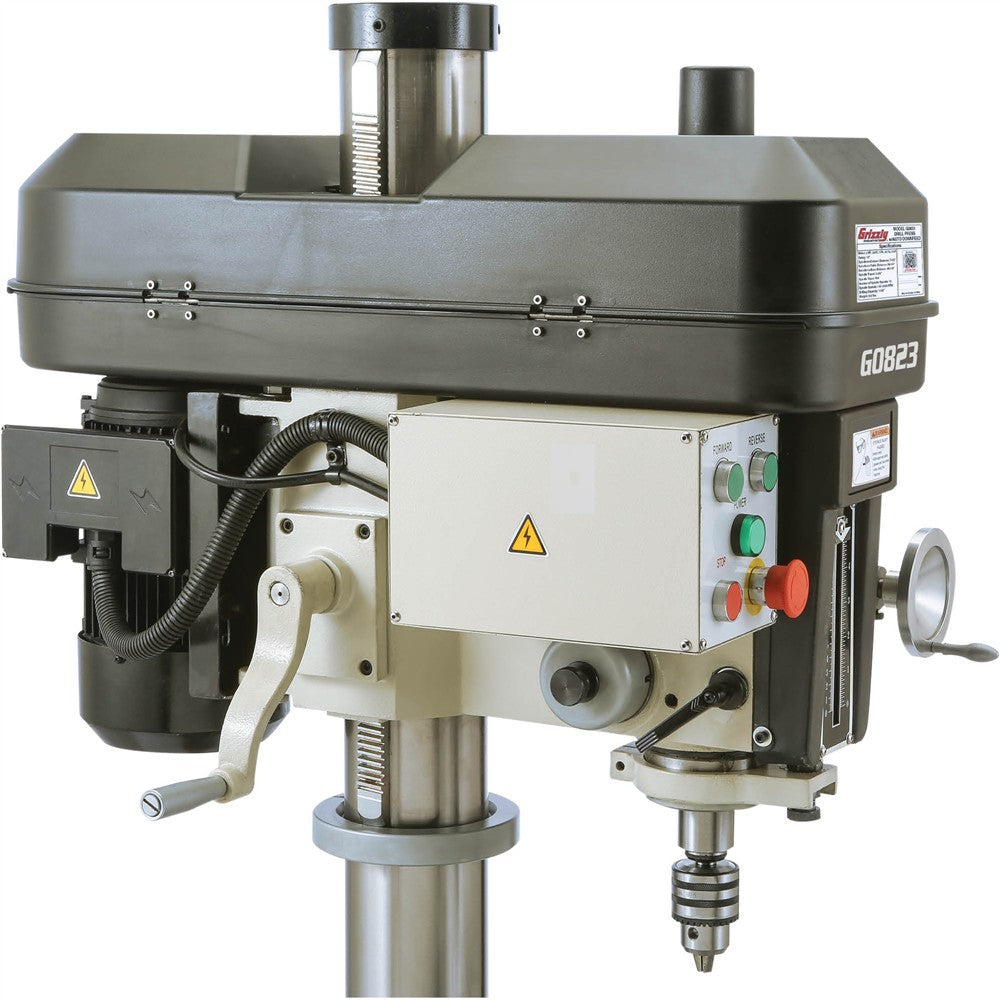

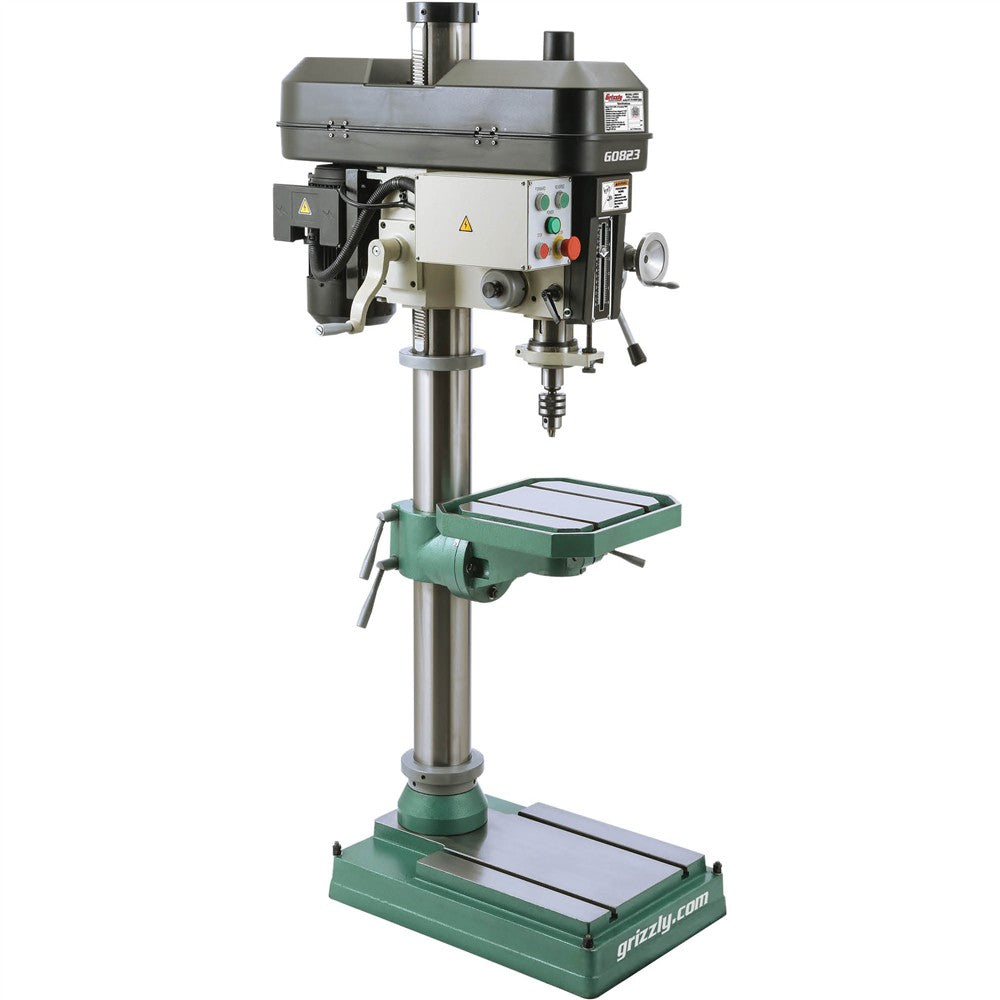

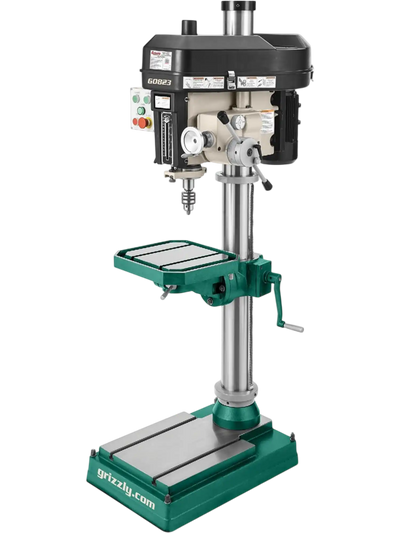

Grizzly G0823 Metal Drill Press 15" Drill Press w/ Auto Downfeed New
Product Overview
The Grizzly G0823 is a 15-inch metal drill press built for precise, repeatable drilling in demanding shop environments. Its 2 HP motor, R-8 spindle taper, and 12-speed range from 140 to 2436 RPM make it especially well suited for metalworking, including low-speed drilling where control matters most.
Auto downfeed helps streamline repetitive operations, while fine downfeed control in 0.01-inch increments supports accurate depth adjustment. The cast-iron table rotates 360 degrees, tilts 60 degrees left and right, and offers generous vertical travel, giving you flexible positioning for a wide range of parts and setups.
With solid cast-iron construction, T-slotted work surfaces, and forward/reverse operation, this machine is a strong fit for fabrication shops, maintenance departments, and serious home or industrial users who need power, rigidity, and precision in a floor-standing drill press.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Auto-downfeed
- Solid cast-iron construction
- Precision-ground cast-iron table

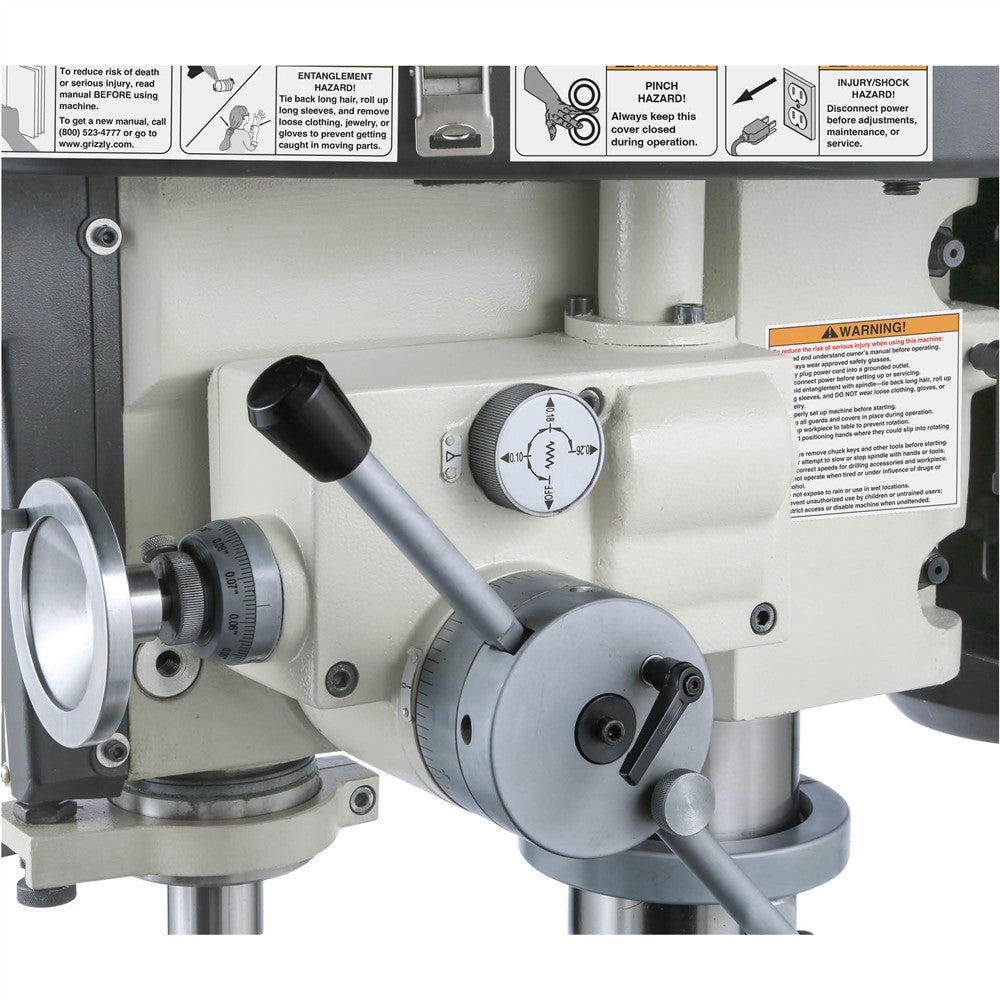

- Fine downfeed control with 0.01" increments and zero set
- 360° Table positioning around column
- 360° Head positioning around column
- Base has precision-ground, cast-iron work surface with two 1/2" T-slots
- Forward/reverse switch
Specifications
| Motor | 2 HP, 220V, single-phase, 8.6A |
| Swing | 15" |
| Spindle taper | R-8 |
| Spindle travel | 5-1/8" |
| Spindle speeds | 12, 140–2436 RPM |
| Max distance spindle-to-table | 28-1/4" |
| Drill chuck | 1/64"-1/2" |
| Drilling capacity | 1-1/8" mild steel |
| Table size | 14" W x 15" L |
| Table swing | 360° |
| Table tilt | 60° left and right |
| Table T-slots | 1/2" (2) |
| Vertical table travel | 23-1/2" |
| Column diameter | 4-1/2" |
| Footprint | 26" L x 18" W |
| Overall dimensions | 23" W x 35-1/2"D x 67" H |
| Approximate shipping weight | 772 lb. |
Warranty
This item comes with a 1 year factory warranty.
