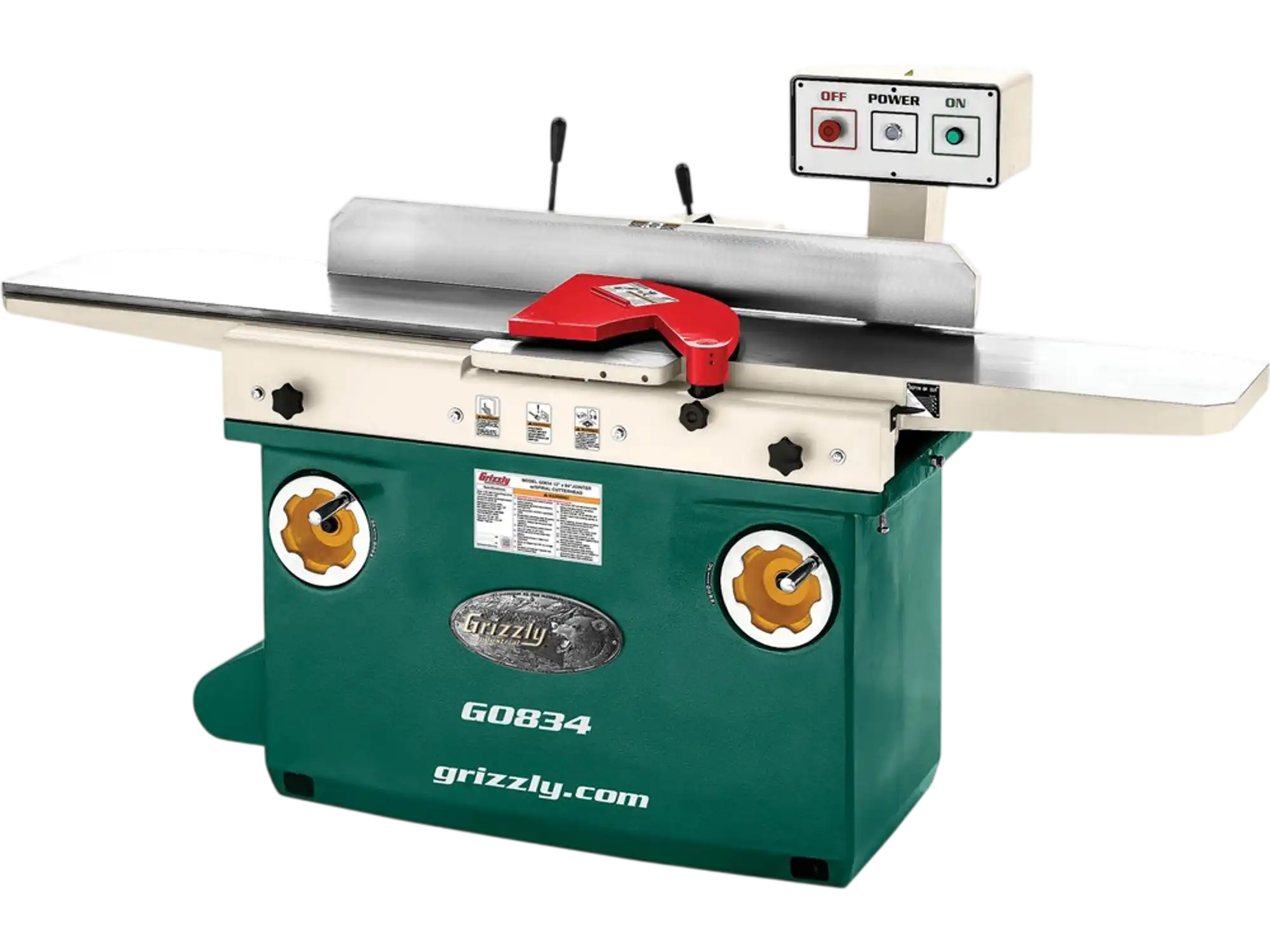

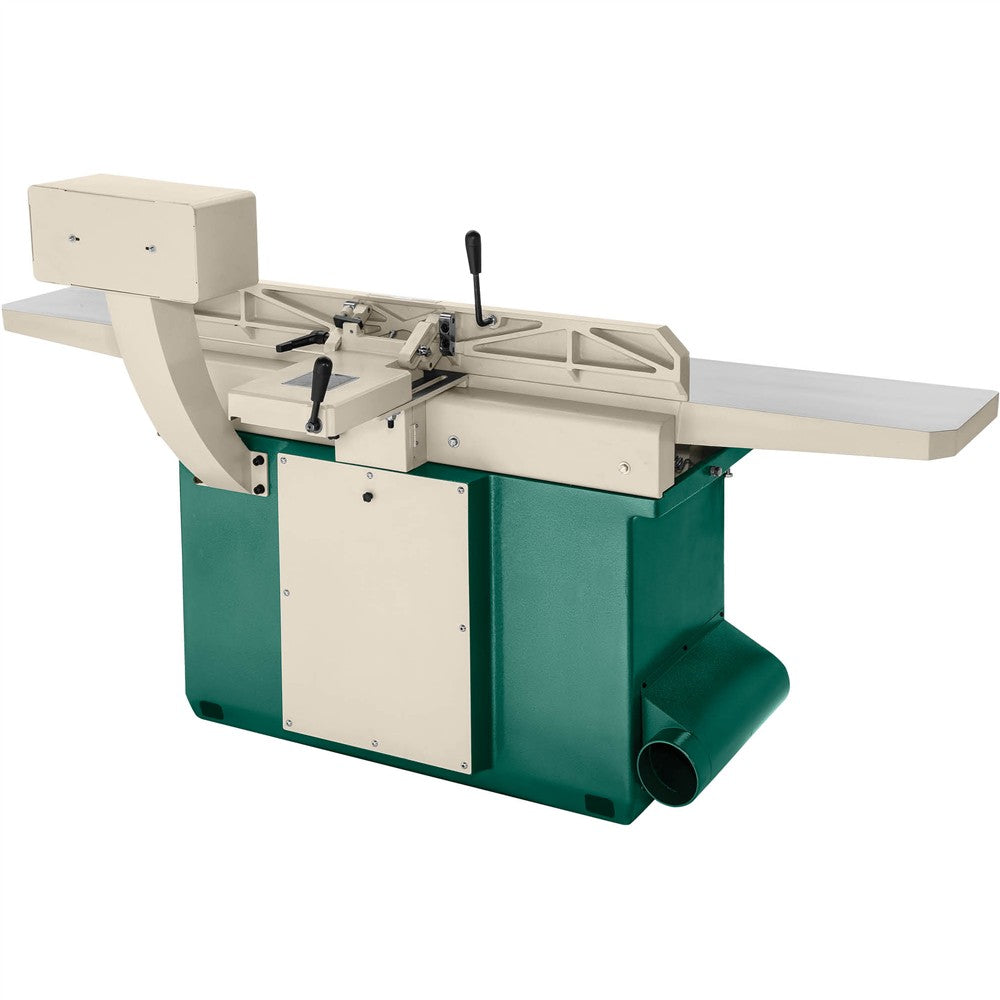

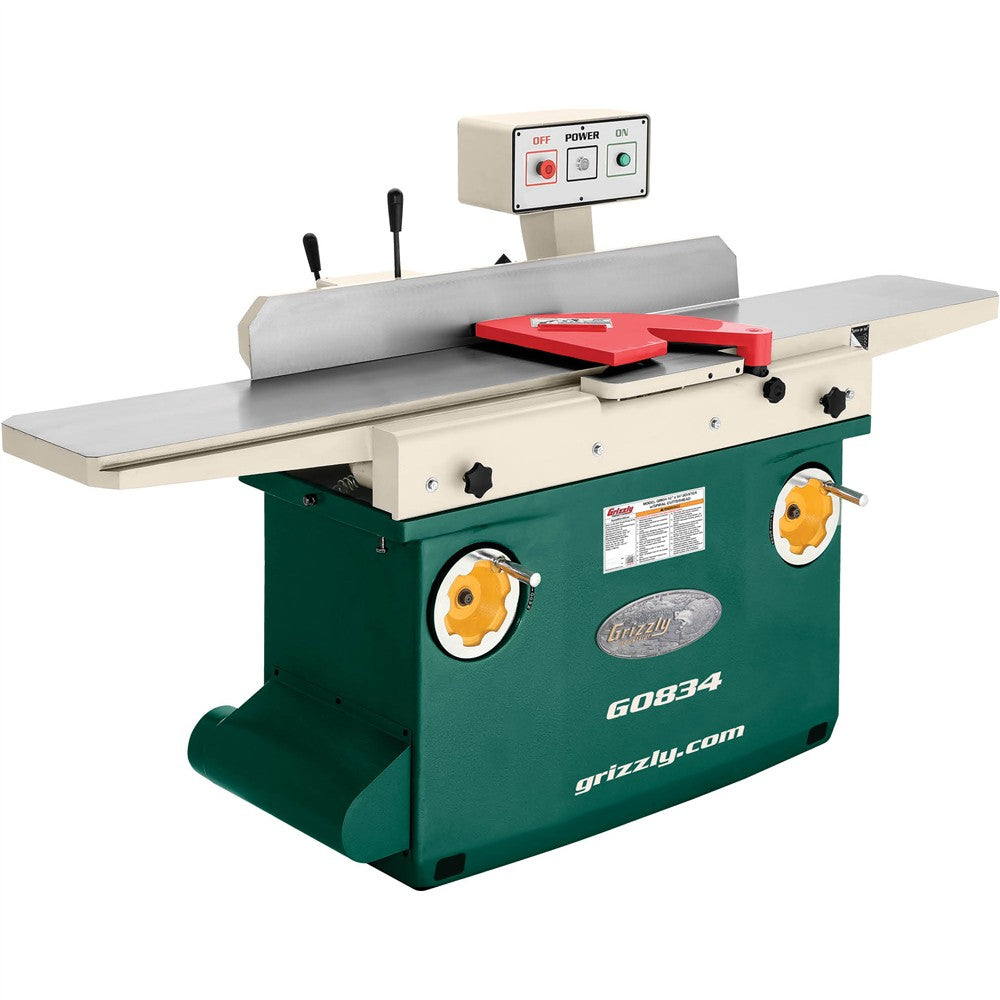

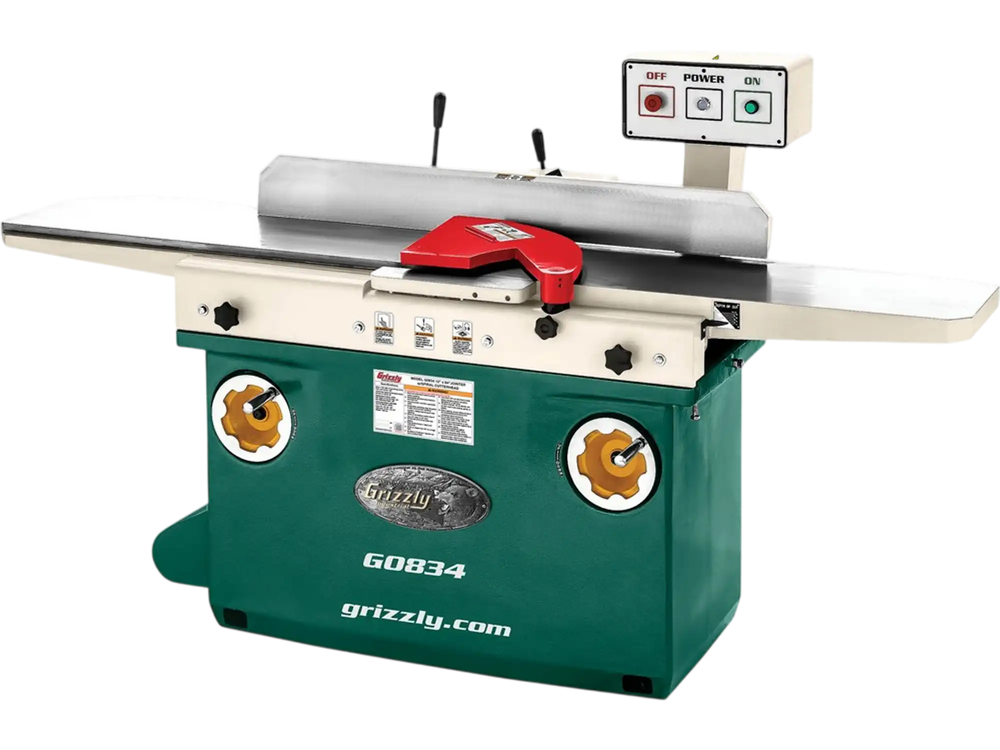

Grizzly G0834 Jointer 12" x 84" w/ Helical Cutterhead New
Product Overview
The Grizzly G0834 is a heavy-duty 12-inch jointer built for serious woodworking and high-accuracy stock preparation. Its long 84-inch precision-ground cast-iron tables, solid cabinet stand, and massive overall weight help reduce vibration for smoother cuts and more dependable results on large boards.
An 8-row helical cutterhead with 96 indexable carbide inserts delivers clean jointing with a shearing action that helps minimize tearout, reduce noise, and maintain a finer finish. Powered by a 5 HP single-phase motor, this machine is designed to handle demanding shop work, including edge-jointing, face-jointing, and rabbeting.
Parallelogram table adjustment with easy-access handwheels allows precise infeed and outfeed alignment, while the center-mounted fence supports accurate setup for angled and straight cuts. This jointer is well suited for experienced woodworkers, furniture makers, cabinet shops, and anyone needing a robust machine for processing wider stock with consistency.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

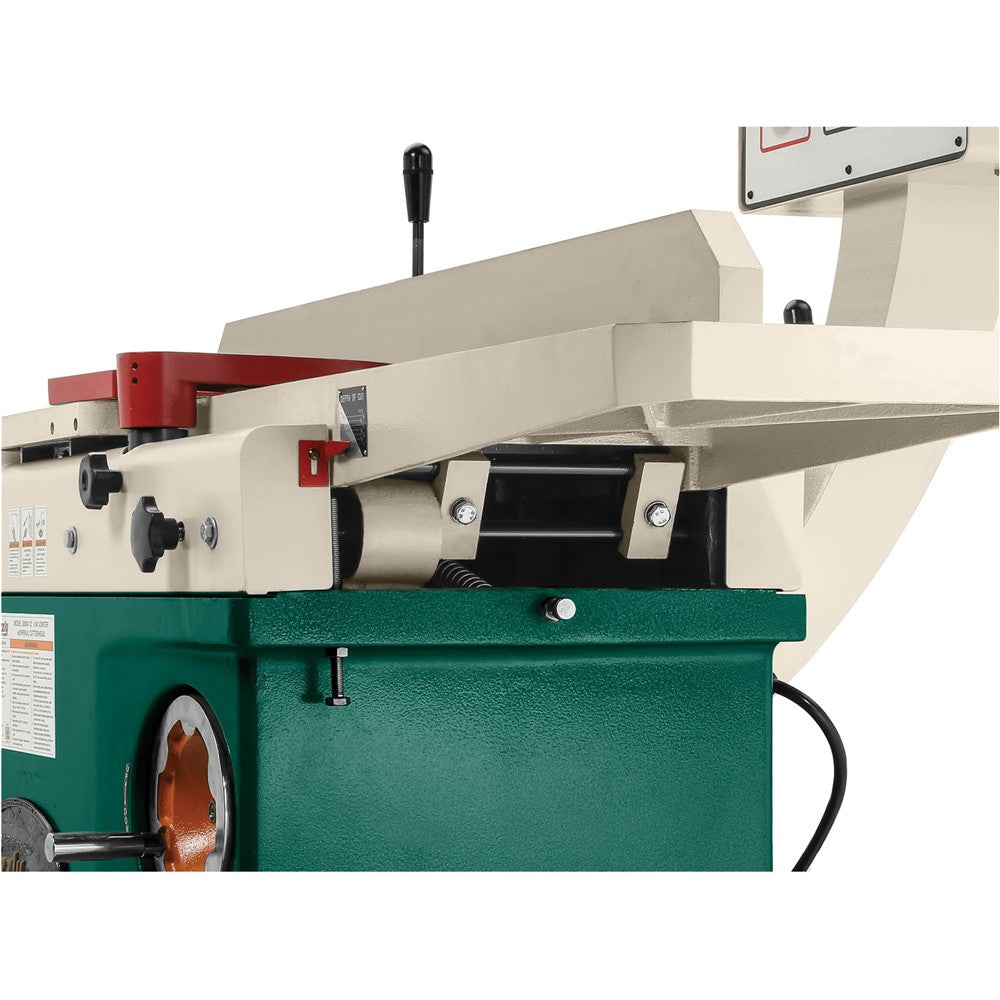

- Parallelogram tables with handwheel adjustment
- Precision-ground cast-iron tables
- Rabbeting table

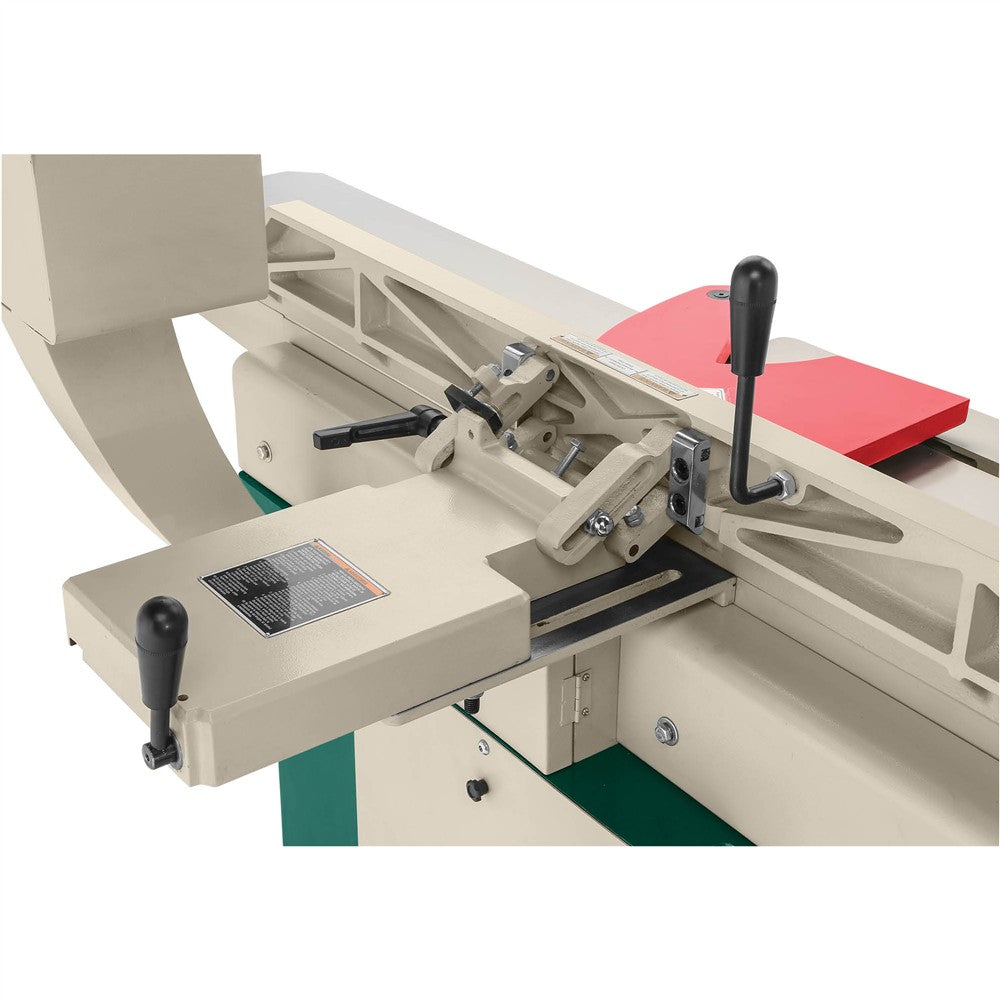

- Heavy-duty center-mounted fence with angle gauge

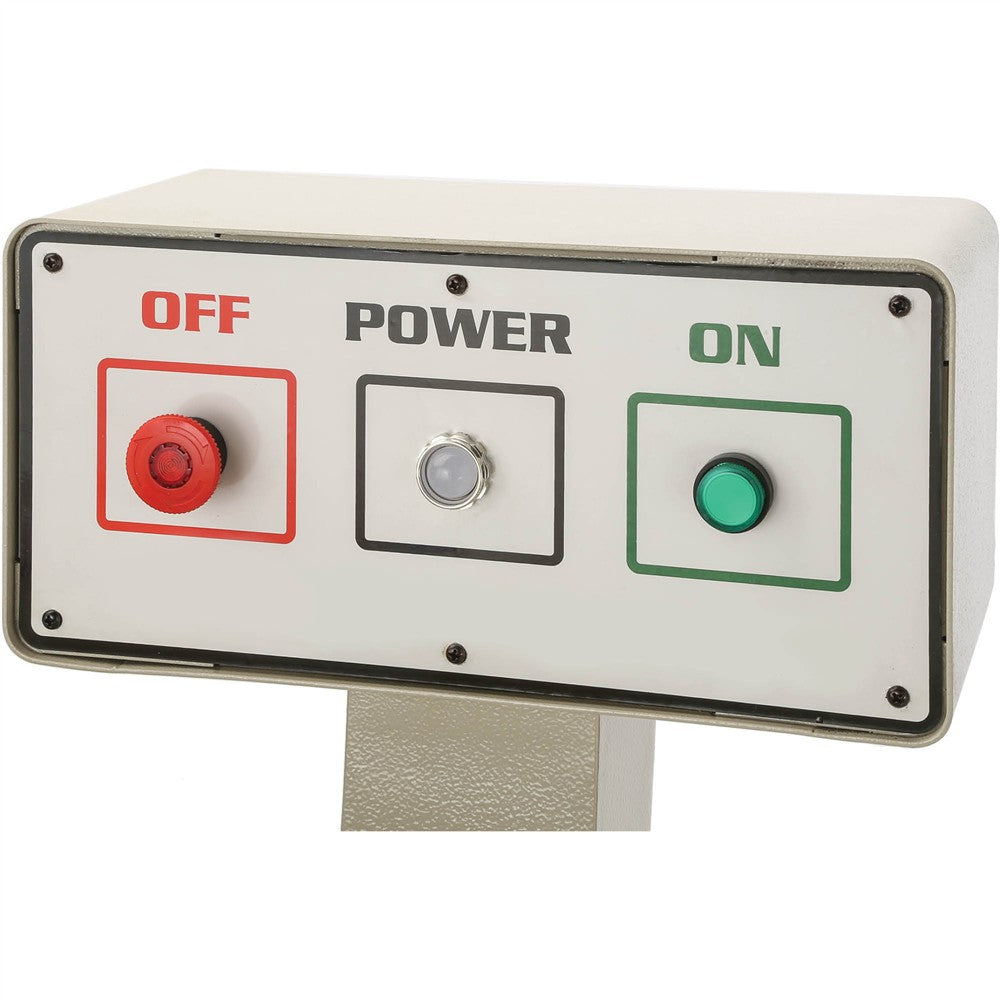

- Pedestal-mounted switch for easy access
- Magnetic switch with thermal overload protection
- Solid cabinet stand

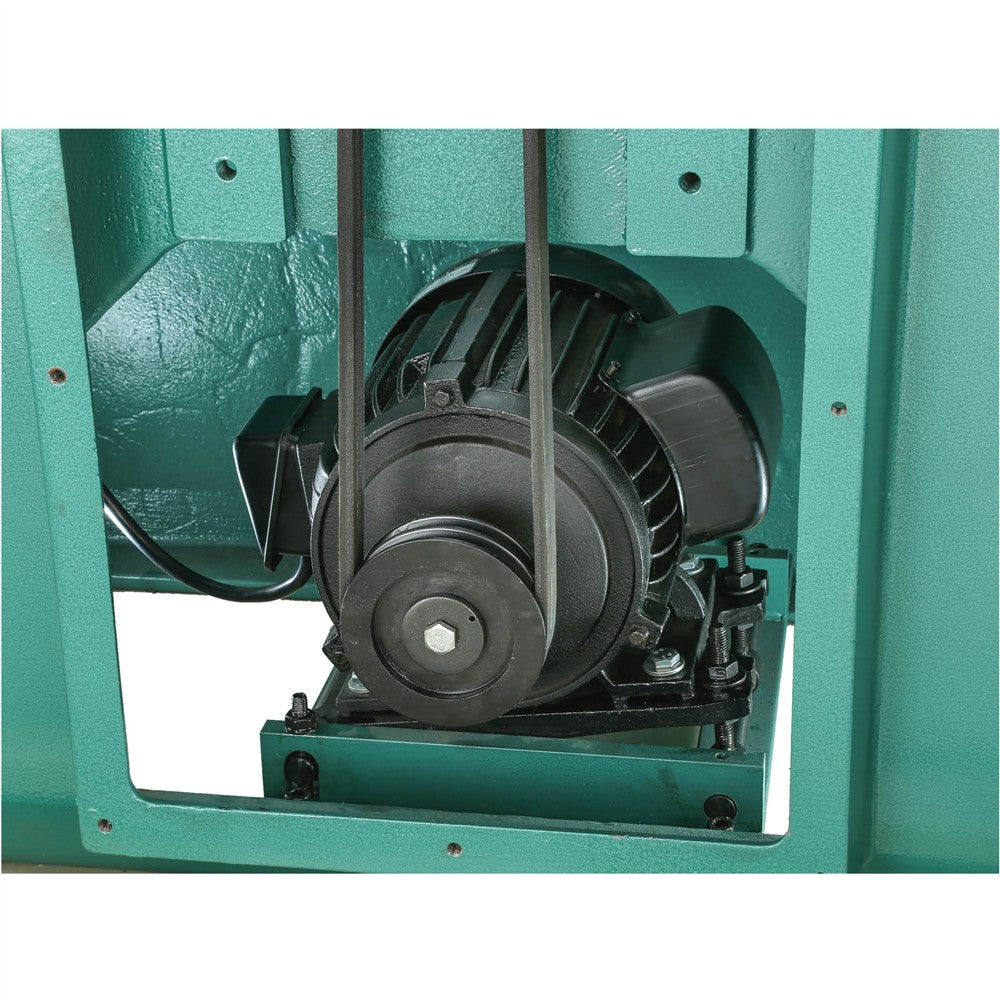

- V-belt drive
Specifications
| Motor | 5 HP, 230V, single-phase, 19A |
| Maximum width of cut | 12" |
| Maximum depth of cut | 1/8" |
| Maximum rabbeting depth | 1/2" |
| Cutterhead diameter | 3-7/8" |

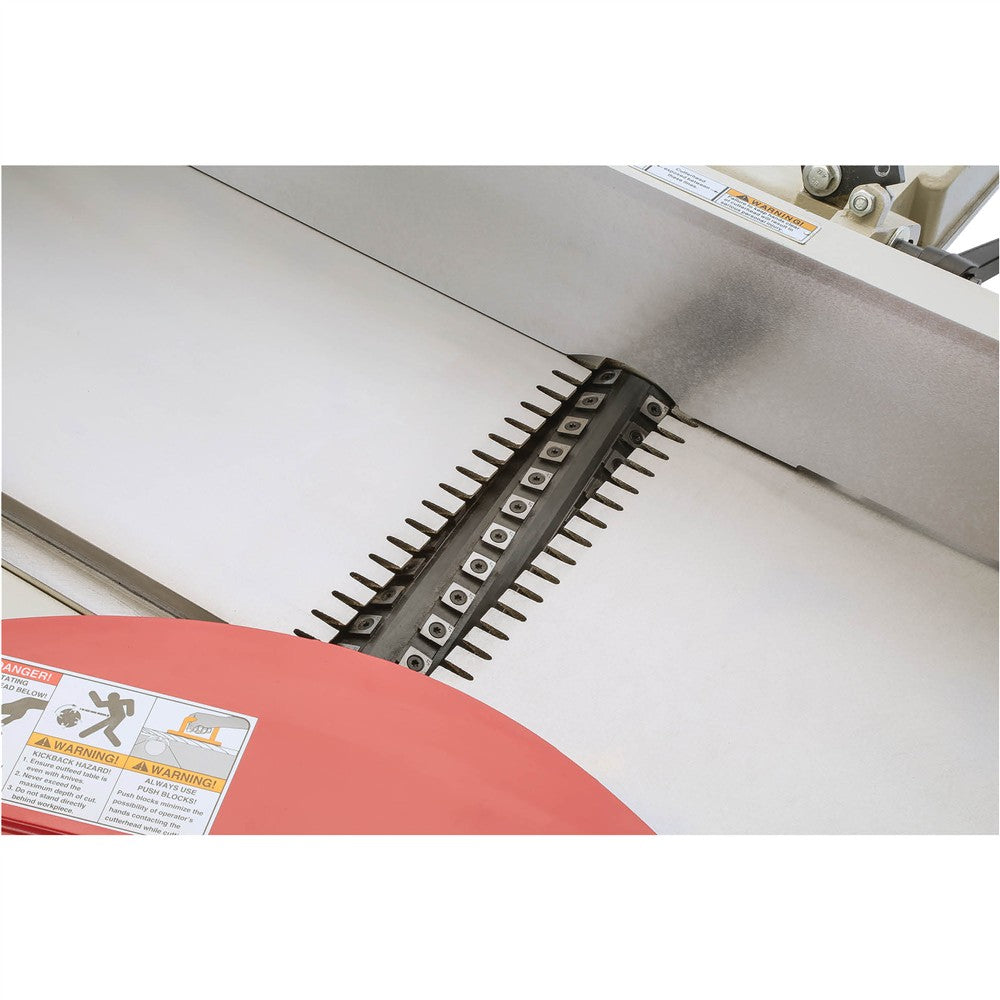

| Cutterhead type | 8-Row helical with 96 inserts |
| Insert size, type | 15 x 15 x 2.5mm, indexable carbide |
| Cutterhead speed | 4950 RPM |
| Table size | 84" x 12-3/4" |
| Fence size | 47" L x 5-3/8" H |
| Minimum stock length | 14" |
| Minimum stock thickness | 1/2" |

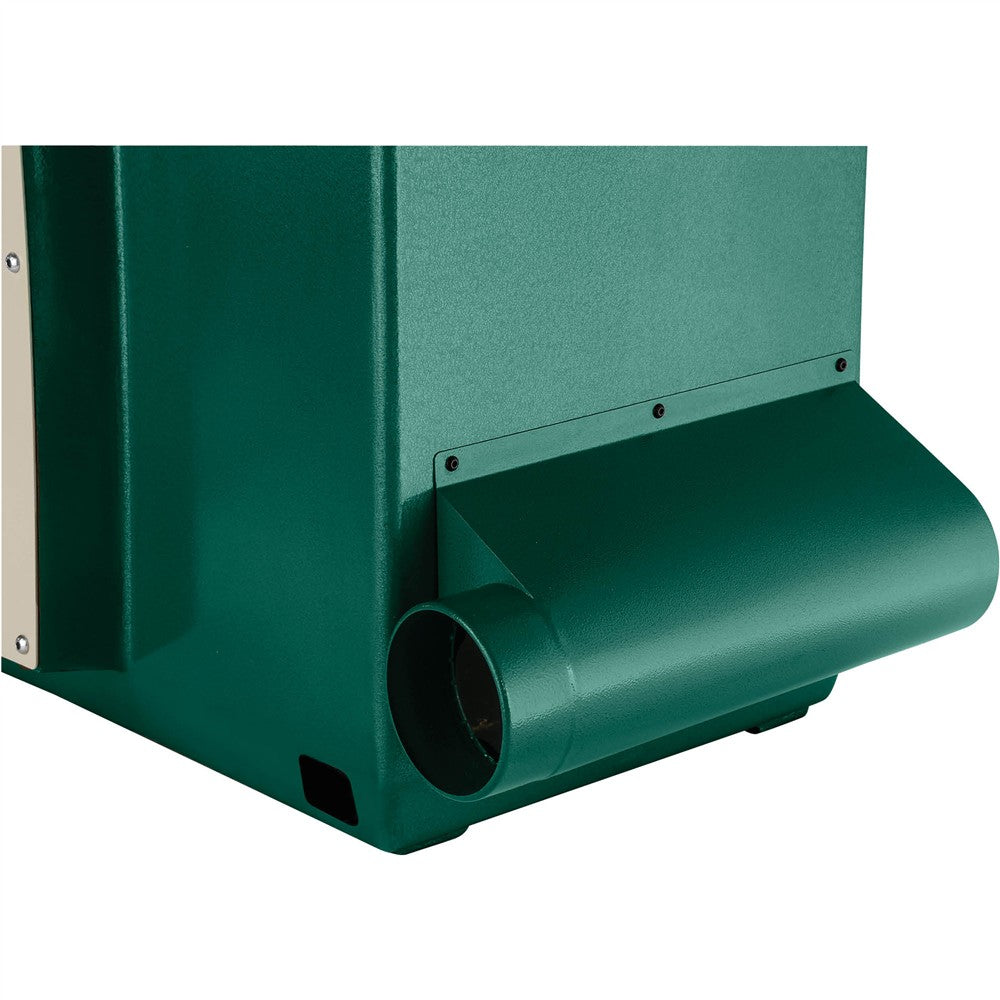

| Dust port size | 5" |
| Footprint | 41" x 19-1/2" |
| Overall dimensions | 84" W x 39" D x 47" H |
| Approximate shipping weight | 1278 lbs. |
Warranty
This item comes with a 1 year factory warranty.
