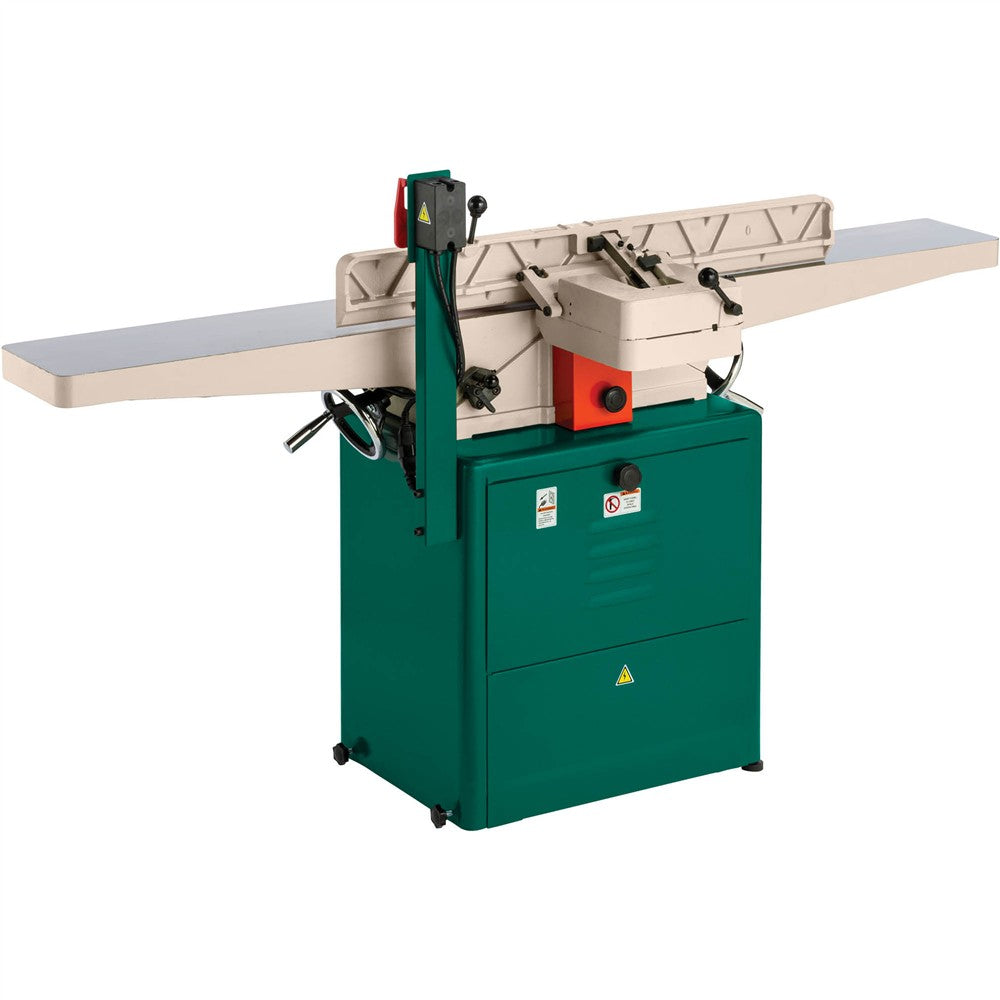

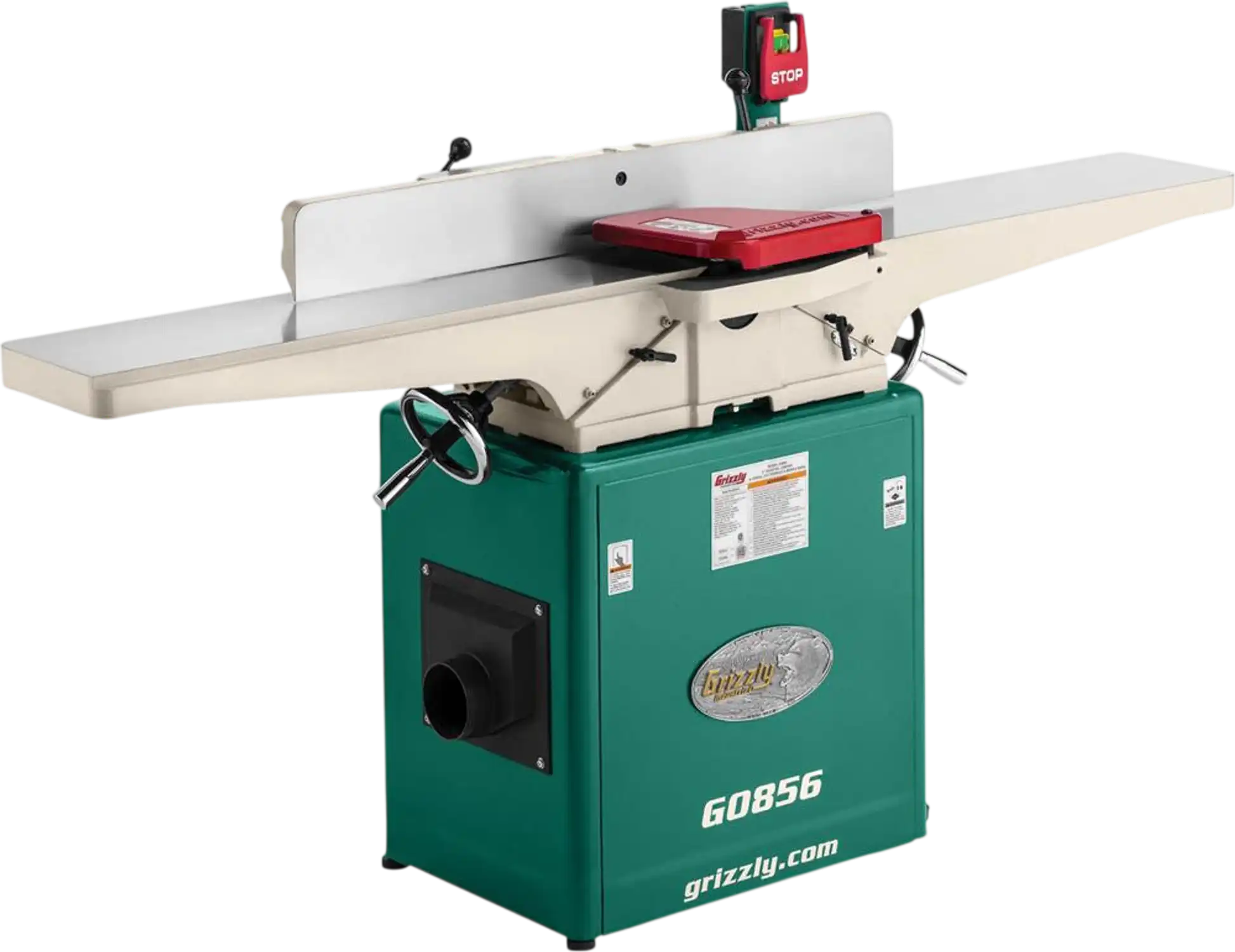

Grizzly G0856 Jointer 8" x 72" w/ Helical Cutterhead & Mobile Base New
Product Overview
The Grizzly G0856 is an 8-inch jointer designed for woodworkers who are ready to move beyond a benchtop or 6-inch machine. Its extra-long 72-inch cast-iron bed provides strong support for flattening and straightening longer boards, while the built-in mobile base makes it easier to position in a busy shop.

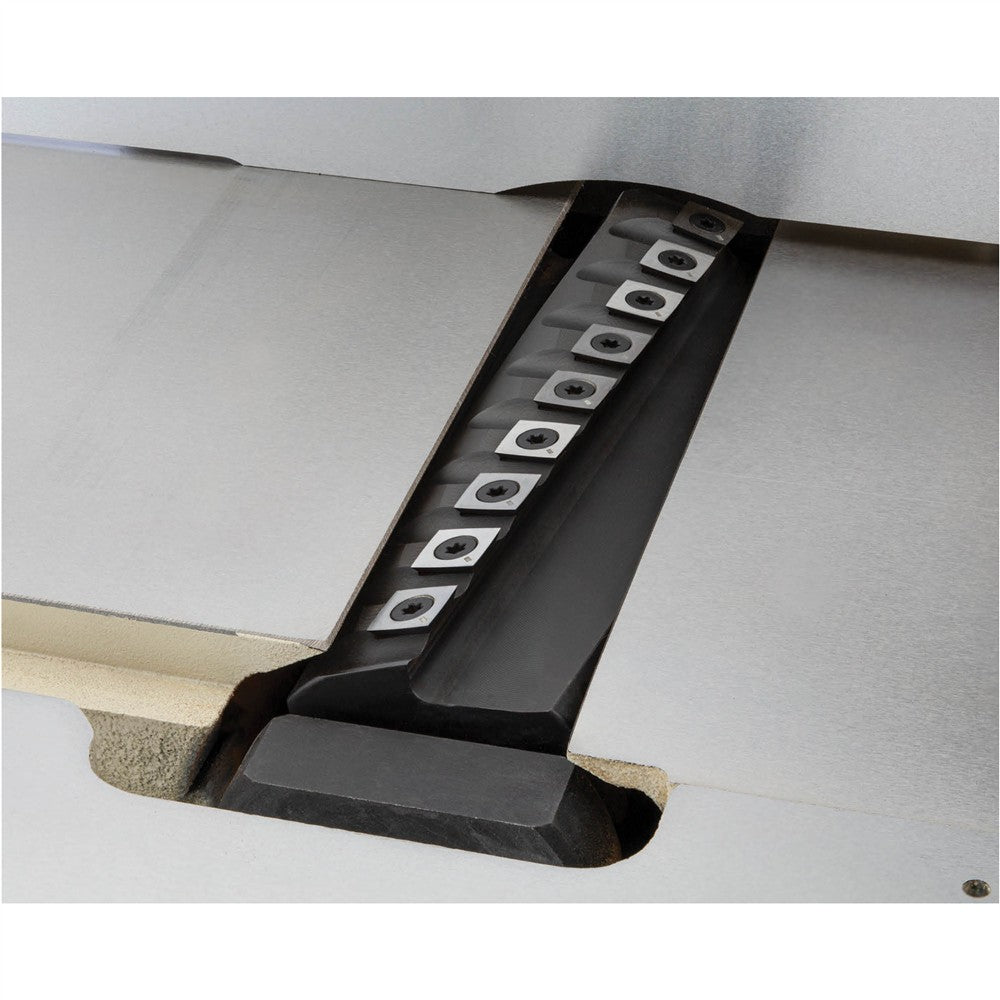

A 4-row helical cutterhead with 36 indexable carbide inserts delivers smooth, accurate cuts with quieter operation and reduced tear-out compared to traditional straight-knife designs. The inserts cut at a shearing angle for a cleaner finish, and the handwheel-adjusted infeed and outfeed tables make it easy to dial in jointing or rabbeting cuts up to 1/2 inch deep.
With a 3 HP single-phase motor, precision-ground cast-iron tables, and a rack-and-pinion adjustable fence with common angle stops, this machine is well suited for serious hobbyists, furniture makers, and small professional shops that need dependable performance and improved surface quality.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Extra-long 72" bed with rabbeting table
- Dovetailed-ways tables with handwheel adjustment and depth gauge
- Precision-ground cast-iron tables

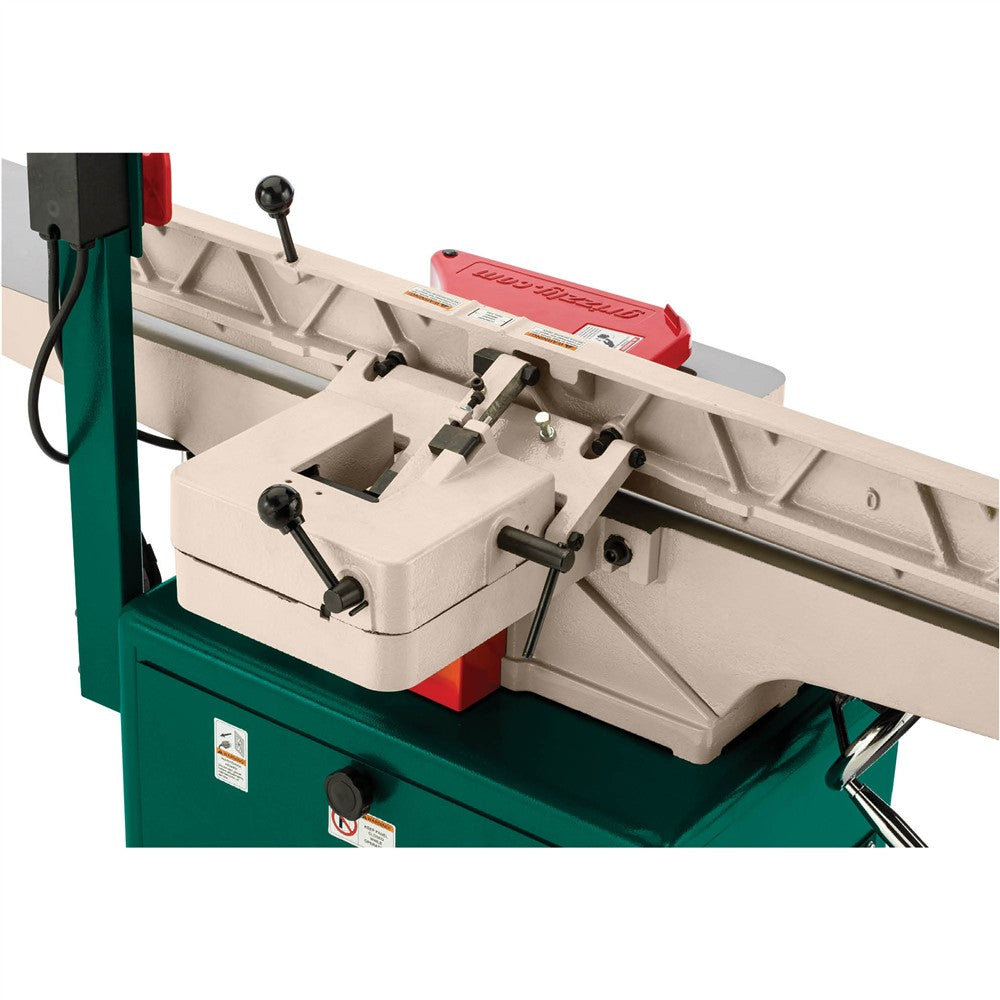

- Center-mounted, precision-ground cast-iron fence with rack-and-pinion lateral adjustment
- Fence stops at 45°, 90°, and 13°
- Pedestal-mounted power switch with large shut-off paddle
- Built-in mobile base with internally-mounted, fixed casters
- Sealed and permanently lubricated bearings
- 5 replacement indexable carbide inserts included
Specifications

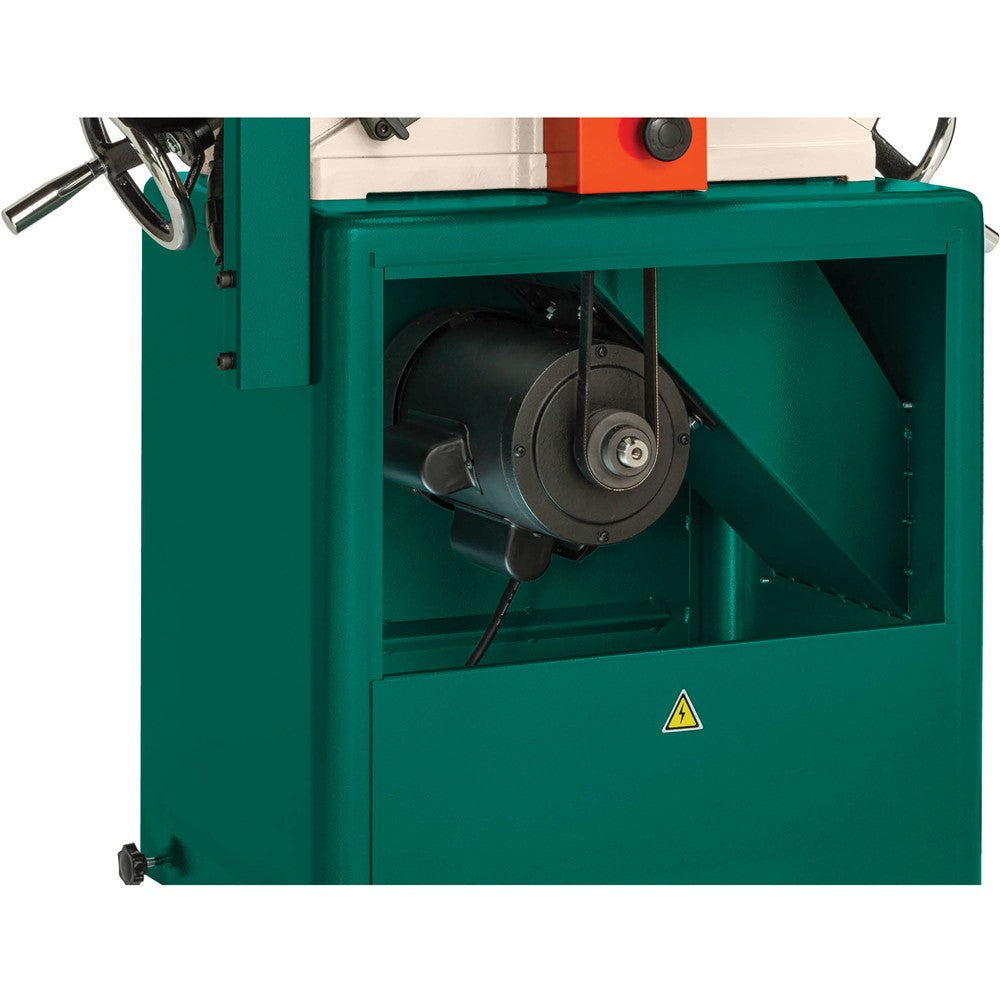

| Motor | 3 HP, 230V, single-phase, 12A |
| Maximum width of cut | 8" |
| Maximum depth of cut | 1/8" |
| Maximum rabbeting depth | 1/2" |
| Cutterhead diameter | 3-1/16" |
| Cutterhead type | 4-Row helical with 36 inserts |
| Insert size, type | 15 x 15 x 2.5mm, indexable carbide |
| Cutterhead speed | 5500 RPM |
| Table size | 9" x 72" |
| Fence size | 38" L x 4-5/8" H |
| Minimum stock length | 10" |
| Minimum stock thickness | 1/2" |

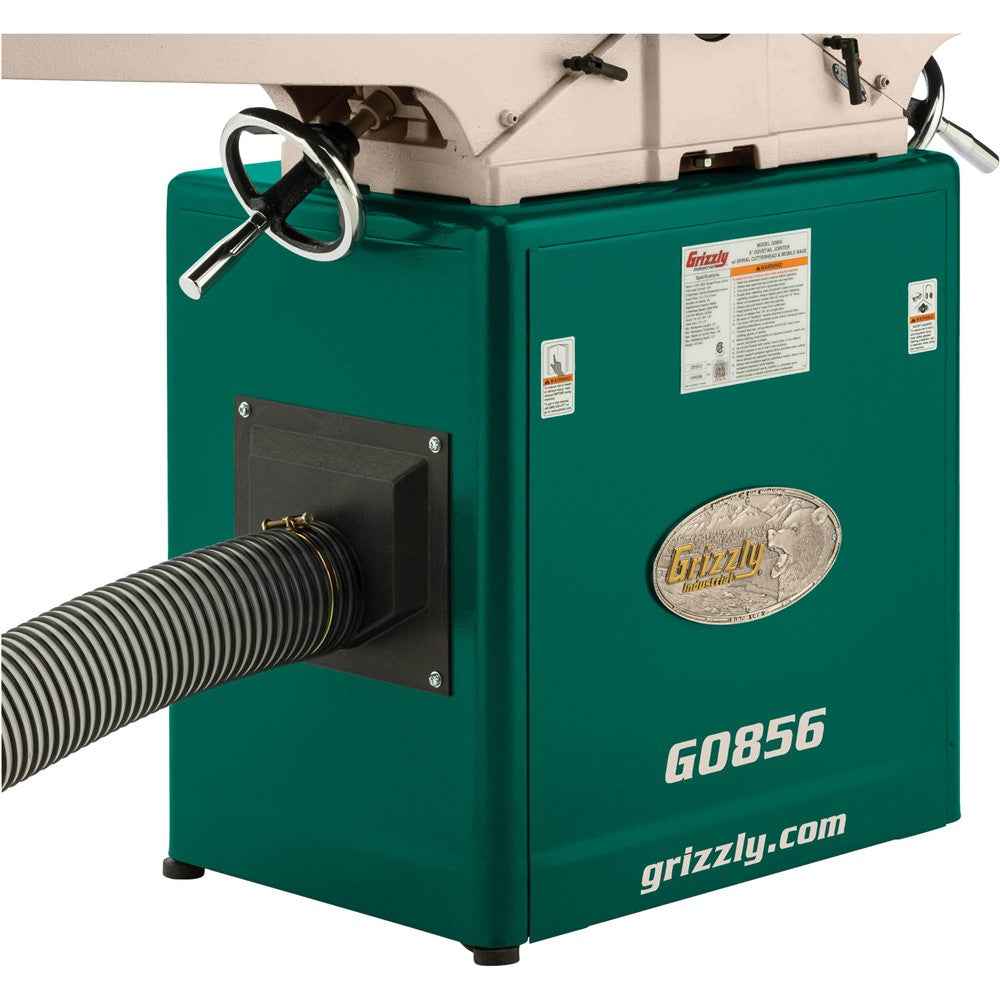

| Dust port size | 4" |
| Footprint | 17" x 23-1/2" |
| Overall dimensions | 72-1/2" W x 25-1/2" D x 42" H |
| Approximate shipping weight | 450 lbs. |
Warranty
This item comes with a 1 year factory warranty.
