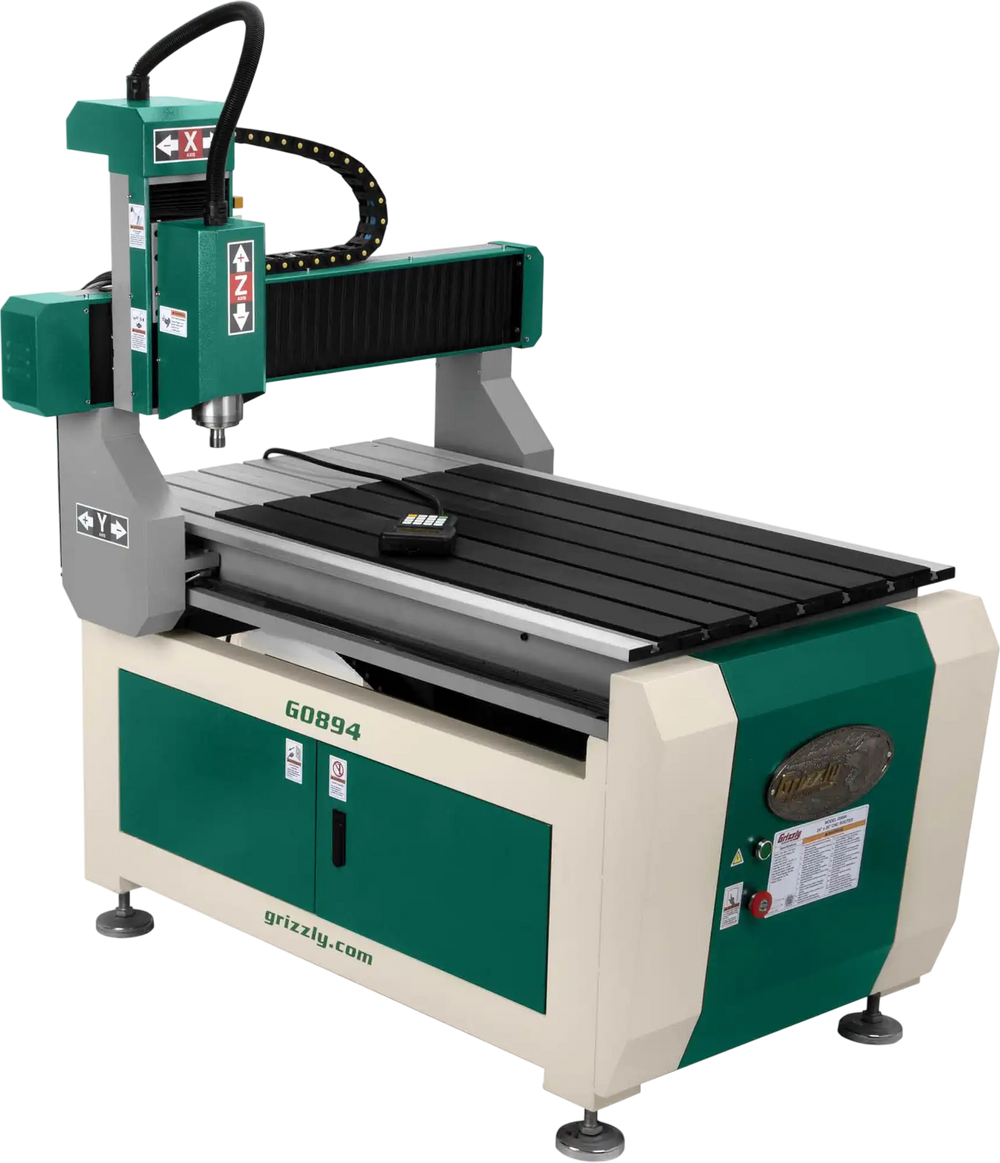

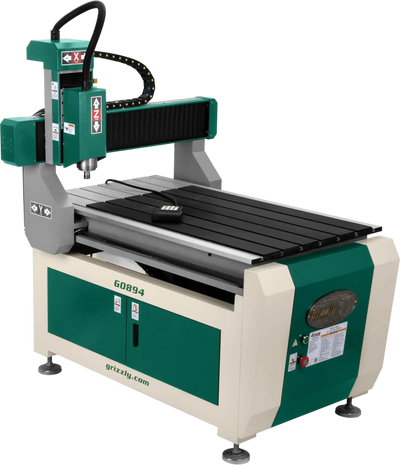

Grizzly G0894 CNC Router 24" x 36" 3 HP 220V New
Product Overview

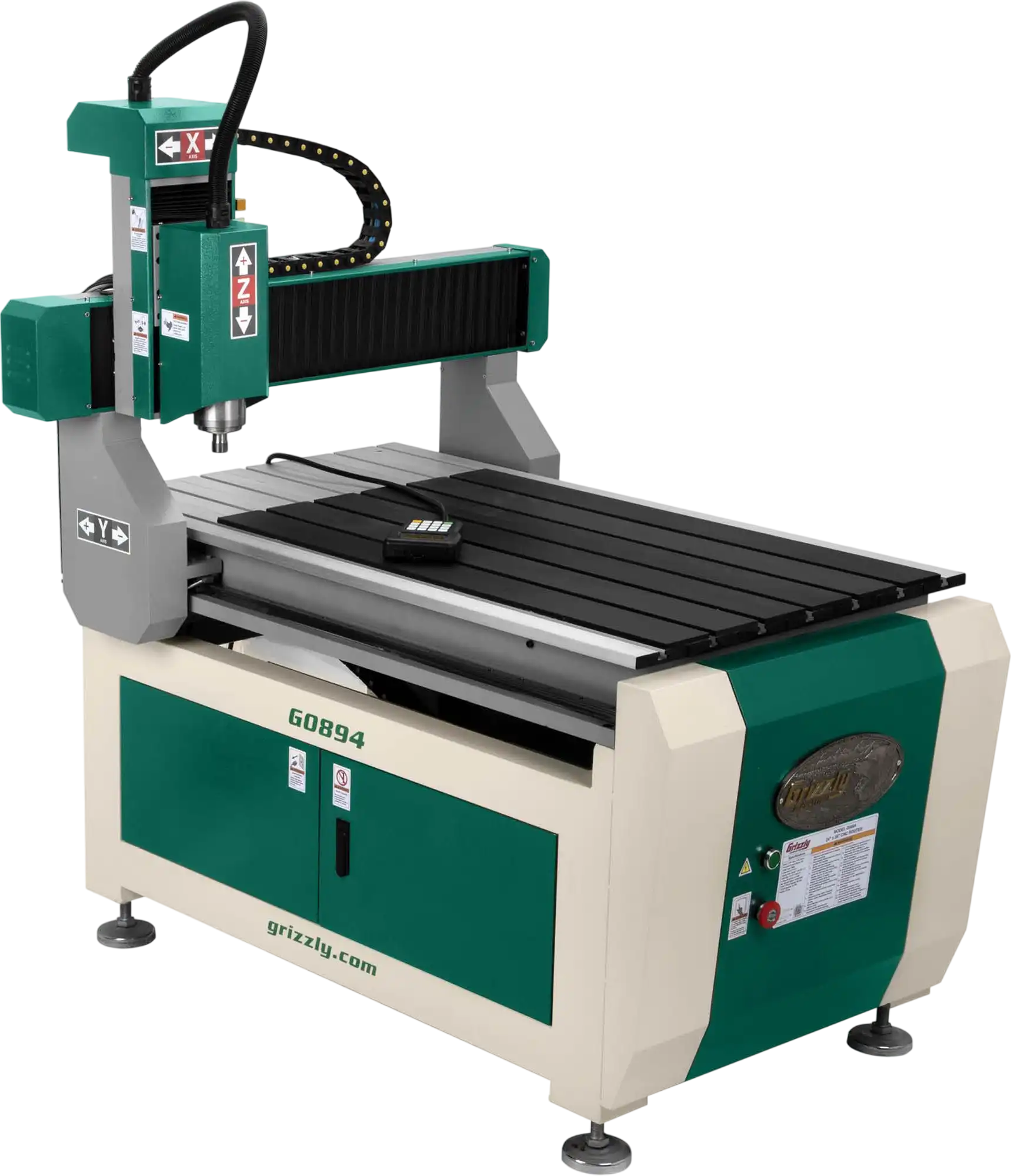

The Grizzly G0894 CNC Router is a precision production machine designed for small-scale routing with a 23-5/8" x 35-3/8" cutting area and a 3 HP liquid-cooled spindle. Stepper motor driven ball screws on all axes deliver accurate, repeatable performance while supporting fast cutting operations. The integrated controller can store programs on its hard drive, load files from a flash drive, or connect directly to a PC. Its ER20 collet system supports a range of tooling options for woodworking and select plastics. A one-shot oiler and T-track table help make it well suited for shop production work.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

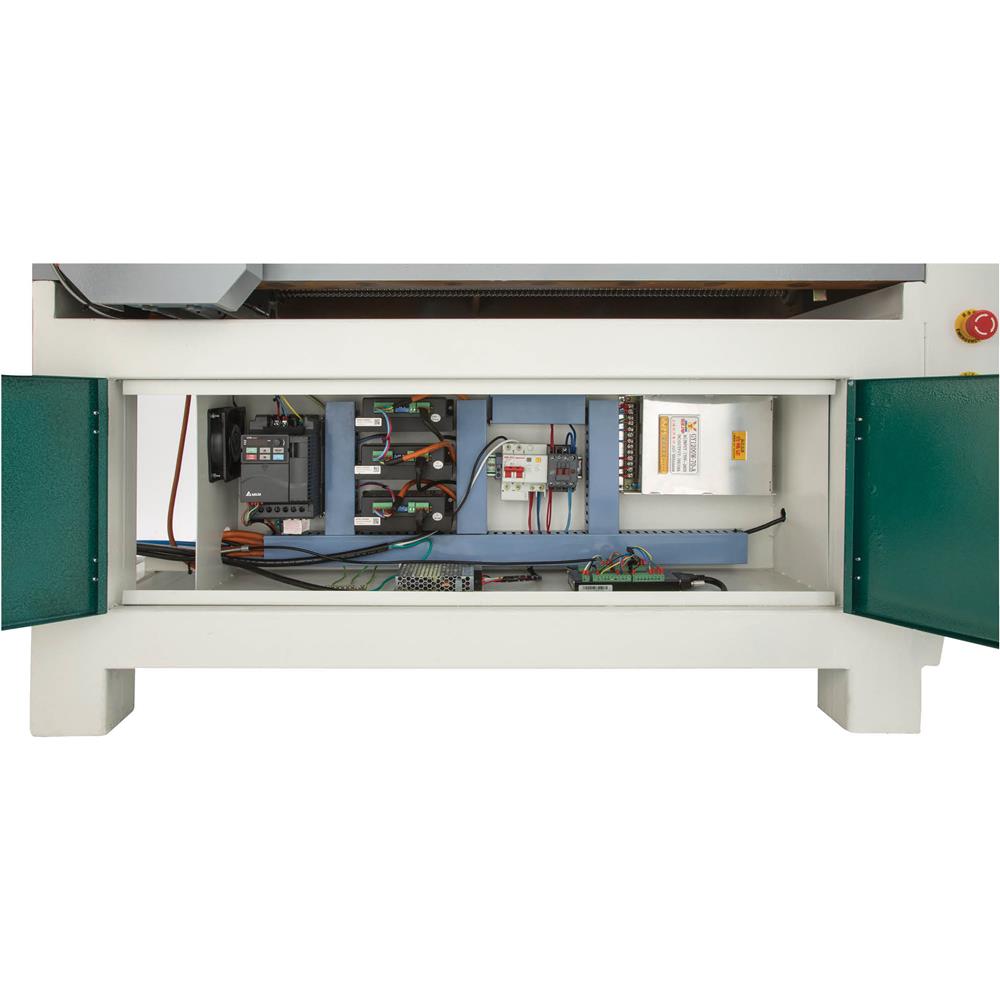

- Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power

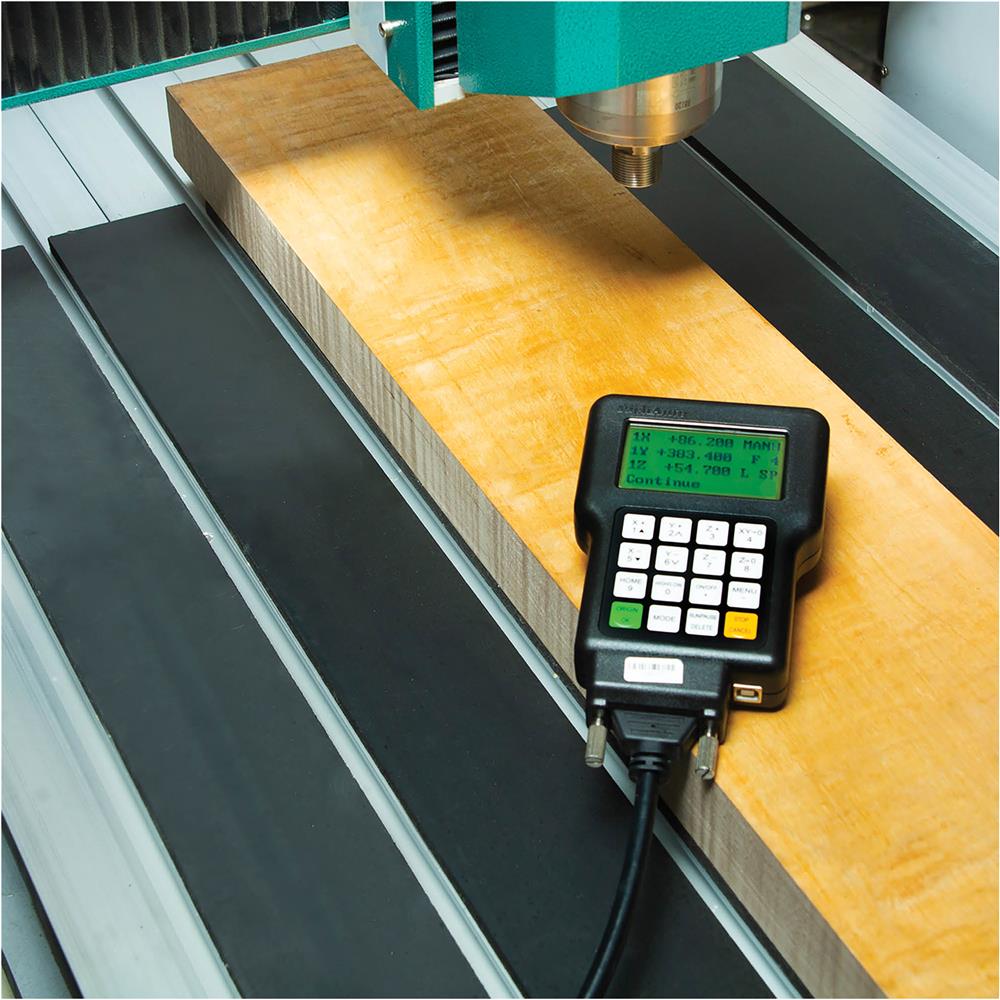

- Digital display w/ USB port and keypad

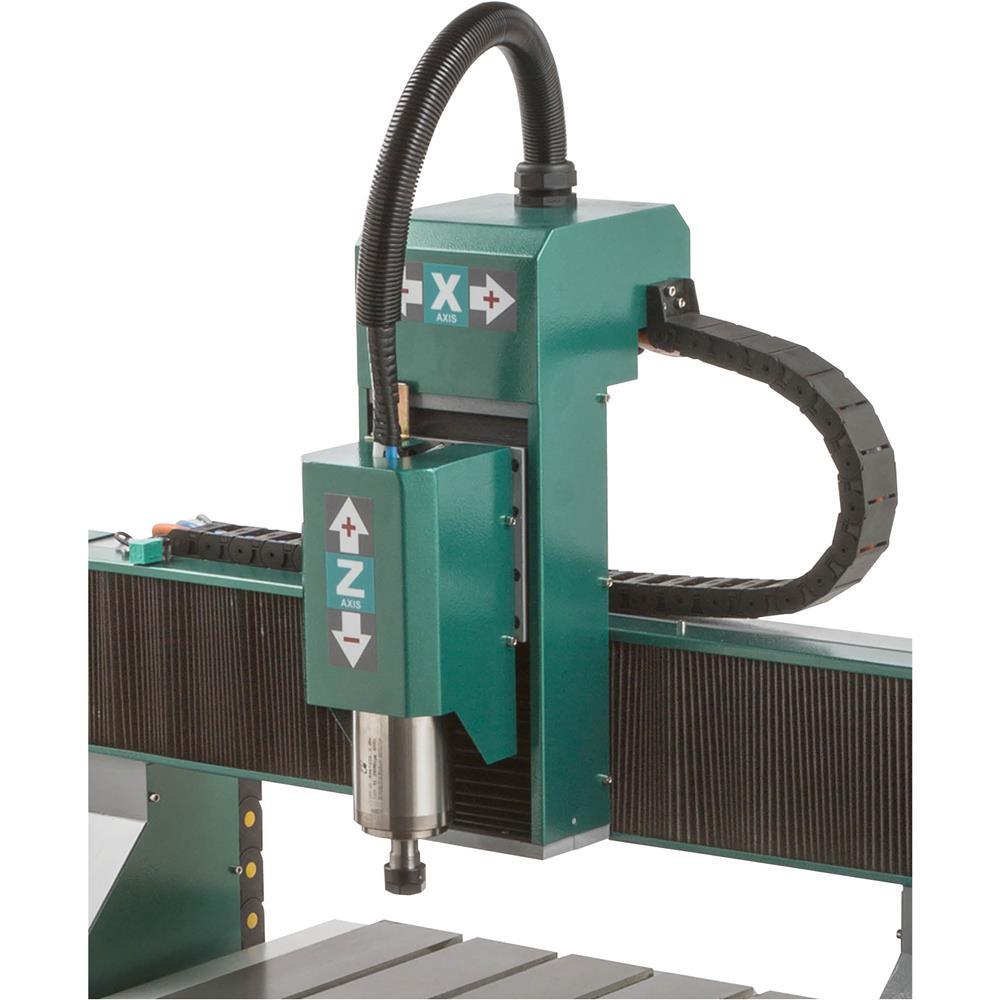

- Liquid-cooled spindle

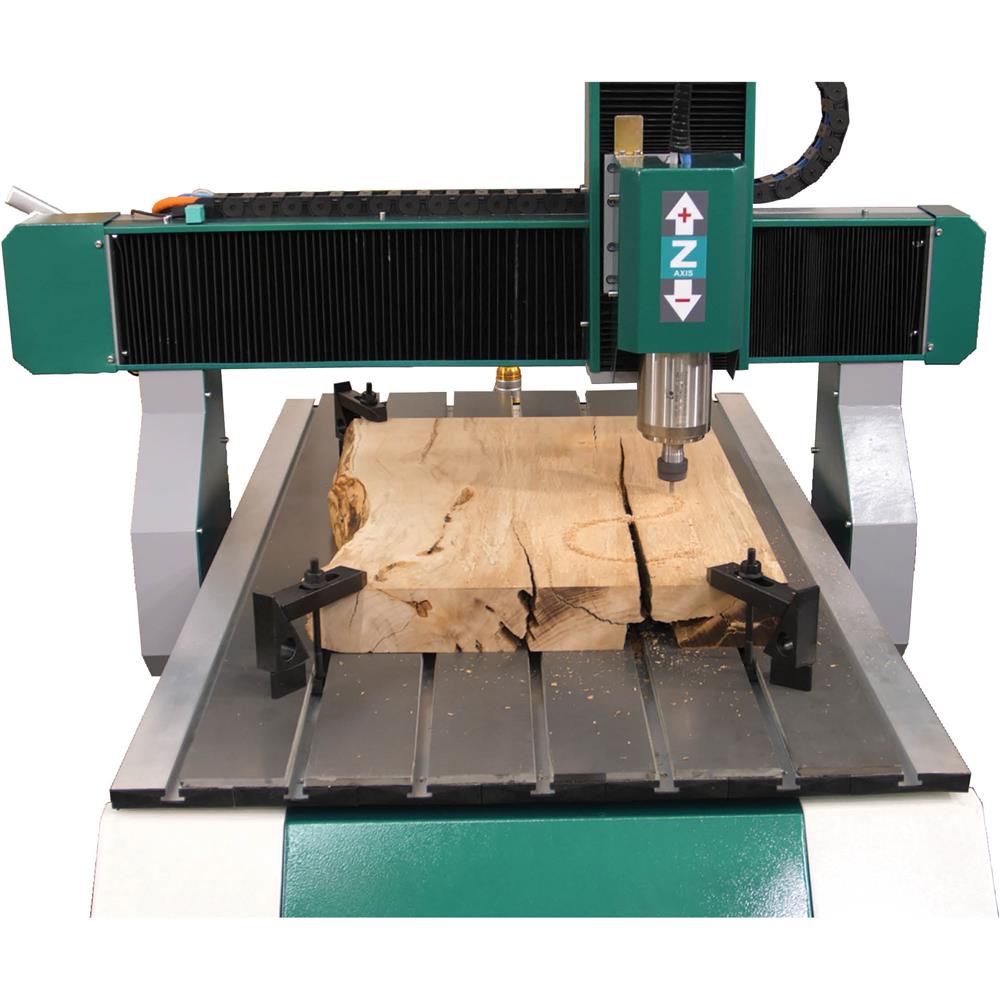

- Table with T-track
- Spindle utilizes ER20 collets allowing for a wide range of tooling options
- Compatible with many CAD/CAM platforms including VCarve/VCarve Pro, Aspire, Cut2D, MasterCAM, and many more
Specifications
| Required Power Source | 220V, single-phase, minimum 20A circuit |
| Motor | 3 HP, 220V |
| X-, Y-, Z-Axis Motors | Stepper, 4.3A |
| Cutting Area | 23-5/8" x 35-3/8" |
| Cutting Accuracy | +/-0.005" |
| Maximum Distance Spindle to Table | 6-1/2" |
| Spindle Speed | 0-24,000 RPM |
| X-Axis Travel | 35-3/8" |
| Y-Axis Travel | 23-5/8" |
| Z-Axis Travel | 5" |
| X-, Y-Axis Travel Speed | 33 FPM |
| Z-Axis Travel Speed | 16 FPM |
| Collet Size | 1/8", 1/4", 1/2" |
| Collet Type | ER20 |
| Footprint | 47-1/4" x 28-1/2" |
| Overall Dimensions | 45" W x 56-1/2" D x 62" H |
| Approximate Shipping Weight | 882 lbs |
Package Contents
G0894 CNC Router
1/8" collet
1/4" collet
1/2" collet

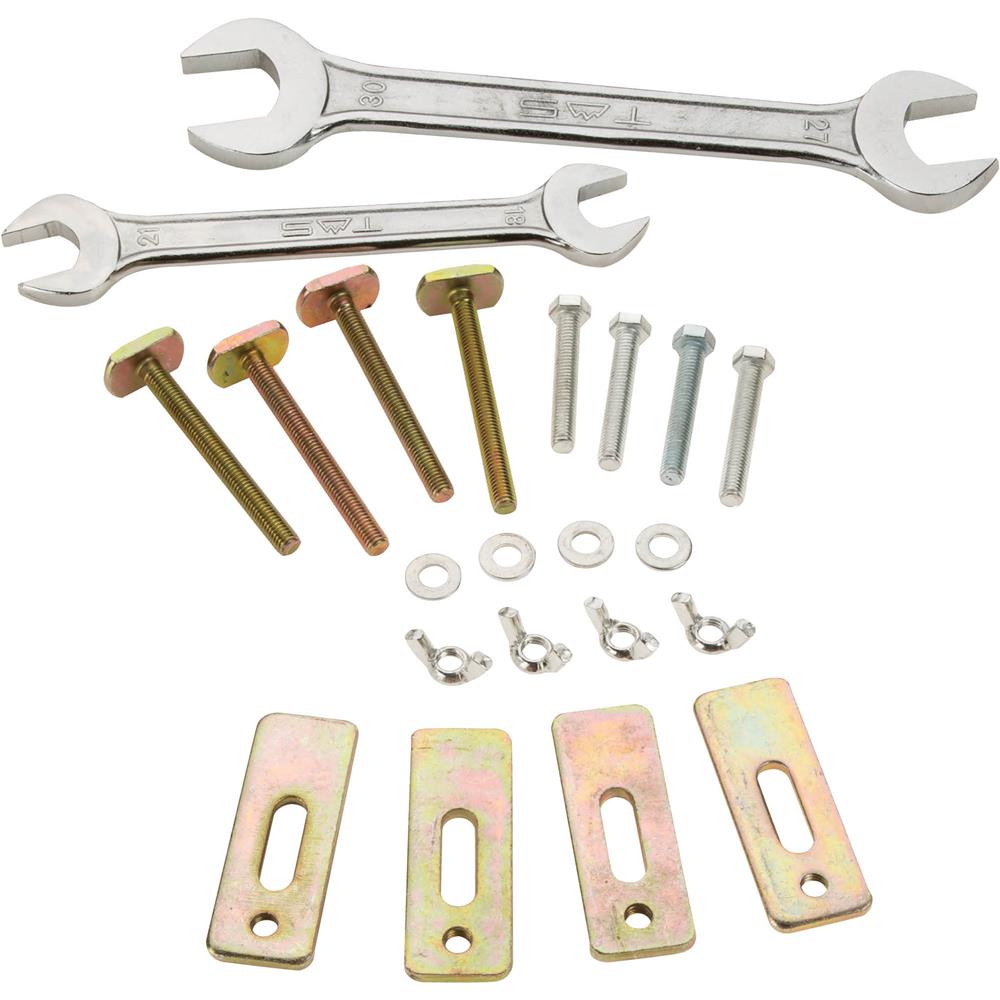

18/21mm open-end wrench
27/30mm open-end wrench

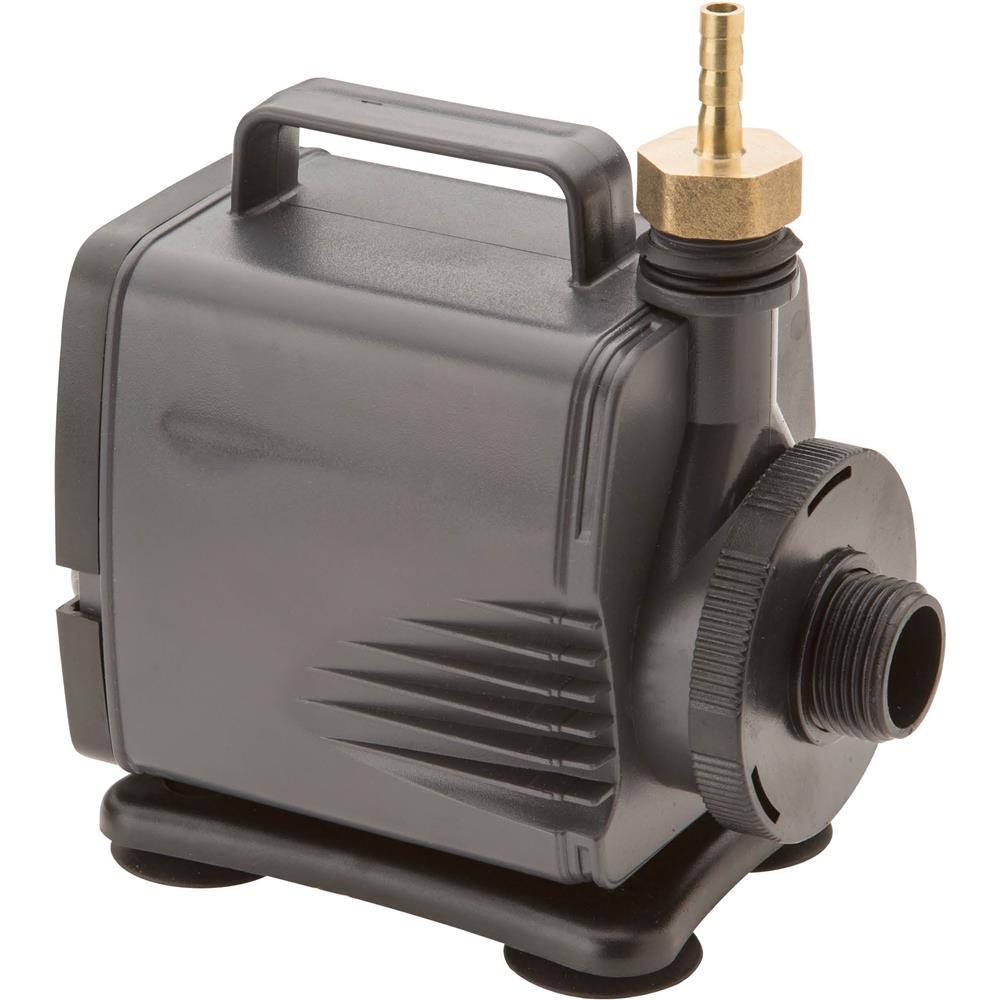

Coolant Pump
Warranty
This item comes with a 1 year warranty.
