Grizzly G0921 End Mill Sharpener New
Product Overview

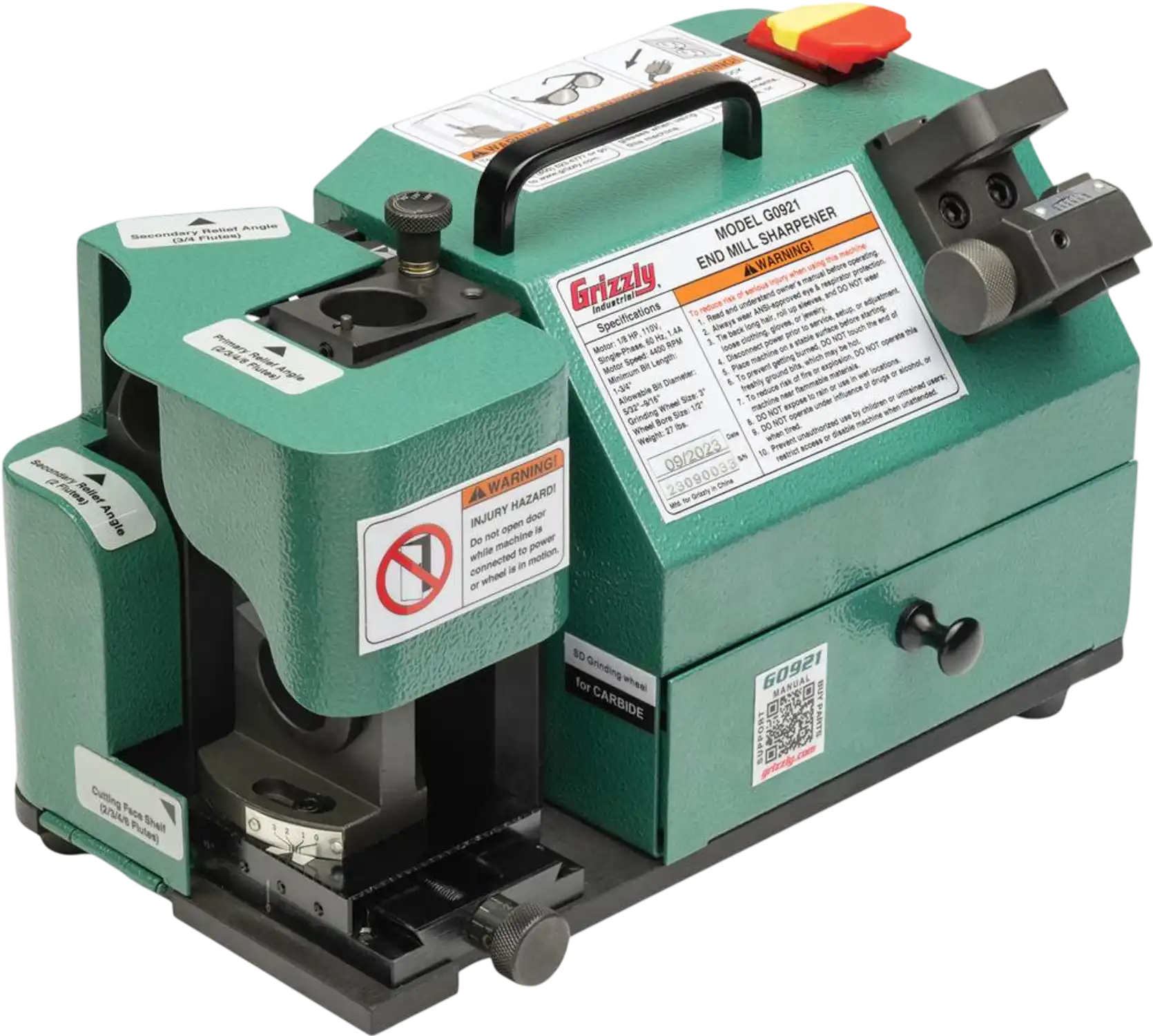

The Grizzly G0921 End Mill Sharpener is a compact, portable machine designed to restore worn end mills in your own shop. It sharpens 2-flute, 3-flute, 4-flute, and 6-flute cutters, helping you extend tool life and reduce the cost of replacing usable tooling.
Built for straightforward operation, this sharpener is well suited for machinists, fabrication shops, and serious hobbyists who want consistent results without a complicated setup. It uses separate 230-grit grinding wheels for carbide and HSS bits and allows adjustable face angles from 0° to 3°.
The unit accepts end mills from 5/32 inch to 9/16 inch diameter and includes ER-20 collets in common sizes from 3/16 inch to 9/16 inch. A built-in storage compartment with collet rack keeps the included accessories organized while the small footprint fits easily on a bench or workstation.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer

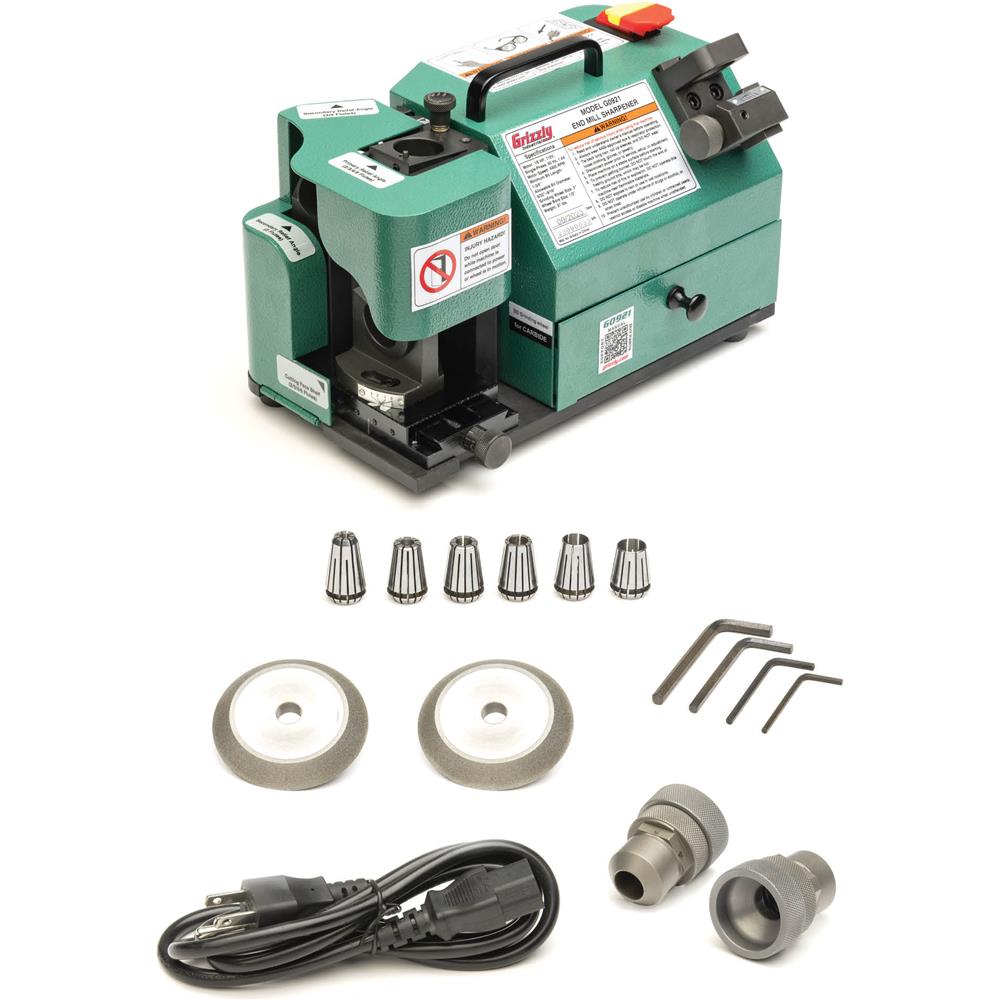

Features
- Sharpens 2-flute, 3-flute, 4-flute, and 6-flute end mills
- SD230 Grinding Wheel (for Carbide Bits)
- CBN Grinding Wheel (for HSS Bits)

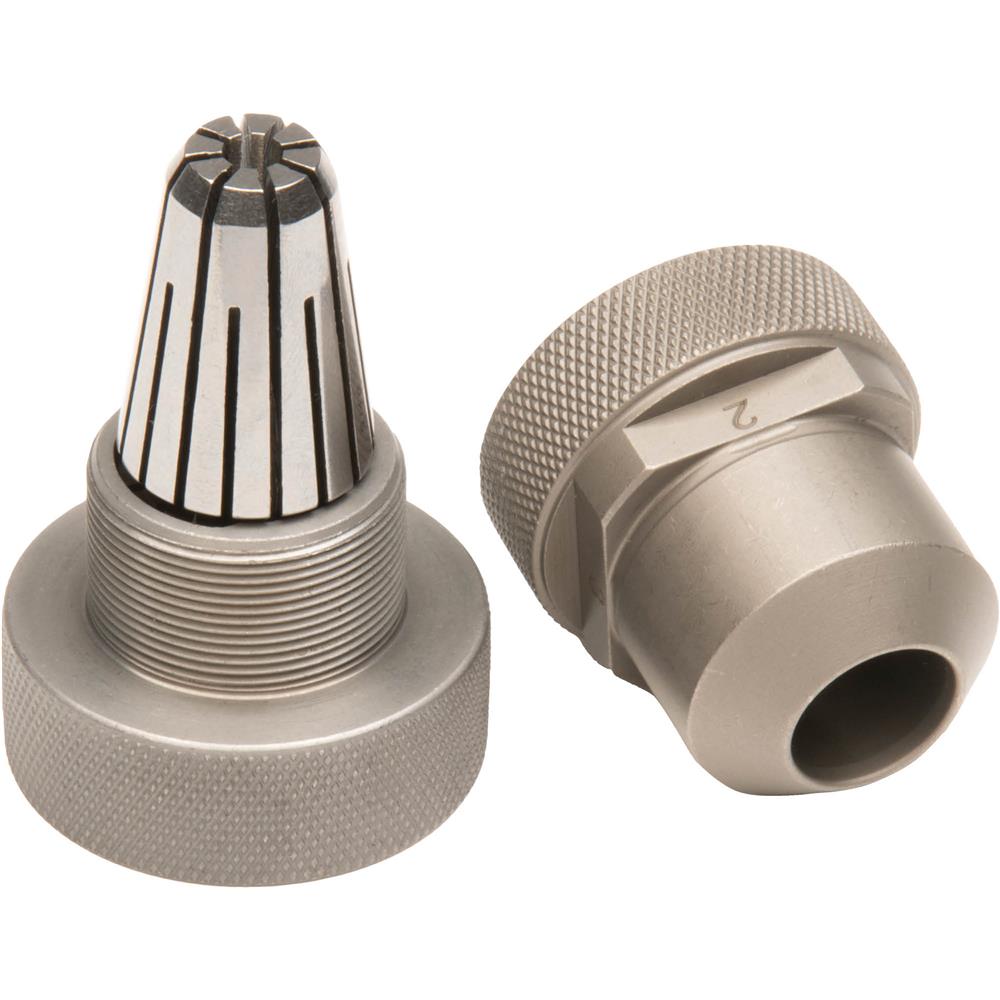

- Two ER-20 Chucks (4-sided & 6-sided)
- Six ER-20 Collets (3/16", 1/4", 5/16", 3/8", 1/2", 9/16")

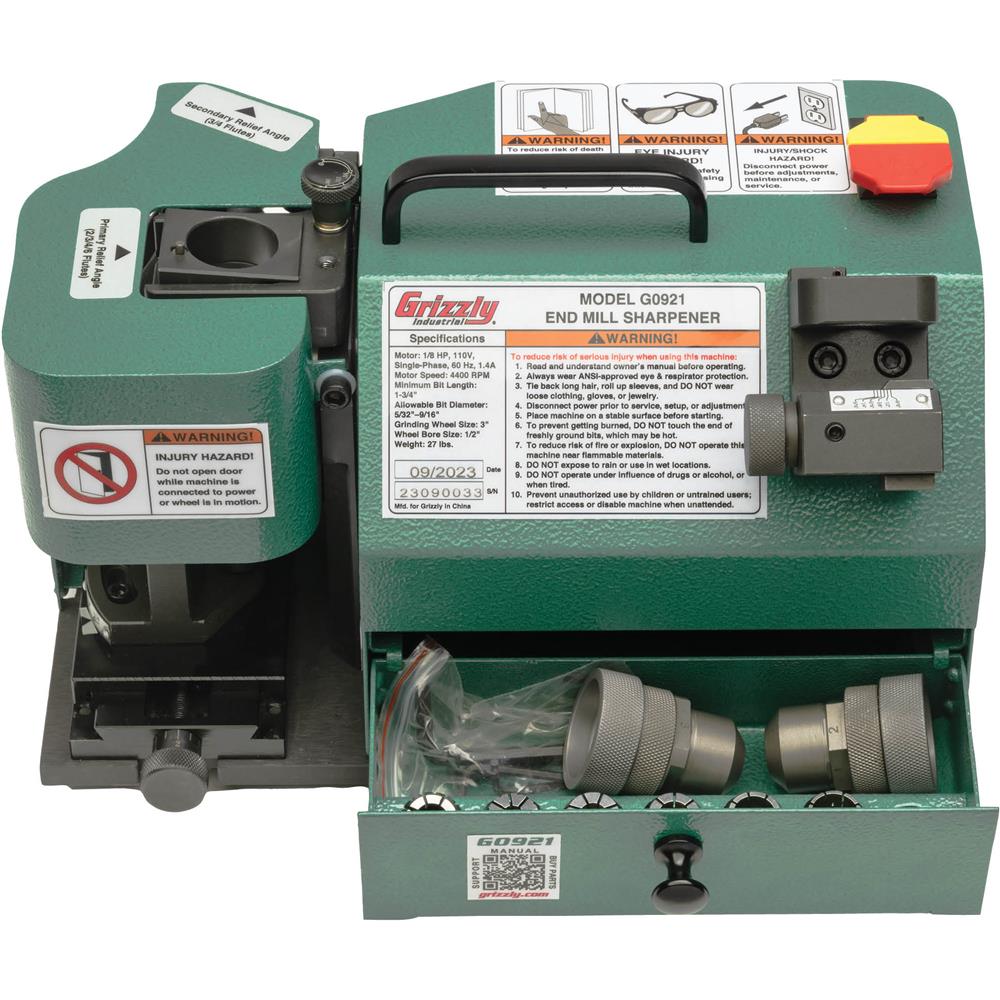

- Storage Compartment with Collet Rack
- 3, 4, 5, & 6mm hex wrenches
Specifications
| Motor | 1/4 HP, 110V, single-phase, 1.4A |
|---|---|
| Collet type | ER-20 |
| Collet sizes | 3/16", 1/4", 5/16", 3/8", 1/2", 9/16" |
| Grinding wheel bore size | 1/2" |
| Grinding wheel maximum diameter | 3" |
| Grinding wheel maximum width | 3/8" |
| Grinding wheel type 1 | SD230 |
| Grinding wheel grit 1 | 230 |
| Grinding wheel type 2 | CBM |
| Grinding wheel grit 2 | 230 |
| Maximum grinding wheel speed | 4400 RPM |
|---|---|
| Allowable end mill bit diameter | 5/32"-9/16" |
| Minimum end mill bit length | 1-3/4" |
| Adjustable face angles | 0°-3° |
| Footprint | 12" x 6-1/2" |
| Overall dimensions | 12" W x 7-1/2" D x 8" H |
| Approximate shipping weight | 32 lbs. |
Warranty
This item comes with a 1 year factory warranty.
