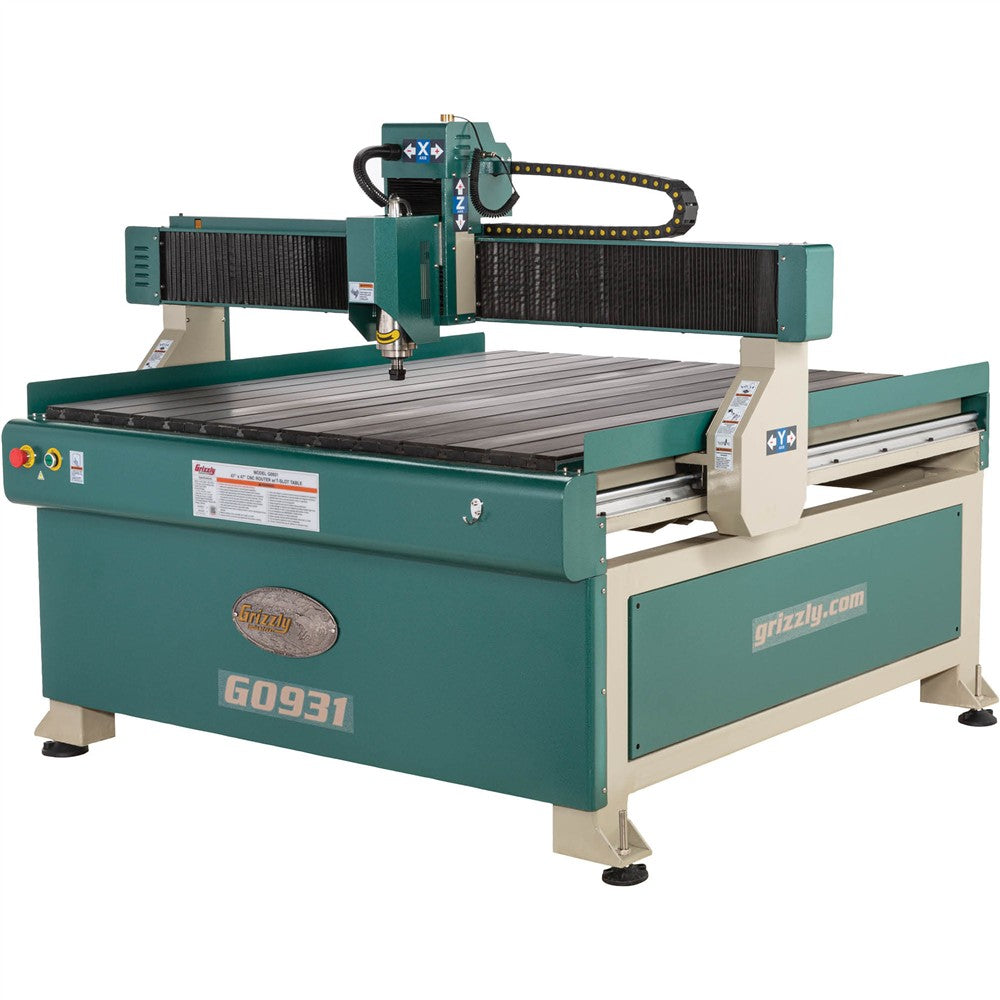

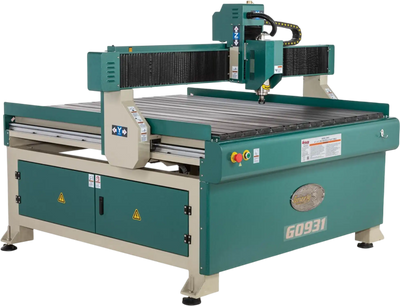

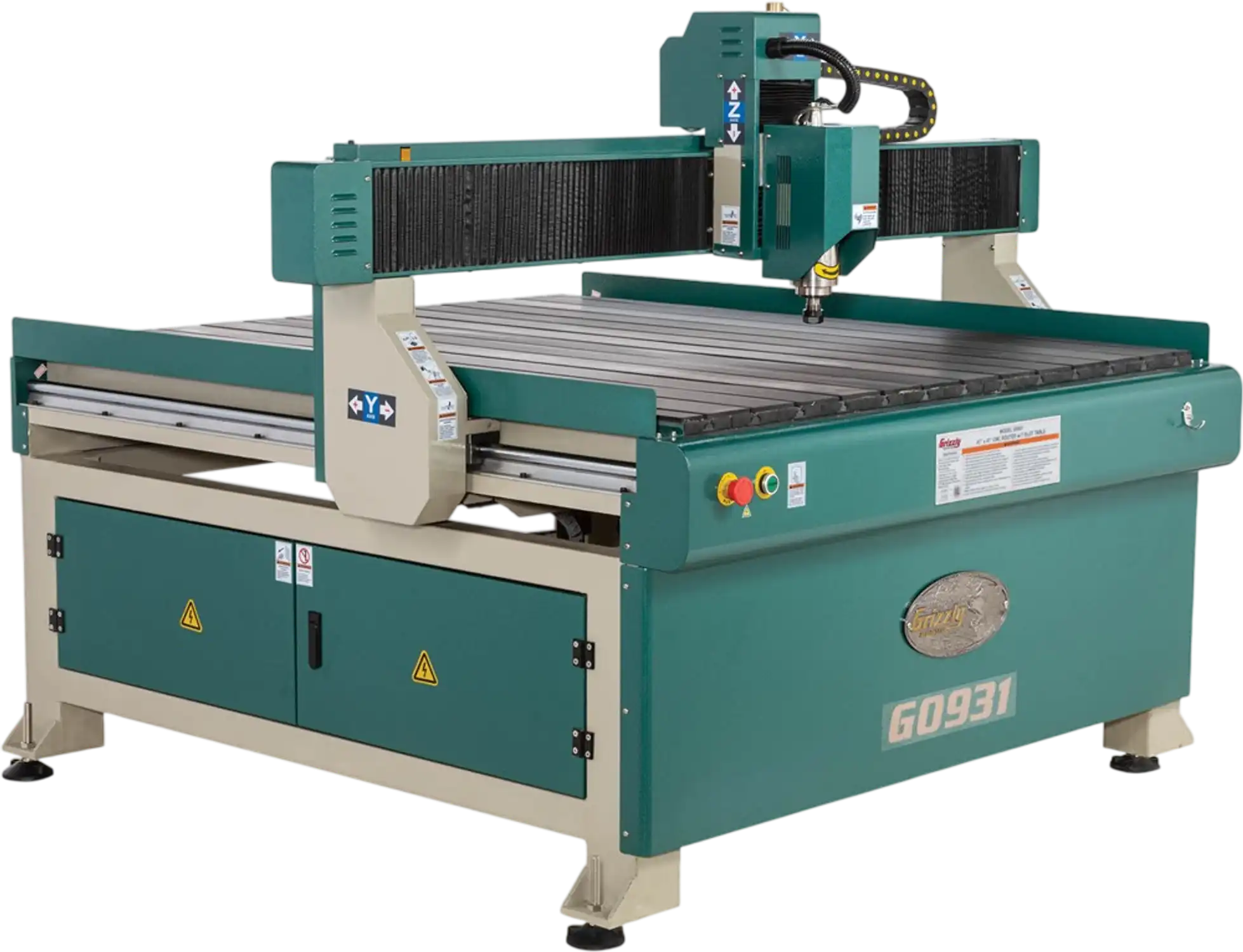

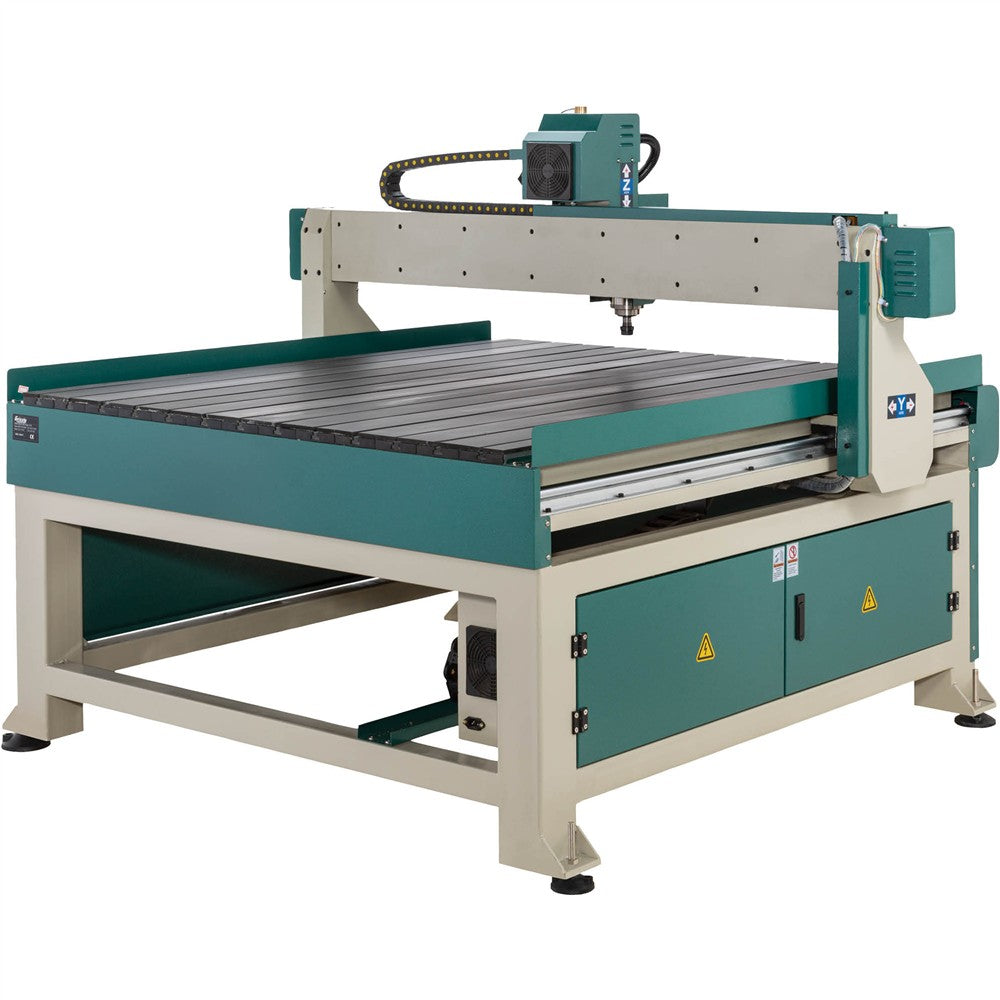

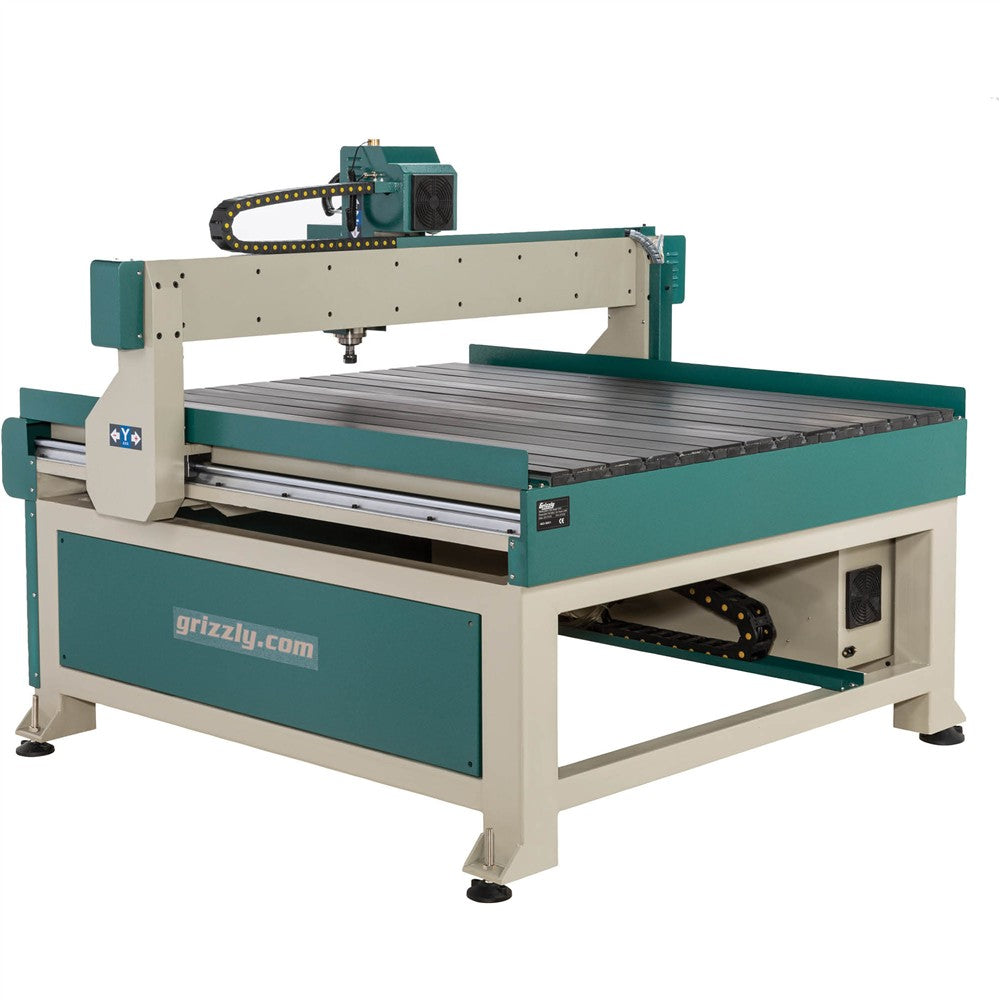

Grizzly G0931 CNC Router 47" x 47" T-Slot Table New
Product Overview
The Grizzly G0931 is a production-capable CNC router built for small shops that need accurate cutting across a generous 47-1/4" x 47-1/4" work area. It is designed to machine wood, plastics, and other non-metallic materials, making it a strong fit for everything from simple profiles to detailed 3D parts.

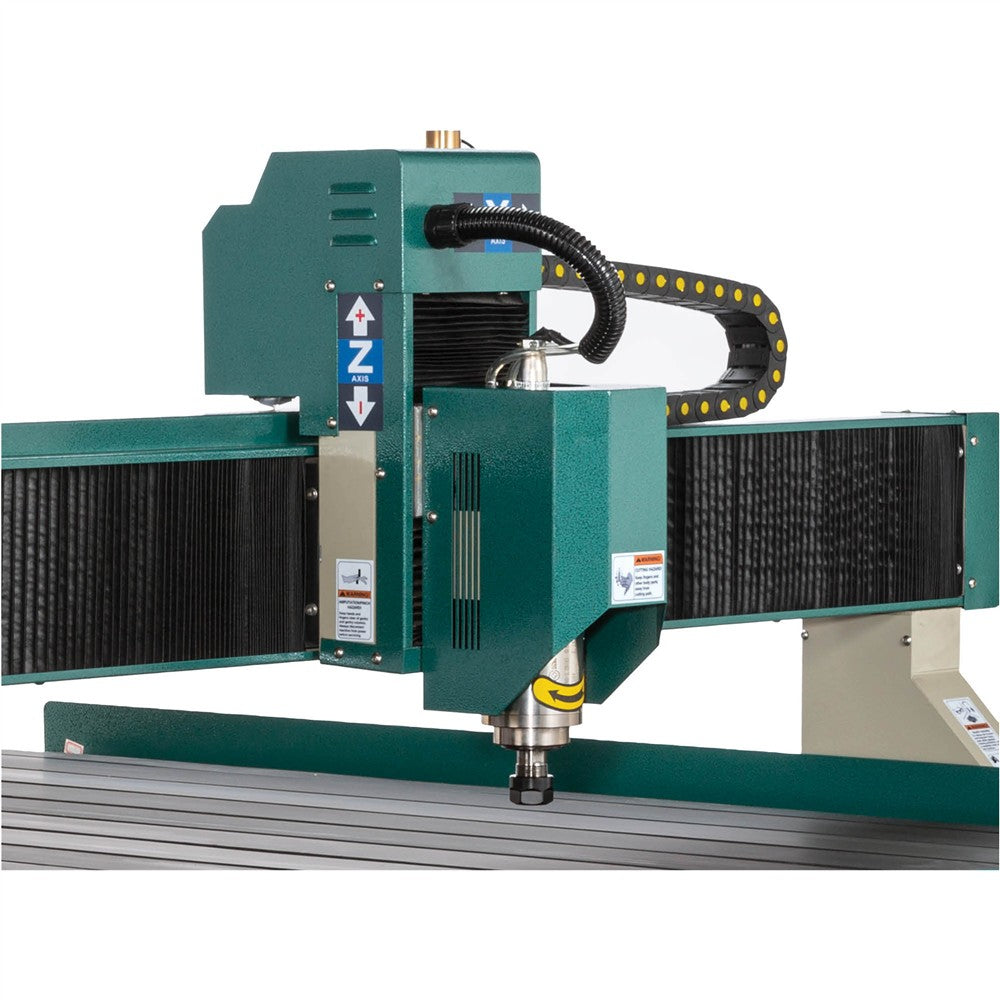

A rigid steel frame, welded gantry, and ball-screw driven linear guides on all three axes help deliver precise, repeatable results. The 3HP water-cooled spindle runs from 6,000 to 24,000 RPM for heavy-duty routing, while the aluminum T-slot table supports flexible workholding for a wide variety of part sizes and shapes.
This machine is well suited for cabinet shops, sign makers, prototyping work, and custom fabrication environments that want expanded capability without stepping up to a full industrial footprint. A handheld controller with USB input, PC connectivity, ER20 collets, and a tool touch-off pad make it practical for users who want efficient setup and dependable everyday performance.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
- RichAuto DSP A11 handheld controller with USB port and keypad
- Aluminum table with T-slots and PVC padding
- Tool touch-off pad for quickly setting Z-axis height
- 80W submersible water pump for spindle cooling
- Water-cooled spindle with included water pump
Specifications
| Required power source | 220V, single-phase, min. 20A circuit |
| Spindle motor | 3HP, 220V |
| X-, Y-, Z-axis motors | hybrid stepper, 4.0A |
| Collet type | ER20 |
| Collet sizes | 1/8", 1/2", 4mm, 6mm |
| Cutting area | 47-1/4" X- x 47-1/4" Y- x 7-7/8" Z- |
| Cutting accuracy | +/-0.005" |
| Spindle speed | 6,000 – 24,000 RPM |
| X- & Y- travel speeds | 59 FPM |
| Z- travel speeds | 33 FPM |
| Overall dimensions | 70" W x 62-1/2" D x 53- 1/2" H |
| Approximate shipping weight | 948 |
Warranty
This item comes with a 1 year factory warranty.
