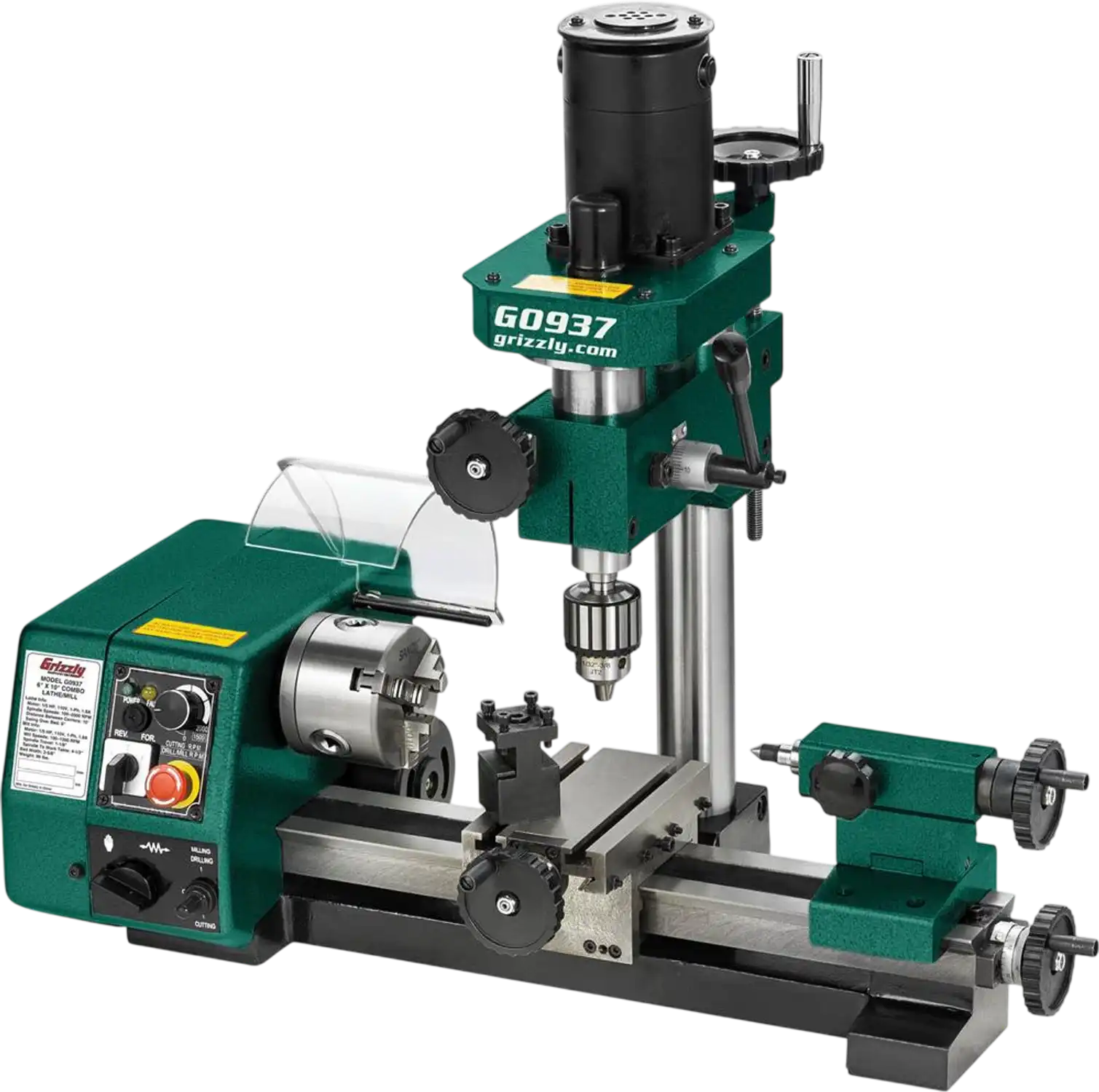

Grizzly G0937 Combination Lathe-Mill 6" x 10" Combo Lathe/Mill New
Product Overview
The Grizzly G0937 is a compact combination lathe and mill built for making small, precise parts in a single machine. It combines turning, milling, and drilling capability in a space-saving benchtop format, making it a practical choice for hobby shops, model makers, and anyone working on small fabrication or repair projects.

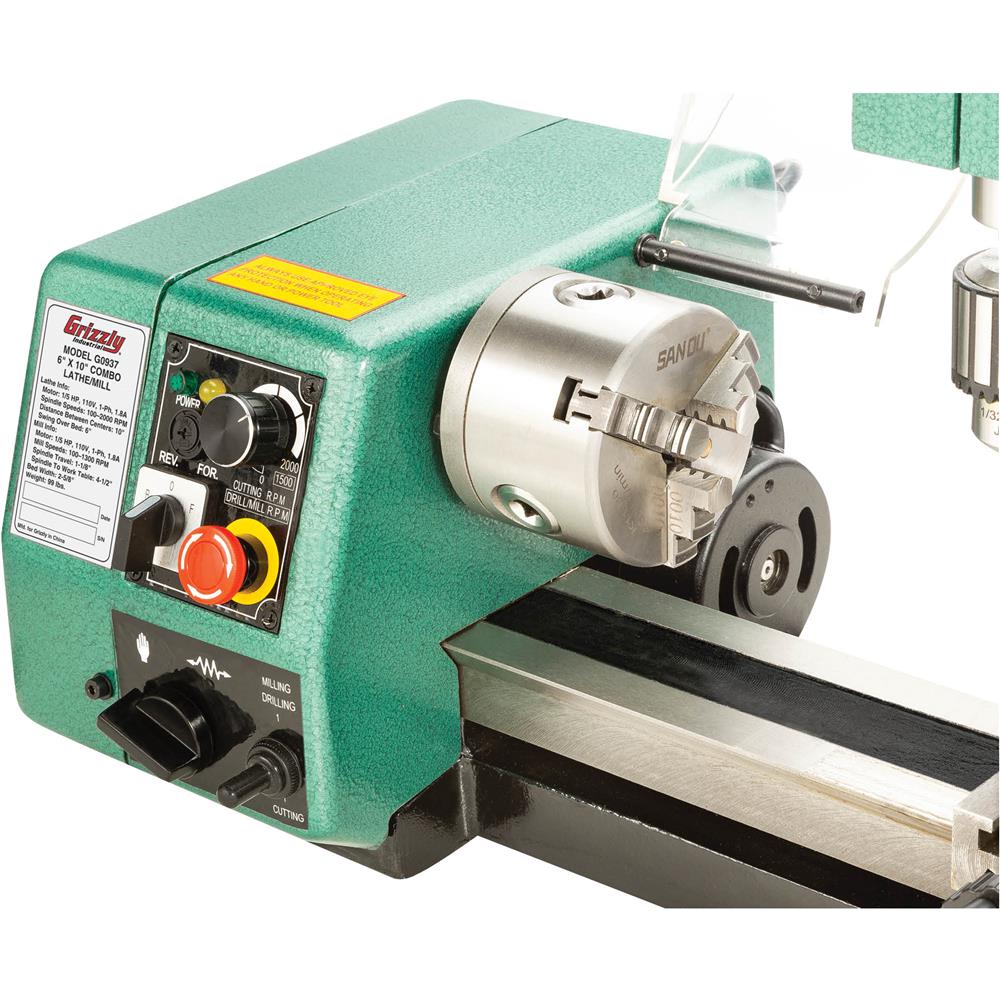

The lathe offers a 6-inch swing over the bed, 10 inches between centers, variable spindle speeds from 100 to 2000 RPM, and inch thread cutting from 16 to 24 TPI. A precision-ground cast-iron bed, 3-jaw scroll chuck, and 2-way turret tool post help support accurate, repeatable work on small components.

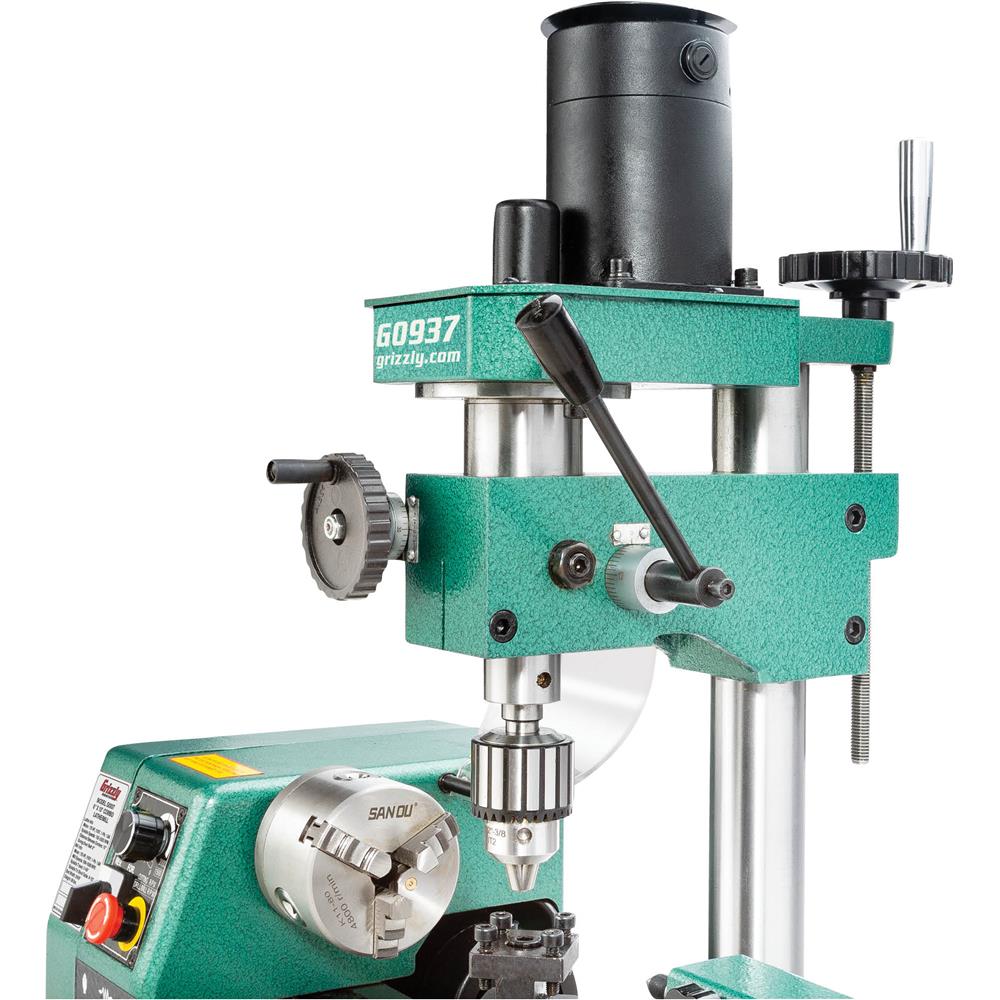

On the milling side, the cross slide doubles as a mill table with two T-slots for workholding, while the adjustable head and fine down-feed clutch give added control for drilling and light milling operations. With variable-speed spindles and a compact footprint, this combo machine is well suited for users who want versatile metalworking capability without dedicating space to separate machines.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- Dual cross slide mill table
- Dual universal motors
- Variable-speed spindles
- Precision-ground cast-iron bed
- Push/pull fine-feed clutch with handwheel
- MT#2 spindle taper
- MT#1 tailstock taper
- JT2 drill chuck 1/32"-3/8"
Specifications
| Swing over bed | 6" |
|---|---|
| Swing over cross slide | 3" |
| Distance between centers | 10" |
| Spindle speed | Variable, 100-2000 |
| Spindle bore | 11/32" |
| Spindle taper | MT#2 |
| Tailstock taper | MT1 |
| Tailstock quill travel | 1" |
| Carriage travel | 7" |
| Cross slide travel | 2-7/8" |
| Inch thread range | 5, 16-24 TPI |
| Swing | 4" |
| Distance from spindle to table | 4-1/2" |
| Spindle speed | Variable, 100-1300 |
| Spindle taper | MT#2 |
|---|---|
| Spindle travel | 1-1/8" |
| T-slots | two 5/16", 2" on center |
| Maximum tool bit size | 3/8" |
| Drilling Capacity | 8mm (steel) |
| Lathe Motor | 1/5 HP, 110V, single-phase 1.8A |
| Mill Motor | 1/5 HP, 110V, single-phase 1.8A |
| Footprint | 22" x 10" |
| Dimensions | 24-1/2" W x 21" D x 22-1/2" H |
| Approximate shipping weight | 95 lbs. |
Warranty
This item comes with a 1 year factory warranty.
