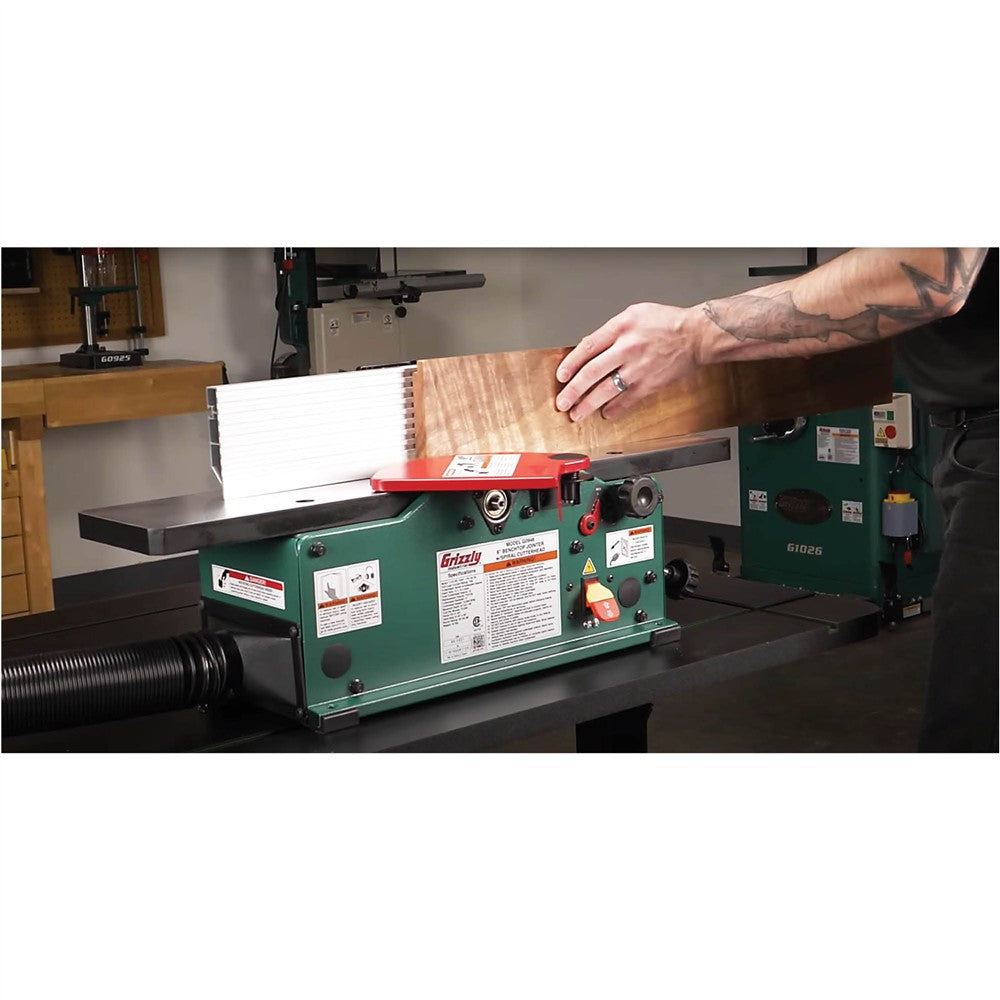

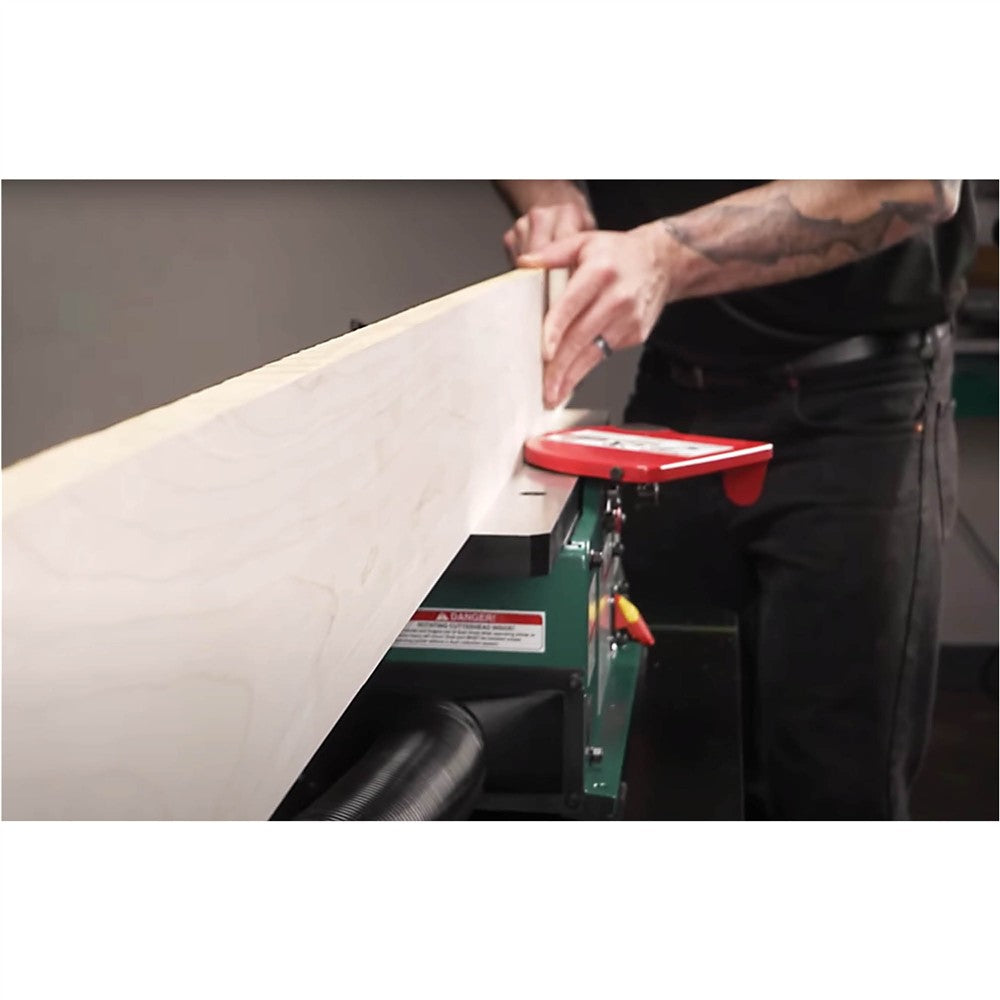

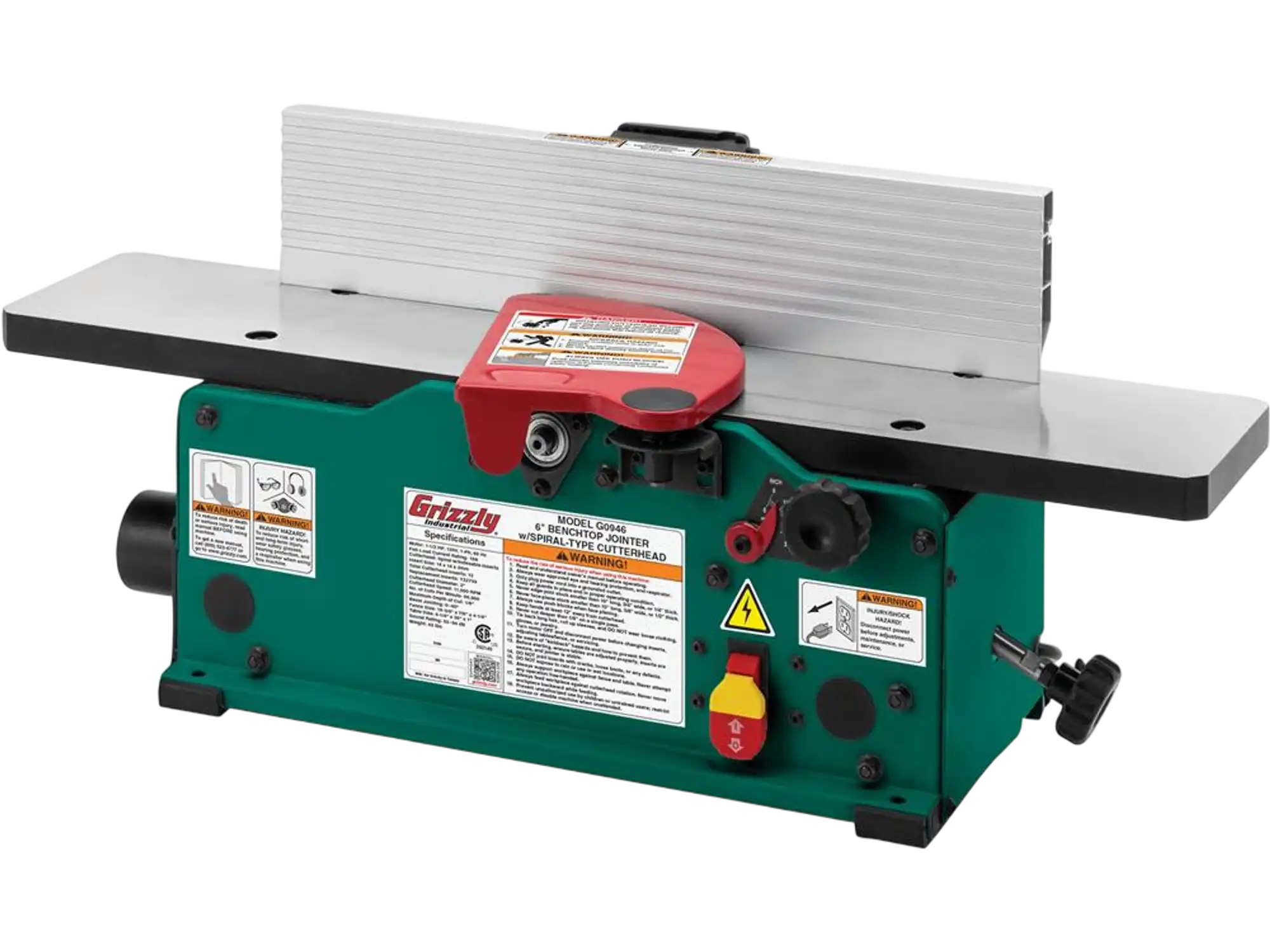

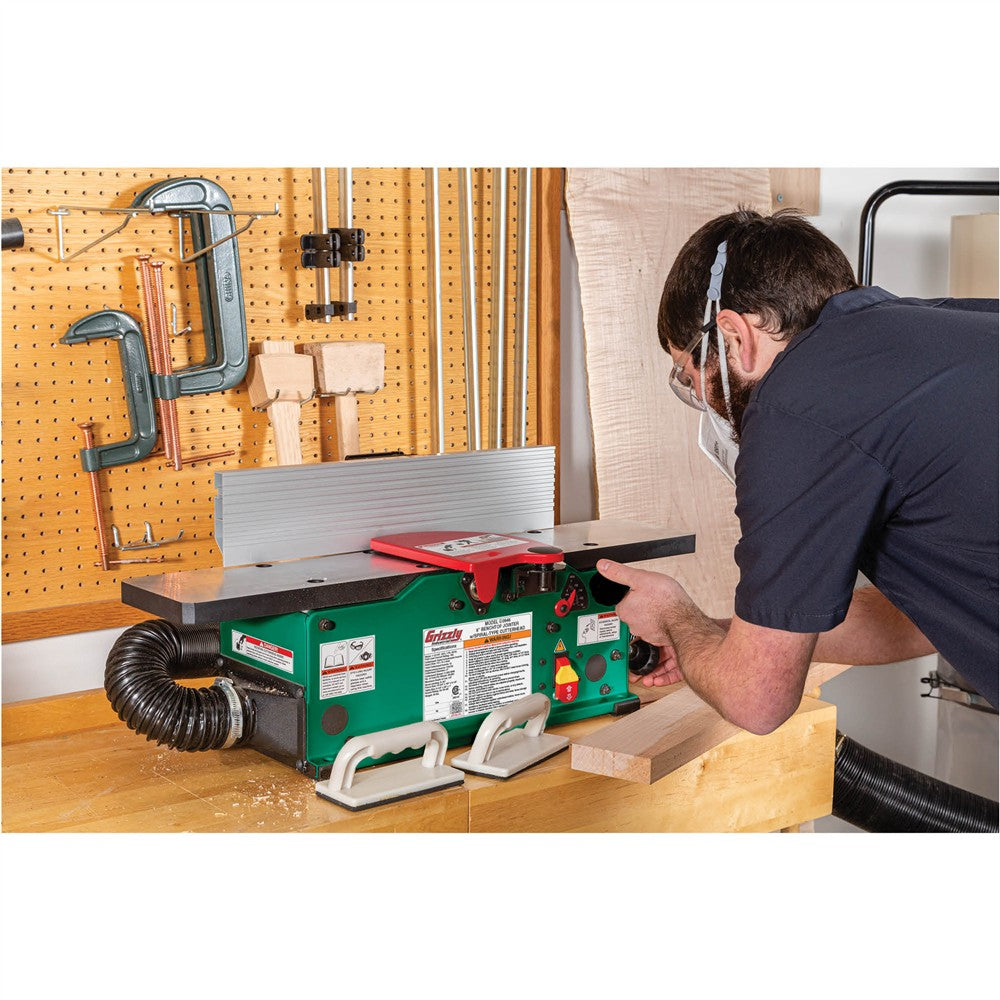

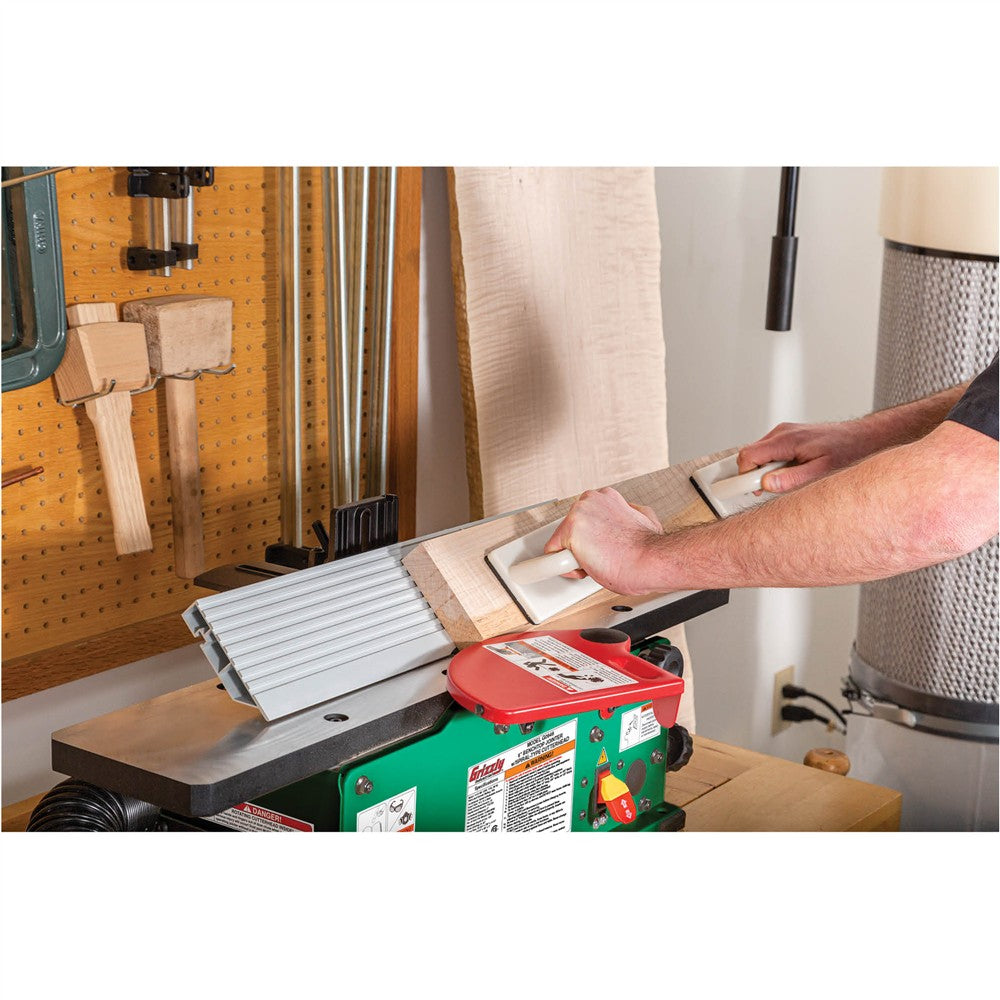

Grizzly G0946 Benchtop Jointer 6" Spiral-Type Cutterhead New
Product Overview
The Grizzly G0946 is a 6-inch benchtop jointer designed to flatten faces, straighten edges, and prepare boards for accurate gluing and assembly. Its compact size makes it a practical fit for small shops, garages, and jobsites where space is limited but dependable performance still matters.
A 1-1/2 HP motor and 6-row spiral-type cutterhead help deliver smooth results with quieter operation than traditional straight-knife designs. The twelve indexable high-speed steel inserts stay sharp longer, can be rotated to expose a fresh edge, and produce finer chips that are less likely to clog dust collection. Cast aluminum tables, an adjustable fence, and a built-in 2-1/2-inch dust port round out a machine built for clean, consistent stock preparation.
This jointer is well suited for hobby woodworkers, serious DIY users, and professionals who need a portable 6-inch model for trim, panels, and general board milling. It is a strong choice for anyone seeking a budget-friendly benchtop jointer with smooth cutting performance and easy handling.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

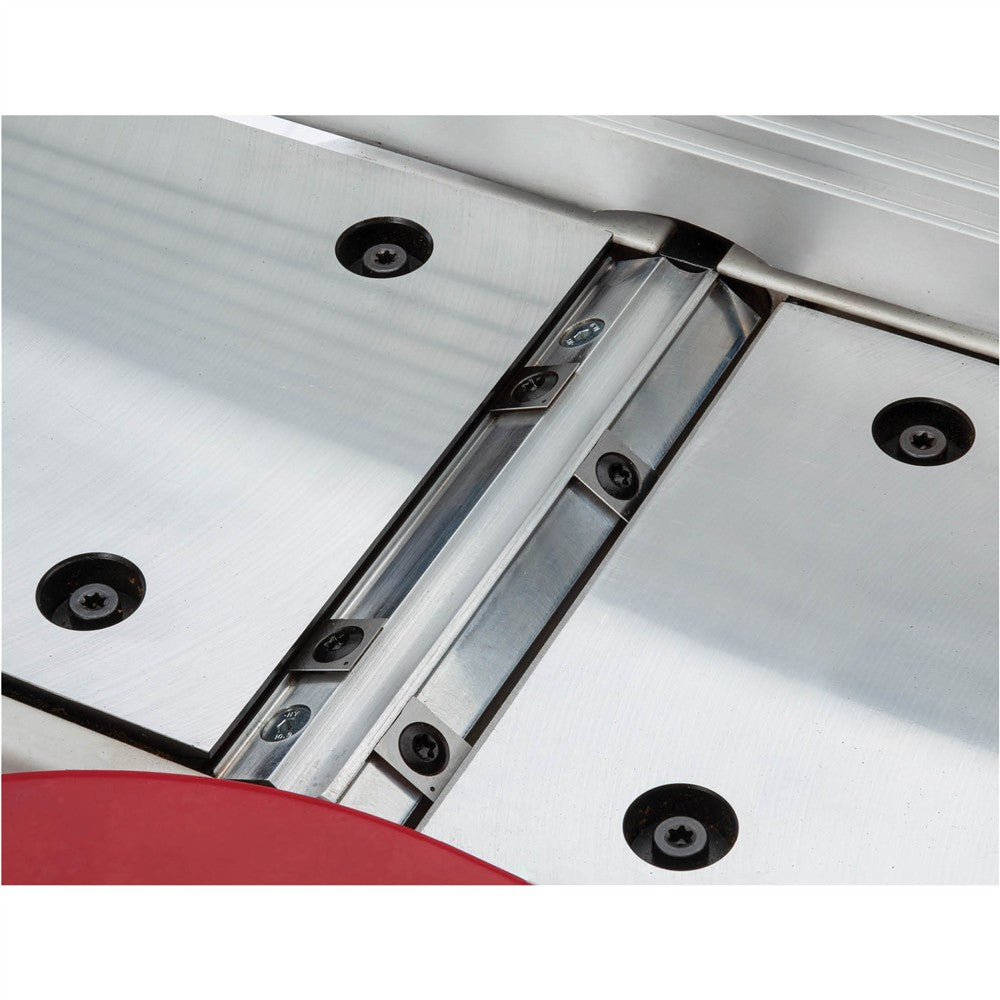

- Spiral-type cutterhead with twelve indexable HSS inserts
- Cast aluminum infeed and outfeed tables
- Infeed table height adjustment lock

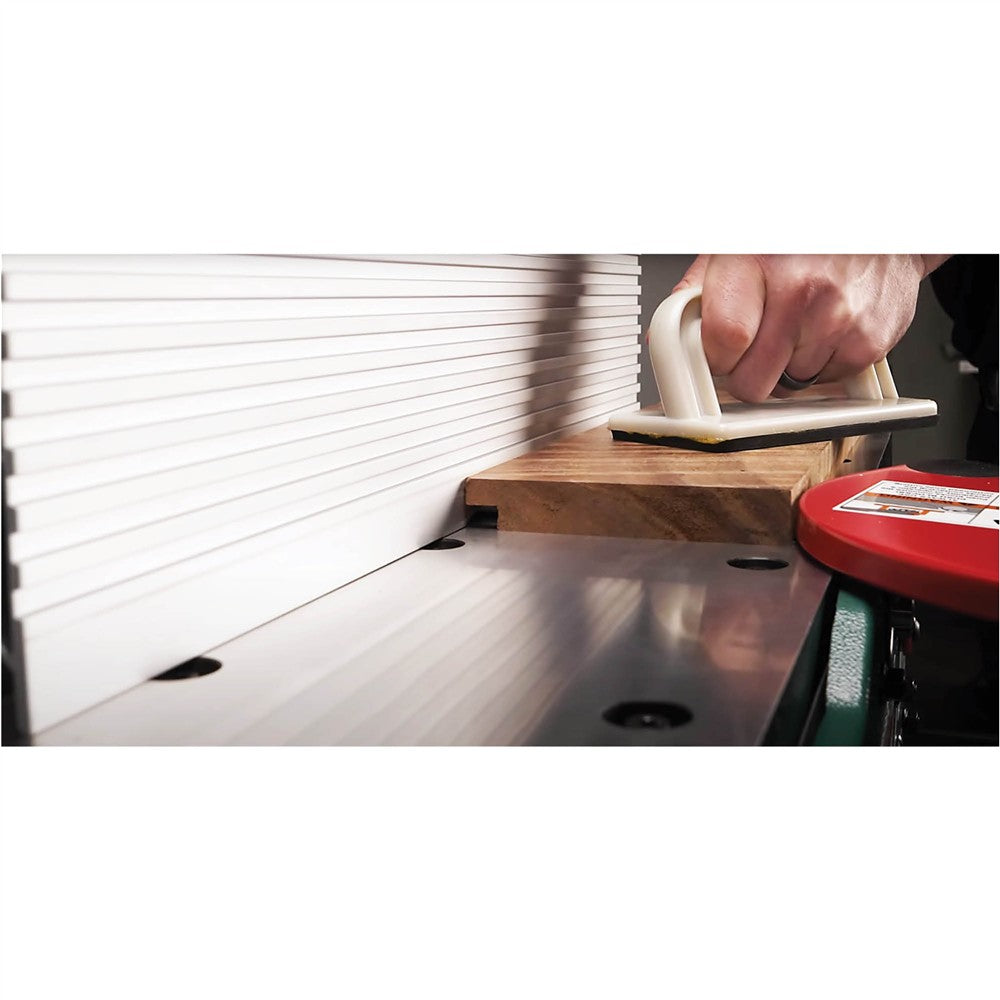

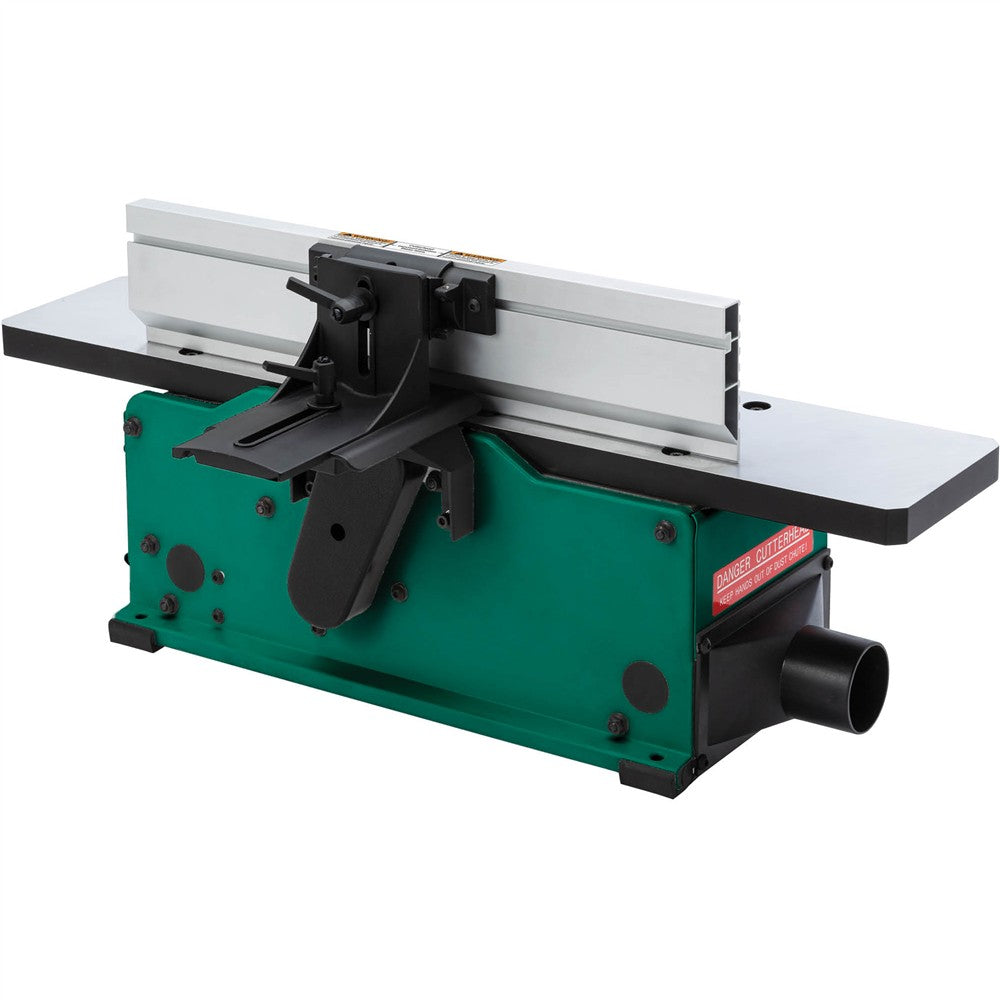

- Extruded aluminum fence
- Built-in dust collection system with 2-1/2" dust port
Specifications
| Motor | 1-1/2 HP, 120V, single-phase, 10A |
| Maximum width of cut | 6" |
| Maximum depth of cut | 1/8" |
| Minimum workpiece length | 10" |
| Minimum stock thickness | 1/2" |
| Number of cuts per minute | 66,000 |
| Cutterhead type | 6-Row spiral-type |
| Cutterhead diameter | 2" |
| Cutterhead speed | 11,000 RPM |
| Cutter insert type | Indexable HSS |
| Cutter insert size | 14mm x 14mm x 2mm |
| Number of inserts | 12 |
| Table size | 6-1/4" x 30" |
| Fence size | 19-3/4" L x 4-1/4" H |
| Dust port size | 2-1/2" (compatible with standard shop vacuums) |
| Footprint | 19" x 9-1/2" |
| Overall dimensions | 30" W x 17-1/2" D x 13" H |
| Approximate shipping weight | 44 lbs. |
Warranty
This item comes with a 1 year factory warranty.
