Grizzly G0953 Fume Extractor HEPA New
Product Overview

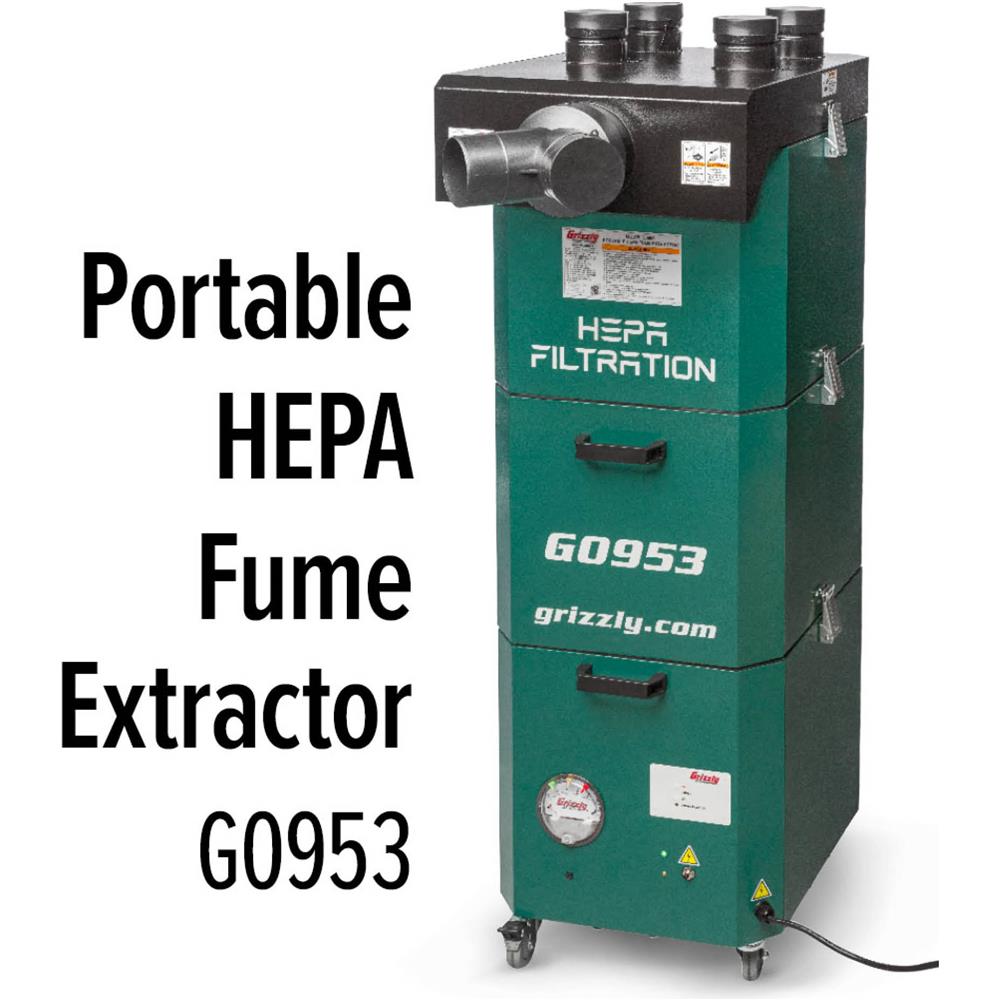

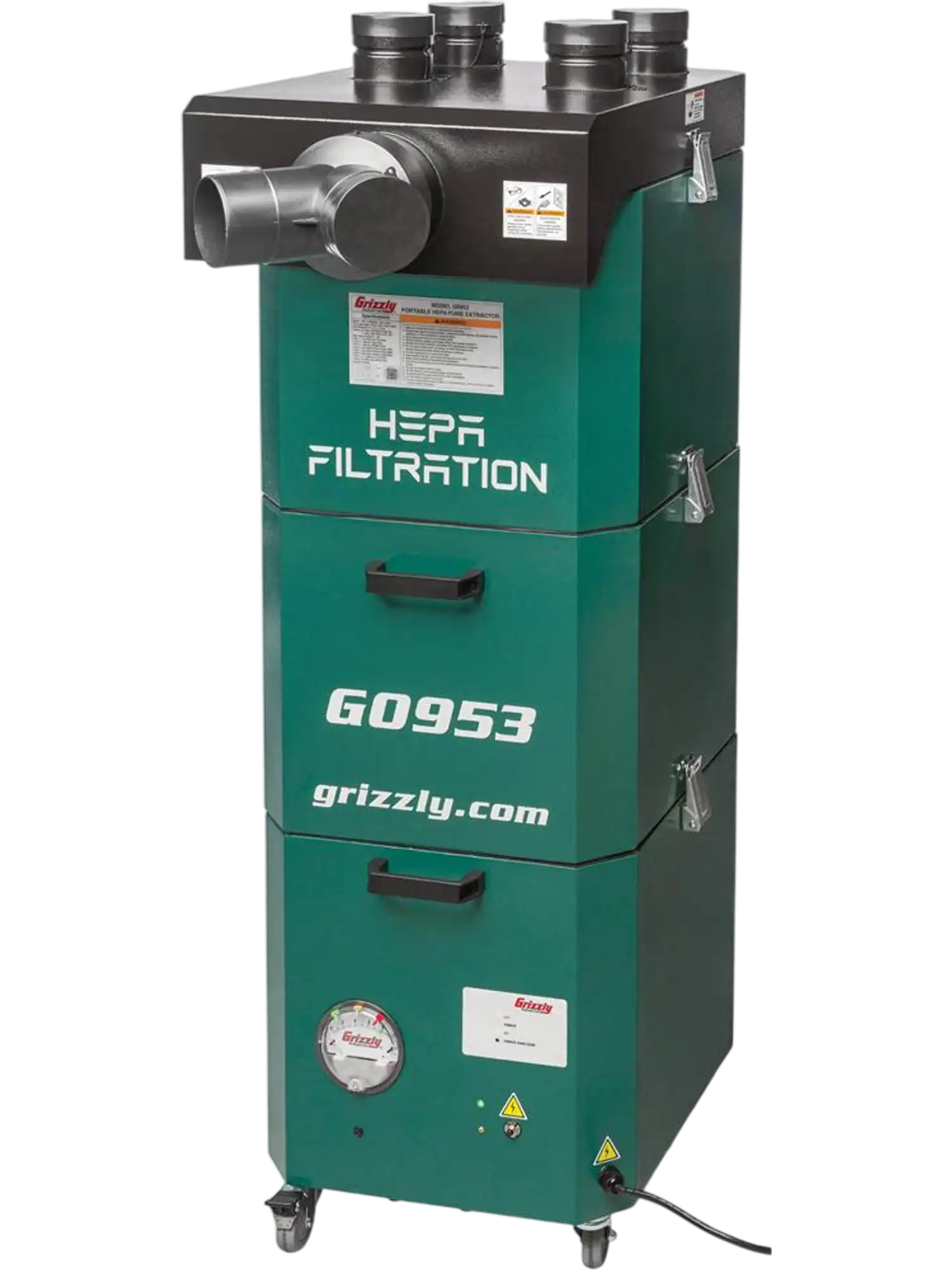

The Grizzly G0953 is a dual-purpose fume extractor and HEPA air purifier designed to remove smoke, fumes, odors, and fine dust from workshop environments. It draws contaminated air through three chambers with eight stages of filtration, including multiple particulate and activated carbon filters plus a HEPA filter rated to capture 99.97% of particles down to 0.3 microns.

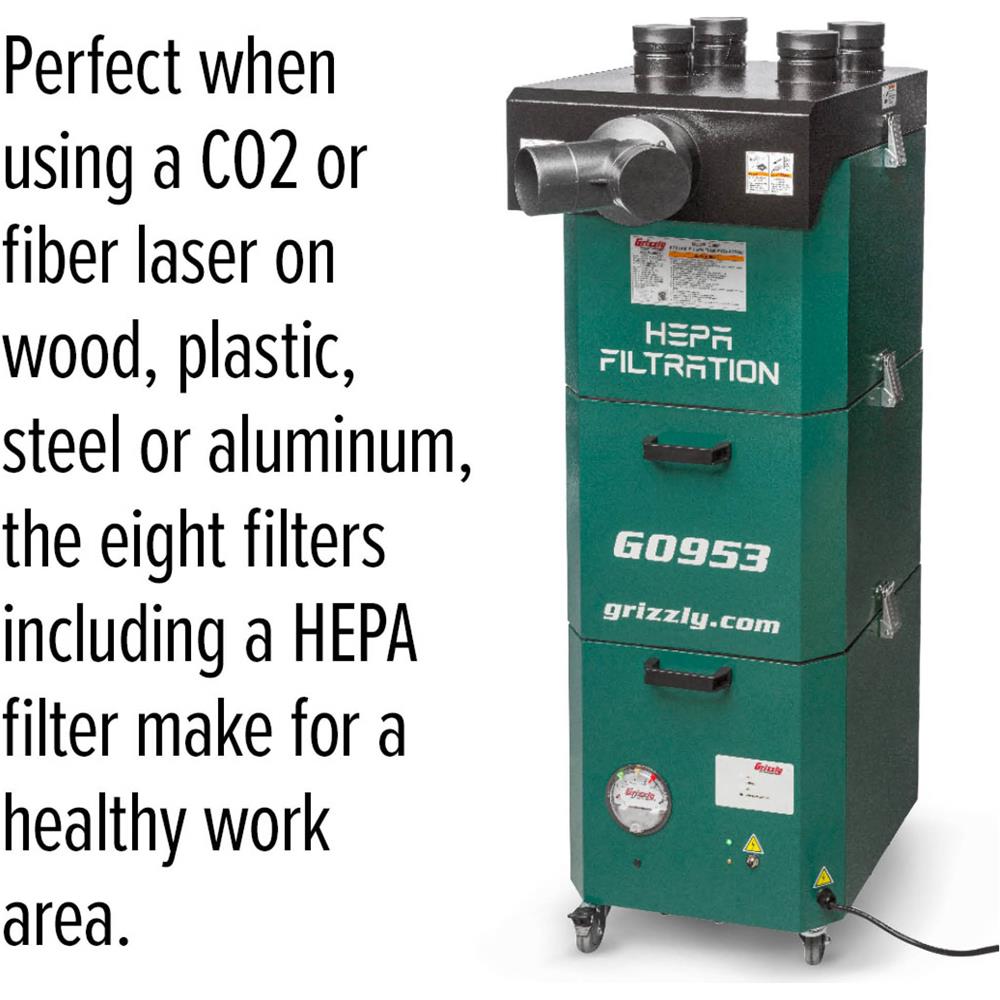

This unit is well suited for 3D printing, laser cutting, welding areas, and other applications involving wood, plastic, steel, aluminum, or chemical fumes. A 6-inch front inlet handles direct source extraction, while four 4-inch top inlets can be opened for broader room air purification, helping maintain a cleaner workspace without venting heated or cooled air outside.

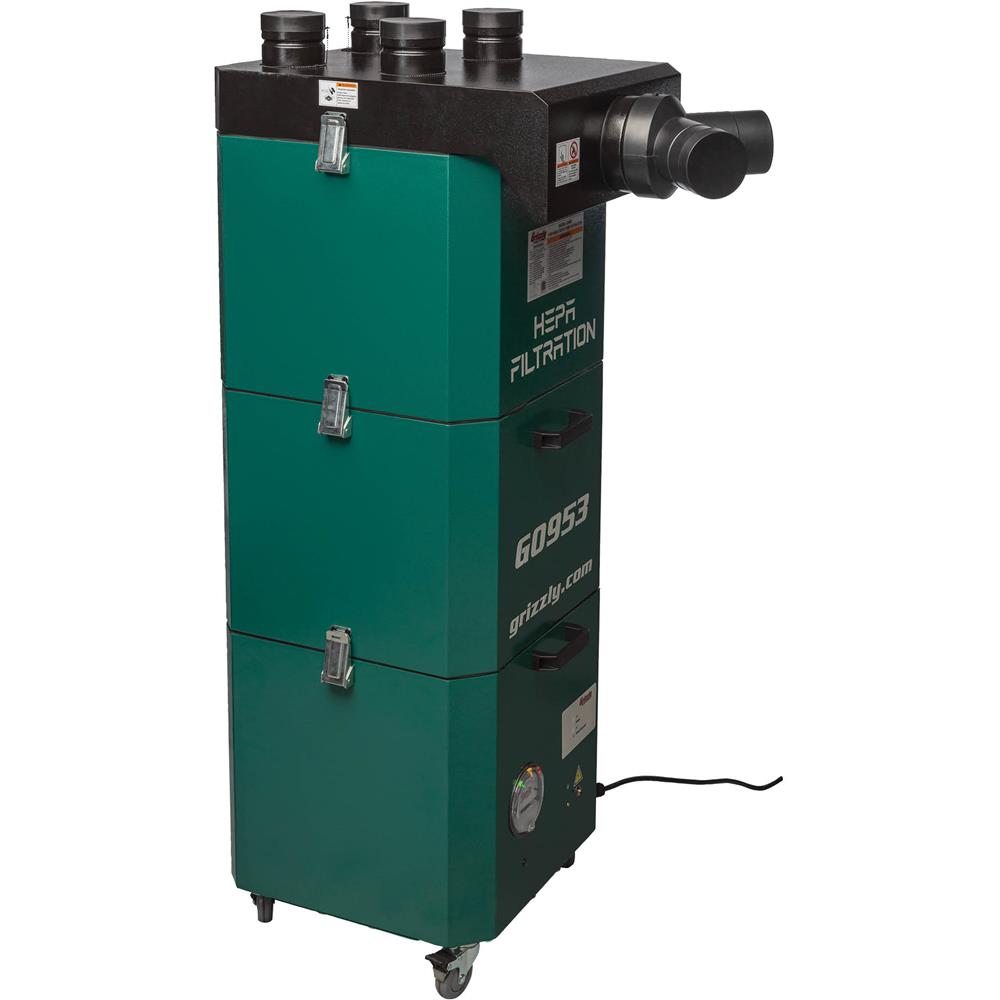

Its upright, compact-footprint design fits efficiently into busy shops, and locking casters make it easy to reposition as needed. With a built-in pressure gauge, aluminum mesh spark arrestor, and modular filter chamber access, this machine is a practical choice for makers, fabricators, and small industrial users who need serious air filtration in a flexible format.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

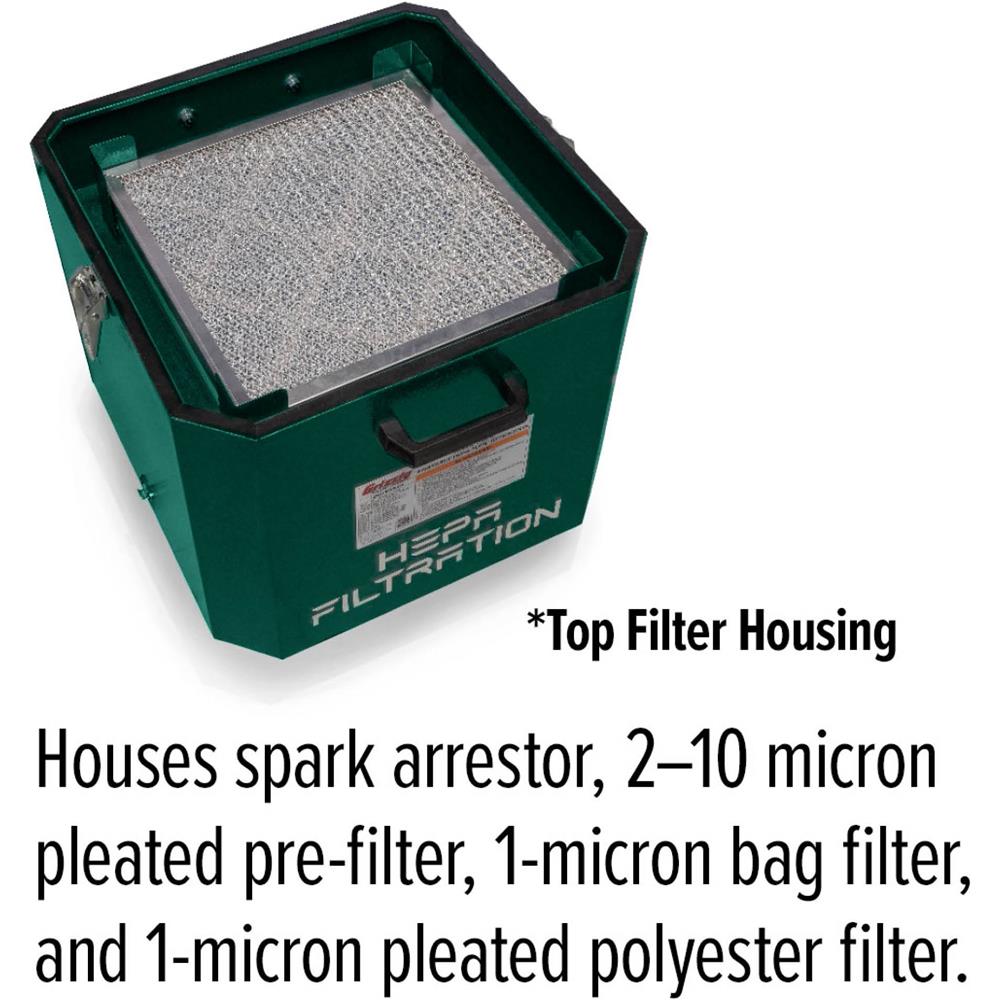

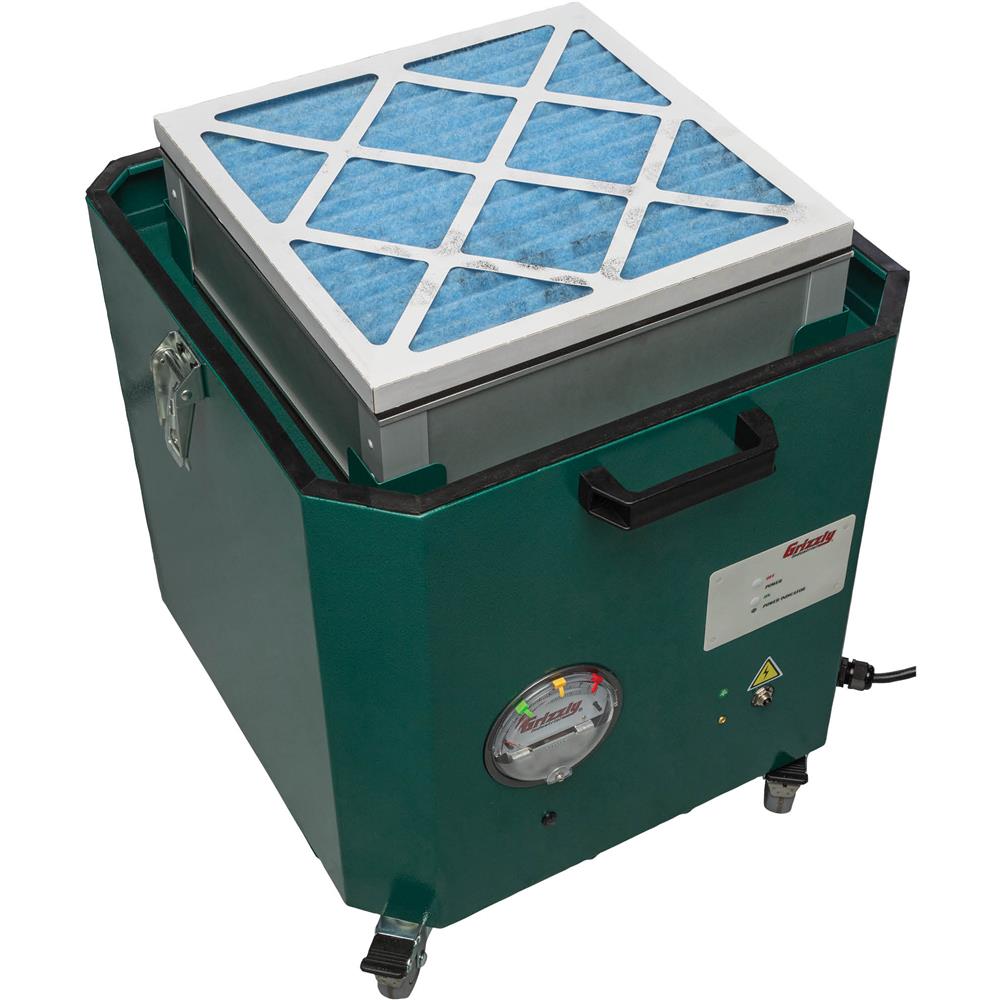

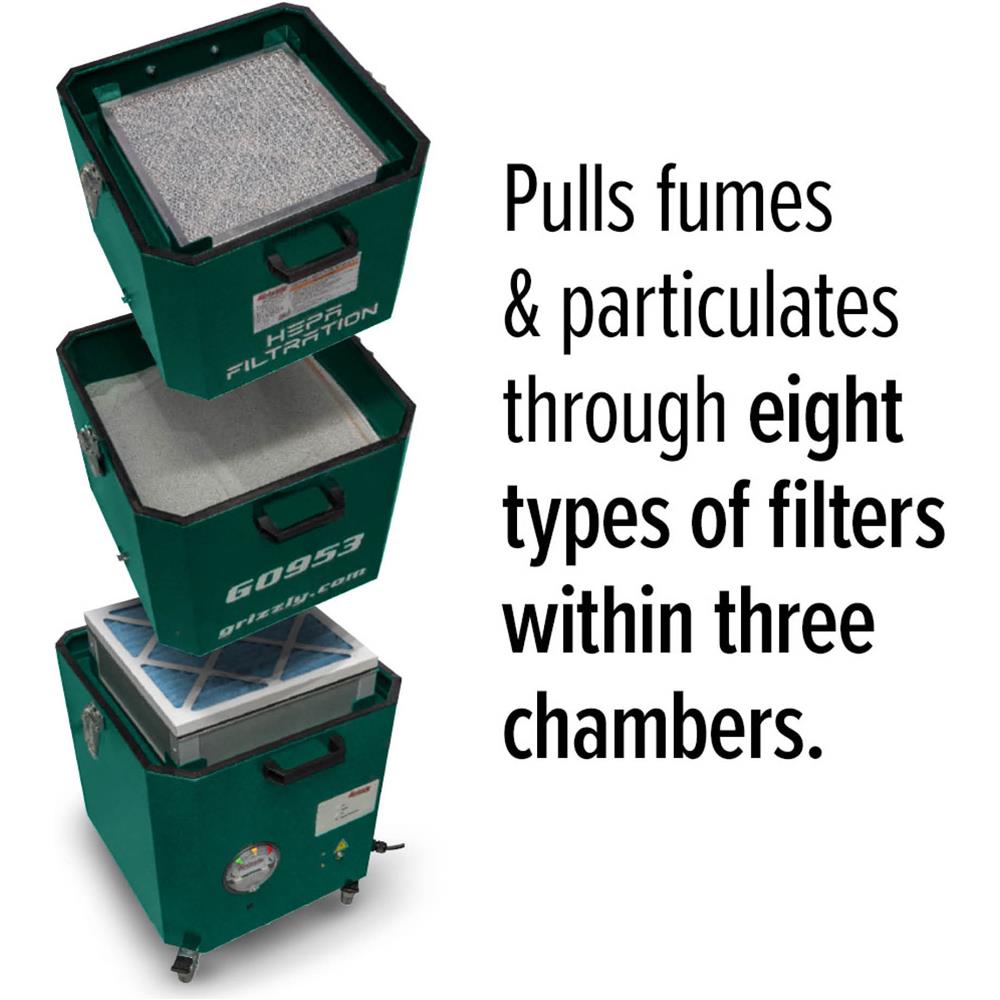

- Three-piece modular design offers easy access to filter chambers

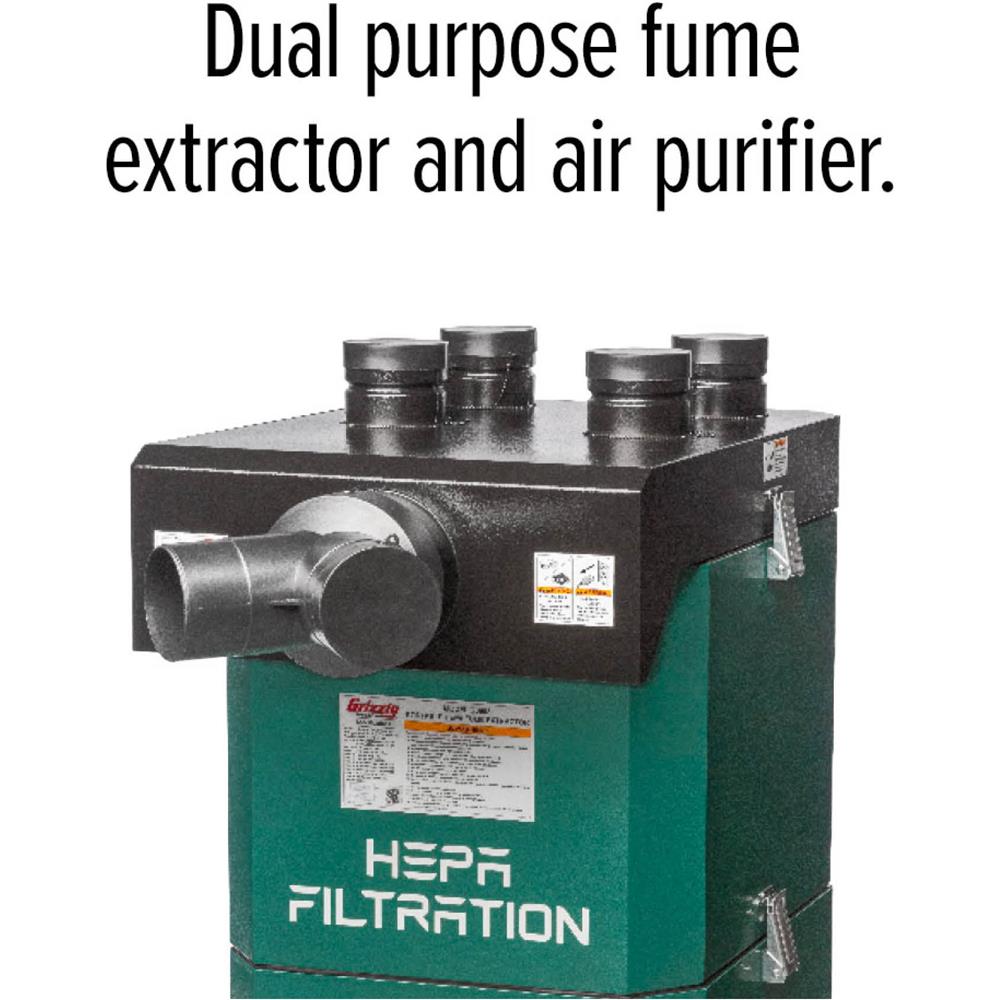

- 6" Front inlet for fume extraction
- Four 4" top inlets for room filtration

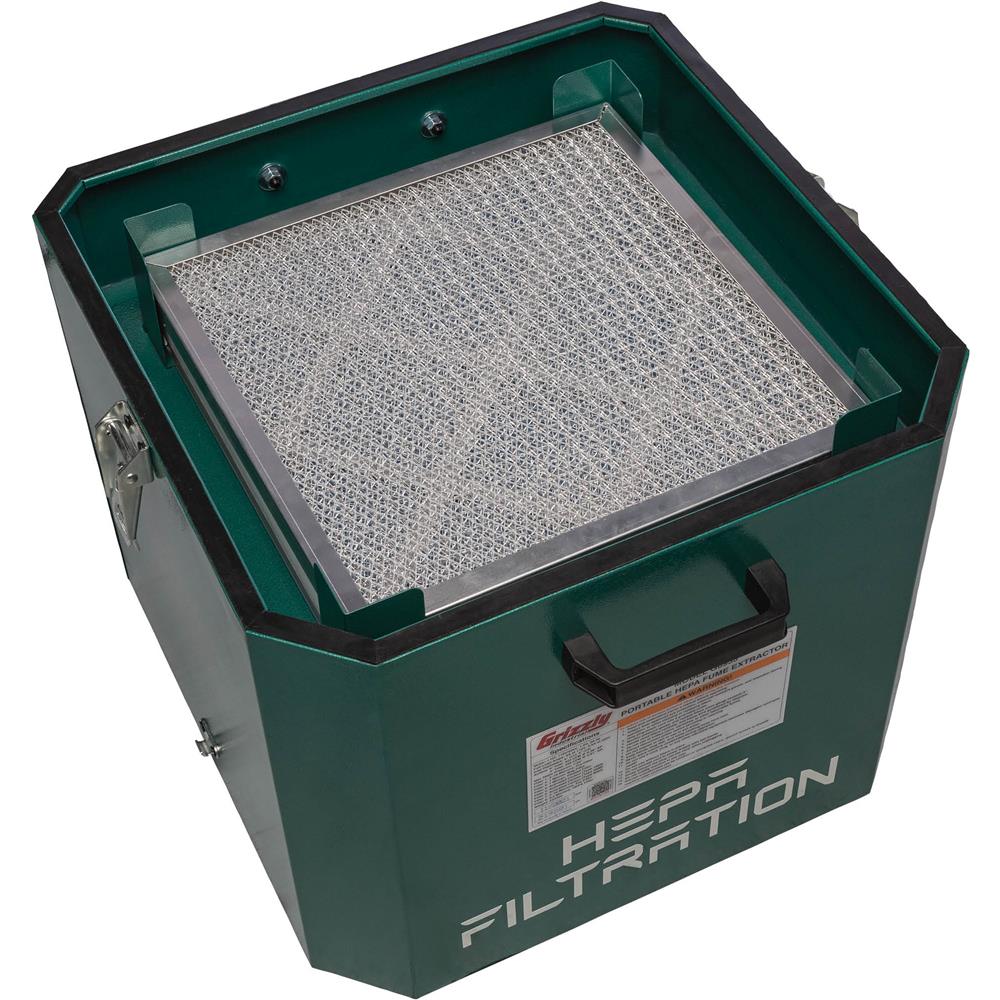

- Aluminum mesh spark arrestor

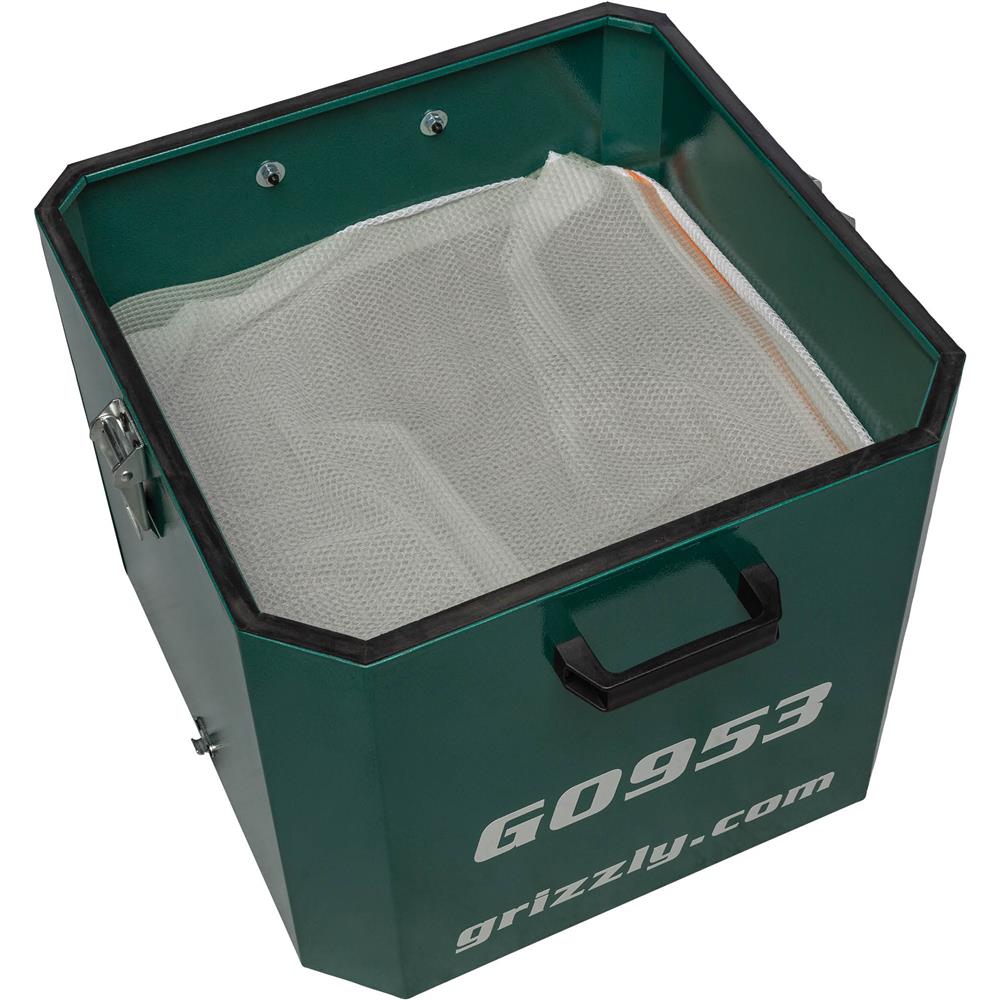

- Three activated carbon bags filter harmful chemicals and gas

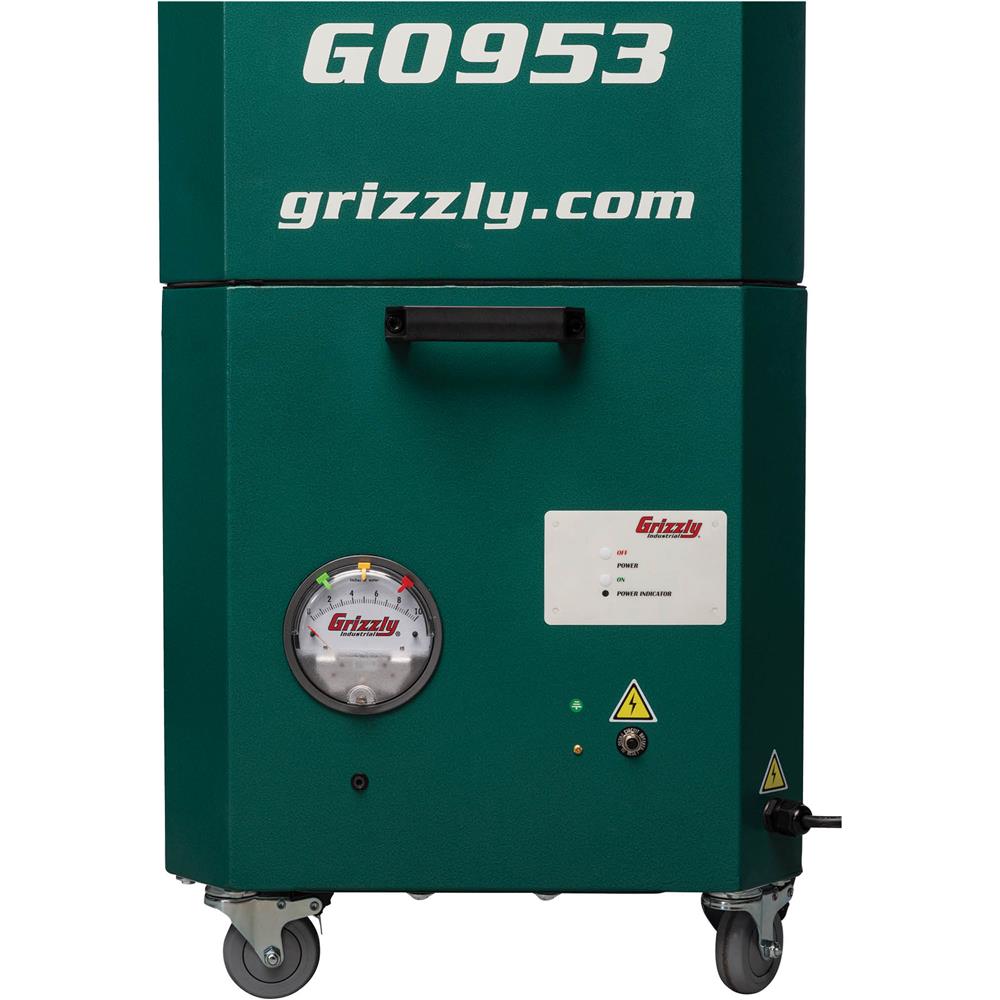

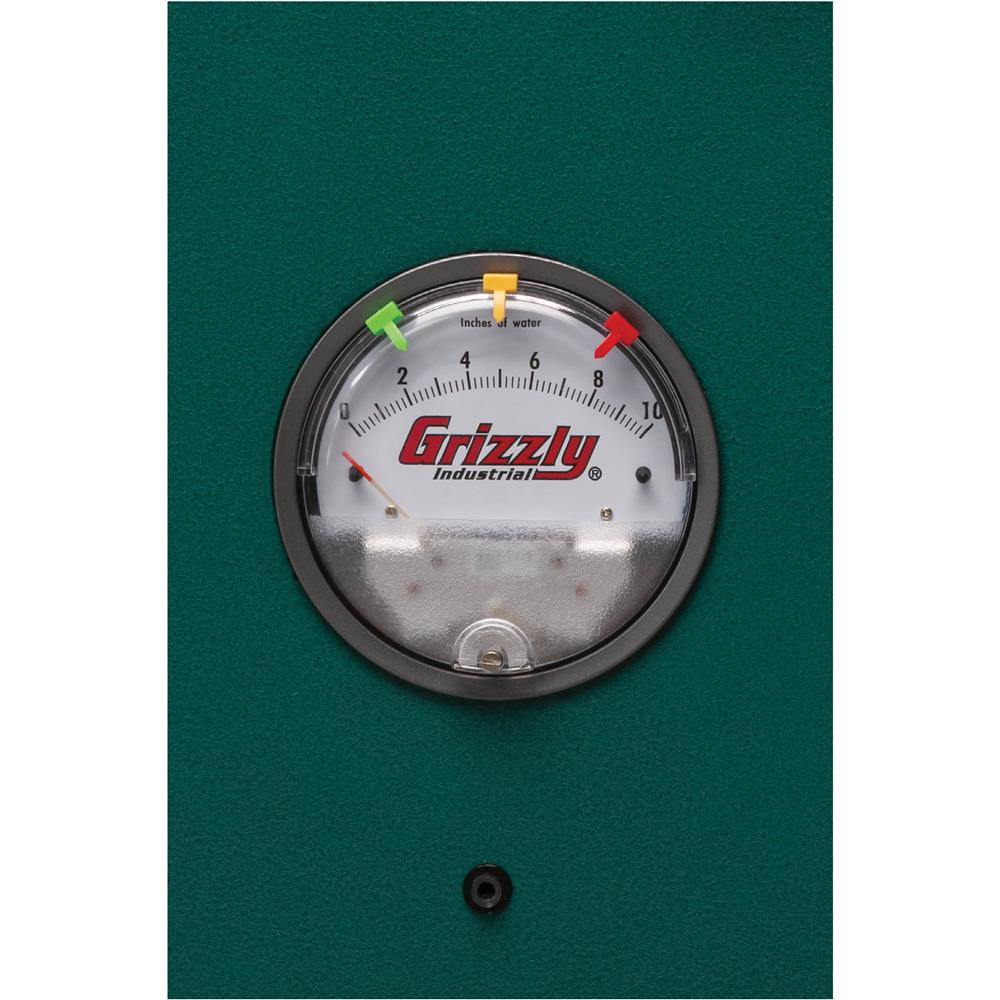

- Built-in pressure gauge indicates when to clean/replace filters
- Locking caster wheels allows for quick changes in your shop layout
Specifications
| Motor | 1 HP, 110V/220V (prewired for 110V), single-phase, 9A/4.5A |
| Airflow capacity (6" inlet) | 423 CFM @ 0.38" SP |
| Airflow capacity (4" inlet) | 335 CFM @ 0.91" SP |
| Maximum static pressure | 7.84" at 0 CFM |

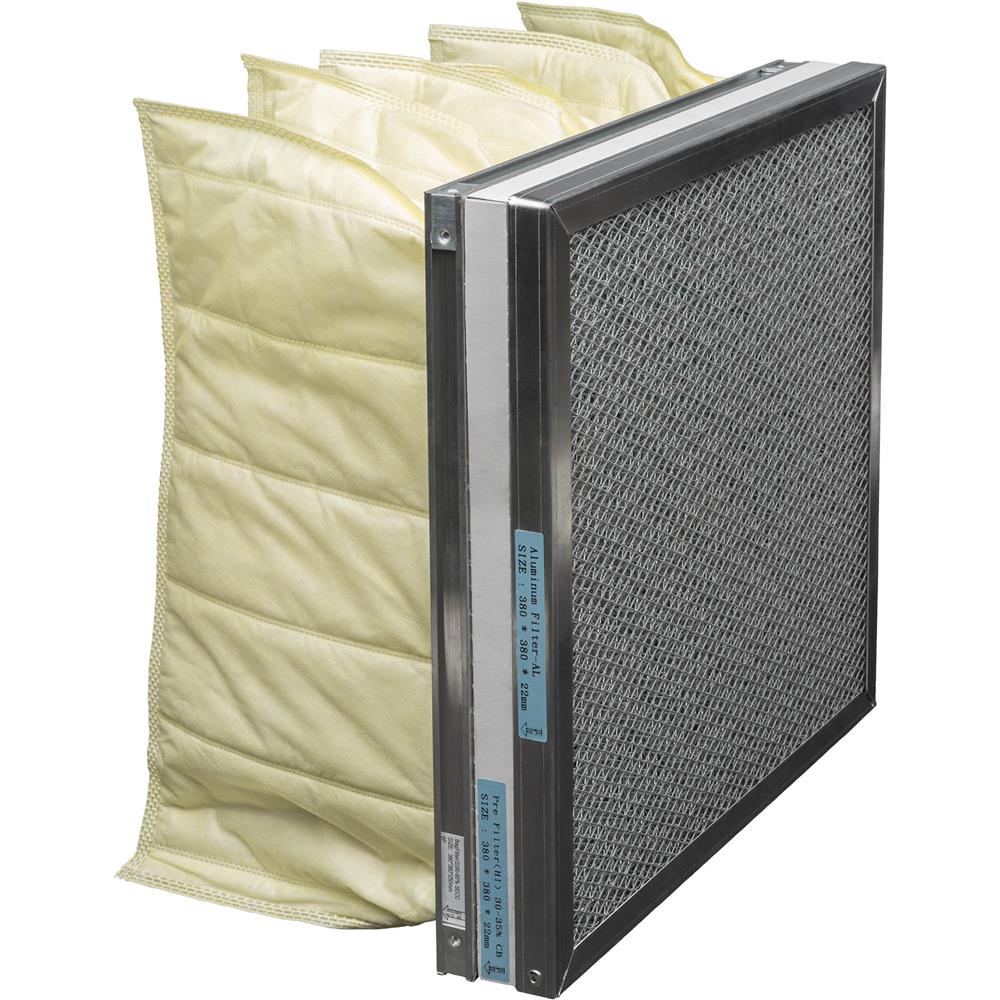

| First-stage filter | Pleated pre-filter, 2–10 microns |
| Second-stage filter | Bag, 1-micron |
| Third-stage filter | Pleated polyester, 1-micron |
| Fourth-stage filter | Activated carbon bag, Type 1000 |
| Fifth-stage filter | Activated carbon bag, Type 3000 |
| Sixth-stage filter | Activated carbon bag, Type 9000 |
| Seventh-stage filter | Pleated prefilter, 2–10 micron |
| Eighth-stage filter | HEPA, 0.3 microns |
| Impeller | 12" Aluminum |
| Footprint | 18" x 18" |
| Overall dimensions | 21-1/2" W x 29" D x 61-1/2" H |
| Approximate shipping weight | 252 lbs. |
Warranty
This item comes with a 1 year factory warranty.
