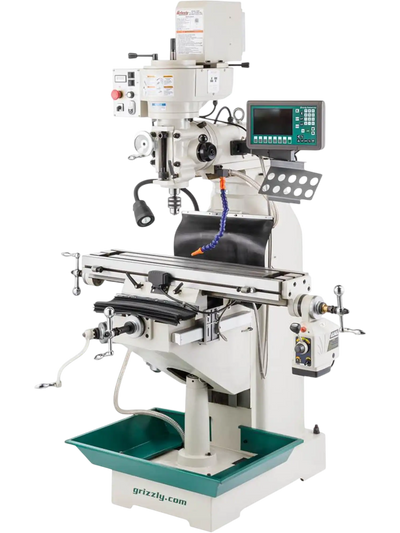

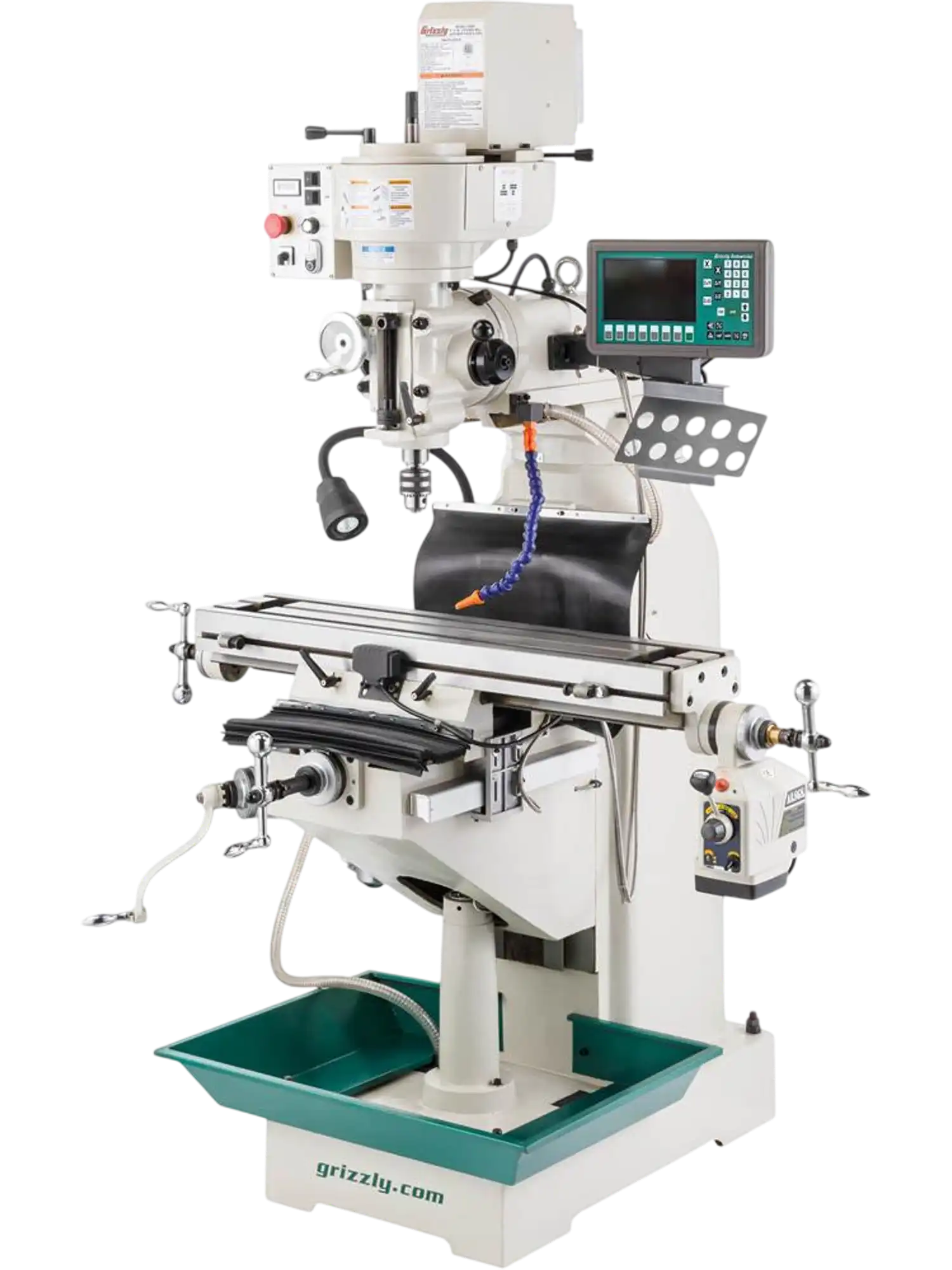

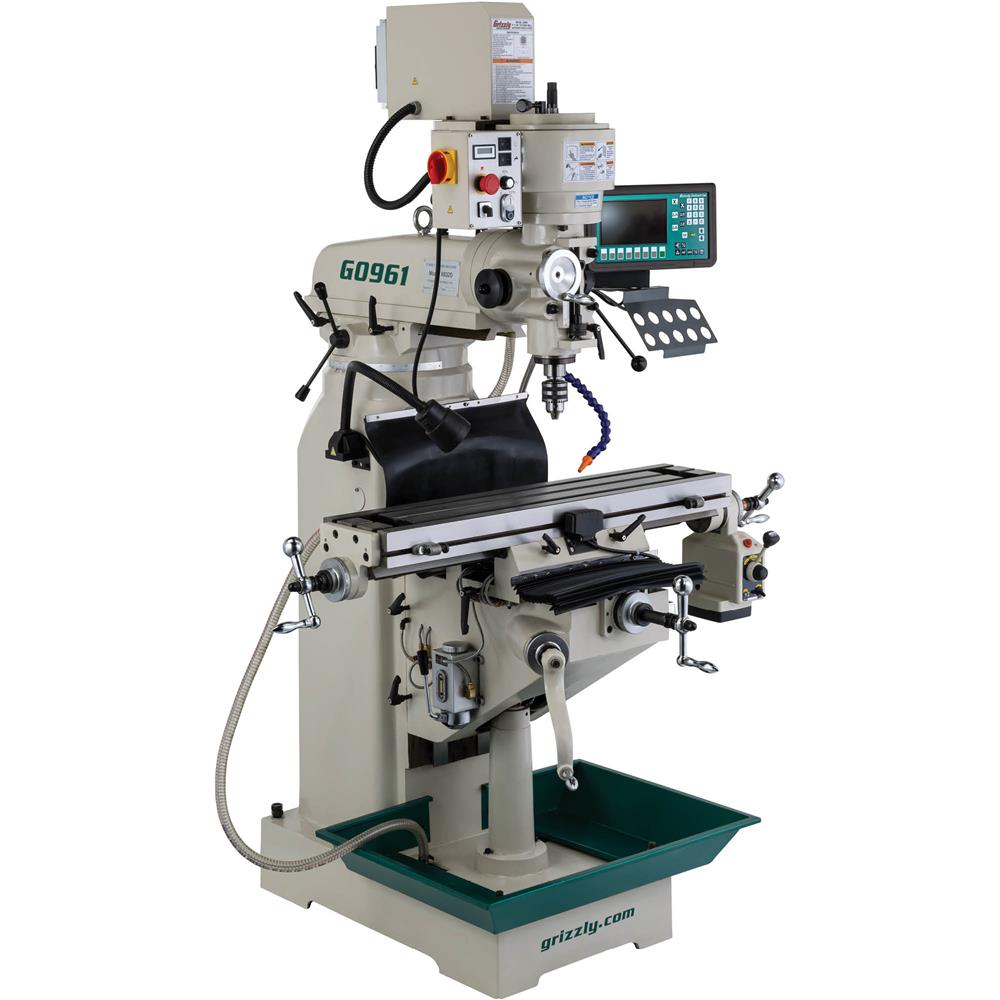

Grizzly G0961 Milling Machine 8" x 36" Variable-Speed Knee Mill with Power Feed and DRO New
Product Overview
The Grizzly G0961 is an 8" x 36" variable-speed knee mill designed to bring full-size milling capability to home shops and small professional workspaces running on 110V power. It features an R-8 spindle with 4-1/16" of travel and a variable speed range from 100 to 2800 RPM for drilling, facing, and precision milling across a wide range of materials.
A precision-ground cast-iron table, X-axis power feed, and X/Y digital readout help improve accuracy and make repetitive operations easier. The machine also includes a digital RPM readout, one-shot way lubrication, spindle brake, and a dual belt drive for smooth, controlled operation.
Built for machinists who want strong capability without stepping up to industrial power requirements, this knee mill also adds practical shop features like a 20-liter coolant system, flexible nozzle, LED work light, blower, and tool caddy. It is a solid choice for hobbyists, prototype work, maintenance shops, and light production use.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

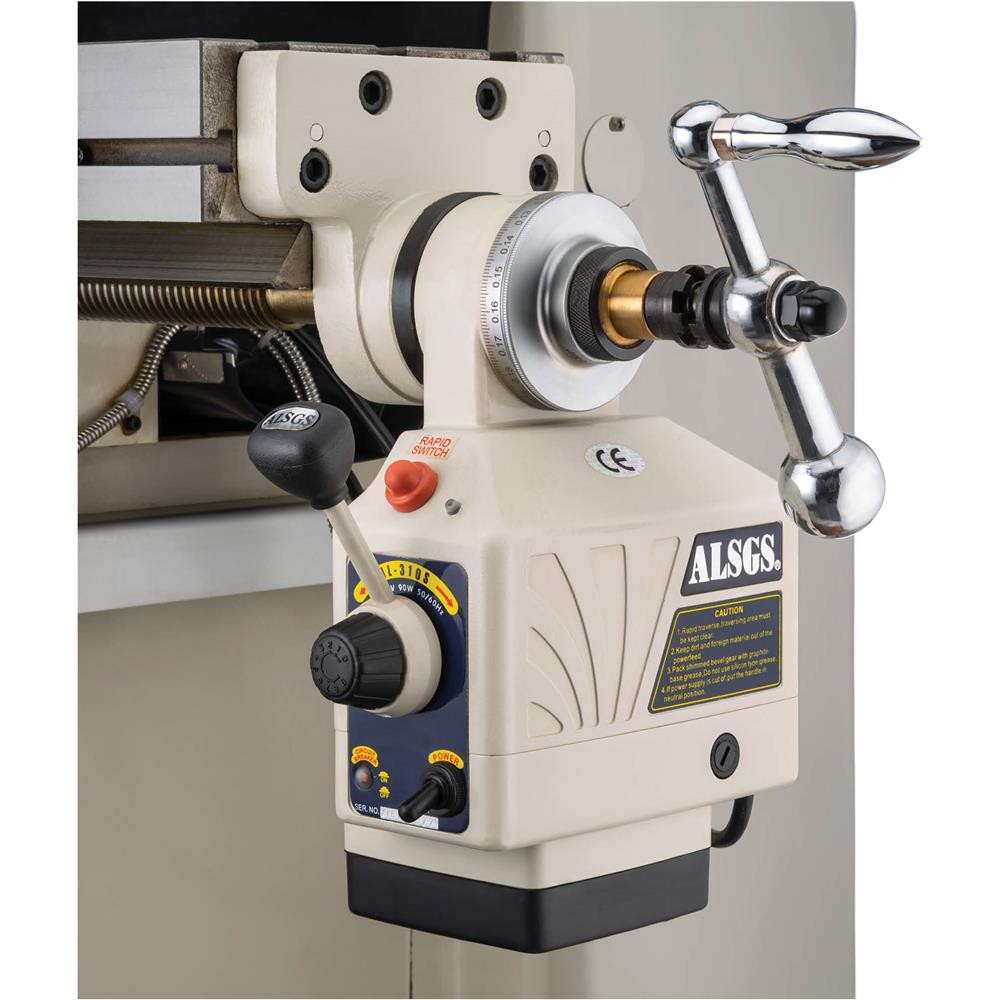

- X-axis power feed, Y-axis power feed ready

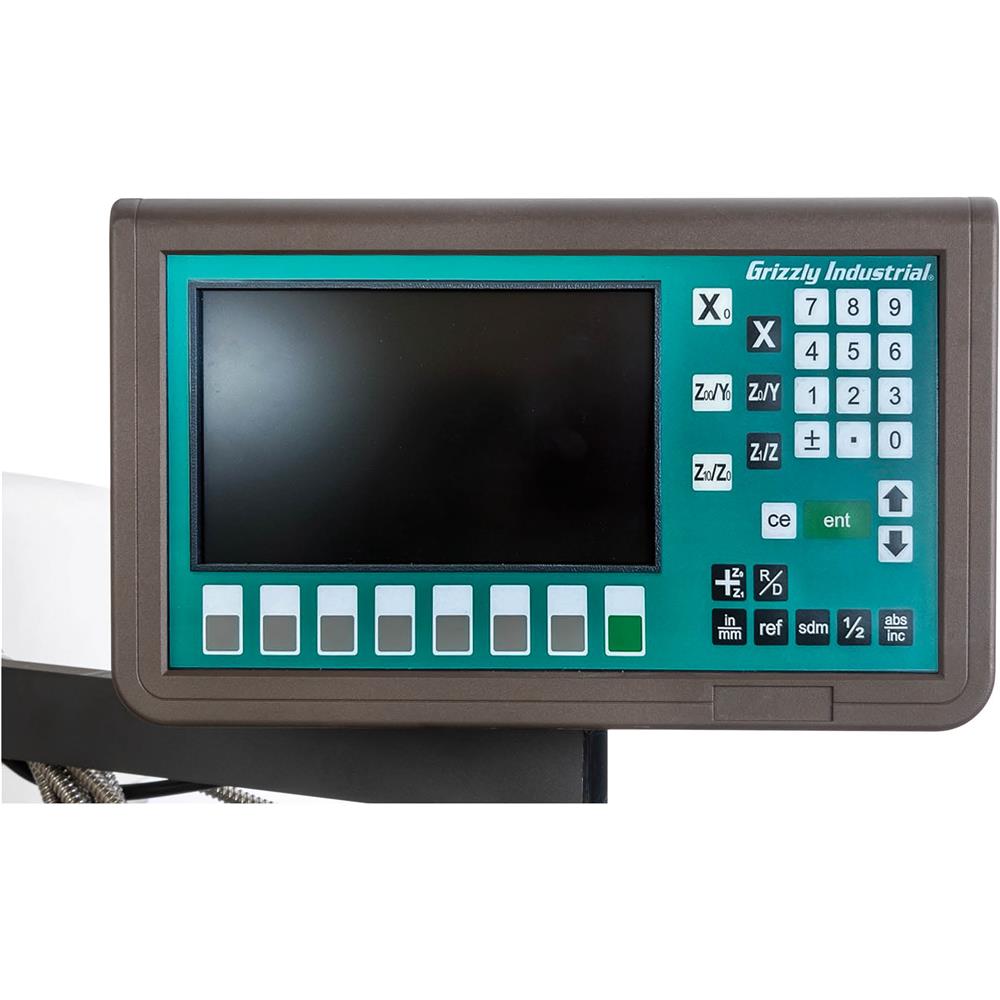

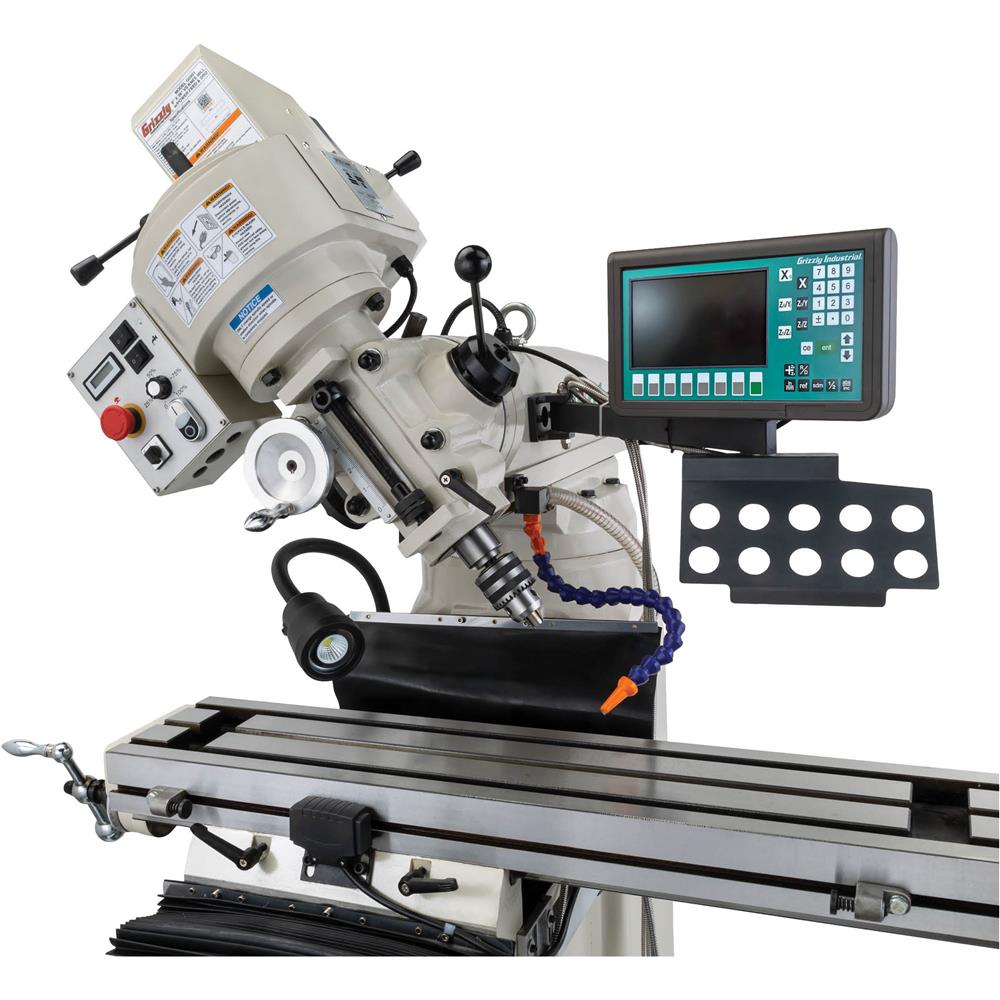

- X and Y-Axis DRO

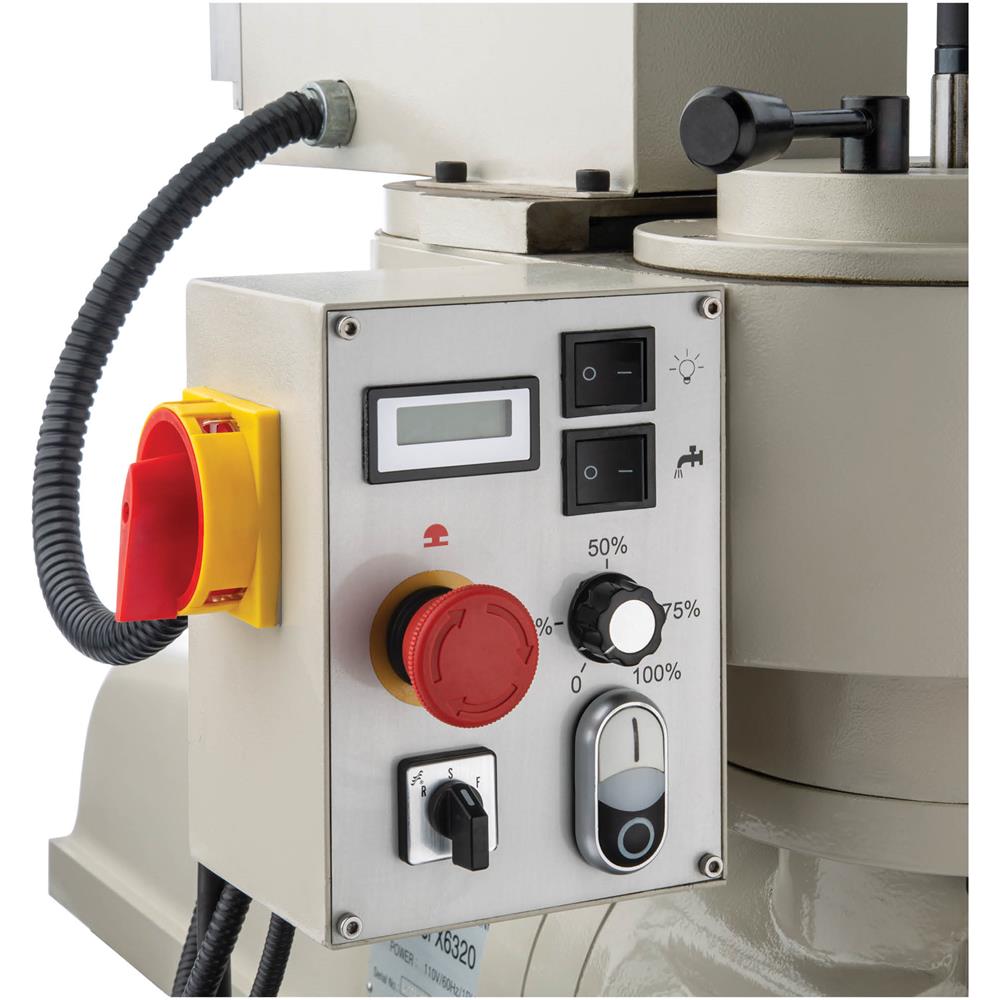

- Digital RPM readout

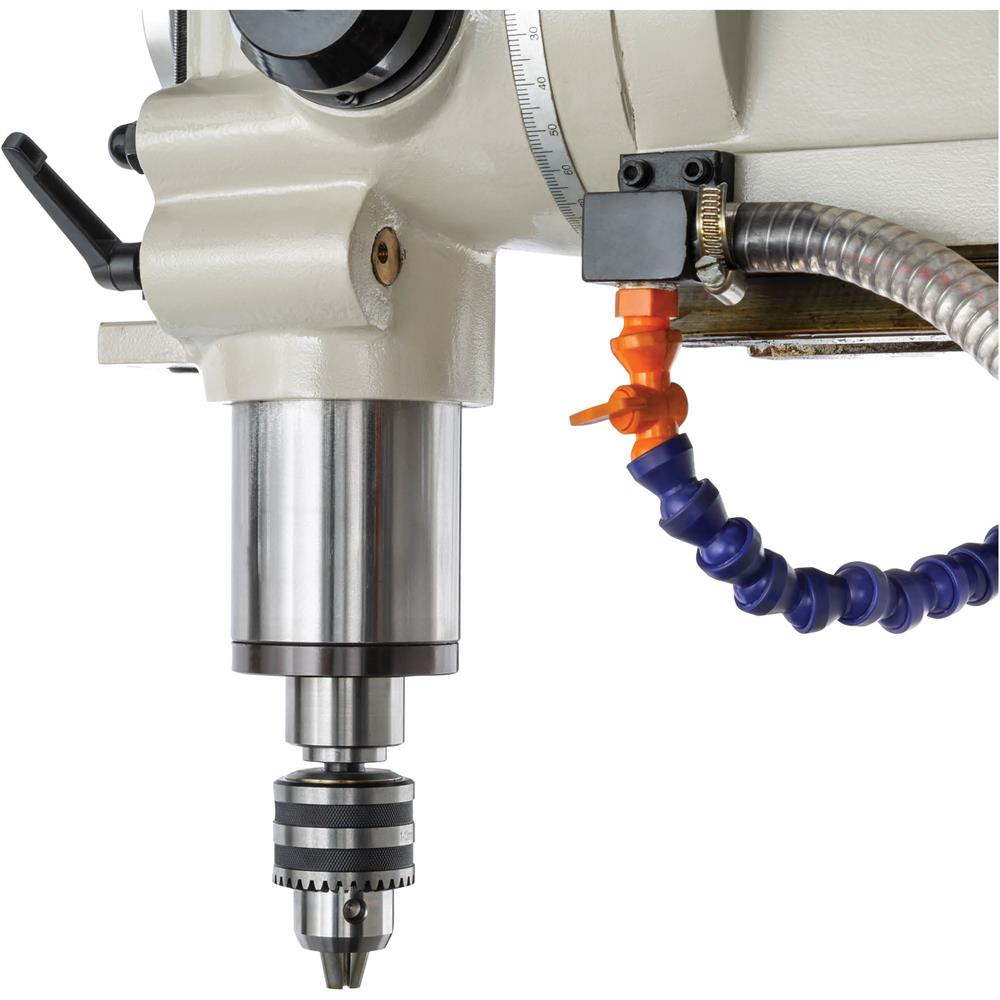

- R-8 Spindle

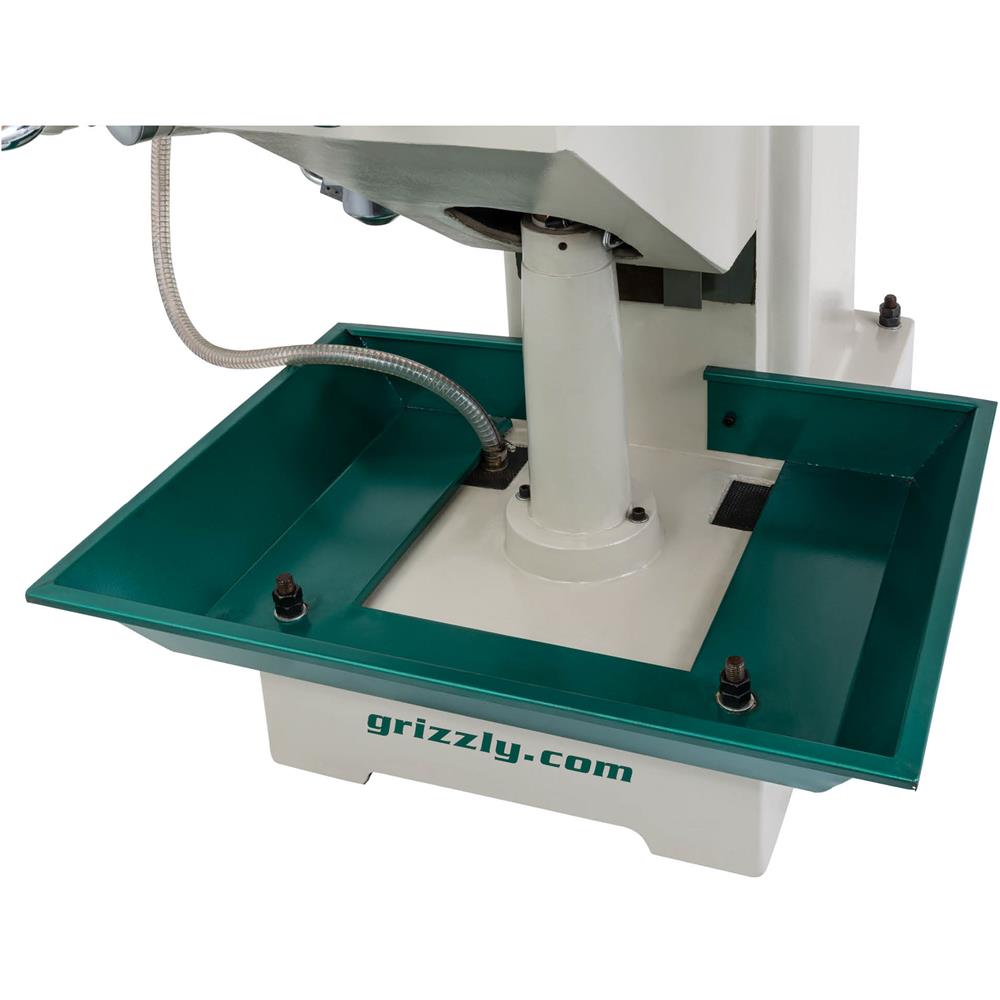

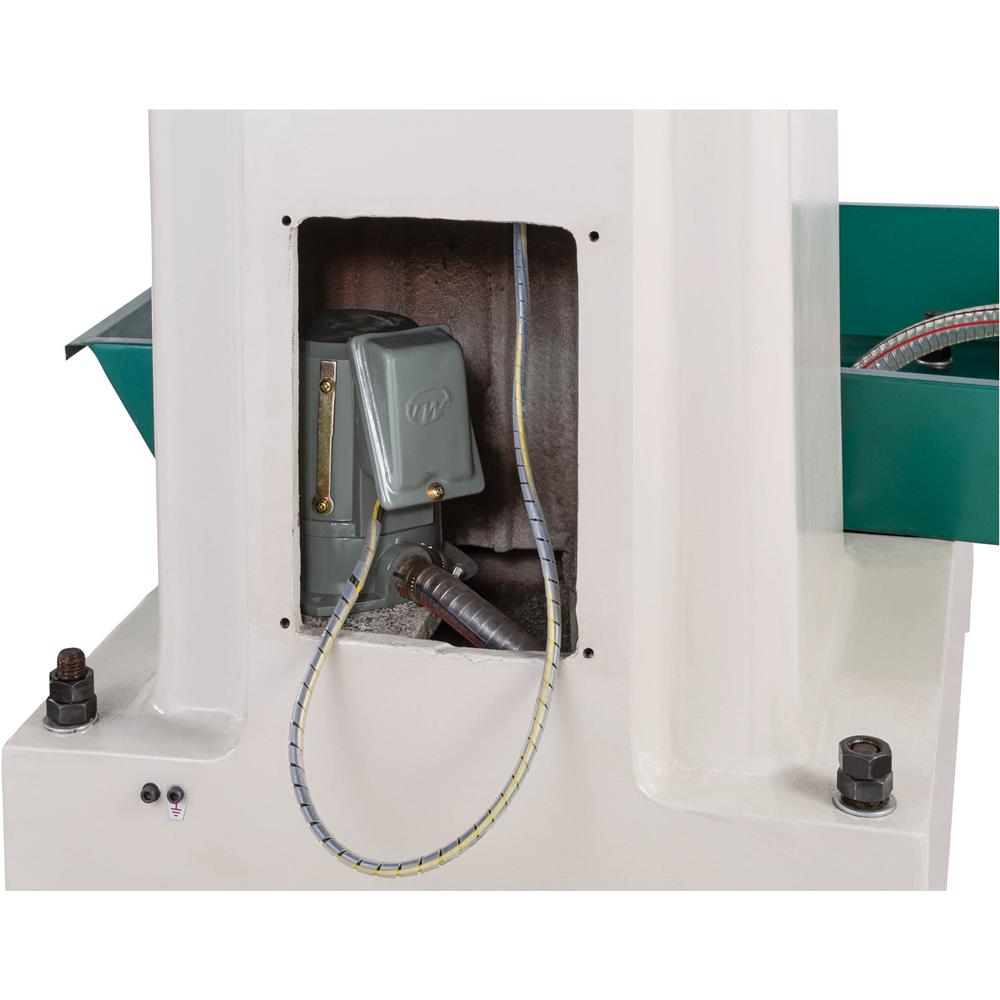

- 20-Liter coolant system with catch tray

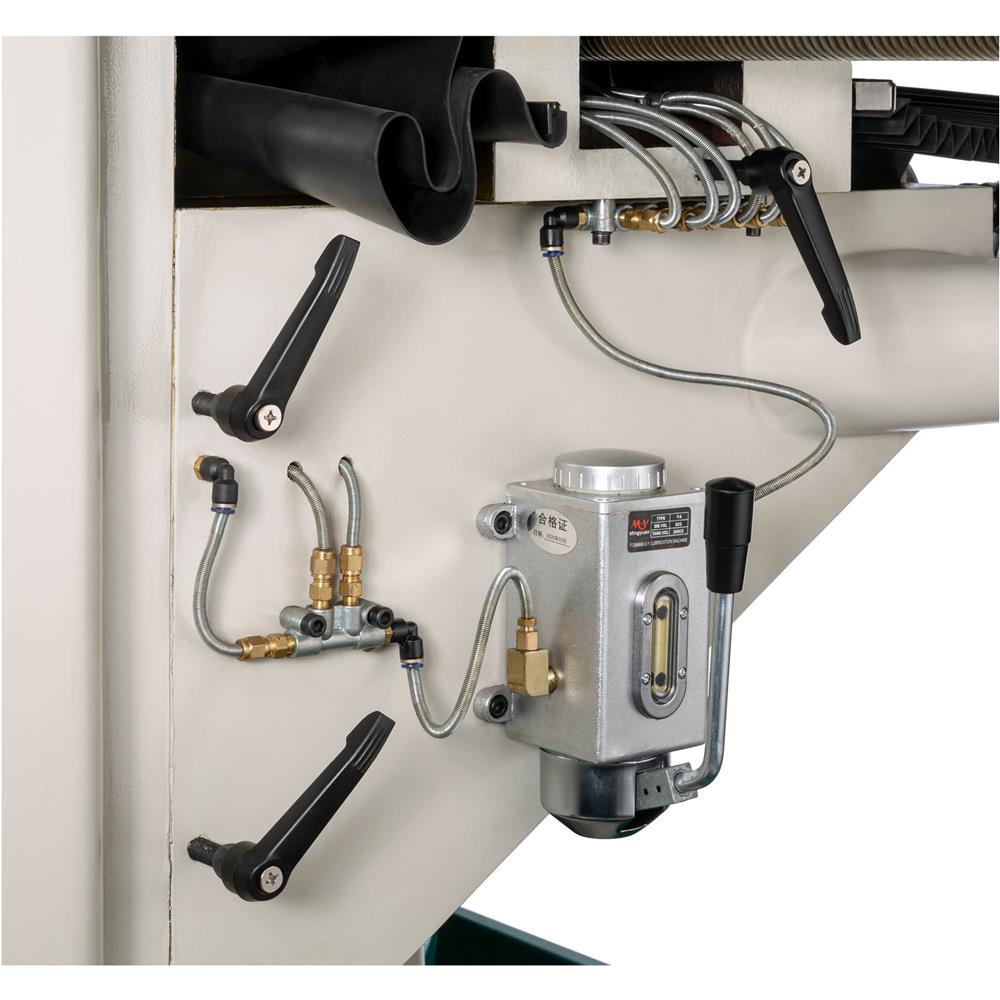

- One-shot pump way lubrication system

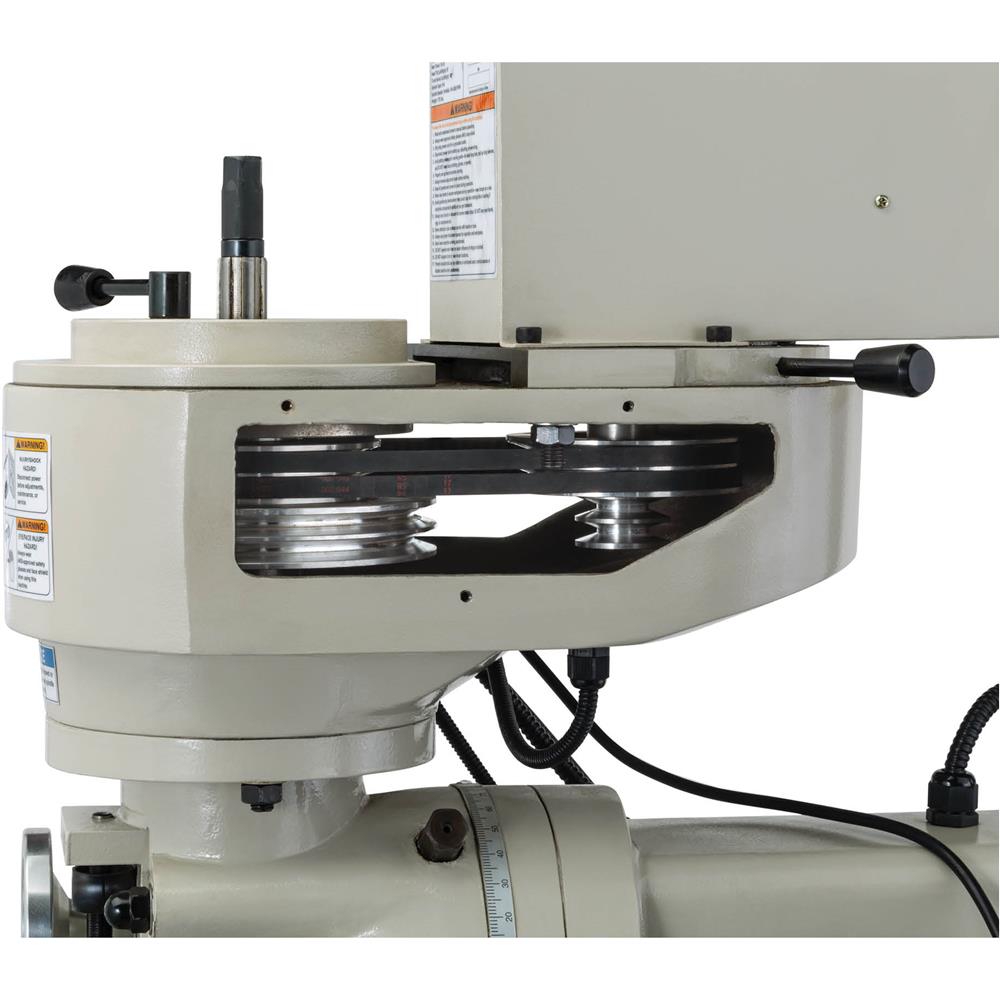

- Dual belt drive

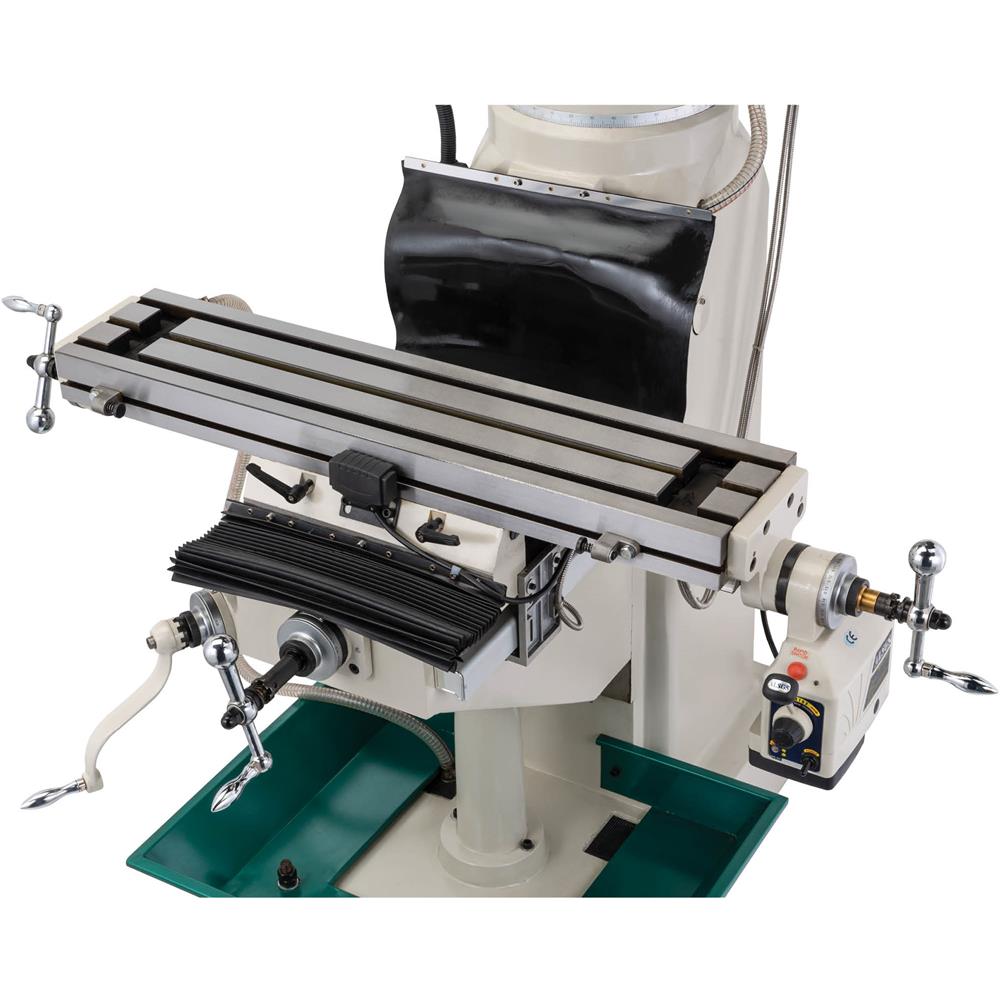

- Precision-ground cast-iron table
- LED work light and flexible blower
- Spindle brake
- Tool caddy
Specifications
| Motor | 1-1/2HP, 110V, single-phase, 15A |
| Spindle taper | R-8 |
| Spindle speeds | Variable, 100–2800RPM |
| Spindle travel | 4-1/16" |
| Ram travel | 10-1/2" |
| Head tilt | 90° L/R |

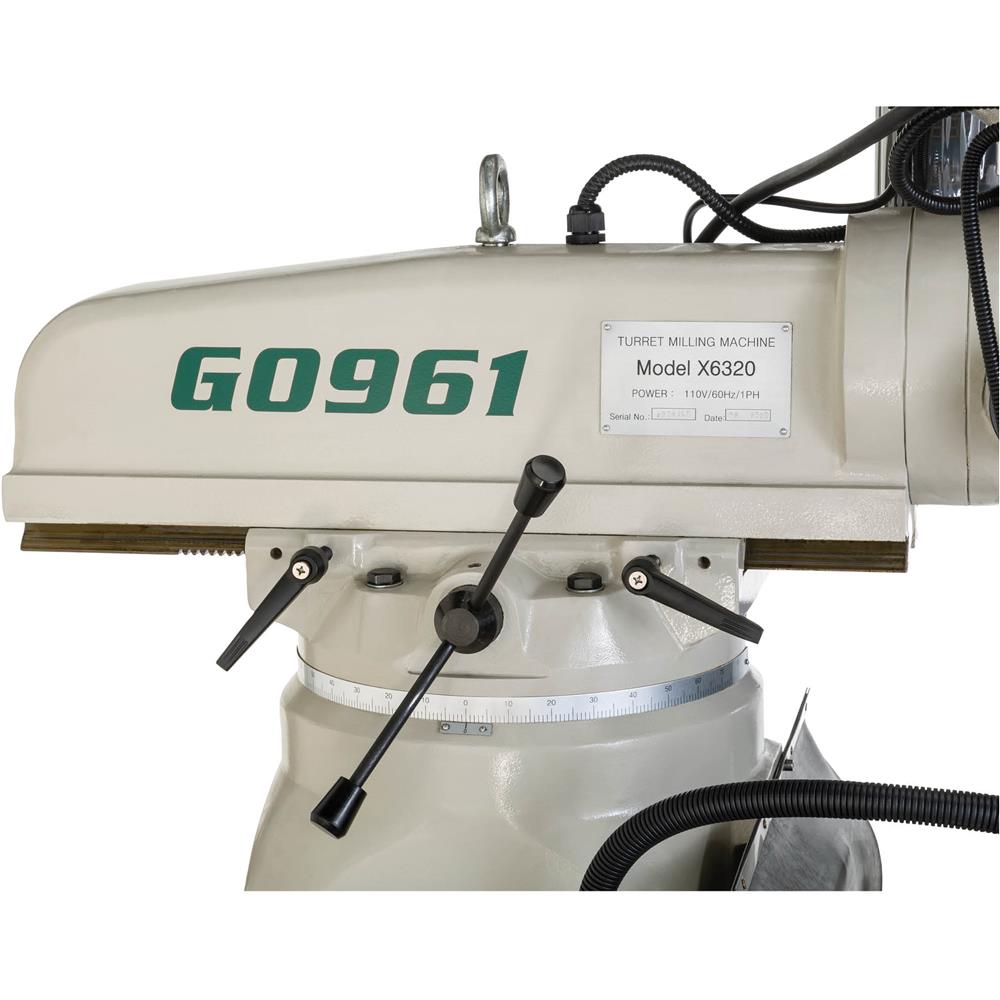

| Turret/column swivel | 180 degrees left/right |
| Table travel (longitudinal) | 23" |
| Table travel (cross) | 9-1/2" |
| Table travel (vertical) | 13-3/4" |
| Table size | 8" x 36" |
| T-slots | 3, 5/8" wide |
| Footprint | 19-1/2" x 33" |
| Overall dimensions | 56" W x 56" D x 76-1/2" H |
| Approximate shipping weight | 1940 lbs. |
Warranty
This item comes with a 1 year factory warranty.
