Grizzly G0964 Fume Extractor 1-1/2 HP Portable with Precision Arm New
Product Overview

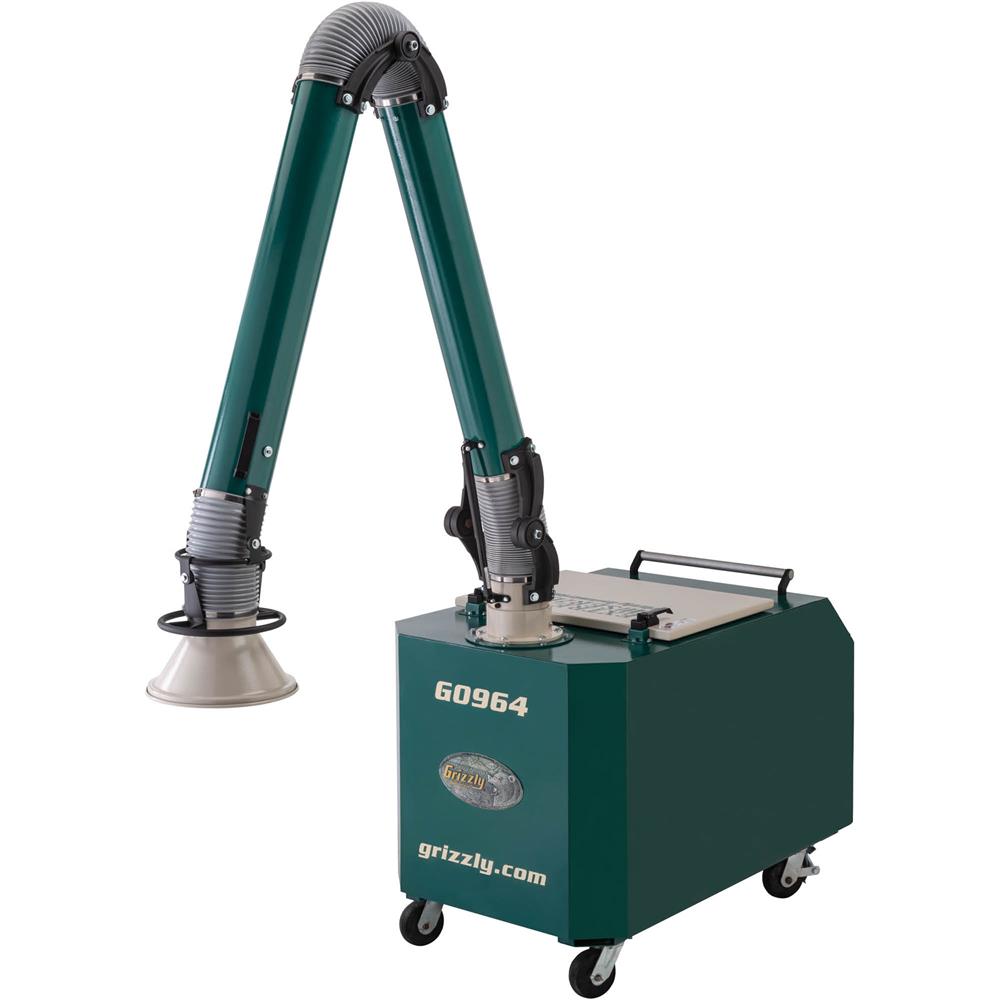

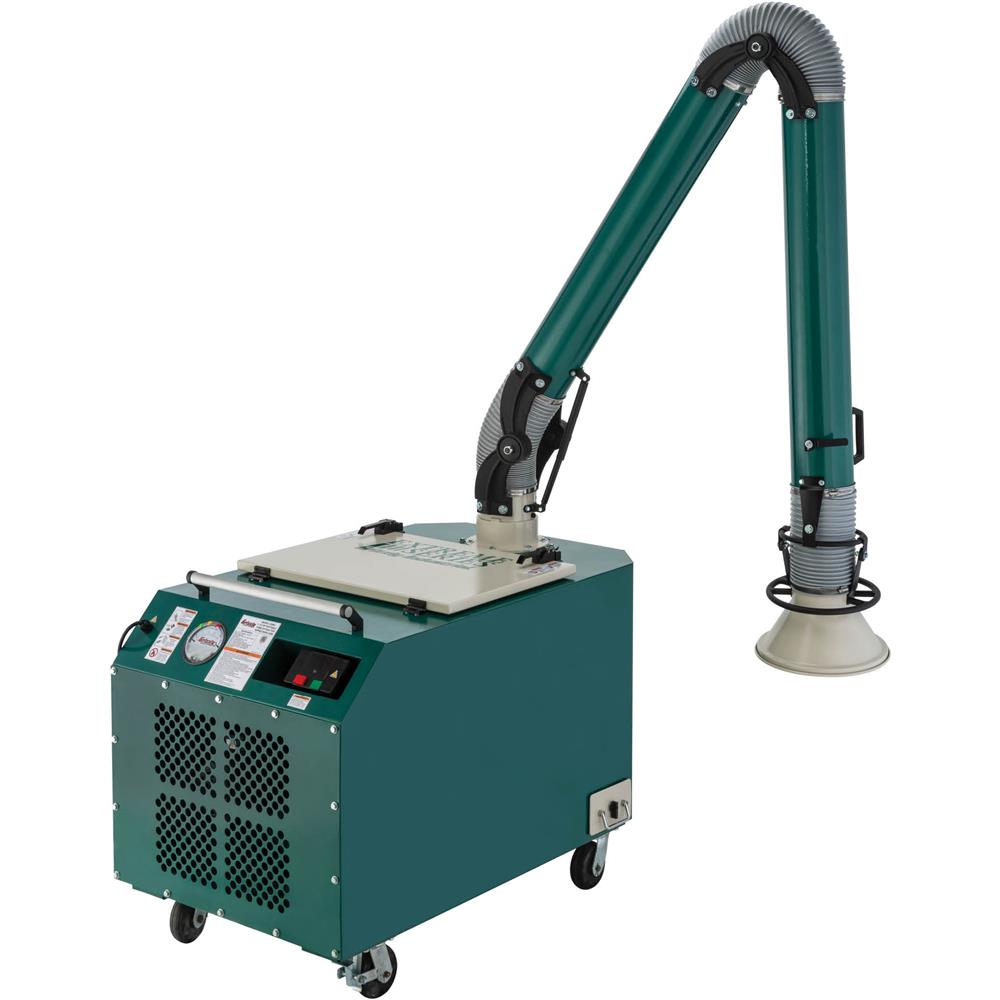

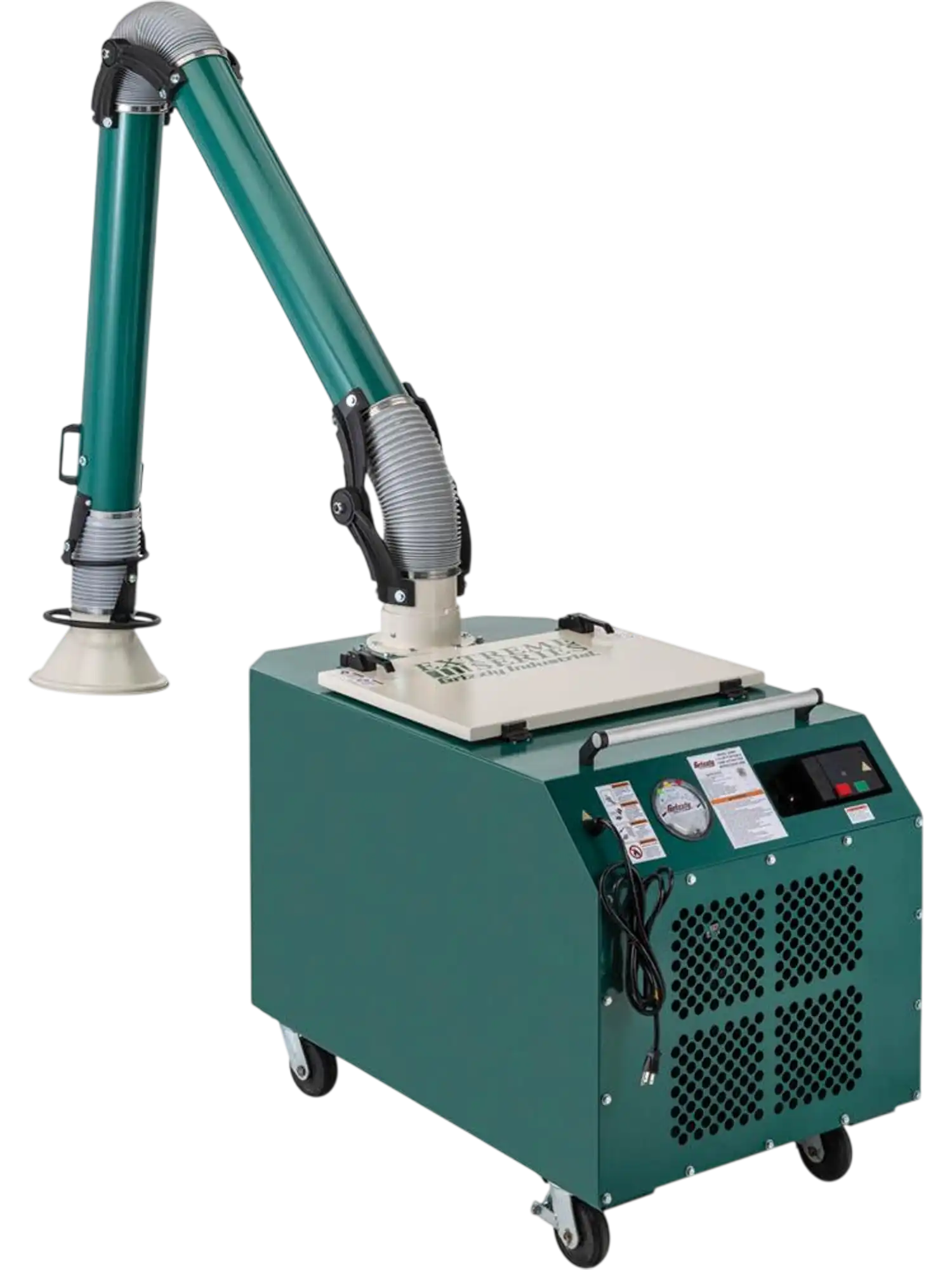

The Grizzly G0964 is a portable 1-1/2 HP fume extractor designed to clean the air in metalworking shops where welding, cutting, and grinding create harmful fumes and fine particles. With 850 CFM of airflow and a 10-foot precision arm that rotates up to 350 degrees, it helps capture contaminants right at the source.

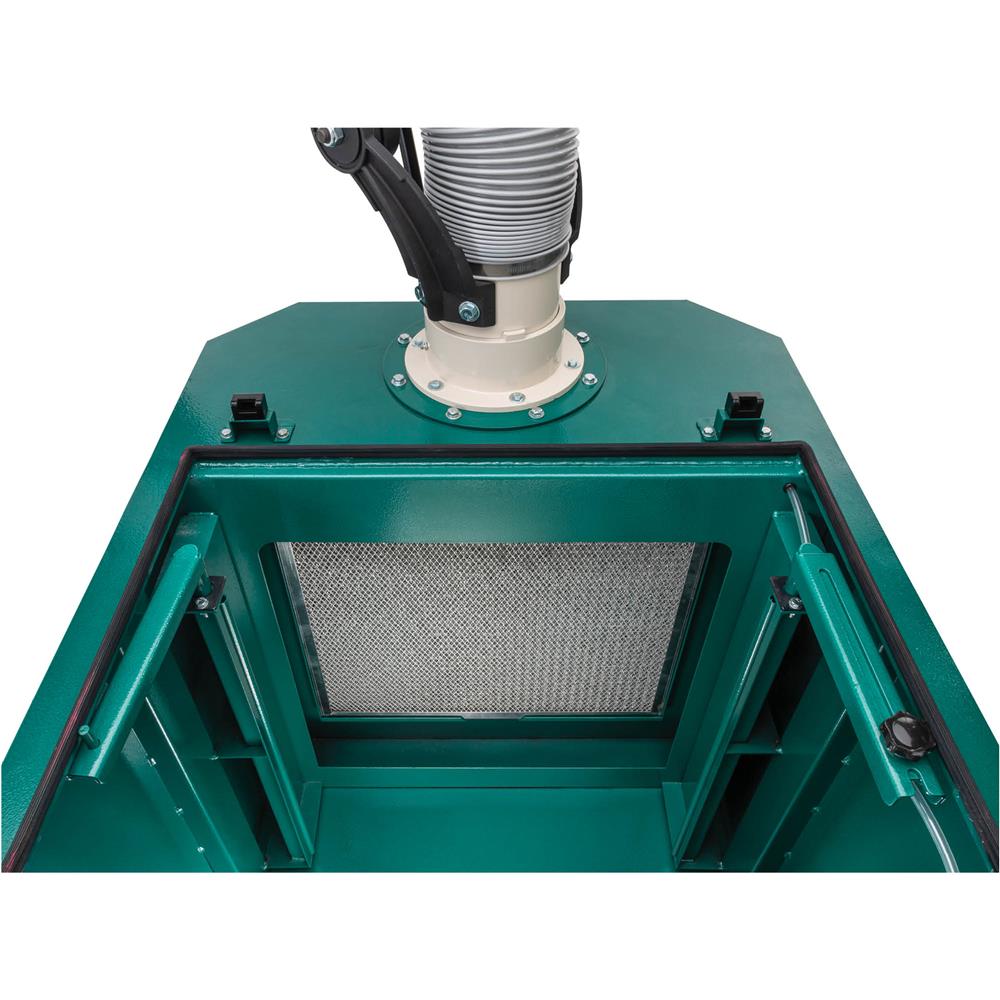

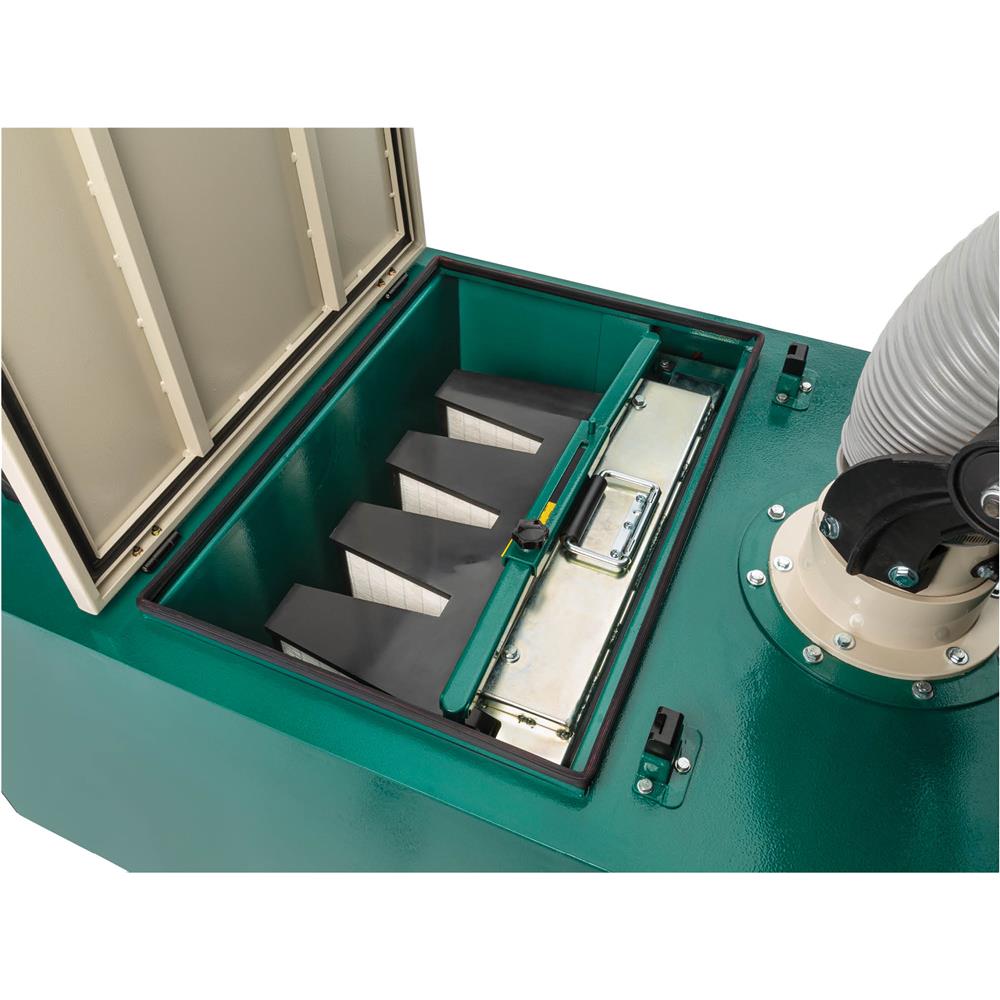

A four-stage filtration system includes a spark arrestor, metal mesh filtration, a pleated pre-filter, and a MERV-17 HEPA final filter that captures 99.97% of particles down to 0.3 microns. A built-in damper on the arm allows airflow adjustment, while the vacuum pressure gauge helps monitor filter condition during operation.
This unit is a practical choice for fabricators, welders, and maintenance shops that need flexible fume control around larger equipment and changing work positions. Its steel body, locking caster wheels, and removable dust drawer make it well suited for busy industrial and shop environments.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- 6" x 10-foot arm to direct suction to where needed
- Built-in damper on precision arm for adjusting air flow
- Combined filter surface area of 177.6 square feet

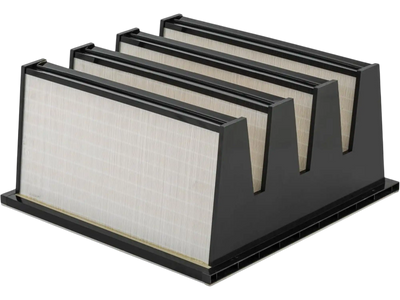

- V-cell MERV-17 HEPA filter collects 99.97% of particles at 0.3 microns

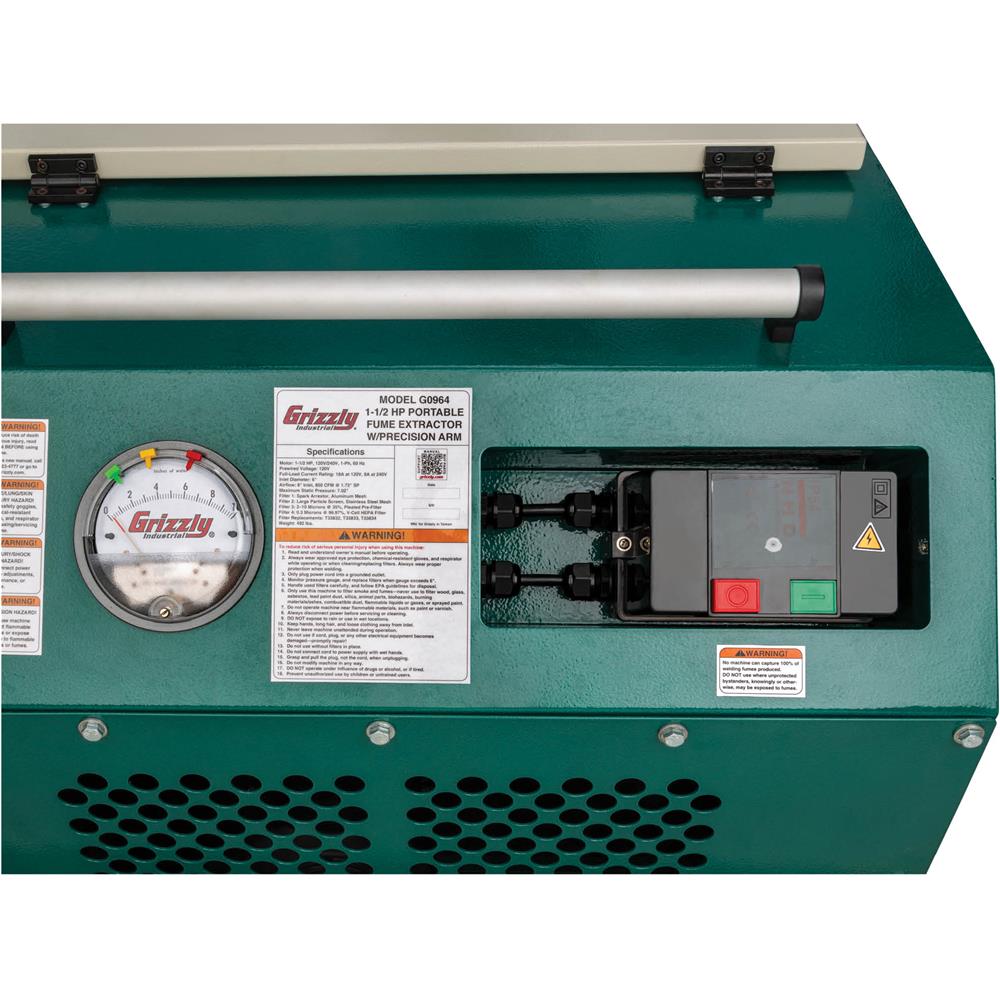

- Vacuum pressure gauge indicates when to clean and replace filters

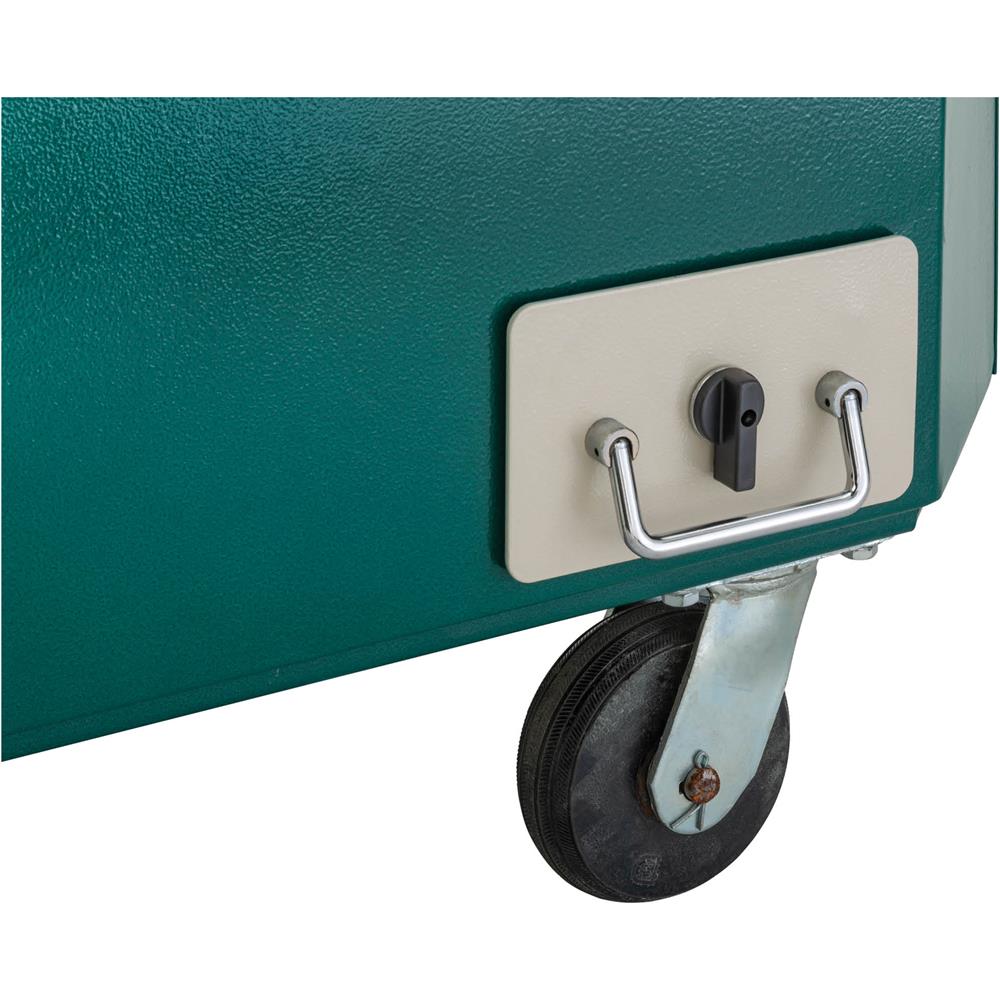

- Steel body with two locking caster wheels
- Removable dust drawer
- 1-year limited warranty
Specifications
| Motor | 1-1/2 HP, 120V/240V (prewired 120V), single-phase, 18A/9A |
| Airflow capacity | 850 CFM @1.72" SP |
| Maximum static pressure | 7.02" |
| Extraction arm length | 10 feet |
| Extraction arm diameter | 6" |
| Extraction arm rotation | 350° |
| MERV rating | MERV-17 |
| Third-stage filter rating | 2–10 Microns @ 35% |
| Fourth-stage filter rating | 0.3 Microns @ 99.97% |
| Main inlet size | 6" |
| Overall dimensions | 29-1/2" W x 88-1/2" D x 84" H |
| Approximate shipping weight | 601 lbs. |
Warranty
This item comes with a 1 year factory warranty.
