Grizzly G0996 Power Hammer 22" New
Product Overview

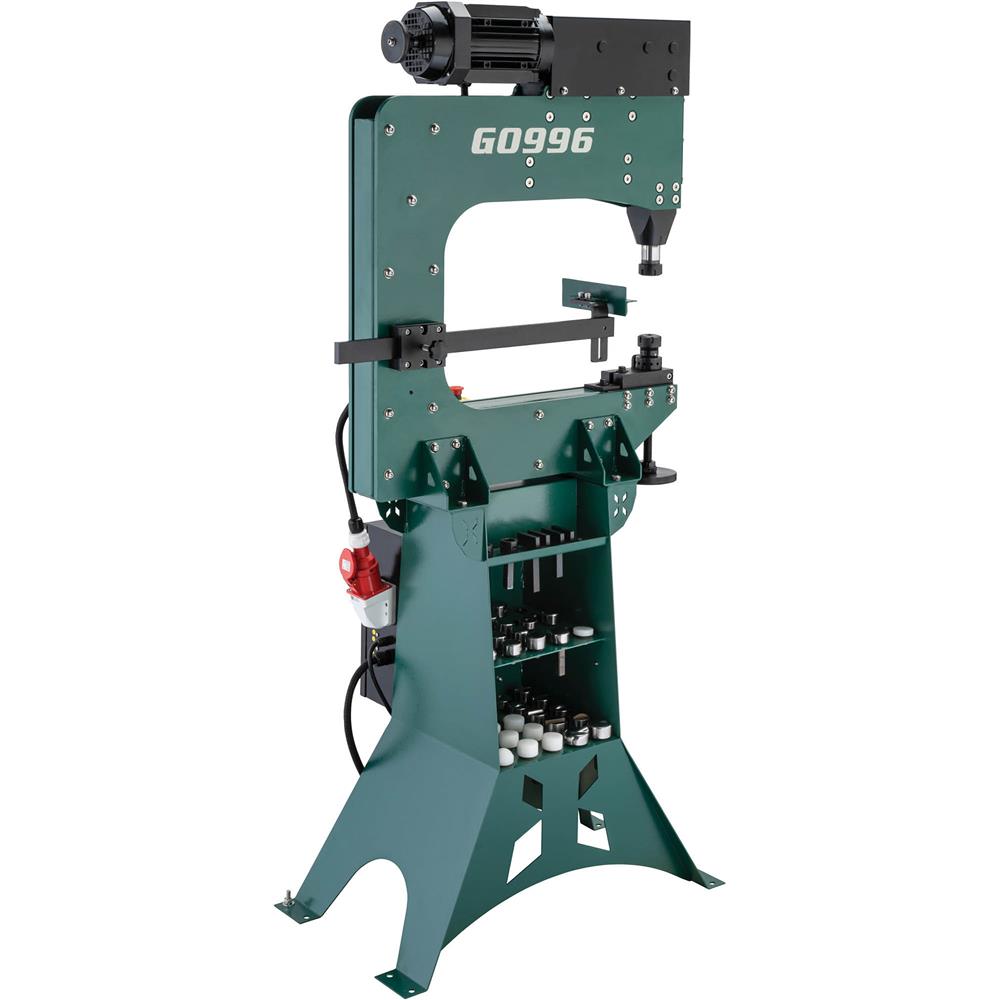

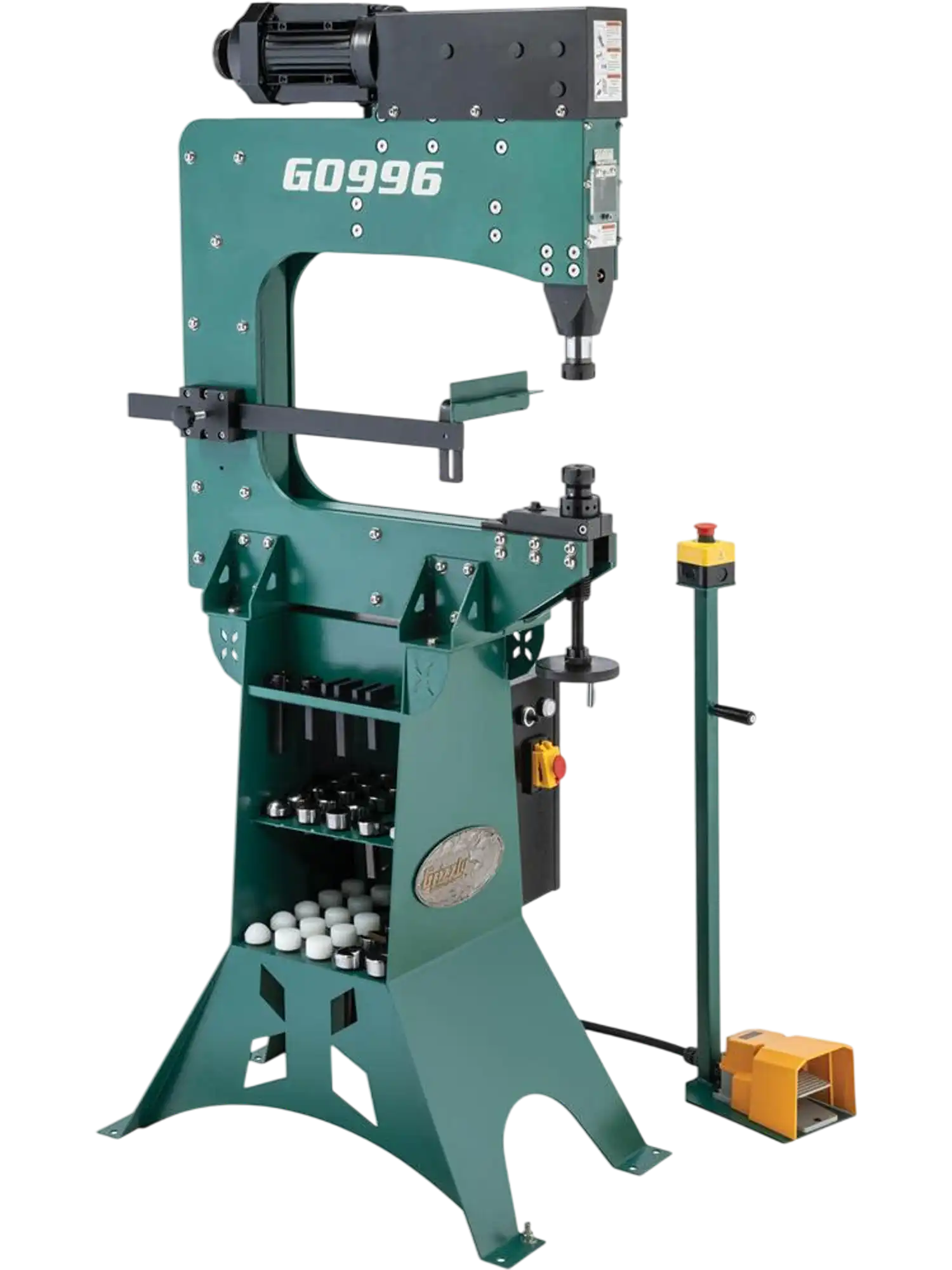

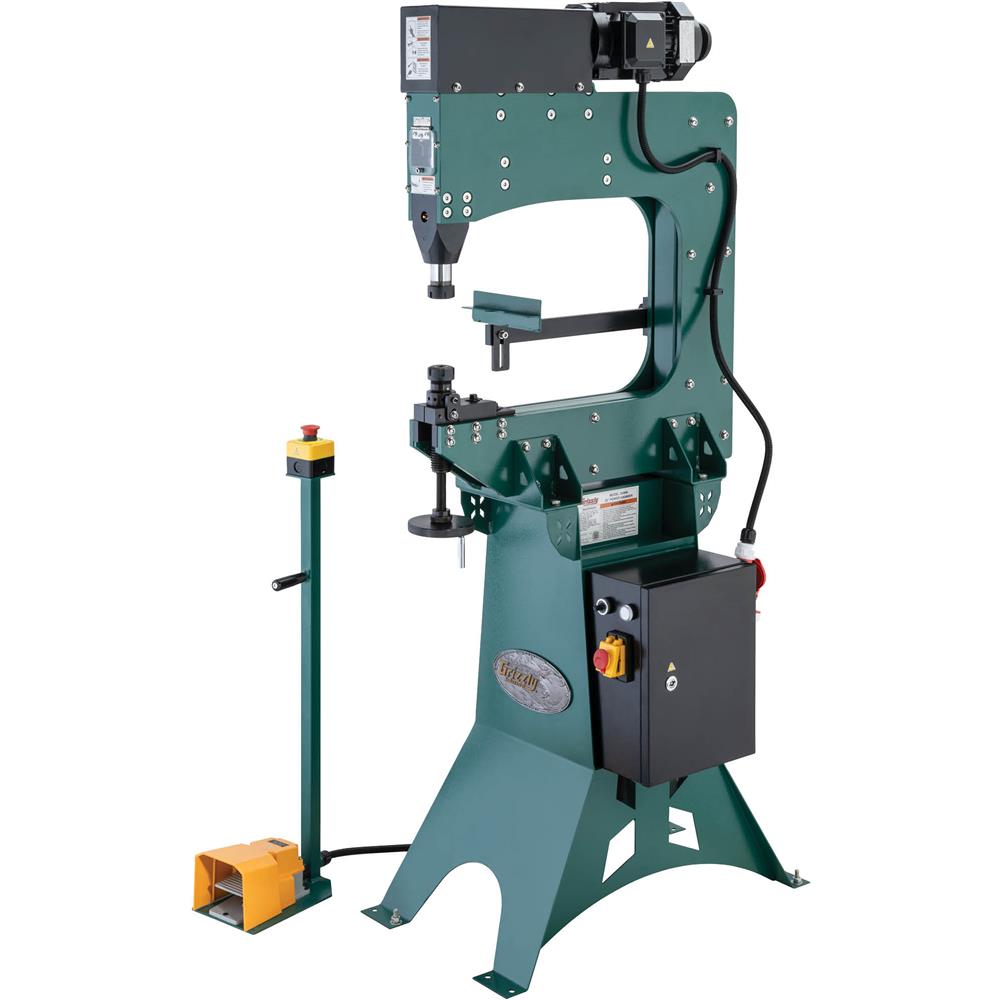

The Grizzly G0996 Power Hammer is a 22-inch throat-depth metal-forming machine built for shaping, planishing, shrinking, beading, flanging, stretching, and more. Designed for heavy-duty sheet metal work, it delivers quiet, high-impact performance with variable speed control up to 960 blows per minute for accurate, repeatable results.
This machine handles material up to 16-gauge aluminum and 18-gauge mild steel, making it well suited for fabrication shops, restoration work, and advanced custom metal shaping. Dual hammer settings let you switch between rigid action for direct forming tasks and a dampened mode for finer finishing and specialty processes.
A large assortment of included steel and nylon dies expands its capabilities right out of the box, while the collet chuck and universal holders make tooling changes fast and allow custom tooling creation. With reinforced steel construction, foot and panel speed control, and an adjustable backstop for straight or curved work, it is a strong choice for automotive, aviation, and industrial metalworkers.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features

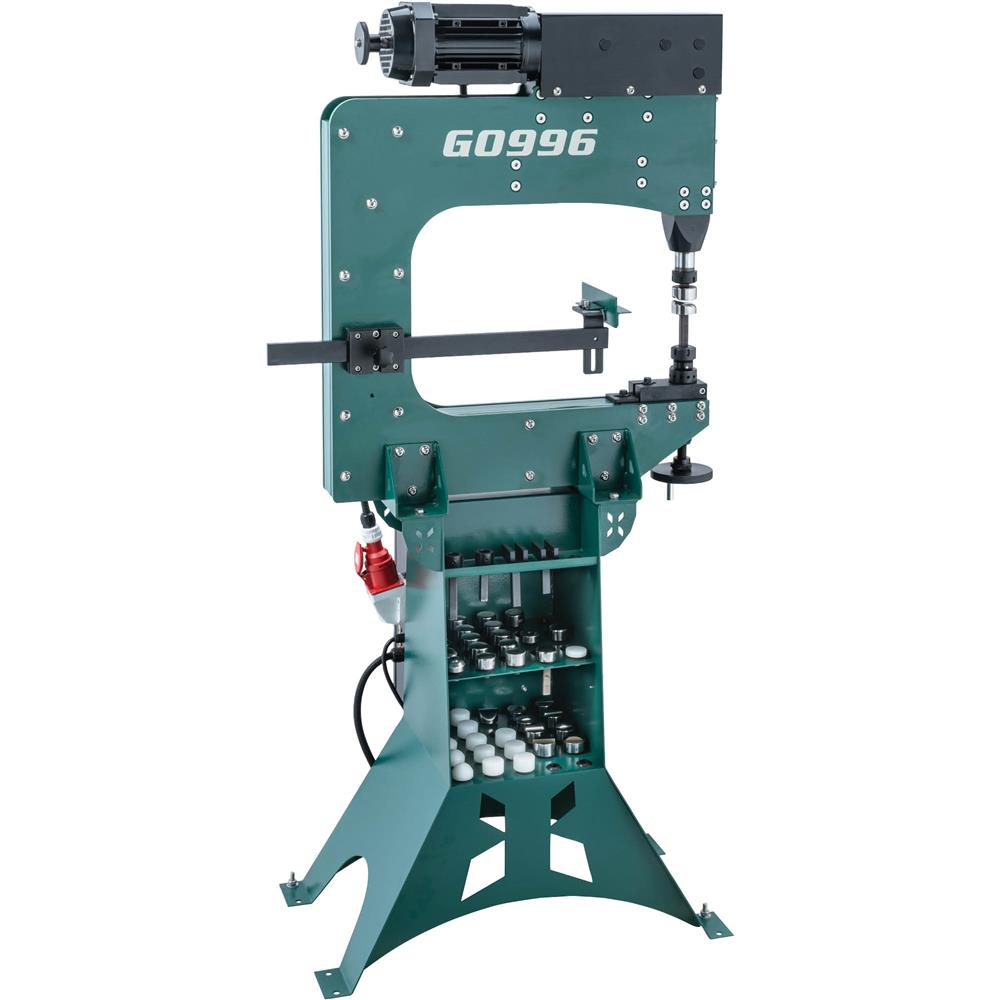

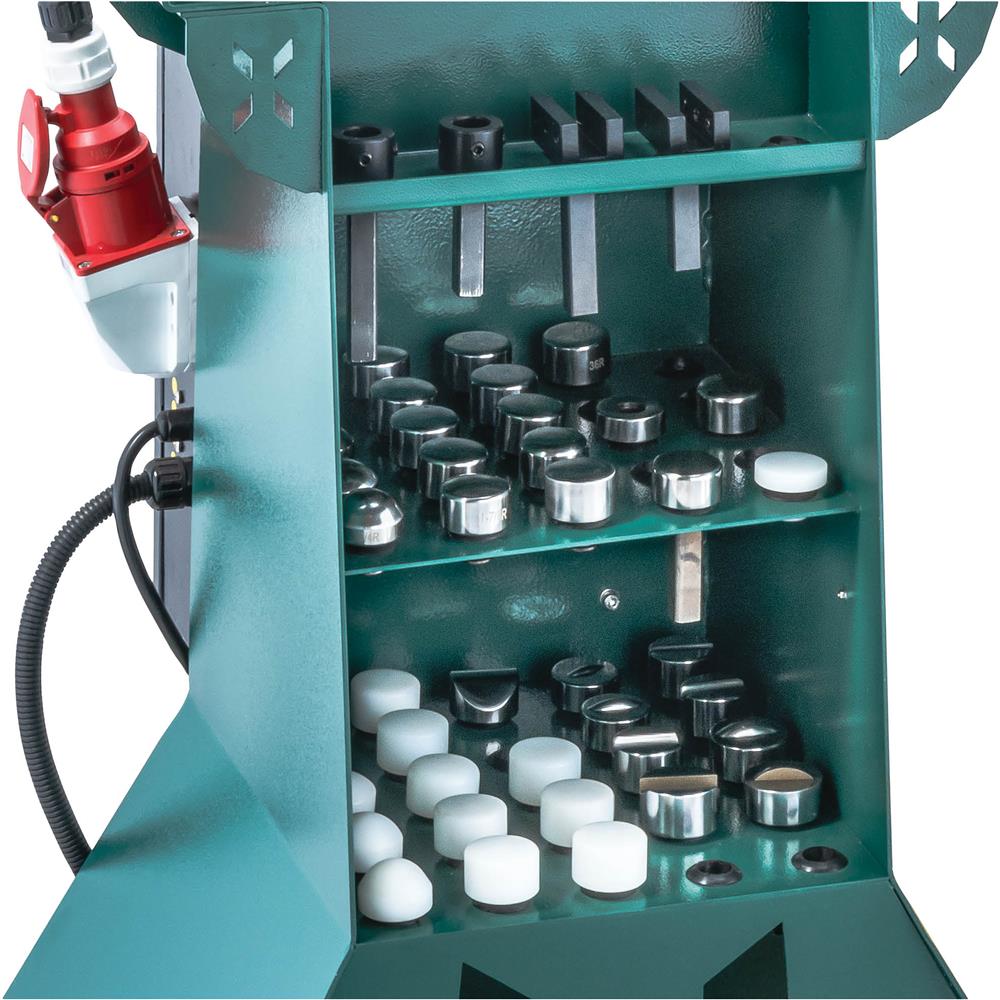

- Die Options: Several die types provide flexibility and are easy to access with storage in the machine's base.

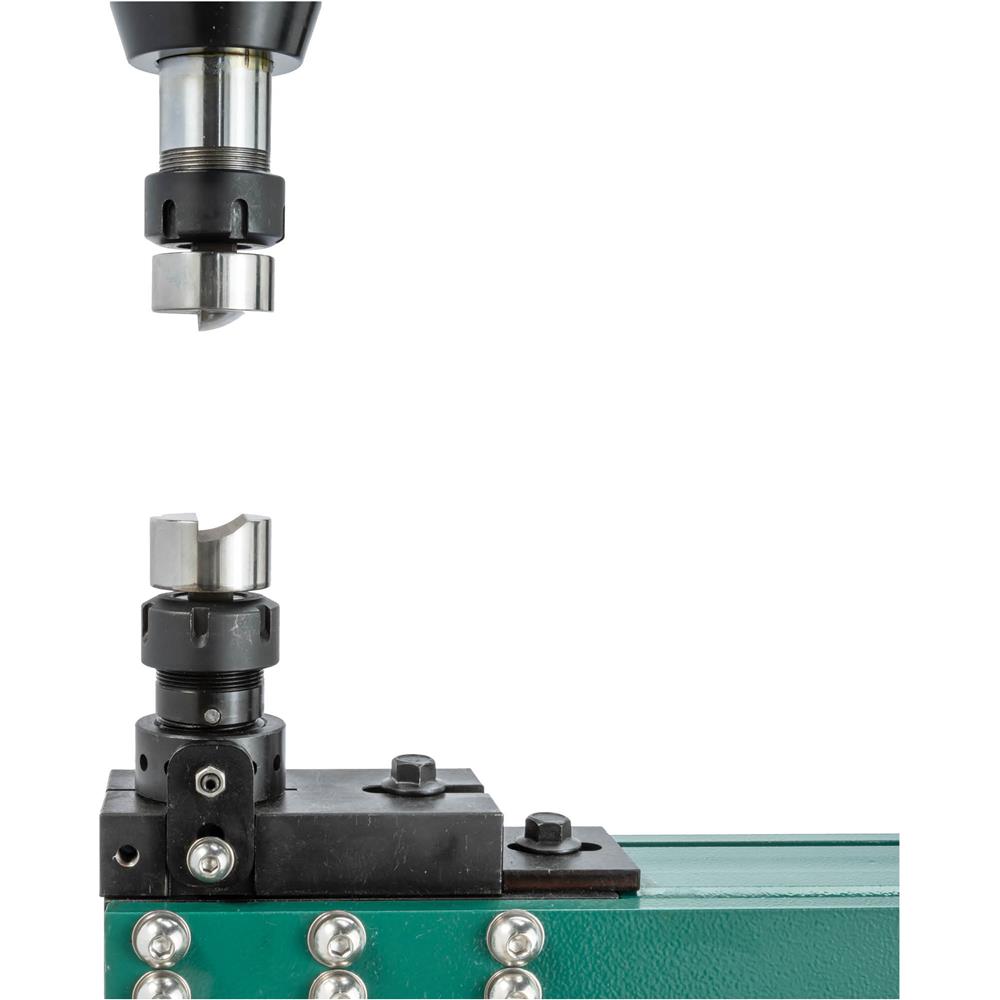

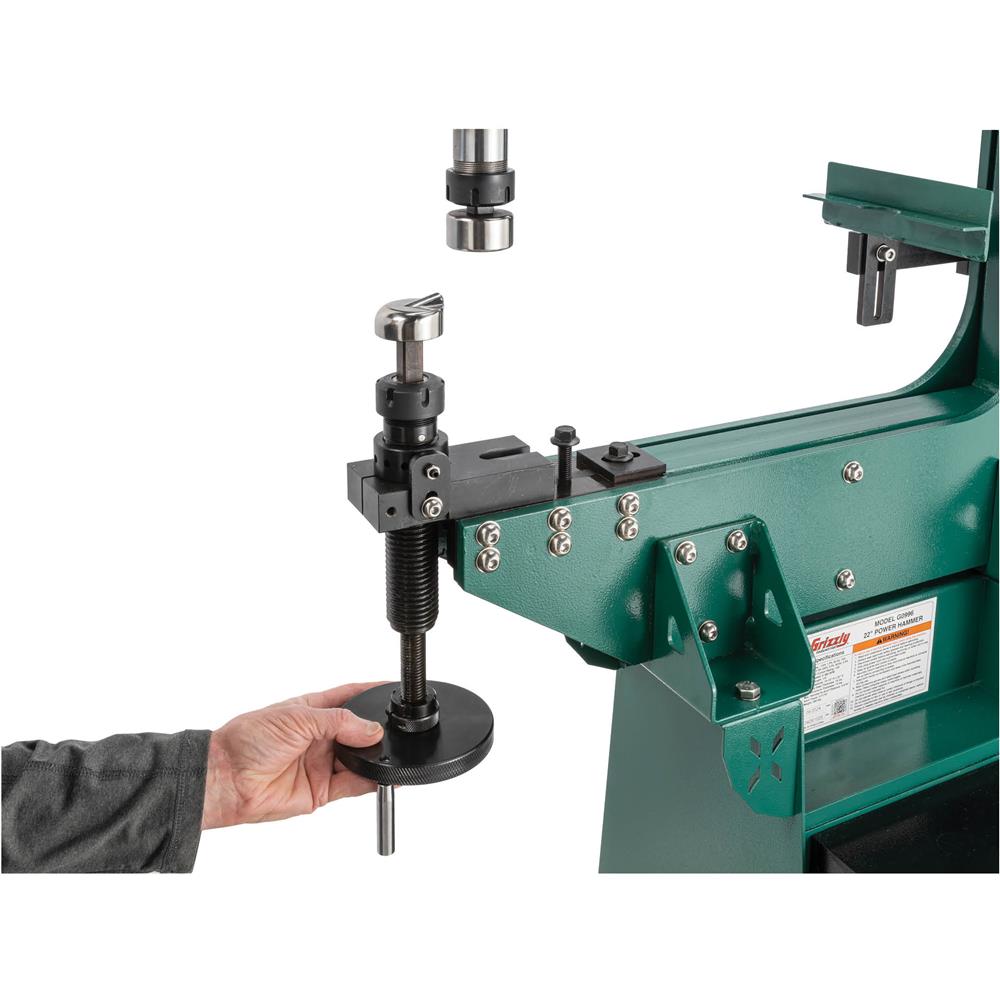

- Customizable Tooling: Develop nearly any shape of tooling and use with universal tool holders that allow quick changes.
- Dual Hammer Settings: The rigid setting lets you keep an exact depth for uniform processes, and the dampened setting for more customization.

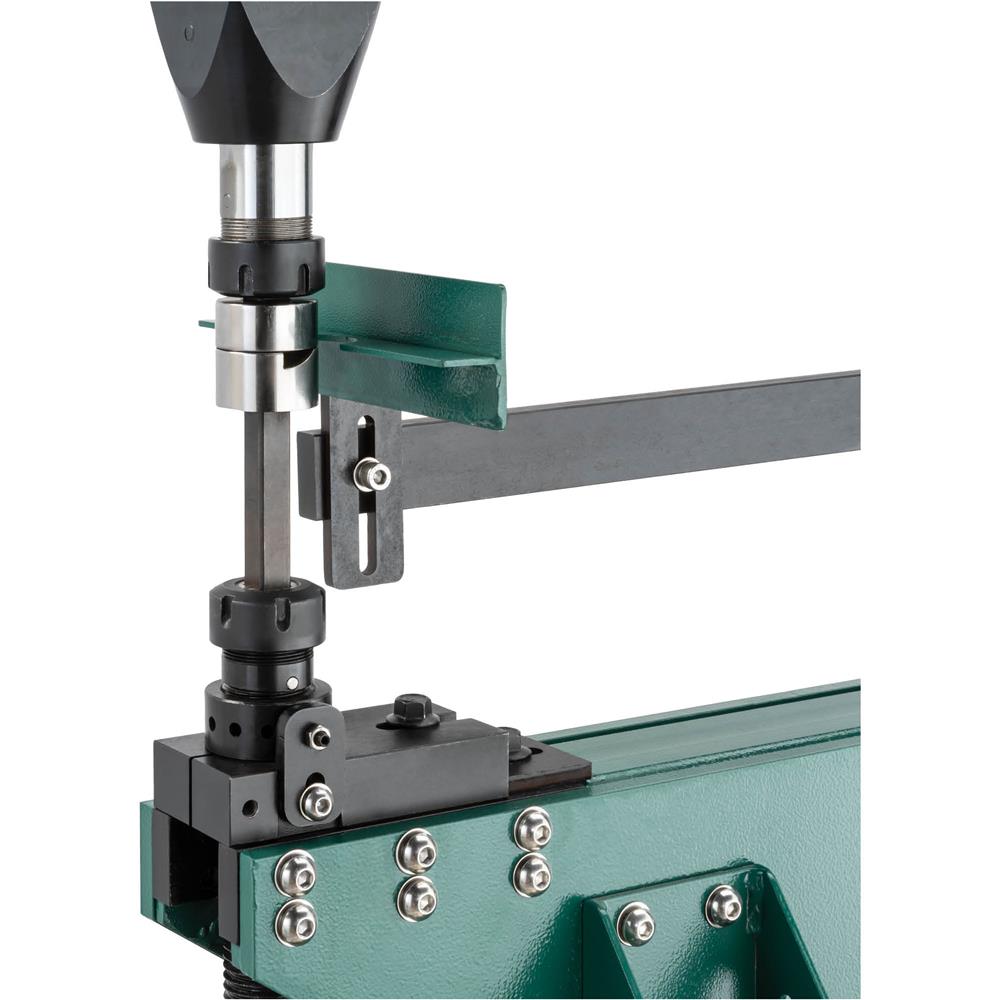

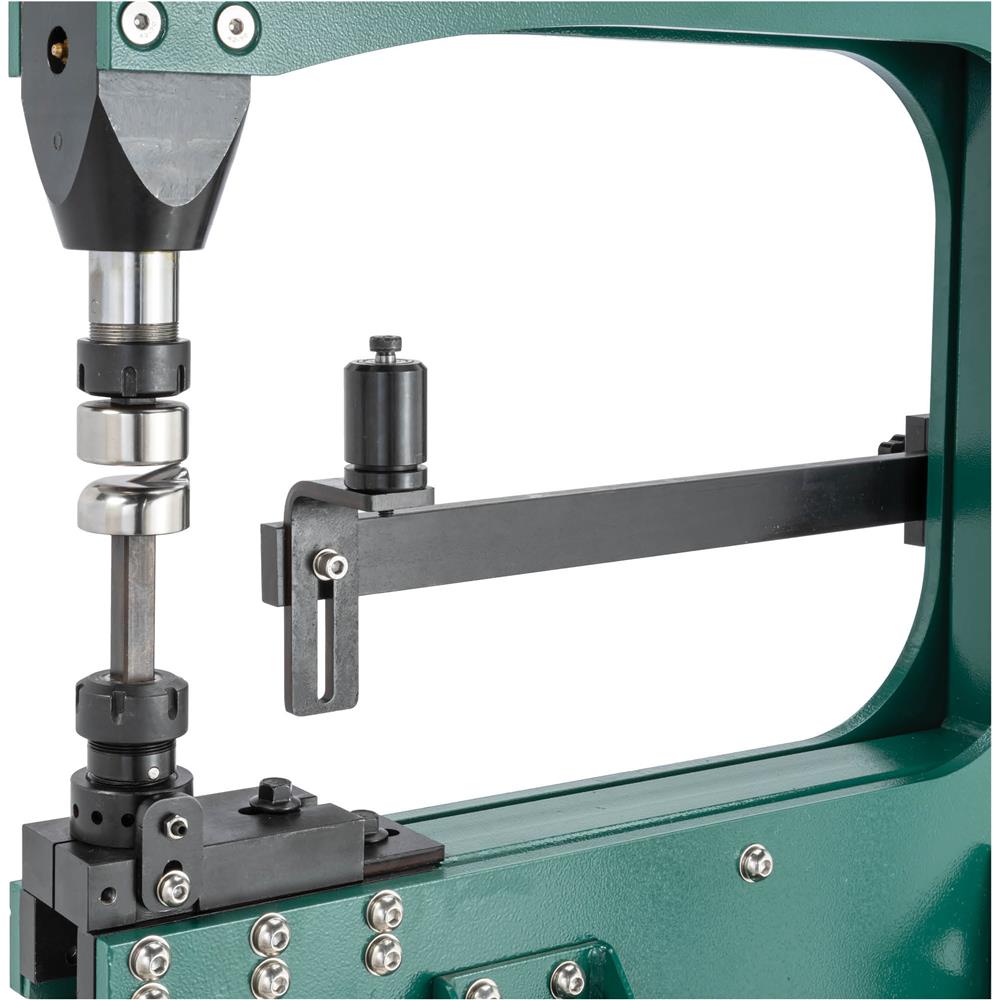

- Adjustable Backstop: Use it fixed for straight edges and with the roller for convex or concave curves.
- Variable Frequency Drive: VFD for smooth, high-torque variable speed using single-phase power.

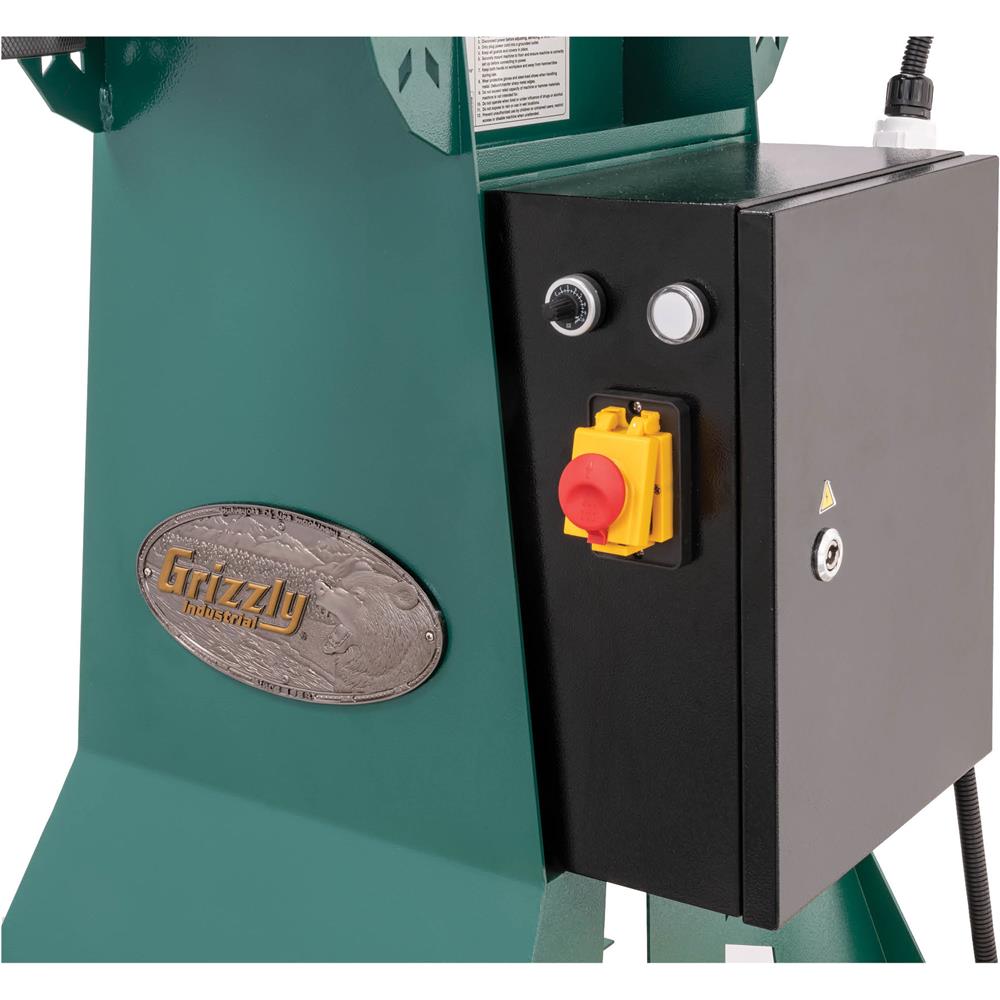

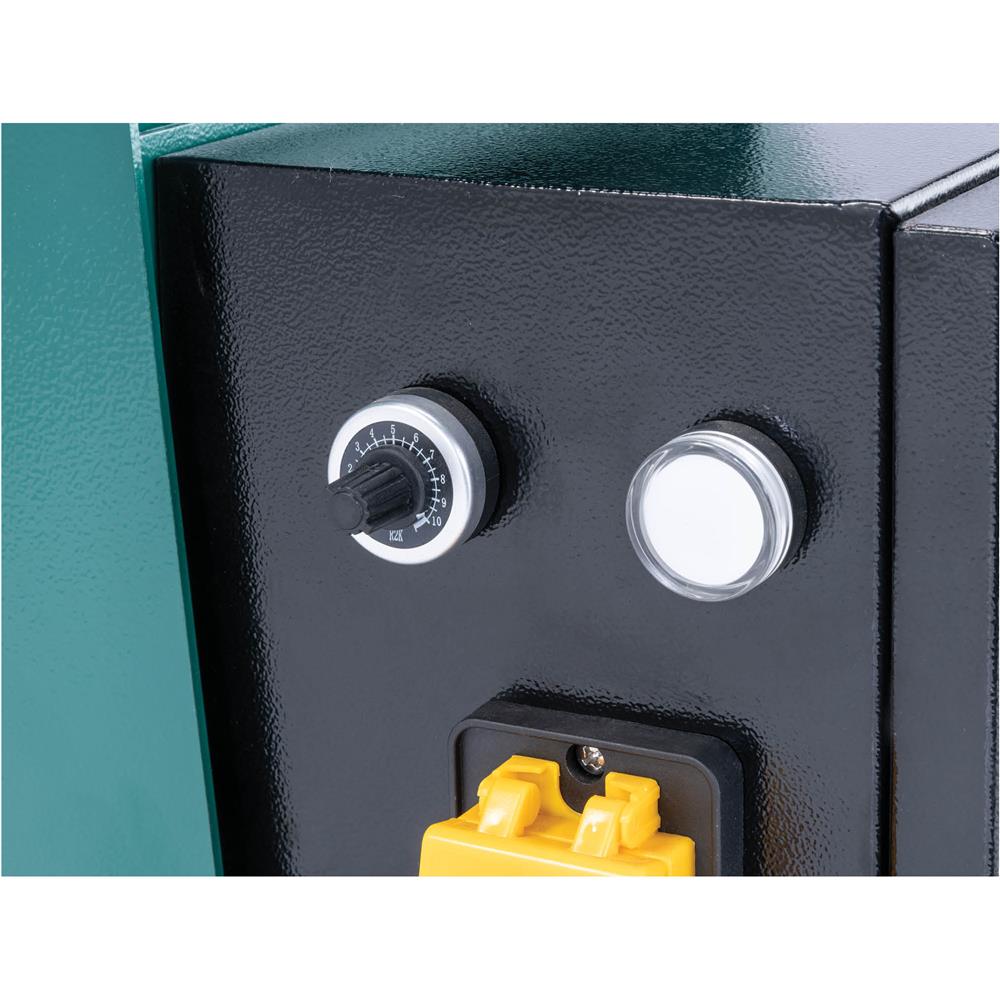

- Variable Stroke Speed: Easily adjust stroke speed via pedal or panel knob for exceptional end results.

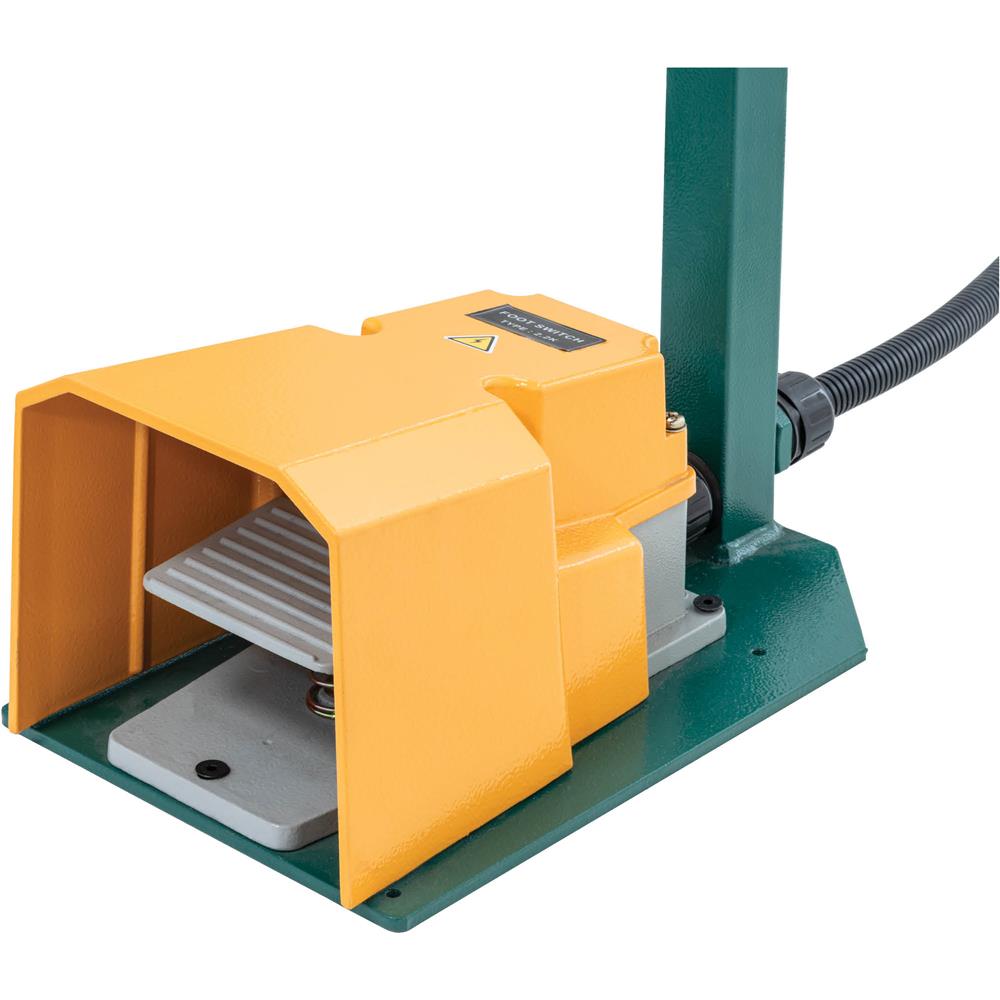

- Speed Controls: Conveniently operate the machine with mobile foot controls that include an emergency stop, or via the panel knob.
- Steel Construction: The reinforced steel upper and lower frames provide the stability you need for intensive metal shaping.
Specifications
| Required power source | 110V, single-phase, min. 15A circuit |
| Motor | 1-1/2 HP, 110V |
| Throat height | 15-1/2" |
| Throat depth | 22" |
| Max. distance between hammer & anvil | 5-1/8" |
| Max. aluminum thickness | 16-Gauge |
| Max. mild steel thickness | 18-Gauge |
| Stroke speed (blows per minute) | Variable, 0-960 BPM |
| Stroke length | 1/4" |

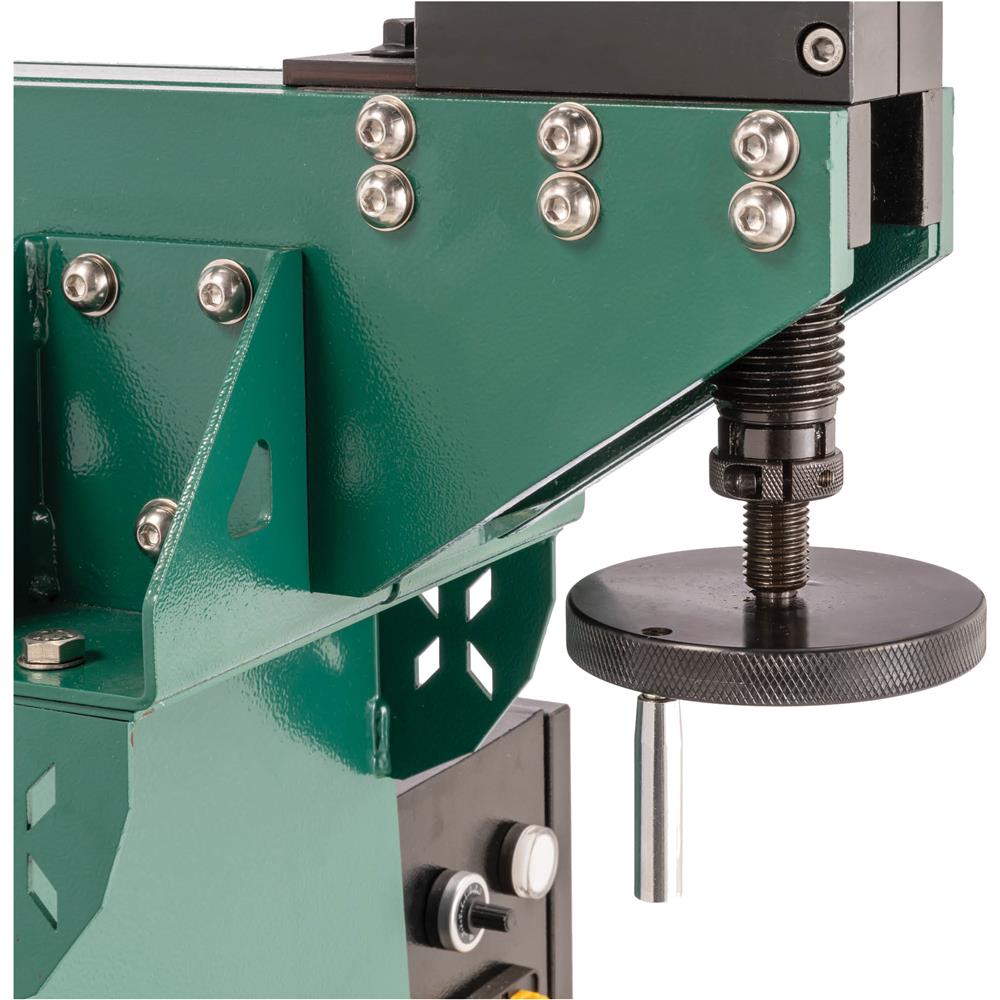

| Anvil travel | 3-5/8" |
| Overall dimensions | 21-1/2" x 49" x 71" |
| Approximate shipping weight | 450 lbs. |
Warranty
This item comes with a 1 year factory warranty.
