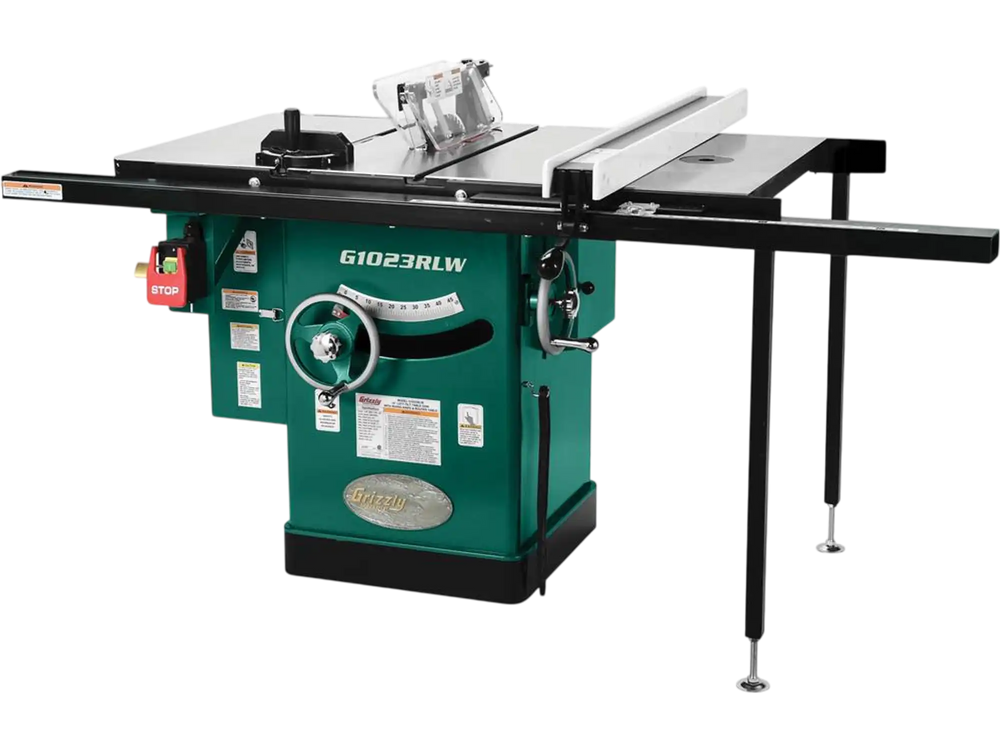

Grizzly G1023RLW Table Saw 10" 3 HP 240V Cabinet Saw with Built-in Router Table New
Product Overview

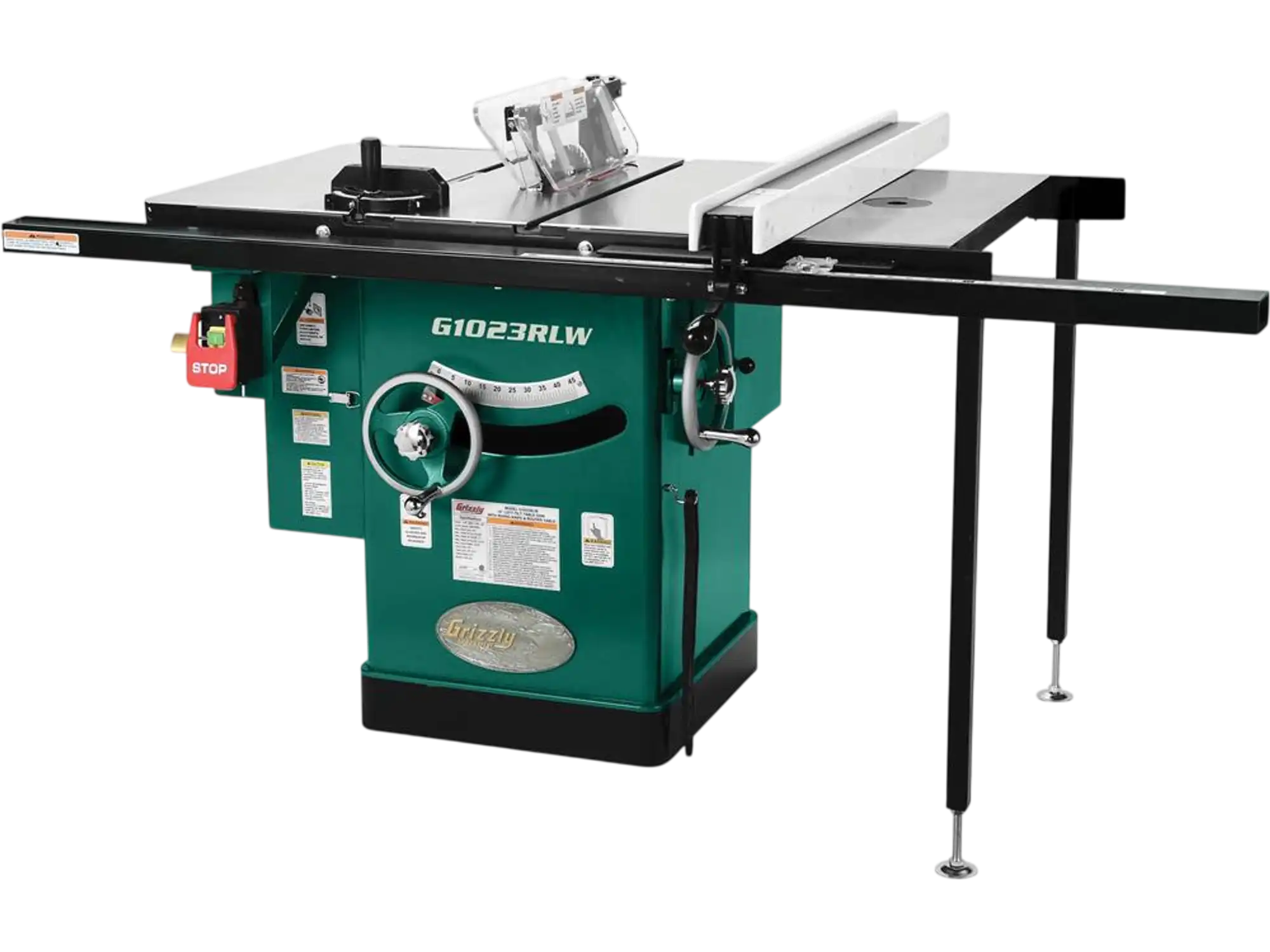

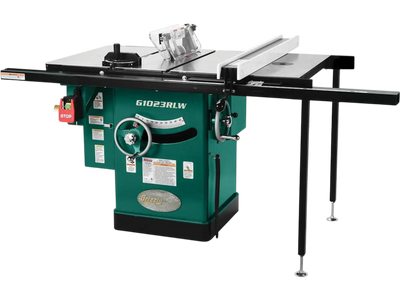

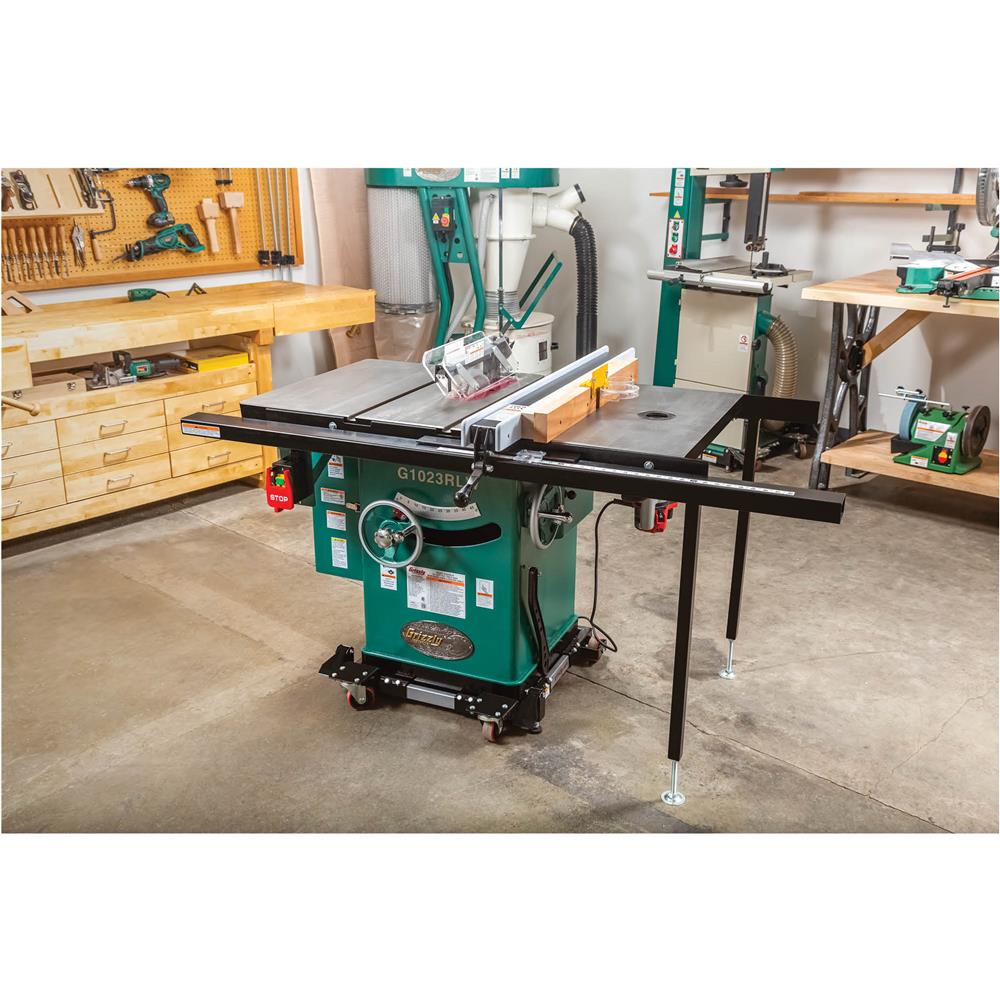

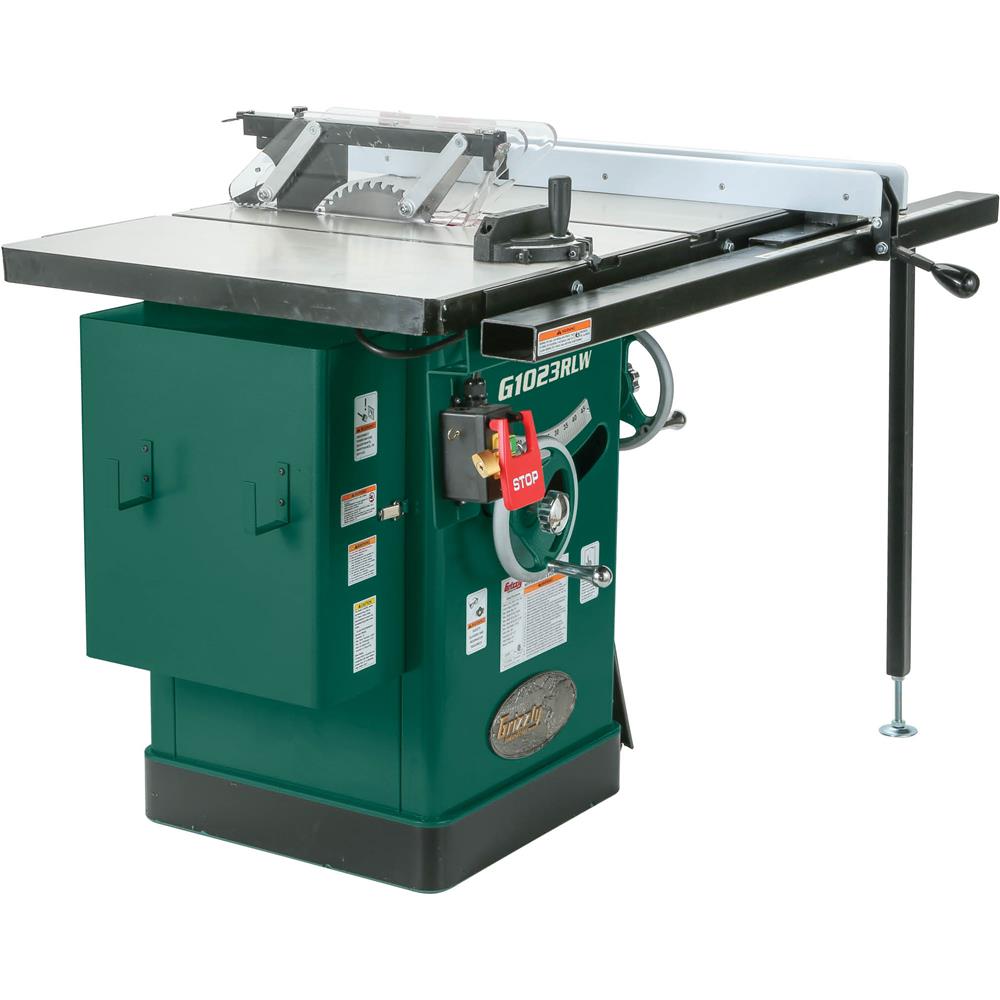

The Grizzly G1023RLW is a 10-inch cabinet table saw with a powerful 3 HP, 240V motor and a built-in cast-iron router table extension. Designed to combine two essential shop tools in one footprint, it offers the stability, cutting power, and accuracy needed for serious woodworking.

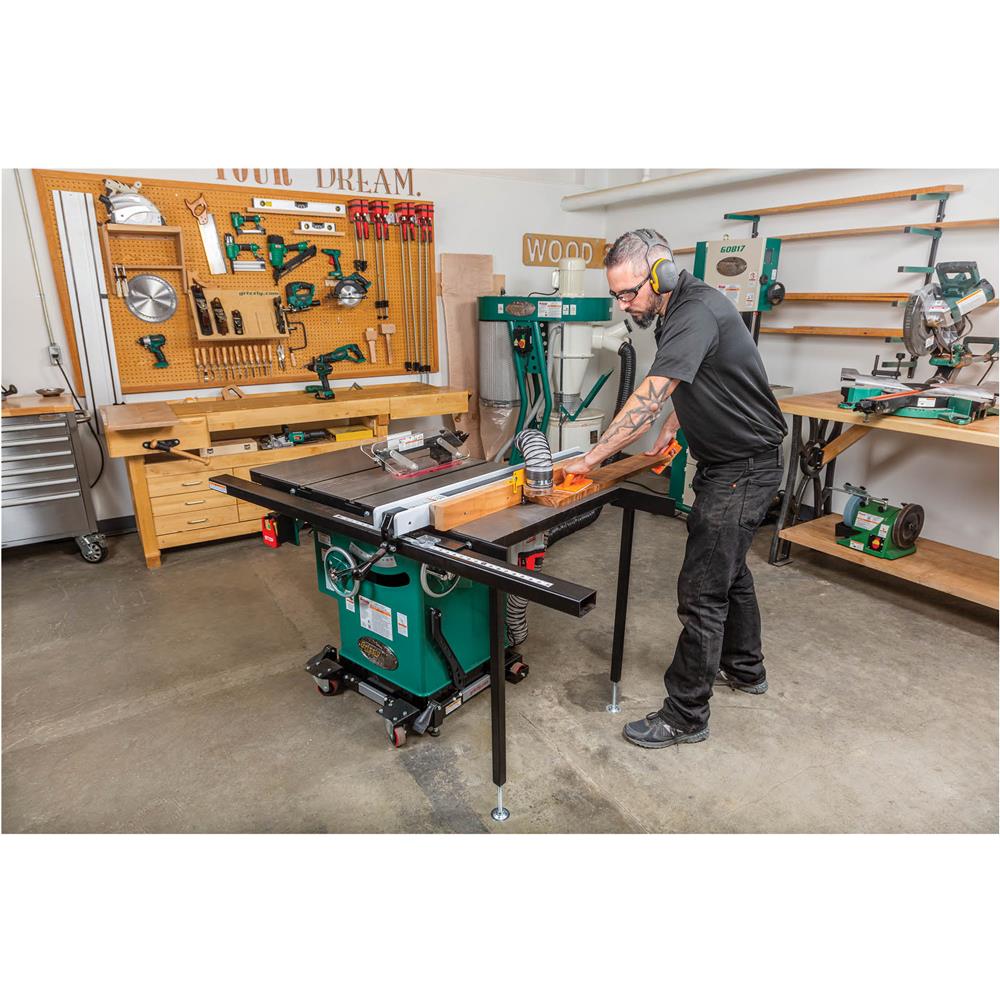

This model features a precision-ground cast-iron table, generous rip capacity, and a router table setup with universal T-track clamping for added versatility. The built-in router table also serves as an extension wing, making it especially useful for handling larger workpieces, cutting clean dadoes, and streamlining workflow in a busy shop.
With its heavy steel cabinet base, sealed ball-bearing construction, efficient belt drive, and effective dust collection design, this saw is built for consistent performance. It is a strong choice for dedicated hobbyists, custom furniture builders, and professional woodworkers who want cabinet saw capability with integrated routing functionality.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features

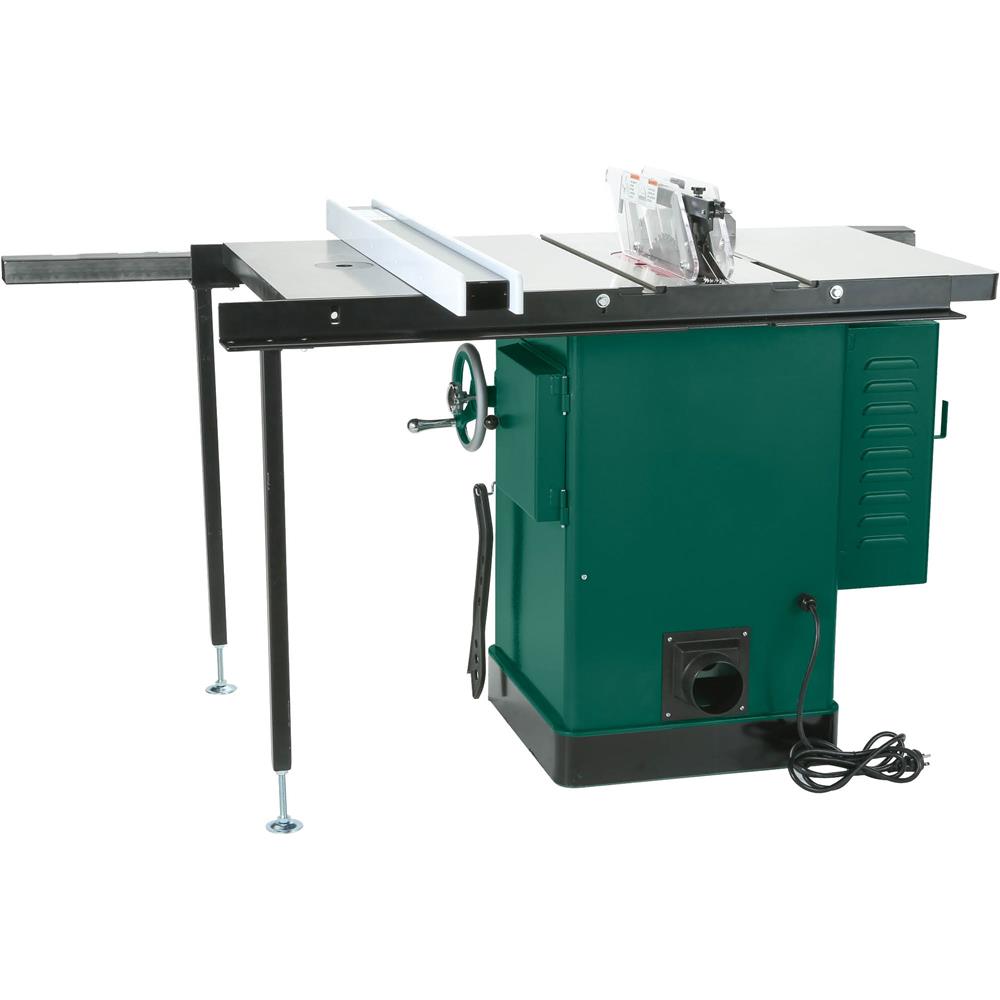

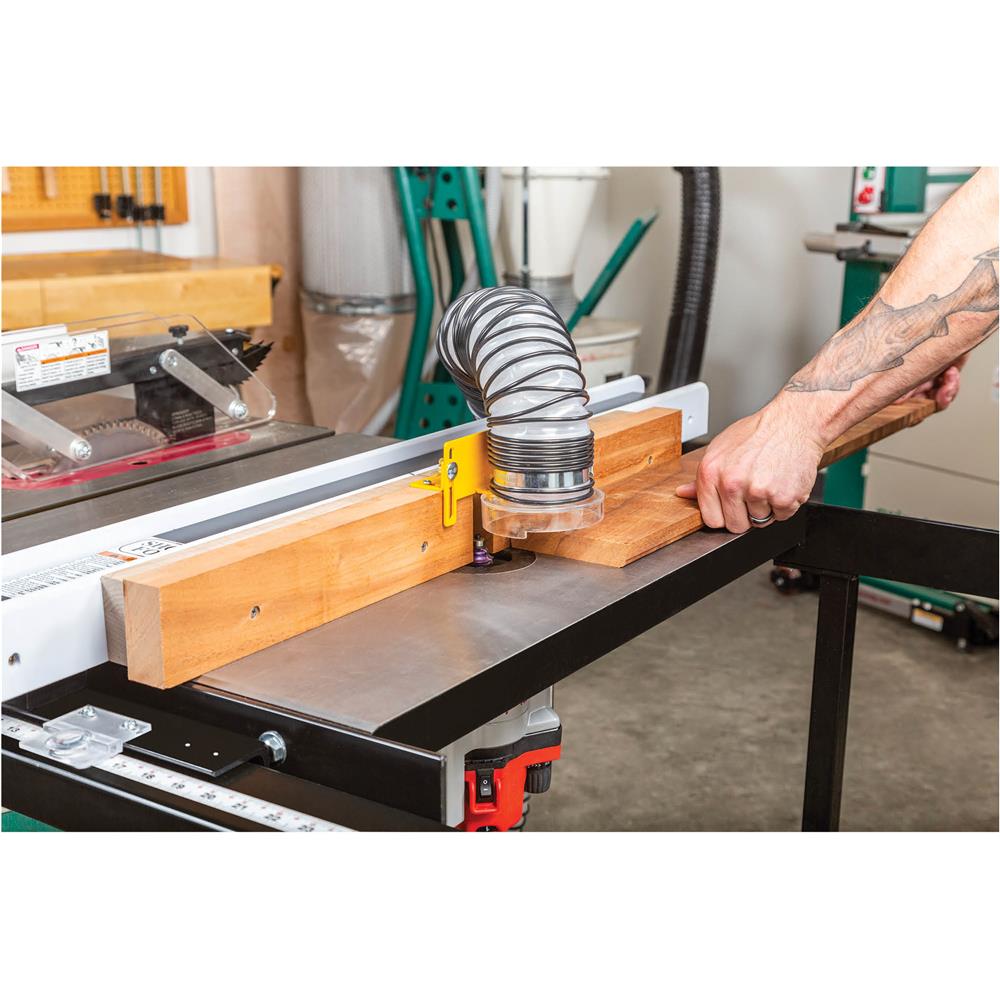

- Built-in cast-iron router table extension
- Precision-ground cast-iron table
- Universal T-track router clamping system

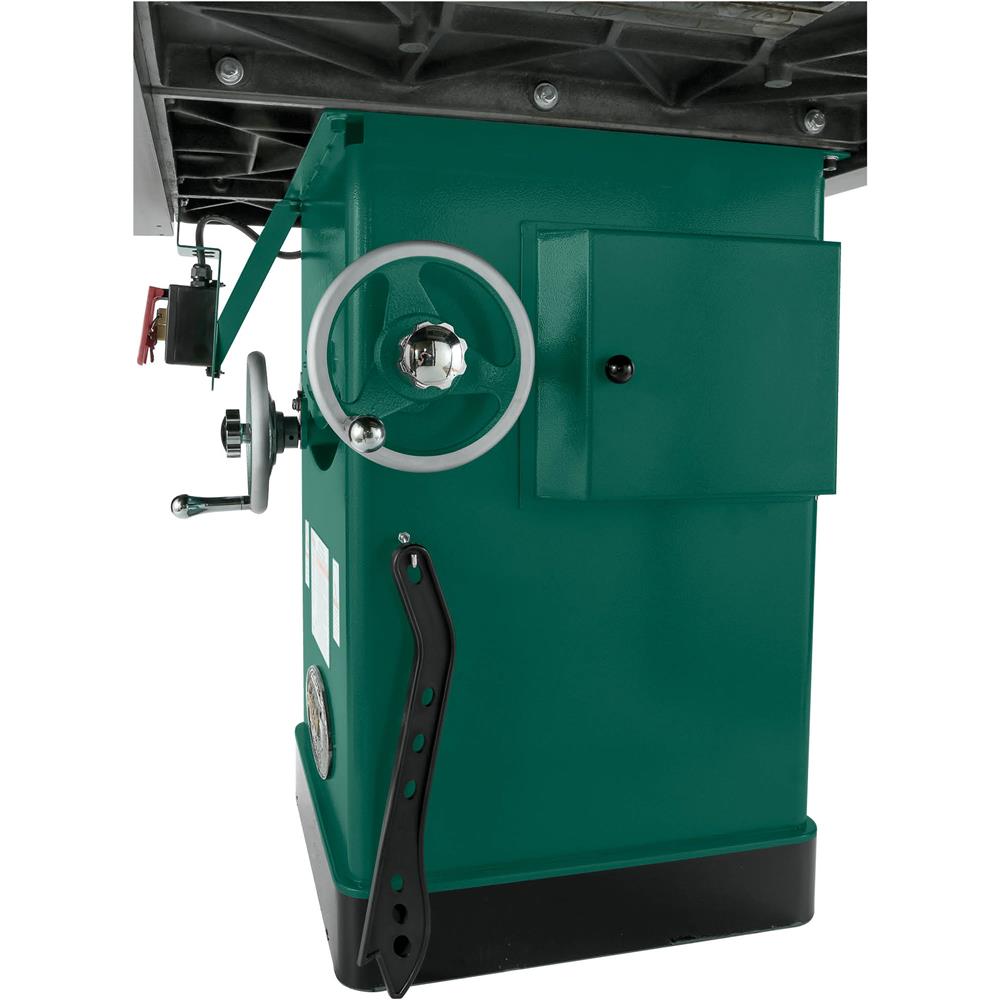

- Extra-large handwheels ease arbor movement

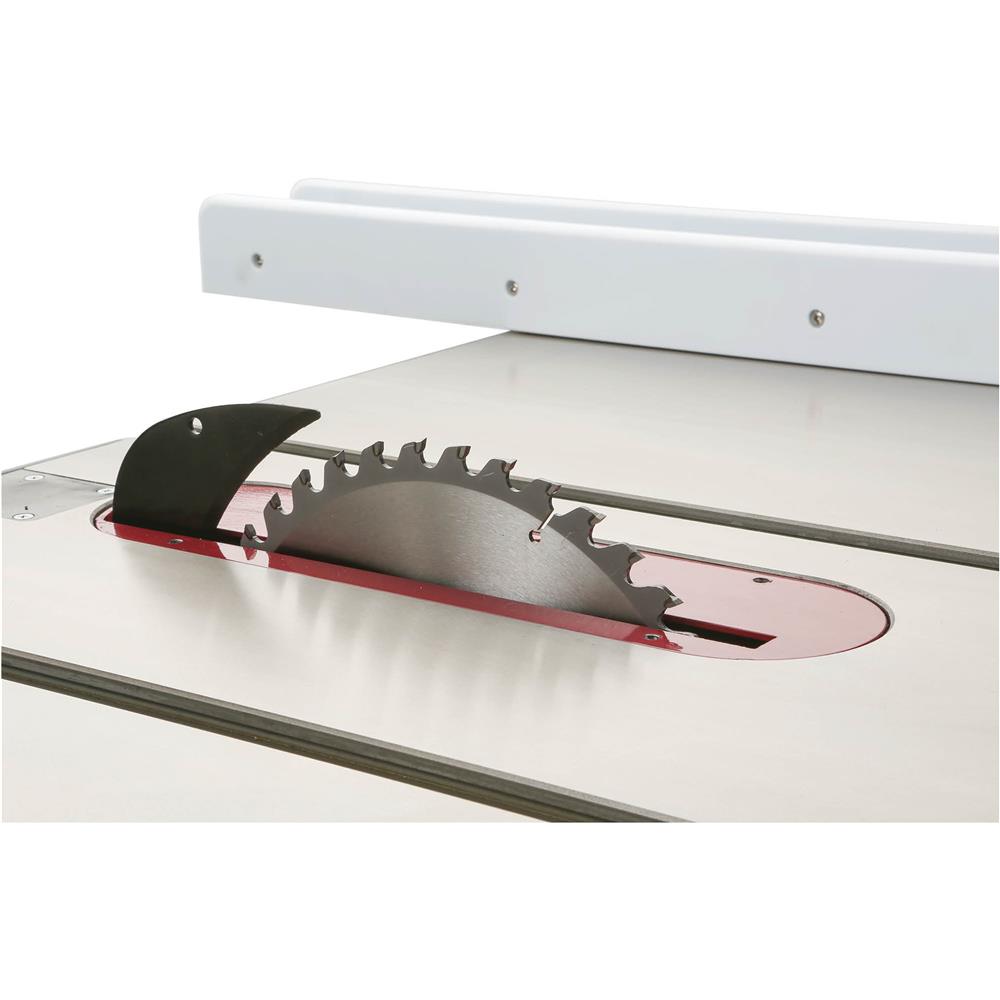

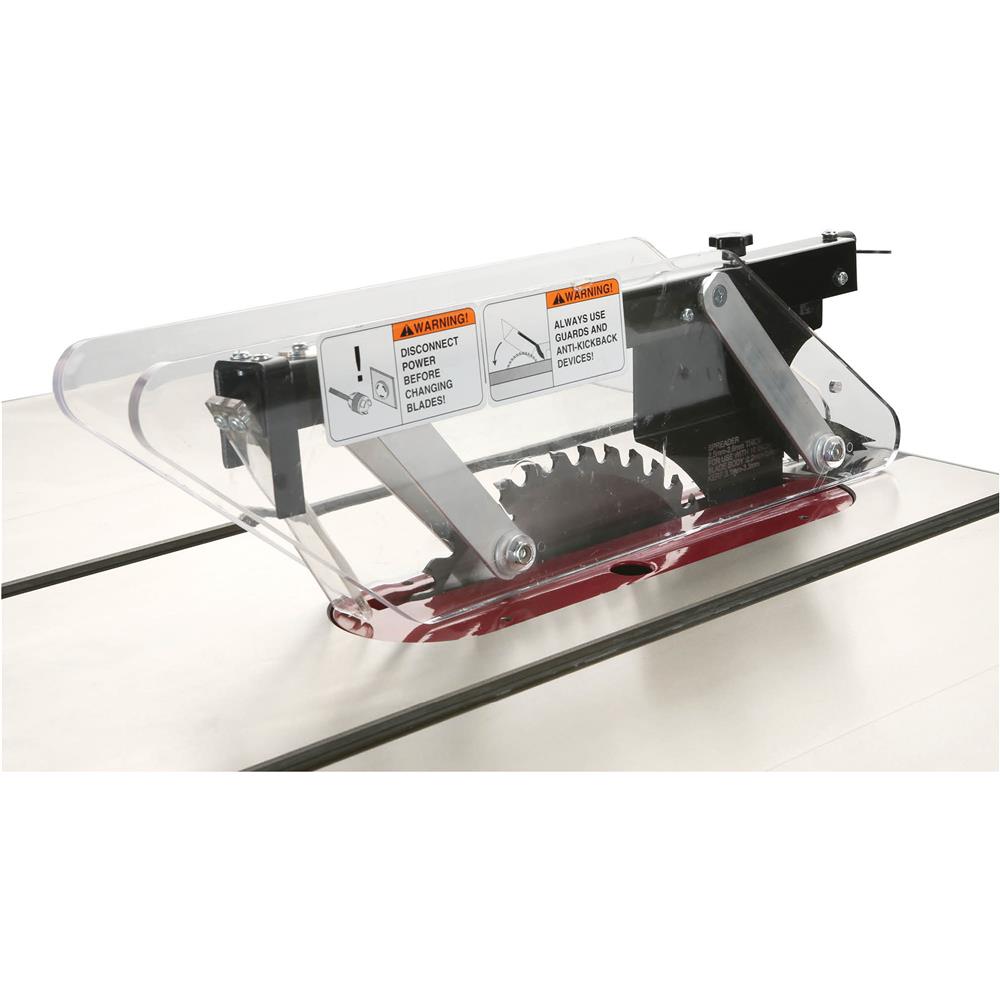

- Quick-change riving knife and blade guard
- 29mm and 60mm opening table inserts
- One-piece steel cabinet type stand

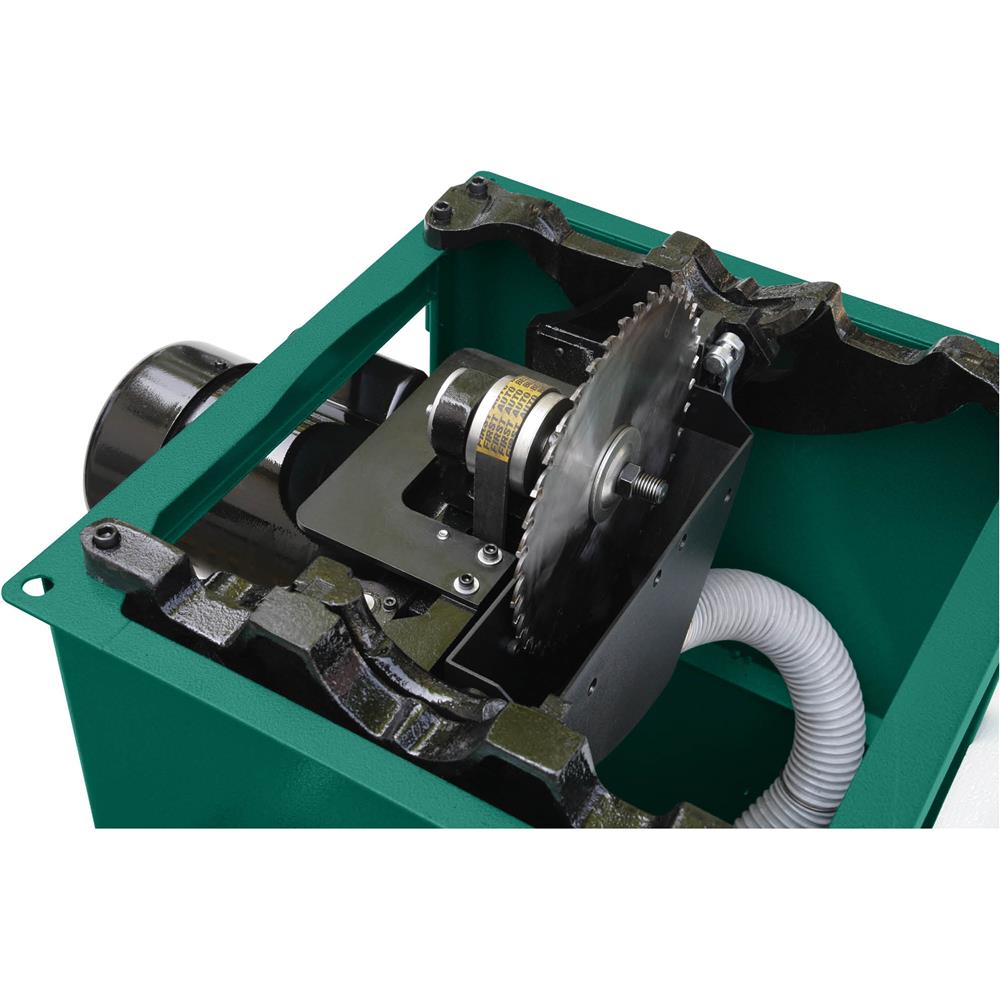

- All-sealed ball-bearing construction

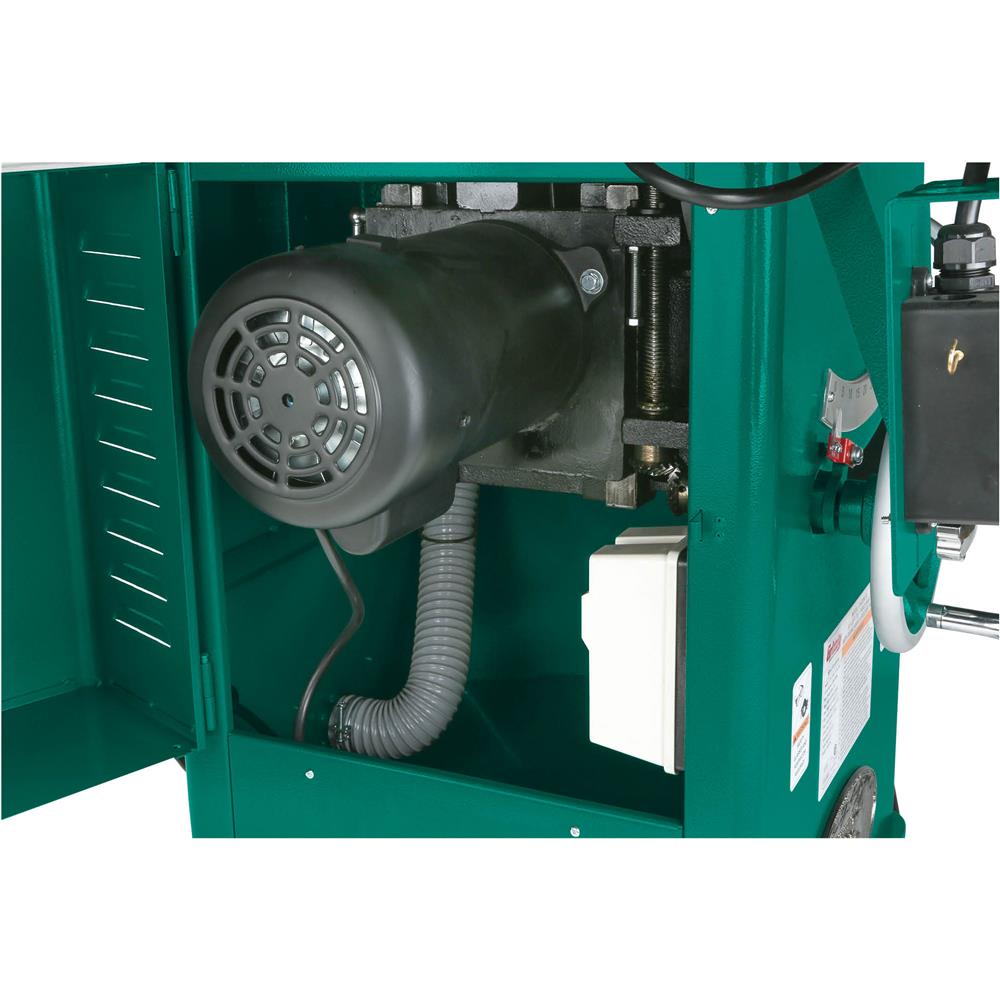

- Poly-V serpentine belt transfers power more efficiently and with less noise than standard V-belts
- Underside of blade encapsulated for superior dust collection
- 1-year limited warranty
Specifications
| Motor | 3 HP, 240V, single-phase, 14A |

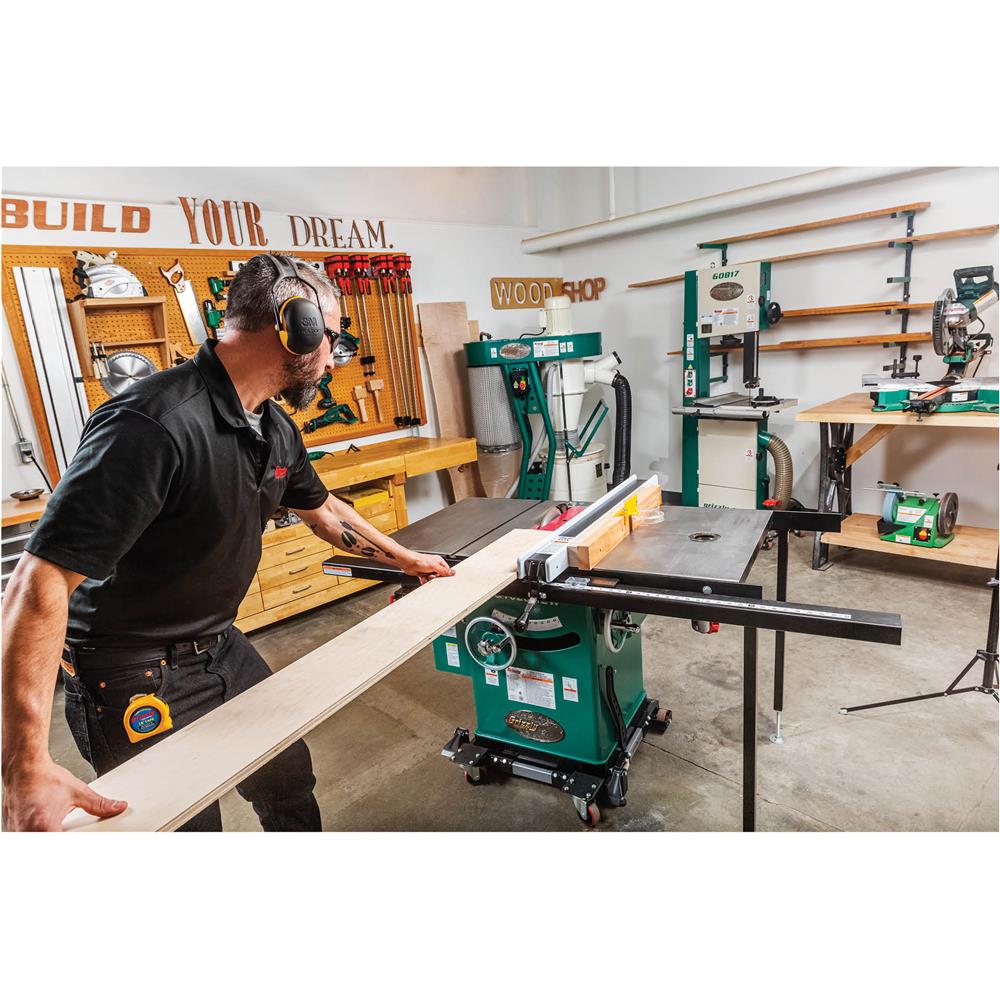

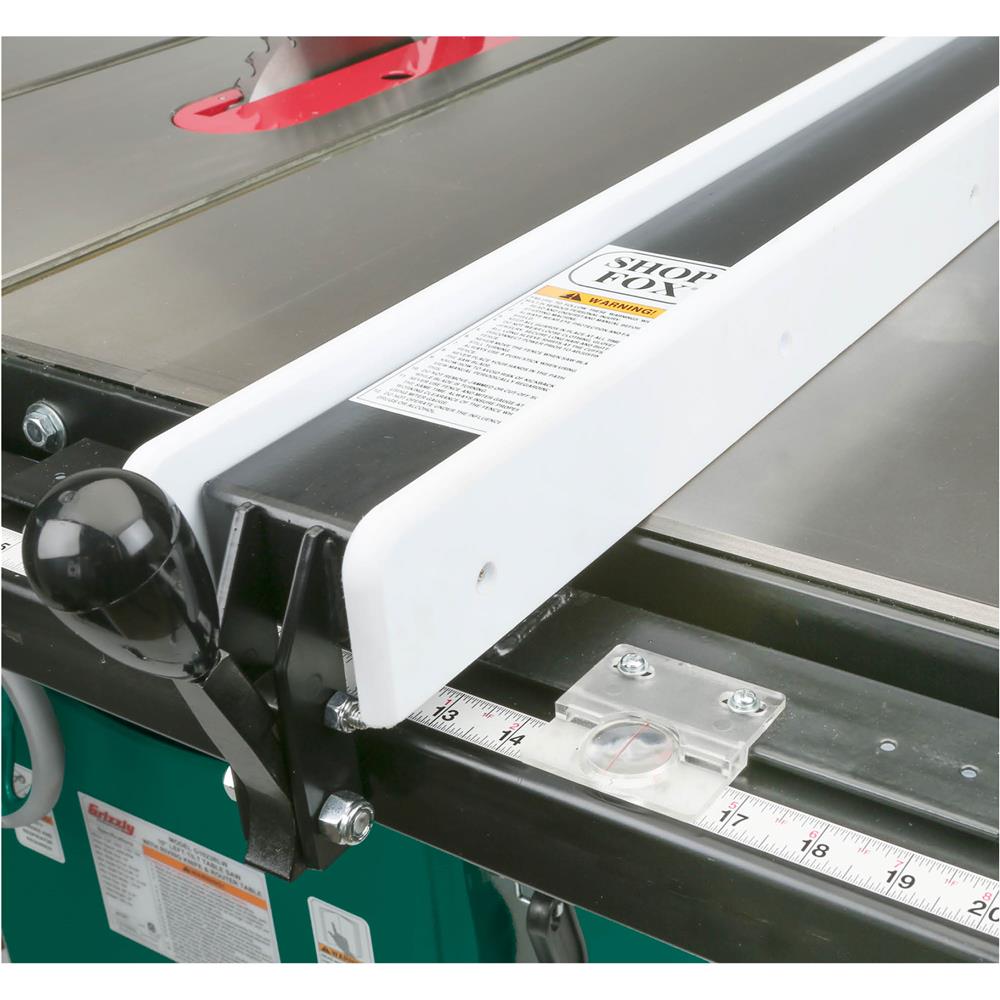

| Rip capacity | 32" right, 14" left of blade |
| Maximum depth of cut @ 90° | 3" |
| Maximum depth of cut @ 45° | 2-1/8" |
| Overall table dimensions | 48" W x 27" D |
| Distance from front of table to center of blade | 17" |
| Floor-to-table height | 34" |
| Arbor diameter | 5/8" |
| Arbor speed | 4200 RPM |
| Maximum width of dado | 13/16" |

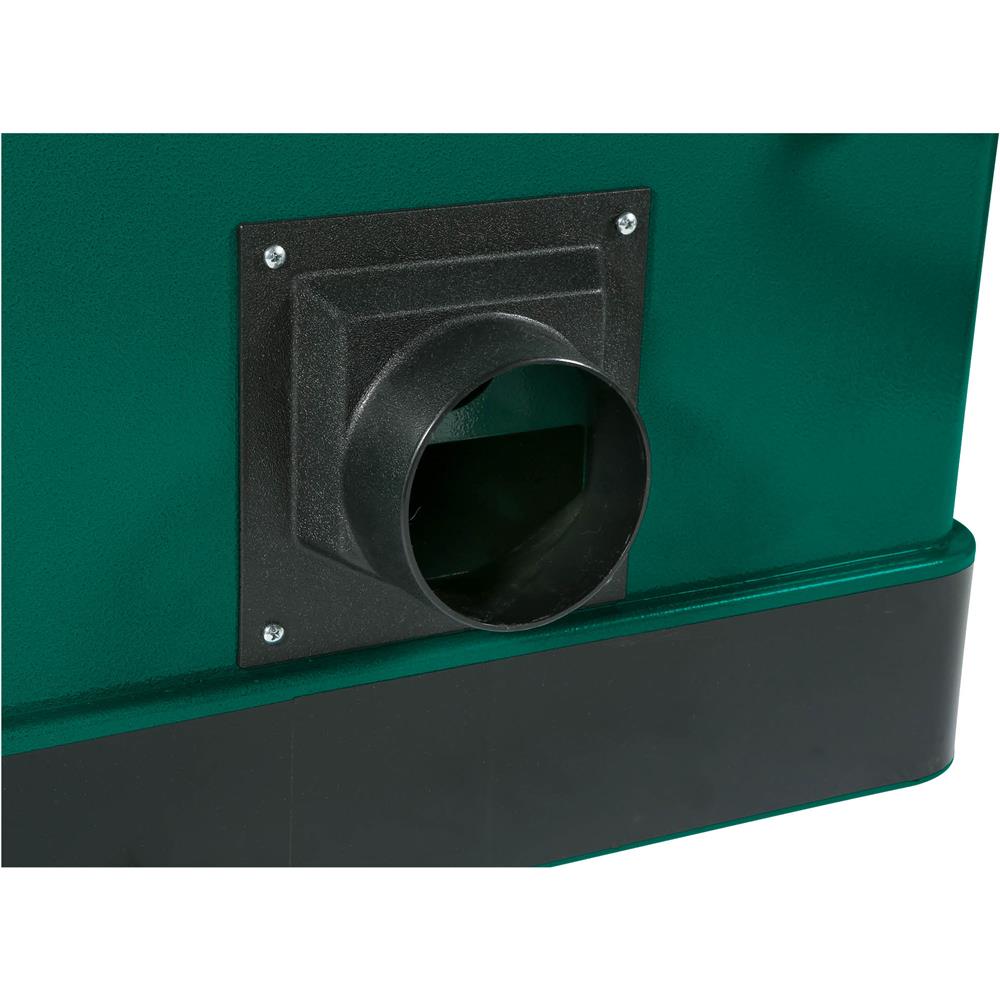

| Dust port size 4" | |
| Overall dimensions | 66" W x 47" D x 40" H |
| Footprint | 20-1/2" x 20-1/2" |
| Approximate shipping weight | 550 lbs. |
Warranty
This item comes with a 1 year factory warranty.
