Grizzly G1023RLWX Cabinet Table Saw 10" 5 HP 240V with Built-In Router Table New
Product Overview

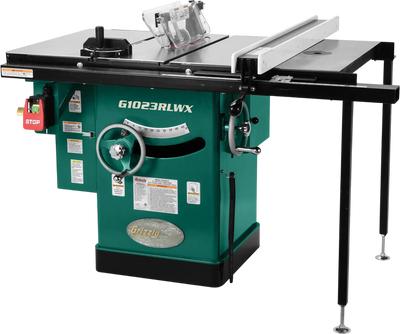

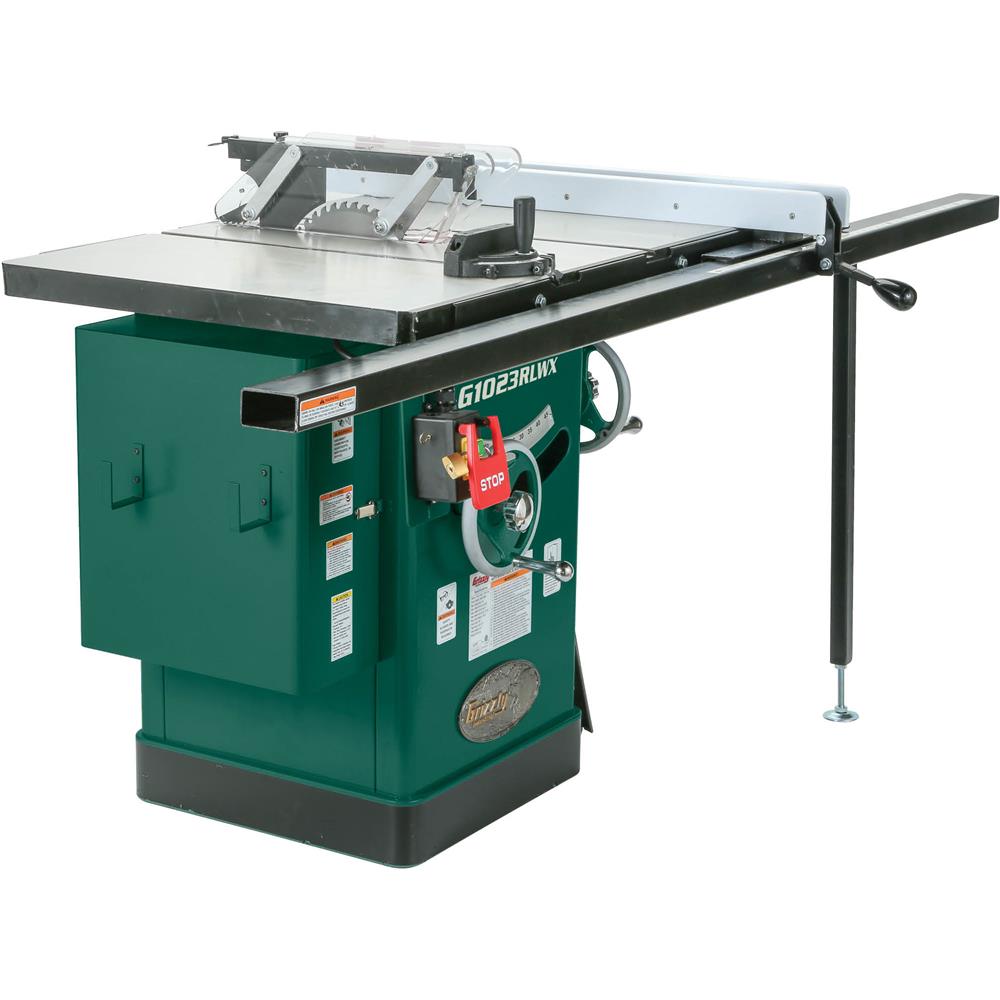

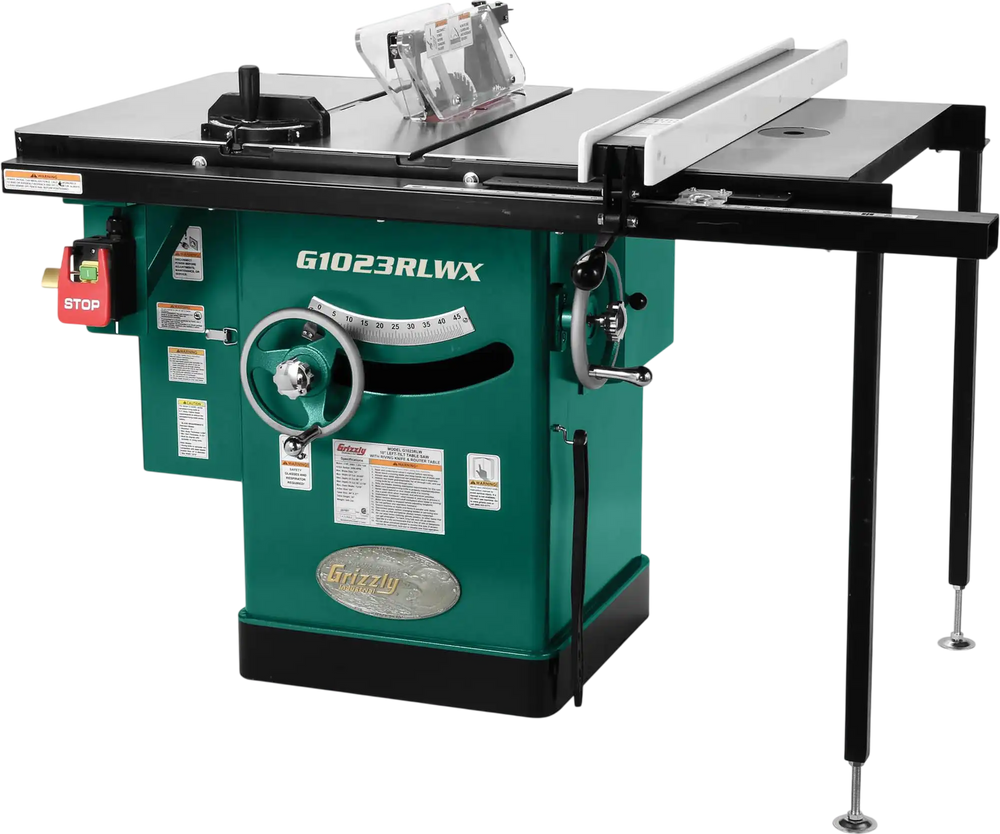

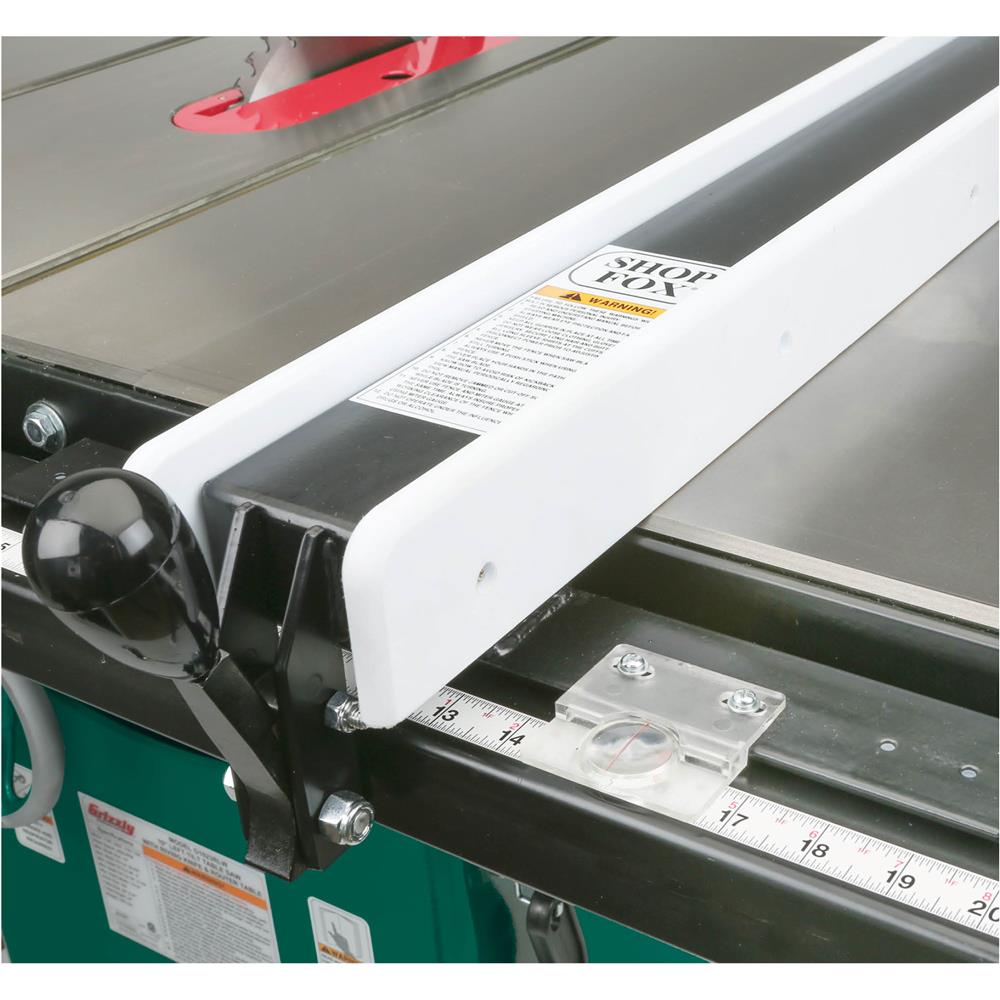

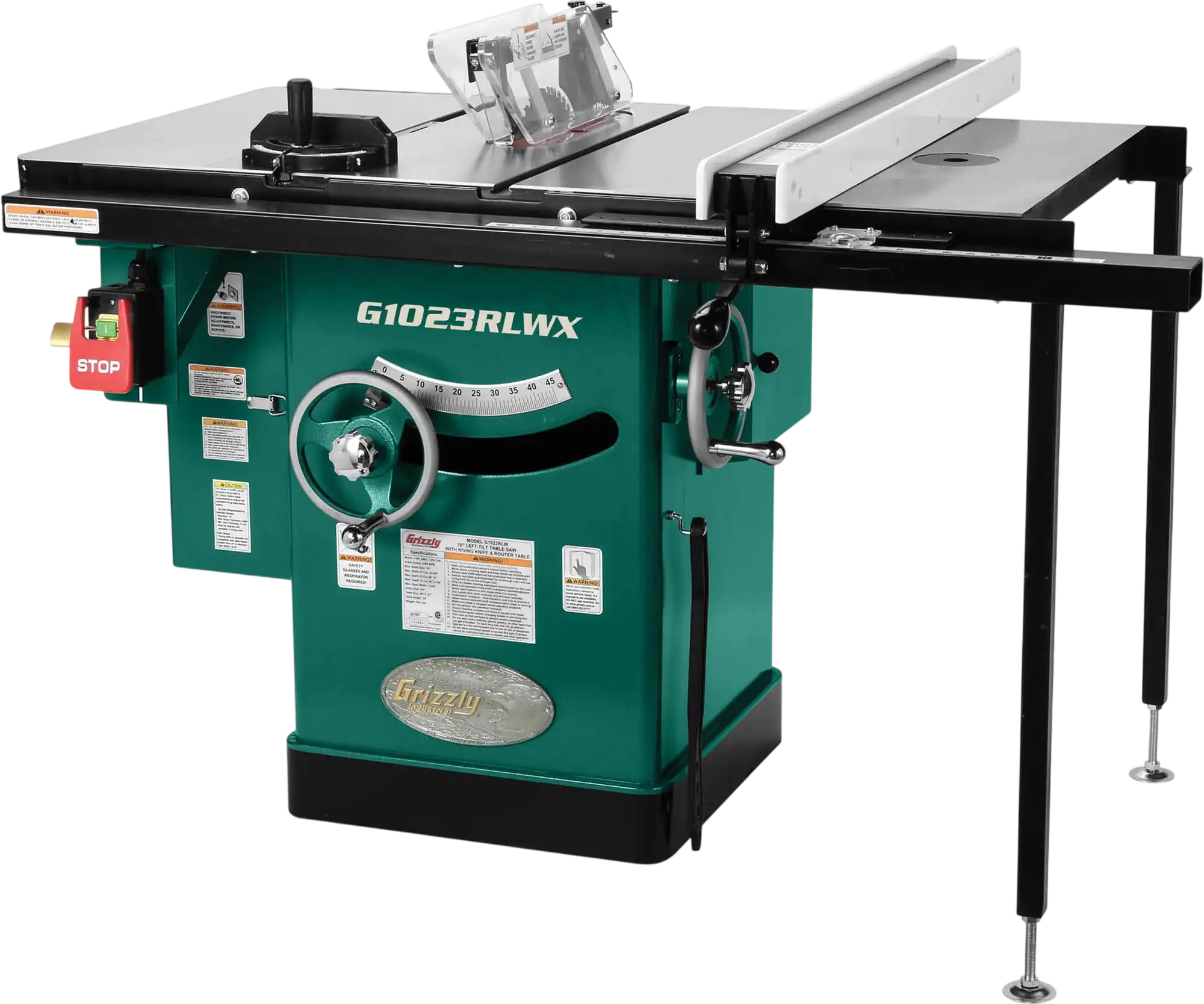

The Grizzly G1023RLWX is a stationary cabinet table saw with a built-in cast-iron router table extension for expanded shop versatility. It features a 5 HP single-phase motor, precision-ground cast-iron table surfaces, and a Shop Fox Classic fence system with 32" rip capacity to the right of the blade. Dust collection under the blade helps improve chip and dust removal during operation. This model is designed for serious woodworking applications that require power, accuracy, and integrated routing capability.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

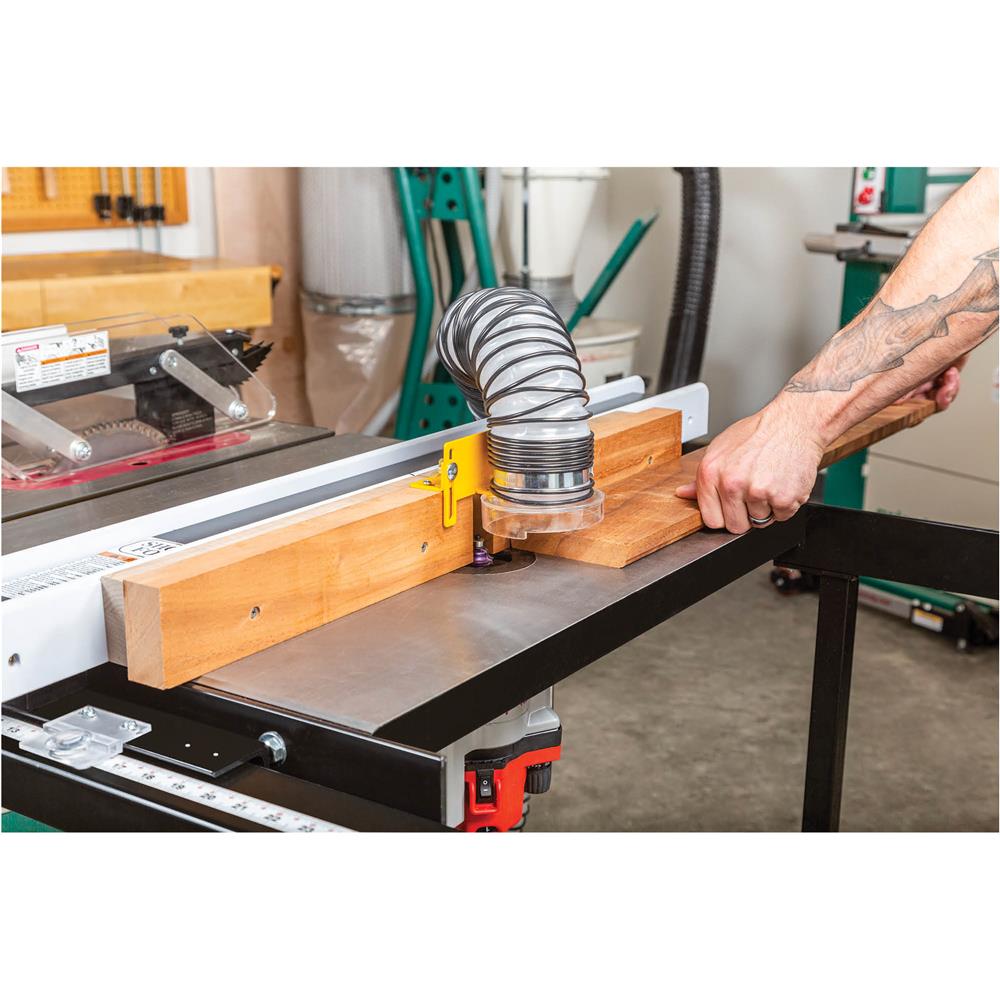

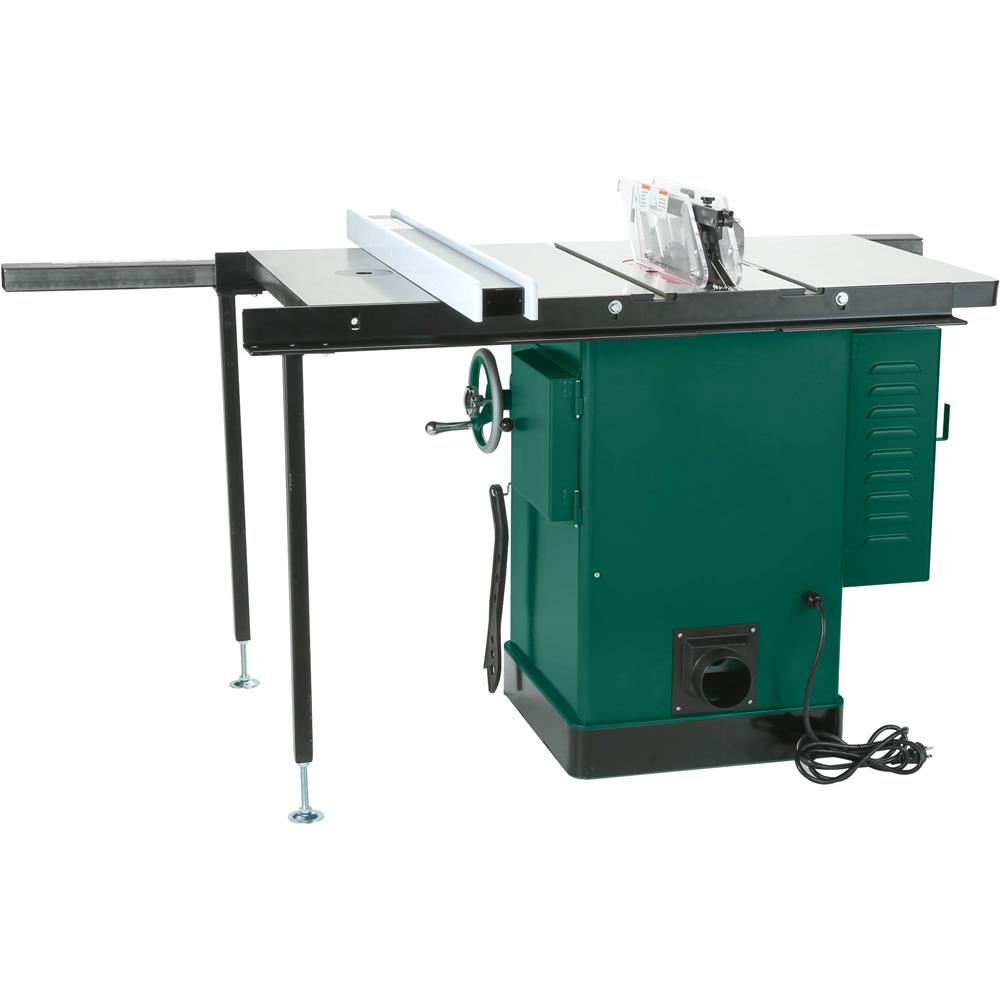

- Built-in cast-iron router table extension
- Precision-ground cast-iron table

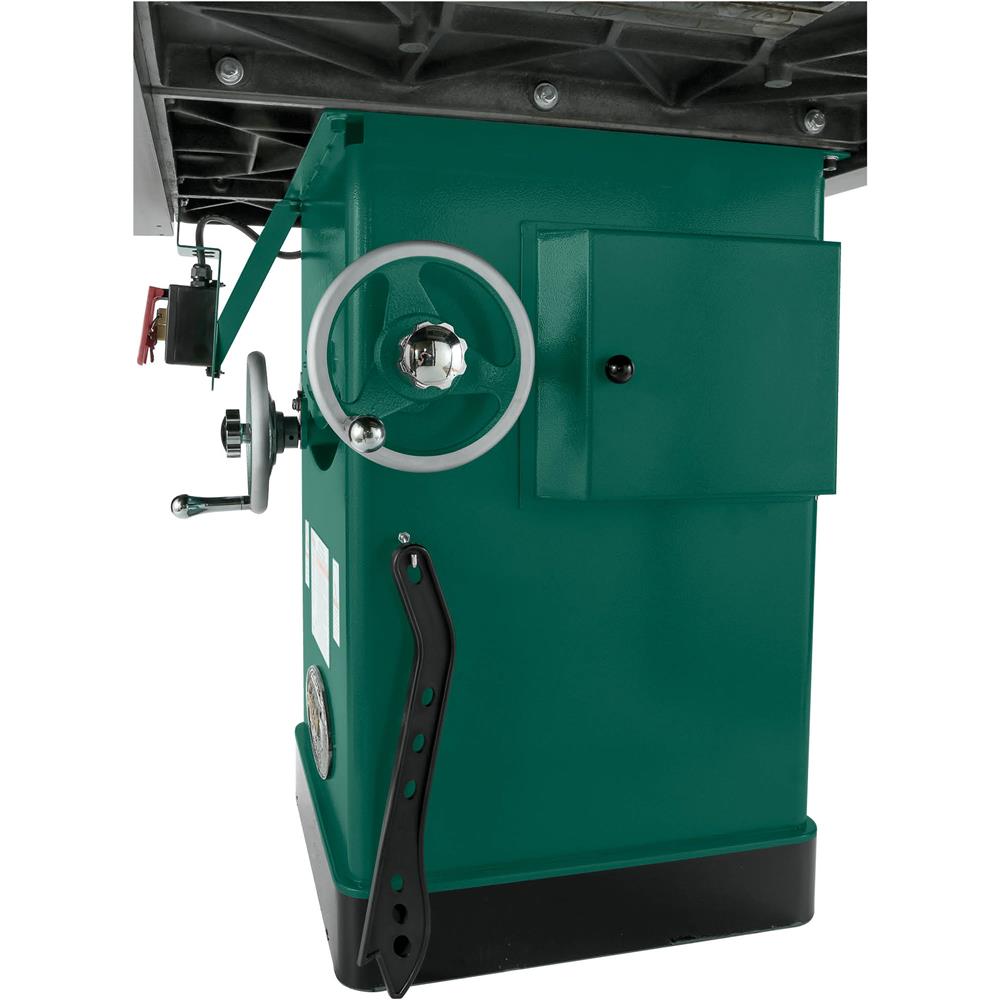

- Extra-large handwheels ease arbor movement

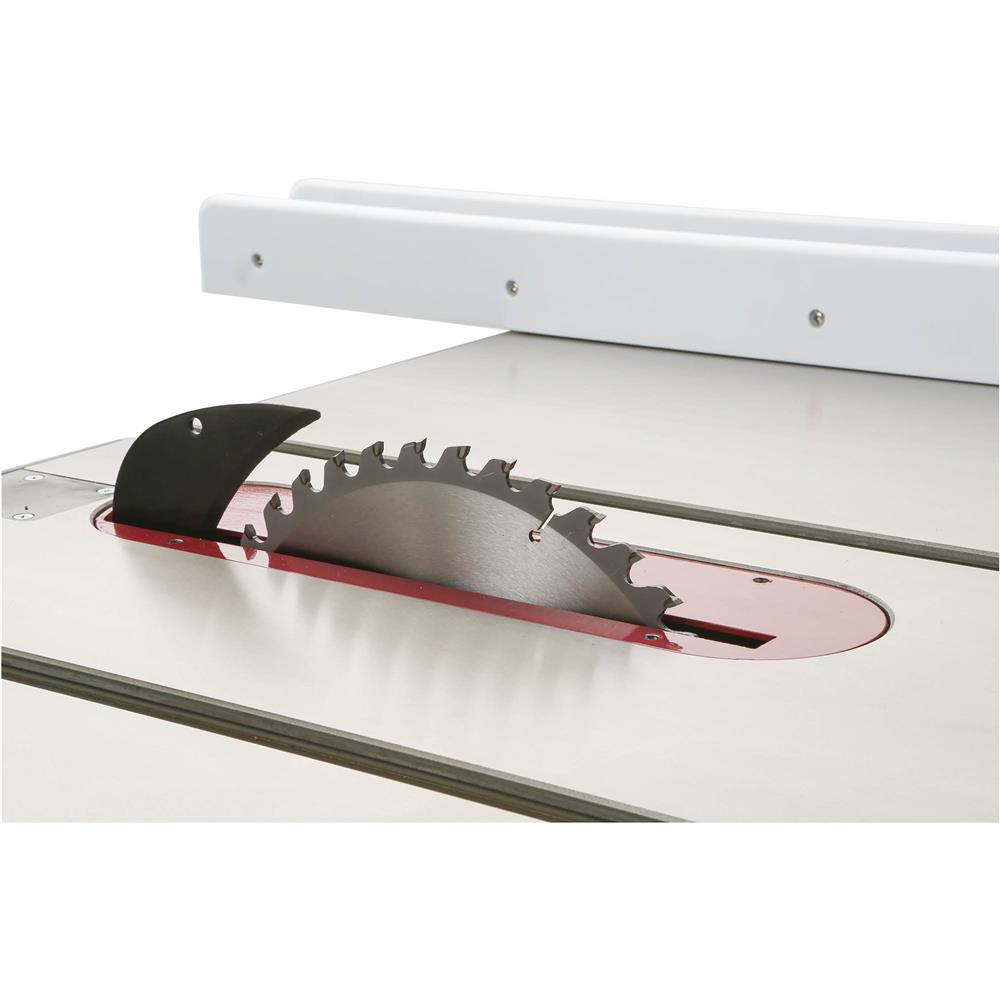

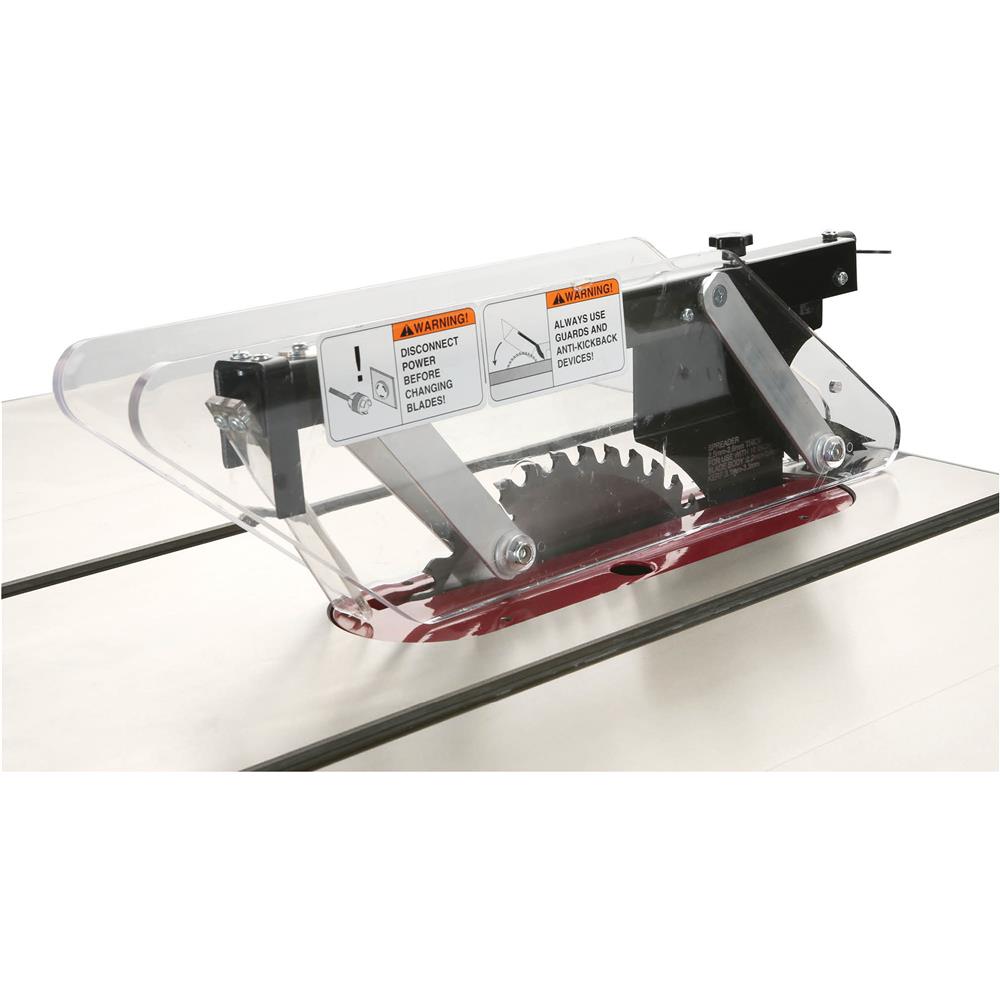

- Quick-change riving knife and blade guard
- Locking magnetic switch includes padlock and key to prevent unauthorized use
- Large safety STOP paddle
- 29mm and 60mm opening table inserts
- All-sealed ball-bearing construction

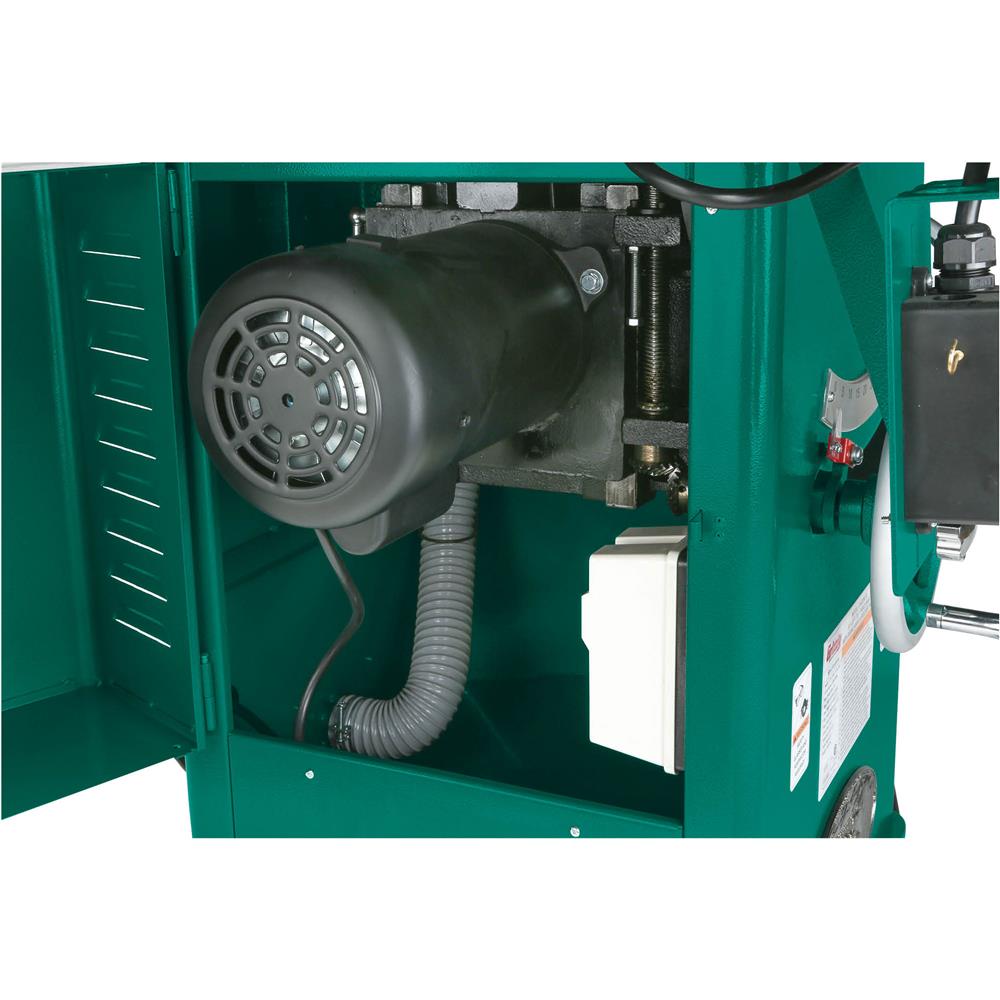

- Poly-V serpentine belt transfers power more efficiently and with less noise than standard V-belts

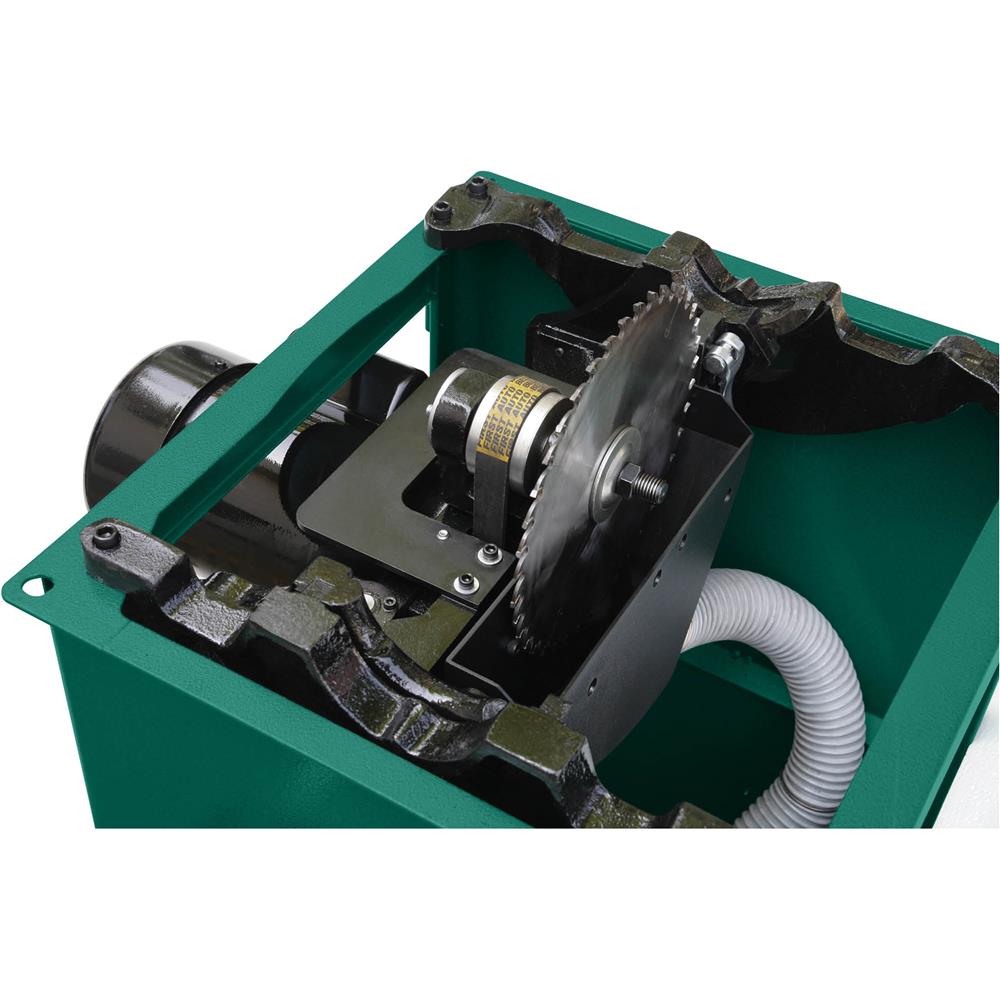

- Underside of blade encapsulated for superior dust collection
Specifications
| Model Number | G1023RLWX |
| Blade Diameter | 10" |
| Horsepower | 5 HP |
| Power Requirement | 240V, Single-Phase, 60 Hz |
| Arbor Size | 5/8" |
| Arbor Speed | 4200 RPM |
| Maximum Width of Dado | 13/16" |
| Maximum Depth of Cut at 90° | 3" |
| Maximum Depth of Cut at 45° | 2 1/8" |
| Maximum Rip Right of Blade | 32" |
| Maximum Rip Left of Blade | 14" |
| Floor to Table Height | 34" |
| Table Size | 48" W x 27" D |

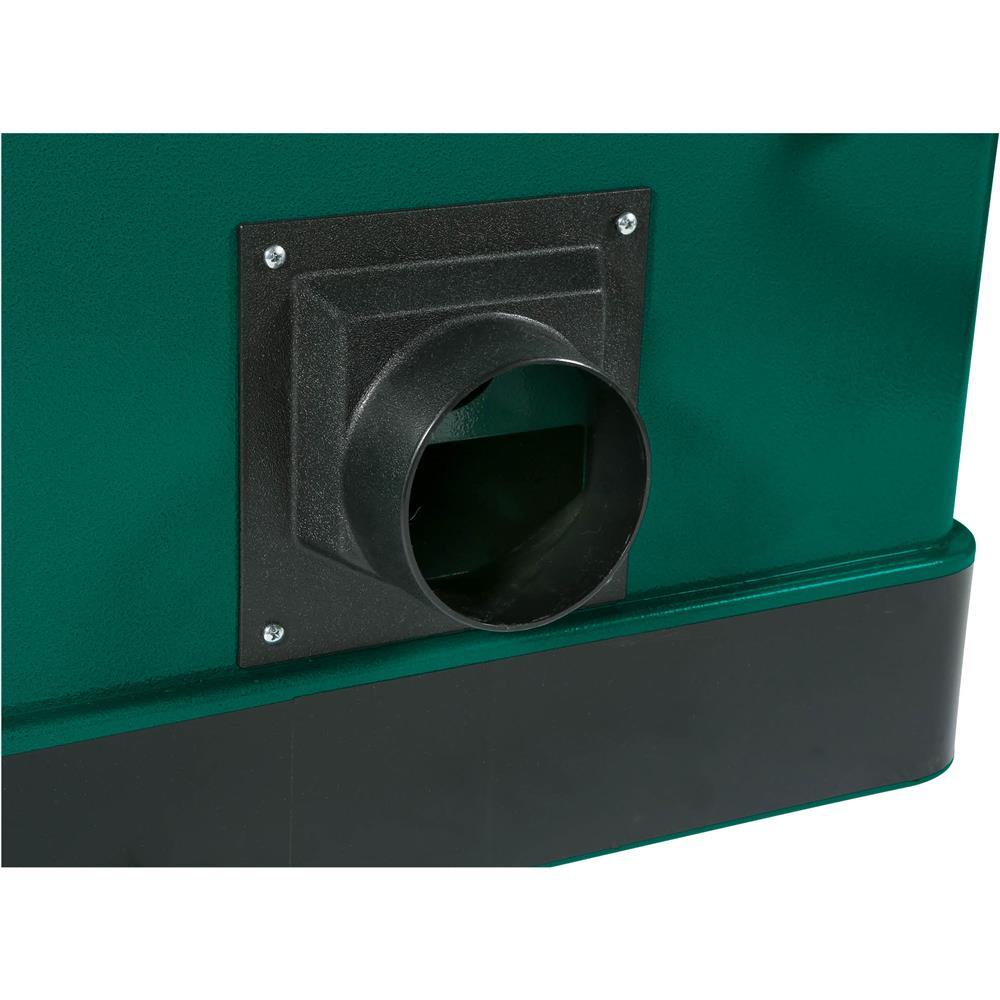

| Dust Port Size | 4" |
| Weight | 509 lbs |
| Overall Dimensions | 66 x 47 x 40" |
| Footprint | 20 1/2" x 20 1/2" |
Package Contents
Machine
Fence assembly
Front rail 46 1/2" long
Rear rail 54 1/2" long
Front rail rectangular tube 66" long
Scale
Router table extension wing
Clamp assemblies
Table insert 29mm
Table insert 60mm
Extension legs
Adjustable feet with hex nuts
Vertical bracket
Horizontal bracket
Guard
Warranty
This item comes with a 1 year warranty.
