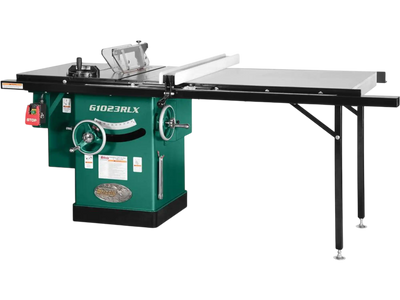

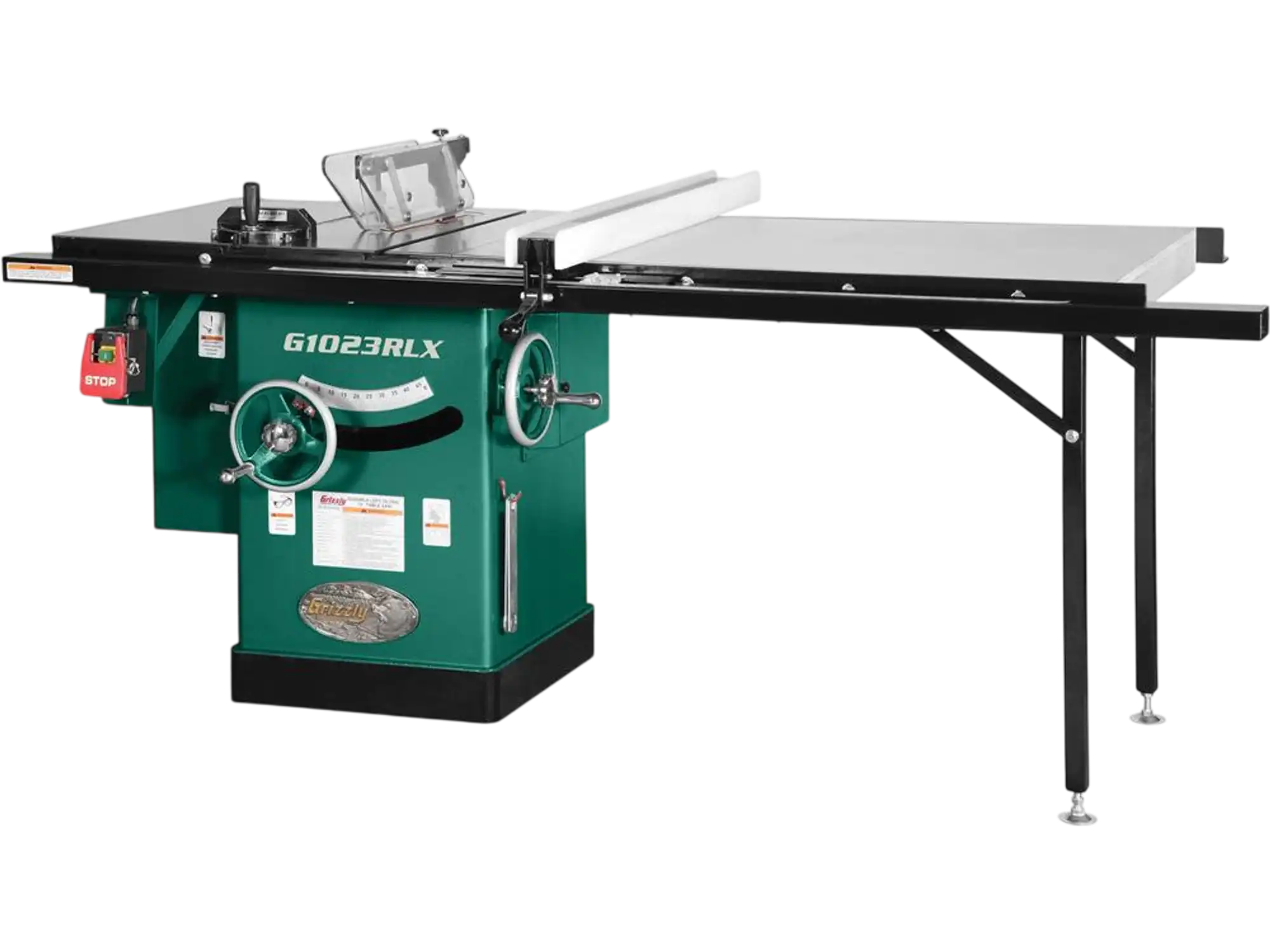

Grizzly G1023RLX Table Saw 10" 3 HP 240V Cabinet with 7' Rails New
Product Overview
The Grizzly G1023RLX is a 10-inch cabinet table saw built for serious woodworking and high-capacity ripping. Powered by a 3 HP, 240V single-phase motor, it delivers smooth, quiet performance and a generous 60-inch rip capacity to the right of the blade, making it well suited for cutting large panels, hardwoods, and demanding shop projects.

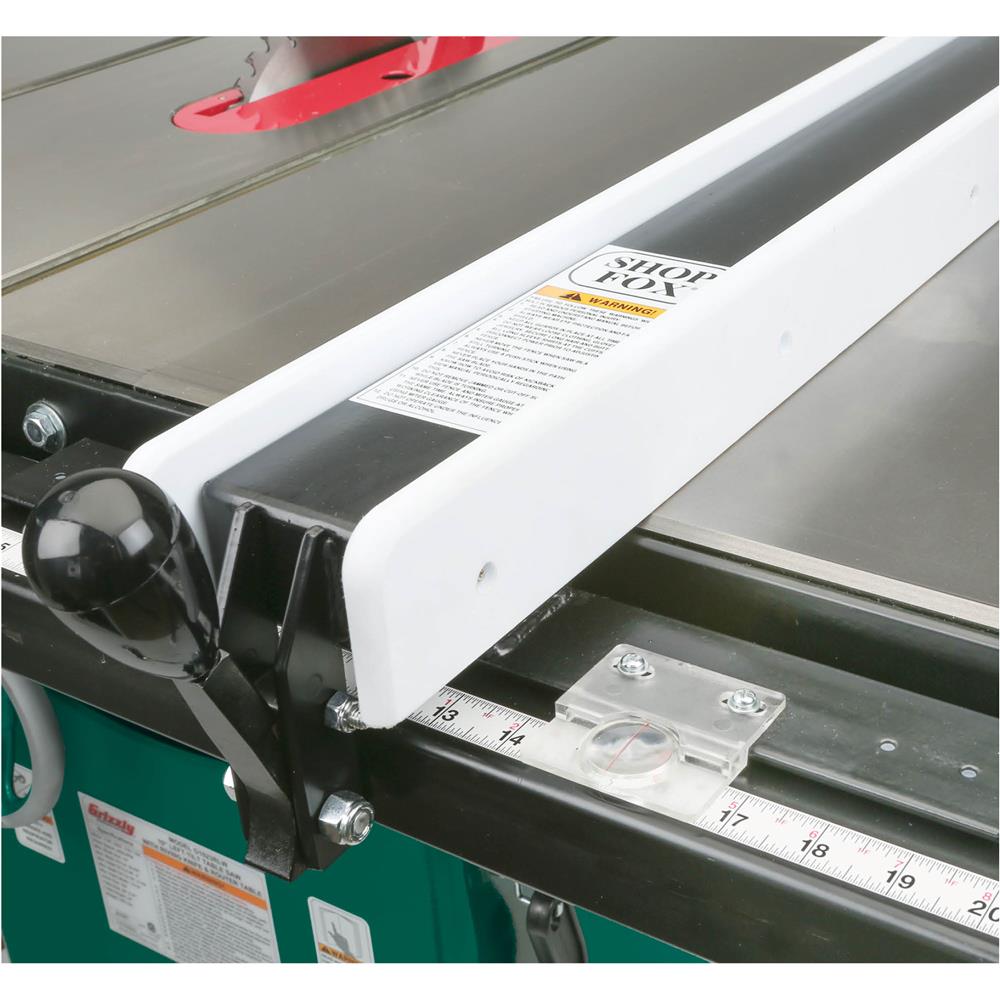

This saw combines a heavy-duty steel cabinet stand, a left-tilting blade, and a large extension table for stable, accurate cutting. Features like the classic fence system, quick-change riving knife and blade guard, efficient dust collection, and a poly-V serpentine belt help improve control, cleanliness, and overall workflow in the shop.
Designed for dedicated hobbyists, furniture makers, and professional woodworkers, this machine is a strong fit for anyone who needs cabinet-saw power with expanded table space and dependable precision. Its robust construction and shop-focused features make it a practical centerpiece for a serious woodworking setup.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- Extra-large 44" x 27" extension table

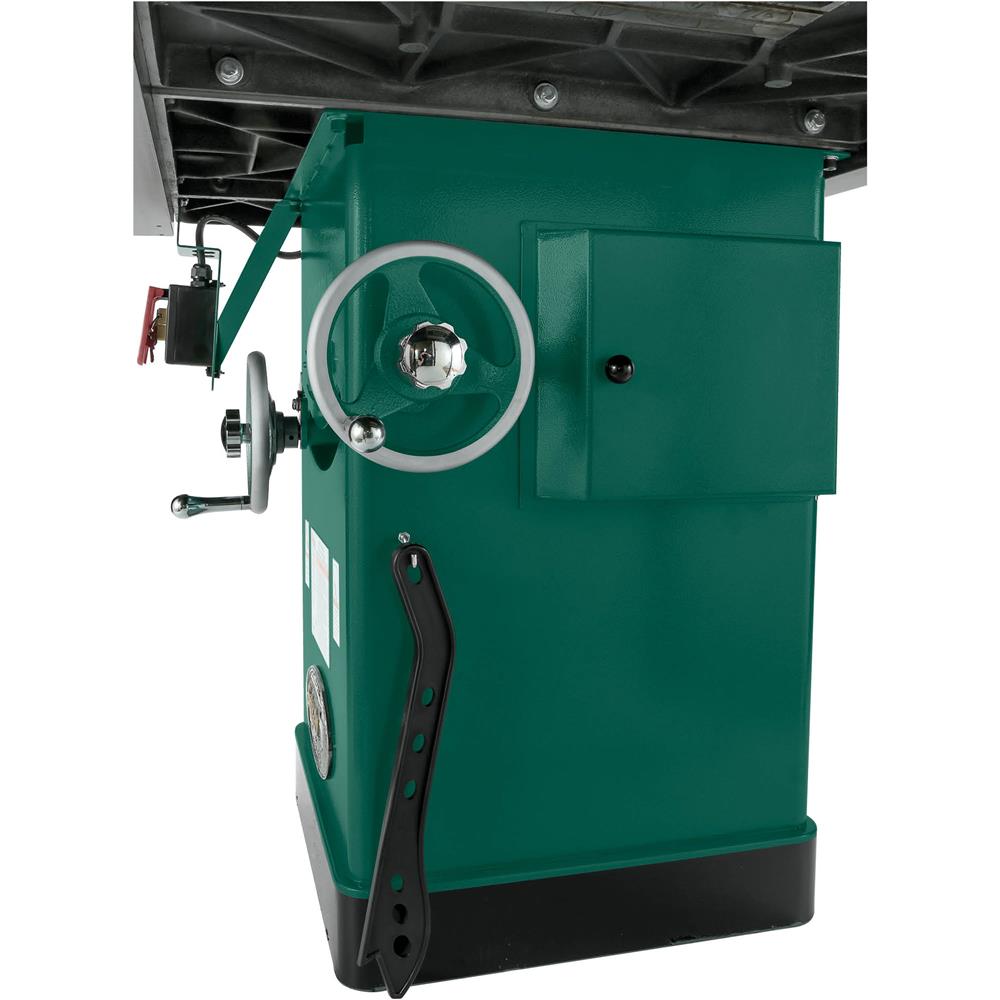

- Extra-large handwheels ease arbor movement

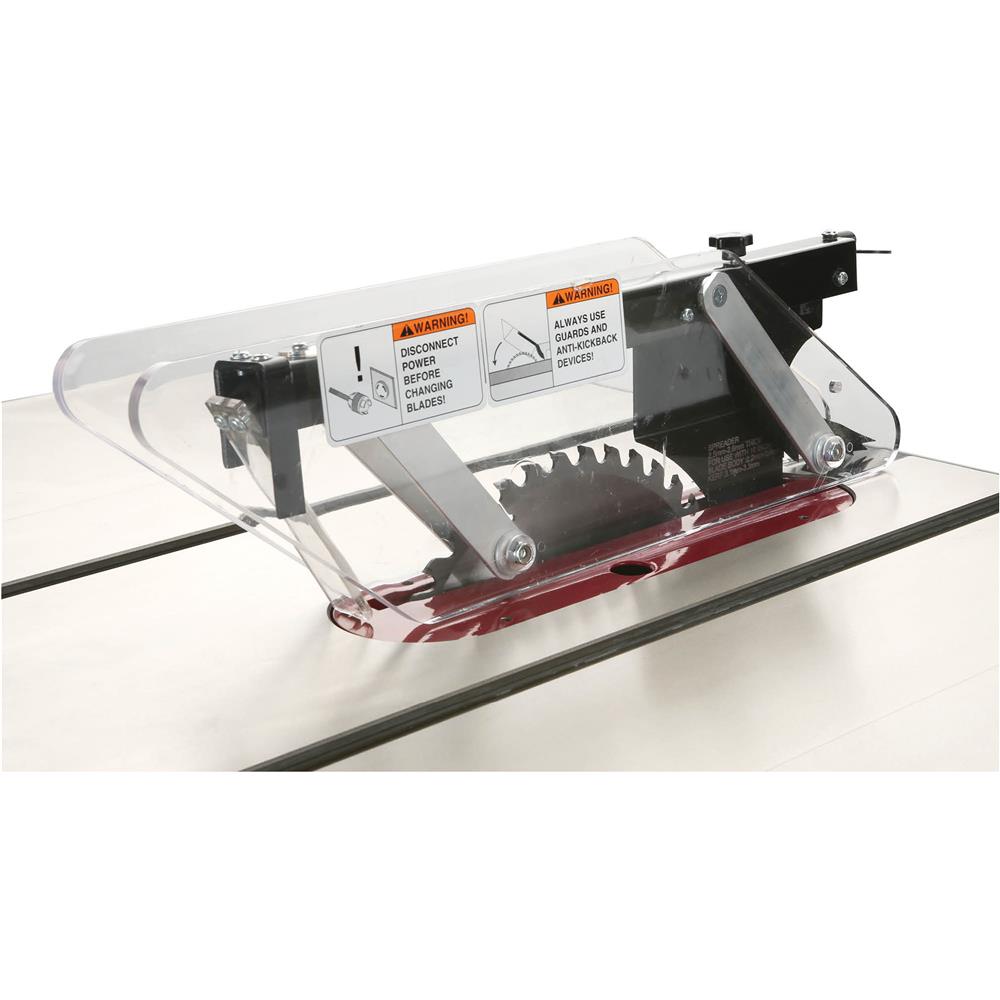

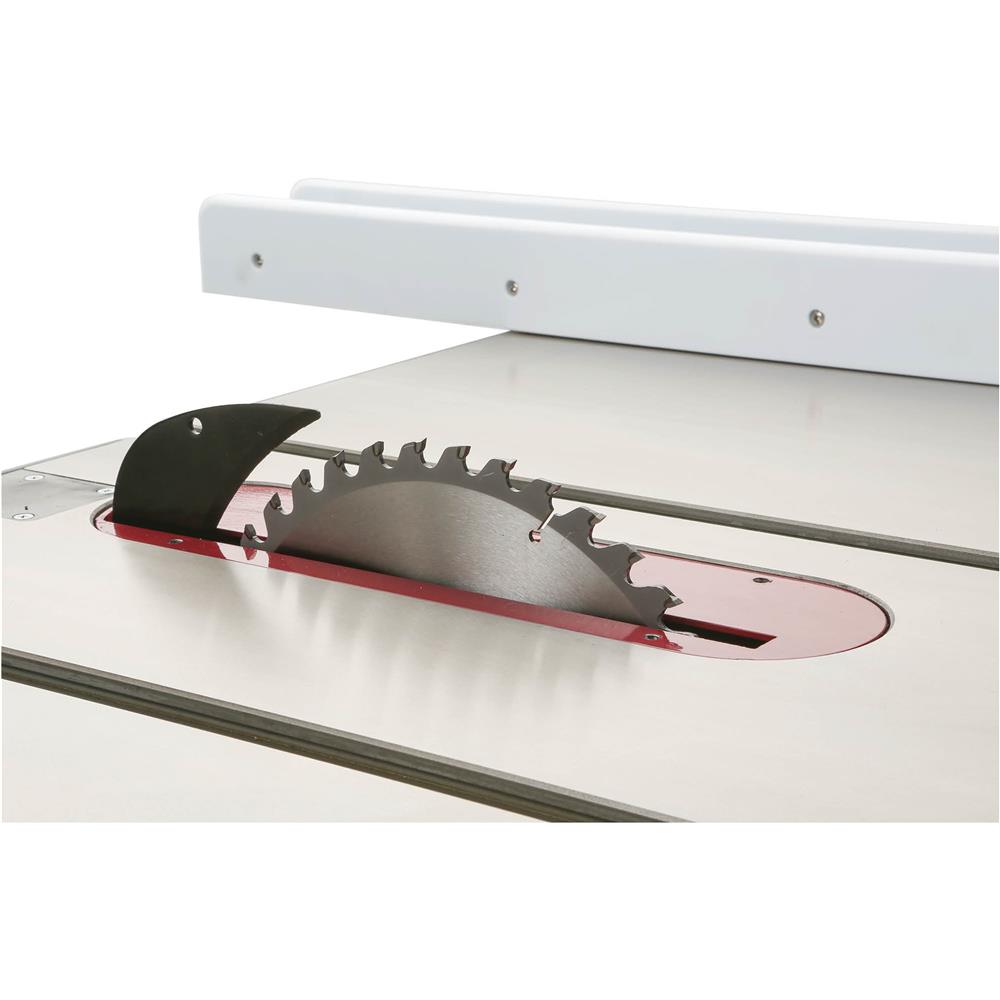

- Quickly changes between riving knife and blade guard
- Locking magnetic switch includes padlock and key to prevent unauthorized use
- Large safety STOP paddle
- One-piece steel cabinet type stand
- All sealed ball-bearing construction

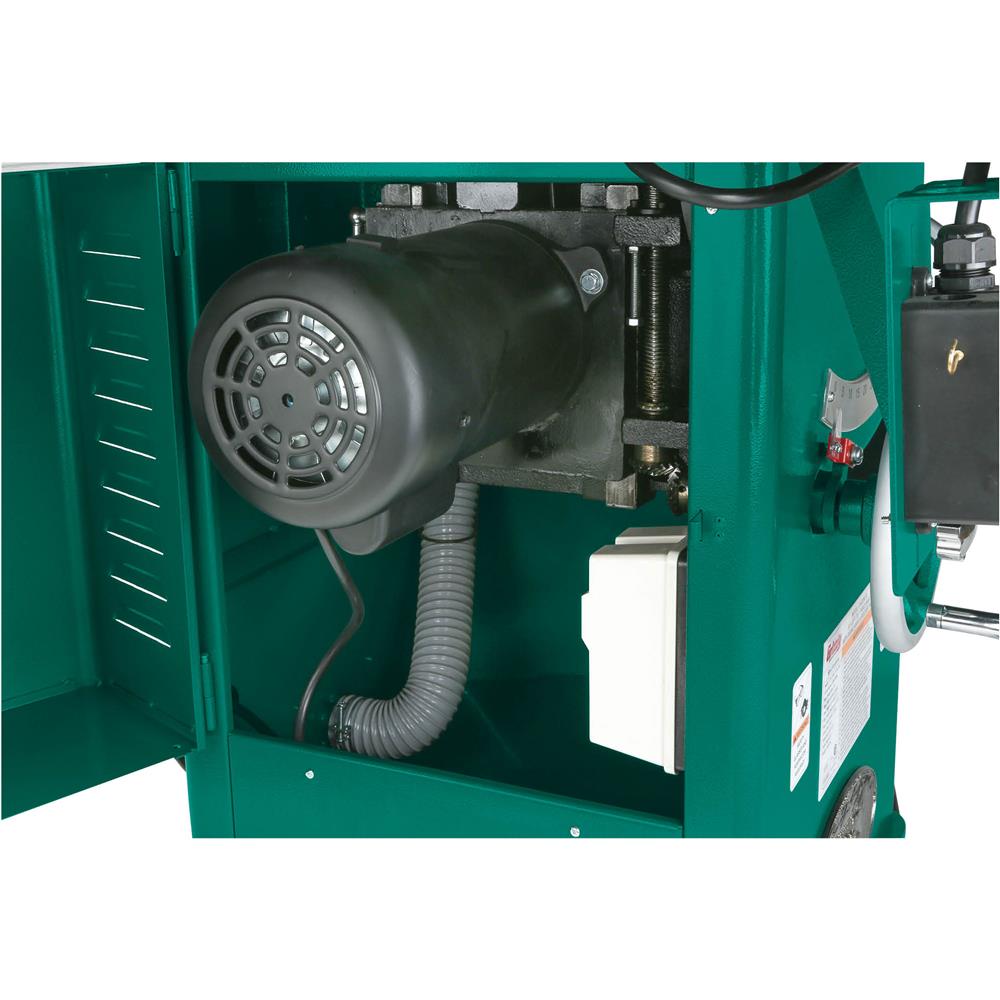

- Poly-V serpentine belt transfers power more efficiently and with less noise than standard V-belts

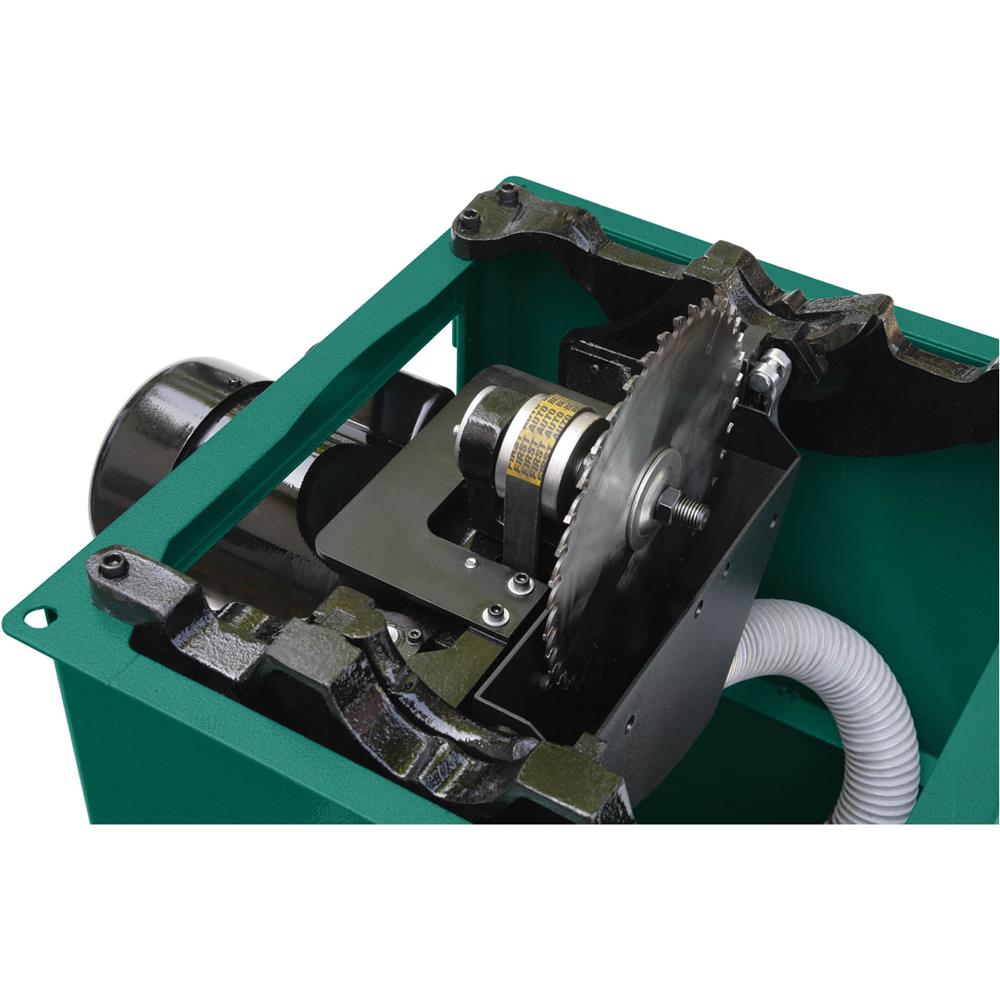

- Underside of blade encapsulated for superior dust collection
- 1-year limited warranty
Specifications
| Motor | 3 HP, 240V, single-phase, 14A |
|---|---|
| Rip capacity | 60" right, 14" left of blade |
| Maximum depth of cut @ 90° | 3" |
| Maximum depth of cut @ 45° | 2-1/8" |
| Overall table dimensions | 74" W x 27" D |
| Distance from front of table to center of blade | 17" |
| Distance from front of table to blade at max. cut | 12" |
| Floor-to-table height | 34" |
| Arbor diameter | 5/8" |
| Arbor speed | 4200 RPM |
|---|---|
| Maximum width of dado | 13/16" |

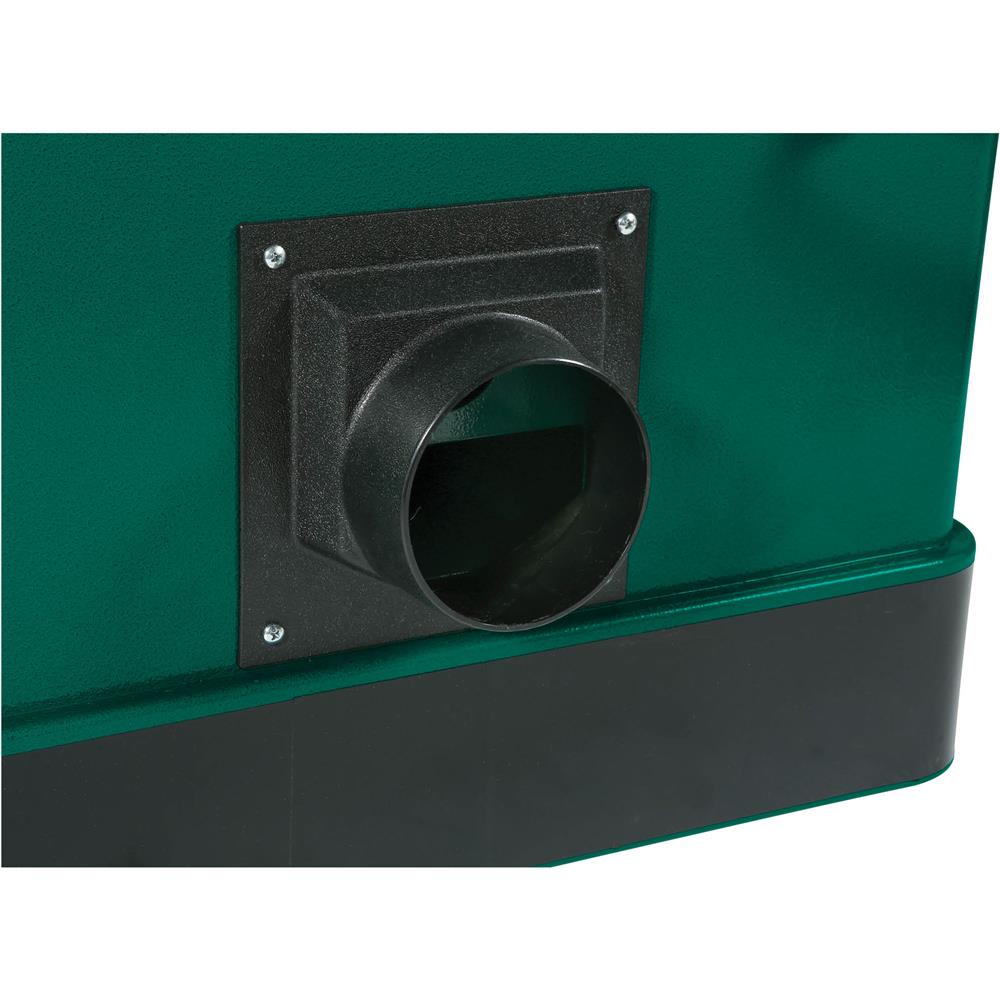

| Dust port size | 4" |
| Footprint | 20-1/2" x 20-1/2" |
| Overall dimensions | 94-1/2" W x 47" D x 40" H |
| Approximate shipping weight | 558 lbs. |
Warranty
This item comes with a 1 year factory warranty.
