Grizzly G1023RLX5 Cabinet Table Saw 10" 5 HP 240V with 7' Rails New
Product Overview

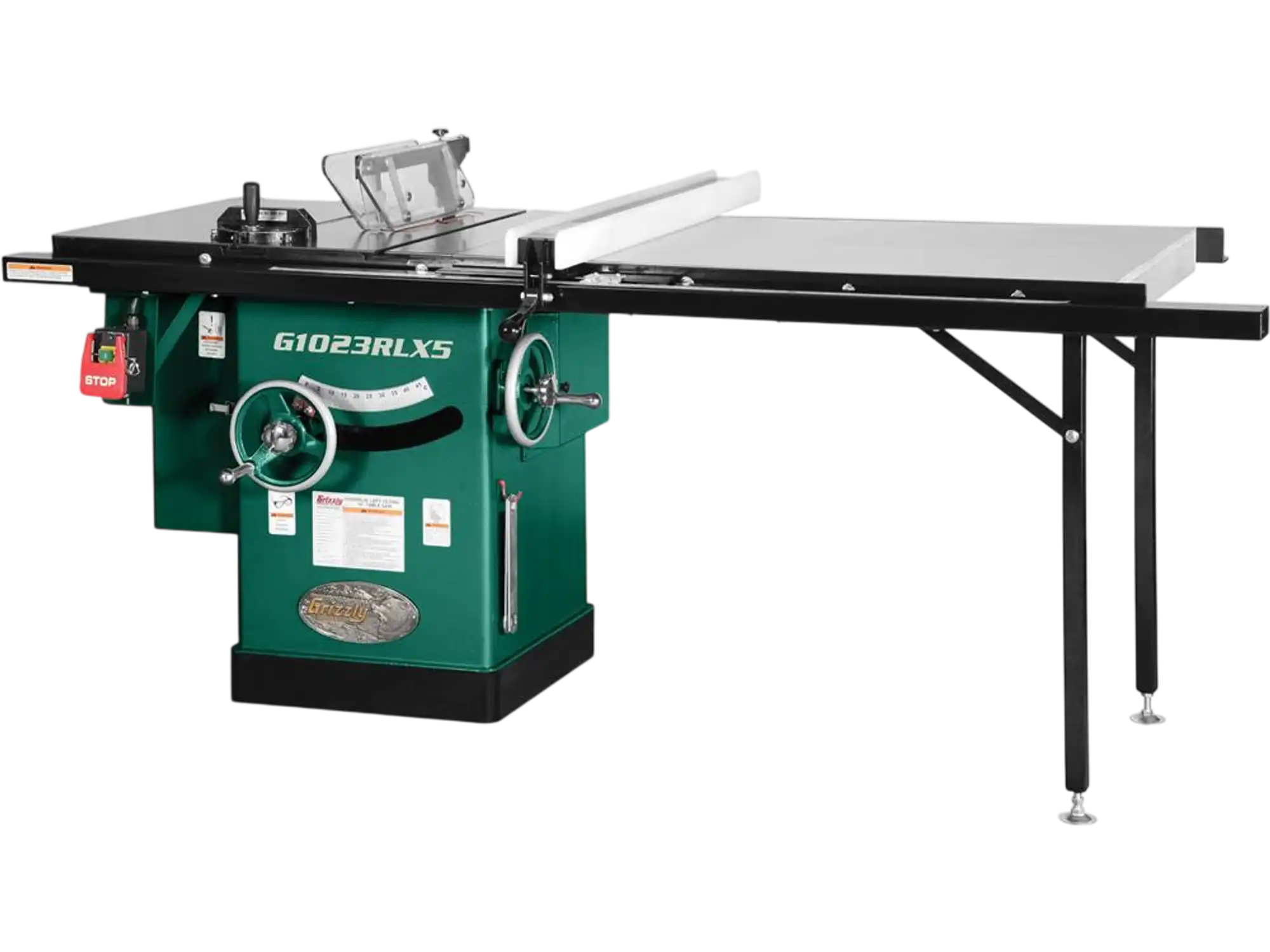

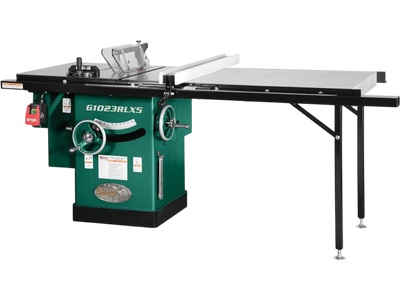

The Grizzly G1023RLX5 is a 10-inch cabinet table saw built for serious cutting power and large-sheet capacity. Its 5 HP, 240V motor and quiet serpentine belt drive deliver strong, efficient performance for demanding ripping, crosscutting, and dado work in a professional or dedicated home shop.
Designed for handling bigger projects, it offers 60 inches of rip capacity to the right of the blade and 14 inches to the left, along with a heavy-duty extension table and classic fence system for stable, accurate cuts. Cast-iron trunnions, sealed bearings, and a one-piece steel cabinet add the mass and durability woodworkers want in a full-size stationary saw.
This saw is also equipped with practical safety and shop-friendly features, including a quick-release blade guard, interchangeable riving knife, large stop paddle, magnetic switch, and encapsulated blade area for improved dust collection. It is a strong choice for furniture makers, cabinet shops, and experienced woodworkers who need power, precision, and generous cutting capacity.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- Extra-large 44" x 27" extension table

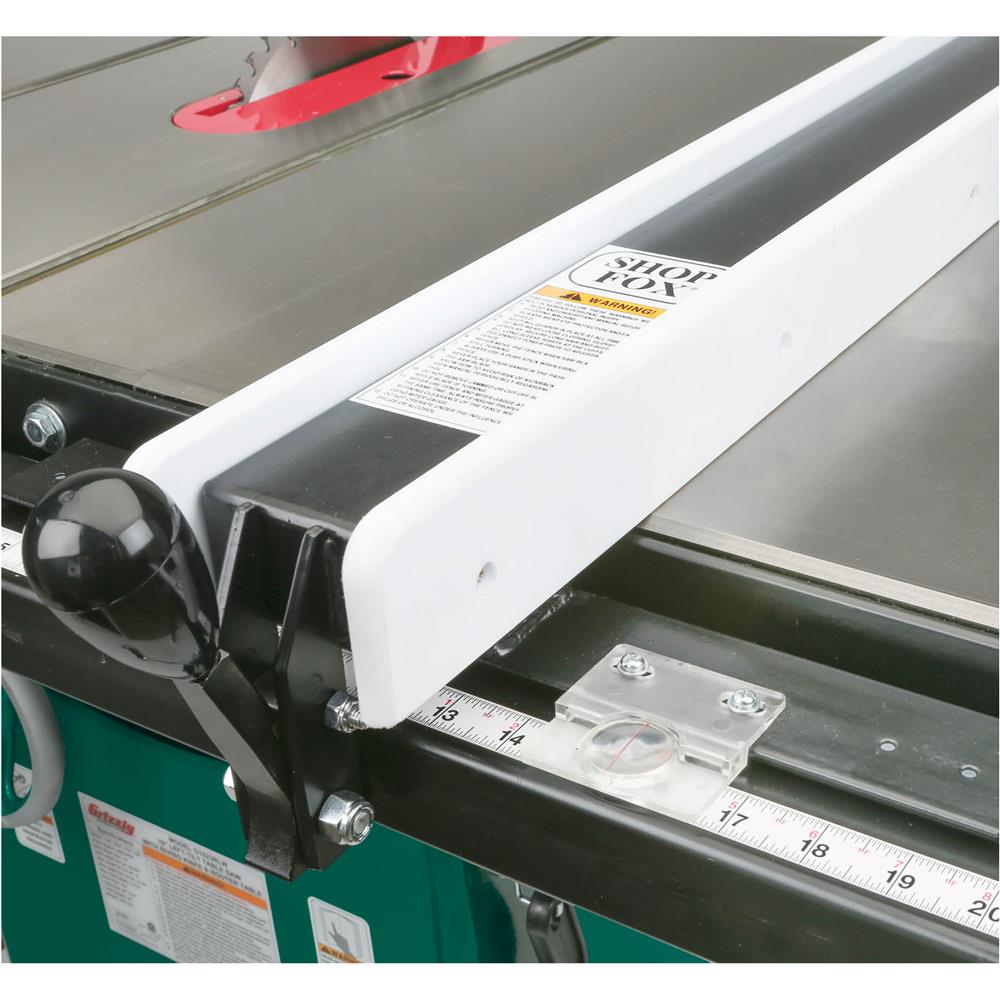

- Shop Fox® Classic fence

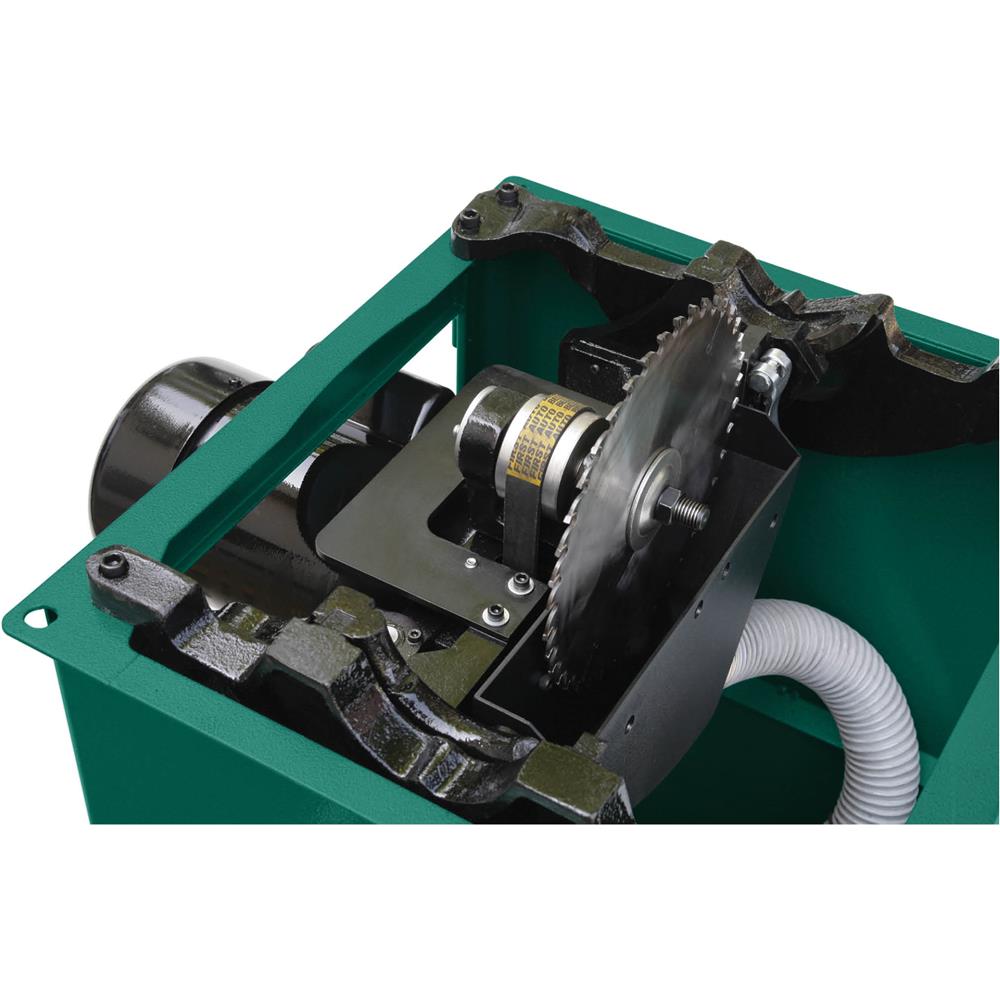

- Cast-iron trunnions and internals
- Extra-large handwheels ease arbor movement

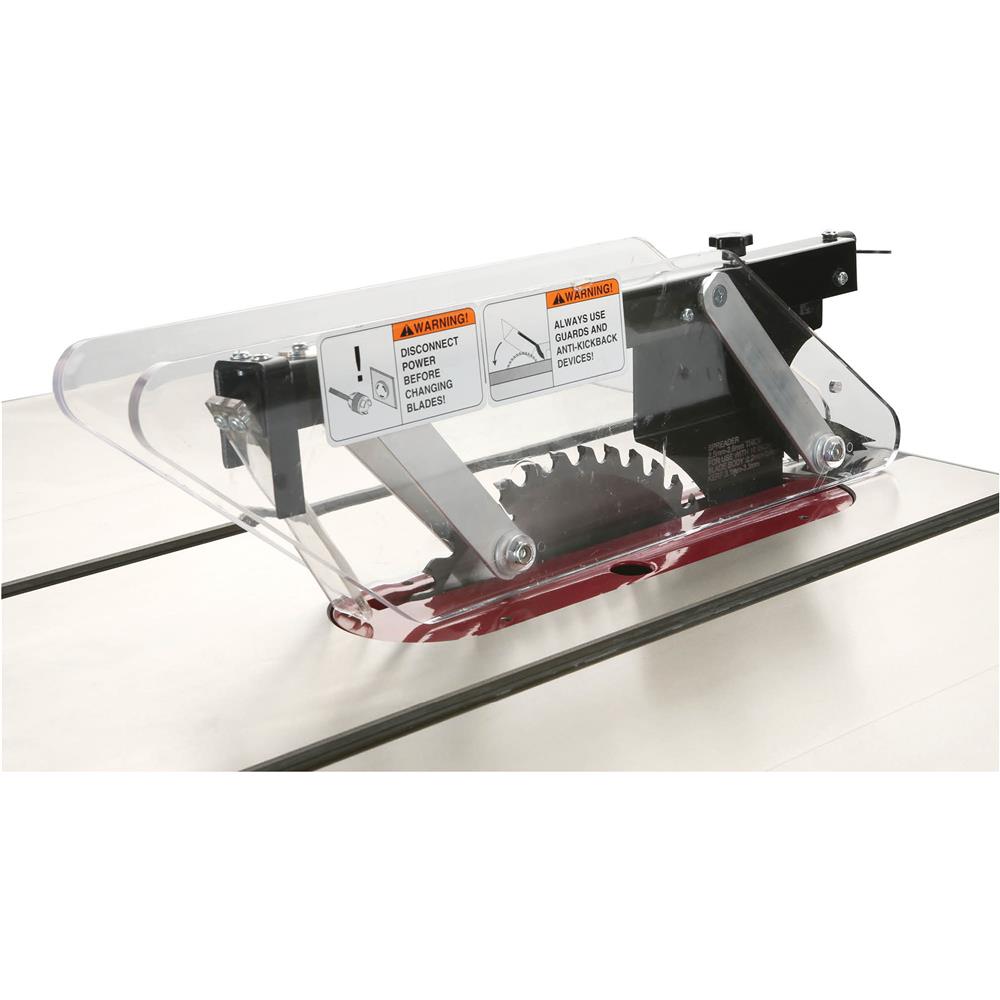

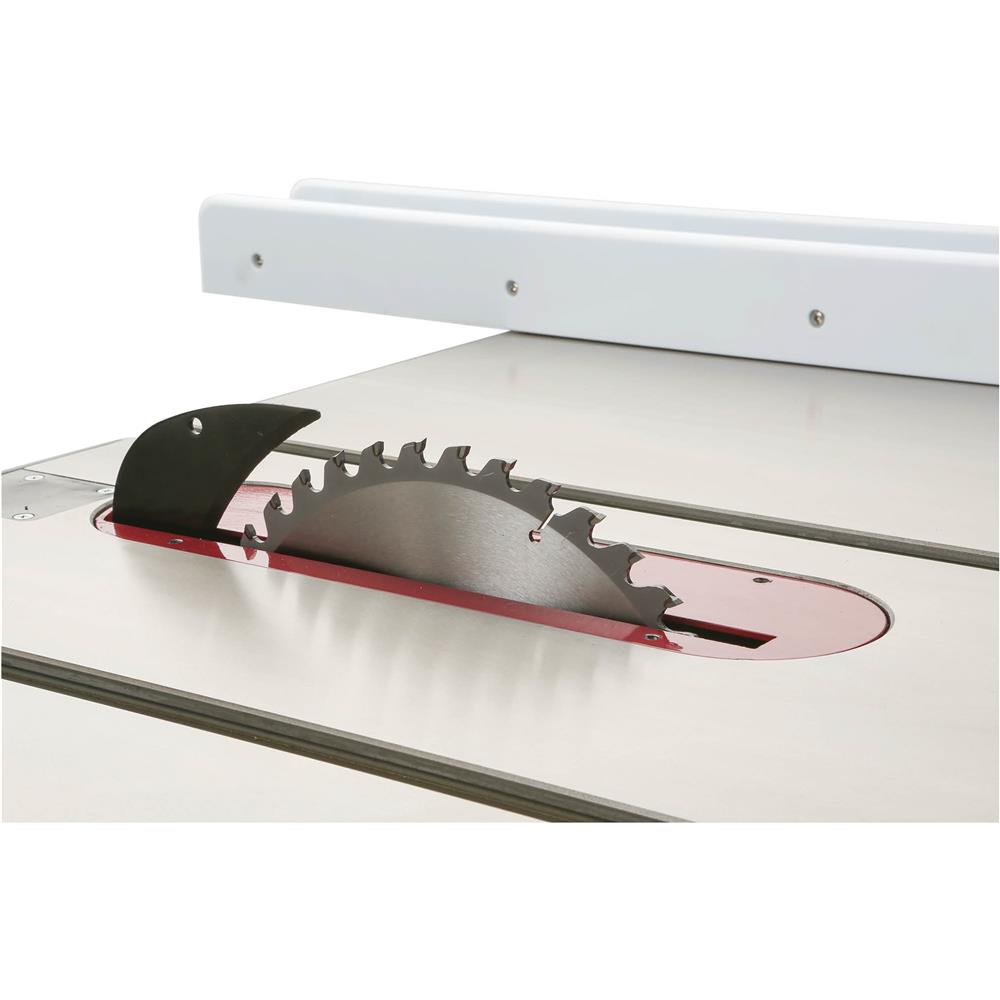

- Quickly changes between riving knife and blade guard
- Locking magnetic switch includes padlock and key to prevent unauthorized use

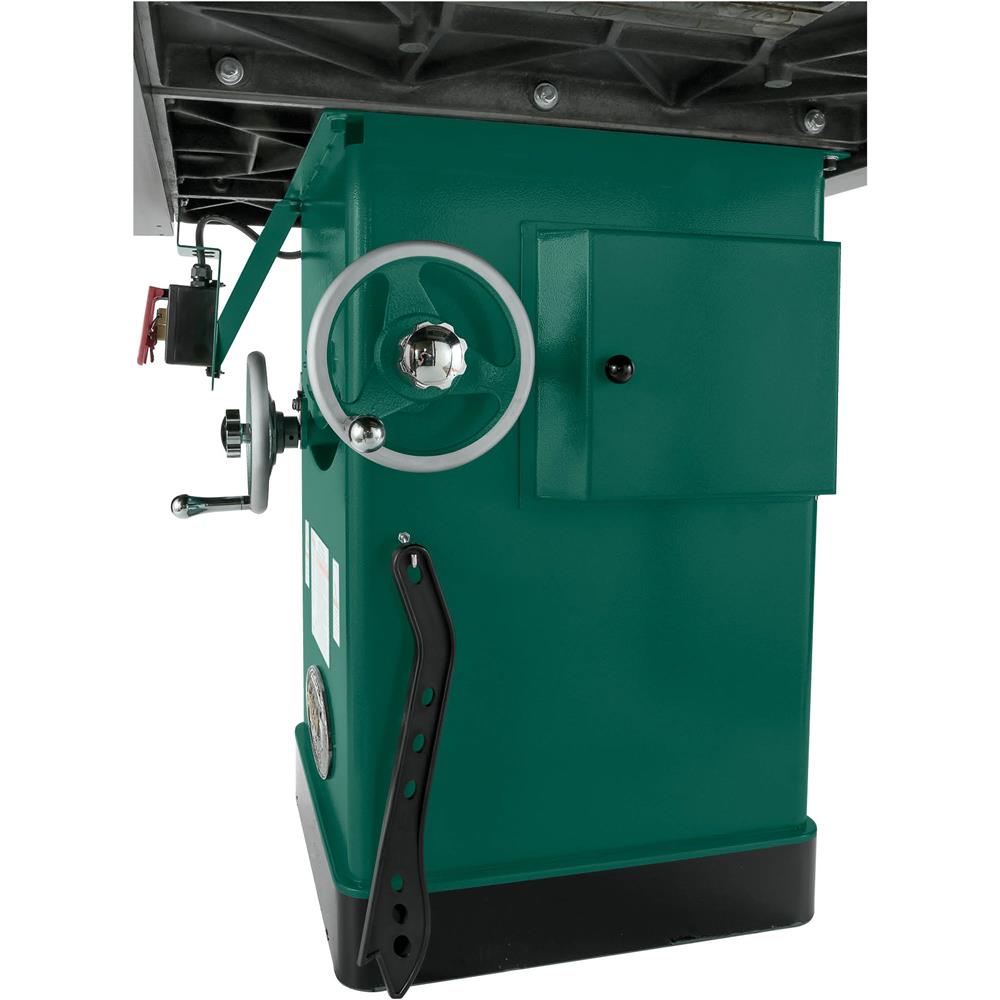

- Large safety STOP paddle
- One-piece steel cabinet type stand
- All sealed ball-bearing construction

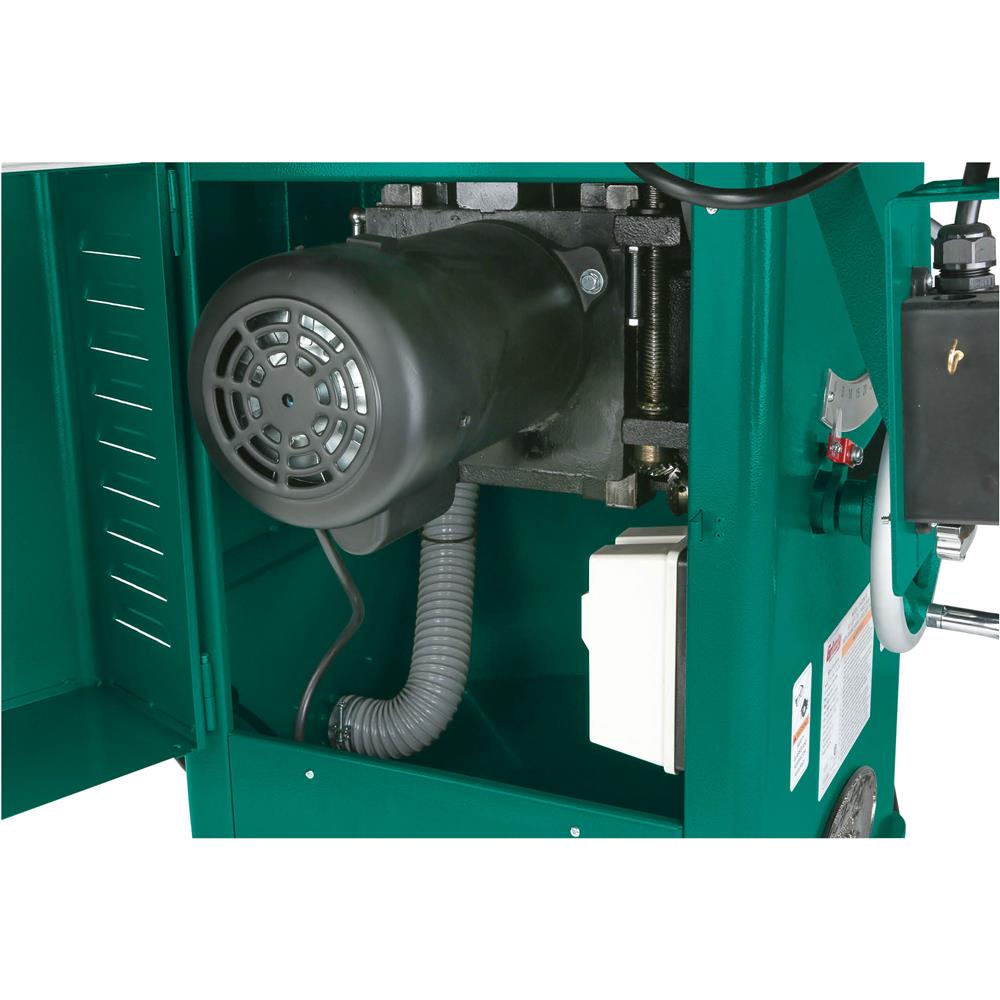

- Poly-V serpentine belt transfers power more efficiently and with less noise than standard V-belts
- Underside of blade encapsulated for superior dust collection
- 1-year limited warranty
Specifications
| Motor | 5 HP, 240V, single-phase, 23A |
| Rip capacity | 60" right, 14" left of blade |
| Maximum depth of cut @ 90° | 3" |
| Maximum depth of cut @ 45° | 2-1/8" |
| Overall table dimensions | 74" W x 27" D |
| Distance from front of table to center of blade | 17" |
| Distance from front of table to blade at max. cut | 12" |
| Floor-to-table height | 34" |
| Arbor diameter | 5/8" |
| Arbor speed | 4200 RPM |
| Maximum width of dado | 13/16" |

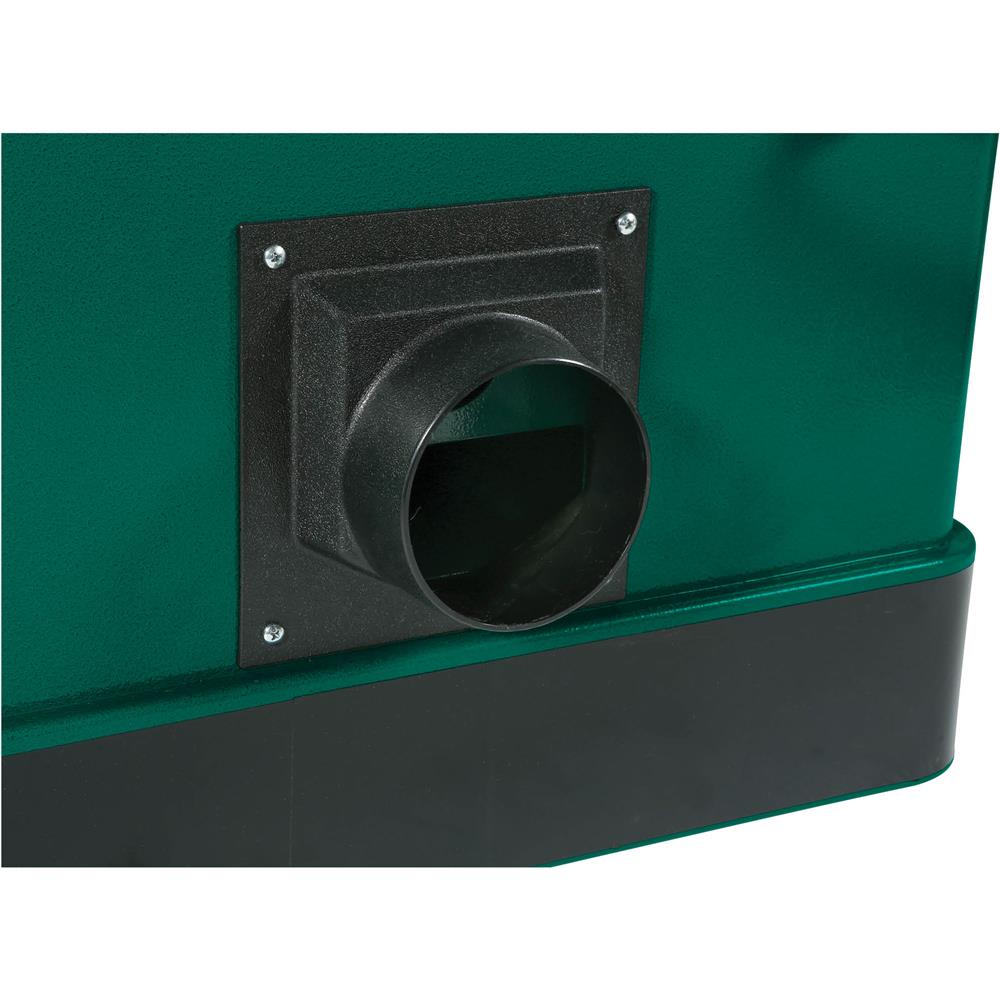

| Dust port size | 4" |
| Footprint | 20-1/2" x 20-1/2" |
| Overall dimensions | 94-1/2" W x 47" D x 40" H |
| Approximate shipping weight | 558 lbs. |
Warranty
This item comes with a 1 year factory warranty.
