Grizzly G1066Z Drum Sander 24" 5 HP Variable-Speed New
Product Overview

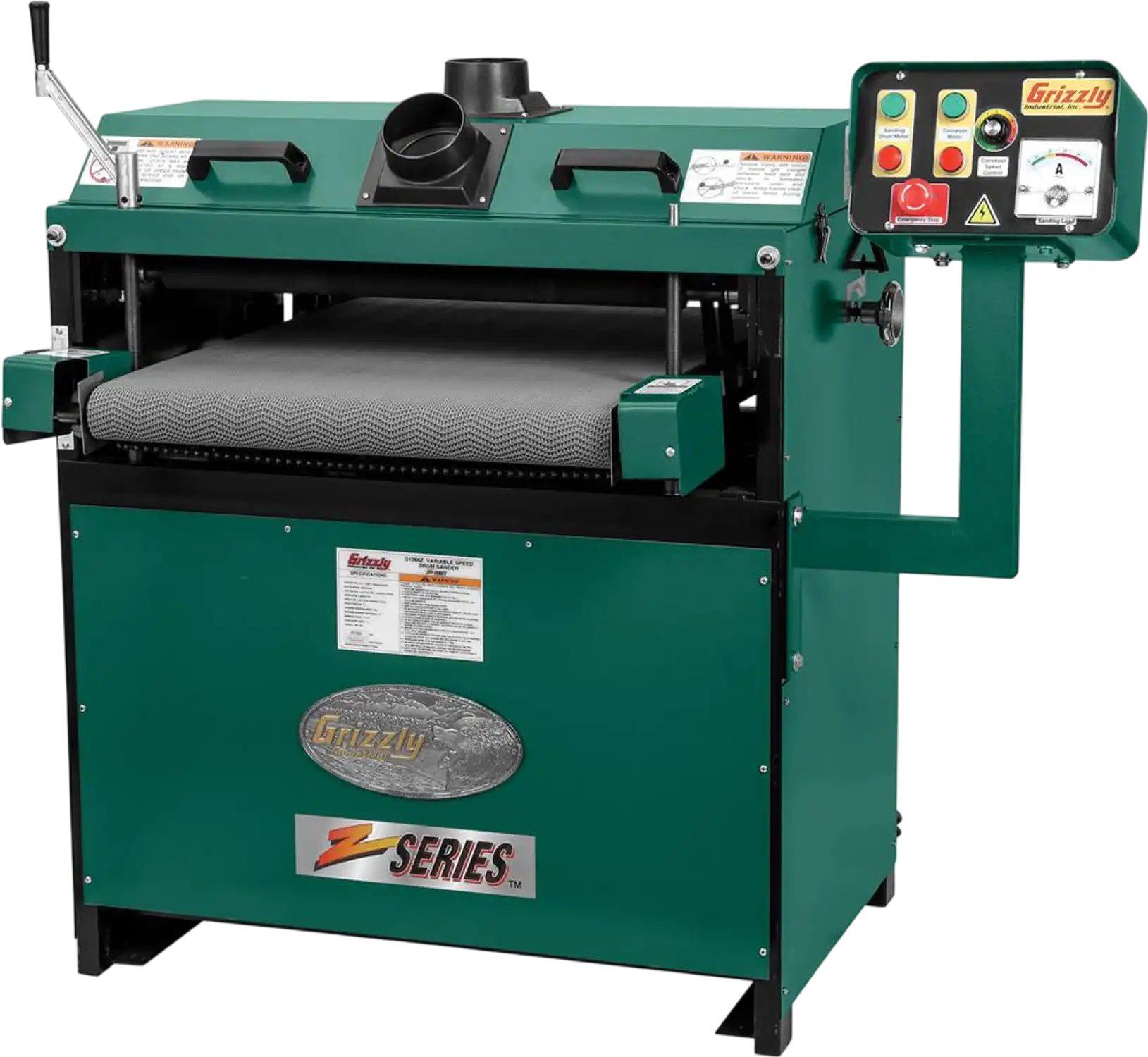

The Grizzly G1066Z is a 24-inch drum sander built for fast, consistent sanding on wide panels and large workpieces. Its dual 6-inch aluminum drums let you run coarse and fine sanding in a single pass, helping reduce sanding time while improving overall efficiency.
A 5 HP motor and variable-speed conveyor feed from 0 to 20 feet per minute give you the control and power needed for demanding shop work. It handles material up to 23-1/2 inches wide and 4 inches thick, and features an easy-access control panel with an amp meter for monitoring load during operation.
Designed for serious woodworkers, cabinet shops, and production environments, this machine is well suited for flattening, smoothing, and finish sanding larger stock. Dual 4-inch dust ports also make it easy to connect to a dust collection system for cleaner operation.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer

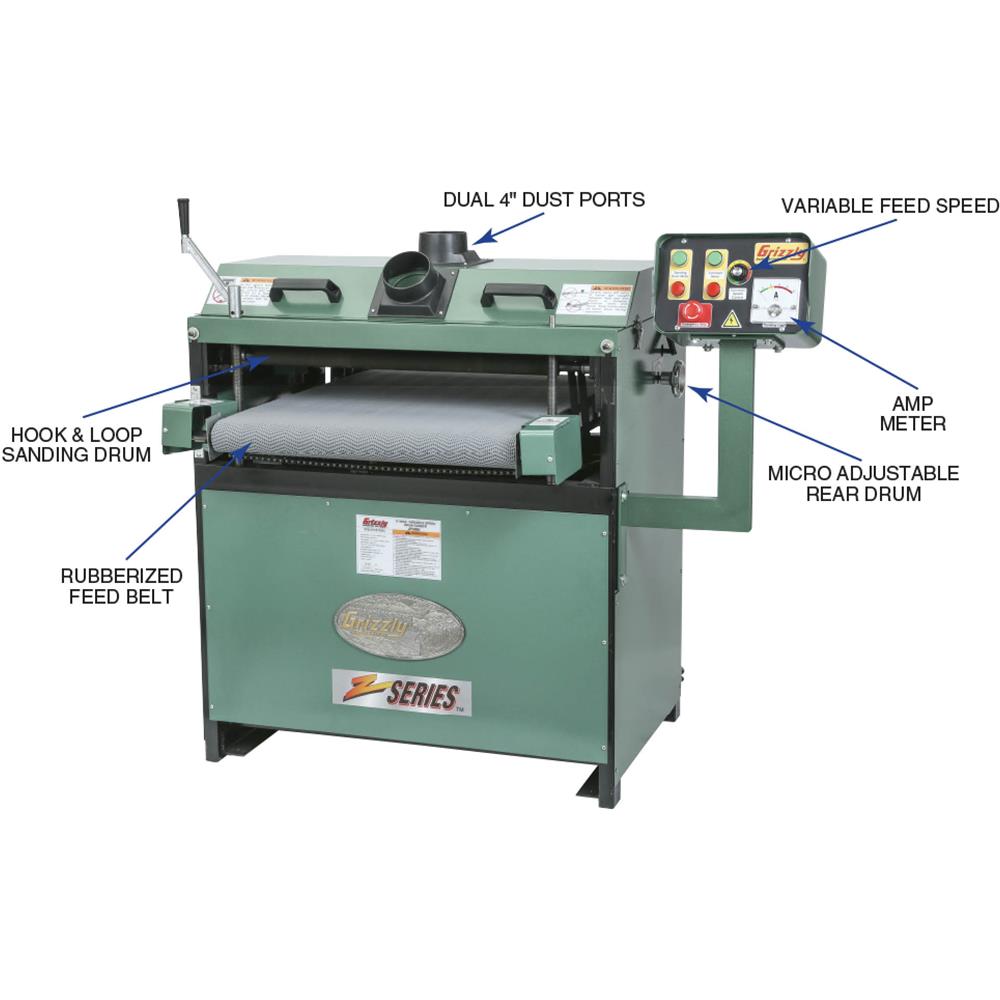

Features
- Industrial-duty rubber conveyor belt

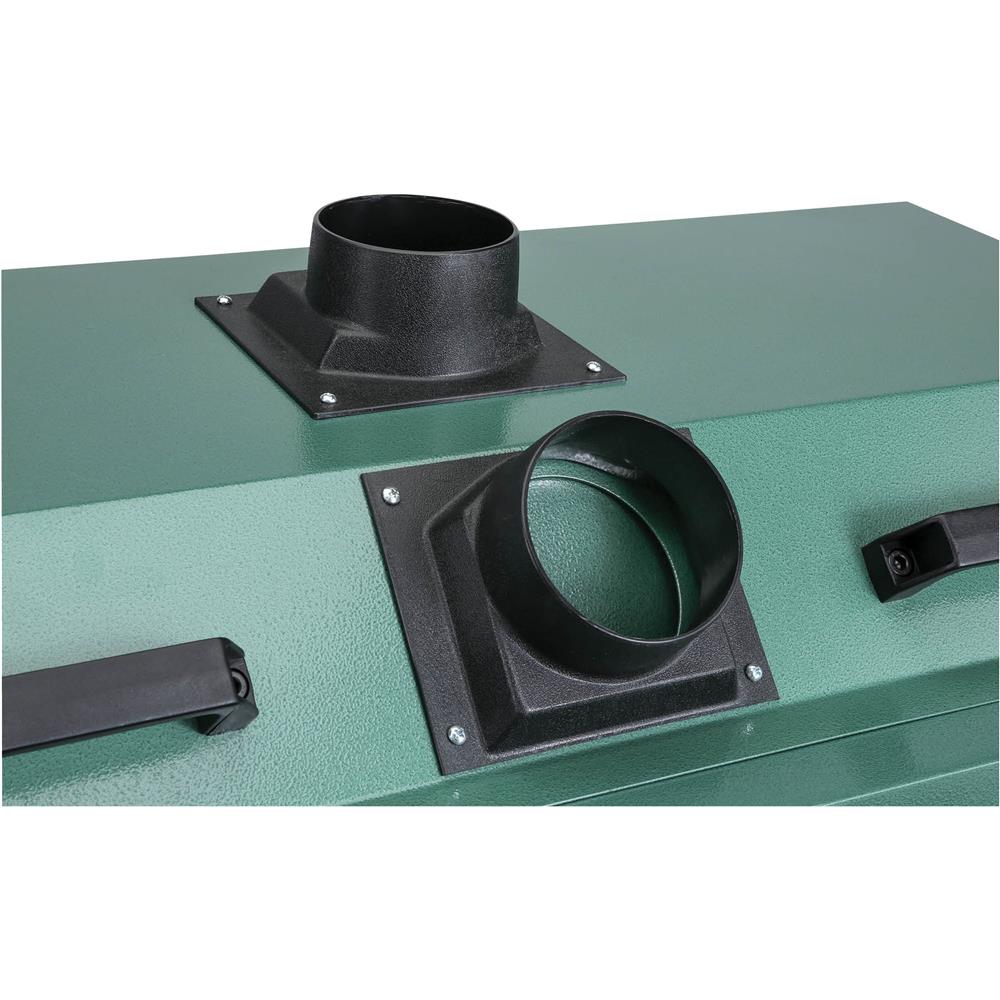

- Two 4" dust ports for easy hook-up to a collection system
- Variable-speed conveyor

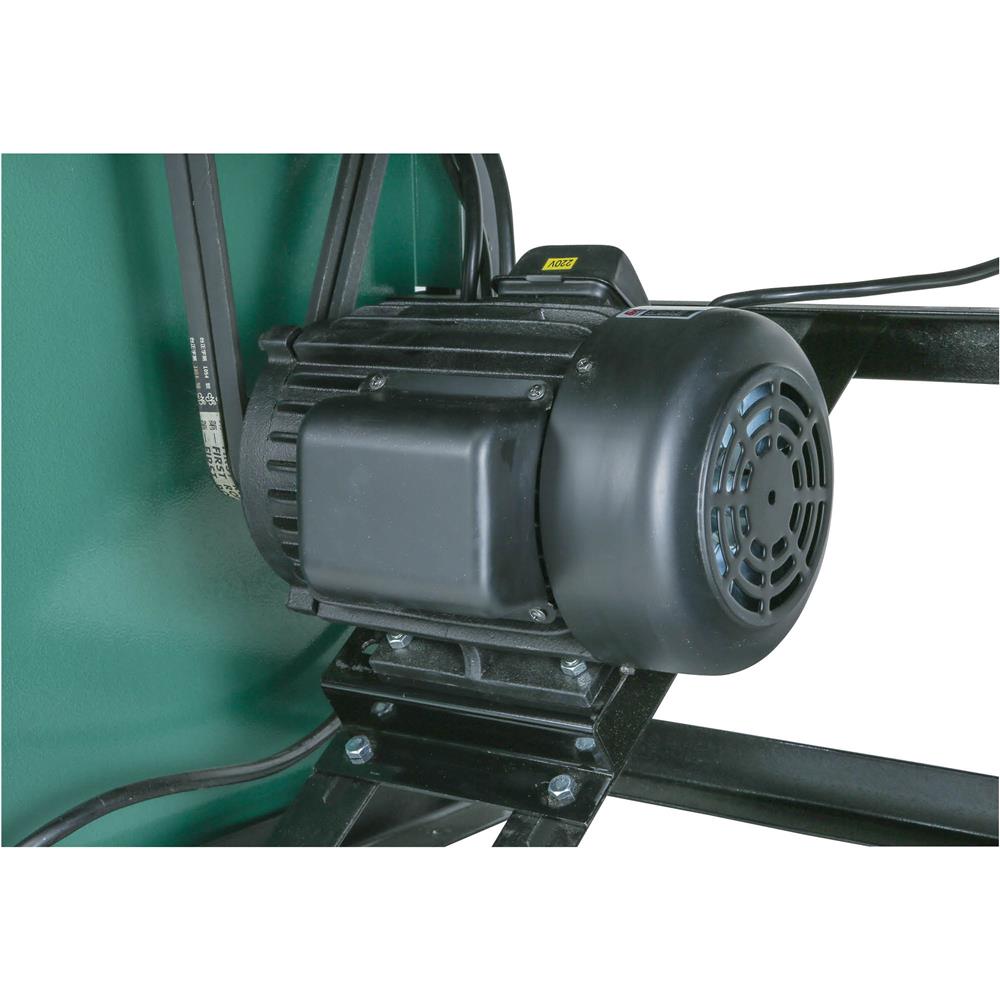

- V-belt main motor; chain drive feed motor

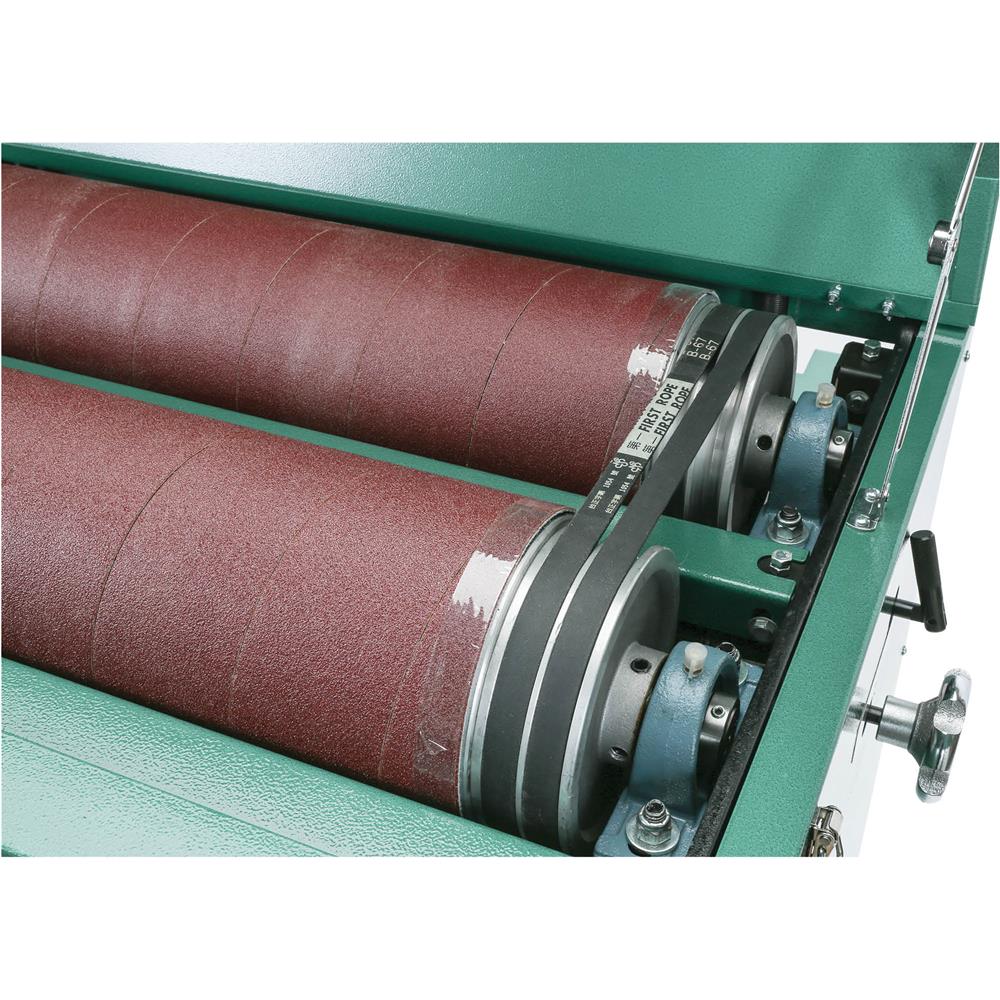

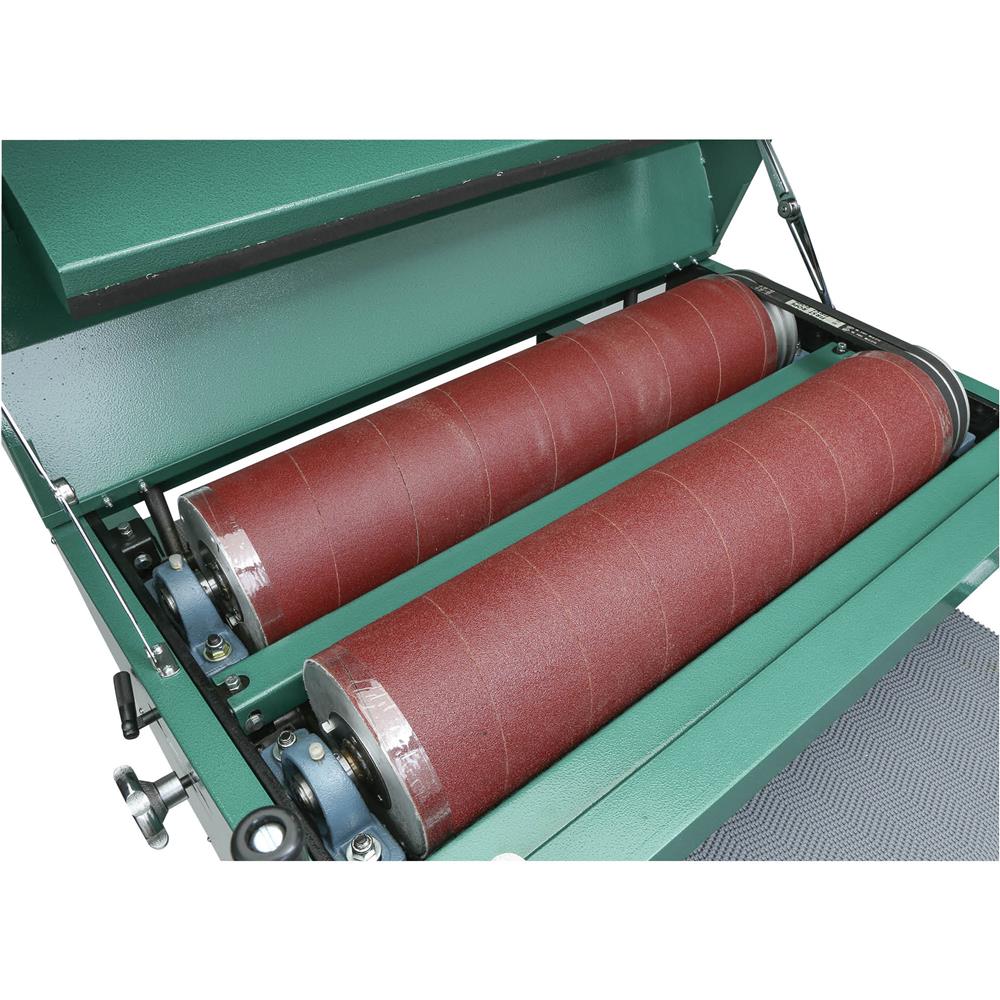

- Dual 6" aluminum sanding drums

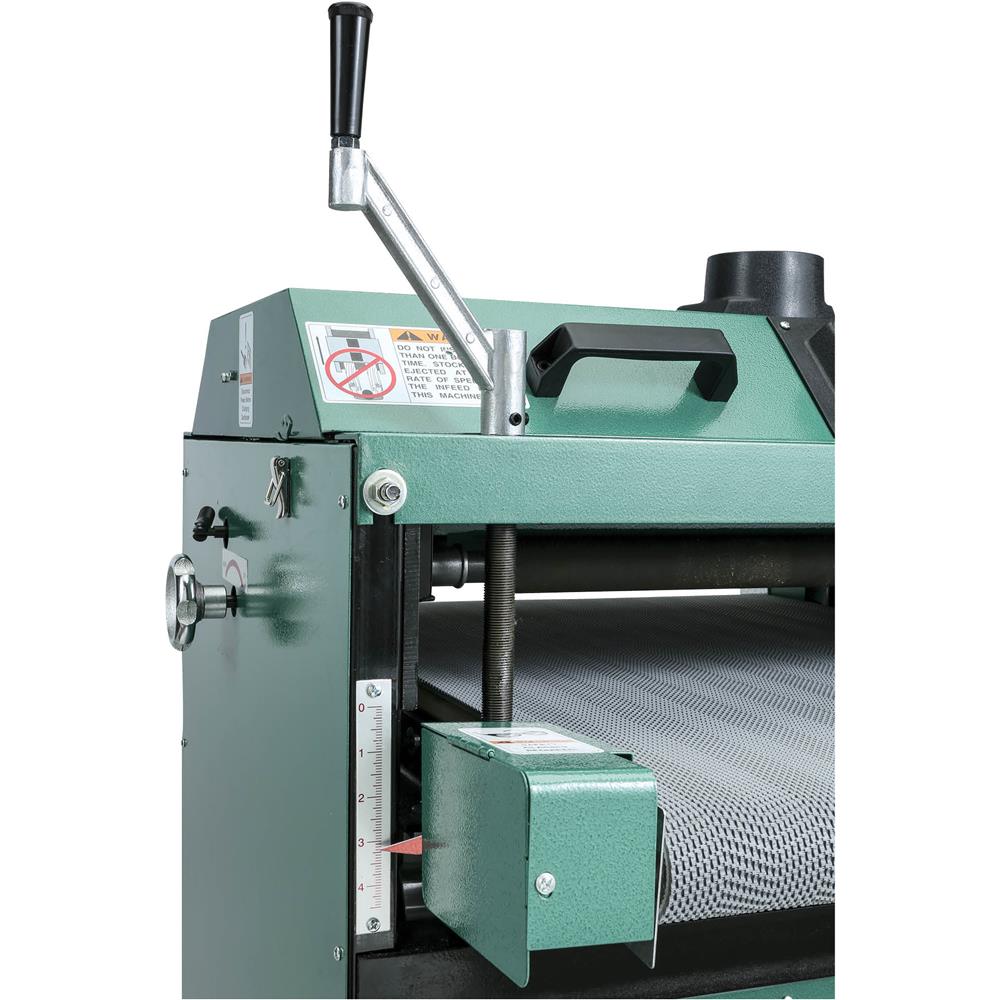

- Four leadscrew table elevation system
- State-of-the-art computer balanced drums

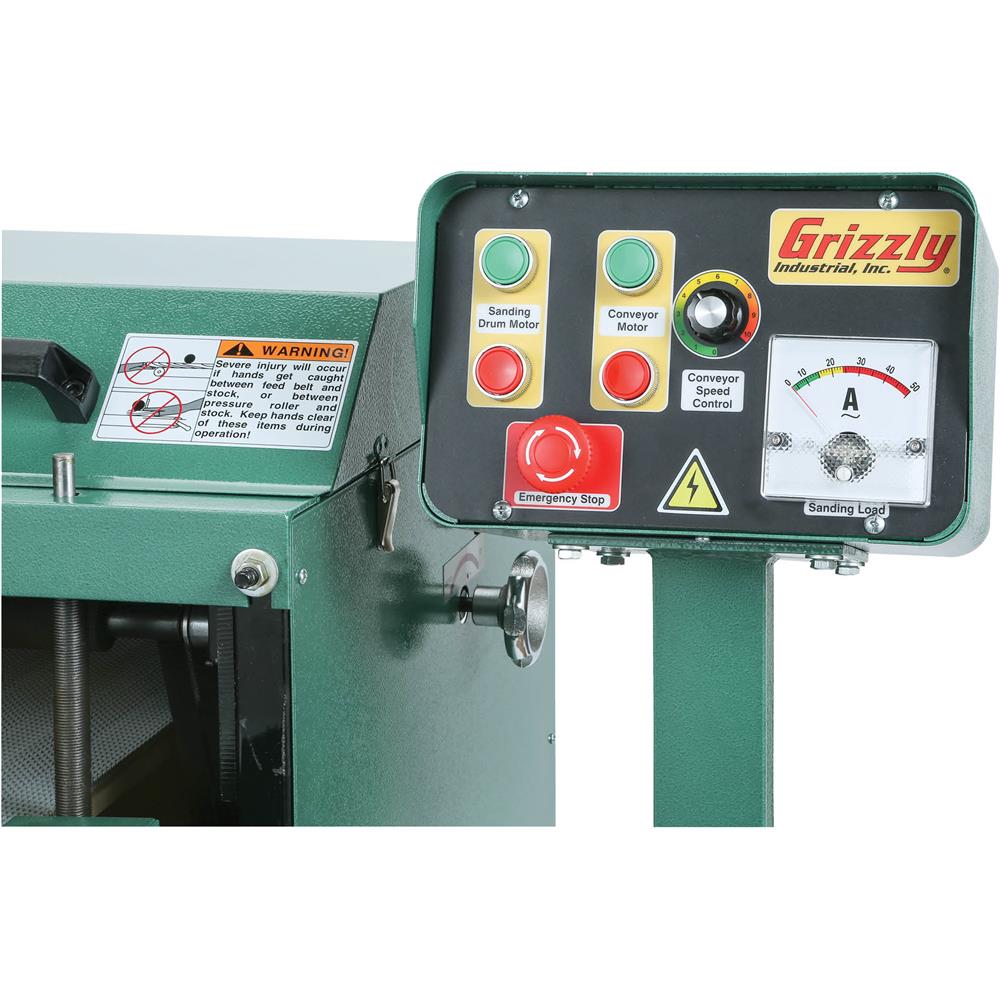

- Easy-access control panel with amp load meter
- External micro adjustment on outfeed drum
- 1-year limited warranty
Specifications
| Sanding motor | 5 HP, 220V, single-phase drum, 25A |
| Feed motor | 1/3 HP, 2A |
| Maximum board width | 23-1/2" |
| Minimum board width | 2" |
| Maximum board thickness | 4" |
| Minimum board thickness | 1/8" |
| Minimum board length | 9" |
| Drum surface speed | 2300 FPM |
| Conveyor feed rate | Variable, 0–20 FPM |
| Sandpaper type | 3" x 181-1/2" hook-and-loop |
| Footprint | Footprint |
| Overall dimensions | 50" W x 37" D x 44-1/2" H |
| Approximate shipping weight | 484 lbs. |
Warranty
This item comes with a 1 year factory warranty.
