Grizzly G1071 Oscillating Spindle Sander 1 HP New
Product Overview

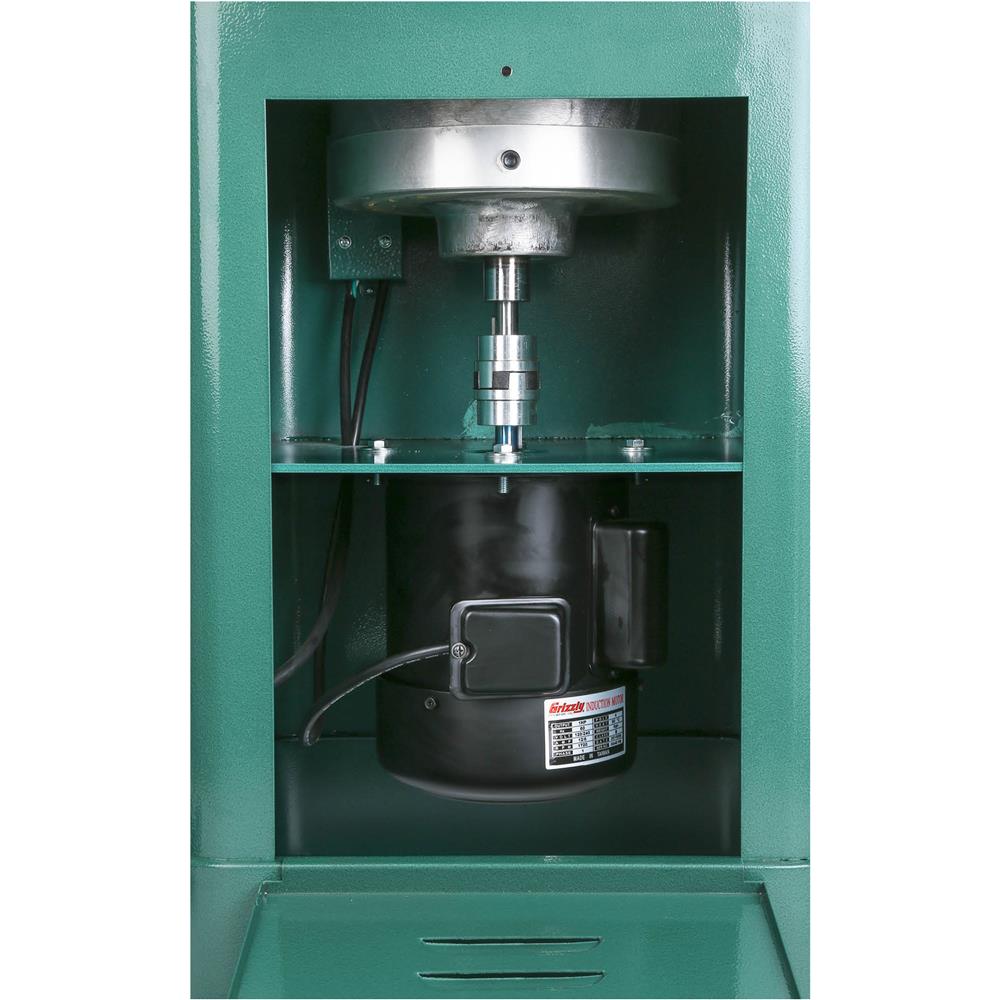

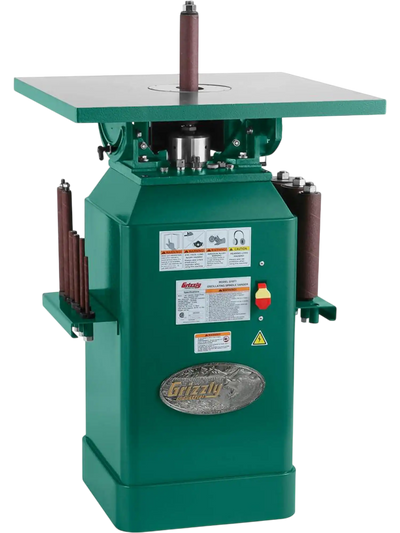

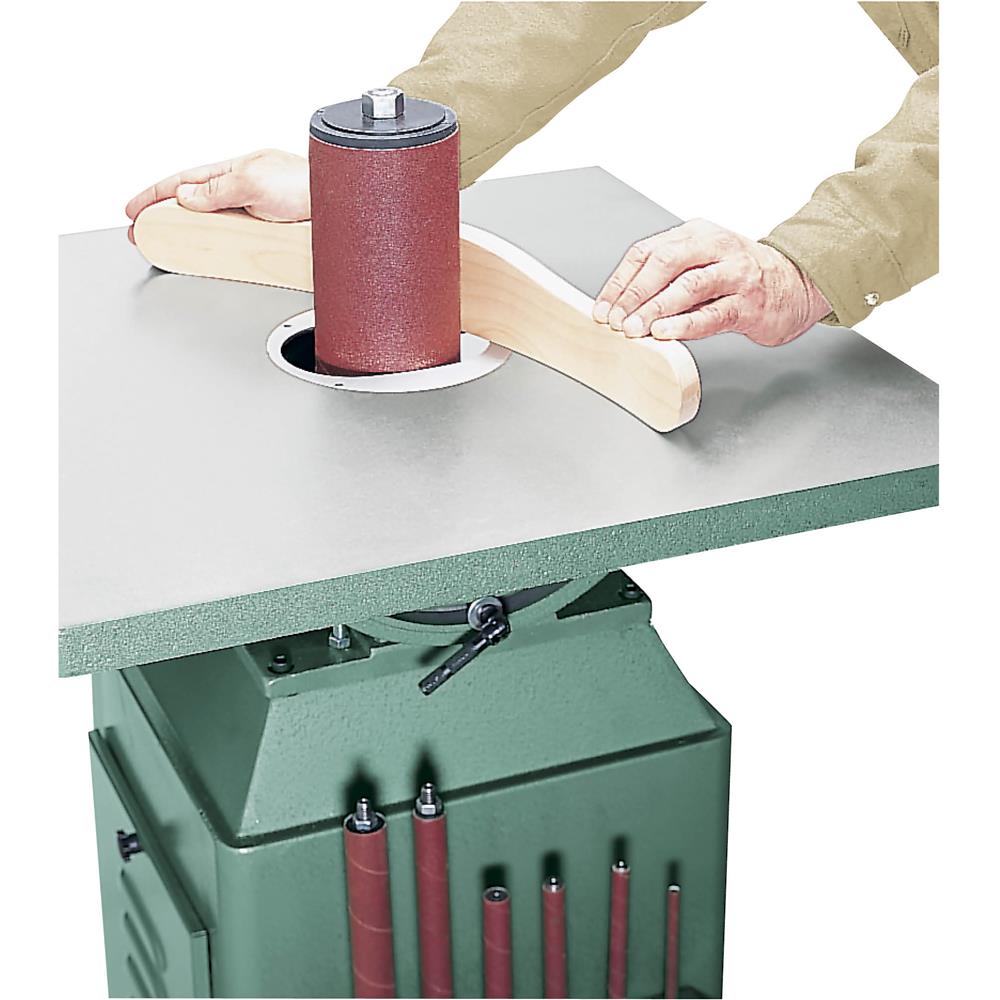

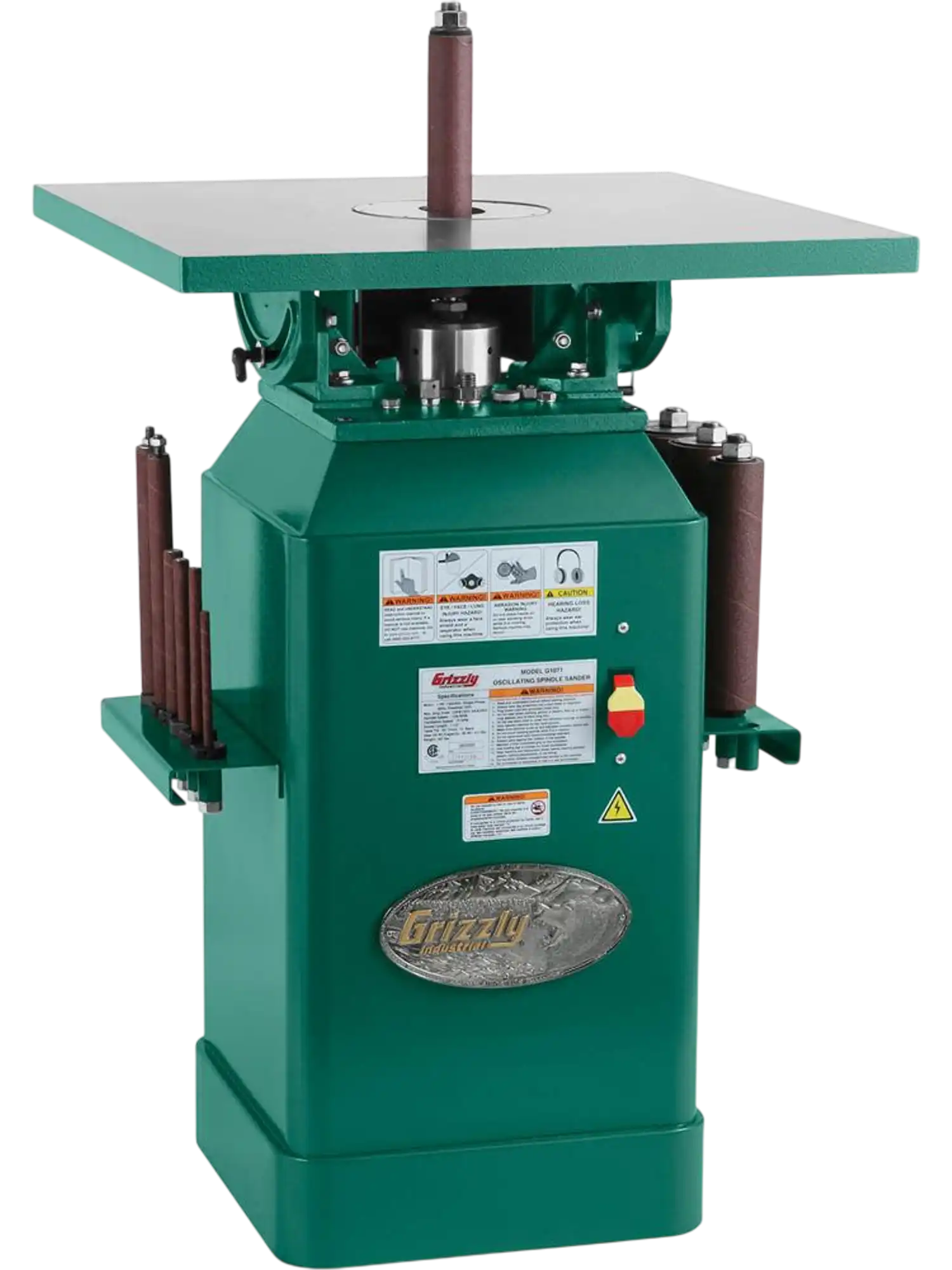

The Grizzly G1071 Oscillating Spindle Sander is a heavy-duty edge sanding machine built for shaping, smoothing, and finishing curved and contoured workpieces. Its 1 HP motor drives the spindle at 1725 RPM with a 1-1/2-inch oscillating stroke, helping produce cleaner sanding results while reducing heat and sleeve wear.

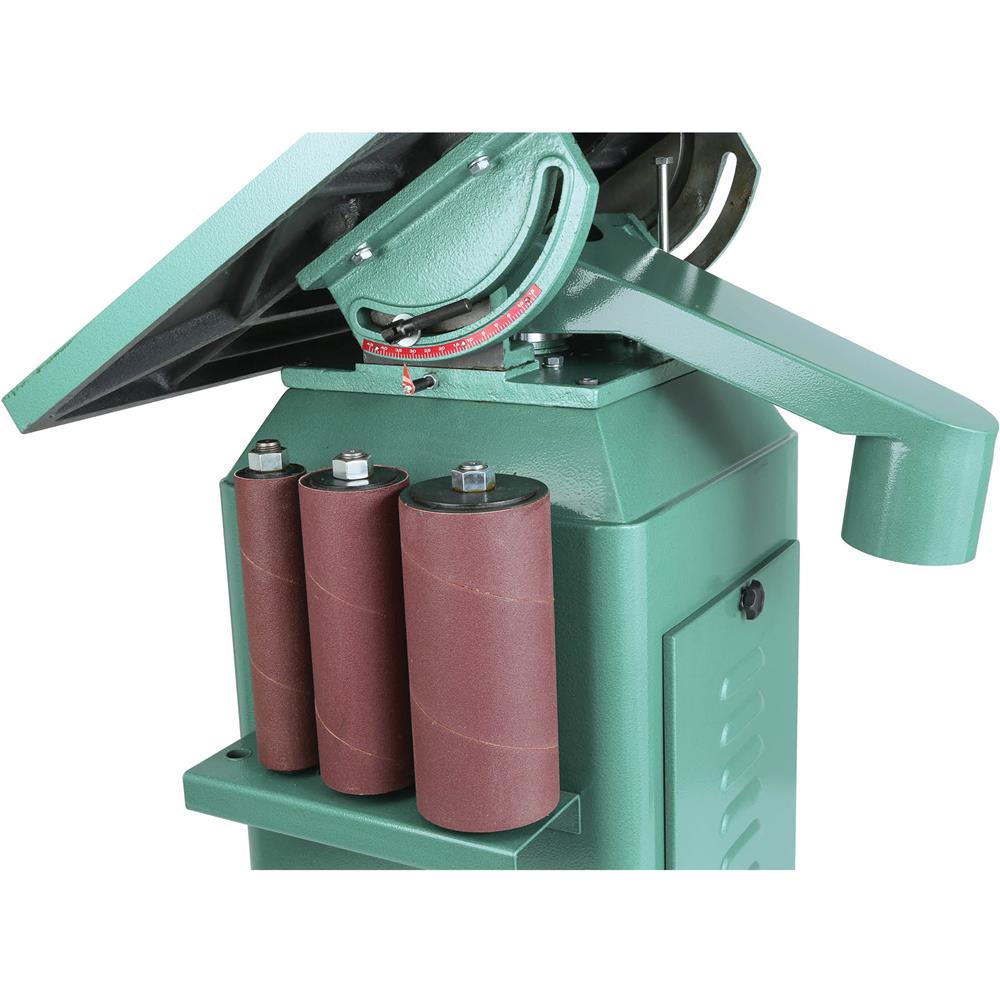

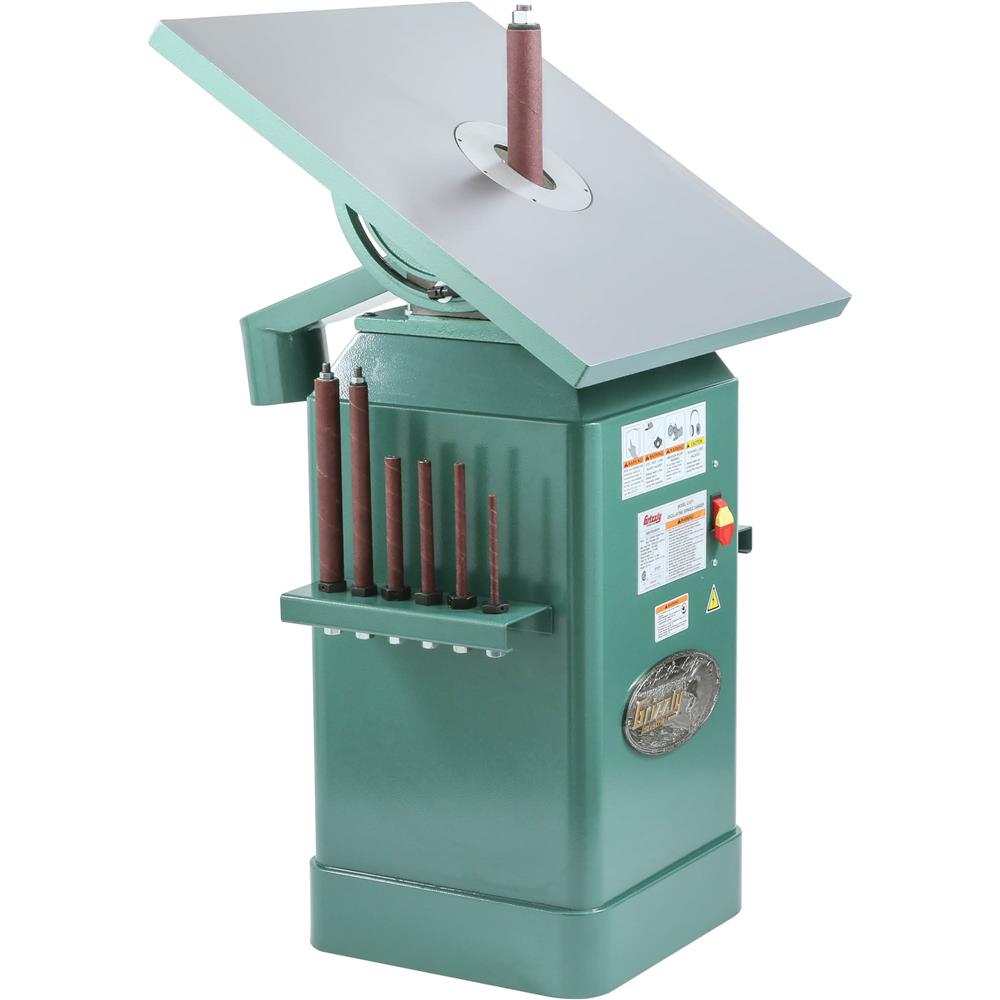

A large 25-inch by 25-inch cast-iron table gives stable support for cabinet doors, furniture parts, and other larger projects. The table also tilts 45 degrees forward and 15 degrees back for sanding beveled edges, making it a versatile choice for detailed shop work.

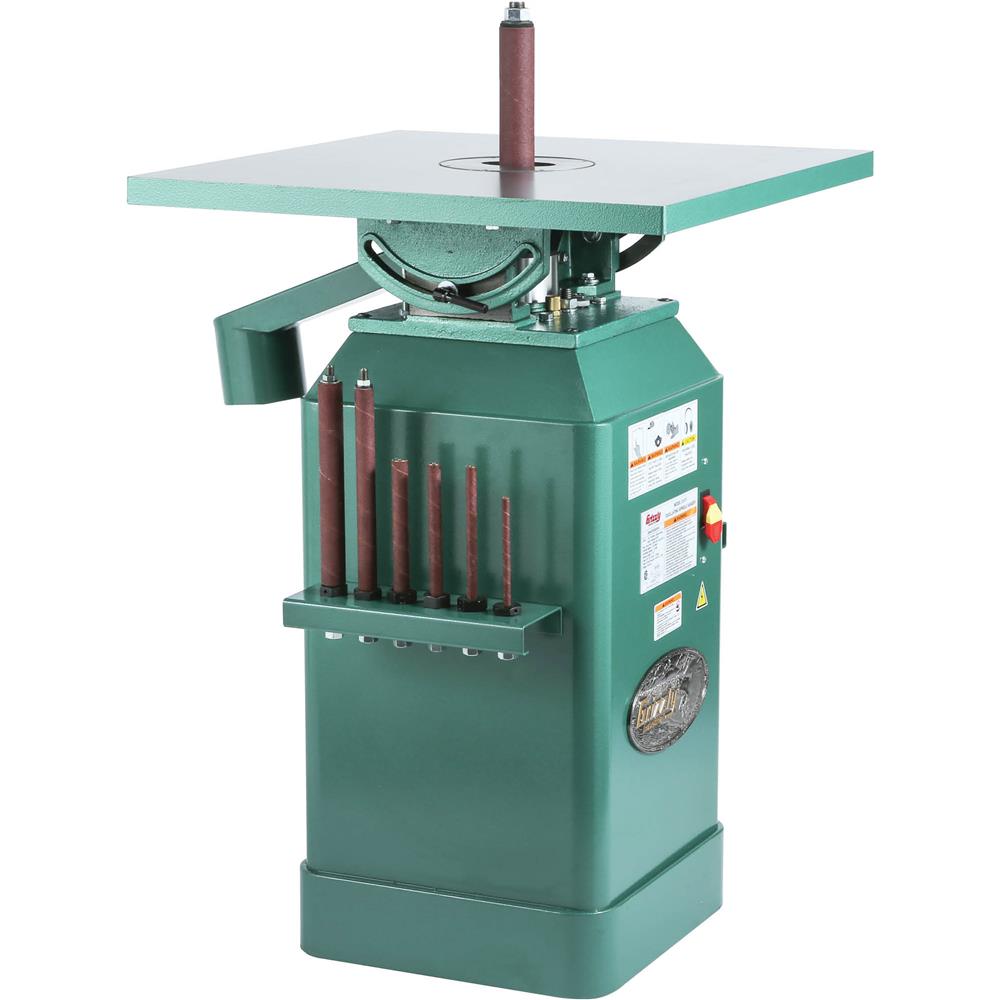

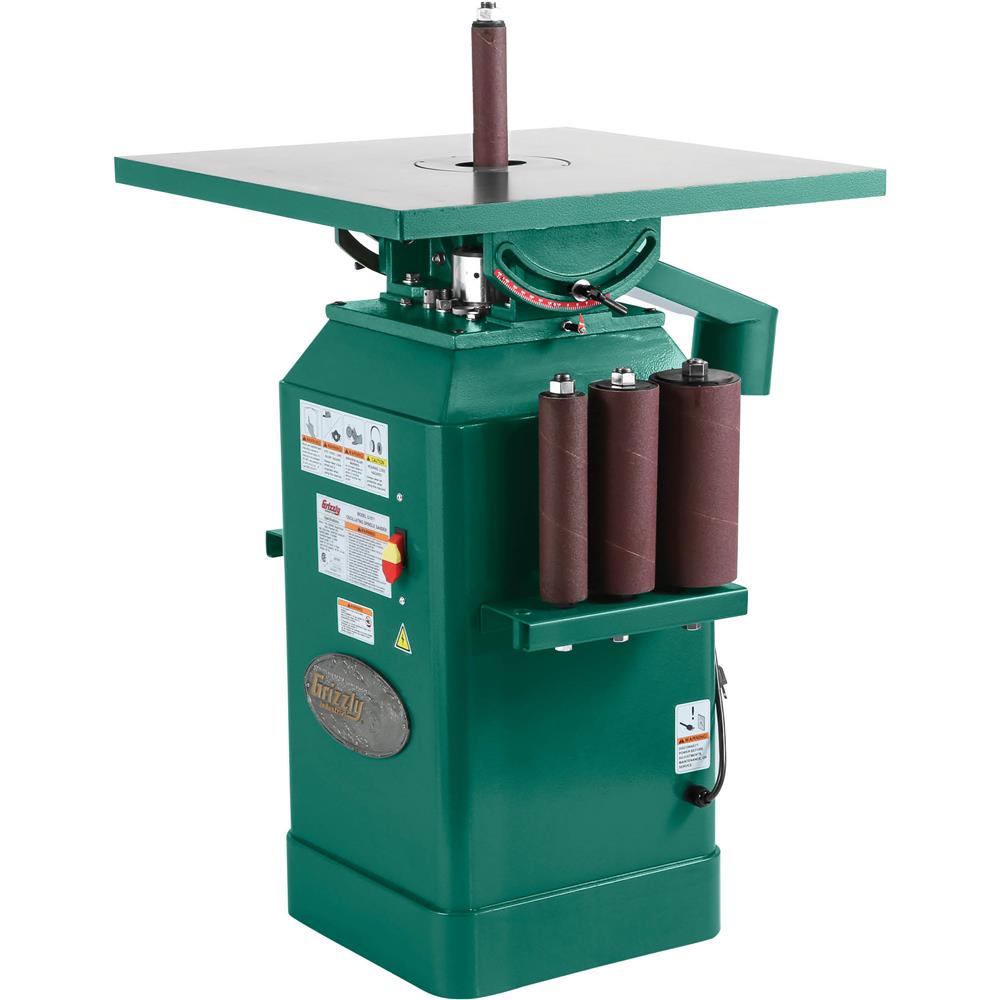

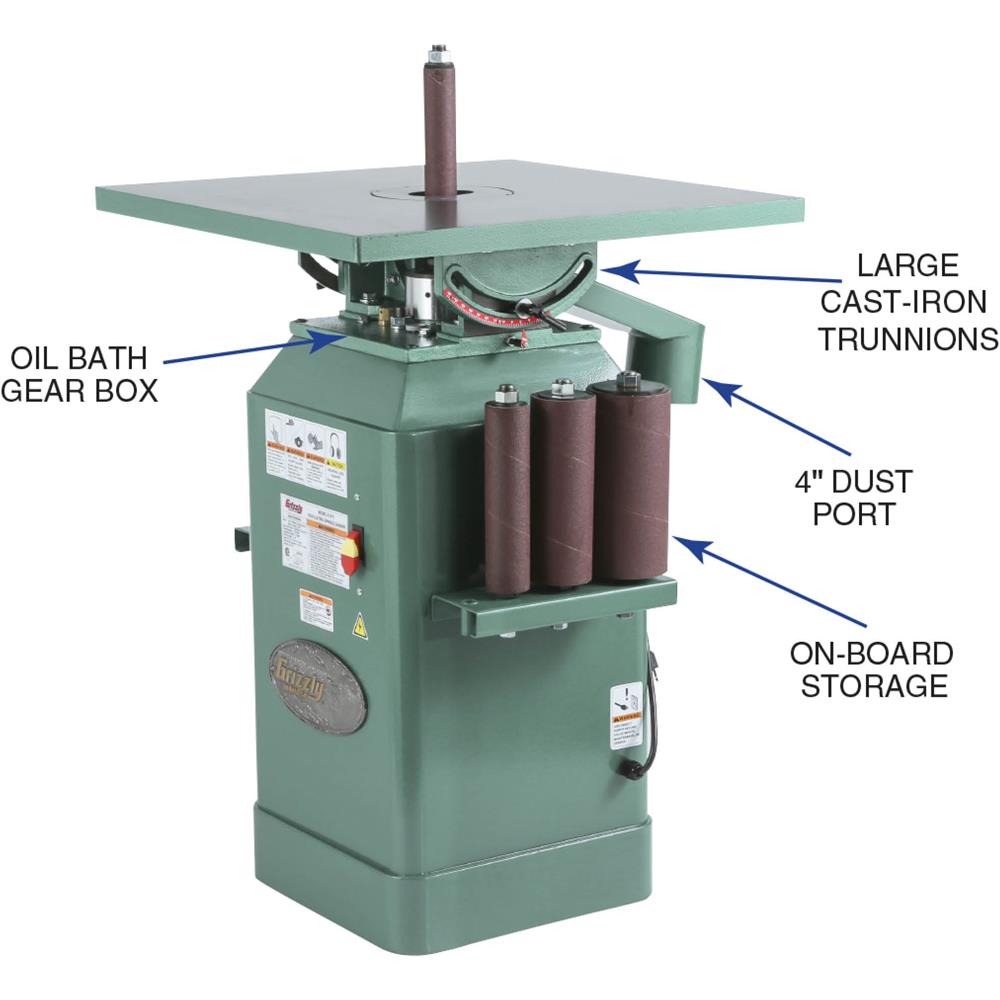

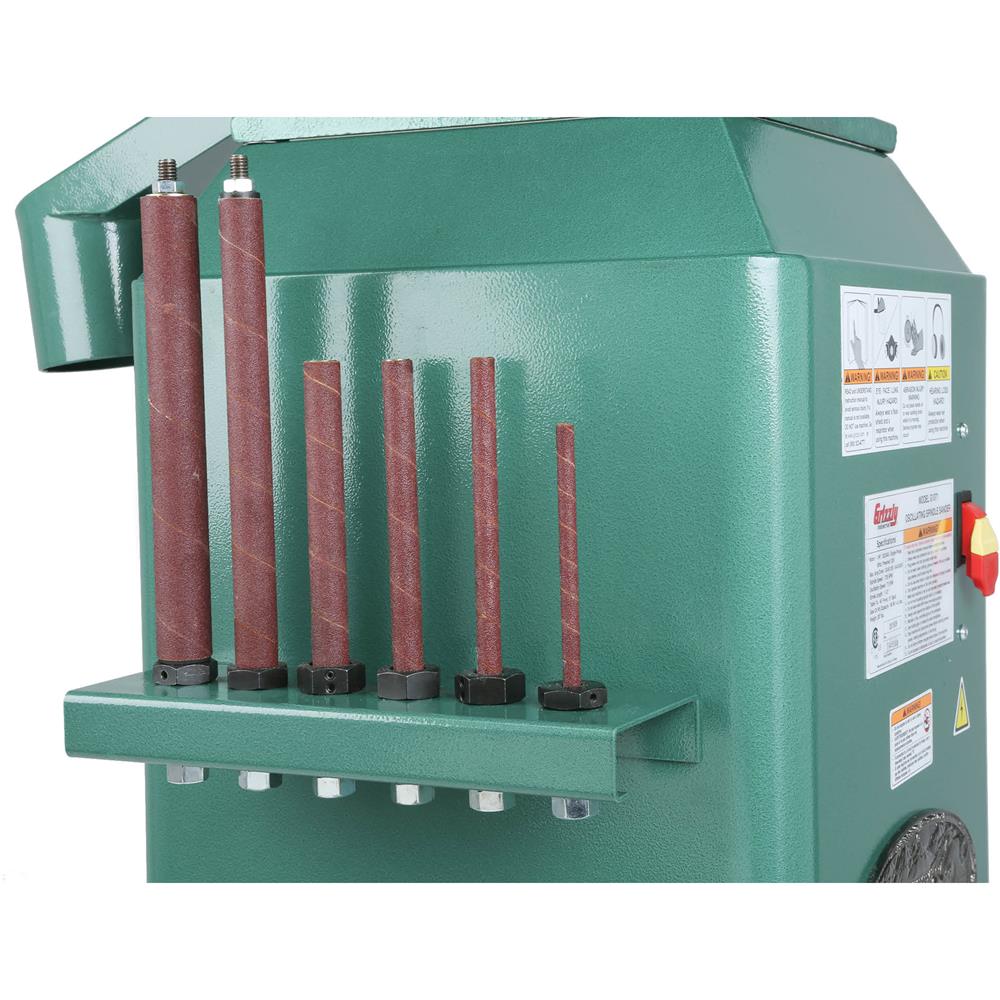

With ten interchangeable spindle sizes, included sanding sleeves, and built-in spindle storage on the cabinet, this machine is well suited for professional woodworkers and serious hobbyists who need flexibility for a wide range of curves and profiles. A 4-inch dust port helps keep the workspace cleaner during extended use.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Ground-steel table inserts
- Includes formed and welded steel stand
- Ten spindle sizes, tapered and threaded
- 100-Grit sleeve for each spindle

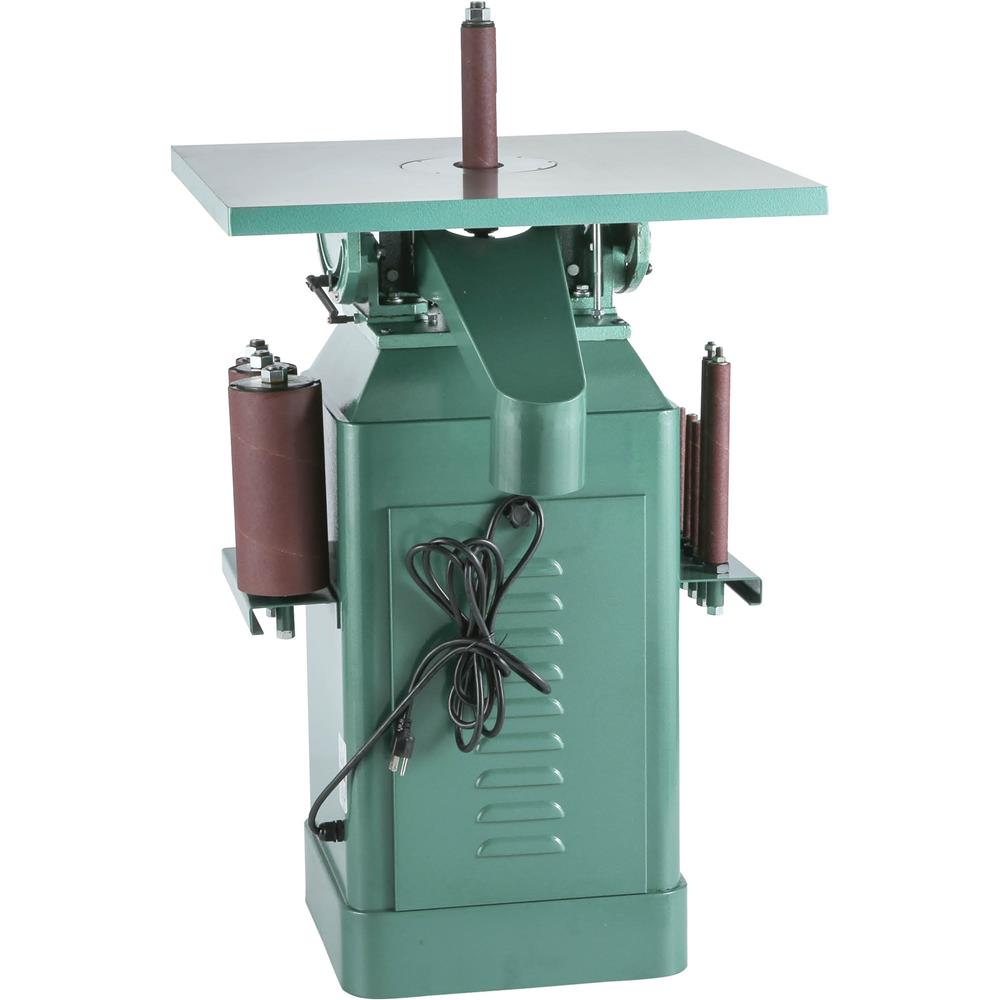

- Built-in 4" dust collection port
- Lubricated-for-life ball bearings

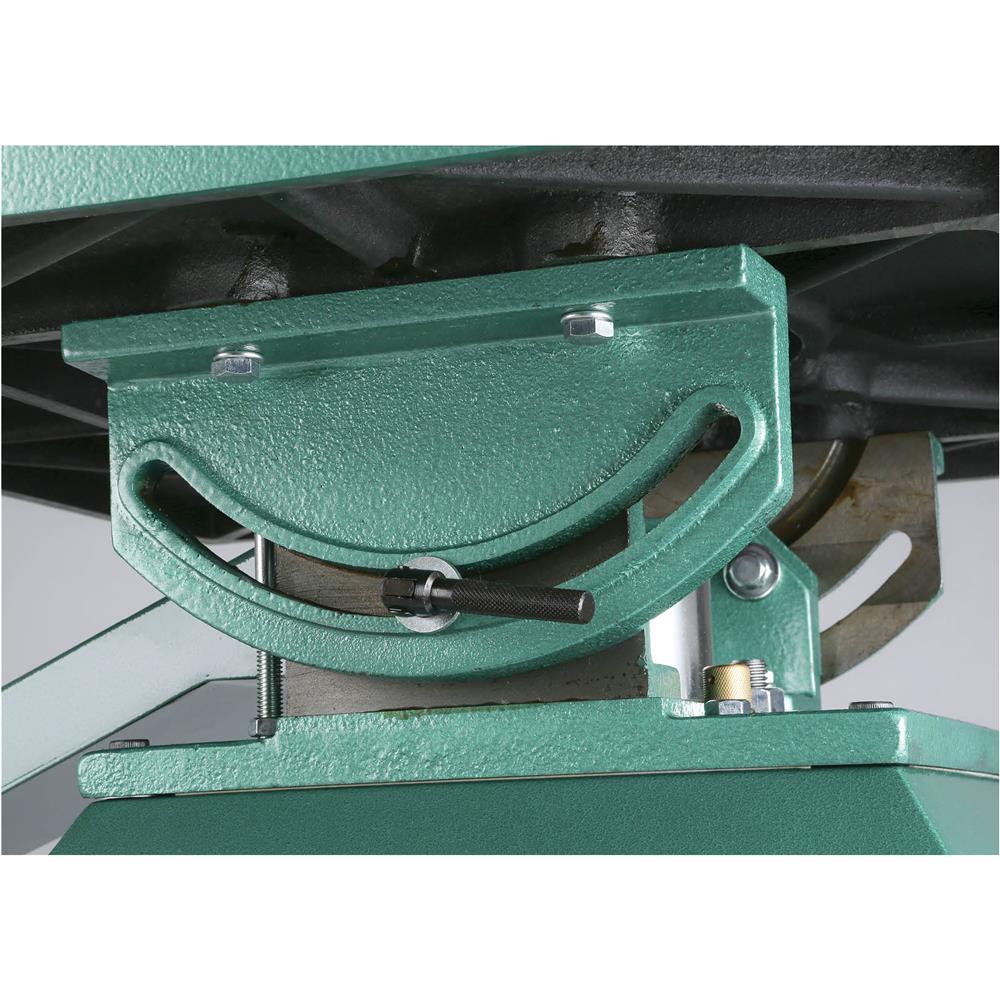

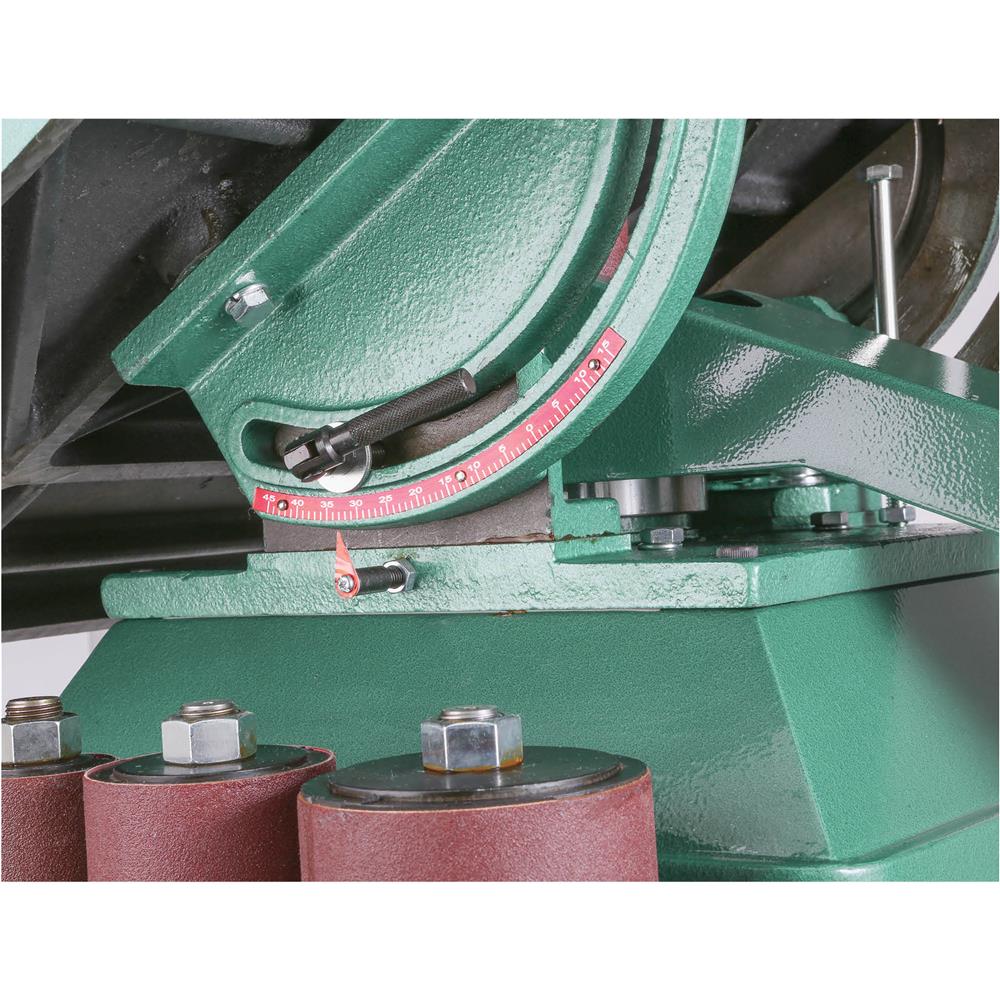

- Tilting cast-iron table 45° front and 15° back
Specifications
| Motor | 1 HP, 120V/240V (prewired for 120V), single-phase, 12A/6A |
| Spindle speed | 1725 RPM |
| Stroke length | 1-1/2" |
| Spindle oscillation | 72 OPM |
| Spindle dimensions (diameter x length) | 1/4" x 5", 3/8" x 6", 1/2" x 6", 5/8" x 6", 3/4" x 9", 1" x 9", 1-1/2" x 9", 2" x 9", 3" x 9", 4" x 9" |
| Table size | 25" x 25" |
| Table tilt | 45° Front, 15° Back |
| Floor-to-table height | 35-1/2" |
| Dust port size | 4" |
| Footprint | 16" x 16" |
| Overall dimensions | 25-1/2" W x 30" D x 45" H |
| Shipping weight | 344 lbs. |
Warranty
This item comes with a 1 year factory warranty.
