Grizzly G1096 Power Feeder 1 HP 4-Speed 4-Roller 3-Phase New
Product Overview

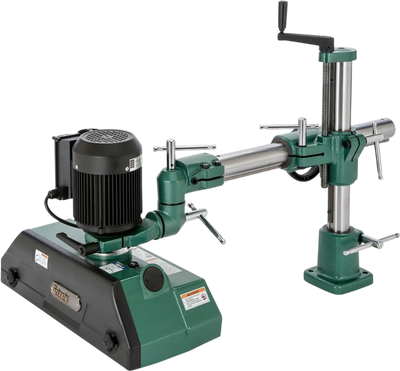

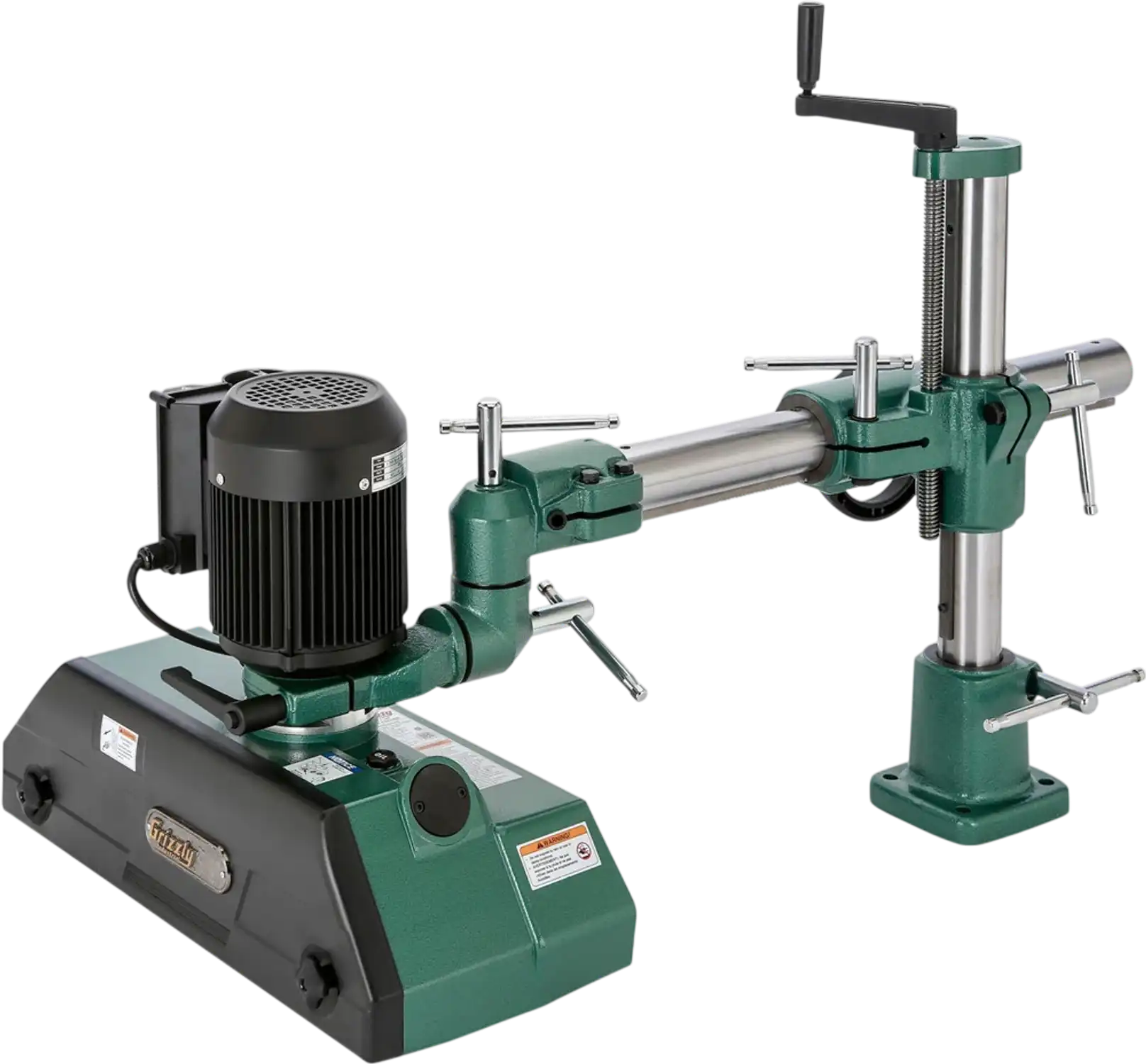

The Grizzly G1096 is a 1 HP, 3-phase power feeder designed to deliver steady, controlled stock feeding for production ripping, milling, and other repeat woodworking operations. With four synthetic rubber rollers and heavy-duty gear reduction, it helps move material smoothly and consistently through your machine.
Four feed speeds from 13 to 66 FPM and forward/reverse operation make it easy to match the feed rate to the job. X-, Y-, and Z-axis adjustment, 360-degree swing, and generous horizontal travel provide flexible positioning for a wide range of setups and workpiece sizes.
This power feeder is well suited for professional shops and serious production environments that want to improve efficiency, reduce manual feeding effort, and achieve more uniform results on longer or wider stock.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Forward/reverse feed
- Multiple feed speeds
- X-, Y-, Z-axis adjustment
- Heavy-duty gear reduction
Specifications
| Motor | 1 HP, 220V, 3-phase, 3.4A/2.5A |
| Feed speeds | (4) 13, 26, 33, 66 FPM |
| Rotation | Forward & reverse |
| Max. height of rollers | 8-1/2" |
| Min. workpiece length | 6" |
| Horizontal travel | 24-1/4" |
| Swing | 360° |
| Rollers | (4) synthetic rubber, 2-3/8" wide x 4-3/4" dia. |
| Roller suspension | 3/4" |
| Mounting base size | 3-3/4" x 4-1/4" |
| Footprint | 22-1/2" x 40" |
| Approximate shipping weight | 152 lbs. |
Warranty
This item comes with a 1 year factory warranty.
