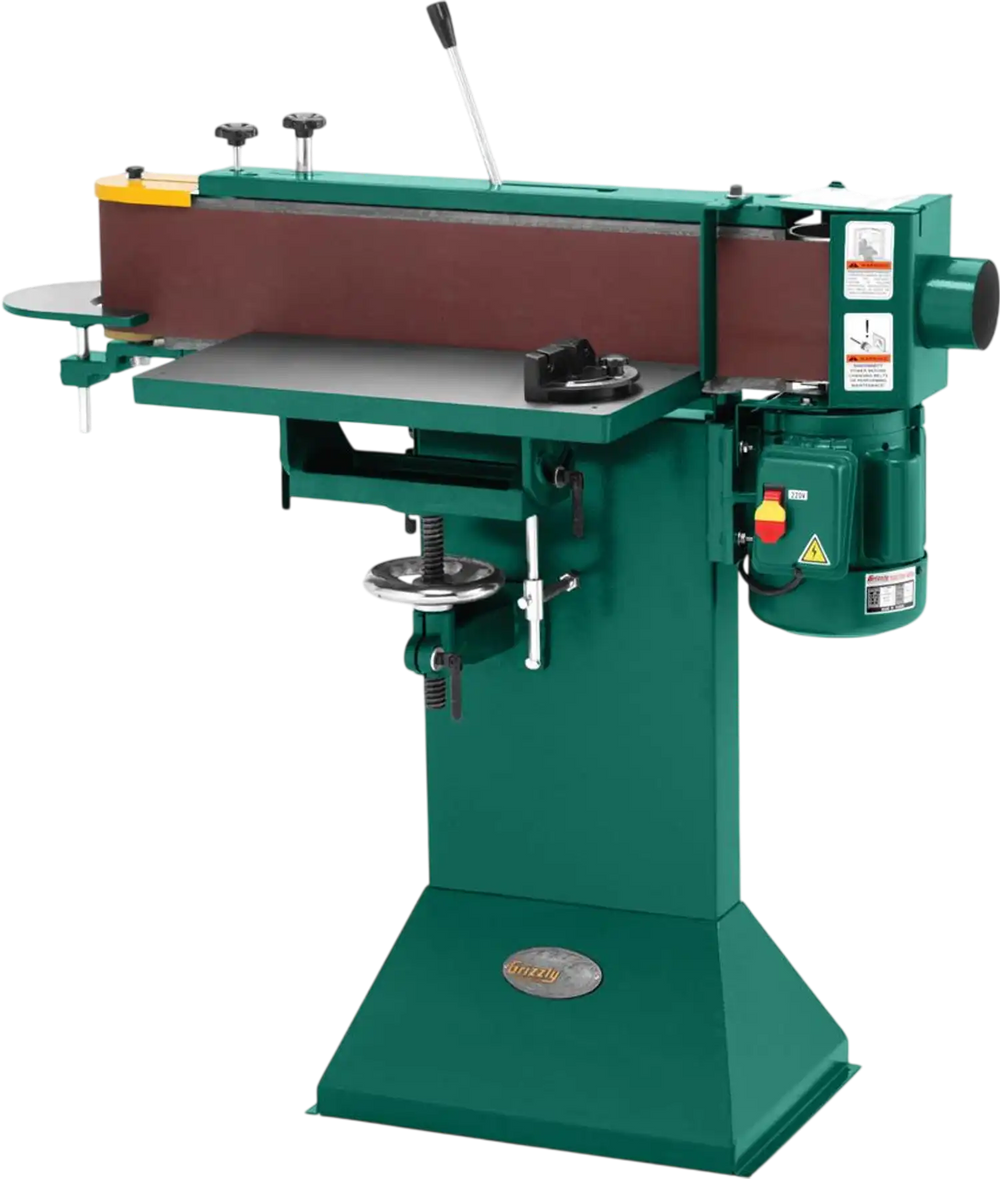

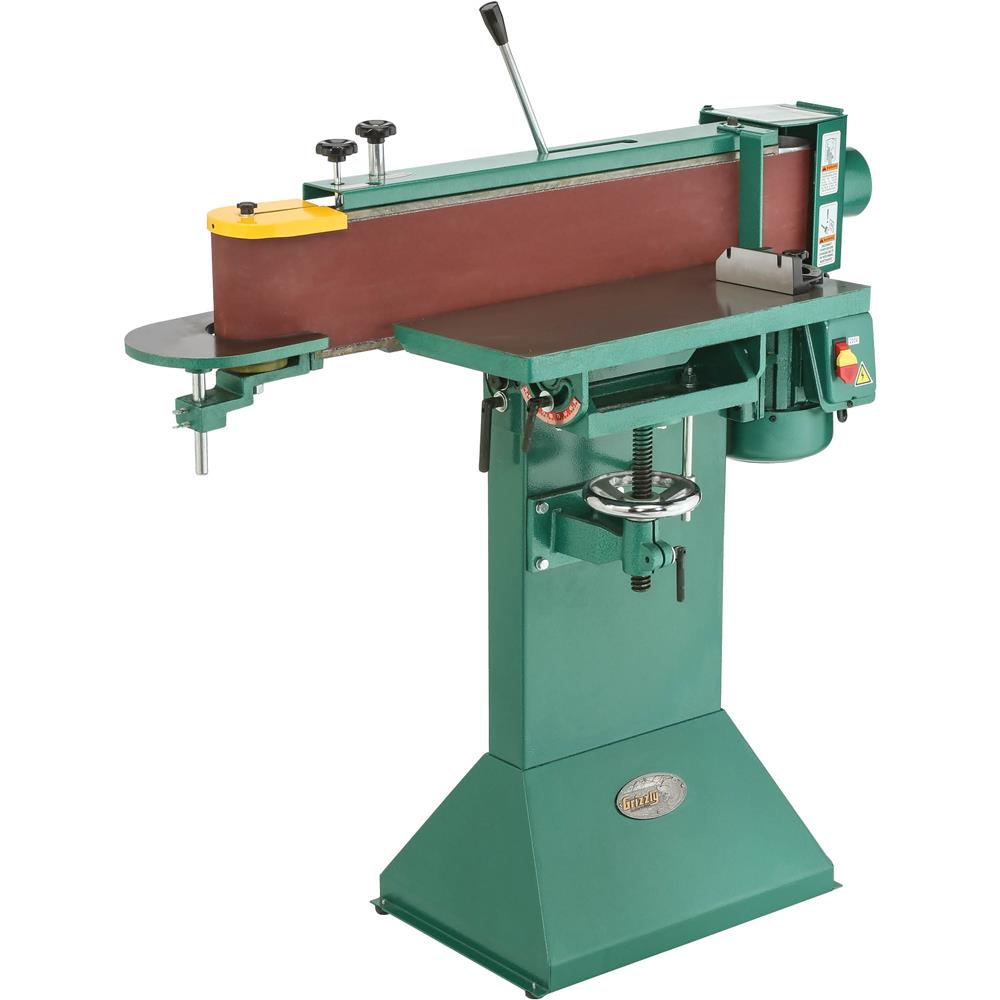

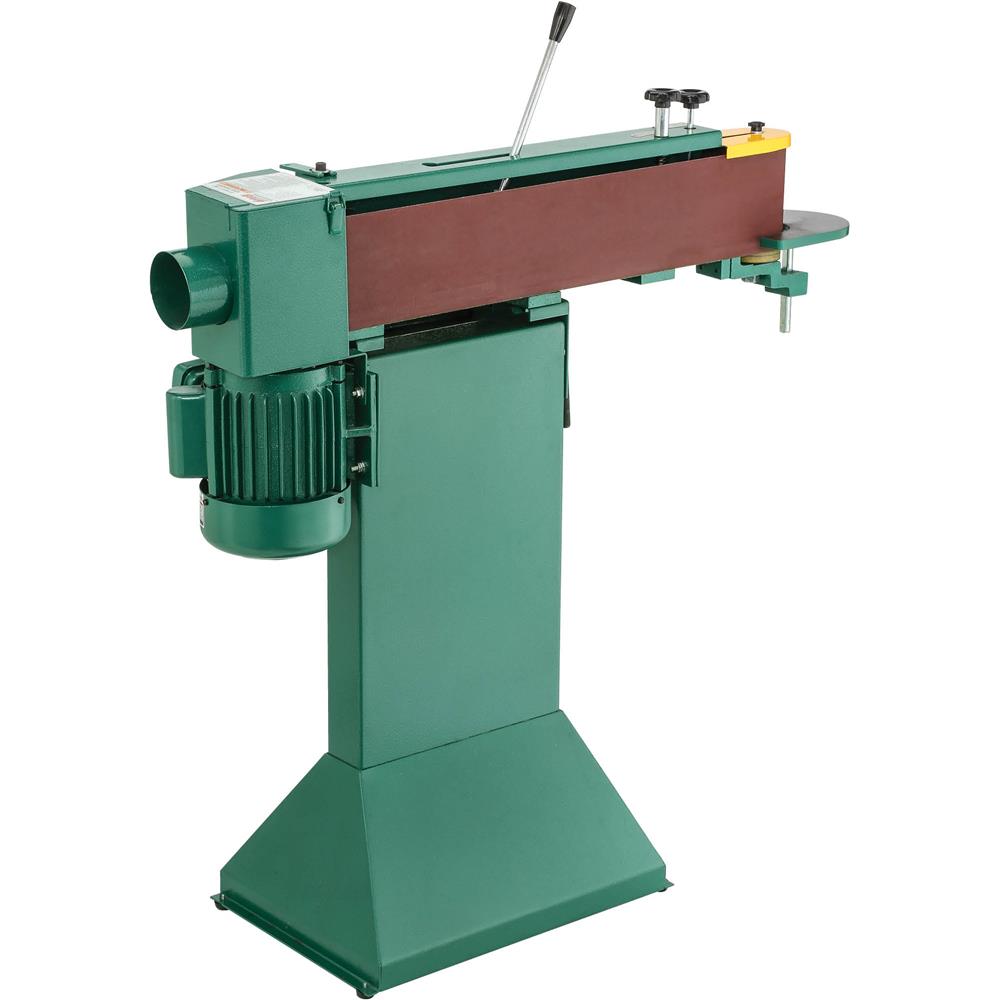

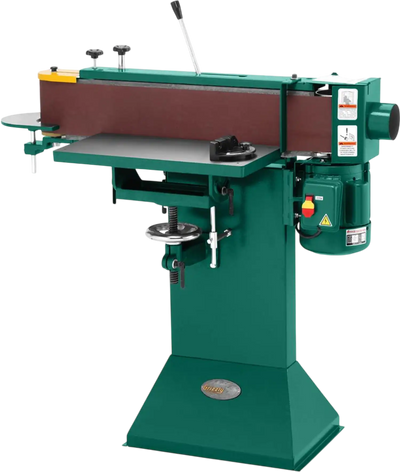

Grizzly G1140 Edge Sander 6" x 80" Floor Model New
Product Overview
The Grizzly G1140 is a floor-model edge sander built for smoothing long edges, door panels, and other wide workpieces with speed and consistency. Its 6" x 80" belt and nearly 30" of vertical sanding area help cover more surface in a single pass, making it a practical choice for woodworking shops that handle larger stock.

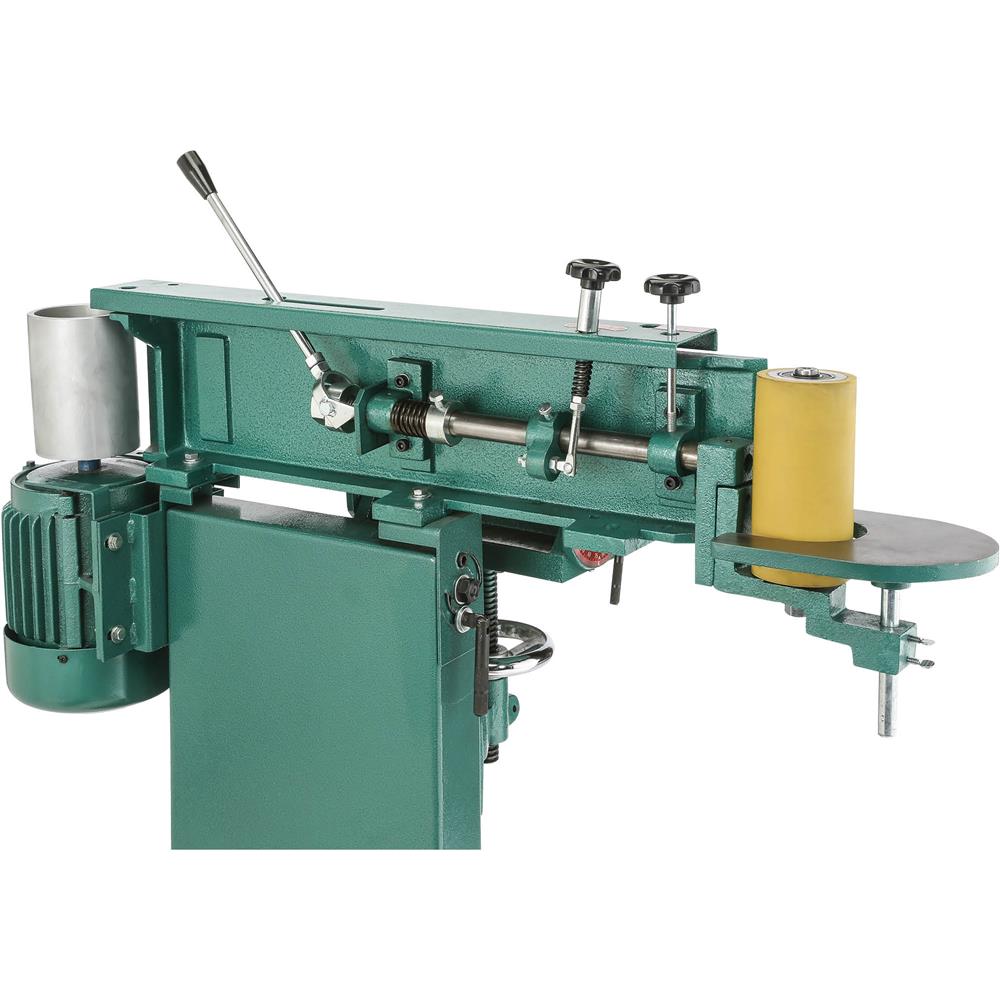

This machine is designed for both straight and curved sanding tasks. A height-adjustable contoured support table helps with shaped panels, while the 3-3/8" end roller makes it easier to sand tight radii. The sanding surface also tilts from vertical to horizontal, adding flexibility for different sanding positions and applications.
With a 1-1/2 HP motor, precision-ground cast-iron table, quick-release belt lever, and simple belt tracking and tension adjustment, it is suited for woodworkers who want efficient operation and solid control. The built-in dust hood also helps reduce airborne dust during use, making it a strong fit for serious hobbyists, cabinet makers, and professional shops.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

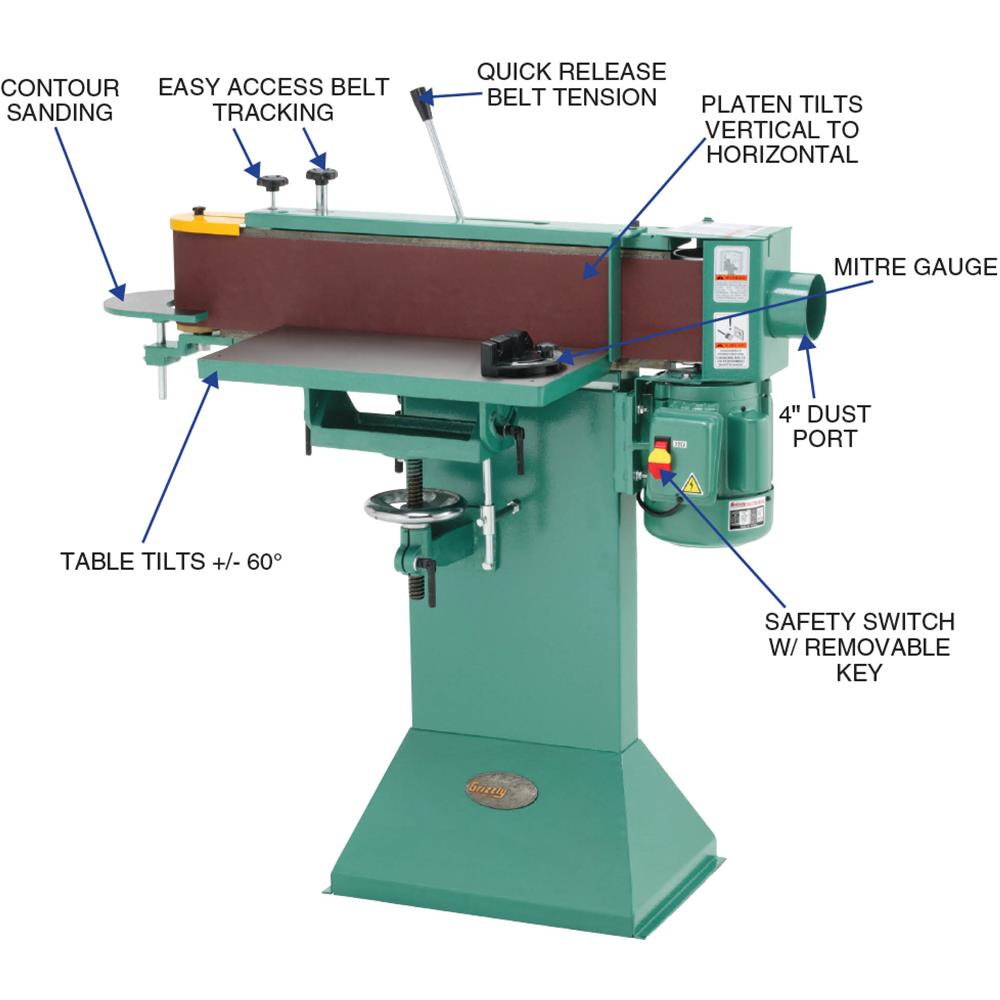

Features

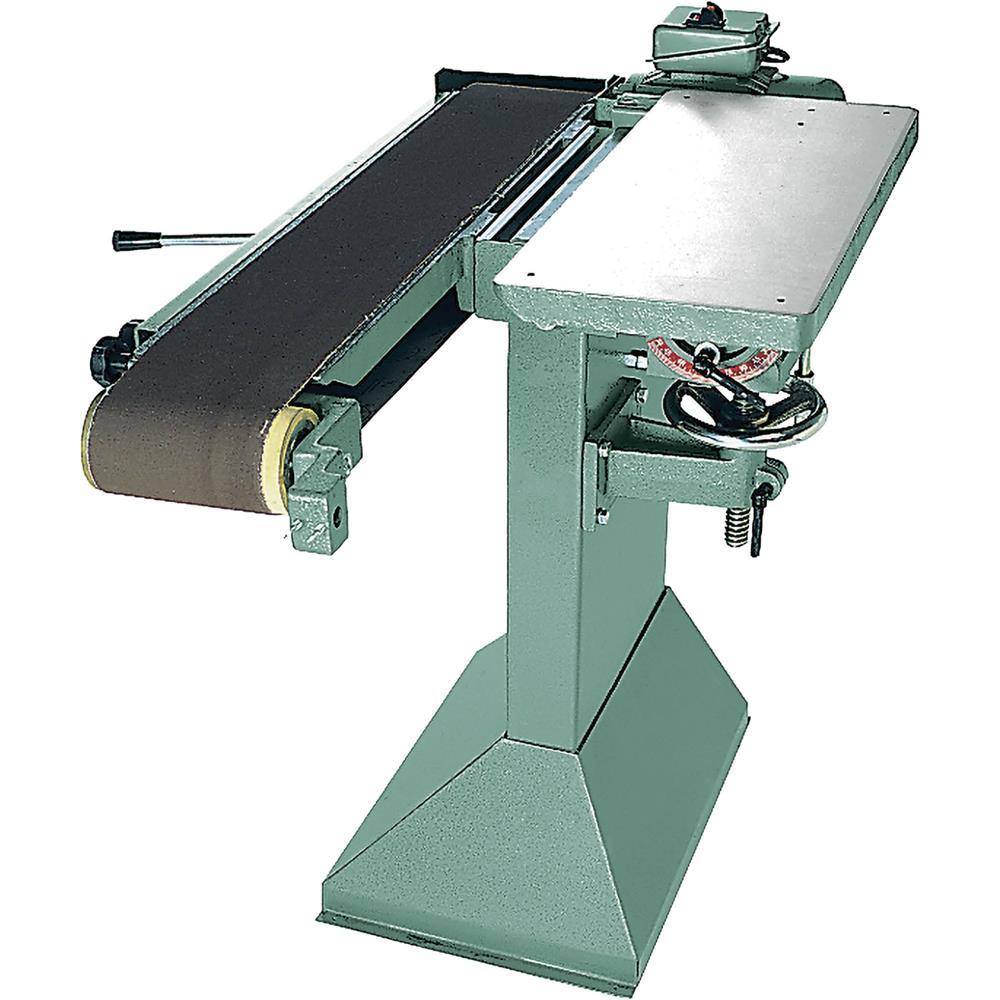

- Sanding surface tilts vertical to horizontal
- Graphite-coated platen
- Quick-release belt lever
- Conveniently located belt tracking and tension adjustment

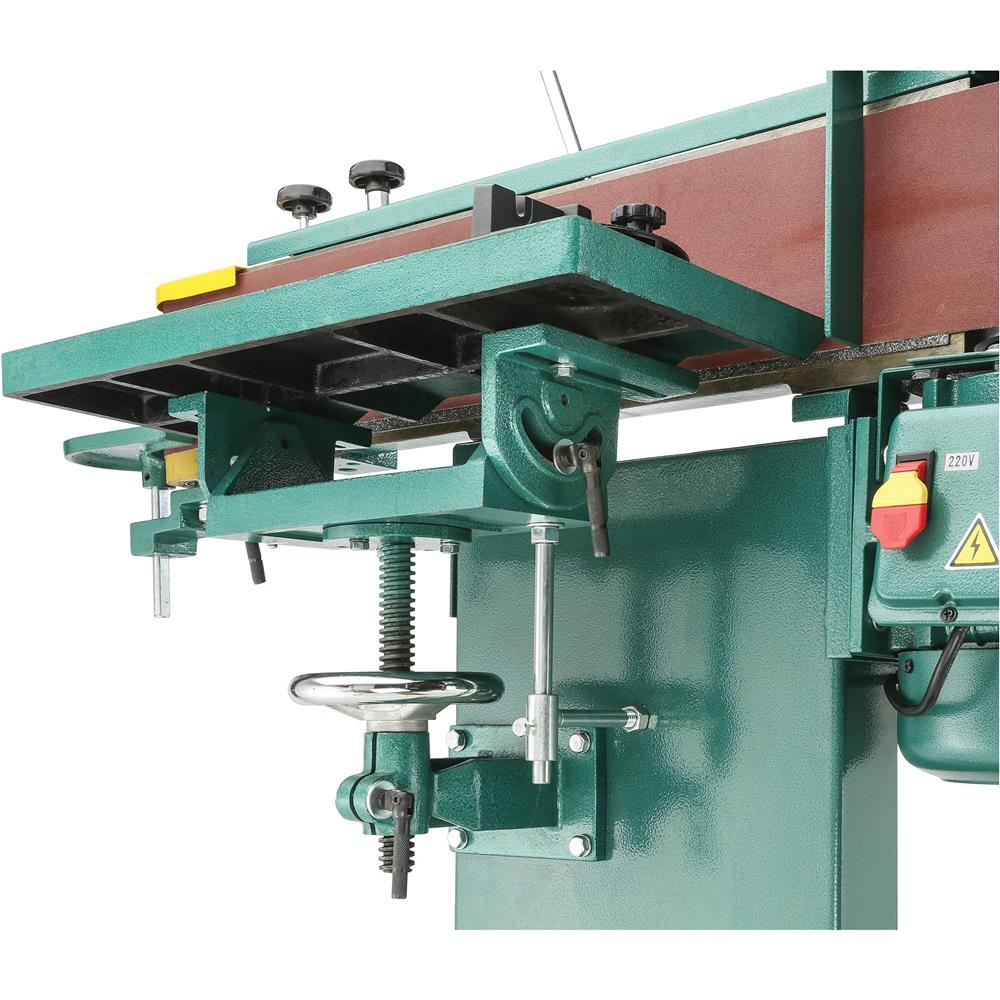

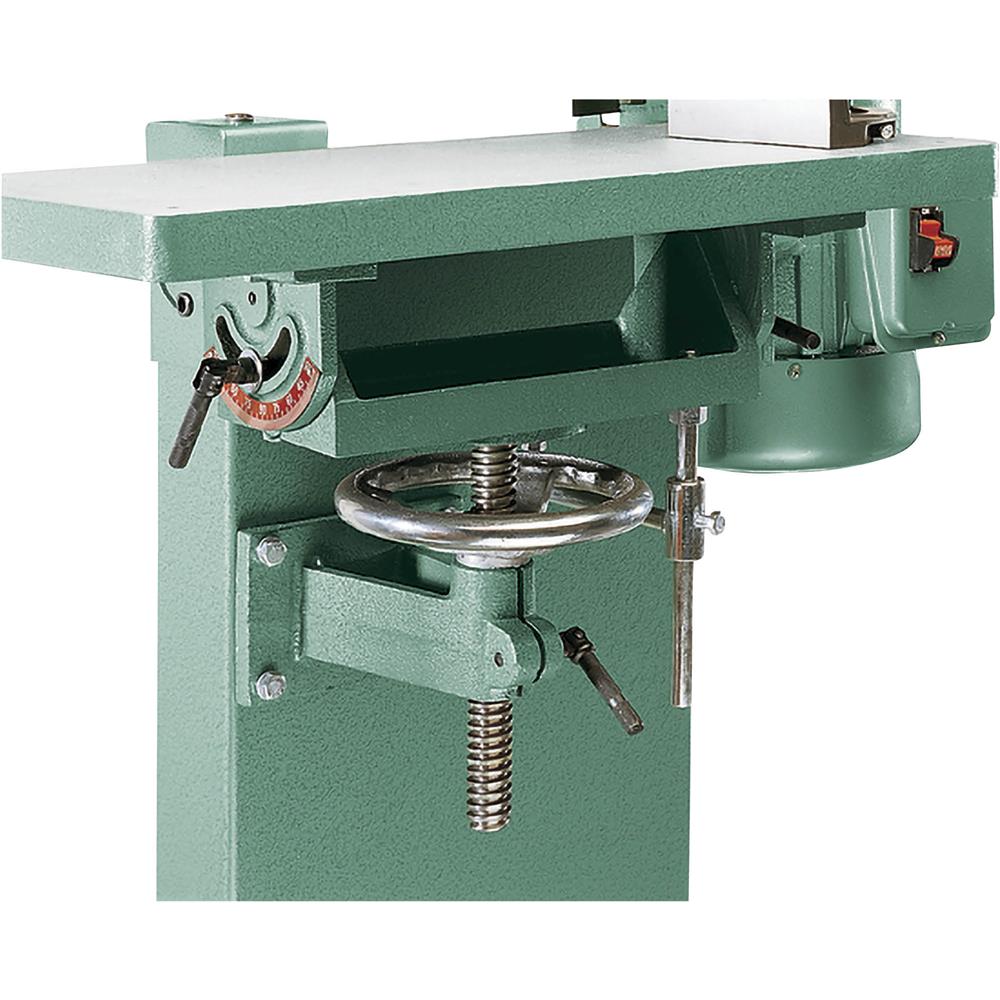

- Handwheel table height adjustment
- Precision-ground cast-iron table
- Paddle switch with safety key
- Built-in dust hood
Specifications
| Motor | 1-1/2 HP, 110V/220V (prewired 220V), single-phase, 20A/10A |
|---|---|
| 22" x 10-1/2" cast-iron table with miter block | |
| Amps | 20A at 110V, 10A at 220V |
| Sanding belt speed | 1800 FPM |
| Sanding belt size | 6" x 80" |
| Sanding belt tilt | 90° |
| Table size | 22" x 10-1/2" |
| Table tilt -60°-+60° | |
| Table travel | 5" |
| Floor to table height | 35" |
| End table | 4-1/4" x 8", adjustable vertically 3-1/2" |
|---|---|
| Platen | 6-3/4" x 29-3/4" |
| Dust port | 4" |
| Footprint | 21-1/2" x 15" |
| Overall dimensions | 47" W x 20" D x 49" H |
| Approximate shipping weight | 269 lbs. |
Warranty
This item comes with a 1 year factory warranty.
