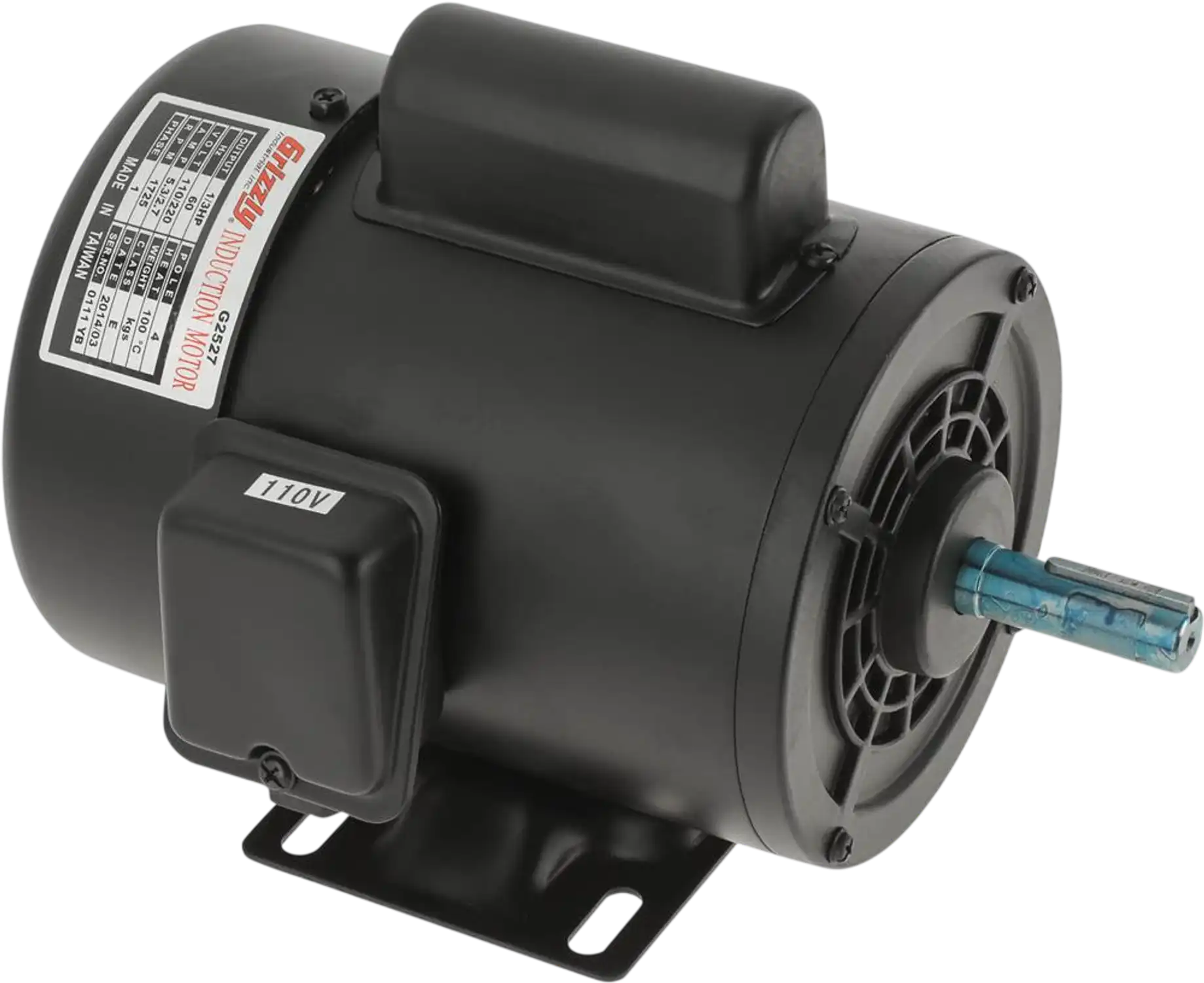

Grizzly G2527 Motor 1/3 HP Single-Phase 1725 RPM TEFC 110V/220V New
Product Overview
The Grizzly G2527 is a 1/3 HP single-phase electric motor designed for machine replacement and light equipment applications. It runs at 1725 RPM and features a Totally Enclosed Fan-Cooled design, making it a solid choice for environments where dust, chips, or oil are commonly present.
Built with a NEMA 56 frame, this motor operates on 110V or 220V power and comes prewired for 110V. Reversible rotation adds flexibility for a variety of setup needs, while the TEFC construction helps protect the motor during everyday shop use.
This motor is well suited for woodworkers, hobbyists, and small shop users looking to restore or retrofit compatible machinery without replacing the entire machine. It is intended for general equipment use and is not designed for air compressor applications.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- Totally Enclosed Fan-Cooled motor (TEFC)
- Reversible rotation
- 1-year limited warranty
Specifications
| Power | 1/3 HP |
| Type | TEFC |
| Cycle | 60 Hz |
| Voltage | 110V/220V |
| Prewired | 110V |
| Amperage | 5.3A/2.7A |
| Phase | Single-phase |
| Speed | 1725 RPM |
| Class | E |
| Start capacitor | 200MFD 125VAC |
| Rotation | Reversible |

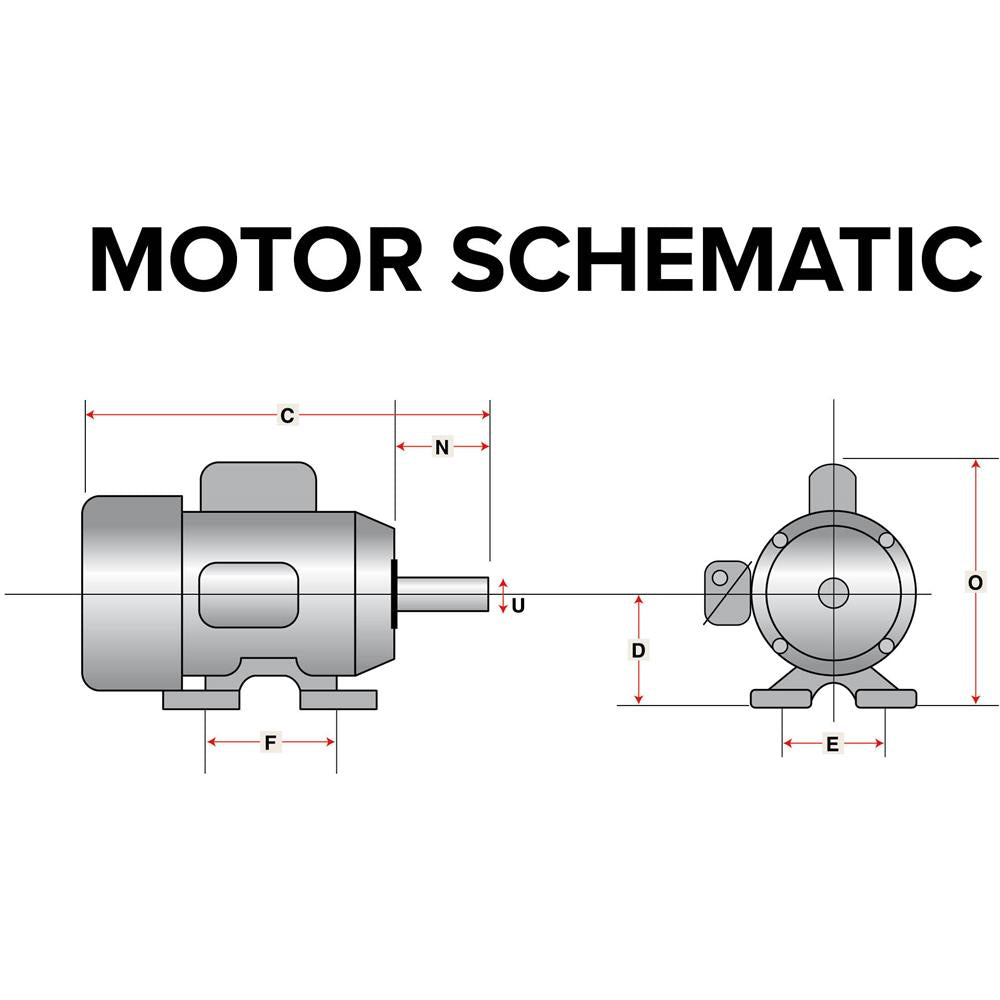

| U | 5/8" |
| N | 1.89" |
| Key | 3/16" |
| C | 10.56" |
| O | 7.49" |
| D | 3.15" |
| F | 2.95" |
| E | 4.92" |
Warranty
This item comes with a 1 year factory warranty.
