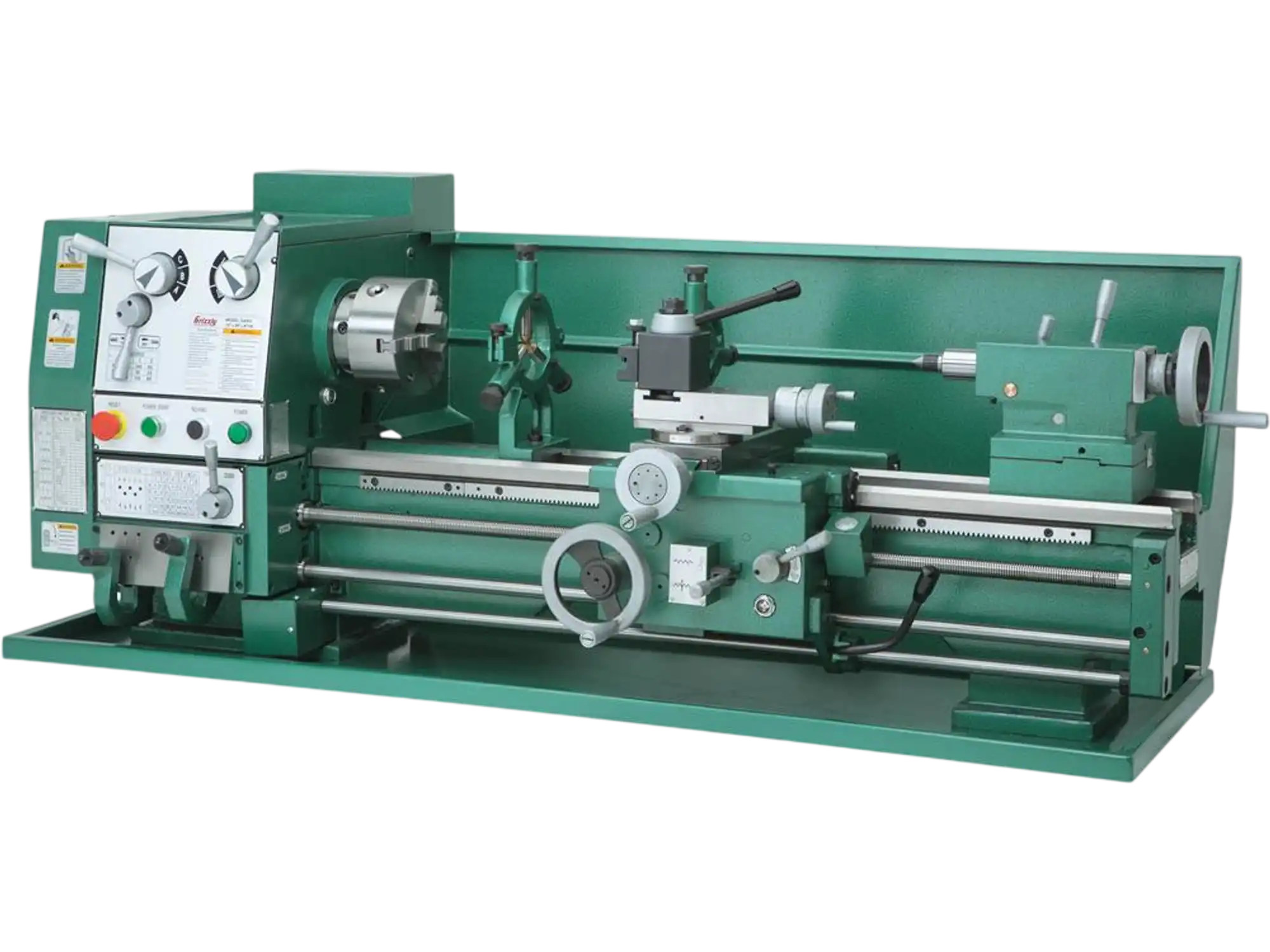

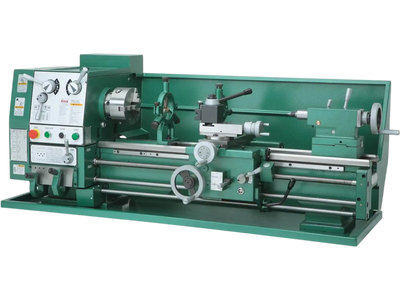

Grizzly G4003 Metal Lathe 12" x 36" Gearhead New
Product Overview

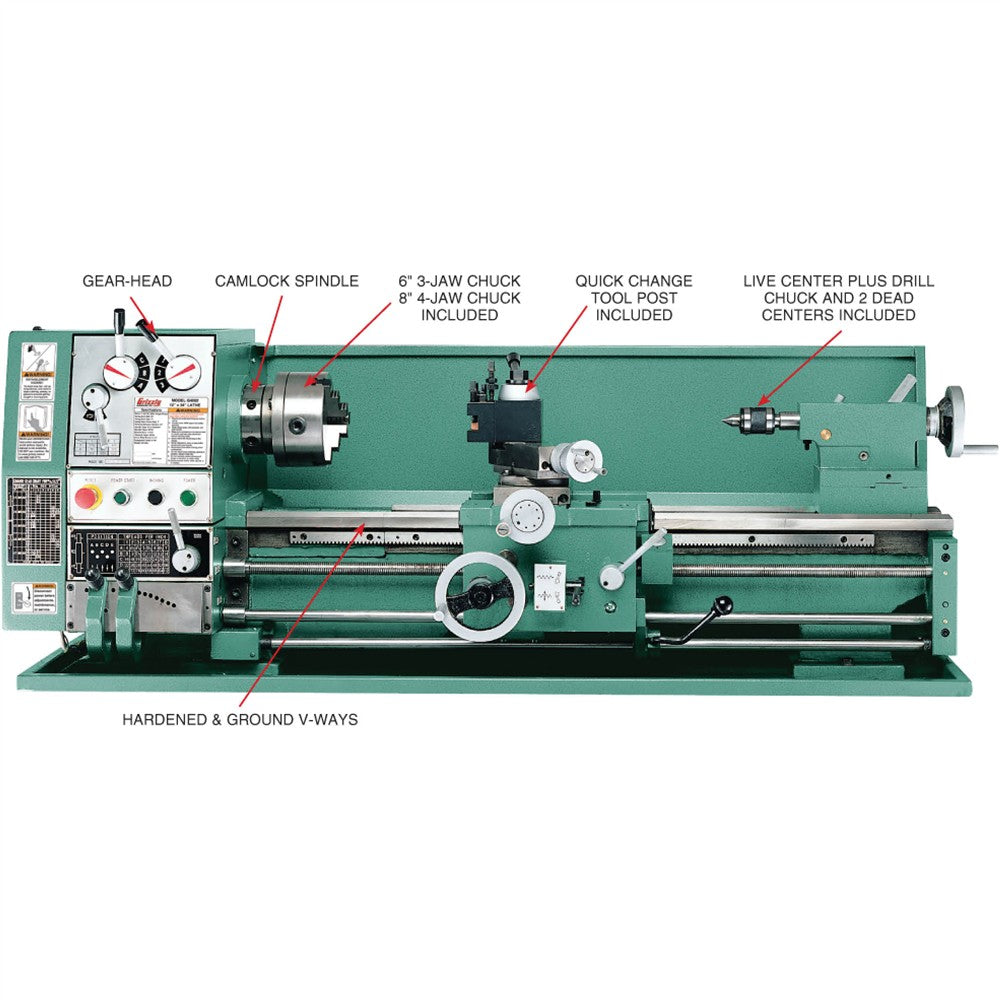

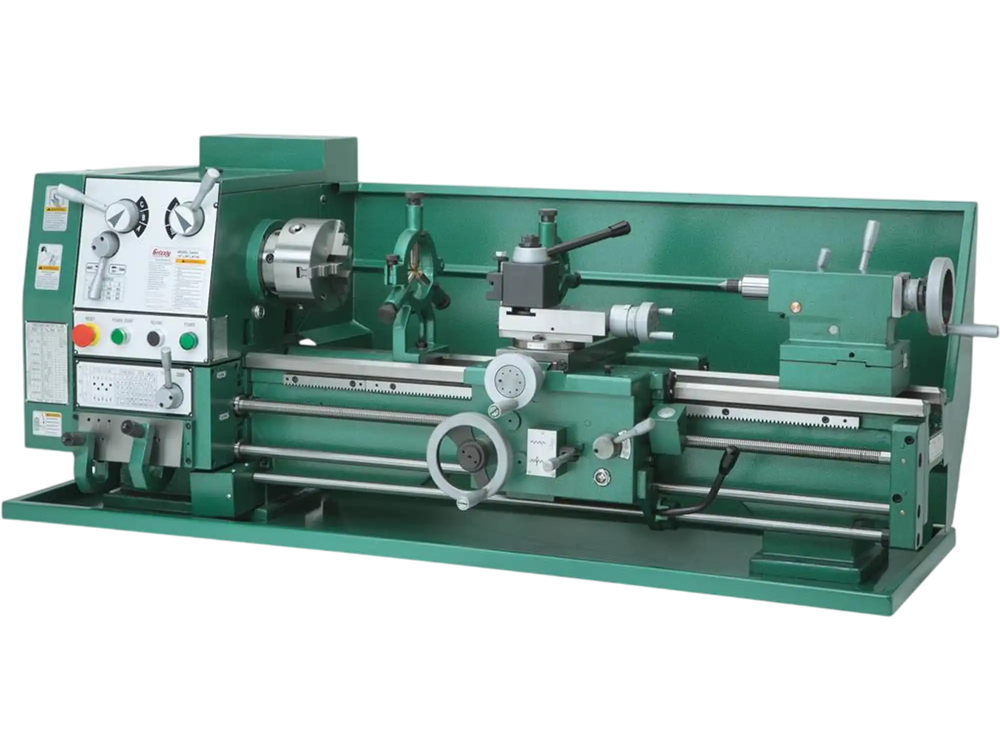

The Grizzly G4003 is a full-size 12" x 36" gearhead metal lathe built for turning, facing, threading, and general metalworking. Its gearhead design lets you change spindle speeds quickly with front-mounted levers instead of moving belts or pulleys, helping keep work moving with less interruption.

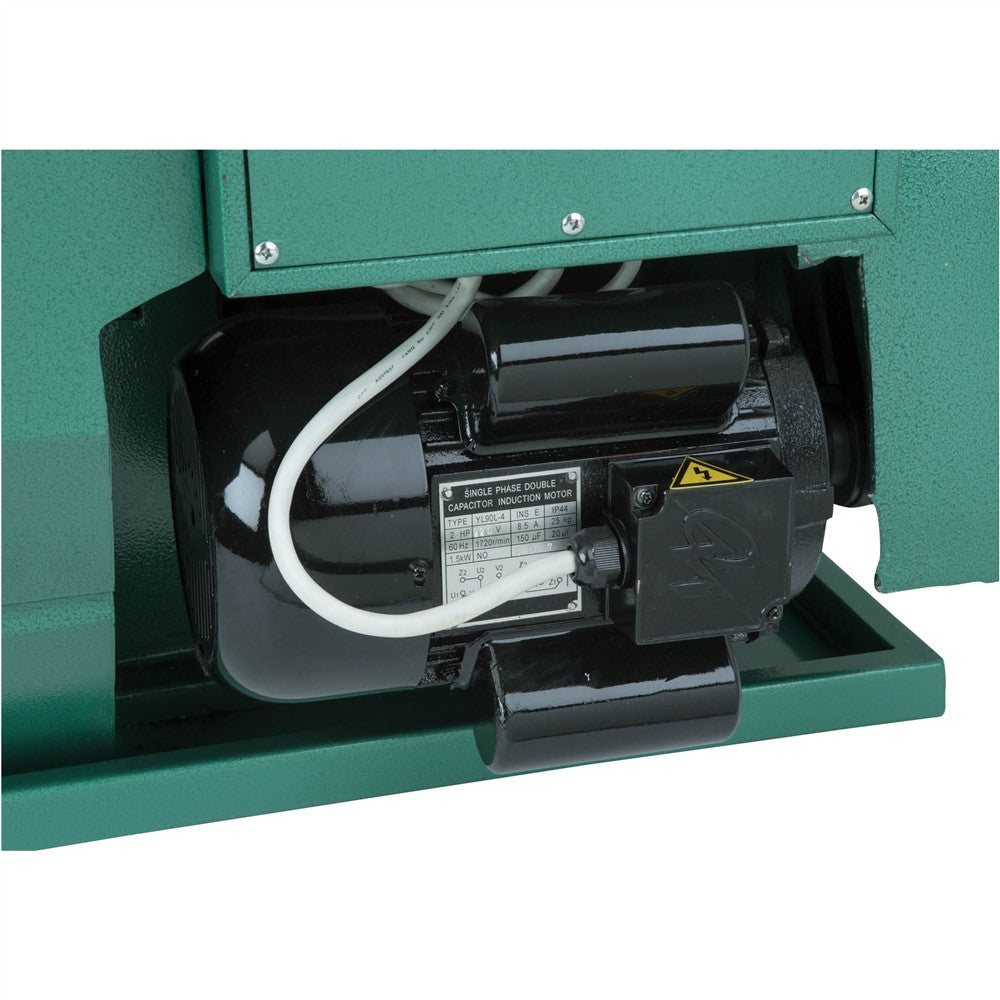

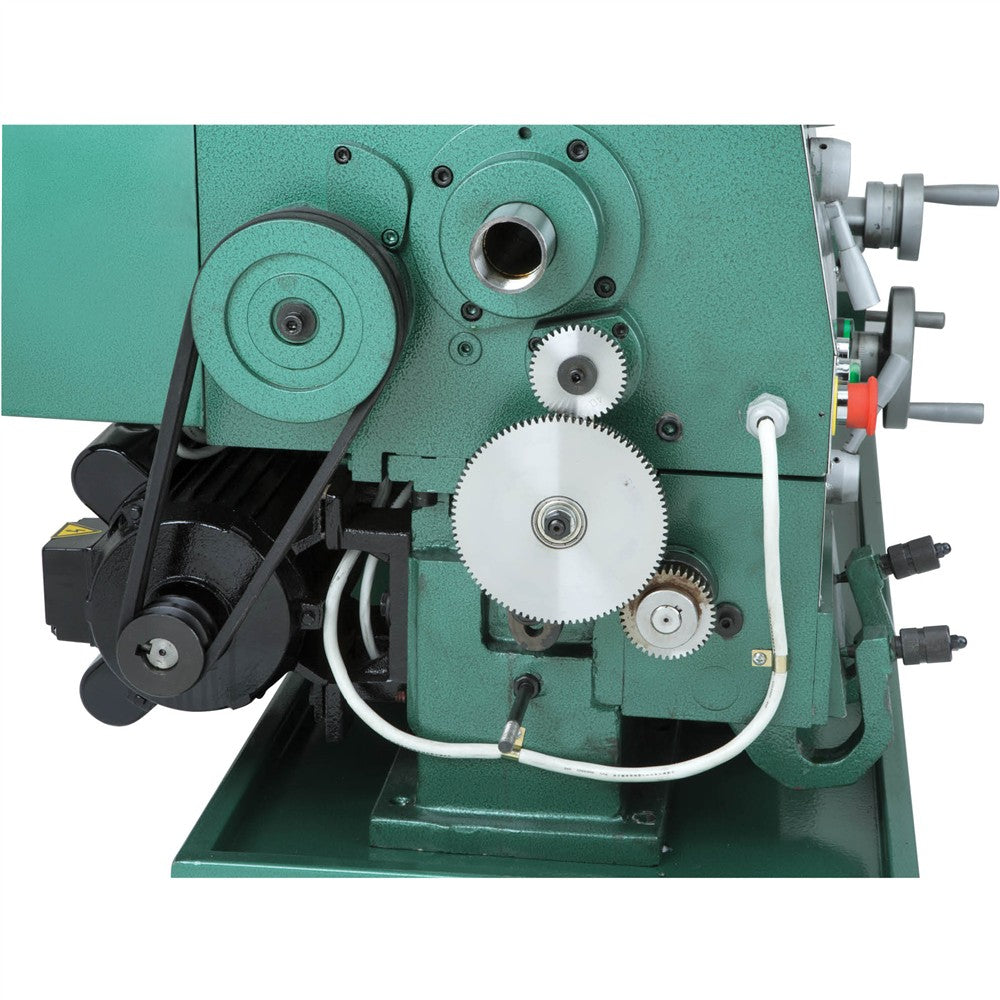

With a 2 HP single-phase motor and nine spindle speeds from 70 to 1400 RPM, this lathe is equipped for a wide range of shop tasks. A quick-change gearbox supports fast left- and right-hand threading, while the hardened and ground cast-iron bed, threading dial, reverse switch on the carriage, and full-length splash guard add control and durability for regular use.

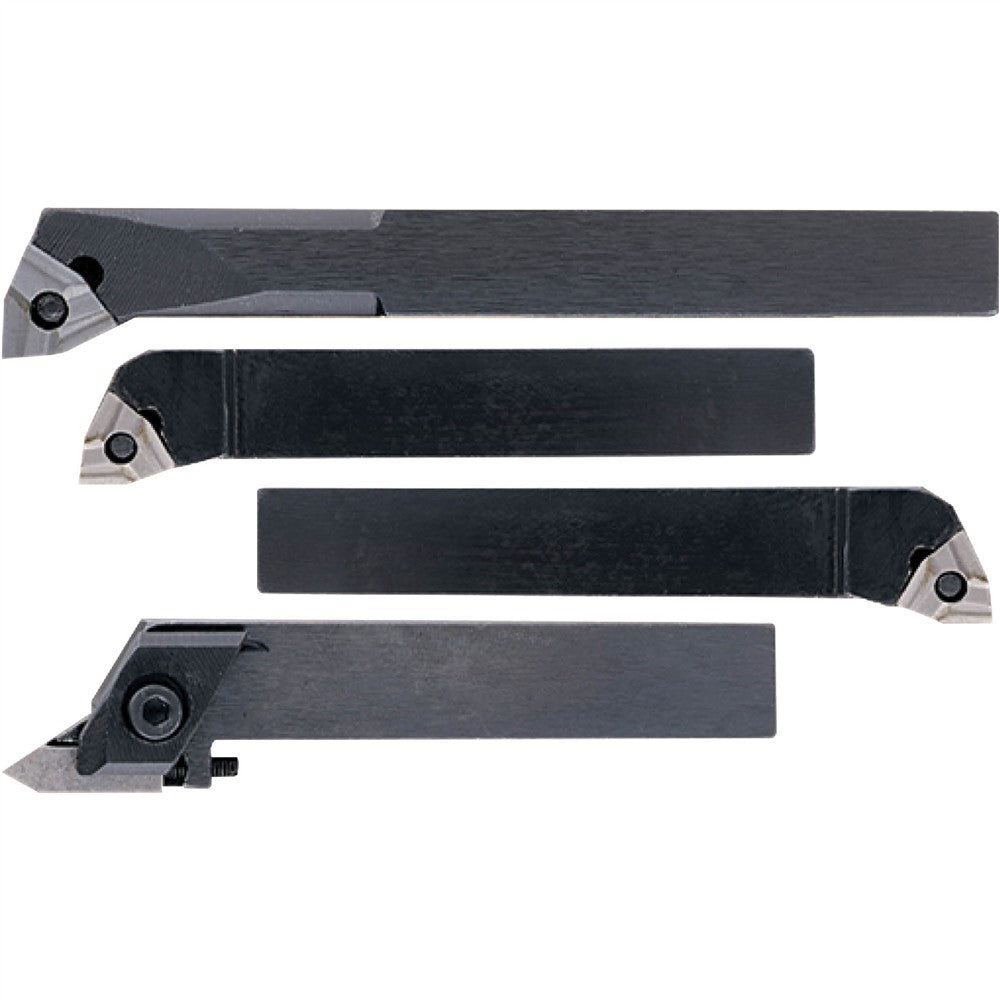

This machine is a strong fit for machinists, fabrication shops, maintenance departments, and serious home metalworkers who need a dependable 12" swing lathe with 36" between centers. It also includes essential tooling and workholding accessories to help support a broad variety of turning applications.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

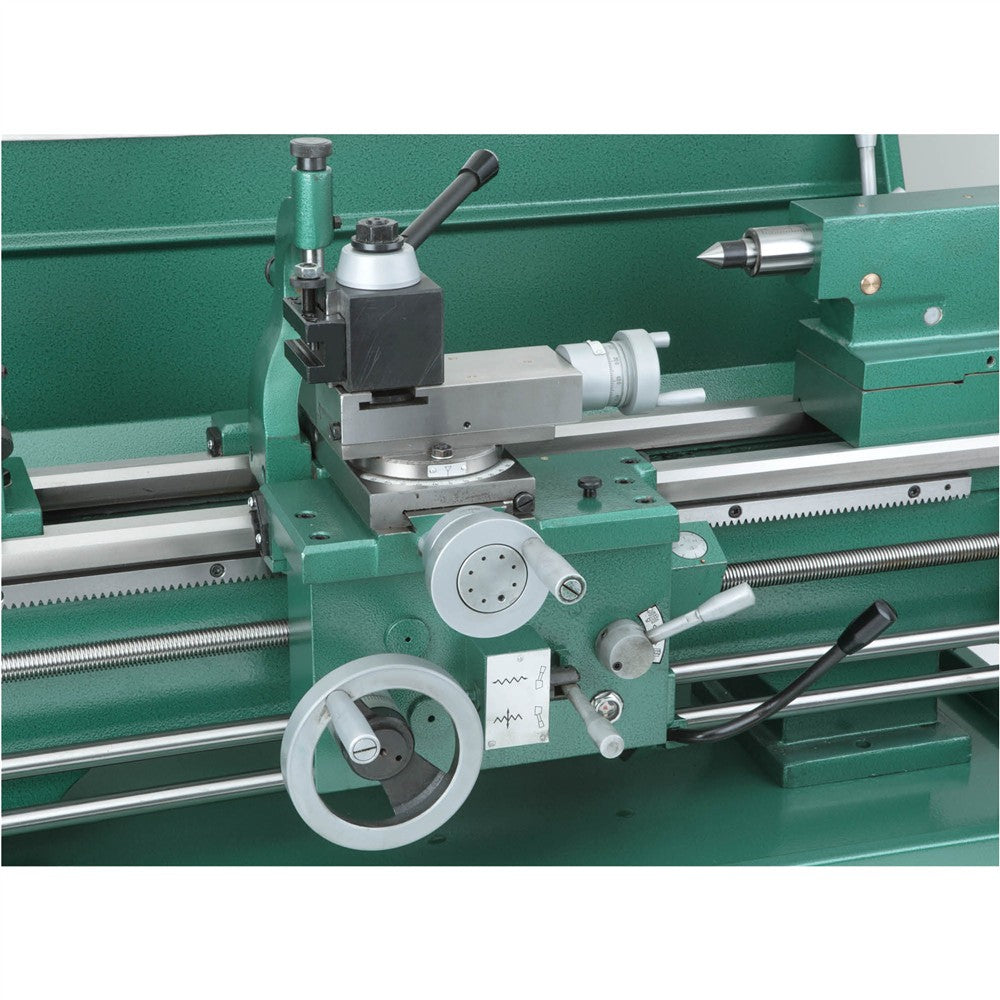

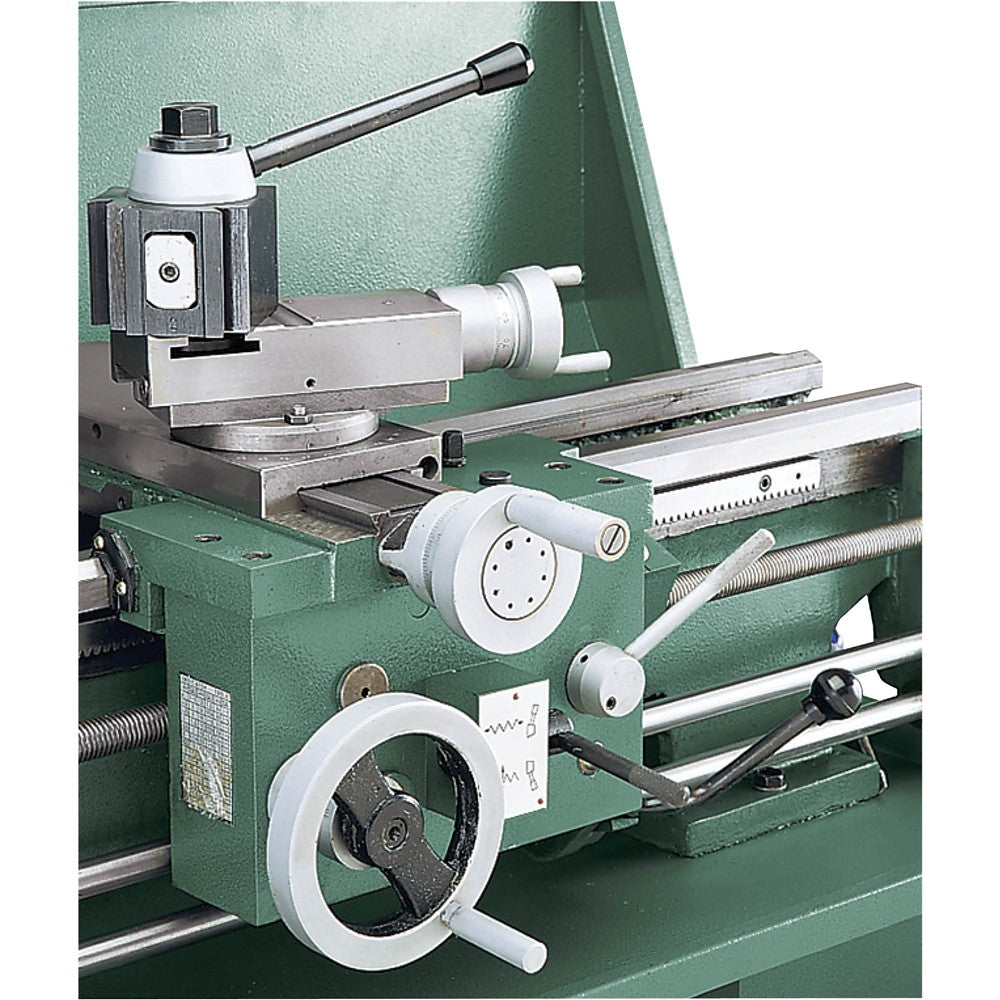

- Spindle on/off reverse switch on carriage

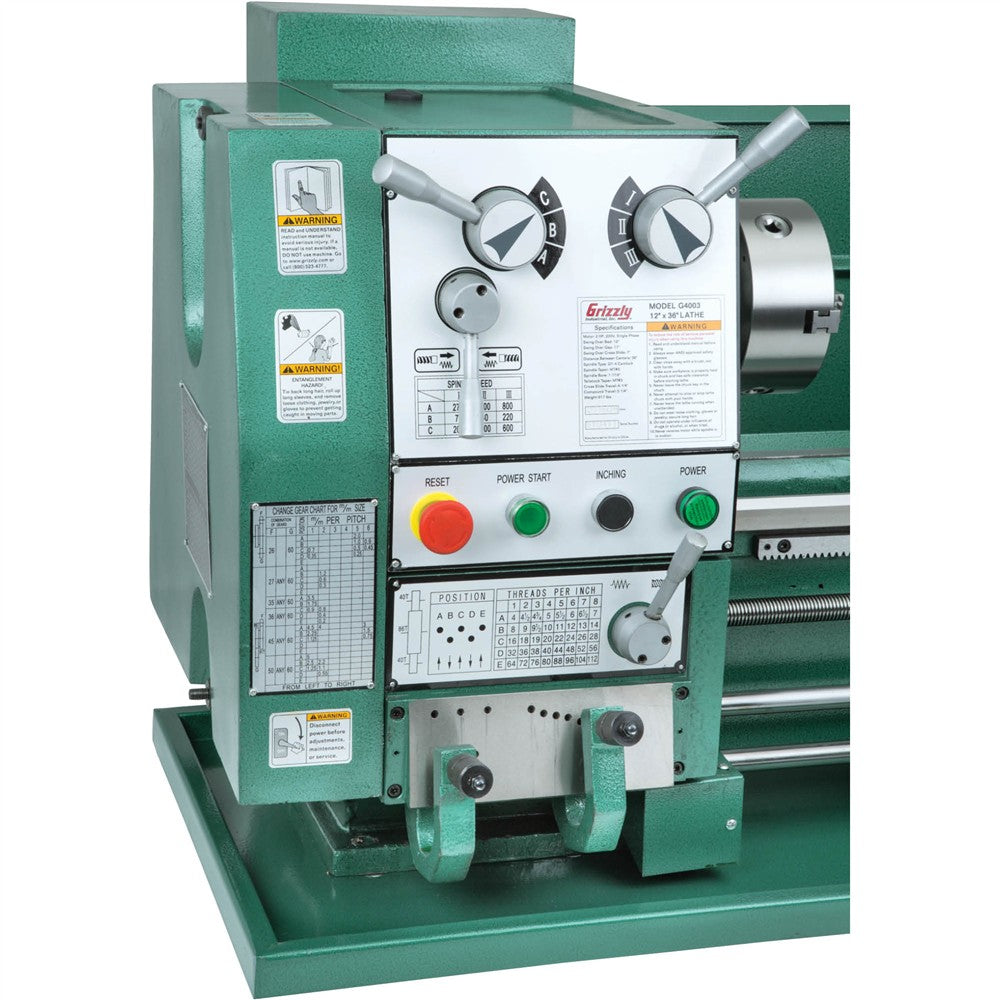

- Easy-to-use lever controls
- Full-length splash guard
- Hardened and ground cast-iron bed
- Threading dial
Specifications
| Motor | 2 HP, 220V, single-phase, 8.5A |
| Swing over bed | 12" |
| Swing over cross slide | 7" |
| Distance between centers | 36" |
| Bed width | 7-1/4" |
| Spindle bore | 1.417" (36mm) |
| Spindle nose taper | MT#5 |
| Spindle nose | D1-4 Camlock |
| Spindle speeds | 9, 70–1400 RPM |
| Compound travel | 3-1/4" |
| Cross slide travel | 6-1/4" |

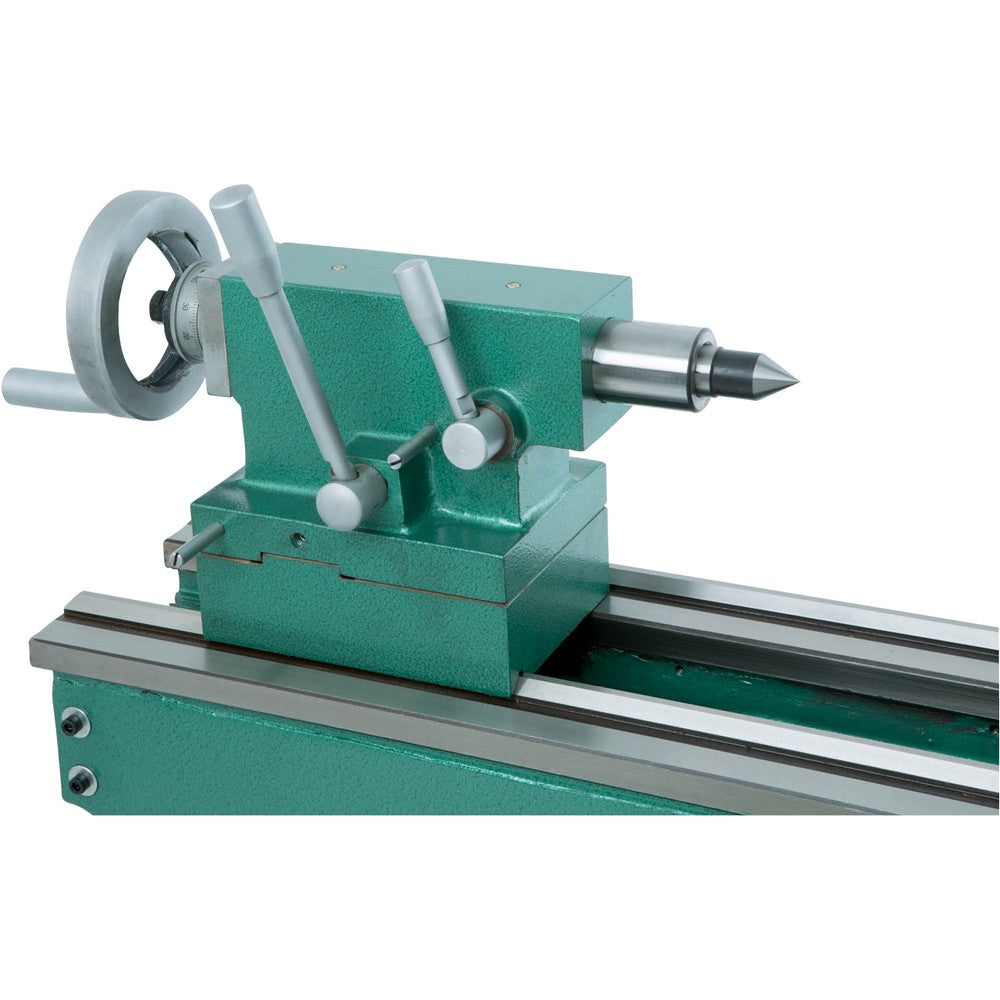

| Tailstock barrel taper | MT#3 |
| Tailstock barrel travel | 4" |
| Overall dimensions | 61" W x 23" D x 23" H |
| Approx. shipping weight | 1020 lbs. |
Warranty
This item comes with a 1 year factory warranty.
