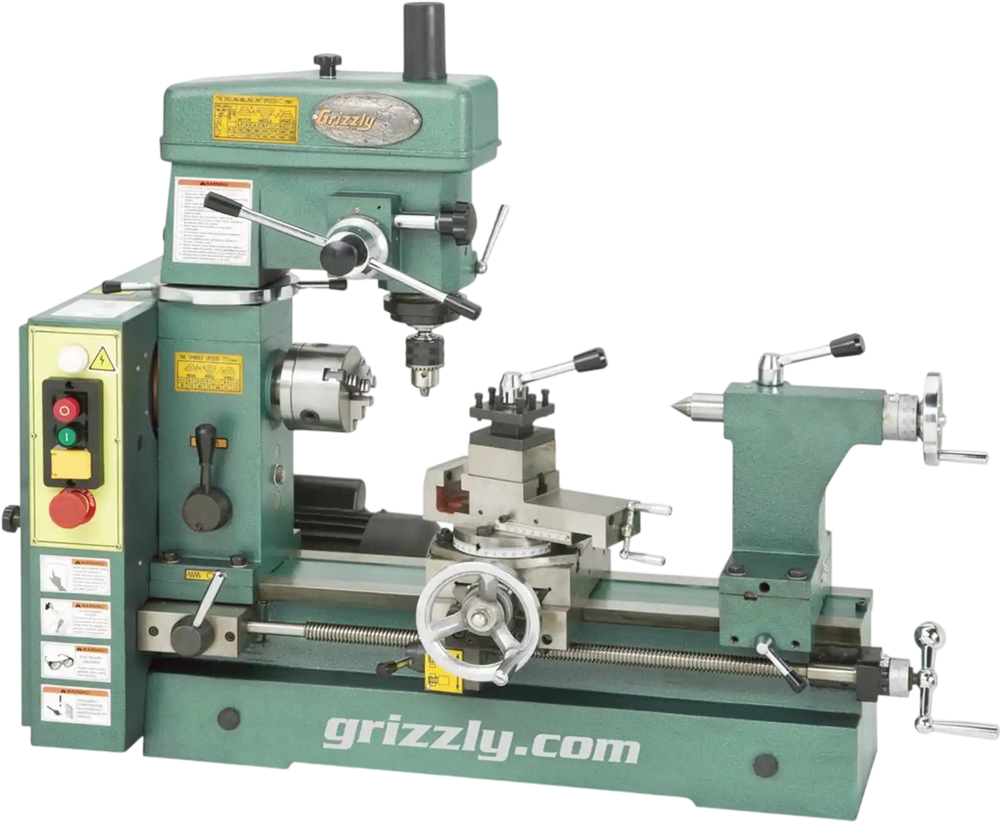

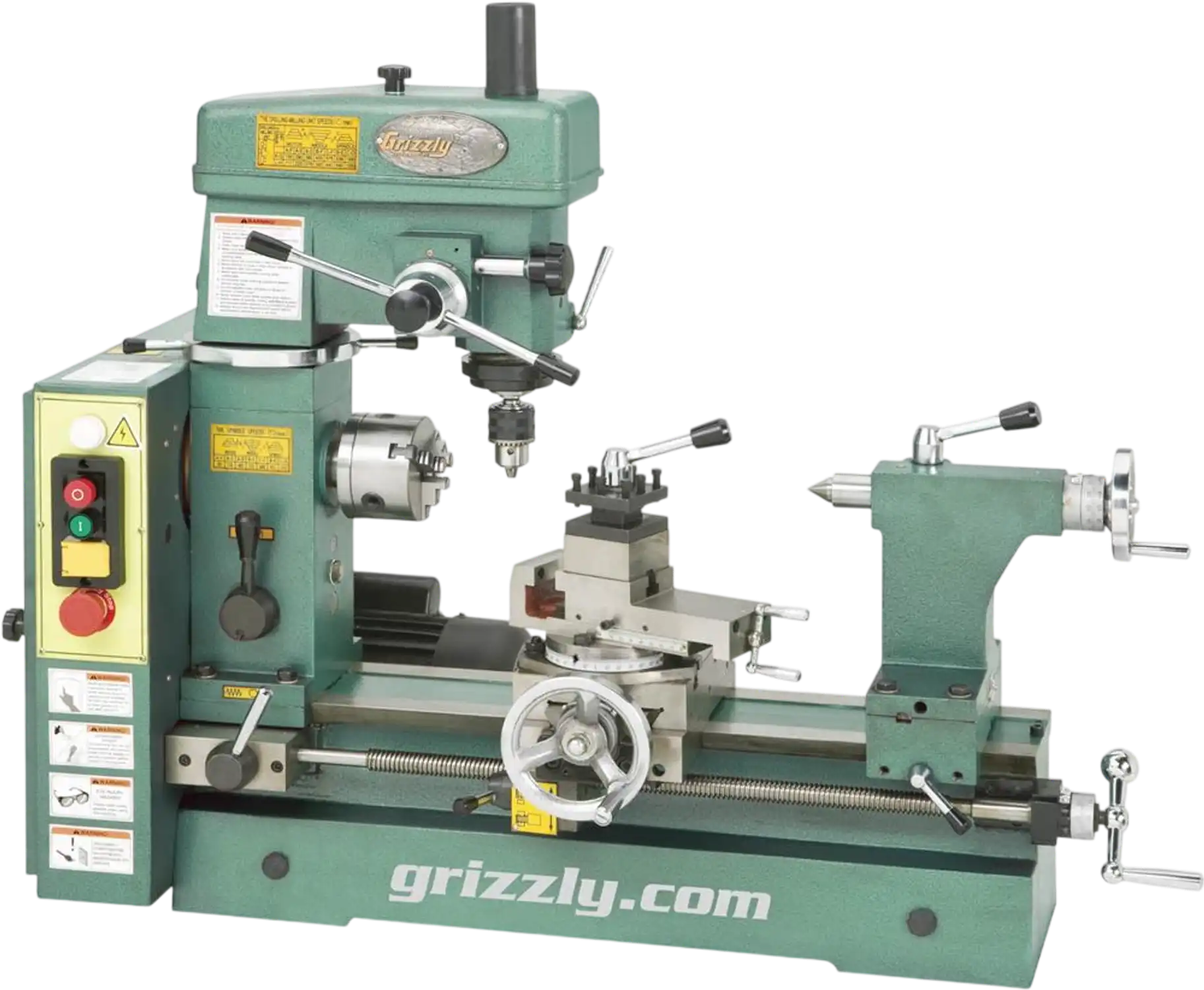

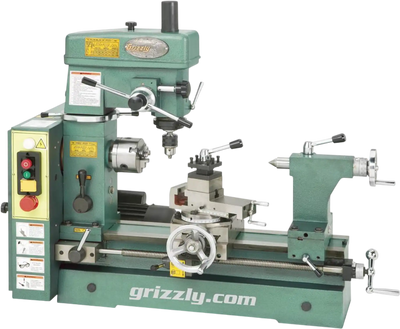

Grizzly G4015Z Combination Lathe-Mill 19-3/16" 3/4 HP Combo Lathe/Mill New
Product Overview
The Grizzly G4015Z is a compact combination lathe and mill designed for precision metalworking in one space-saving machine. It combines a 16-1/2-inch lathe swing, 19-3/16 inches between centers, and a milling setup with a 12-inch swing, making it a practical choice for shops that need both turning and milling capability without adding separate machines.
This machine is built to handle a wide range of small to mid-size fabrication and repair tasks. The lathe cuts both inch and metric threads and offers multiple feed and speed options, while the milling side features an adjustable head plus coarse and fine downfeed controls for accurate drilling and milling work. The cross slide doubles as a mill table, helping maximize versatility in a compact footprint.
Ideal for machinists, maintenance users, serious hobbyists, and small workshops, this combo unit delivers flexible performance for turning, facing, threading, drilling, and light milling. Included workholding and tooling accessories make it well suited for users who want a capable all-in-one metalworking machine.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

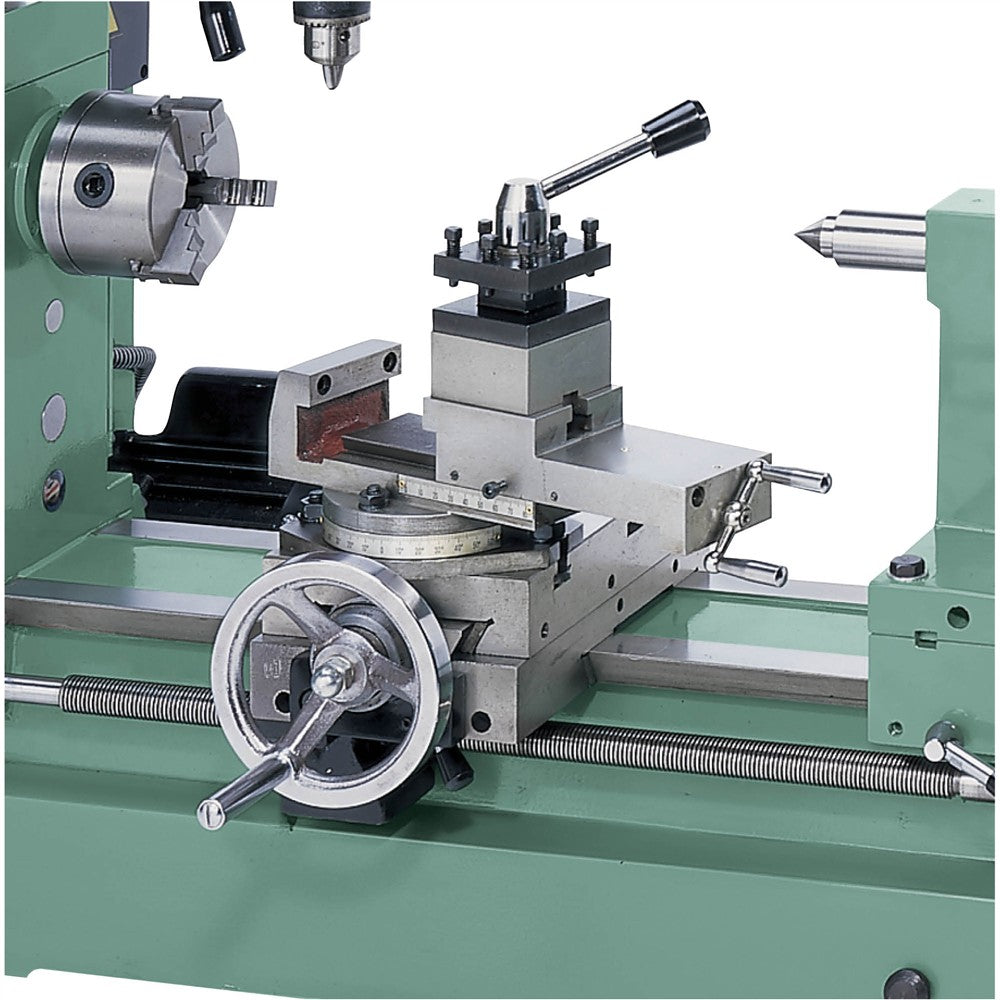

- Cross slide doubles as a mill table

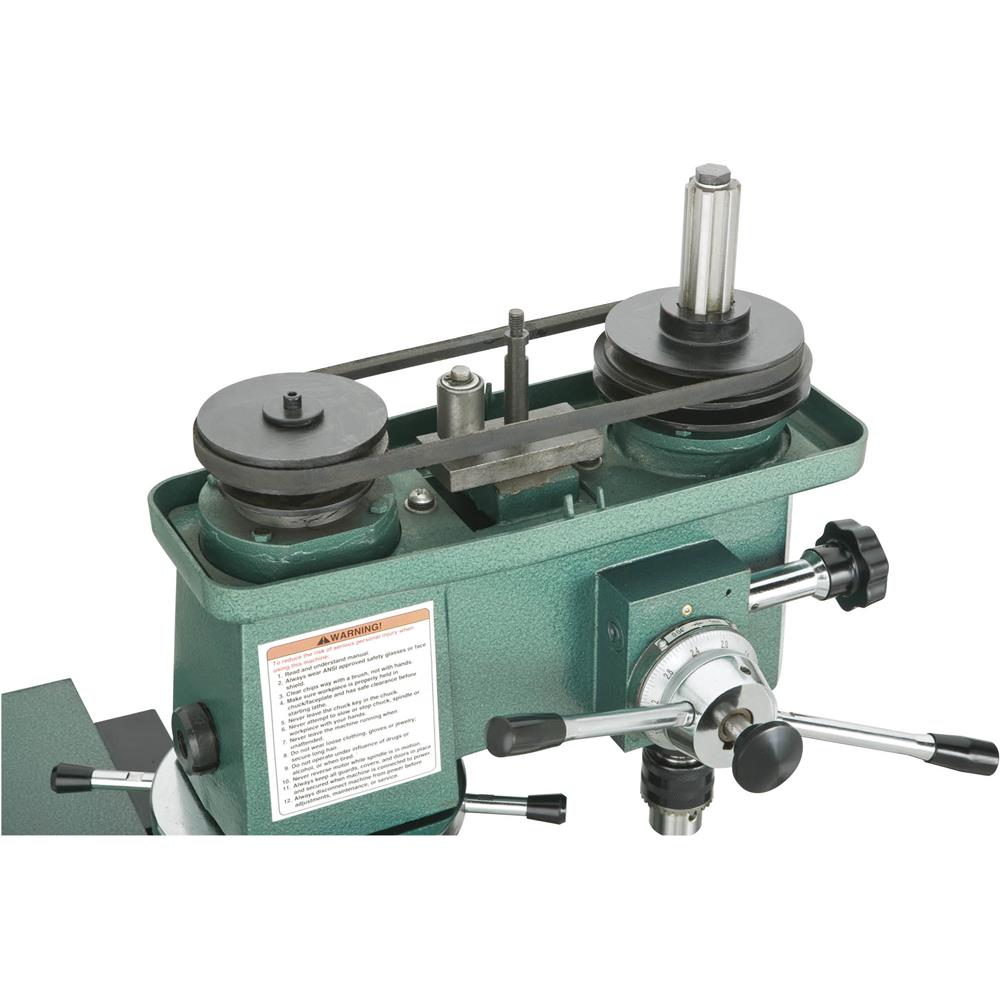

- Coarse and fine mill spindle downfeed

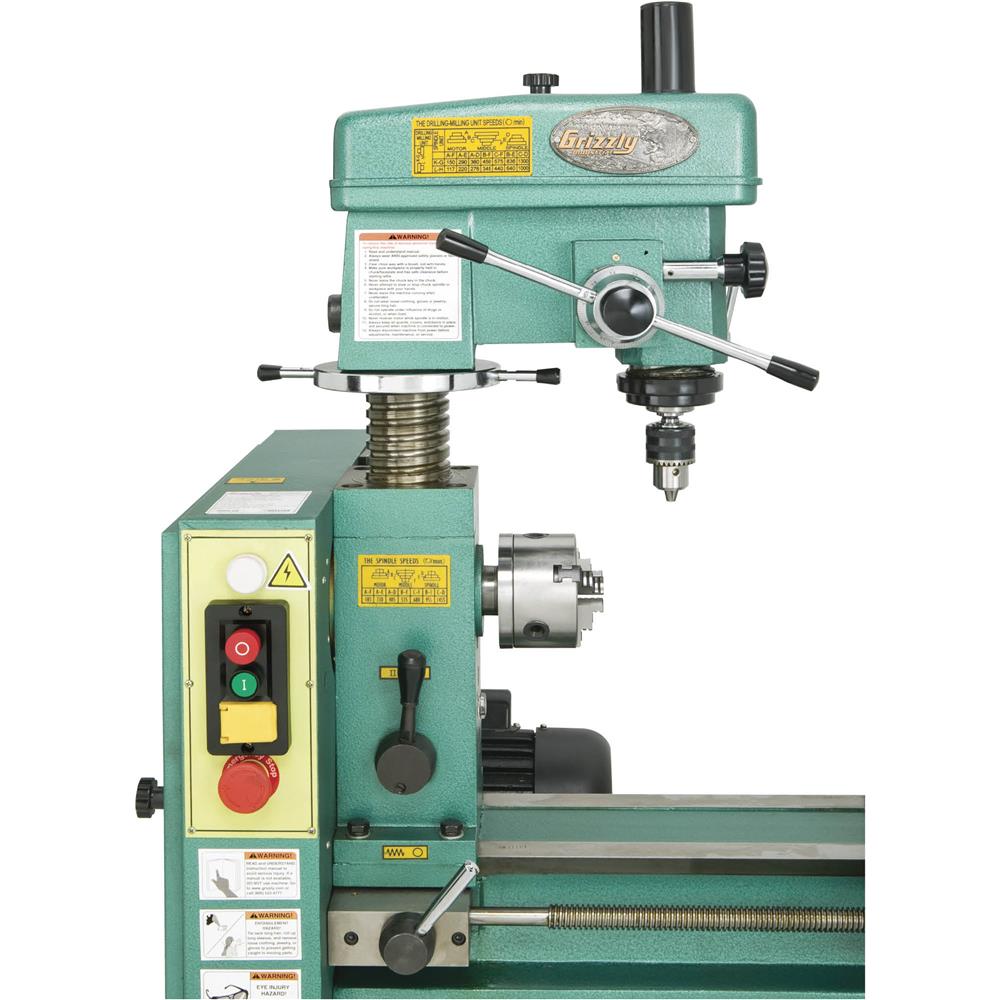

- Adjustable milling head
- Built-in vise on compound rest
- Cuts inch and metric threads
Specifications
| Swing over bed | 16-1/2" |
| Swing over saddle | 11-1/2" |
| Distance between centers | 19-3/16" |
| Bed width | 5-1/2" |
| Spindle speeds | 7, 185–1455 RPM |
| Spindle bore | 0.787"; 20mm |
| Spindle taper | MT#3 |
| Tailstock taper | MT#3 |
| Tailstock quill travel | 1-1/2" |
| Cross slide travel | 4-1/2" |
| Compound travel | 3" |
| Maximum tool bit size | 1/2" |
| Leadscrew | 7/8"x 6 TPI |
| Longitudinal feeds | 8, 0.0020–0.0069 in/rev |
| Inch thread range | 27, 8–120 TPI |
| Metric thread range | 18, 0.2–3.0mm |
| Swing | 12" |
| Distance from spindle to table | 10" |
| Distance from spindle to bed | 15-3/4" |
| Spindle speeds | 14, 117–1300 RPM |
| Spindle taper | MT#3 |
| Spindle travel | 3-1/2" |
| Head vertical travel | 3" |
| Table dimensions | 6" W x 7-1/4" L x 1-1/2" H |
| T-slots | two at 7/16", 3.54" (90mm) on center |
| Maximum tool bit size | 1/2" |
| Drilling capacity | 1/2" (steel) |
| Motor | 3/4 HP, 110V, single-phase 8.7A |
| Dimensions | 42" W x 23" D x 35" H |
| Approximate shipping weight | 475 lbs. |
Warranty
This item comes with a 1 year factory warranty.
