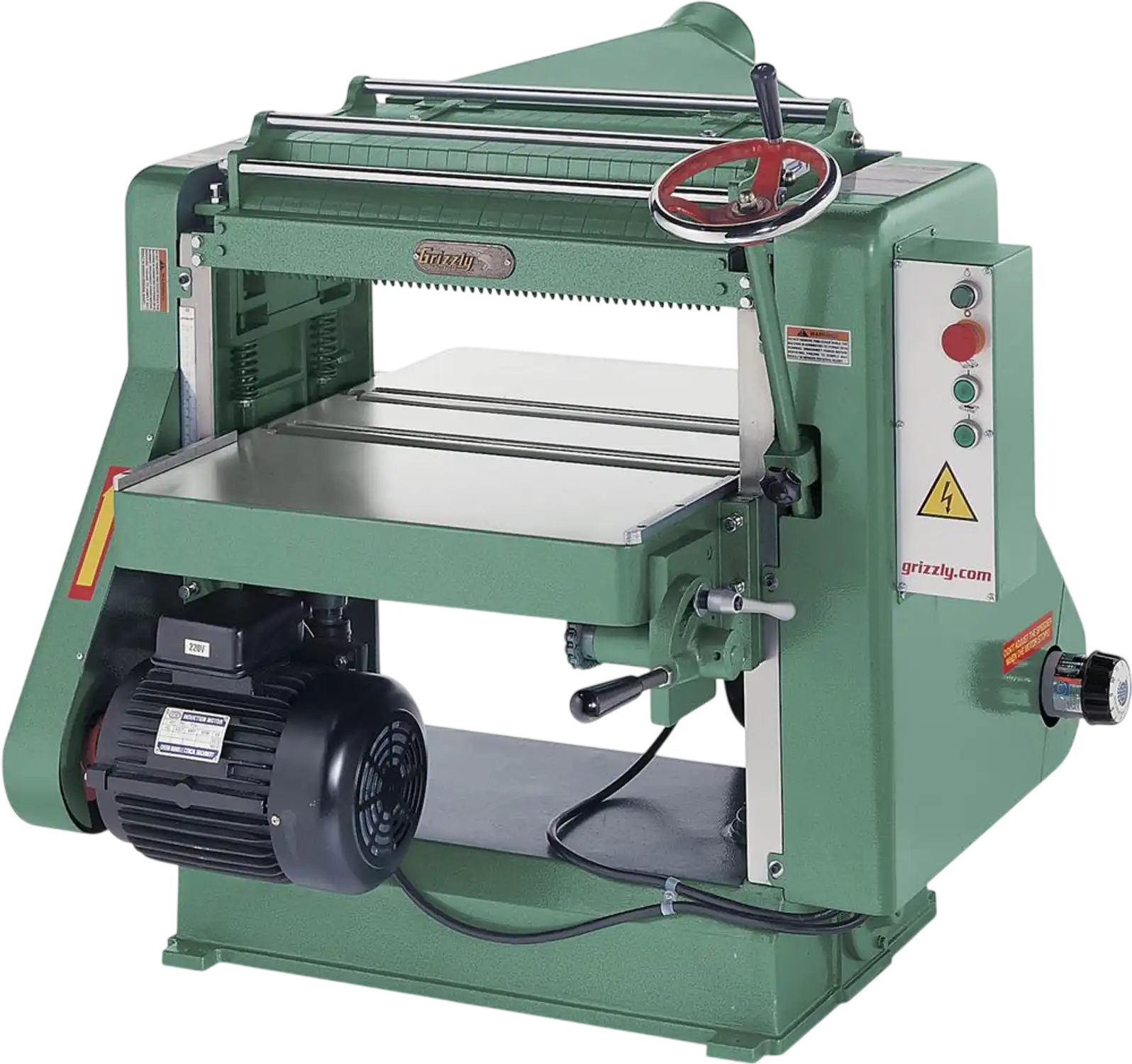

Grizzly G5851Z Planer 24" 5 HP New
Product Overview
The Grizzly G5851Z is a heavy-duty 24-inch planer built for shops that need to surface wide boards and solid wood panels with power and consistency. Its 5 HP single-phase motor and 4-knife cutterhead are designed to handle demanding hardwood planing while delivering smooth, accurate results.
With a maximum stock width of 24 inches, variable feed rates from 17 to 26 feet per minute, and cutting capacity for material up to 7 inches thick, this machine is suited for serious woodworking production. High-speed steel knives, a precision-ground cast-iron table, and robust cast-iron construction help it maintain performance through frequent use.
This planer is a strong fit for professional woodworkers, cabinet shops, furniture makers, and dedicated industrial or commercial users who need capacity, durability, and dependable stock removal. Features like handwheel bed adjustment, board return rollers, and dust collection integration make it practical for busy workshop environments.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer

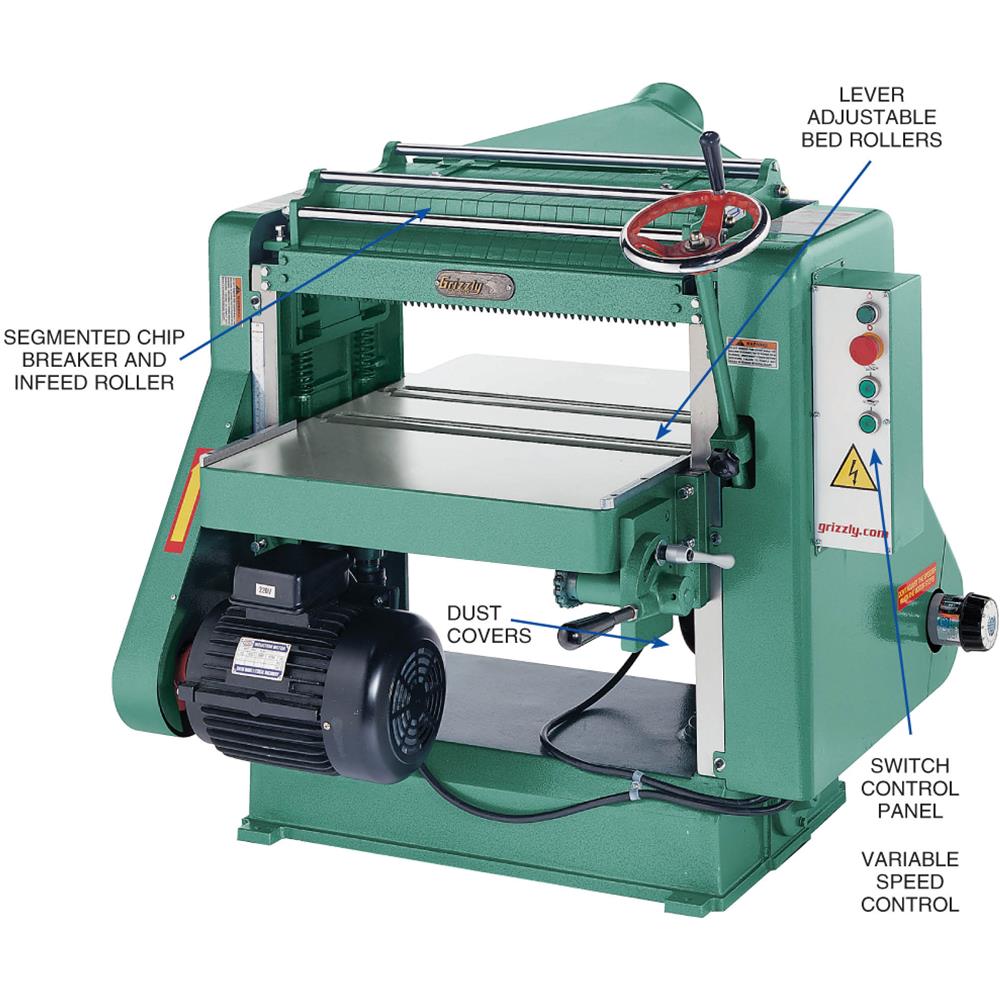

Features
- Board return rollers
- Precision-ground cast-iron table
- Grease fittings for cutterhead ball bearings
- Heavy-duty cast-iron construction throughout
- Magnetic switch with thermal overload protection
- Lever-adjustable bed rollers

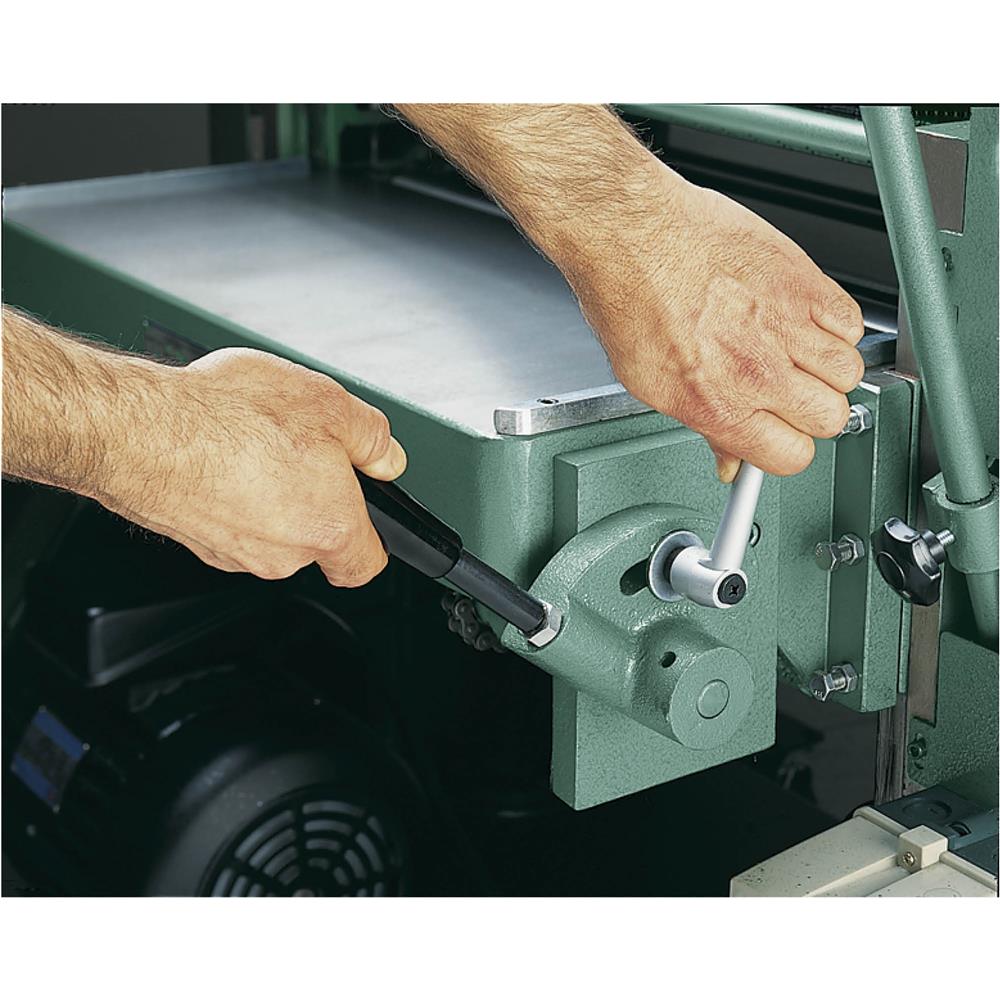

- Handwheel table height adjustment

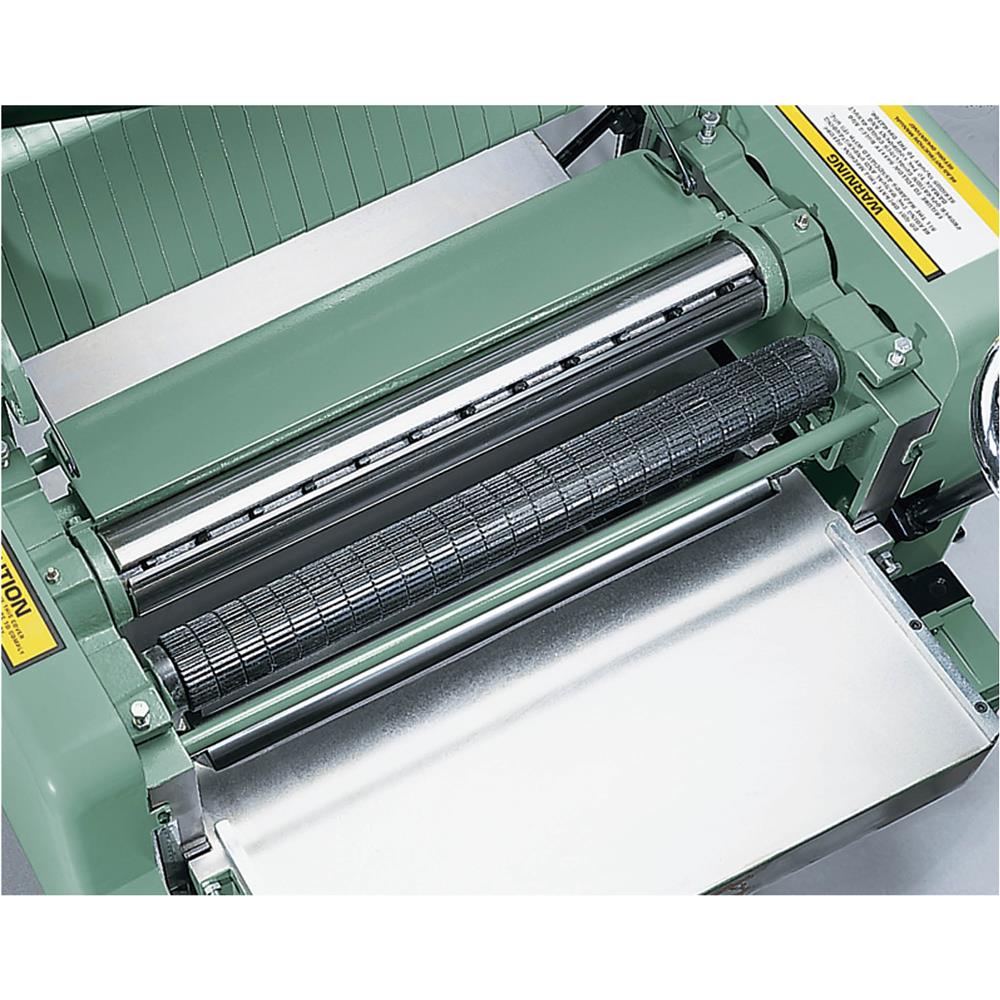

- Segmented chip breaker and infeed roller
- Finely finished steel outfeed roller
- Inch and metric scale increments
- Dust covers protect vertical support columns and leadscrews
Specifications
| Main motor | 5 HP, 220V, single-phase, 25A |
| Feed motor | 2 HP, 14A |
| Maximum stock width | 24" |
| Maximum stock thickness | 7" |
| Minimum stock thickness | 1/4" |
| Minimum stock length | 8" |
| Maximum cutting depth planing full width | 1/16" |
| Maximum cutting depth planing 6" wide board | 1/8" |
| Cutterhead diameter | 3-1/8" |
| Cutterhead type | 4-Knife |
| Knife size and type | 24" x 1" x 1/8", HSS, single-sided |
| Cutterhead speed | 5200 RPM |
| Feed rate | Variable, 17–26 FPM |
| Table size with extensions | 24-1/8" x 31-1/8" |
| Dust port size | 5" |
| Footprint | 20-1/2" x 24-1/2" |
| Overall dimensions | 42" W x 40-1/2" D x 37" H |
| Approximate shipping weight | 1200 lbs. |
Warranty
This item comes with a 1 year factory warranty.
