Grizzly G5912Z Spindle Shaper 5 HP Professional Z Series New
Product Overview

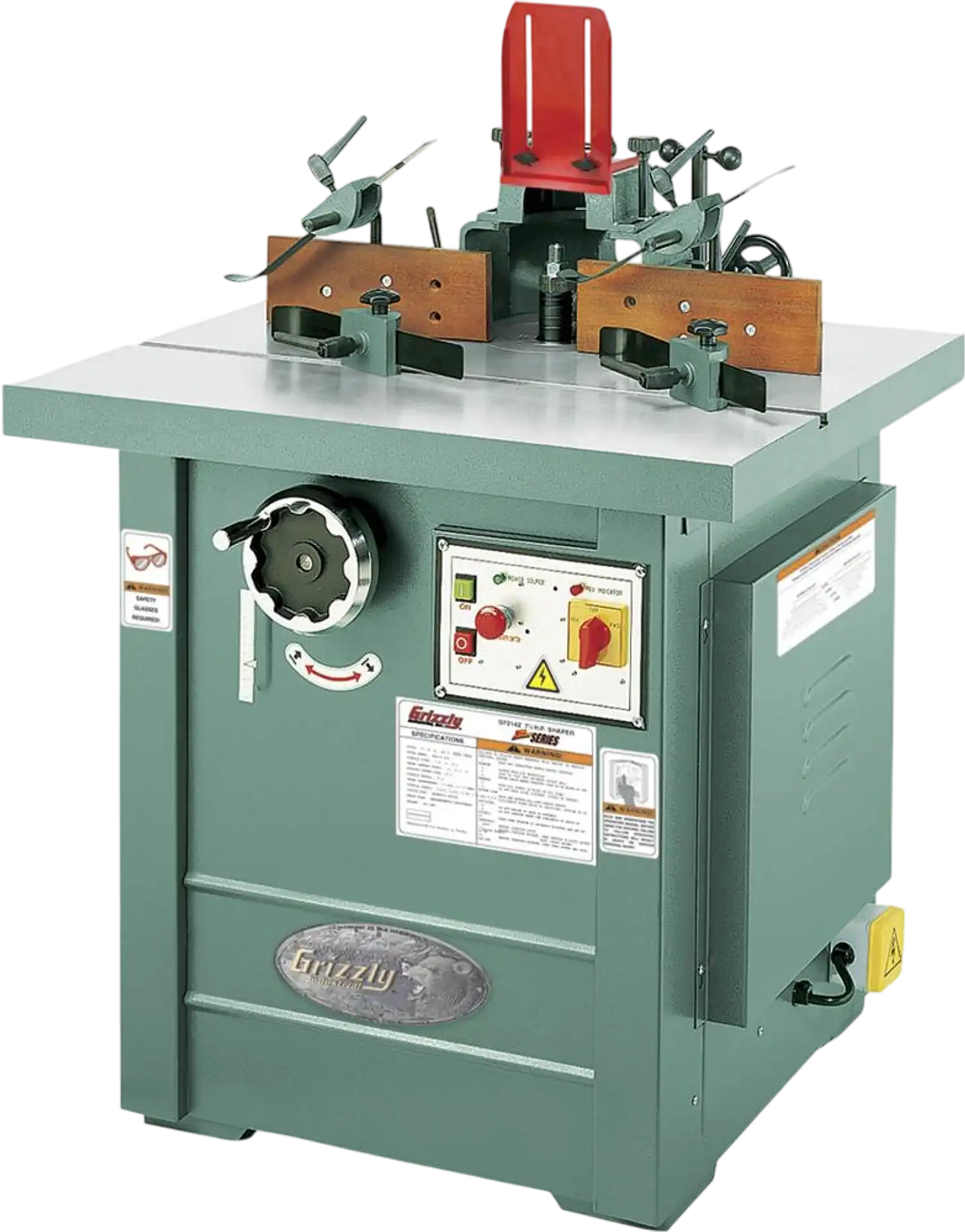

The Grizzly G5912Z is a 5 HP professional spindle shaper built for demanding woodworking and production shaping tasks. It is designed to handle large cutters up to 5-7/8 inches in diameter and 5-1/8 inches tall, making it a strong choice for shaping profiles, edges, and detailed stock with confidence.

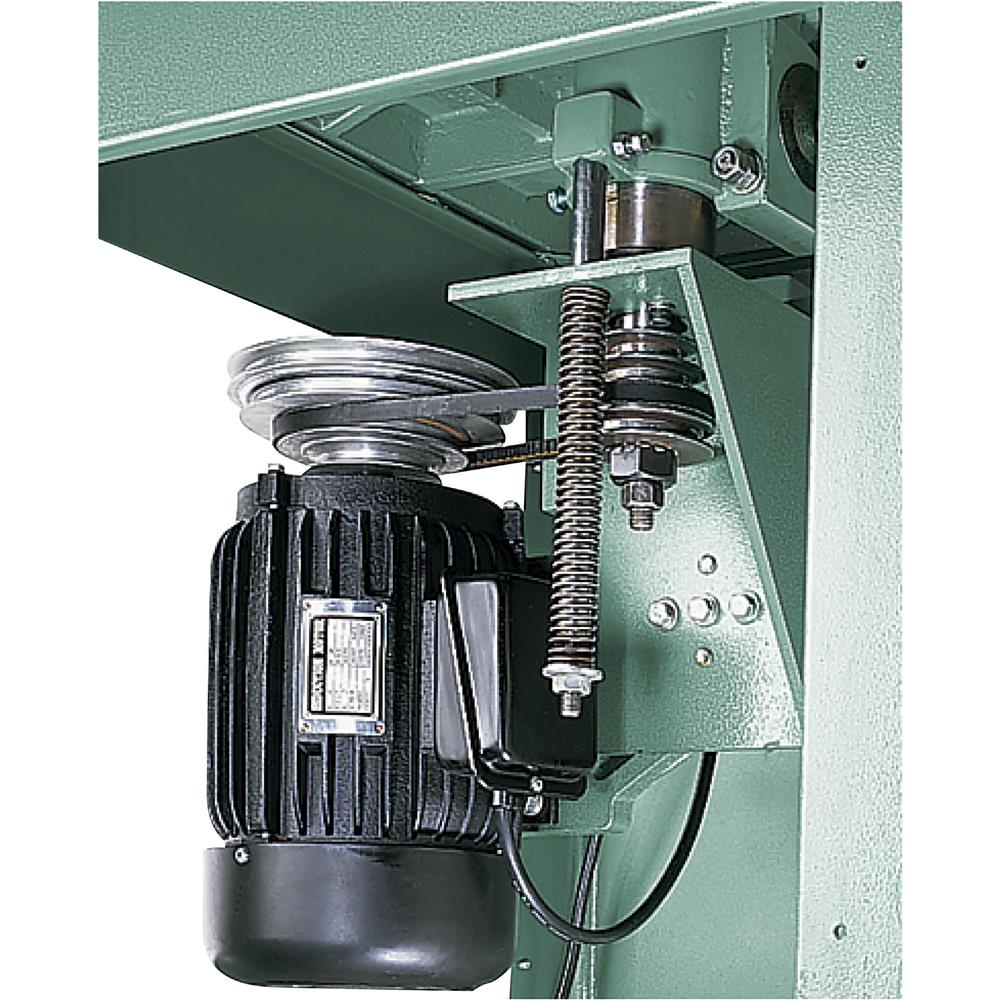

A four-speed V-belt drive offers spindle speeds from 3,600 to 10,000 RPM, giving you the flexibility to match speed to cutter size and material. The precision-ground cast-iron table, micro-adjustable split fence, and four spring-steel hold-downs help keep workpieces stable, controlled, and accurately guided during operation.
With three interchangeable spindles, multiple table inserts, and a large work surface, this machine is well suited for serious hobbyists, custom furniture makers, cabinet shops, and other professional woodworkers who need versatile shaping performance in a heavy-duty shop tool.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

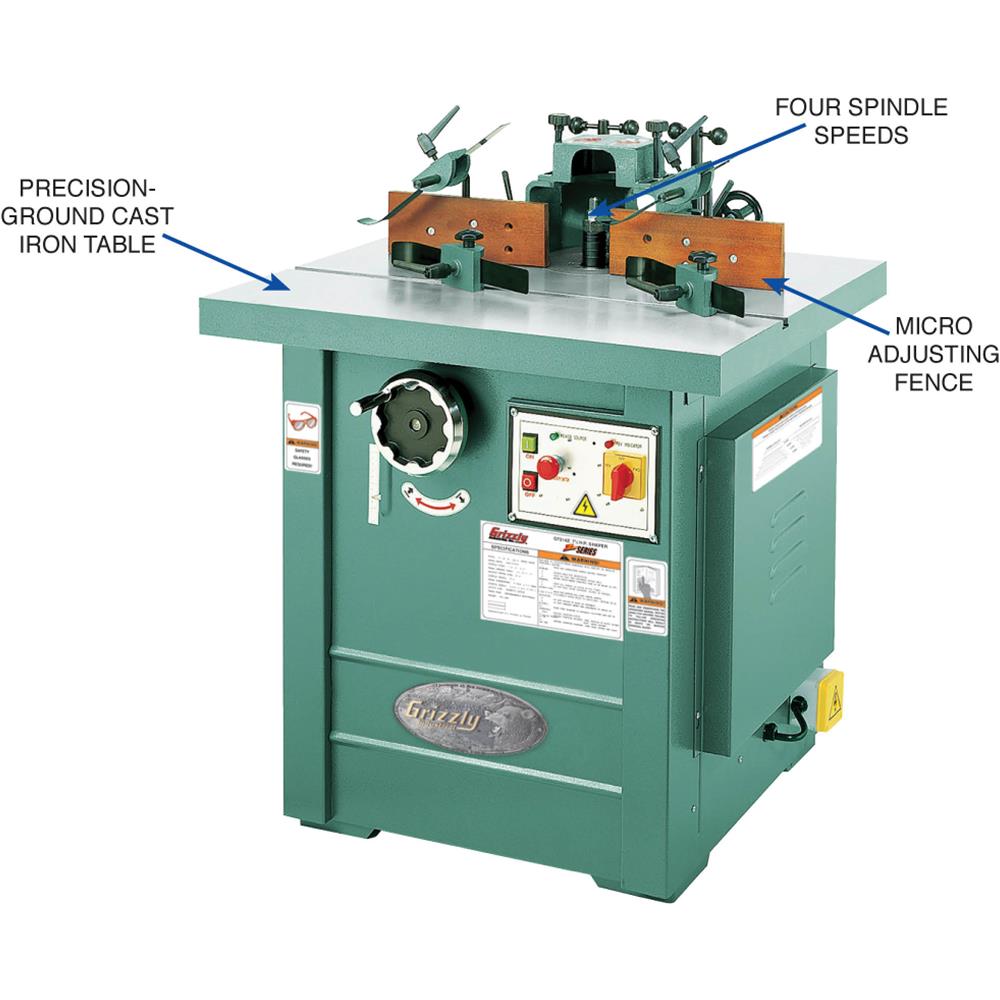

Features

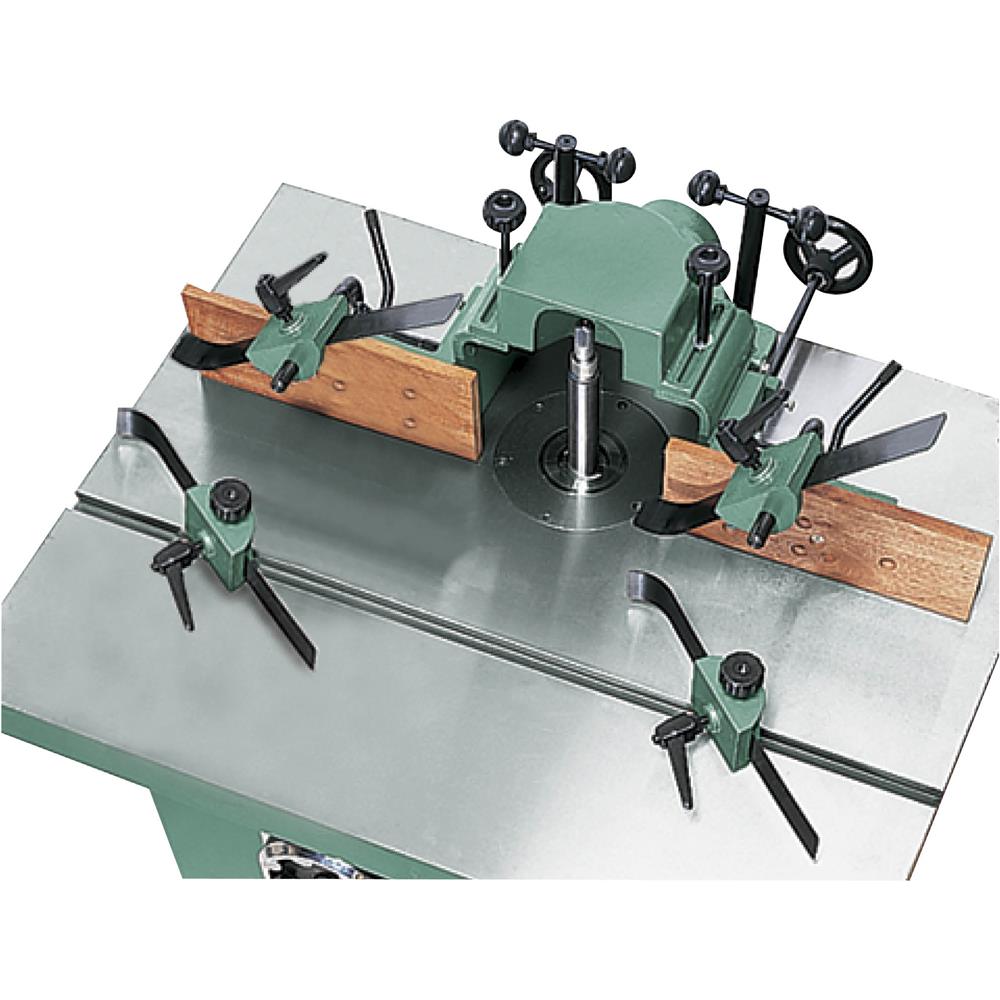

- Precision-ground cast-iron table
- Cast-iron miter gauge adjusts 60° left/right
- Spindle height scale in inches and millimeters
- Two wood fence faces
- Fence adjustment includes built-in ratchets and knob-equipped adjusters
- Four spring-steel hold-down assemblies
- Three interchangeable spindles 3/4", 1", and 1-1/4"
- Three table inserts: 3" OD x 2" ID, 3-1/2" OD x 3" ID, 7" OD x 3-1/2" ID
- Assorted wrenches included
Specifications
| Motor | 5 HP, 220V, single-phase, 25A |
| Maximum cutter height | 5-1/8" |
| Maximum cutter diameter | 5-7/8" |
| Spindle diameters | 3/4", 1", 1-1/4" |
| Spindle lengths | 6"–7" |
| Spindle capacity under nut | 4-1/4", 4-5/8", 5-1/8" |
| Spindle speeds | 3600, 5100, 8000, 10,000 RPM |
| Spindle travel | 3-1/4" |
| Spindle openings | 2", 3", 3-1/2", 7" |
| Table counterbore | 7" dia. x 5/8" deep |
| Table size | 28" x 35-1/2" |
| Floor-to-table height | 34-3/4" |
| Footprint | 26" x 27" |
| Overall dimensions | 34-3/4" W x 35-1/2" D x 42" H |
| Approximate shipping weight | 604 lbs. |
Warranty
This item comes with a 1 year factory warranty.
