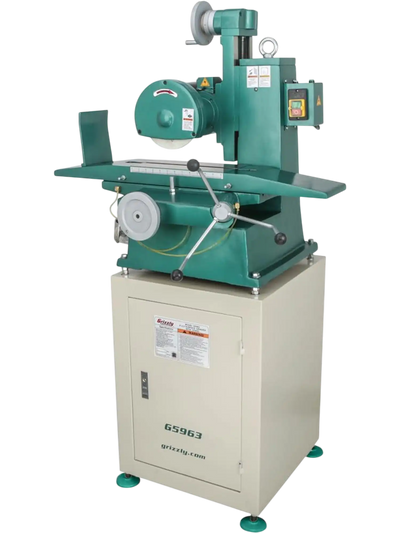

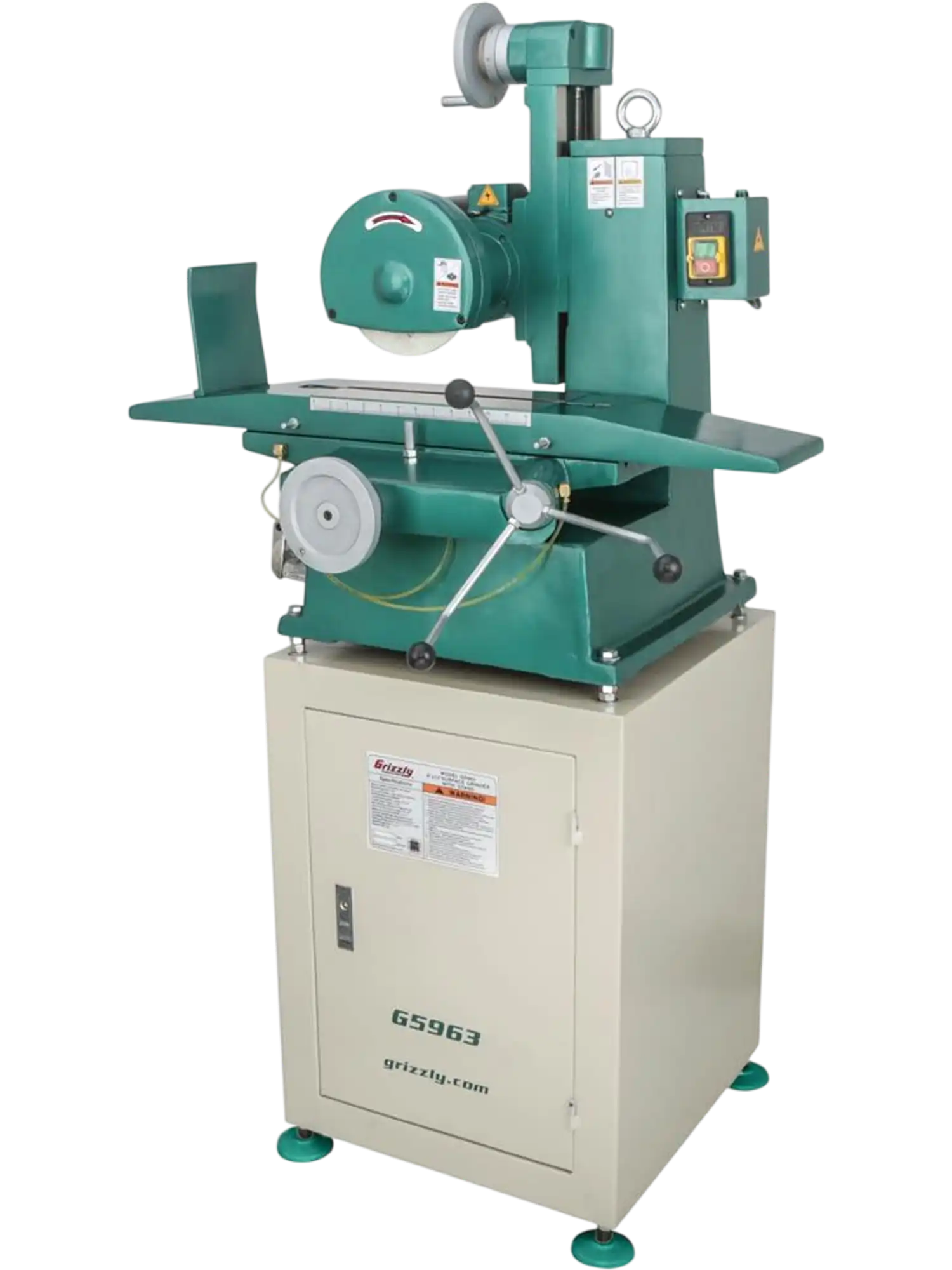

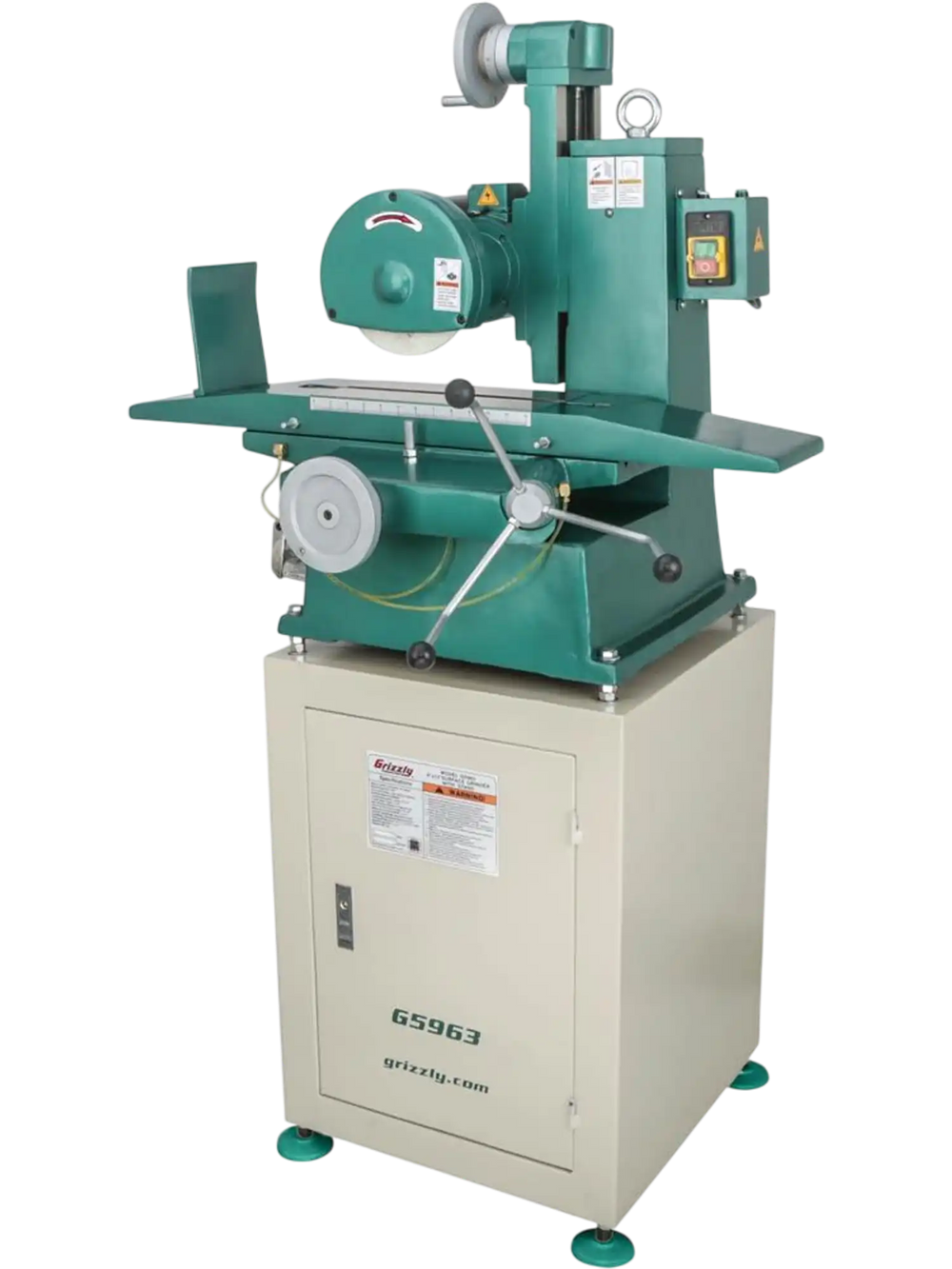

Grizzly G5963 Surface Grinder 6" x 12" with Stand New
Product Overview
The Grizzly G5963 is a 6" x 12" surface grinder with stand designed for precision resurfacing of metal workpieces. It removes very small amounts of material to produce flat, smooth, high-tolerance surfaces, making it a practical choice for toolrooms, machine shops, and serious metalworking enthusiasts.
This machine uses a moving table and vertical grinding wheel motion to give you controlled, accurate grinding performance. Front-mounted handwheels provide 3-axis control for table and head movement, while the cast-iron table, one-shot lubrication, and cross and column dials help support consistent, repeatable results.
The included stand also serves as a storage cabinet to keep tools and wheels close at hand. With features like T-slots for securing a magnetic chuck, a swarf guard, diamond wheel dresser, and wheel balancing kit, this surface grinder is well suited for users who need precision and control in a compact footprint.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

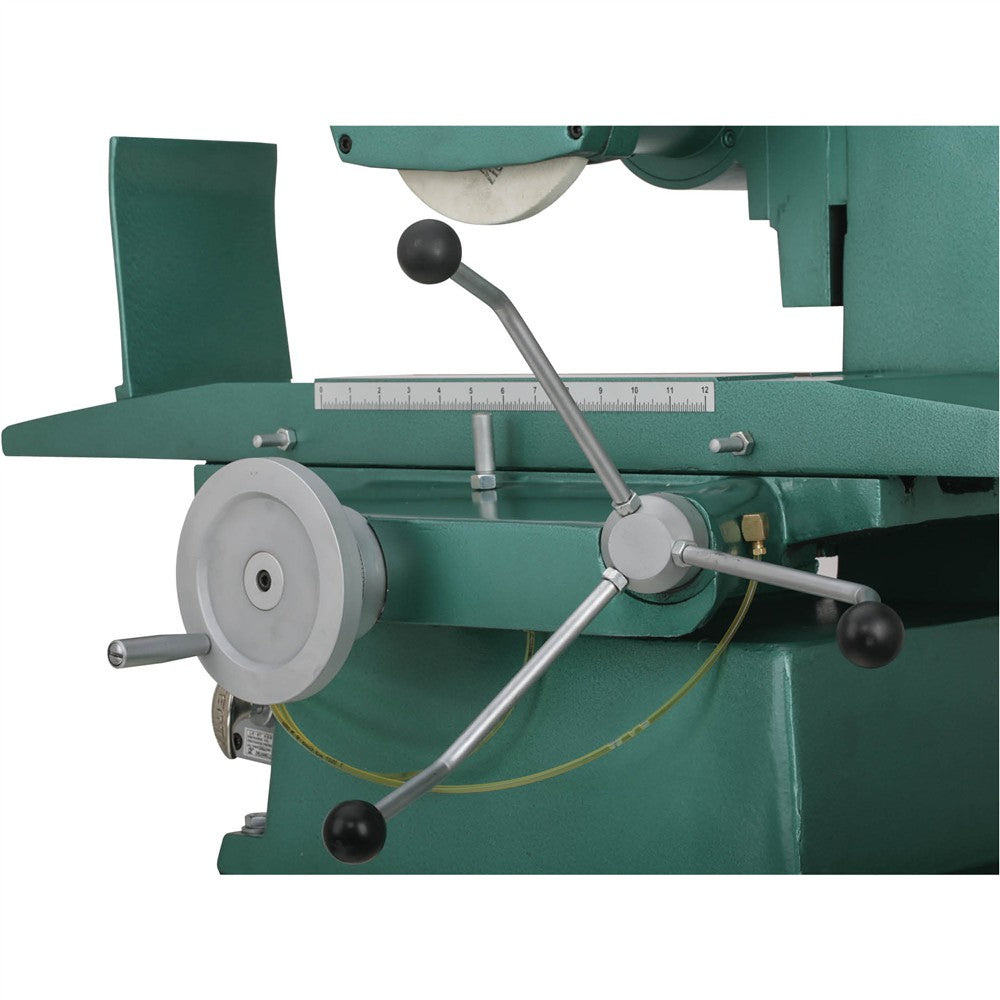

- 3-Axis handwheel control

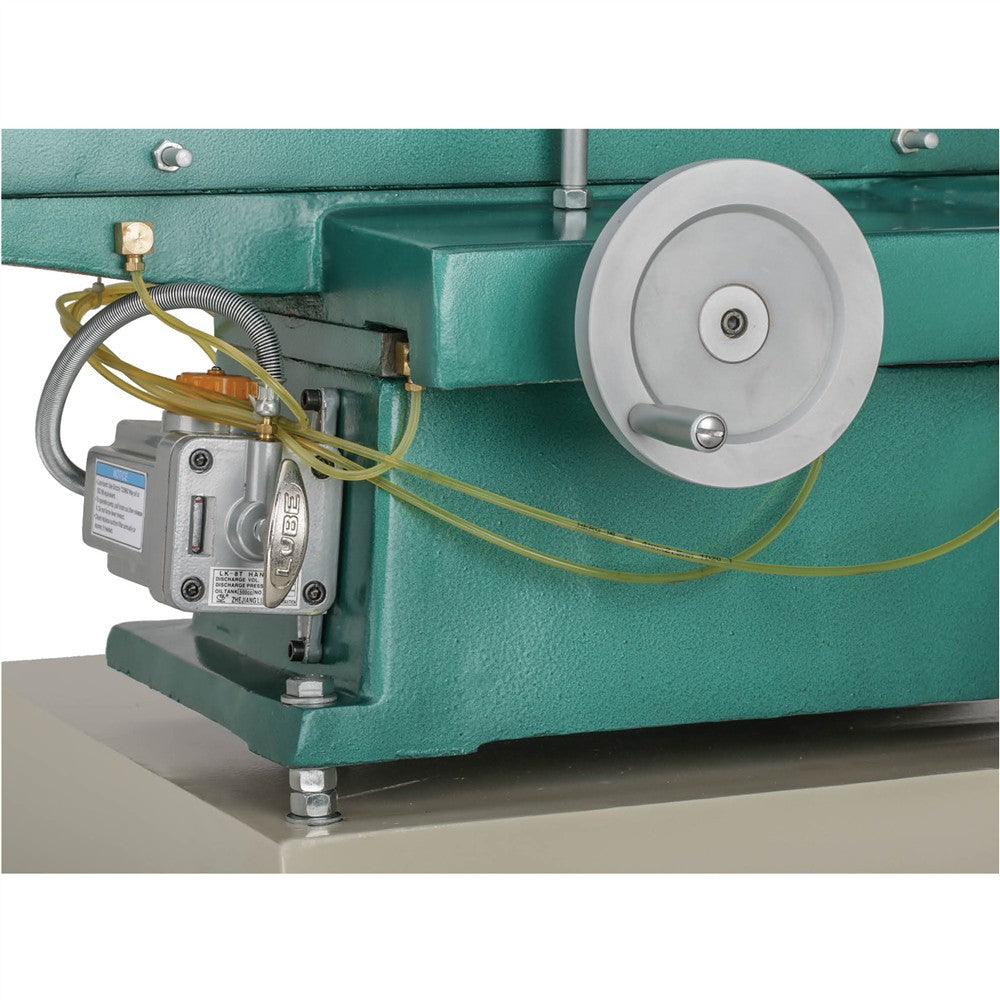

- One-shot lubrication
- Column dial
- Cross feed dial
- Super slide table
- T-slots for securing a magnetic chuck
- Heavy gauge sheet metal cabinet
- Swarf guard
- Diamond wheel dresser with holder
- Tool box
- Wheel balancing kit
Specifications
| Motor | 3/4 HP, 115/230V (prewired 115V), single-phase, 7.4A/3.7A |
| Table surface | 6" x 12" |
| Longitudinal travel | 13-1/4" |
| Cross travel | 7-1/8" |
| Maximum distance table to wheel | 8-7/8" |
| Column dial | 0.001" Res/Rev 0.05" |
| Cross dial | 0.001" Res/Rev 0.1" |
| T-slot | 1/2" W x 3/4" H x 15-1/2" L, 7/8" head |
| Grinding wheel | 7" D x 1/2" W |
| Spindle diameter | 1-1/4" |
| Spindle speed | 3450 RPM |
| Footprint | 20" x 20" |
| Overall dimensions | 36-1/2" W x 33" D x 64" H |
| Approximate shipping weight | 591 lbs. |
Warranty
This item comes with a 1 year factory warranty.
