Grizzly G7213Z Planer 24" 7-1/2 HP 3-Phase New
Product Overview
The Grizzly G7213Z is a heavy-duty 24-inch industrial planer built for production shops that need to surface wide panels and large hardwood stock efficiently. Powered by a 7-1/2 HP 3-phase motor, it is designed to deliver consistent performance on demanding material with the durability expected from cast-iron construction.

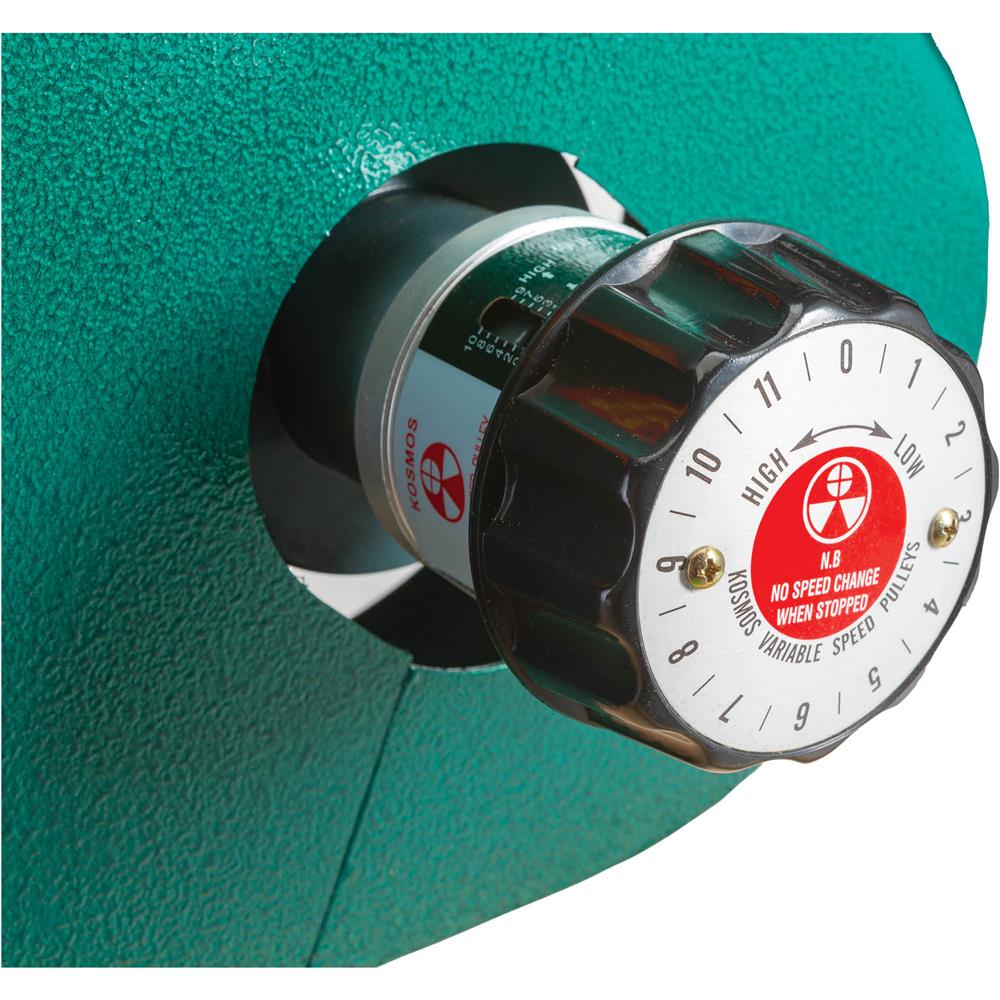

A 4-knife 3-1/8-inch cutterhead with heat-treated high-speed steel knives provides smooth planing results across stock up to 24 inches wide and 7 inches thick. Variable feed speeds from 17 to 26 FPM, a precision-ground cast-iron table, and handwheel height adjustment help operators dial in accurate results for a range of woodworking tasks.
This machine is a strong fit for professional woodworkers, cabinet shops, millwork operations, and other commercial environments using 3-phase power. Built-in chip collection guidance with a 5-inch dust port and production-focused features like board return rollers and adjustable bed rollers make it well suited for high-volume shop use.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Board return rollers
- Precision-ground cast-iron table
- Grease fittings for cutterhead ball bearings
- Heavy-duty cast-iron construction throughout

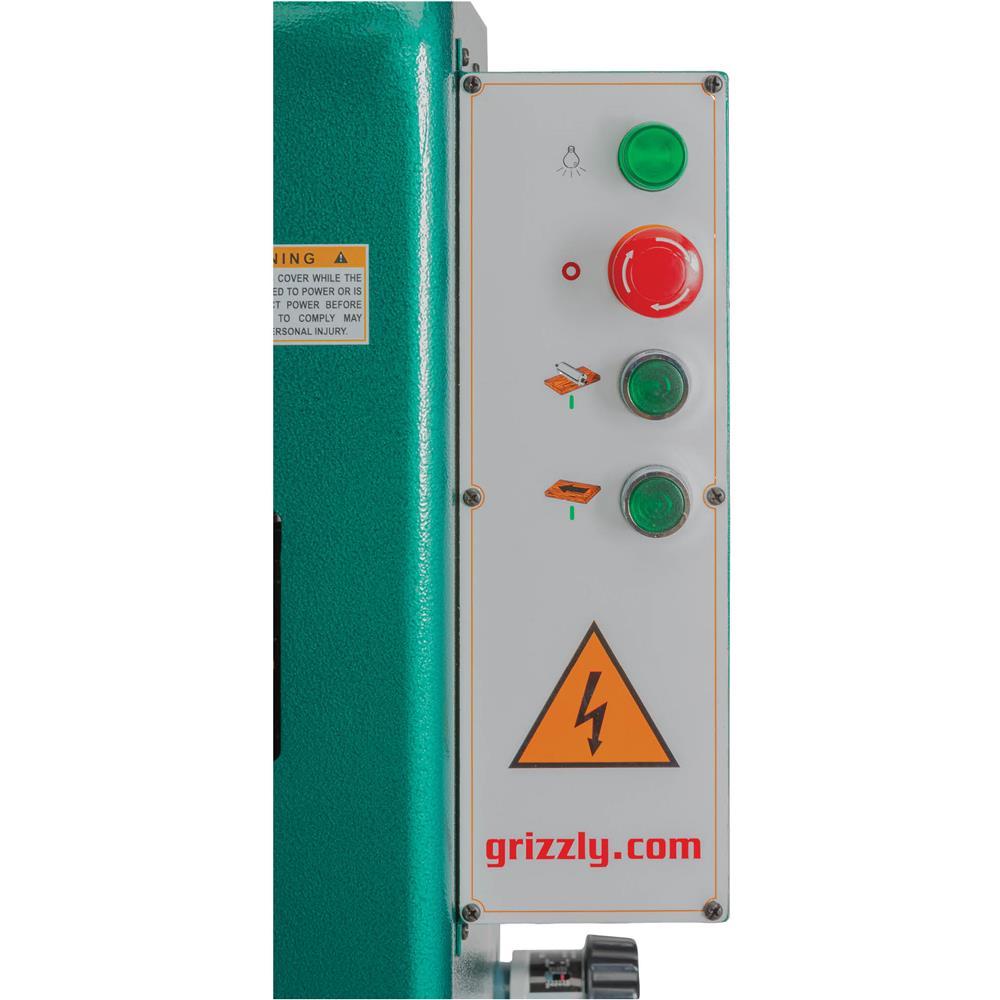

- Magnetic switch with thermal overload protection
- Lever-adjustable bed rollers

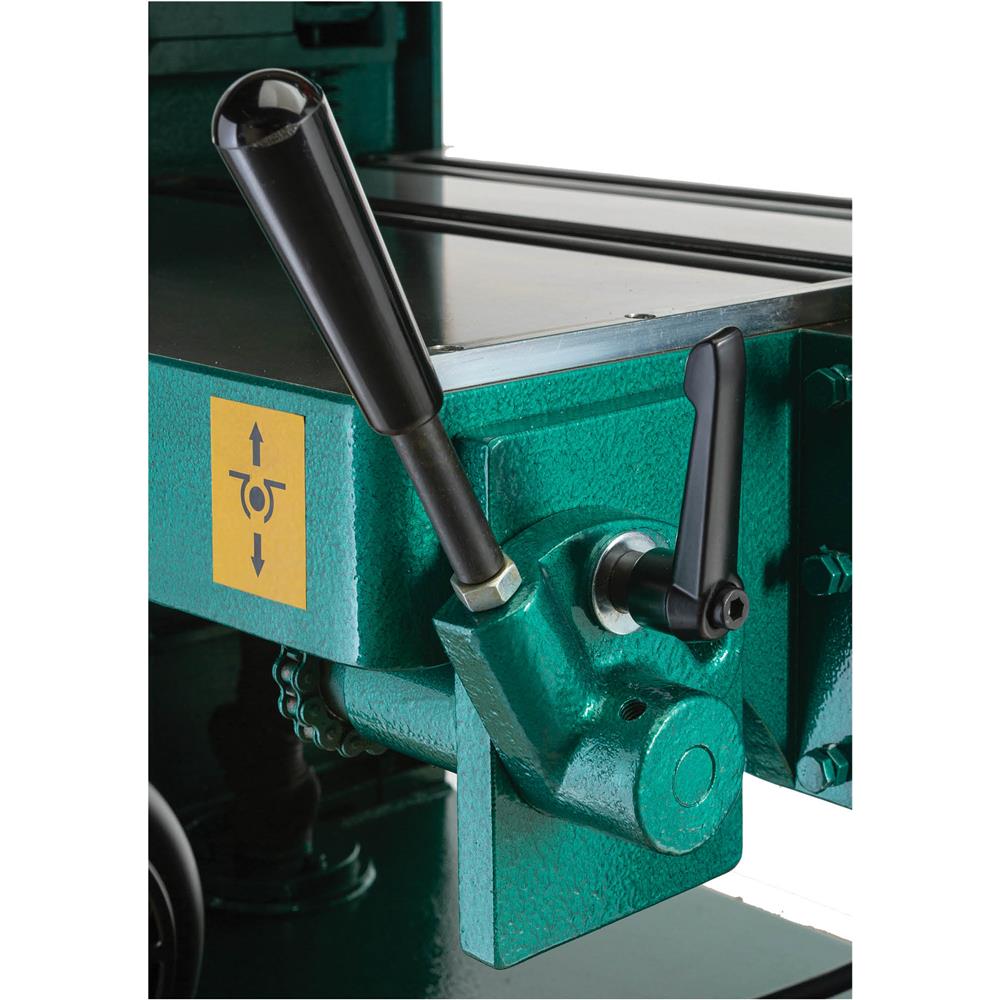

- Handwheel table height adjustment
- Segmented chip breaker and infeed roller
- Finely finished steel outfeed roller
- Inch and metric scale increments
- Dust covers protect vertical support columns and leadscrews
- 1-year limited warranty
Specifications
| Main motor | 7-1/2 HP, 220V/440V* (prewired 220V), 3-phase, 20A/10A |
| Feed motor | 2 HP, 6A/3A |
| Minimum circuit size | 40A @ 220V, 20A @ 440V |
| Maximum stock width | 24" |
| Maximum stock thickness | 7" |
| Minimum stock thickness | 1/4" |
| Minimum stock length | 8" |
| Maximum cutting depth | 1/8" |
| Cutterhead diameter | 3-1/8" |
| Cutterhead type | 4-Knife |
| Knife size & type | 24" x 1" x 1/8", HSS, single-sided, solid |
| Cutterhead speed | 5200 RPM |
| Feed rate | Variable, 17–26 FPM |
| Table size with extensions | 24-1/8" x 31-1/8" |
| Dust port size | 5" |
| Footprint | 20-1/2" x 24-1/2" |
| Overall dimensions | 42" W x 40-1/2" D x 37" H |
| Approx. shipping weight | 1130 lbs. |
