Grizzly G7214Z Spindle Shaper 7-1/2 HP 3-Phase New
Product Overview

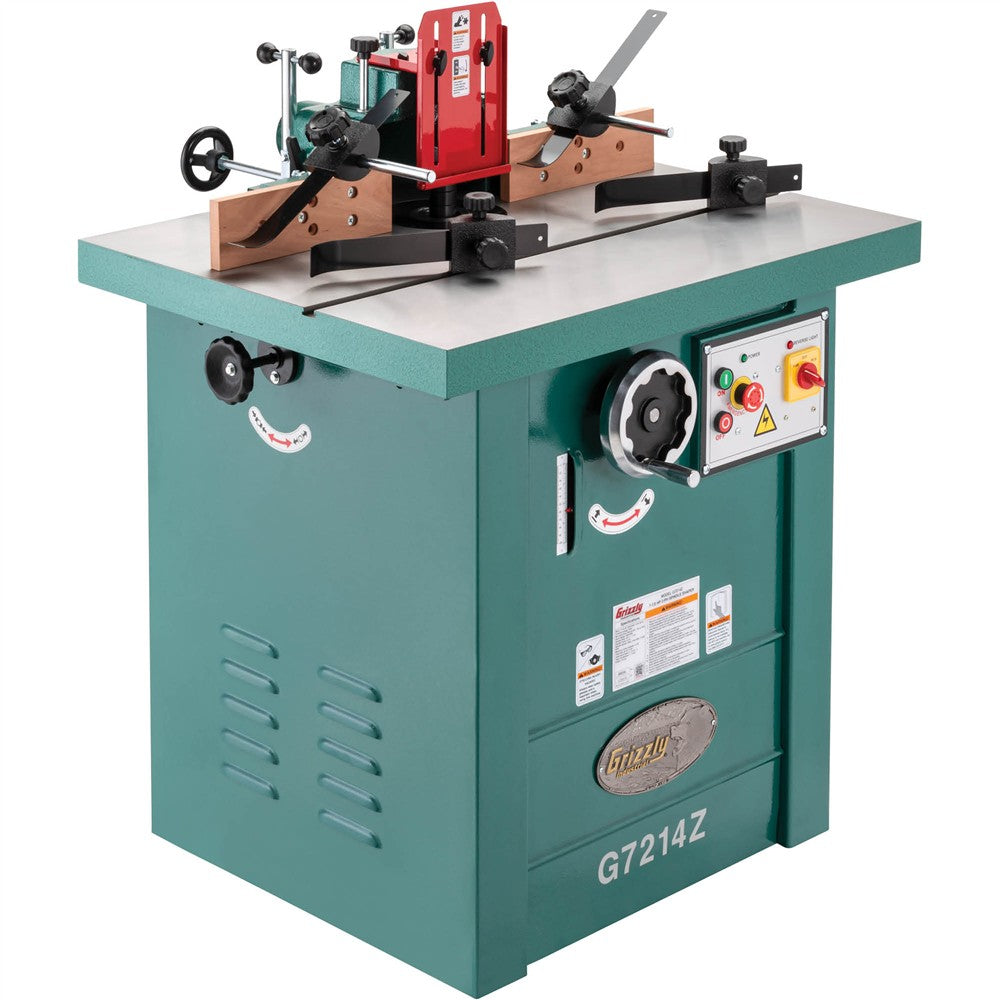

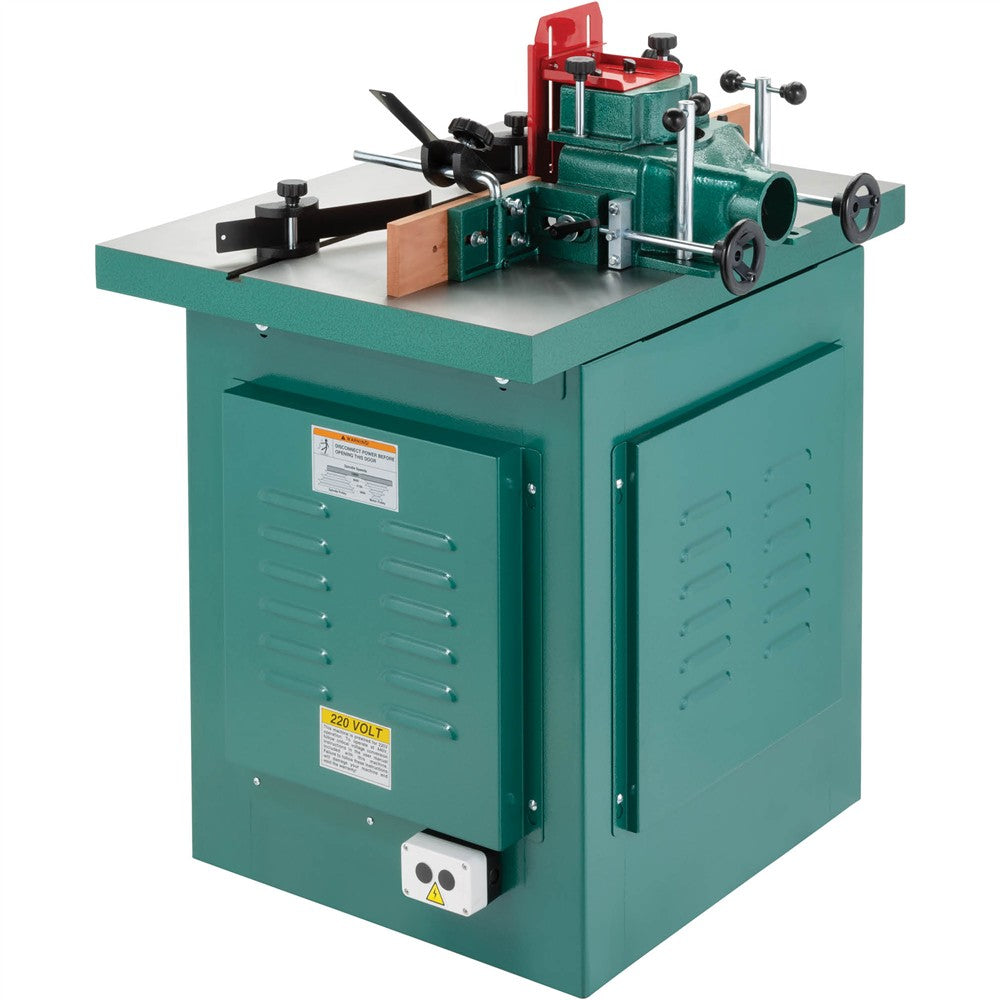

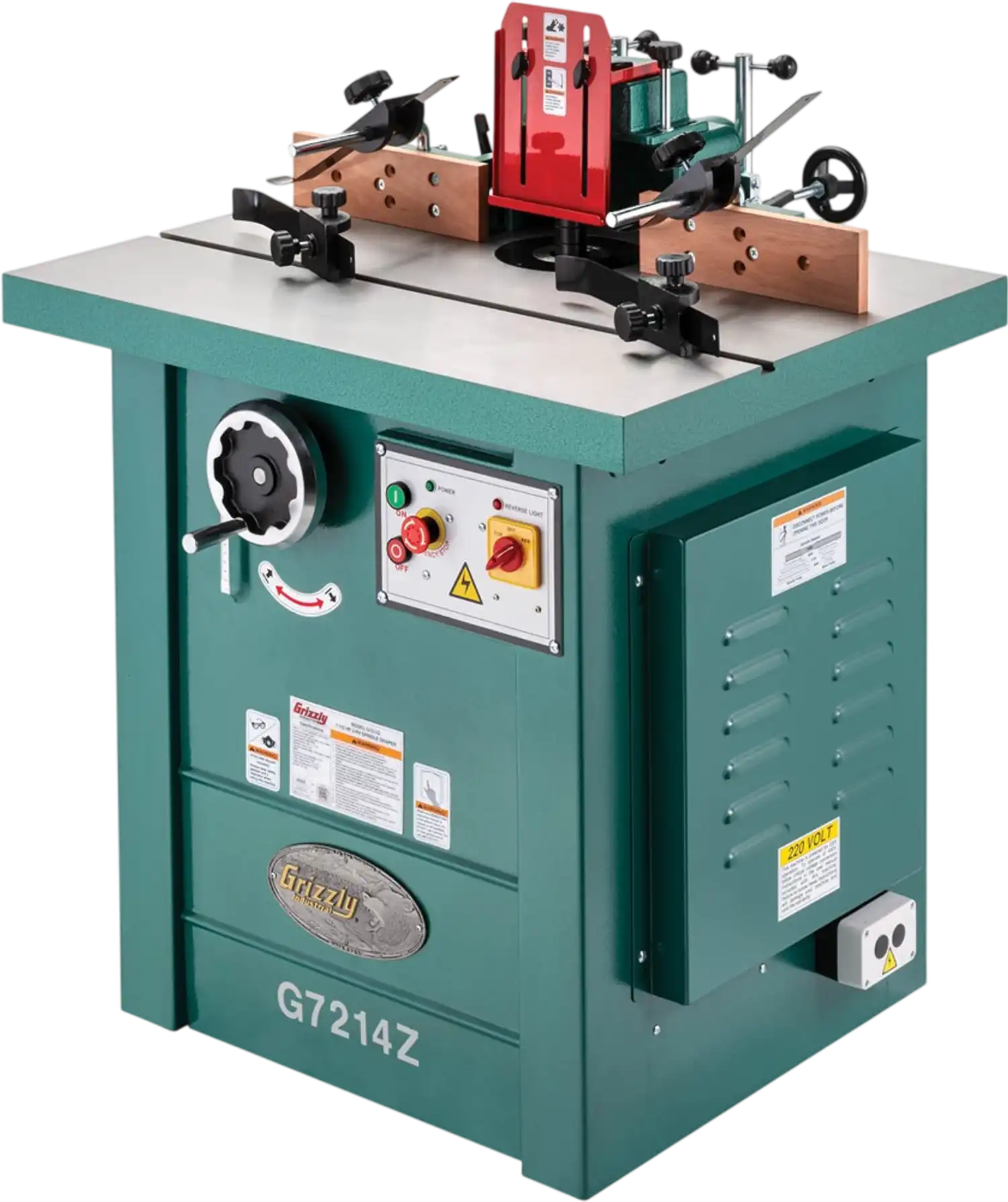

The Grizzly G7214Z is a heavy-duty 7-1/2 HP, 3-phase spindle shaper built for shaping, edging, and profiling wood with large cutters. It handles cutters up to 5-7/8 inches in diameter and 5-1/8 inches tall, making it a strong fit for demanding production and professional woodworking tasks.
Four spindle speeds from 3600 to 10,000 RPM let you match cutter size and material for better control, while the three interchangeable spindles expand tooling compatibility. An independently adjustable split fence, spring-steel hold-downs, and an adjustable spindle guard help support accurate feeding and safer operation during edge work.
With its precision-ground cast-iron table and large work surface, this machine is suited for cabinet shops, millwork operations, and serious professional woodworkers who need power, stability, and flexibility for high-volume shaping applications.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Precision-ground cast-iron table
- Cast-iron miter gauge adjusts 60° left/right
- Two wood fence faces

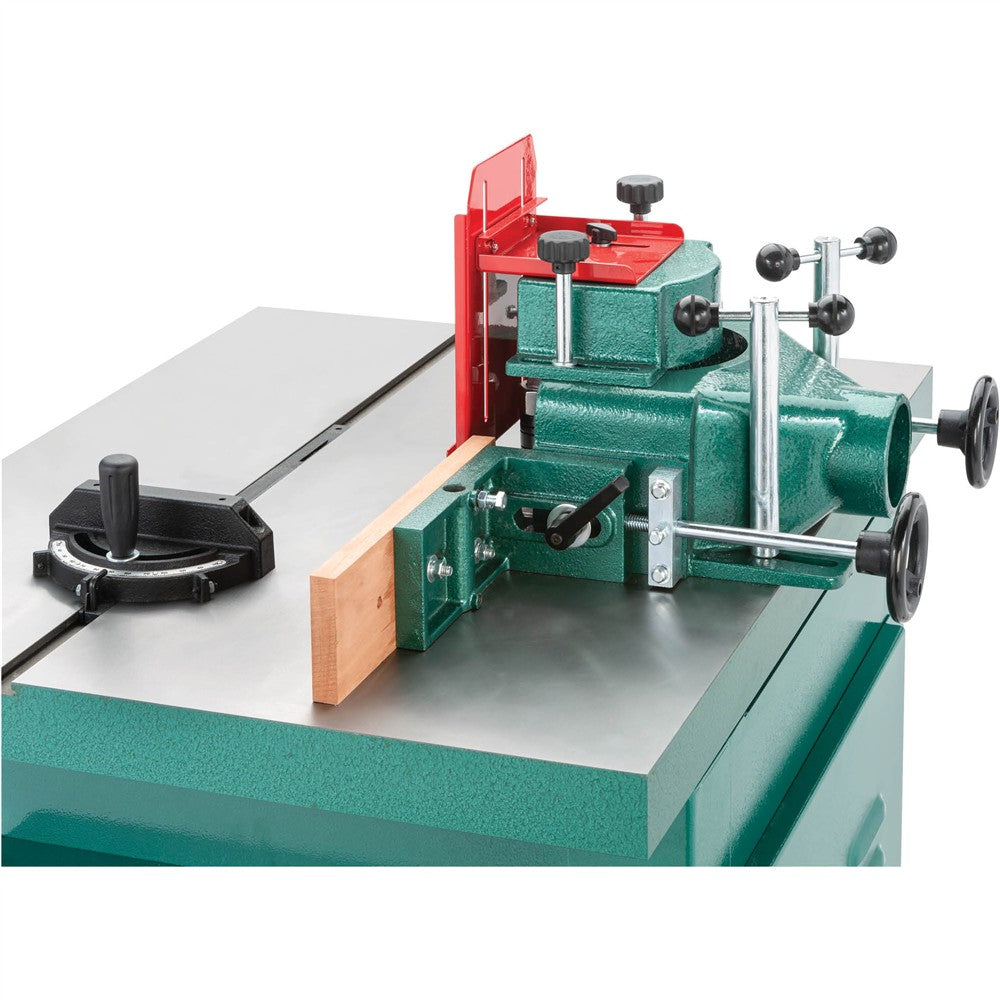

- Fence adjustment includes built-In ratchets and knob-equipped adjusters

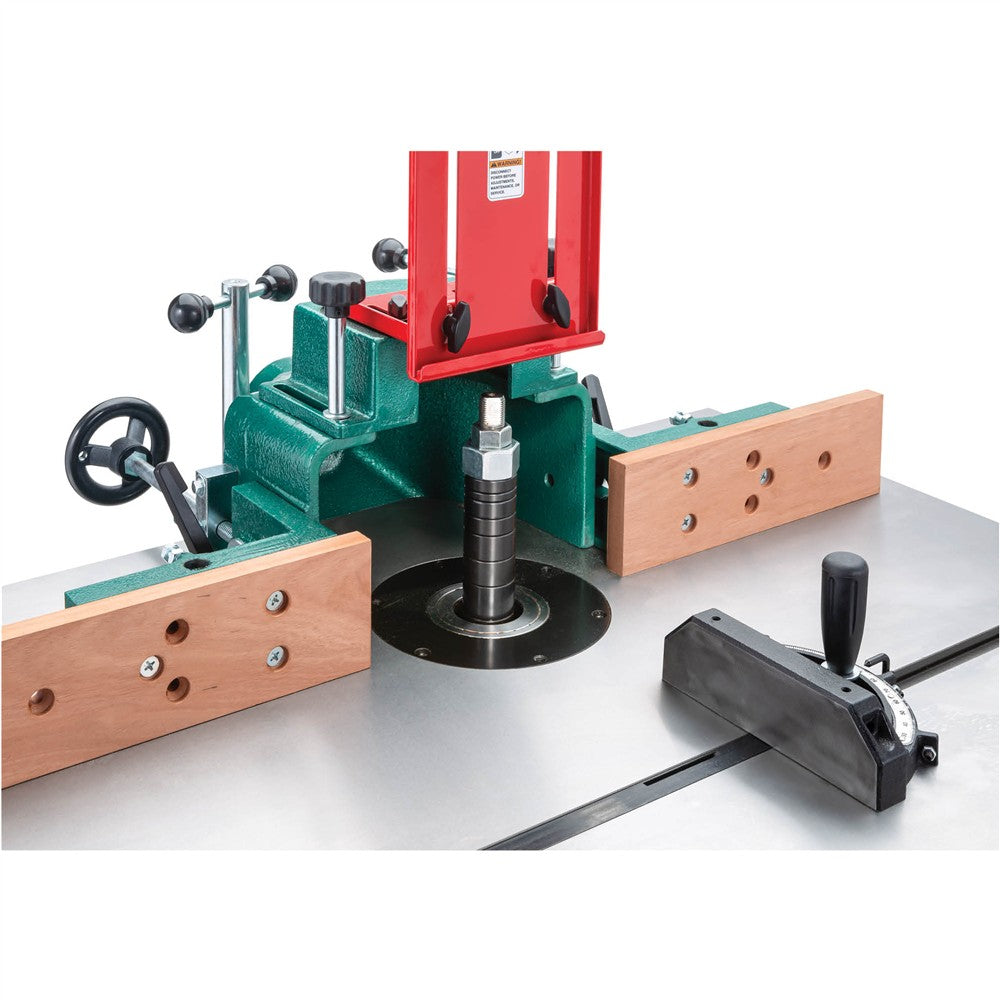

- Includes three spindles with spacers and nuts

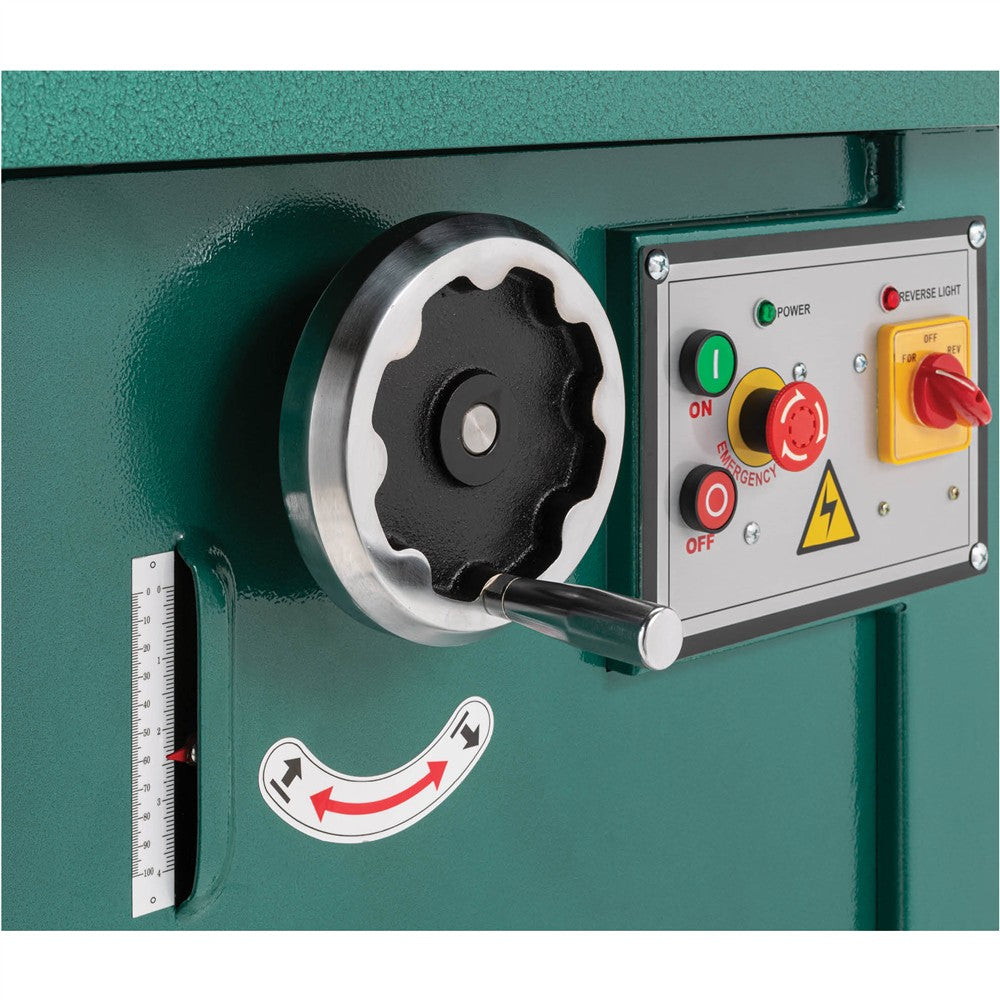

- Spindle height scale in inches and millimeters
- Four spring-steel hold-down assemblies
- Three table inserts: 7" OD x 3-1/2" ID, 3-1/2" OD x 3" ID, and 3" OD x 2" ID
- Assorted wrenches included
- 1-year limited warranty
Specifications

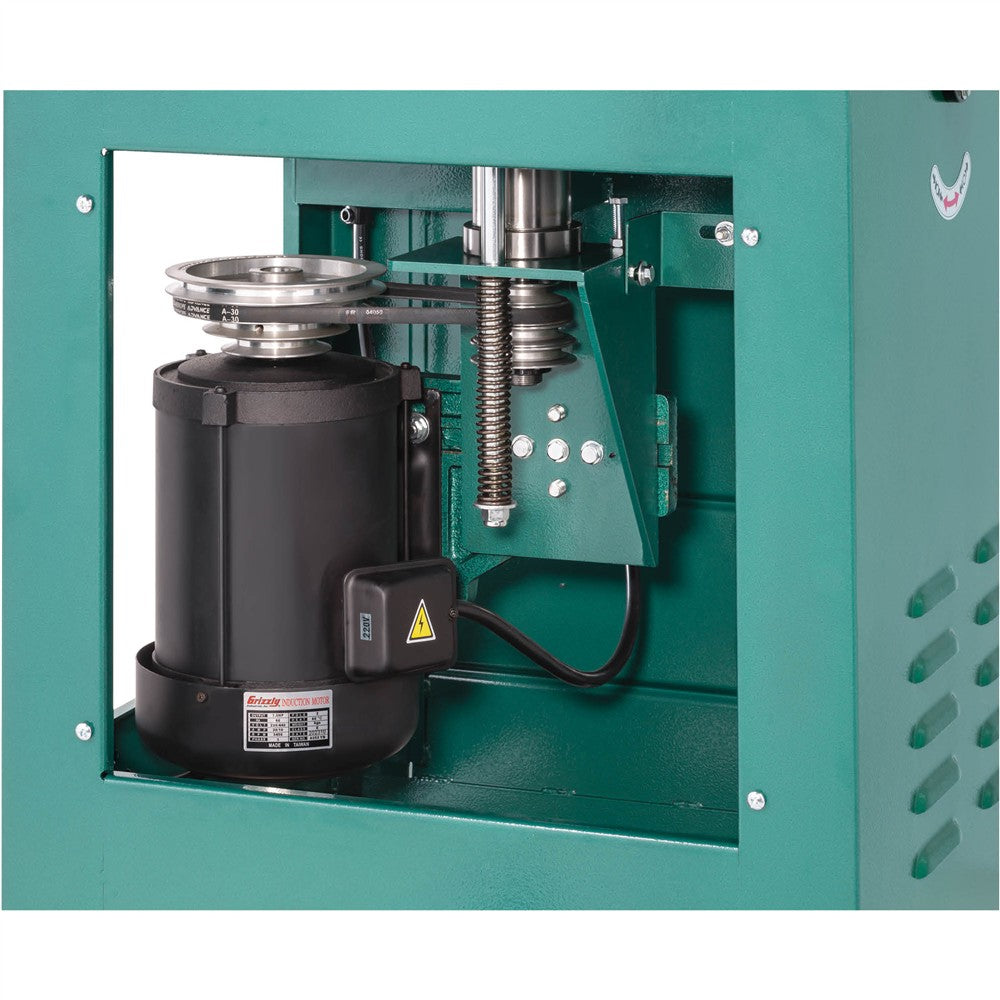

| Motor | 7-1/2 HP, 220V/440V* (prewired 220V), 3-phase, 20A/10A |
| Minimum circuit size | 30A @ 220V, 15A @ 440V |
| Maximum cutter height | 5-1/8" |
| Maximum cutter diameter | 5-7/8" |
| Spindle diameters | 3/4", 1", 1-1/4" |
| Spindle lengths | 6"–7" |
| Spindle capacity under nut | 4-1/4", 4-5/8", 5-1/8" |
| Spindle speeds | 3600, 5100, 8000, 10,000 RPM |
| Spindle travel | 3-1/4" |
| Spindle insert sizes I.D. | 2", 3", 3-1/2" |
| Spindle insert sizes O.D. | 3", 3-1/2", 7" |
| Table counterbore | 7" dia. x 5/8" deep |
| Table size | 28" x 35-1/2" |
| Floor-to-table height | 34-3/4" |
| Footprint | 26" x 27" |
| Overall dimensions | 34-3/4" W x 35-1/2" D x 43" H |
| Approximate shipping weight | 613 lbs. |
