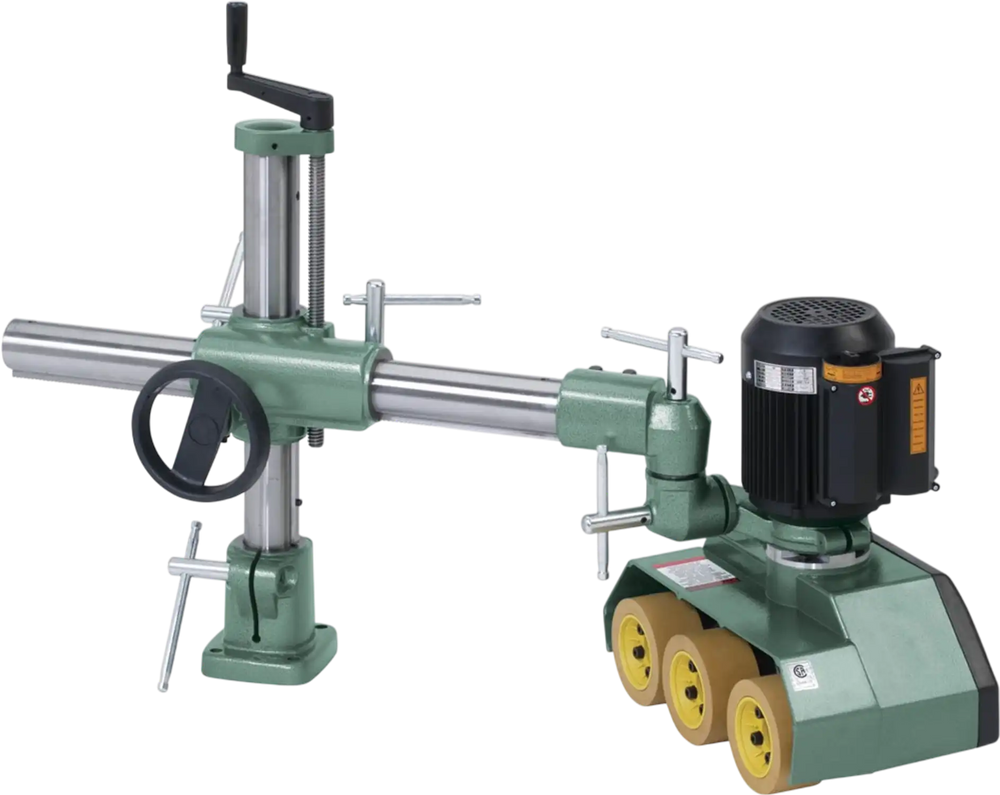

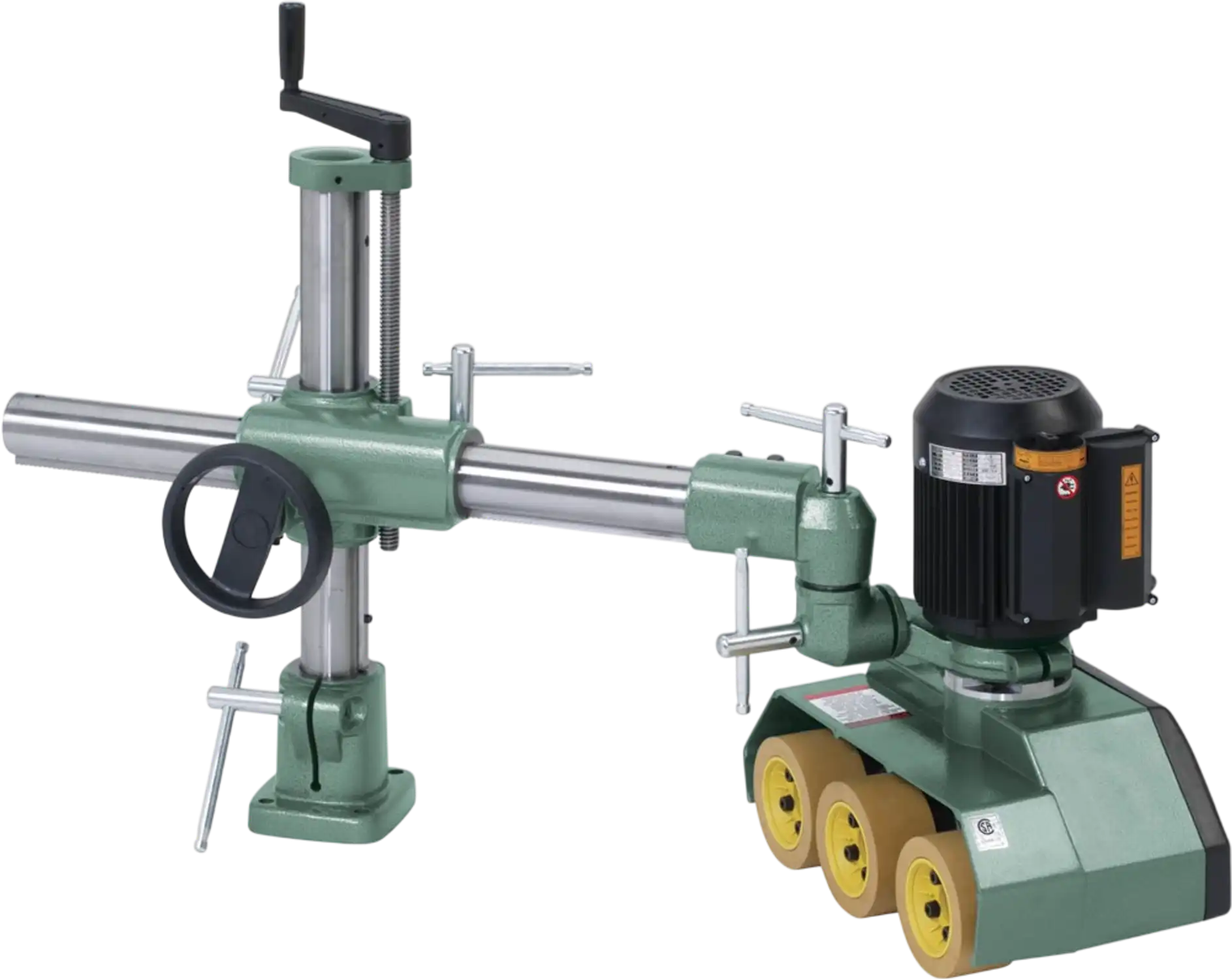

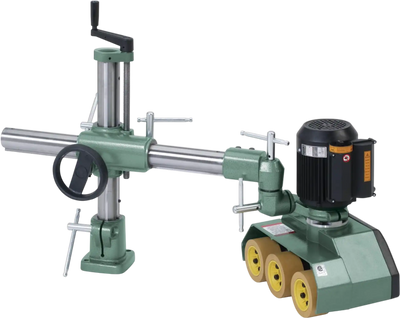

Grizzly G7873 Power Feeder 1 HP 4-Speed 3-Roller 3-Phase New
Manufacturer: Grizzly
SKU: G7873
QTY
or
(888) 999-1522
$ 1,547.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Grizzly G7873 Power Feeder 1 HP 4-Speed 3-Roller 3-Phase New
Product Overview
The Grizzly G7873 is a 1 HP, 3-phase power feeder designed to provide smooth, consistent stock feeding for woodworking machines. With three spring-tensioned rollers and four feed speeds from 13 to 66 feet per minute, it helps move material evenly for cleaner, more controlled cutting results.
Built for production ripping, shaping, and milling, this feeder helps reduce wobble and promotes steadier contact between the workpiece and cutter. Forward and reverse rotation, 360-degree swing, and generous vertical and horizontal travel make it adaptable to a wide range of setups.
It is a practical choice for professional woodworkers, cabinet shops, and industrial users running shapers, router tables, table saws, jointers, or bandsaws with 3-phase power. The heavy-duty gear reduction and multi-axis adjustability make it well suited for repeatable feed control on longer or wider stock.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Rollers are spring tensioned with 3/4" of travel
- Heavy-duty gear reduction with hardened gears
- X-, Y-, Z-axis adjustment with handle locks
- Rack-and-pinion horizontal movement
Specifications
| Motor | 1 HP, 240V, 3-phase 3.4A/2.5A |
| Feed speeds | (4) 13, 26, 33, 66 FPM |
| Swing | 360° |
| Vertical travel | 9-7/8" |
| Horizontal travel | 18-1/8" |
| Rotation | Forward/reverse |
| Minimum workpiece length | 7" |
| Rollers | (3) 2-1/4" x 4-5/8" |
| Roller suspension | 3/4" |
| Maximum height of rollers | 7" |
| Overall size | 43-1/2" W x 8-1/2" D x 13" H |
| Approximate shipping weight | 144 lbs. |
Warranty
This item comes with a 1 year factory warranty.
