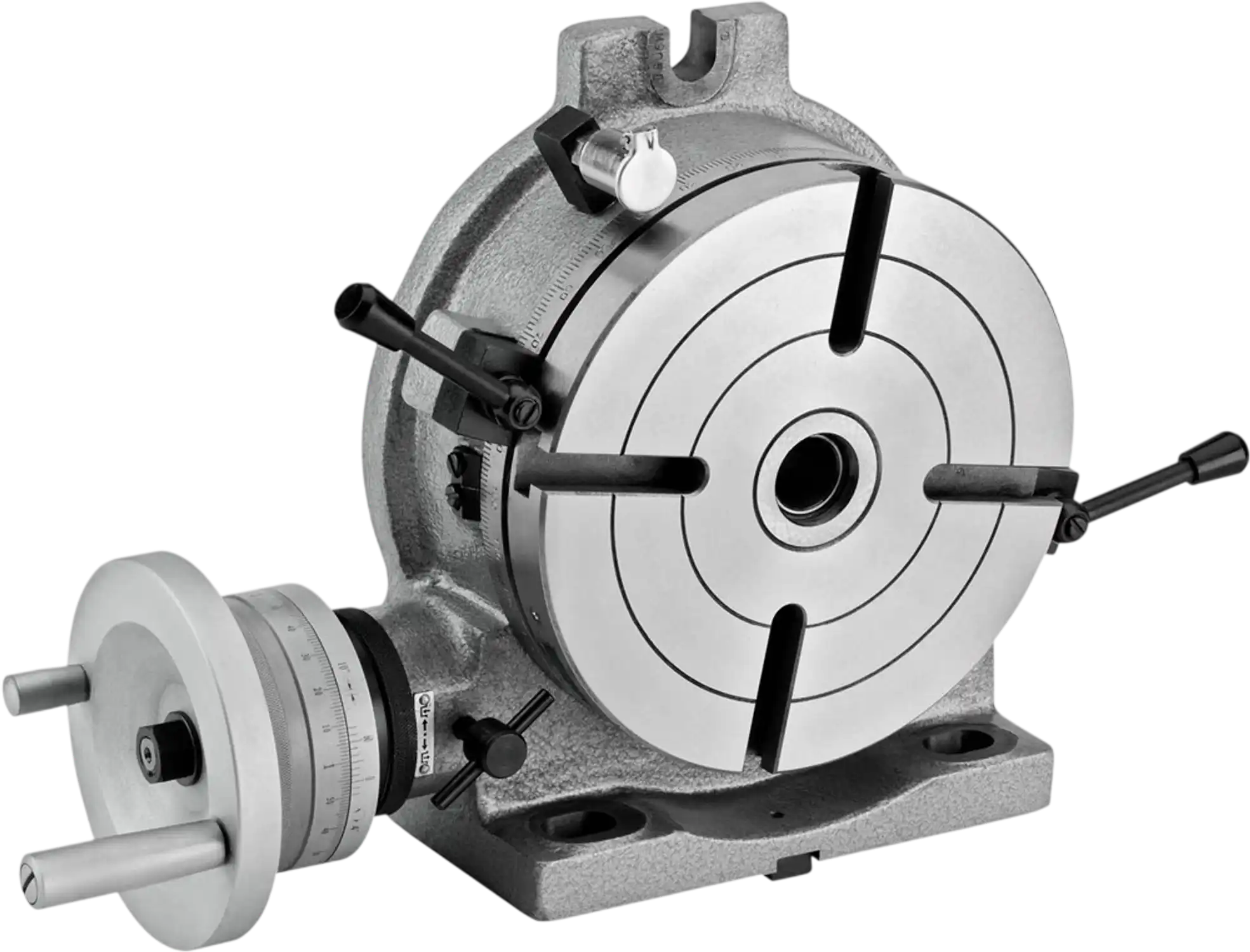

Grizzly G9298 Rotary Table Yuasa Type 8" Horizontal/Vertical New
Product Overview
The Grizzly G9298 is an 8-inch Yuasa-type rotary table designed for precise indexing, drilling, and cutting on milling machines and similar setups. It can be mounted in either a horizontal or vertical position, making it a versatile tool for machining arcs, circular profiles, large-diameter holes, and eccentric features.
Built for accuracy, it features a 10-second vernier scale for fine rotational control, along with tight tolerances for parallelism, squareness, and concentricity. Positive dual-action table locks, oil-immersed gears, and easy-to-read satin chrome dials help deliver smooth operation and reliable positioning during detailed work.
With a low-profile design, four T-slots, and an MT #3 center hole, this rotary table is well suited for machinists, toolrooms, and serious metalworking shops that need dependable precision for complex setups and repeatable results.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Can be used in horizontal or vertical position
- 10 second vernier scale
- Positive dual action table locks
- Oil immersed gears
- Very low profile
- Satin chrome dials
Specifications
| Size | 8" |
| Total T-slots | 4 |
| T-Slot size | 0.465" |
| Center Hole | MT #3 |
| Clamping surface flatness (concave) | 0.0006" |
| Cylindrical center bore concentricity | 0.0008" |
| Taper center bore concentricity | 0.0008" |
| Surface to base parallelism | 0.0008" |
| Surface to angle face squareness | 0.0004" |
| Surface to center slot squareness | 0.0008" |
| Overall height (horizontal) | 3.944" |
| Height to center hole (vertical) | 5.985" |
| Table height in horizontal position | 4" |
| Table height in vertical position | 9-1/4" |
| Approximate weight | 75 lbs. |
Warranty
This item comes with a 1 year factory warranty.
