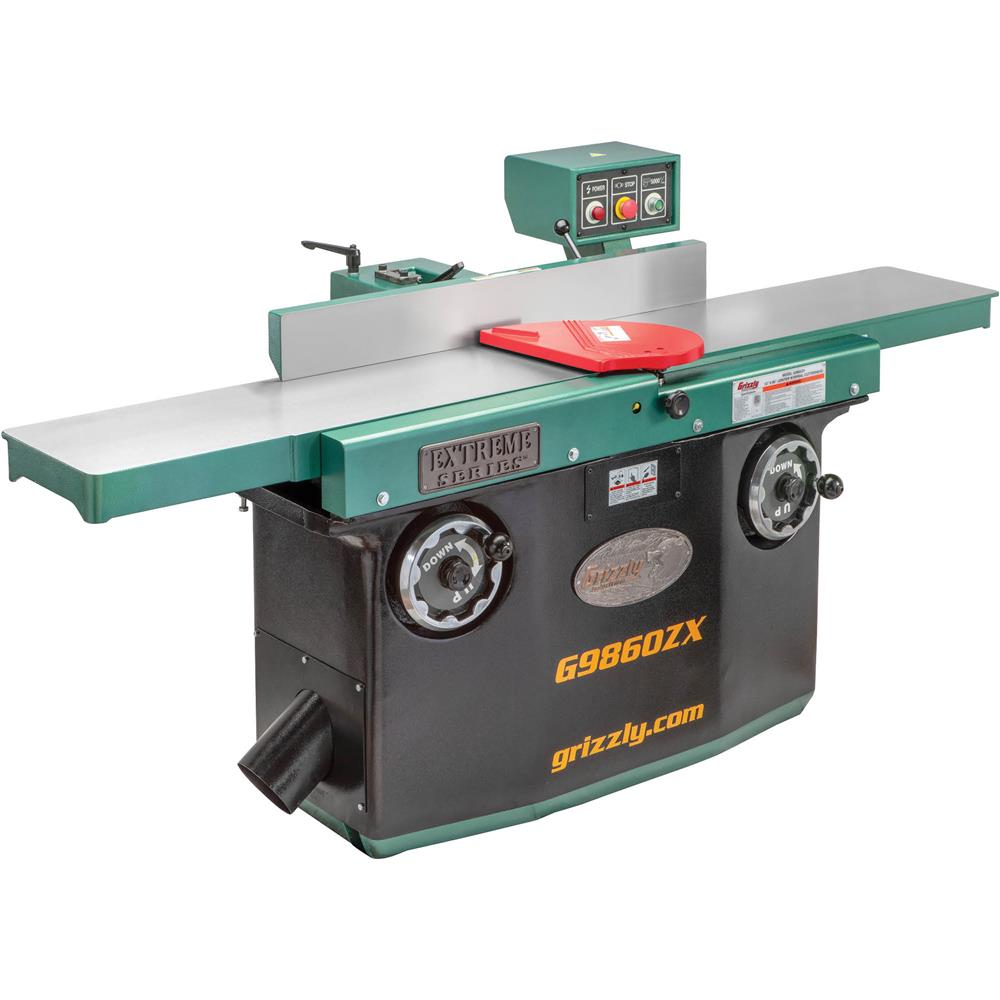

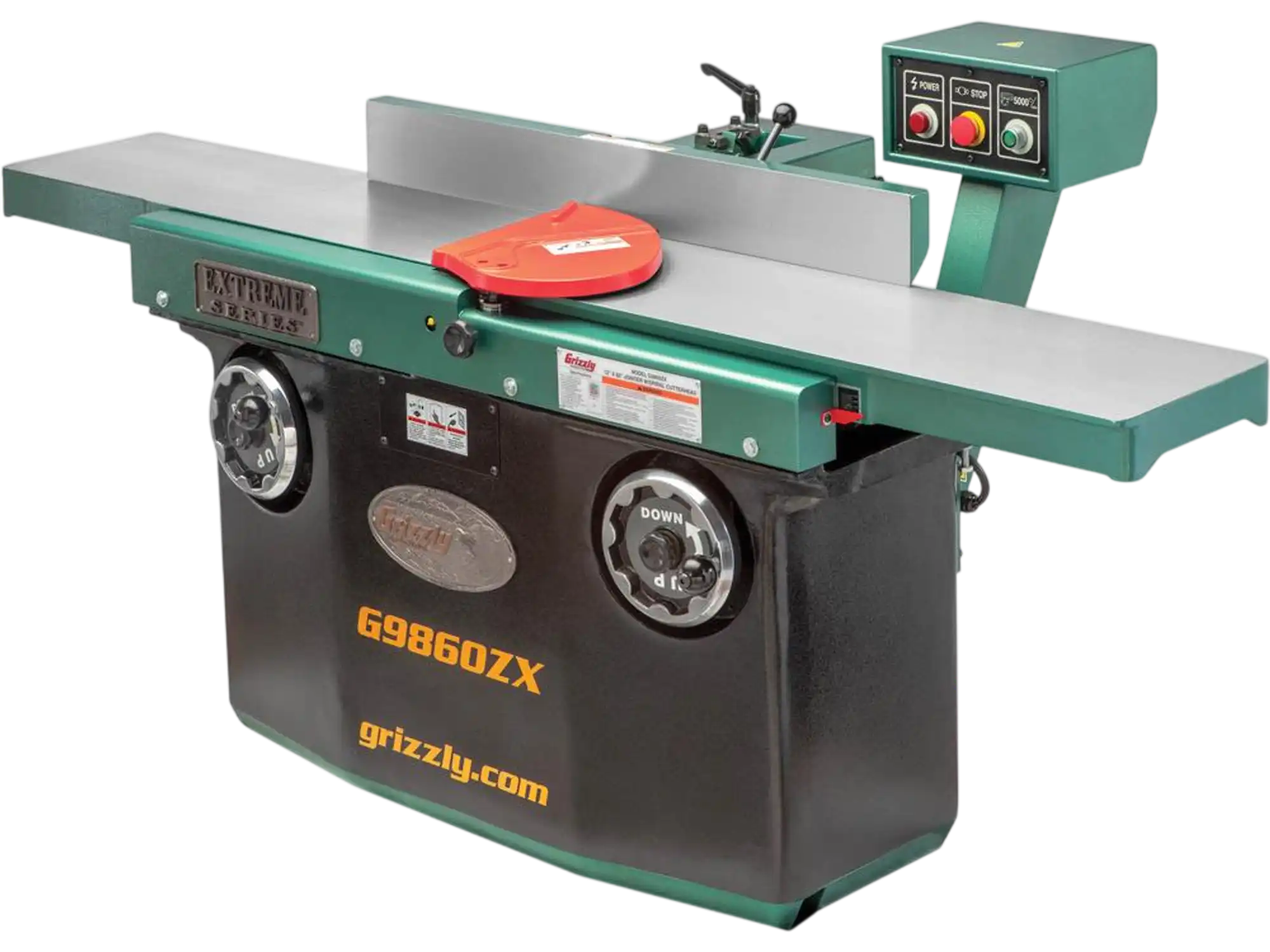

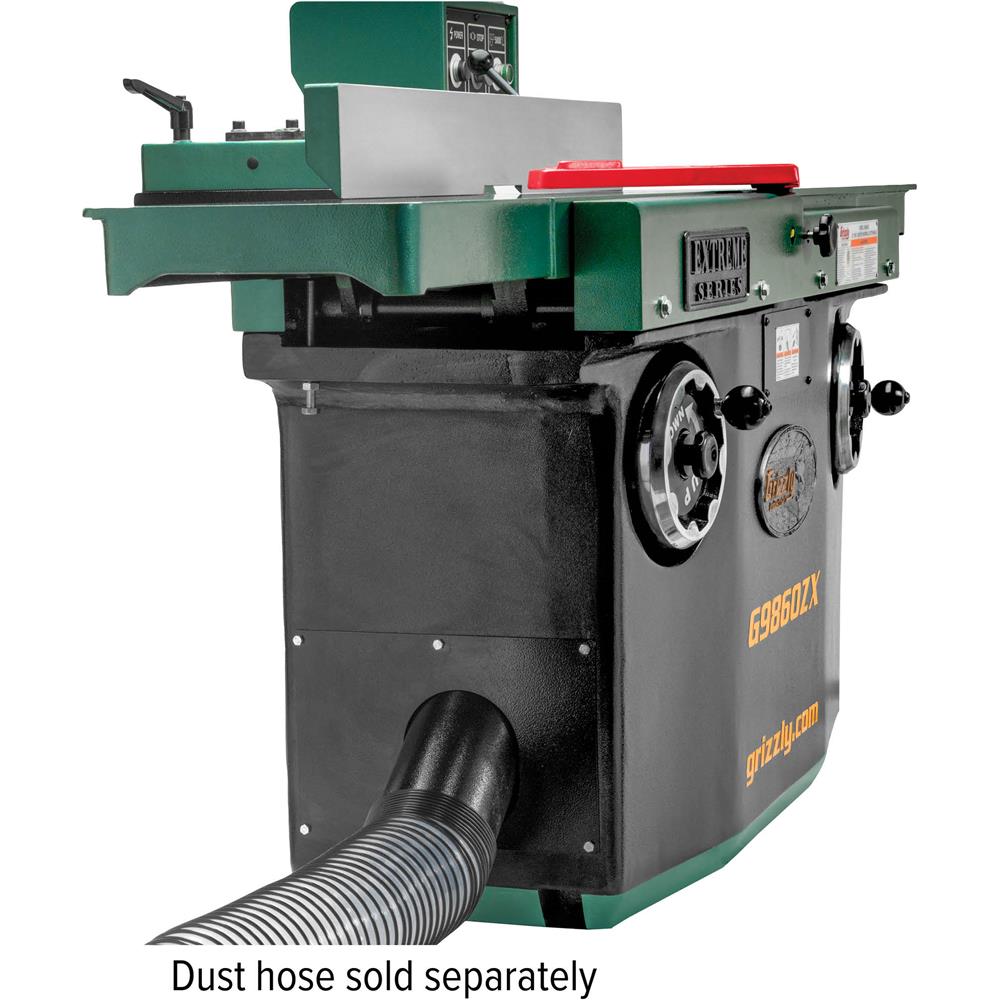

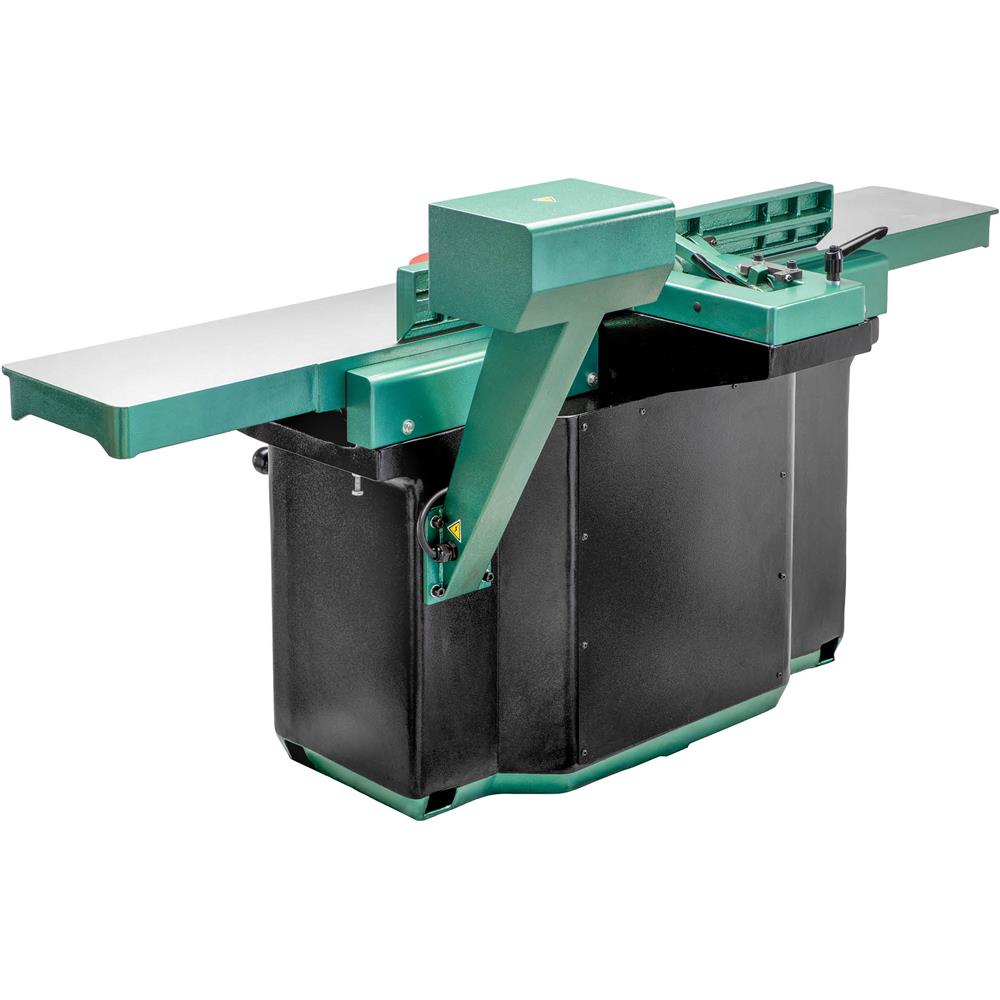

Grizzly G9860ZX Jointer 12" x 80" Z Series w/ Spiral Cutterhead New
Product Overview

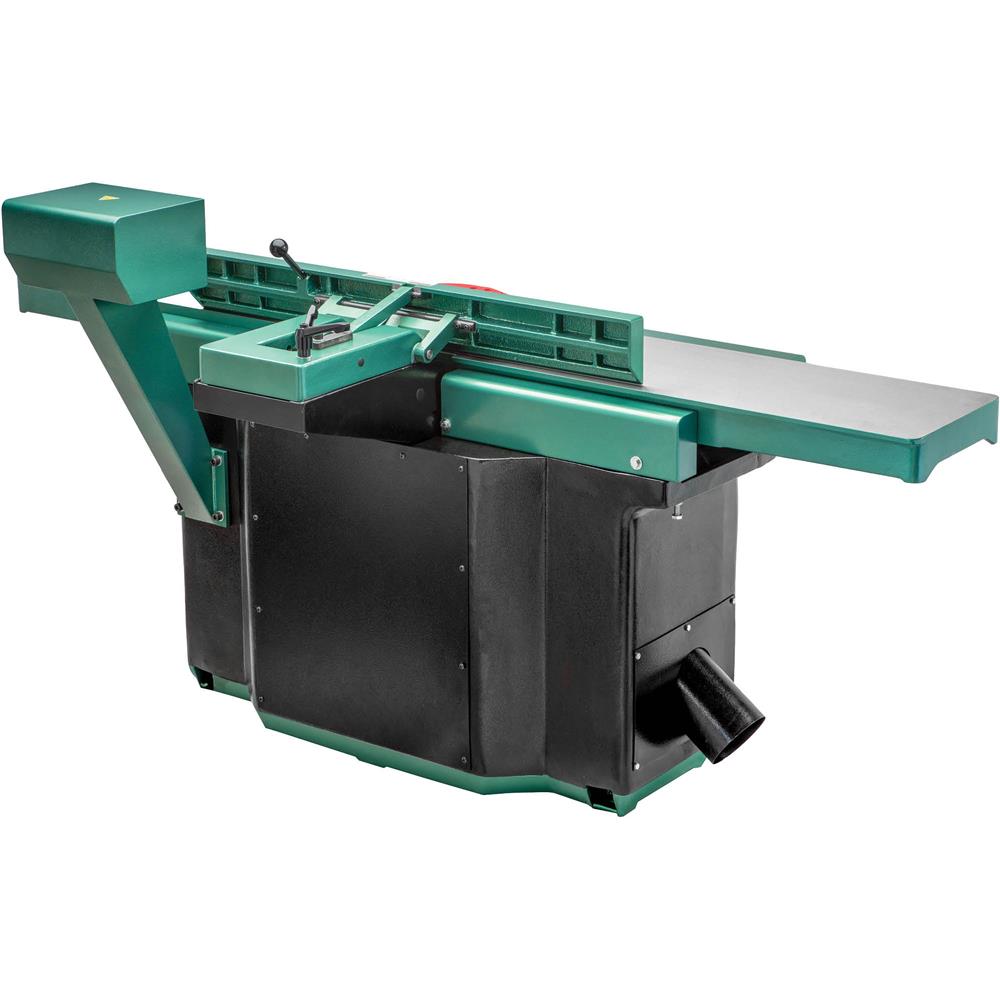

The Grizzly G9860ZX is a heavy-duty 12" jointer built for flattening, straightening, and edge-jointing rough lumber with professional-level accuracy. Its long 80" precision-ground cast-iron tables, parallelogram adjustment system, and sturdy cast-iron base provide the stability needed for smooth, consistent results on large stock.

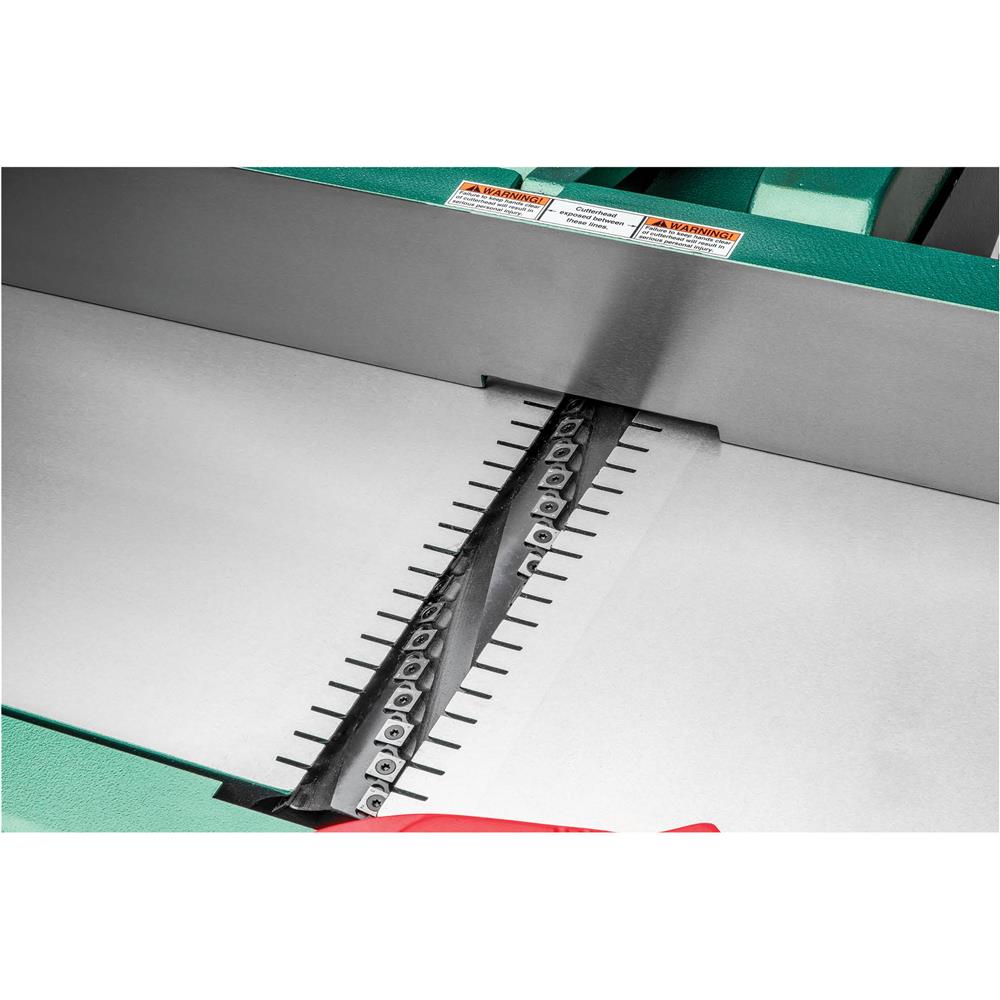

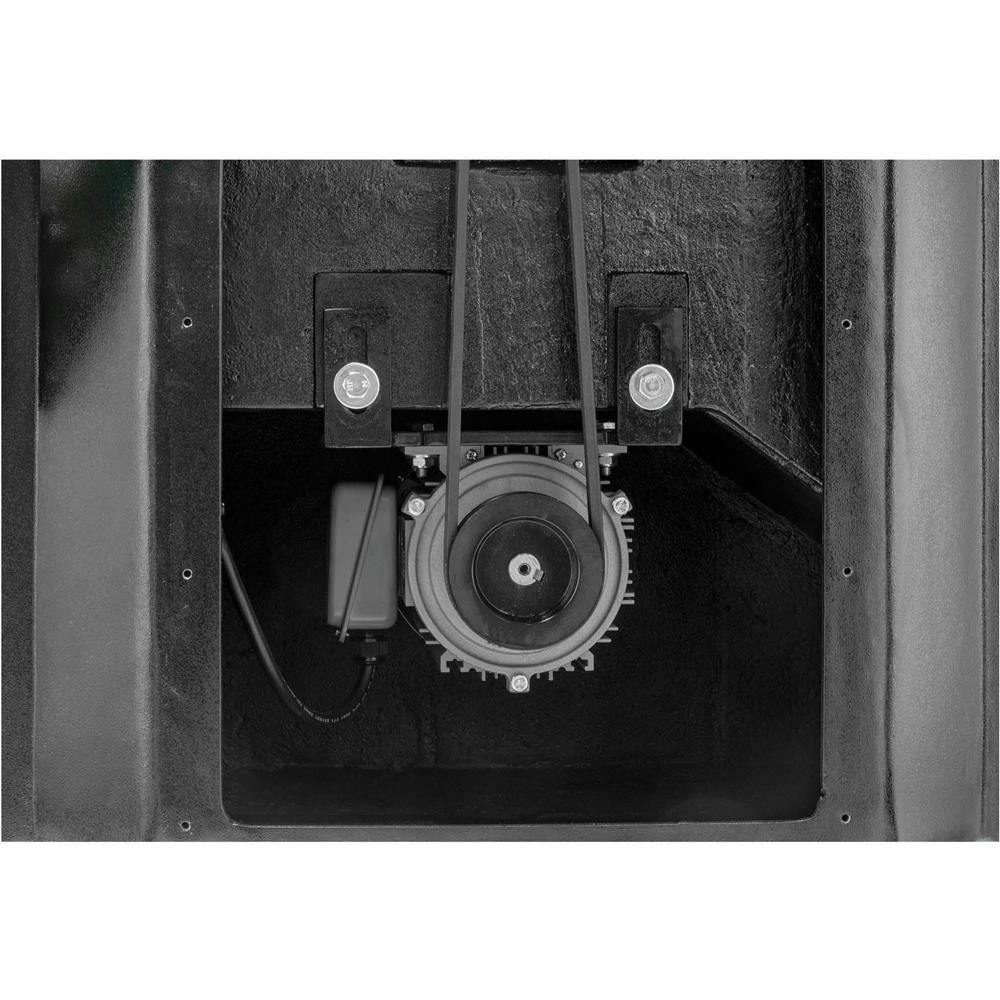

A 3 HP motor drives a 6-row spiral cutterhead with 84 indexable carbide inserts for a cleaner finish and quieter cutting than traditional straight-knife designs. The insert cutterhead also helps reduce downtime, since individual cutting edges can be rotated when they become nicked or worn.
This machine is a strong fit for professional woodshops, furniture makers, cabinet builders, and serious woodworkers who need to turn cupped or uneven boards into flat, usable material. With a wide cutting capacity and rugged industrial construction, it is designed for demanding shop use and reliable performance on hardwoods and longer boards.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Precision-ground cast-iron tables
- Parallelogram table adjustment

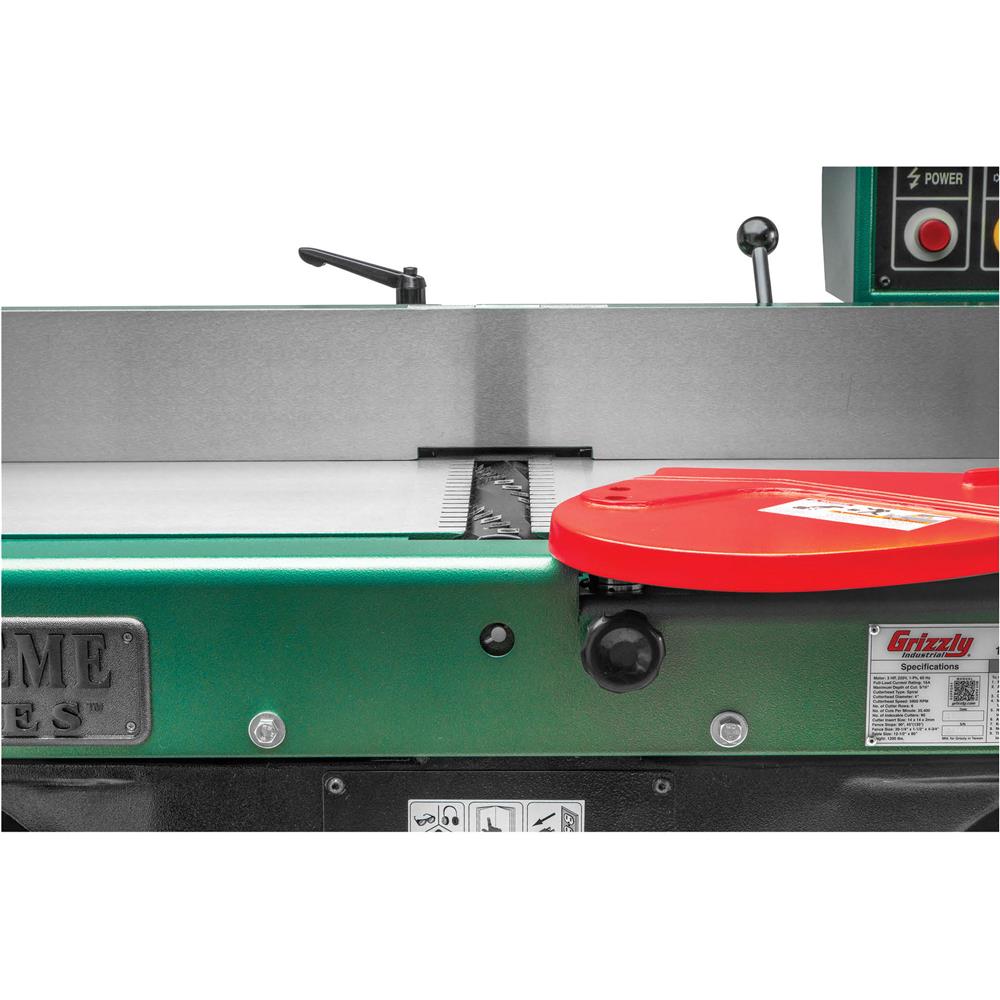

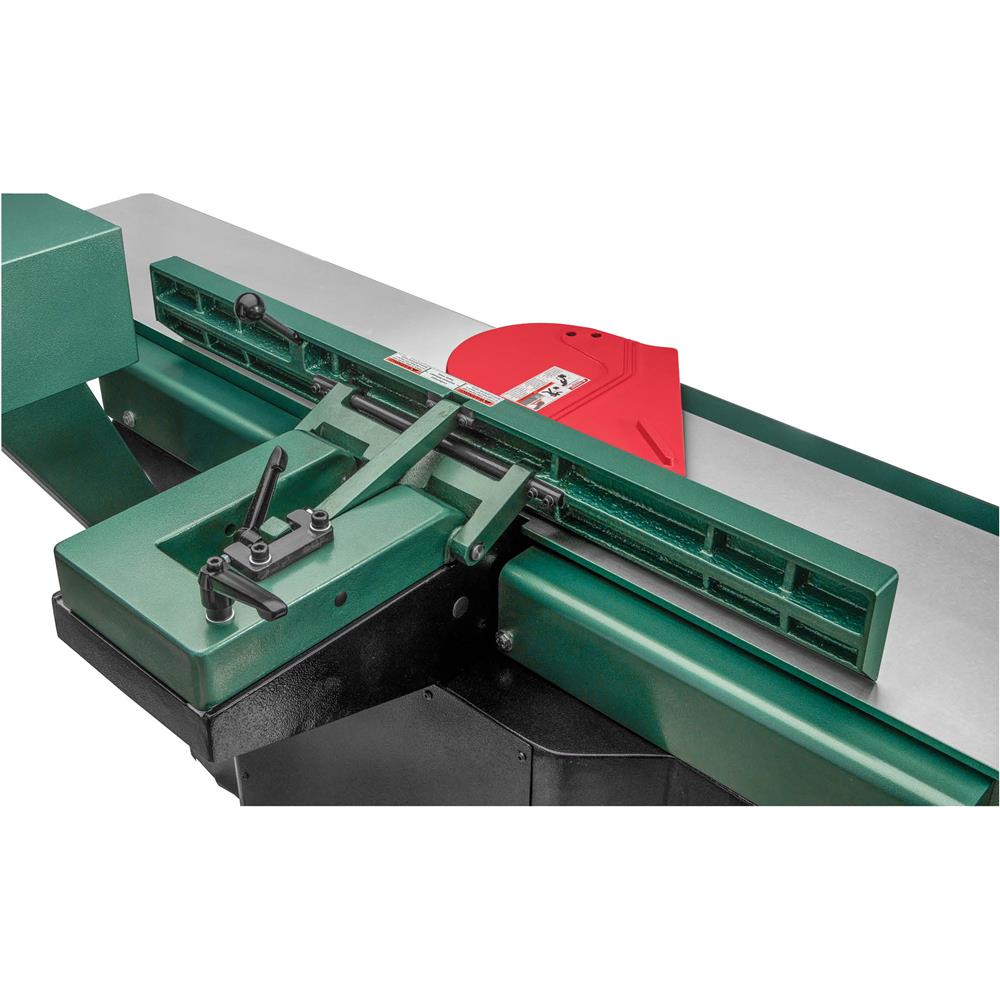

- Center-mounted fence with positive stops at 45°, 90°, and 135°
- Heavy-duty cast-iron cabinet stand with noise-damping system
- Precision handwheel-controlled table elevation
- Noise damping system
- Stress-relieved infeed and outfeed tables
- Pedestal-mounted ON/OFF switch
Specifications
| Motor | 3 HP, 220V, single-phase, 16A |
| Maximum width of cut | 11-13/16" |

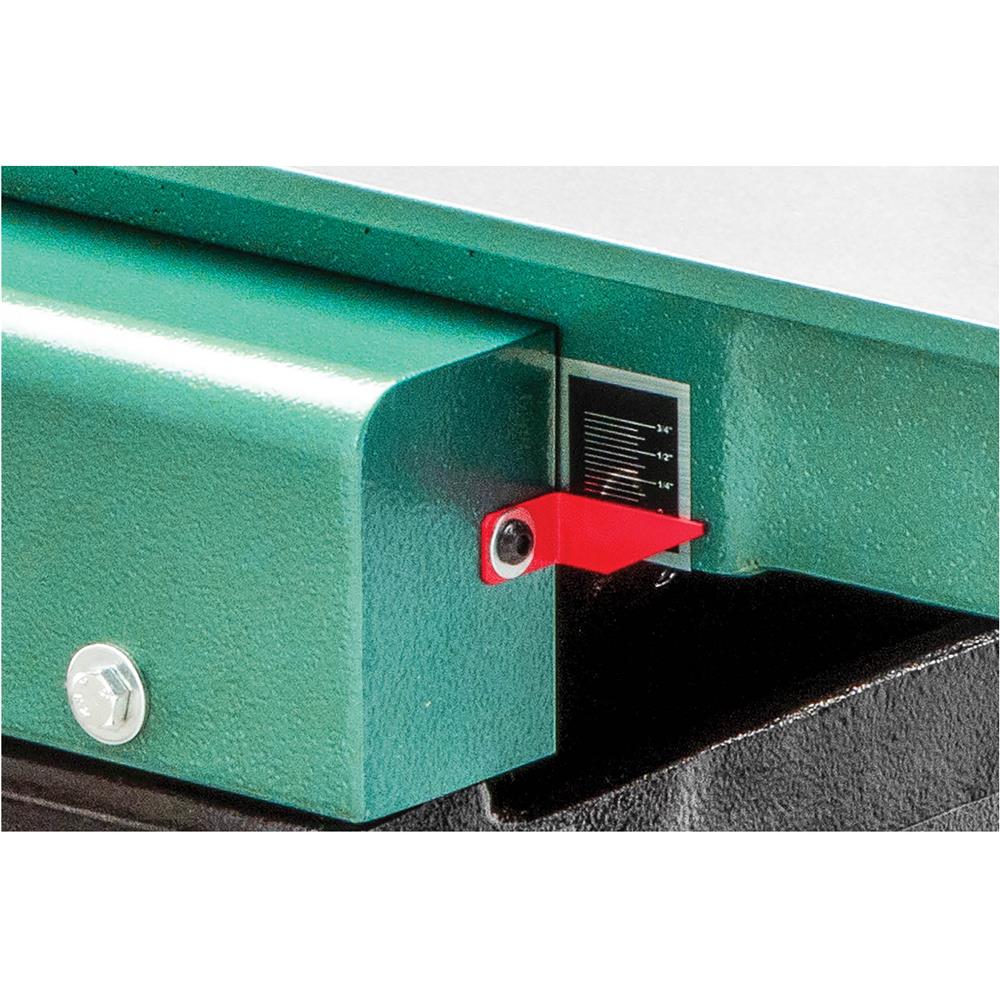

| Maximum depth of cut | 5/16" |
| Cutterhead diameter | 4" |
| Cutterhead type | 6-Row spiral with 84 inserts |
| Insert size and type | 14 x 14 x 2mm indexable carbide |
| Cutterhead speed | 5900 RPM |
| Table size | 12-1/2" x 80" |
| Fence size | 39-1/4" L x 4-3/4" H |
| Minimum stock length | 14" |
| Minimum stock thickness | 1/2" |
| Dust port size | 4" |
| Footprint | 41" x 20" |
| Overall dimensions | 80" W x 34-1/16" D x 40-1/2" H |
| Approximate shipping weight | 1241 lbs. |
