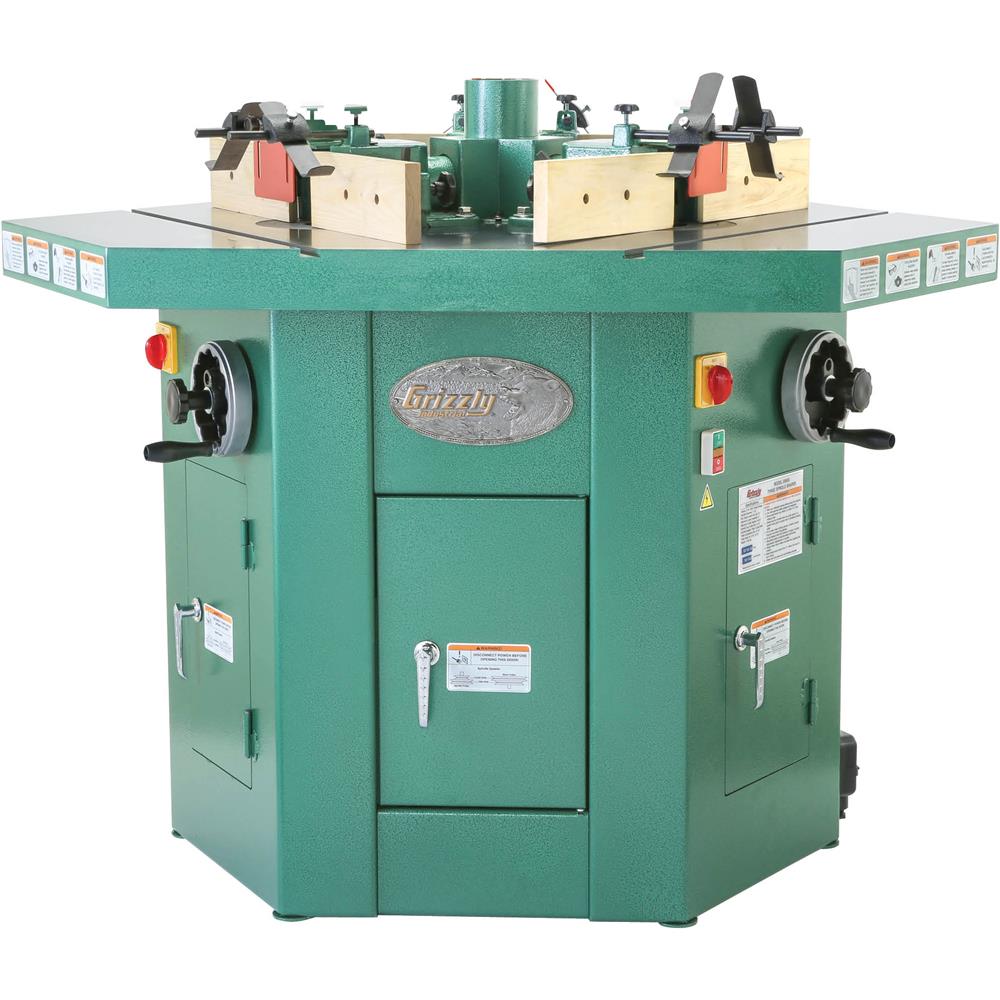

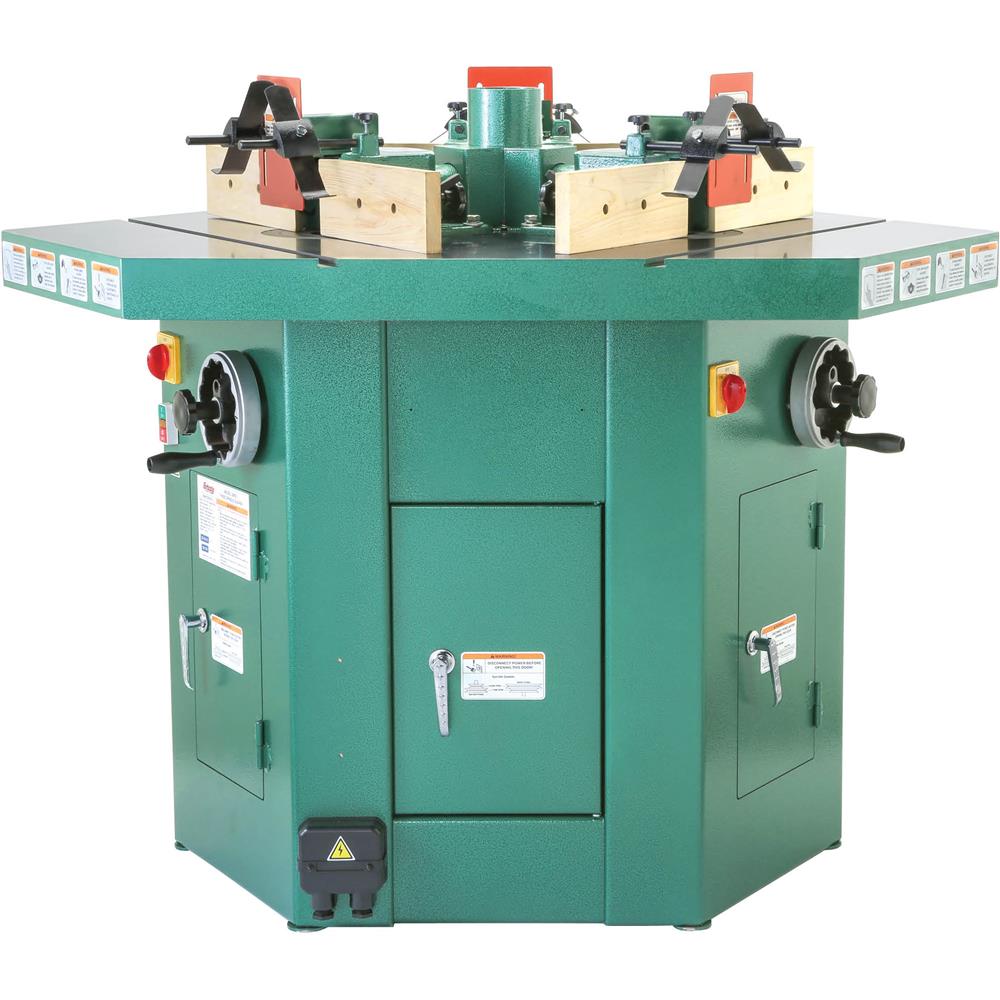

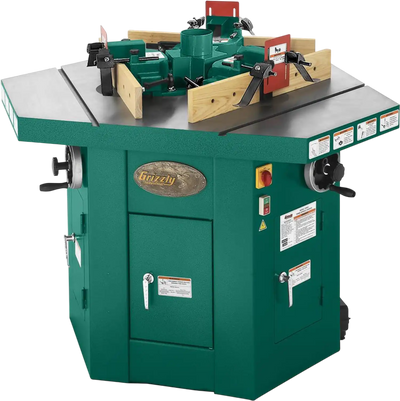

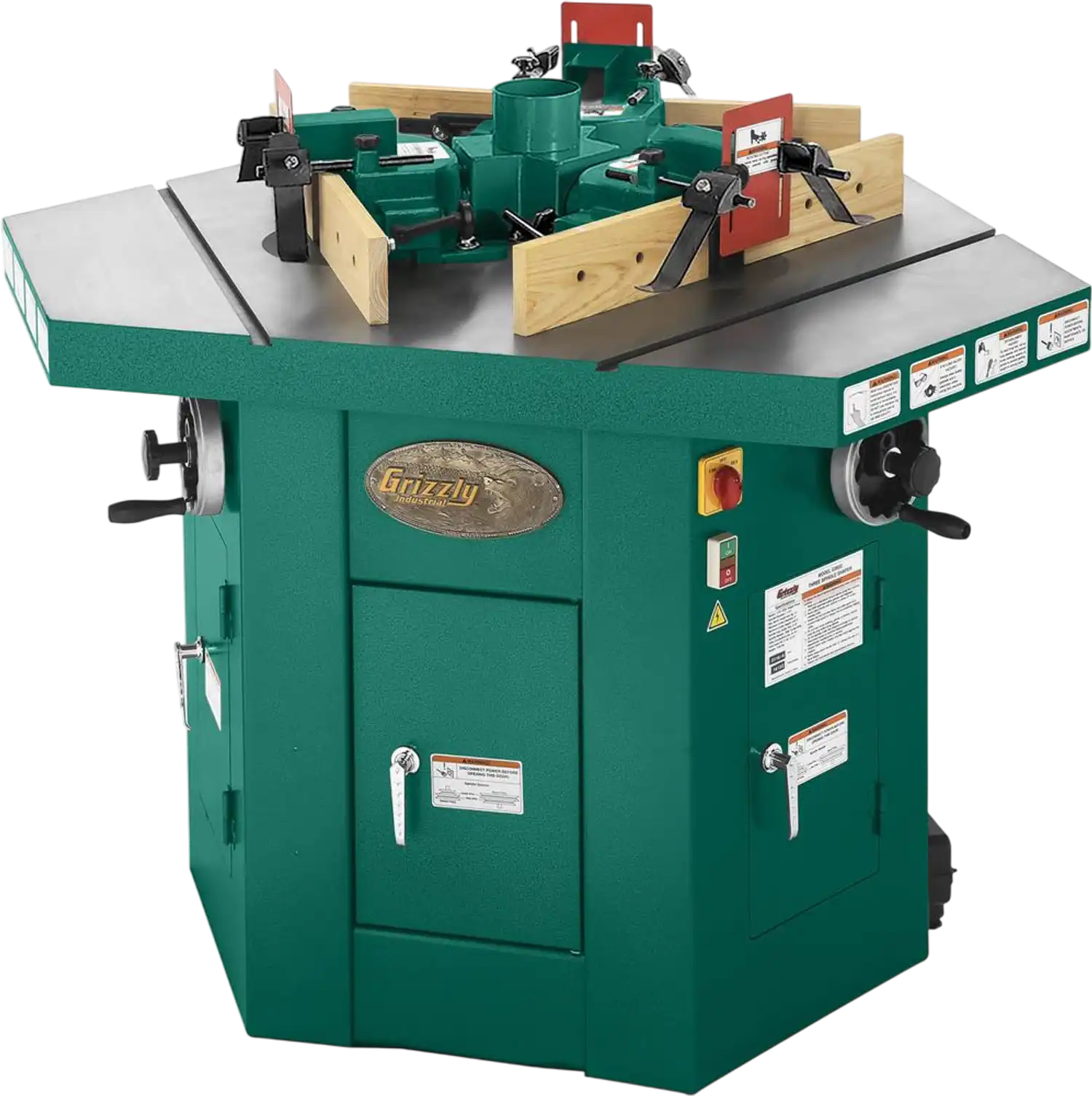

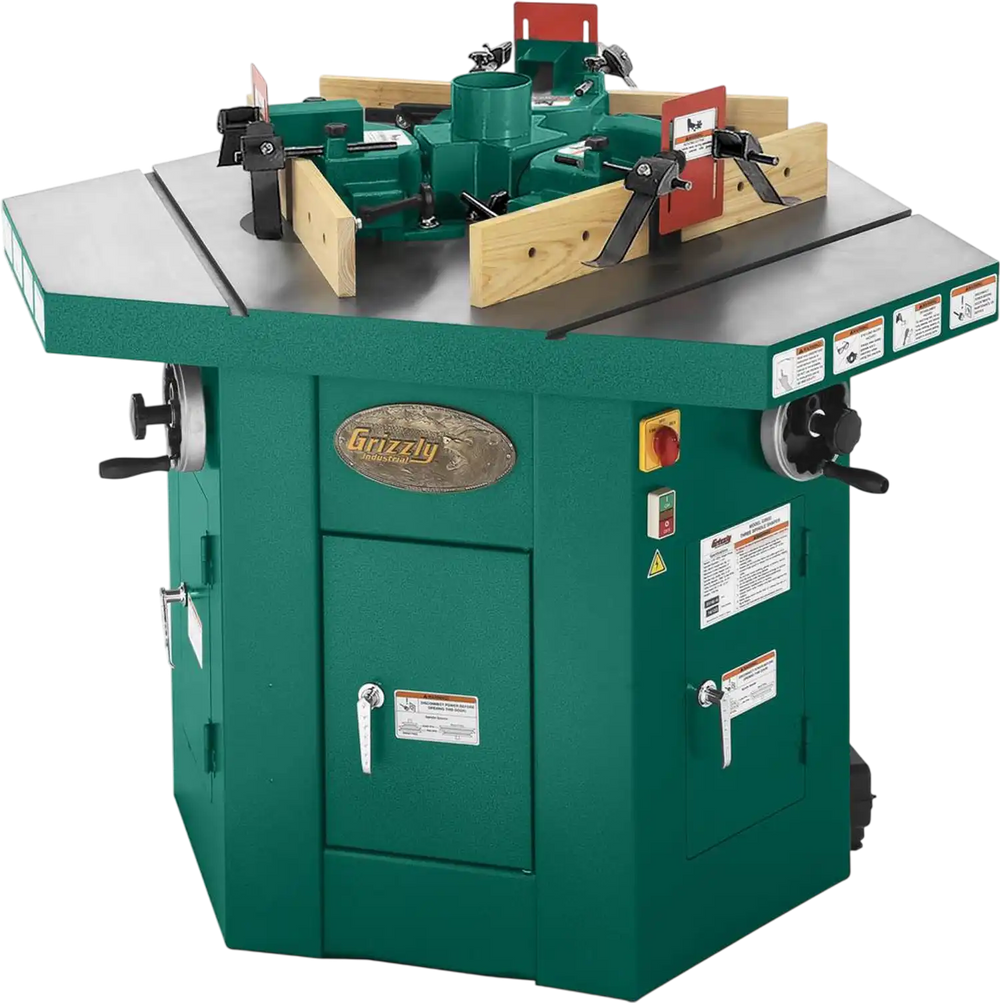

Grizzly G9933 Shaper 3 HP Three-Spindle New
Product Overview
The Grizzly G9933 is a heavy-duty three-spindle shaper built for cabinet shops and other woodworking operations that need faster profile cutting with less downtime. By allowing three separate setups on one machine, it helps reduce frequent cutter changes and keeps production moving efficiently.

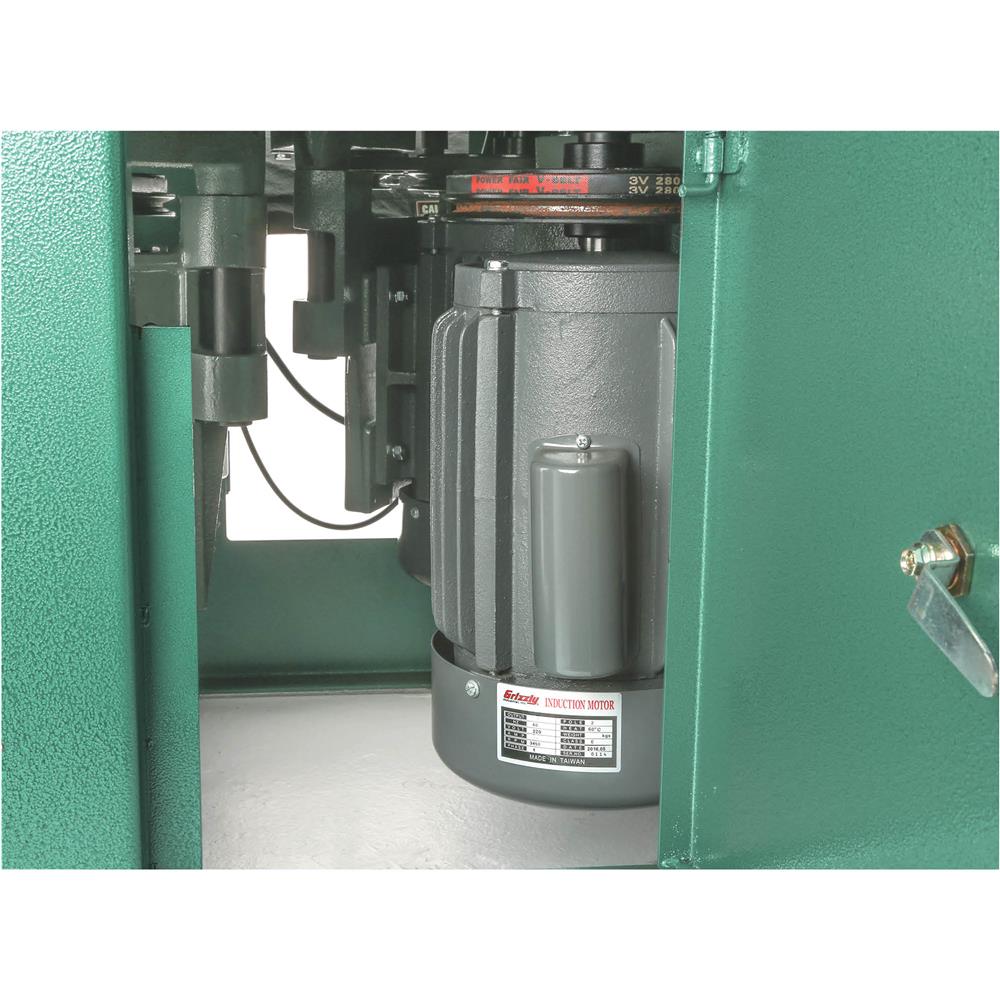

Each station is equipped with its own 3 HP motor control and independent forward/reverse spindle switching, so operators can configure different cutting tasks and use only the station needed. Three micro-adjustable two-piece fences provide precise support for full or partial edge work, while dual spindle speeds of 7000 and 10,000 RPM offer flexibility for a range of shaping applications.
With its large cast-iron table, substantial 1260 lb. build, and three dust ports for high-volume chip collection, this machine is designed for serious professional use. It is a strong fit for busy production environments that want the capability of multiple shapers in a single footprint.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features

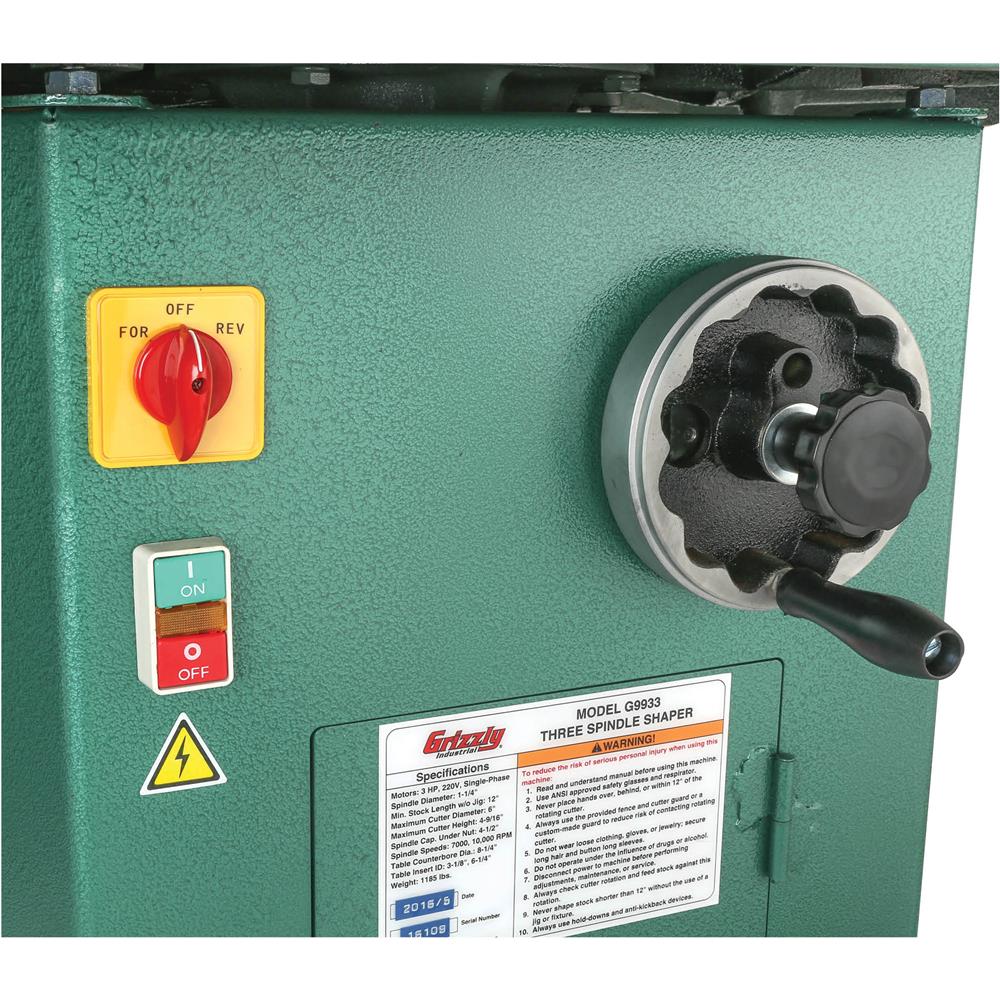

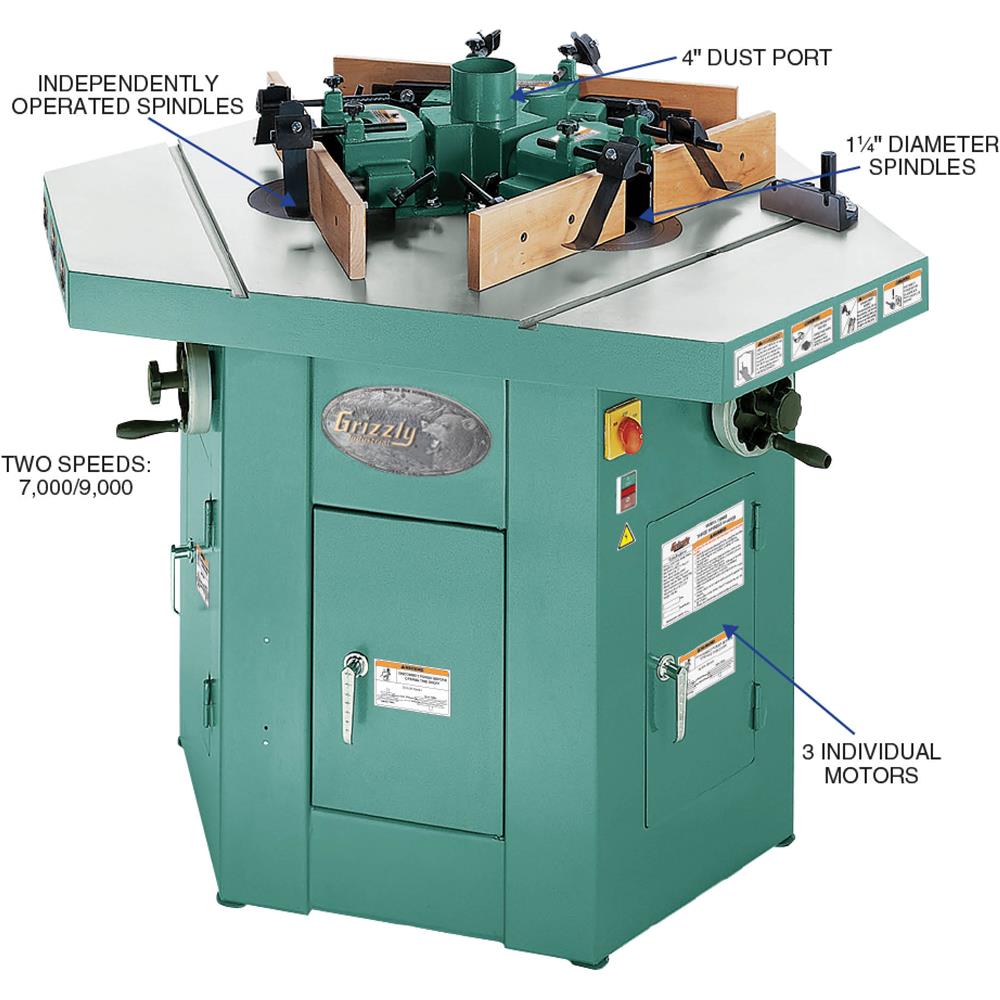

- Three motors with separate FWD/REV switches for each

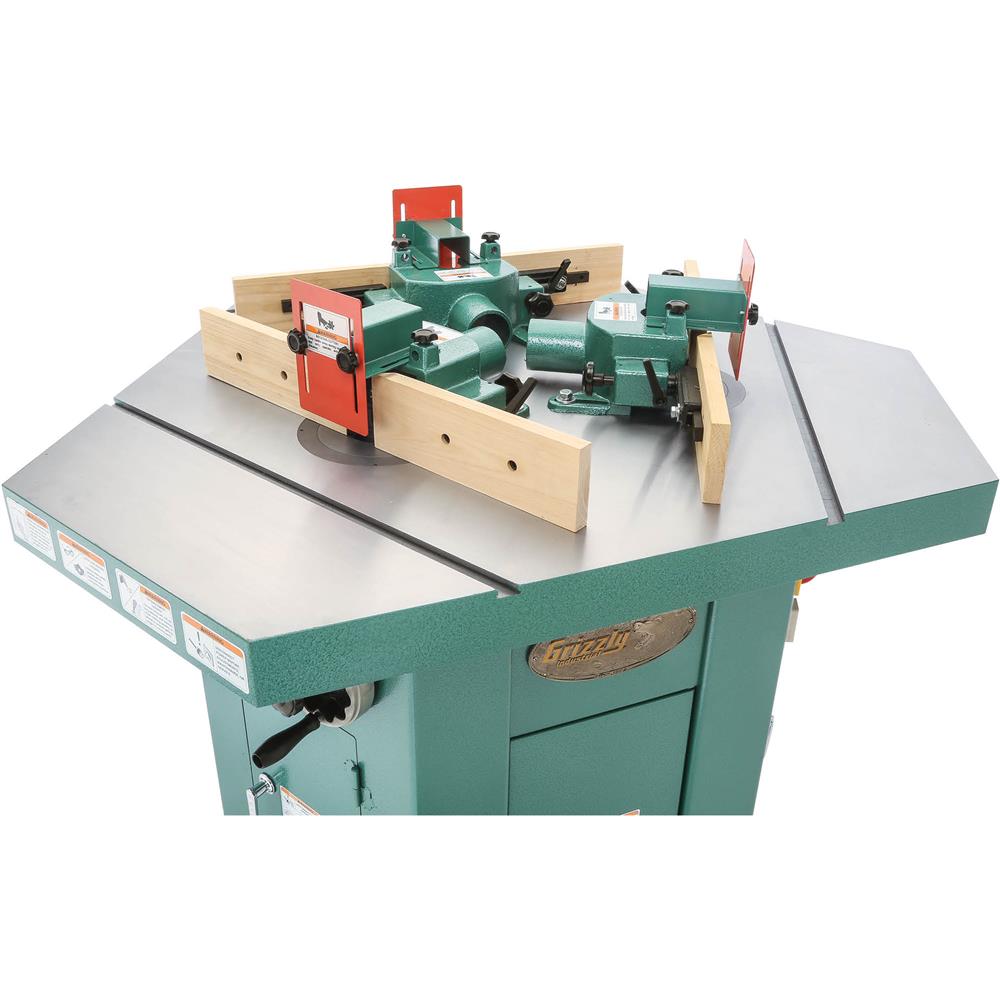

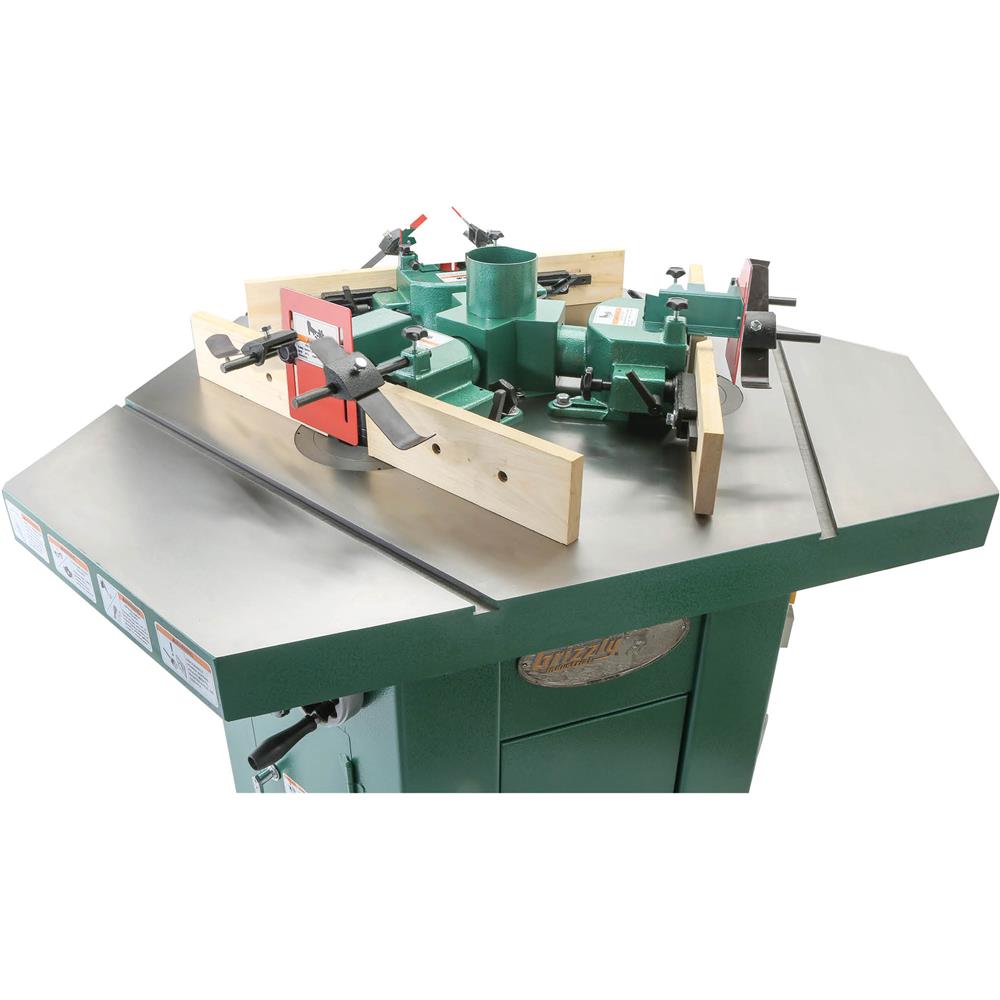

- Three micro-adjustable fences
- Three 4" dust ports

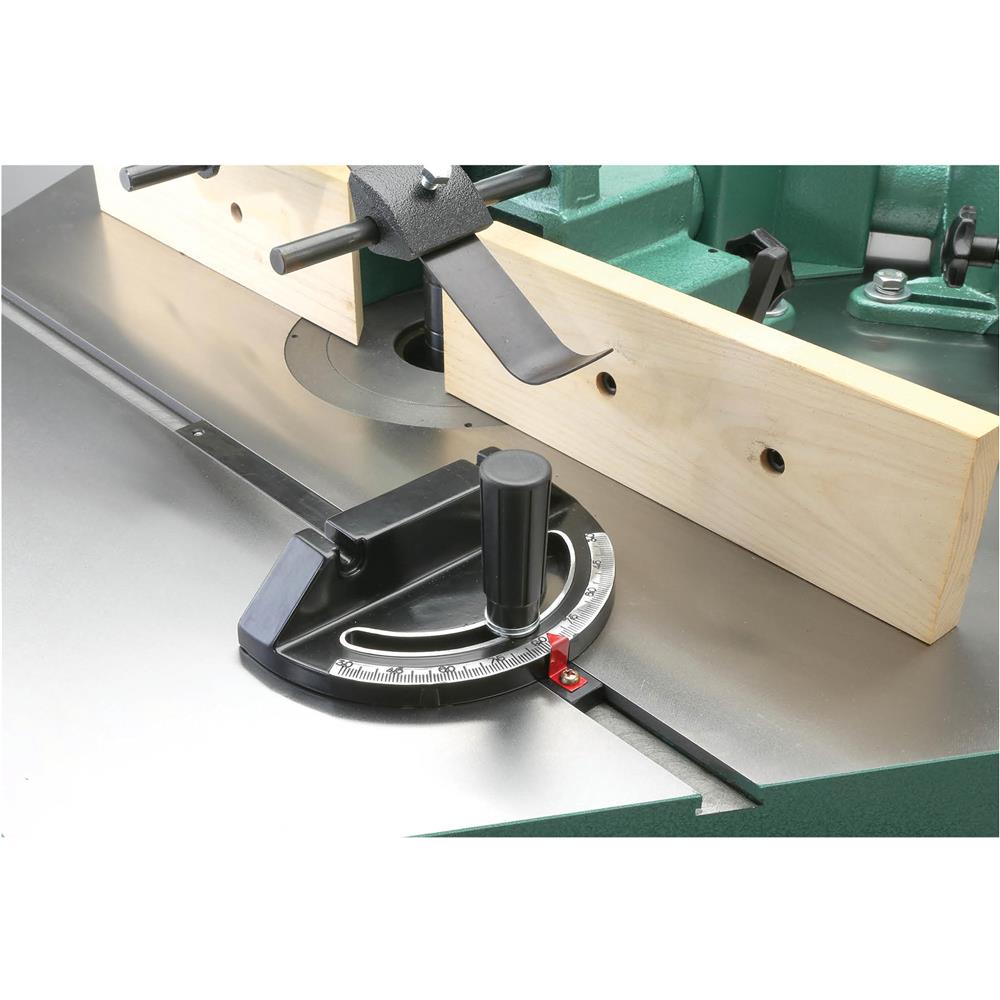

- Includes heavy-duty cast-iron miter gauge, adjustable 60° left/right
- Spindles include spacers and nuts
- Spindle turning lock
- Includes service wrenches & tool box
Specifications
| Motor (x3) | 3 HP, 220V, single-phase, 18A |
| Maximum cutter height | 4-9/16" |
| Maximum cutter diameter | 6" |
| Spindle diameter | 1-1/4" |
| Spindle length | 5-7/8" |
| Spindle capacity under nut | 4-1/2" |
| Spindle speeds | 7000 and 10,000 RPM |
| Spindle travel | 4" |
| Spindle openings | 3-1/4", 6-1/4", 8-1/4" |
| Table counterbore | 8-1/4" dia., 3/8" depth |
| Table size | 21-3/4" x 28-1/4" |
| Floor-to-table height | 35" |
| Footprint | 37-1/4" x 34-1/4" |
| Overall dimensions | 45-1/2" W x 52-1/8" D x 45" H |
| Approximate shipping weight | 1260 lbs. |
