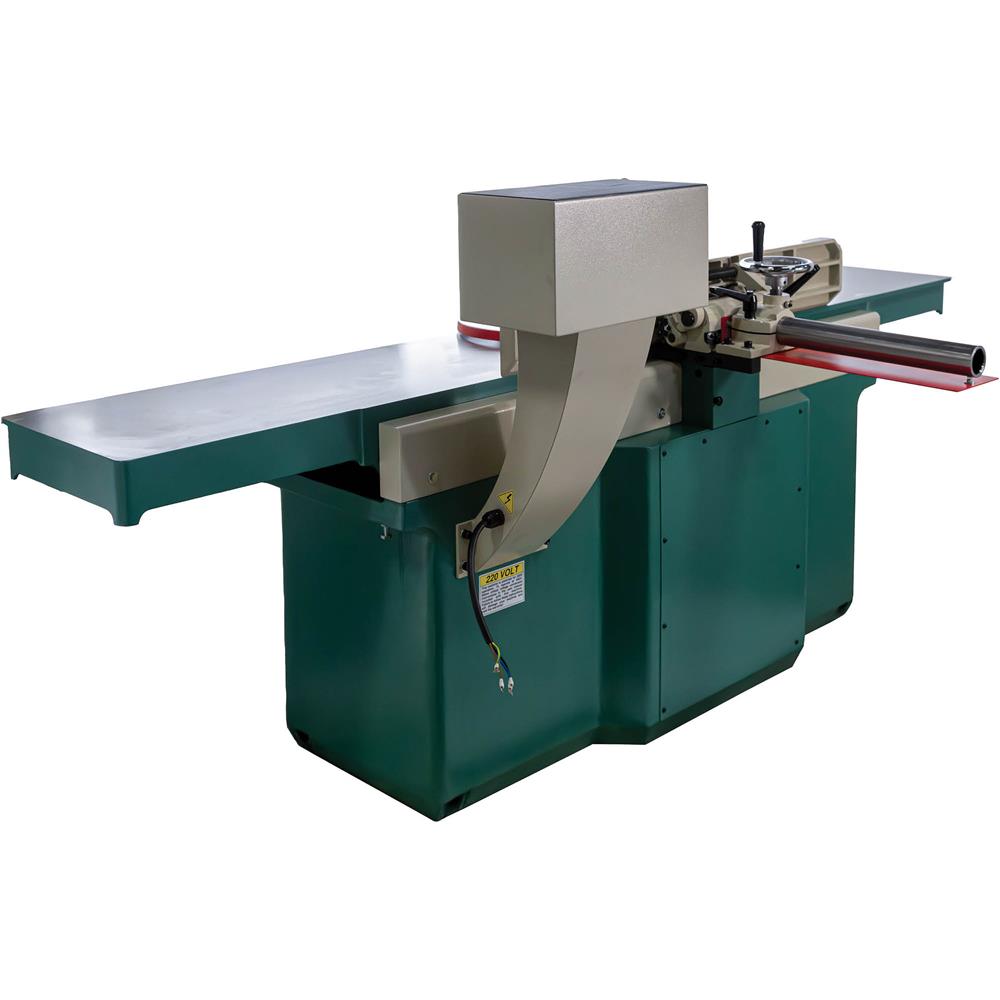

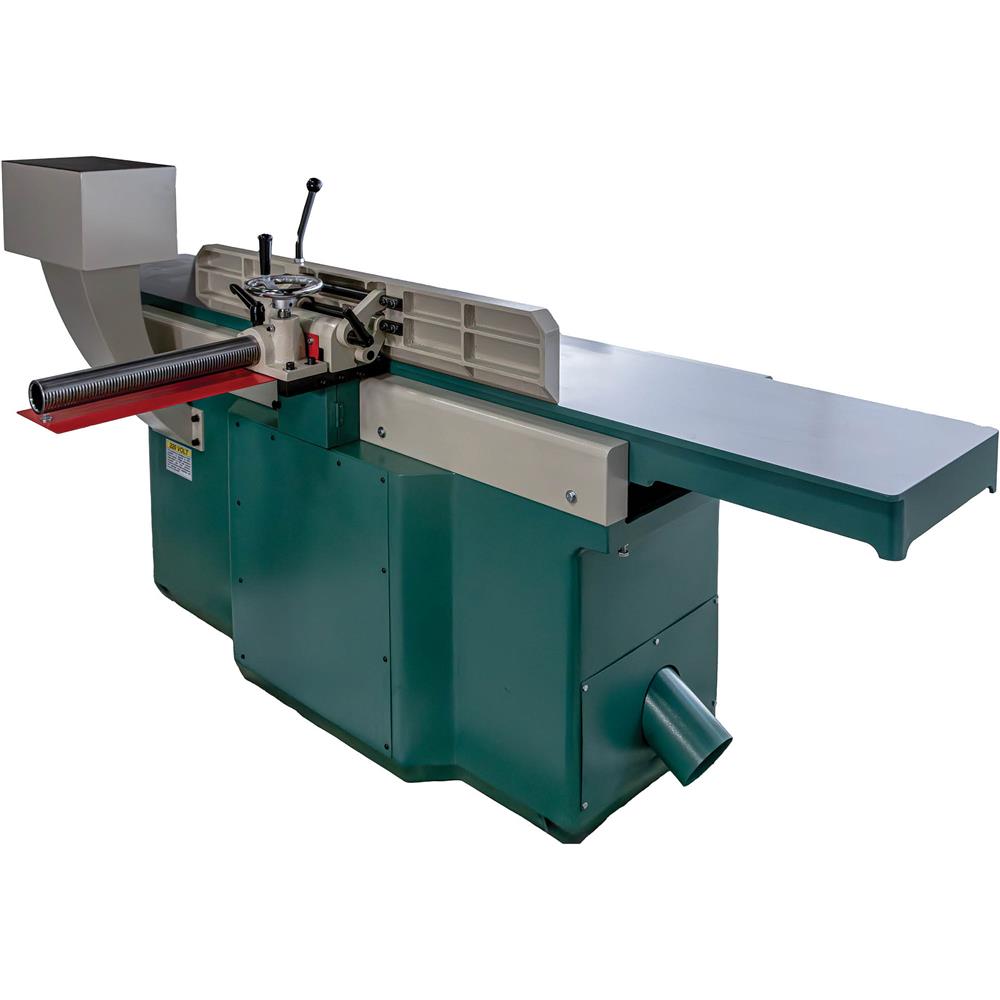

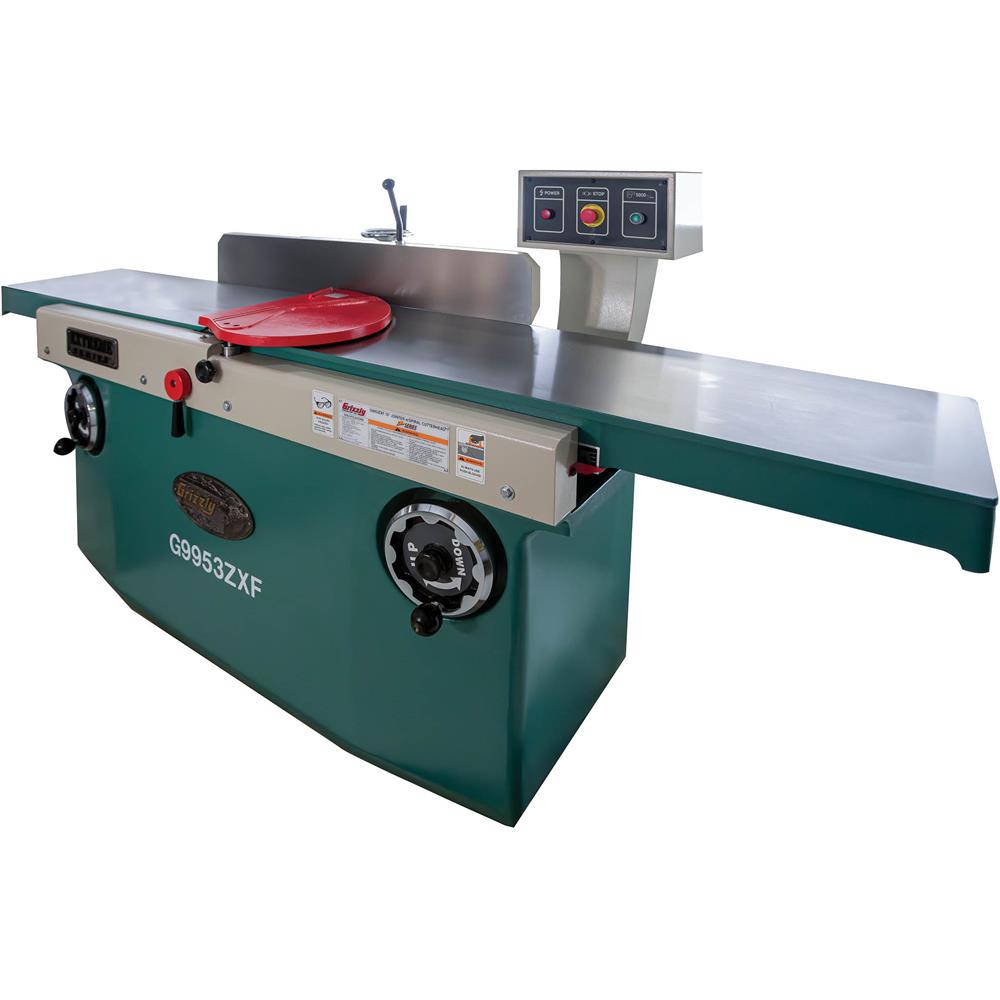

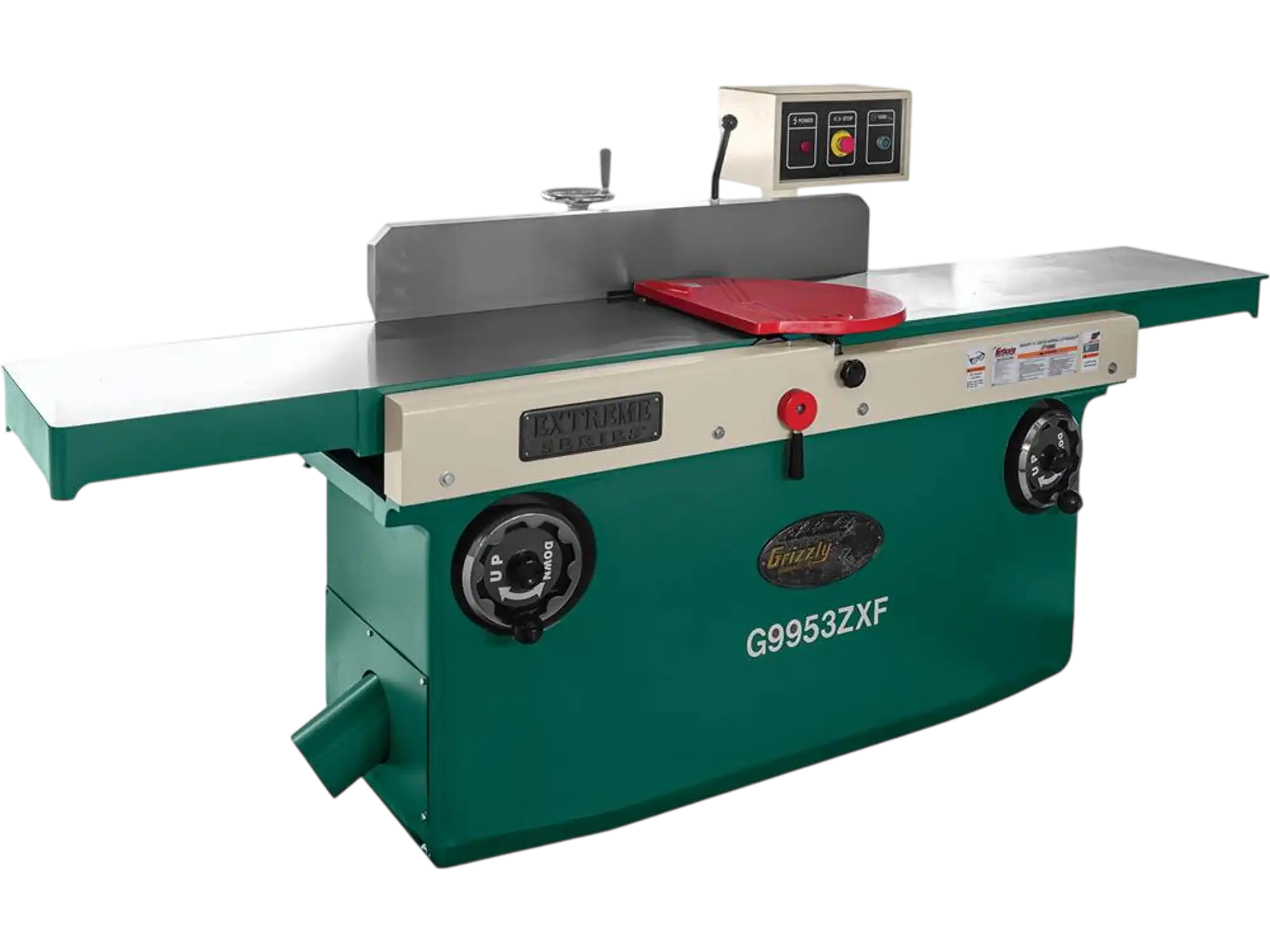

Grizzly G9953ZXF Jointer 16" x 99" 3-Phase Z Series w/ Spiral Cutterhead New
Product Overview
The Grizzly G9953ZXF is a heavy-duty 16-inch jointer built for professional woodworking shops that need wide capacity, smooth operation, and exceptionally clean surface finishes. Its massive cast-iron construction, long 99-1/4-inch table, and 5 HP 3-phase motor make it well suited for flattening and straightening large boards with stability and precision.

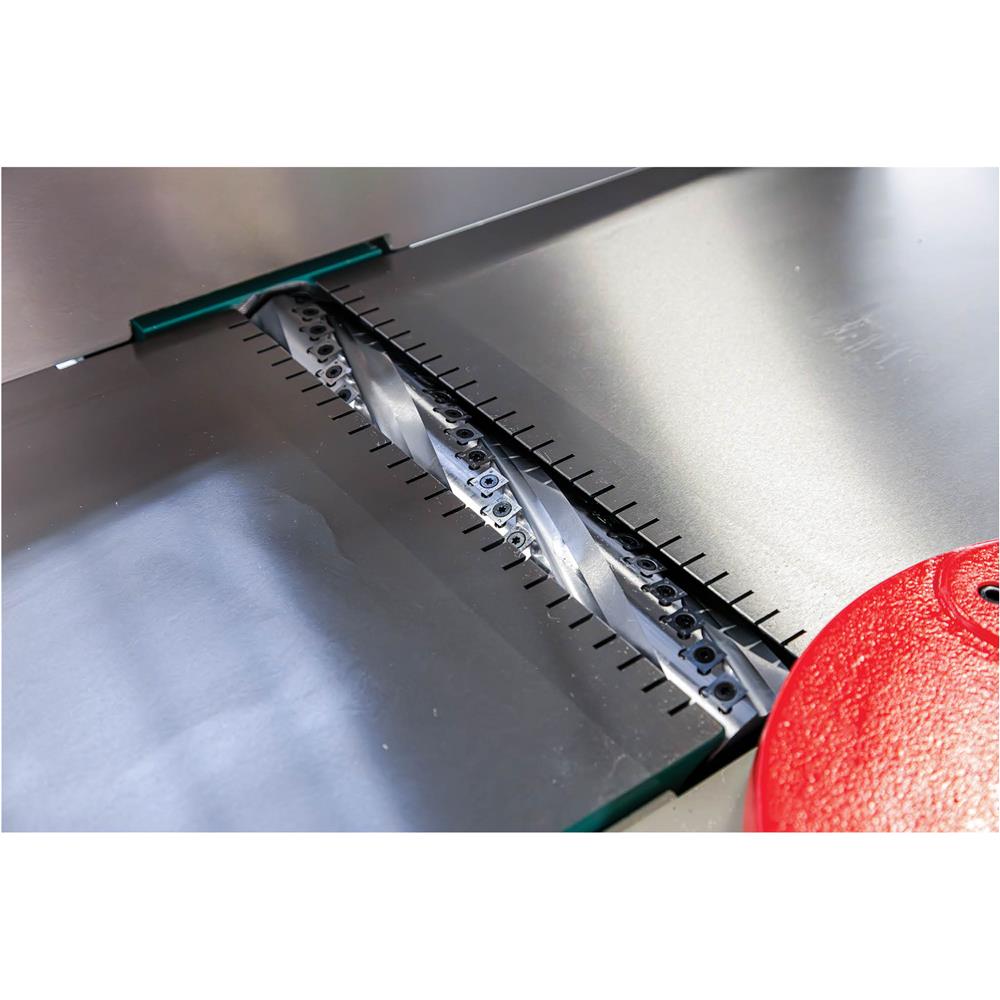

A 6-row spiral cutterhead with 120 indexable carbide inserts delivers quieter cutting and a finer finish than traditional straight knives. Each insert has four usable edges, helping maintain consistent results over time, while the jointer offers up to a 16-inch width of cut and a maximum 5/16-inch depth of cut for demanding stock preparation.
Designed for serious cabinetmakers, millwork operations, and production environments, this machine also features precision-ground parallelogram tables, adjustable fence stops at 90 and 45 degrees, and a cutterhead brake for added control. It is an ideal choice for shops looking for industrial-scale jointing performance on wide hardwood and softwood stock.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

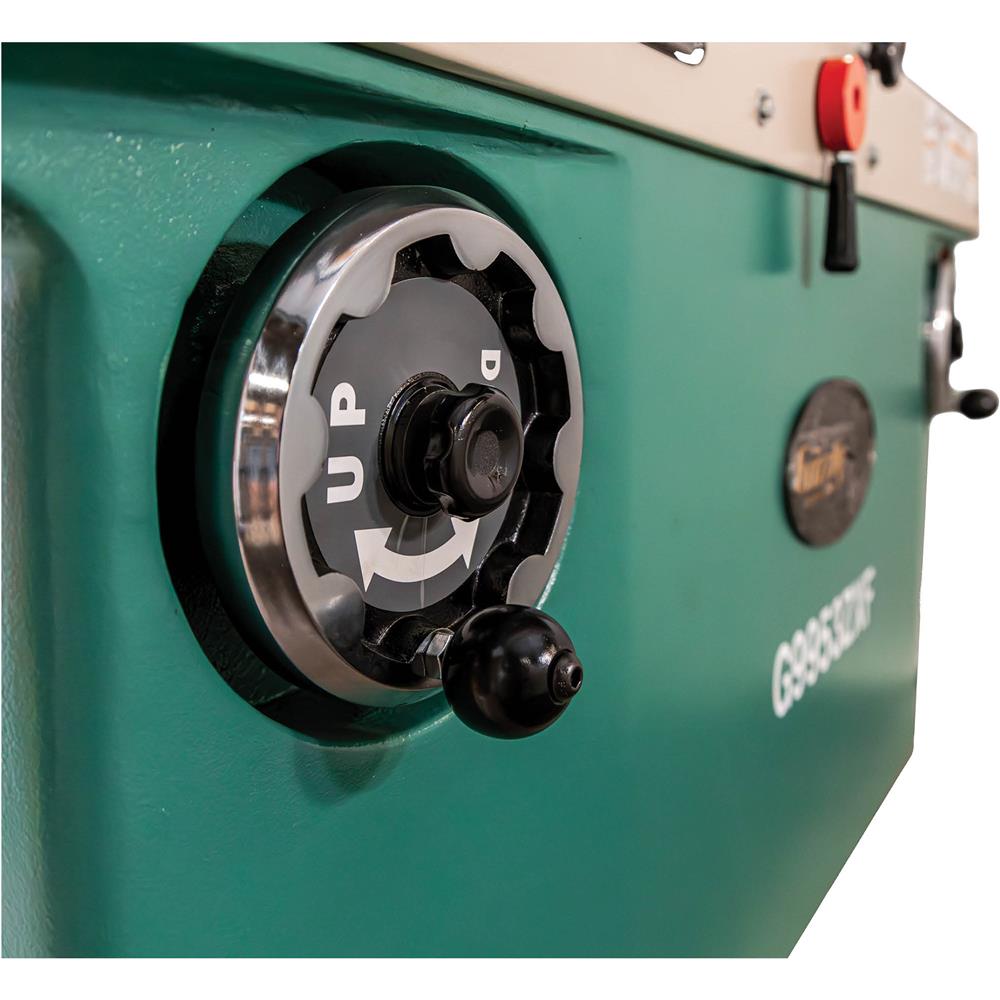

- Parallelogram tables with handwheel adjustment

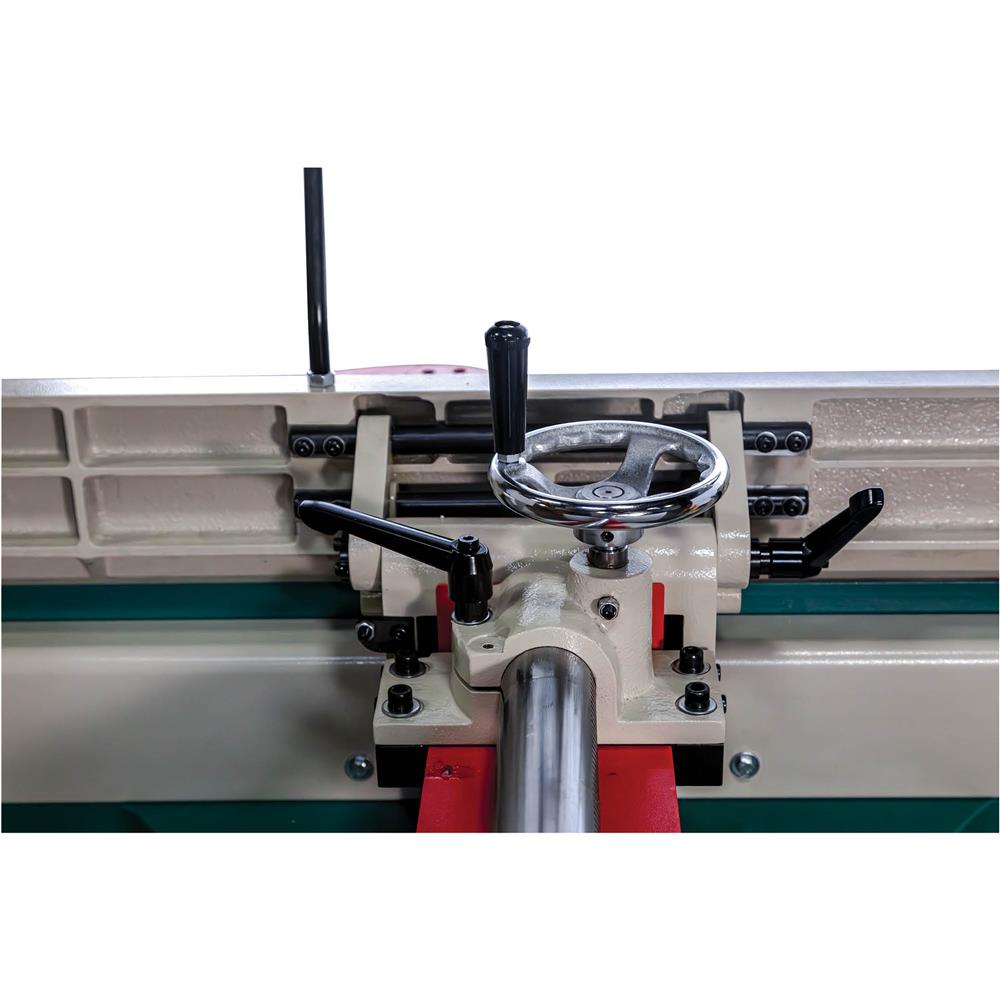

- Fence adjustment handwheel
- Precision-ground cast-iron tables
- Cutterhead brake

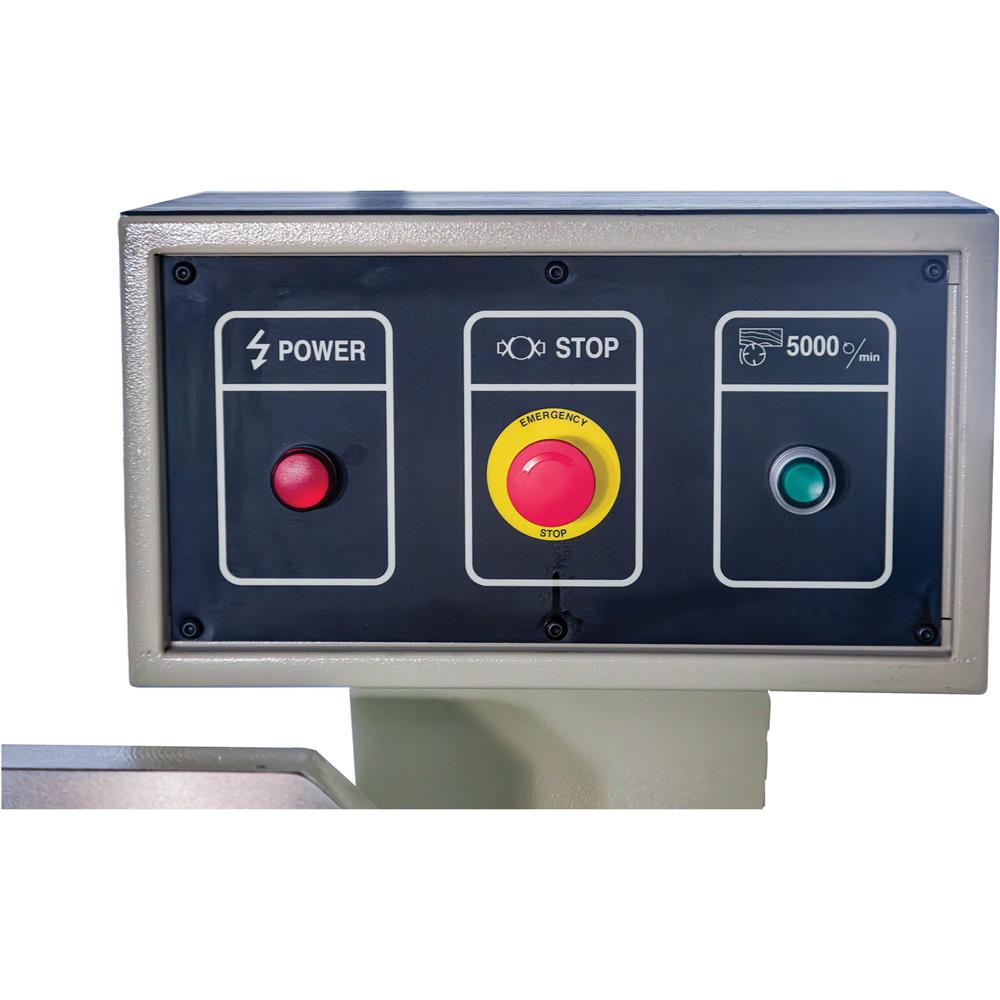

- Magnetic switch with thermal overload protection
- Solid cabinet stand with noise-damping system
Specifications
| Motor | 5 HP, 220V/440V* (prewired 220V), 3-phase, 14A/7A |
| Maximum width of cut | 16" |
| Maximum depth of cut | 5/16" |
| Cutterhead diameter | 4" |
| Cutterhead type | 6-Row spiral with 120 inserts |
| Insert size and type | 14 x 14 x 2mm, indexable carbide |
| Cutterhead speed | 5000 RPM |
| Table size | 99-1/4 "x 16-1/4" |
| Fence size | 43-1/4" L x 6-5/8" H |
| Minimum stock length | 18" |
| Minimum stock thickness | 1/2" |

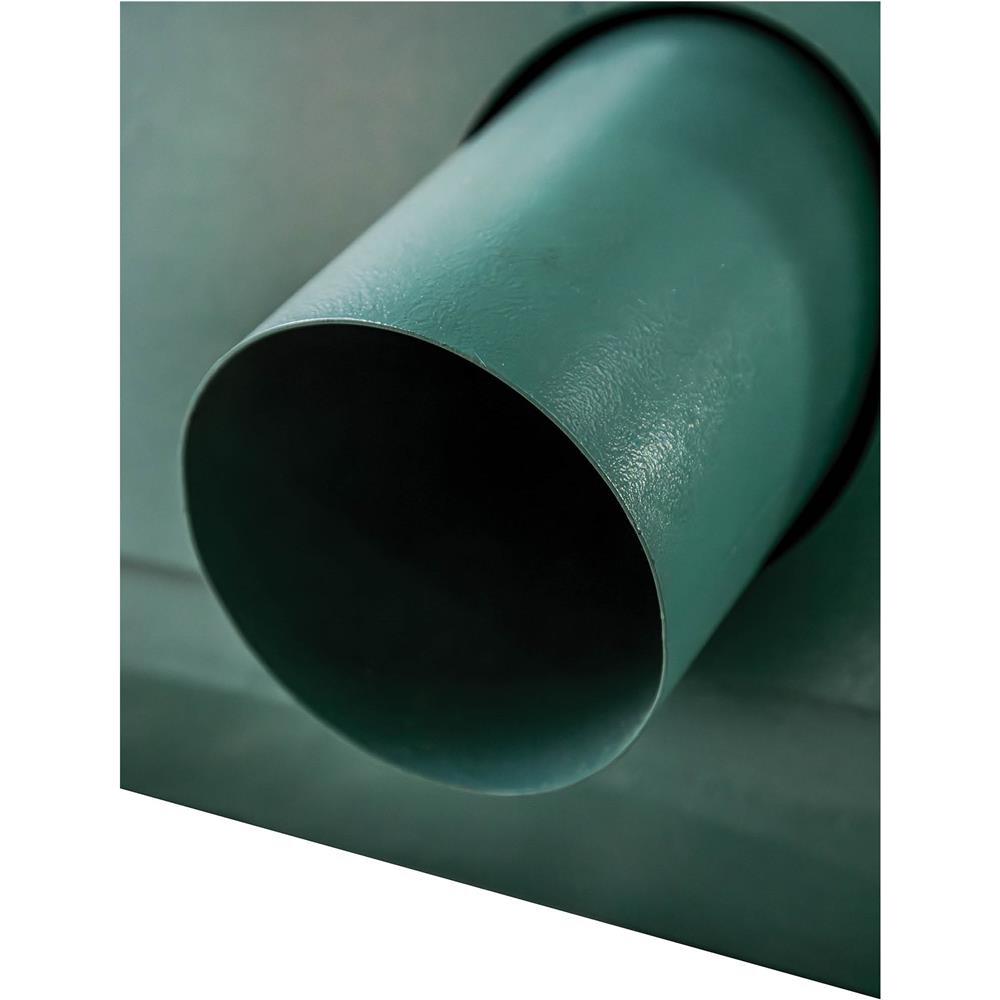

| Dust port size | 4" |
| Footprint | 57" x 23" |
| Overall dimensions | 99-1/4" W x 45-1/2" D x 32" H |
| Approximate shipping weight | 1742 lbs. |
Warranty
This item comes with a 1 year factory warranty.
