Grizzly H2934 Wide-Belt Sander 37" 20 HP 3-Phase Double-Head New
Manufacturer: Grizzly
SKU: H2934
QTY
or
(888) 999-1522
$ 19,995.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-2 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer

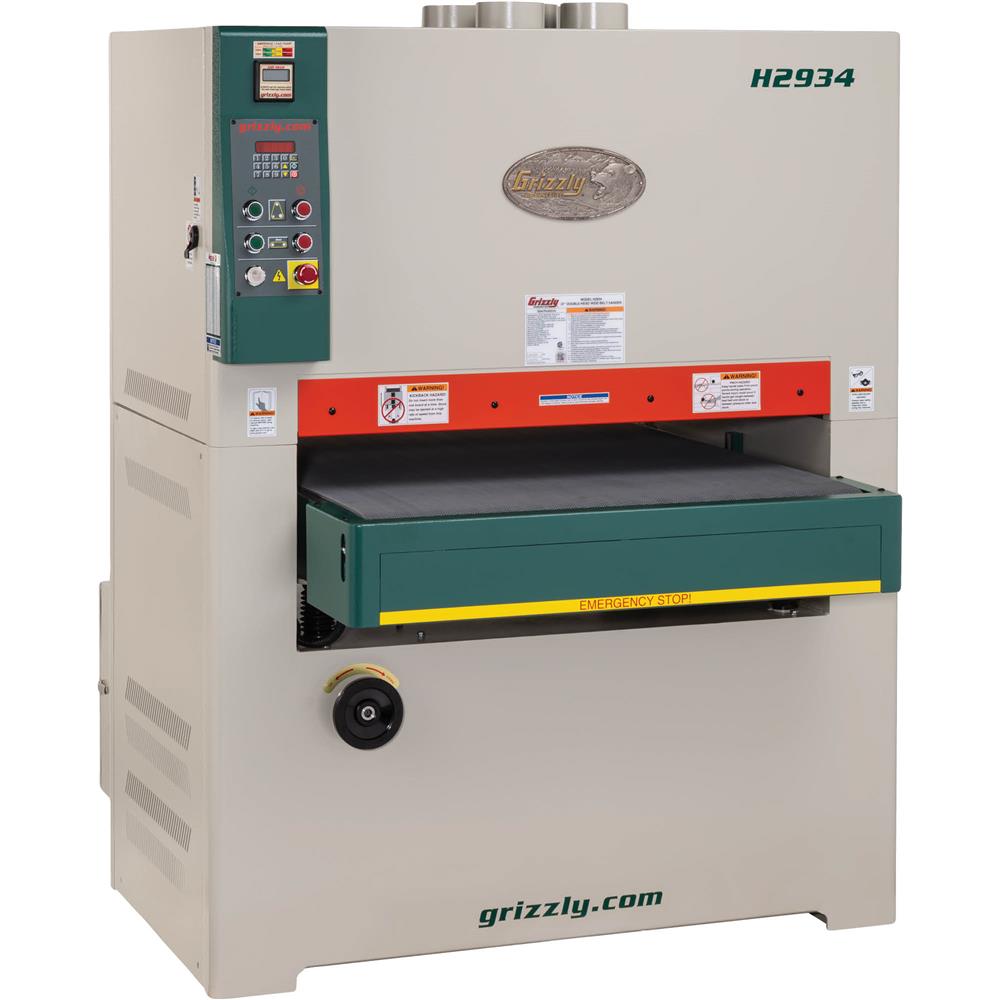

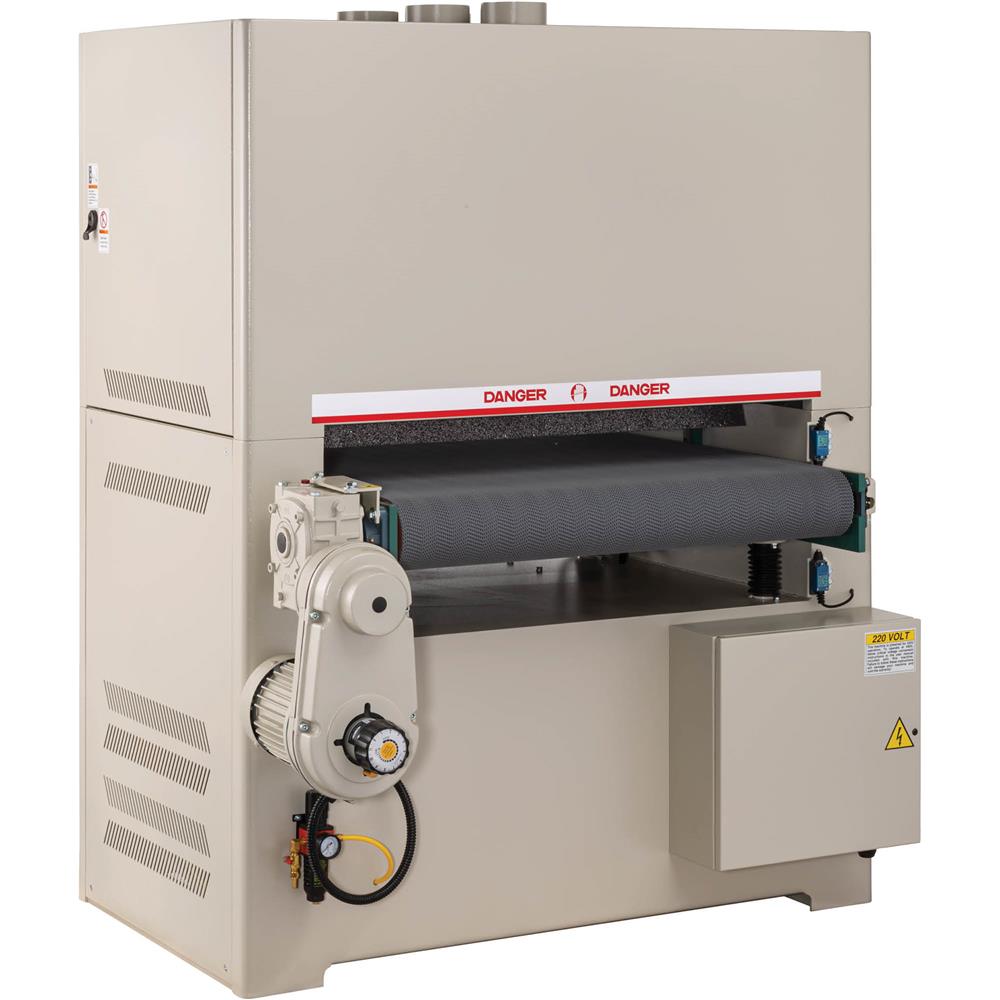

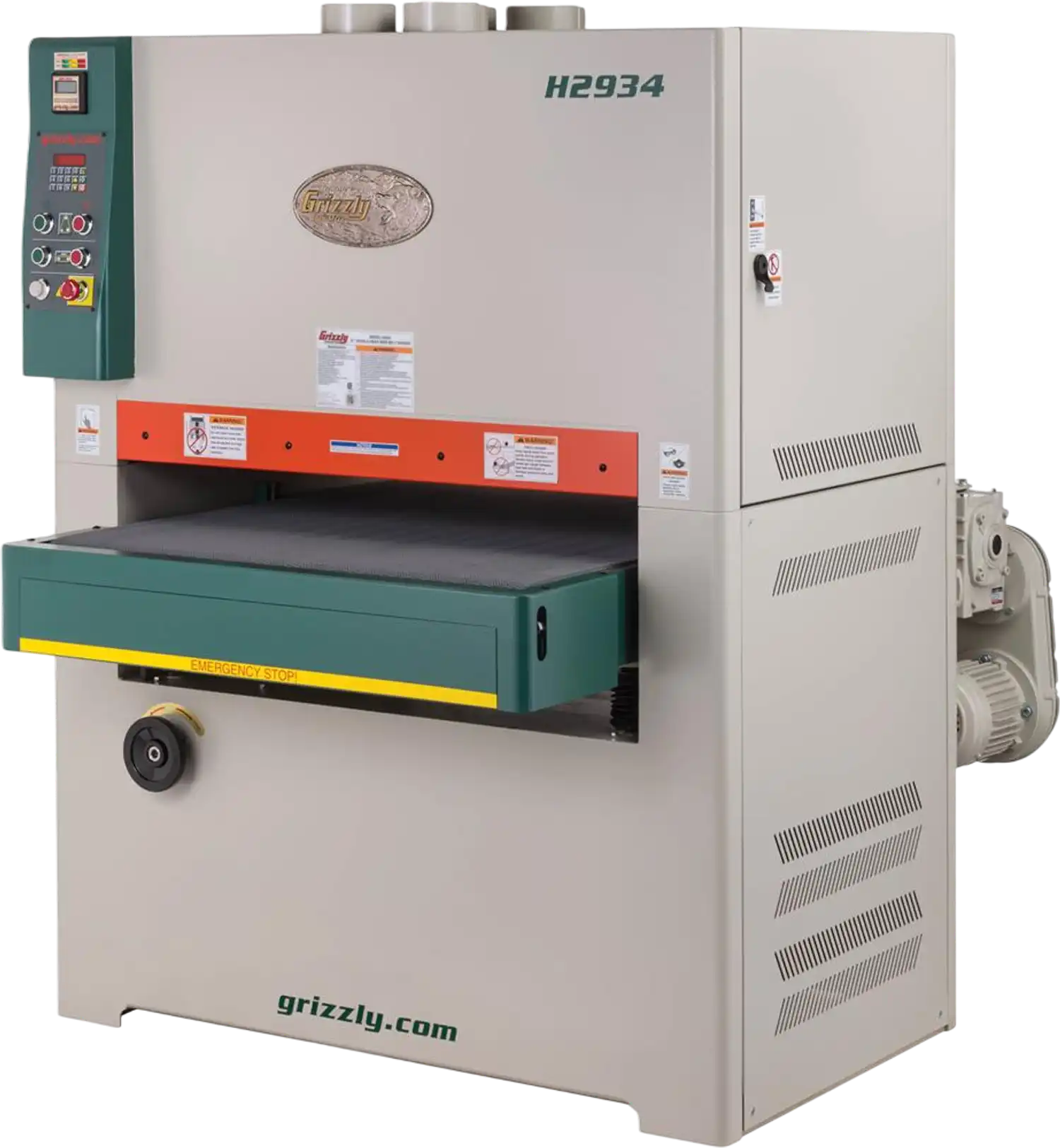

Grizzly H2934 Wide-Belt Sander 37" 20 HP 3-Phase Double-Head New
Product Overview
The Grizzly H2934 is a 37-inch double-head wide-belt sander built for high-volume sanding and more refined results in less time. Its two-head design lets you run coarse and fine grits in a single pass, helping streamline production while improving surface consistency.
Designed for demanding shop use, this 20 HP 3-phase machine handles stock up to 36-1/2 inches wide and 6 inches thick. A digital table-height readout supports precise thickness control, while variable conveyor speed, adjustable belt oscillation, pneumatic belt tensioning, and an amp/load meter give operators the control needed to match sanding performance to the material and finish requirements.
This model is a strong fit for professional woodworking shops, cabinet makers, millwork operations, and other industrial users who need efficient wide-panel sanding. Its heavy-duty construction, 4-column table lift system, and double-head configuration make it well suited for production environments where throughput and finish quality both matter.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

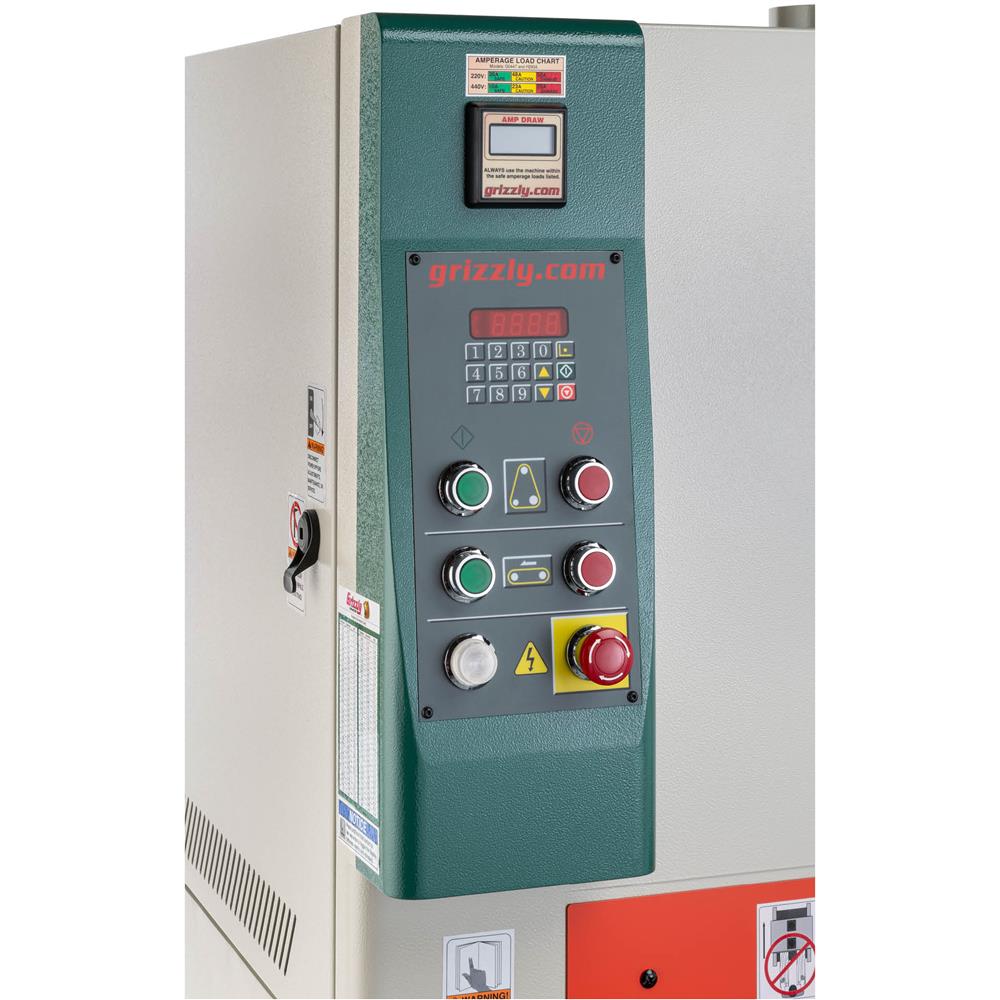

- Digital readout for table height
- Pneumatic belt tensioning

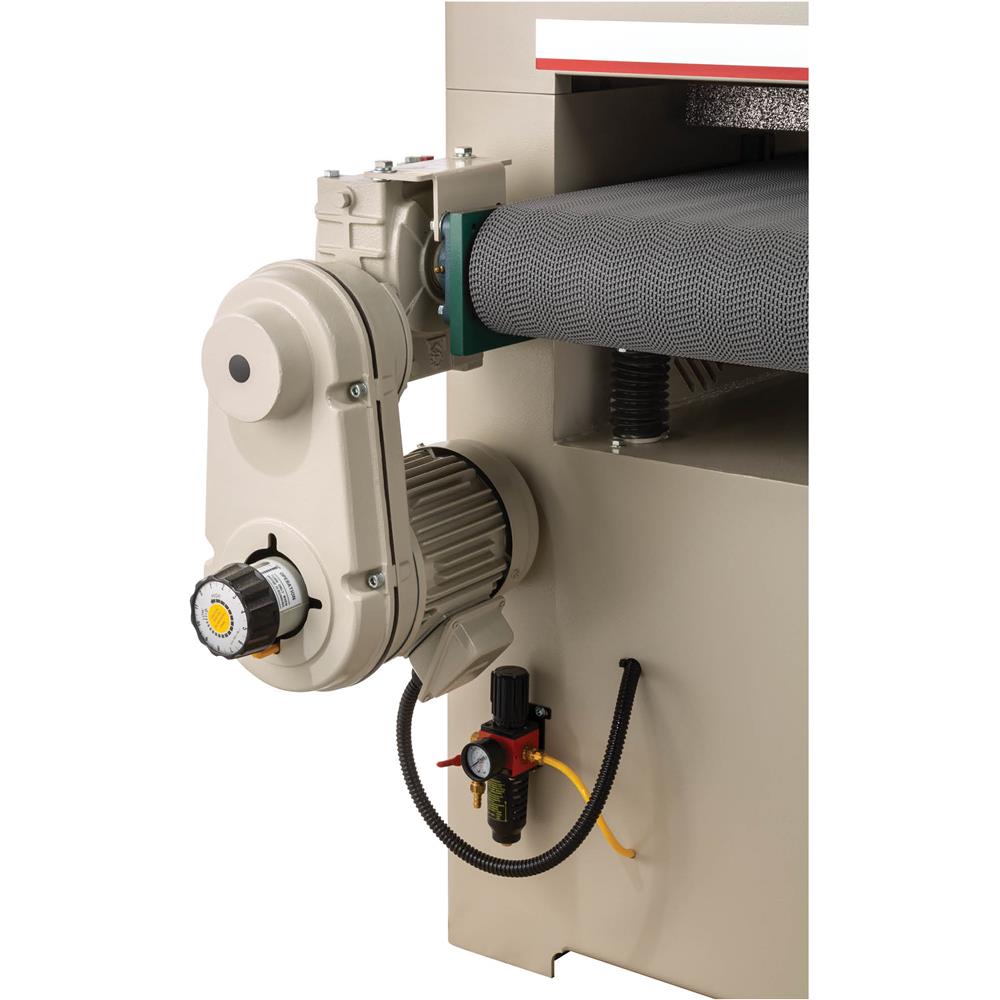

- Adjustable belt oscillation speed
- 4-Column table lifting and lowering system
- Rubber pressure rollers
- Hard rubber infeed drum
- Adjustable graphite platen
- Amp/load meter
- Disc brake for emergency stop
- Variable feed speed
- 1-year limited warranty
Specifications
| Sanding motor HP | 20 HP, 220V/440V* (prewired 220V), 3-phase, 50.3A/25.1A |
| Conveyor motor HP | 1 HP, 3.4A/1.7A |
| Table lift motor HP | 1/4 HP, 1.2A/0.6A |
| Minimum circuit size | 70A @ 220V, 40A @ 440V |
| Maximum board width | 36-1/2" |
| Maximum board thickness | 6" |
| Minimum board length | 14" |
| Minimum board thickness | 3/16" |
| Front drum surface speed | 3500 FPM |
| Rear drum surface speed | 2600 FPM |
| Conveyor speed | 14–60 FPM |
| Sanding belt size | 37" x 60" |
| Air requirement | 57–75 PSI, 12.3 CFM |
| Dust ports | 6 x 5" |
| Footprint | 52" x 31" |
| Overall dimensions | 59-1/2" W x 54" D x 68" H |
| Approx. shipping weight | 2641 lbs. |
Warranty
This item comes with a 1 year factory warranty.
