Grizzly H5377 Motor 3/4 HP Single-Phase 1725 RPM TEFC 110V/220V New
Manufacturer: Grizzly
SKU: H5377
QTY
(888) 999-1522
$ 245.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products

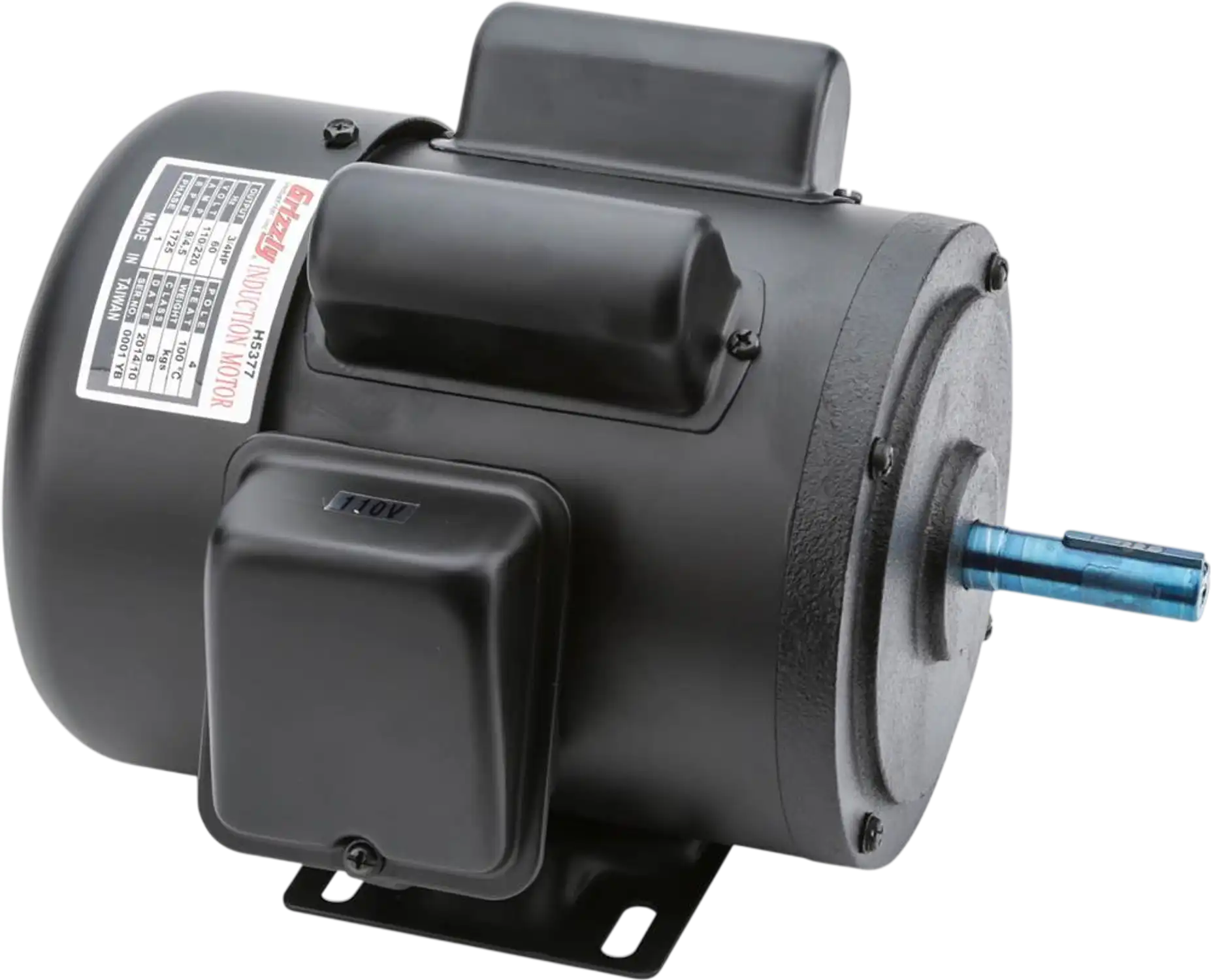

Grizzly H5377 Motor 3/4 HP Single-Phase 1725 RPM TEFC 110V/220V New
Product Overview
The Grizzly H5377 is a 3/4 HP single-phase motor designed for machine replacement and general shop applications. It runs at 1725 RPM and is built in a Totally Enclosed Fan-Cooled design, making it a practical choice for environments where dust, chips, oil, and other debris are common.
Operating on 110V or 220V power and prewired for 110V, this motor offers flexible installation for many woodworking and equipment setups. Its reversible rotation and NEMA 56 frame help it fit a range of compatible machines, making it a solid option when an existing motor needs to be replaced instead of replacing the entire machine.
This motor is best suited for users looking for dependable power in a workshop or industrial setting. It is especially useful for woodworkers and other equipment owners who need a TEFC motor for cleaner performance in demanding shop conditions.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- Totally Enclosed Fan-Cooled motor (TEFC)
- Reversible rotation
- 1-year limited warranty
Specifications
| Power | 3/4 HP |
|---|---|
| Type | TEFC |
| Cycle | 60 Hz |
| Voltage | 110V/220V |
| Prewired | 110V |
| Amperage | 9A/4.5A |
| Phase | Single-phase |
| Speed | 1725 RPM |
| Class | B |
| Start capacitor | 200MFD 125VAC |
| Run capacitor | 30MFD 125VAC |
| Rotation | Reversible |

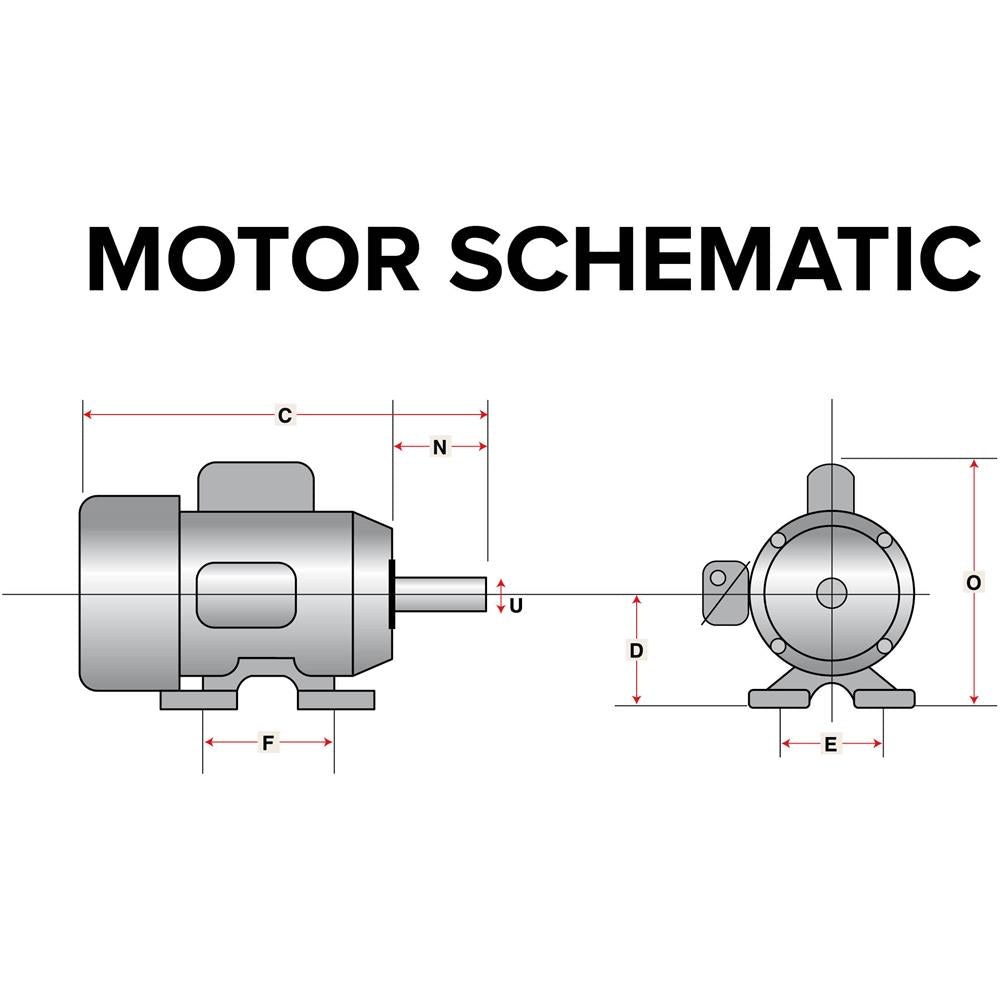

| U | 5/8" |
|---|---|
| N | 1.94" |
| Key | 3/16" |
| C | 10.50" |
| O | 8.62" |
| D | 3.50" |
| F | 3.00" |
| E | 5.00" |
Warranty
This item comes with a 1 year factory warranty.
