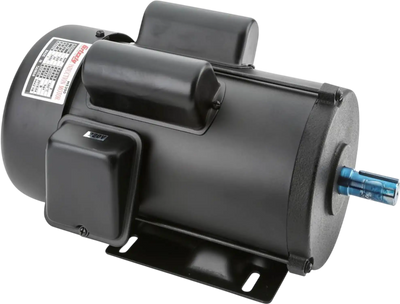

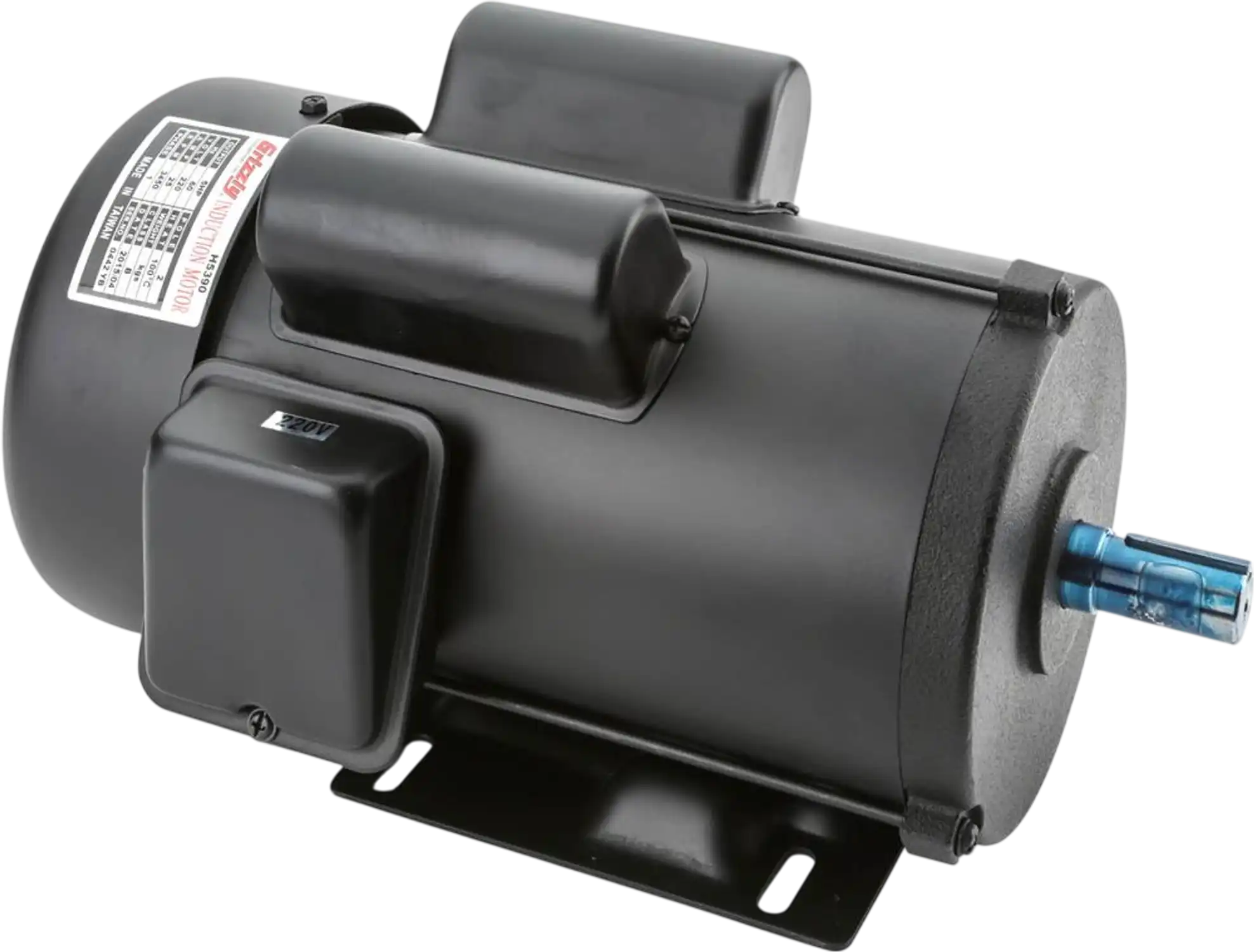

Grizzly H5390 Motor 5 HP Single-Phase 3450 RPM TEFC 220V New
Product Overview
The Grizzly H5390 is a heavy-duty 5 HP single-phase replacement motor designed for 220V applications. With a 3450 RPM operating speed and a Totally Enclosed Fan-Cooled design, it is built for equipment used in environments where dust, chips, oil, and other debris are common.
This motor features a NEMA 56 frame and reversible rotation for added installation flexibility. Its TEFC construction helps protect internal components while delivering strong, consistent power for demanding shop and machinery use.
Ideal for woodworking machines and other compatible equipment needing a 5 HP replacement motor, this unit is a practical choice for users who want to restore performance without replacing the entire machine. It is not intended for air compressor use.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- Totally Enclosed Fan-Cooled motor (TEFC)
- Reversible rotation
- 1-year limited warranty
Specifications
| Power | 5 HP |
| Type | TEFC |
| Cycle | 60 Hz |
| Voltage | 220V |
| Amperage | 25A |
| Phase | Single-phase |
| Speed | 3450 RPM |
| Class | B |
| Start capacitor | 400MFD 125VAC |
| Run capacitor | 50MFD 350VAC |
| Rotation | Reversible |

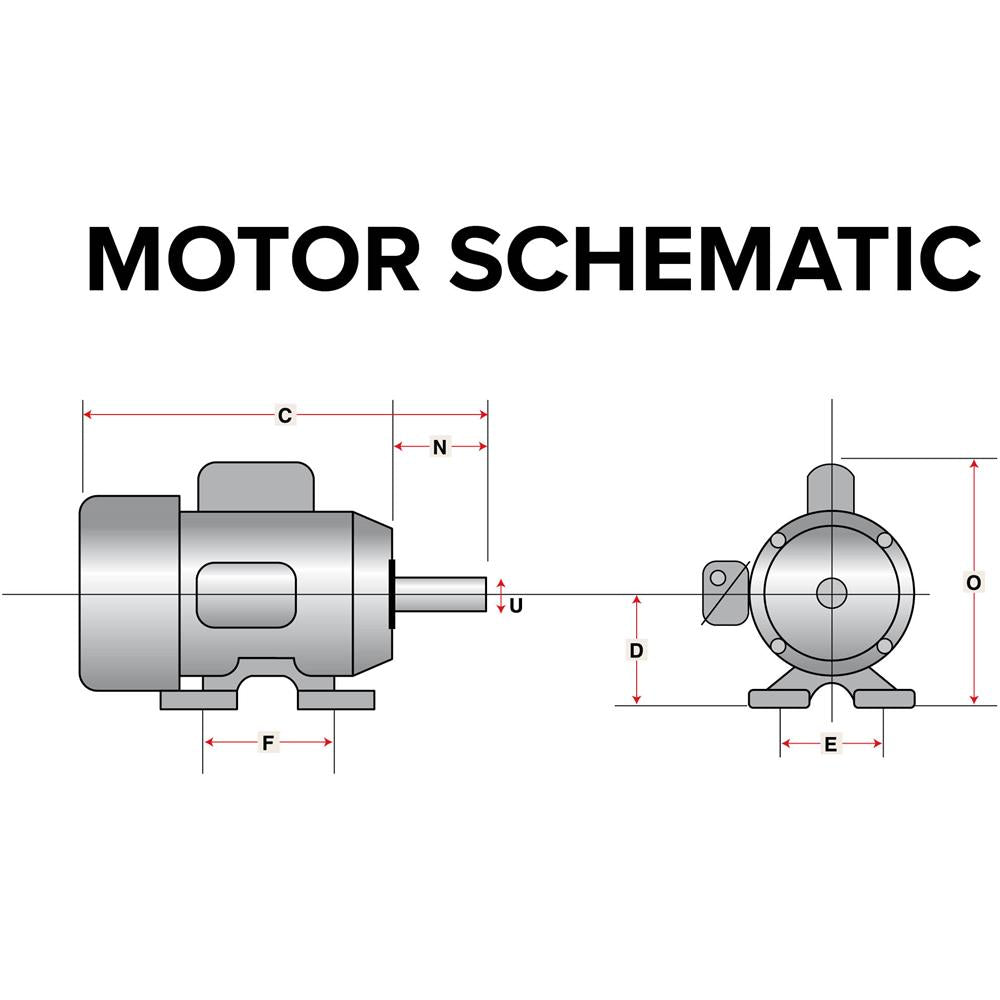

| U | 7/8" |
| N | 1.60" |
| Key | 5mm |
| C | 15.27" |
| O | 8.31" |
| D | 3.50" |
| F | 4.88" |
| E | 5.00" |
Warranty
This item comes with a 1 year factory warranty.
