Grizzly H5685 Rotary Table 4" w/ Clamps New
Product Overview

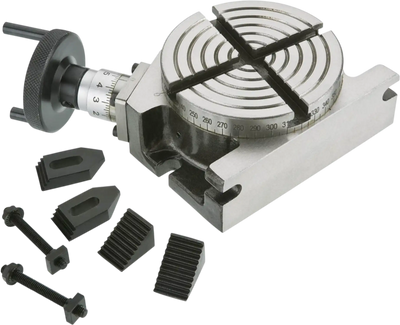

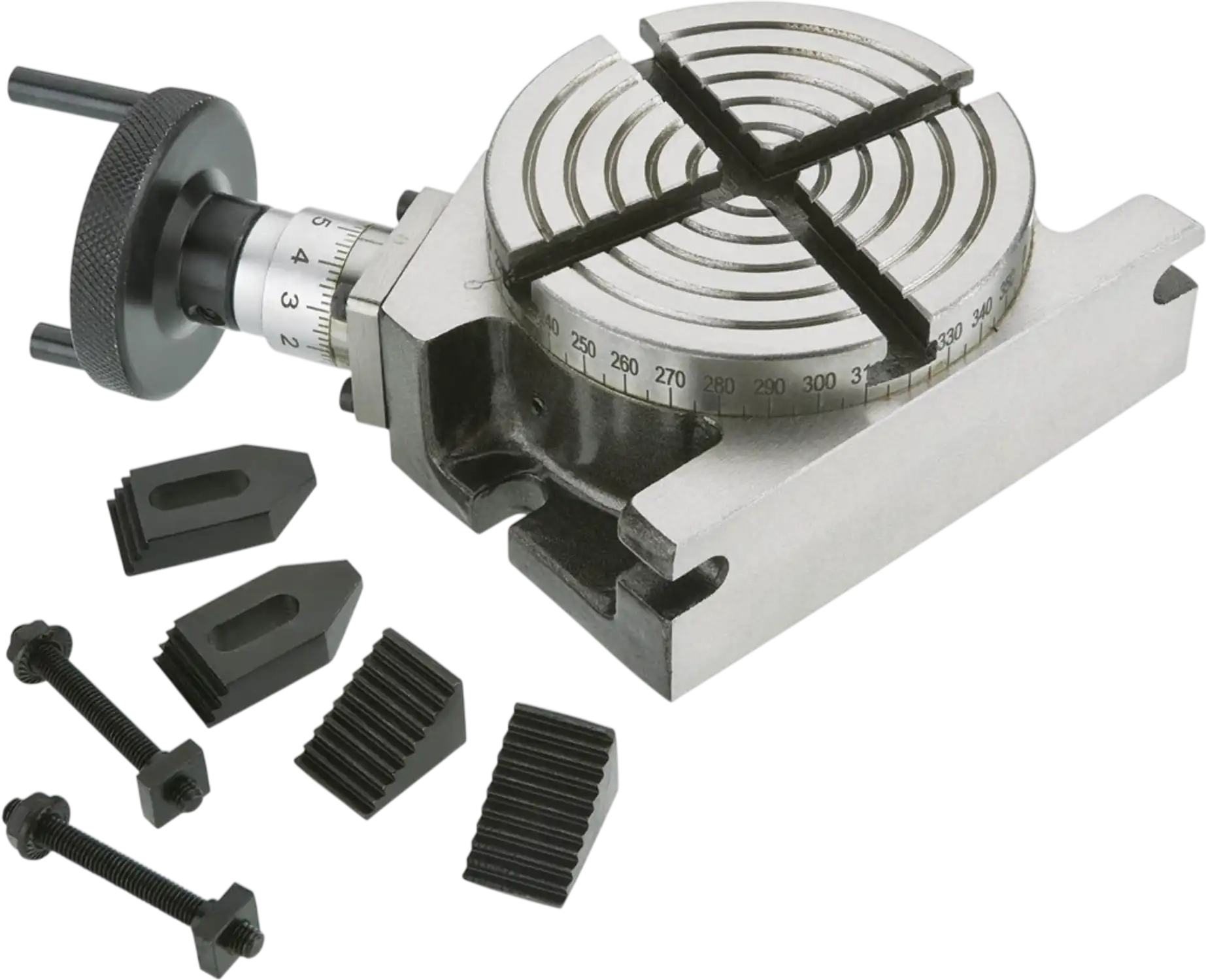

This 4-inch rotary table is a compact positioning tool designed for small machining and precision work. It helps rotate a workpiece accurately during milling, drilling, and layout tasks, making it a practical choice for model makers, hobby machinists, and anyone working on smaller parts.
It features a degree scale on the dial, a worm gear drive for controlled rotation, a lash adjustment screw, reference lines, and ball bearing rotary support for smooth operation. The table can be used in either a horizontal or vertical position, giving you added flexibility for different setups and machining angles.
With four 6mm T-slots and included clamps for securing work, this rotary table is well suited for benches and machines where space matters. Its compact size and manageable 9-pound weight make it a solid fit for precision-focused users who need accurate movement without a large footprint.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Can be used in horizontal or vertical position
Specifications
| Size | 4" |
| Total T-slots | 4 |
| T-Slot size | 6mm |
| Table height in horizontal position | 2-1/8" |
| Table height in vertical position | 4-1/8" |
| Approximate weight | 9 lbs. |
Warranty
This item comes with a 1 year factory warranty.
